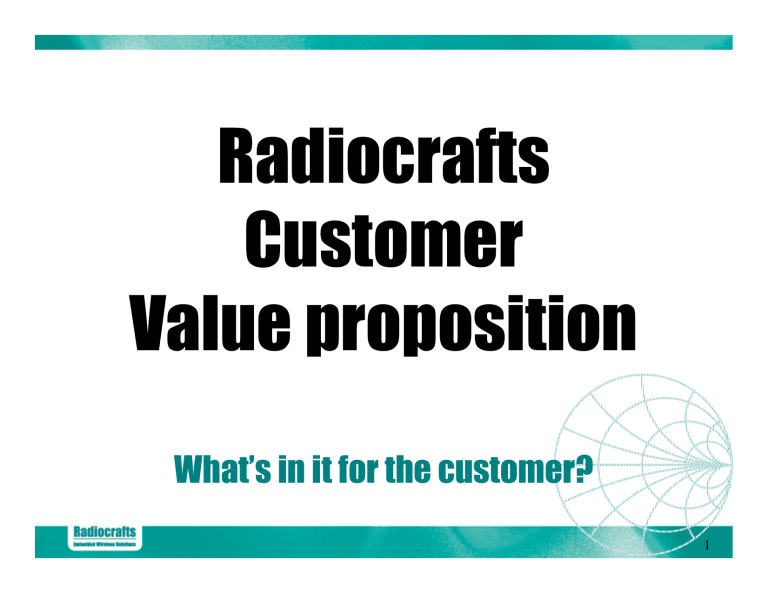

Radiocrafts

Customer

Value proposition

What’s in it for the customer?

1

Bringing customer value

Short time to market, well proven radio

– Customer can focus on application, not RF

High quality product, field proven over time

– Leading brand / Market preference

One safe and working radio solution

– CE qualification & FCC certification

Quick design cycle – reduced R&D cost

Standard compliance (wMBUs, KNX, ZigBee)

– Continuous upgrades and support

2

What’s in it for the customer?

A solution for every need

– Covering all license-free bands

– Supports most popular protocols for AMR/AMI, BA, HA and industrial applications

– Ideal for battery operated equipment

A complete wireless solution off-the-shelf, no RF skills required

– All HW provided and qualified in a compact standard form factor

– Complete radio protocol FW provided

Short time to market

– Meets all radio regulations; CE and FCC approvals

– Development Kits and evaluation software available

– Extensive design-in support by skilled RF engineers

Easy integration, easy production

– Small SMD form factor

– Easy to use interface; two pins data in/out, power supply, antenna

– Delivered on Tape&Reel for standard pick&place assemly lines

Add wireless for a low cost

– No risk, no large investments in RF development

– Competitive pricing due to optimized design by high volume manufacturer

3

Covering all needs

RC232 modules

VCC

Host

MCU or

RS232/

{

422/485

/USB driver

Optional

UART

RF

Antenna

• Embedded protocol

• UART in, RF out

• Up to 5-6 km range

• Easy to use cable replacement

Wireless M-Bus

ZigBee / 6LoWPAN

IEEE 802.15.4 modules

TinyMesh

• CE certified, high power

• Mesh network protocols

• 2.4 GHz world wide use

• One single shielded component

KNX-RF

• Easy to use and implement

• Mesh network protocol

• All ISM frequency bands

• Self configuring, self healing

• LBT, Acknowledge, AES128

Narrowband – High End

VCC

Host

MCU or

RS232/

{

422/485

/USB

Optional driver

UART

RF

Antenna

• Pan-European standard

• 169/868 MHz long range

• AMR and industrial

• Battery operation, metering

• Worldwide standard

• 868 MHz long range

• Building automation

• Battery operation

• Worldwide ISM bands

• 169 MHz to 868 MHz

• High power long range

• True narrowband

• AMR and Asset tracking

Value in the radio modules:

Embedded radio protocol

• Wireless M-Bus

• KNX-RF

• ZigBee

• TinyMesh

• RC232

• Narrowband

5

Wireless M-Bus

Industry recognition, module market leader

– >> 200k modules in the field

Standard compliance

– Recognized as a reference in the market

– Participation and major contributions to EN 13757-3/4/5

Complete Wireless M-Bus protocol

– Supports S, T, C, N modes

– PHY, MAC, Link layer, Encryption and application layer support

– Meter registration, encryption key handling

– Handling timing critical two-way communication

– Patented automessage generation system

Meeting OMS, DSMR and CIG requirements

– Fully compliant with all specifications

868 MHz, 169MHz and high power in one form factor

6

Value for money in the world’s best

Wireless M-Bus modules

• Small size module with complete Wireless M-Bus stack according to the newest Wireless M-Bus standard update

• Same small footprint for 868 and 169 MHz variants, even with 500mW output power

• The most feature rich Wireless M-Bus protocol stack in the industry

• Patented Wireless M-Bus stack implementation

• 100% tested module with unique ID and traceable data log

• Full industrial temperature range (-40°°°° to +80°°°° C)

• MTBF > 100 years

7

RC11x0-MBUS3 stack

• Supports S, T, R and C mode

• can automatically receive both C mode frame formats (A and B) at the same time as it receives T mode messages

• Supports all C-fields

• Supports all CI-fields

• Supports all transport layers

• Supports all application layers

• Supports compact frames

• Configurable as Master, Slave or Repeater

• Very low power automatic sleep mode in

Slave (Meter)

• Up to 64 Slaves can be registered in

Master (Concentrator)

• Patented automatic message handler in

Master unit

• Automatically checks the C field

• Automatically checks the access number

• Automatic message response for T2 mode within 2-3 ms for all 64 Slaves

• Mailbox storage of message with template option

• Dual message buffering to streamline twoway communication

• Supports application layer encryption (AES-

128-CBC) and link layer encryption (AES-

128-CTR)

• Supports Extended Link Layer for all modes

• Handles unique encryption keys for 64 devices

• Fully autonom unidirectional repeater

• Repeater installation mode and automatic status messages

• Easy to use UART configuration and data interface

8

RC1700-MBUS4 stack

• Supports all N modes

• 500mW output power, configurable

• Automatically checks the access number

• Automatic message response timing for

• Can automatically receive frame formats (A and B) at the same time

Fast and Slow response time

• Mailbox storage of message with template

• Supports all C-fields

• Supports all CI-fields

• Supports all transport layers

• Supports all application layers

• Supports compact frames option

• Dual message buffering to streamline twoway communication

• Supports application layer encryption (AES-

128-CBC) and link layer encryption (AES-

• Configurable as Master, Slave or Repeater

• Very low power automatic sleep mode in

Slave (Meter)

• Up to 256 Slaves can be registered in

Master (Concentrator)

• Unlimited number of Slaves supported via host controller

• Patented automatic message handler in

Master unit

• Automatically checks the C field

128-CTR)

• Supports Extended Link Layer

• Handles unique encryption keys for unlimited number of devices, 128 devices internally

• Fully autonom unidirectional repeater

• Repeater installation mode and automatic status messages

• Easy to use UART configuration and data interface

9

RC1xx0-MPC1 stack

• Fully M-Bus compliant meter data transmitter

• Complete S , T or N mode pulse transmitter

• Very low power

• Autonomous test modes, ideal for field trials

• Compliant with pulse, reed relay, opencollector, optical outputs

• Multiple pulse count inputs, reverse

• Configurable for Water, Gas, Electricity and other device types flow input, tampering input

• Optional realtime clock

• Configurable for different pulse weights

• Configurable transmission intervals

(seconds to hours)

• Encryption at application layer

(AES-128-CBC) or extended link layer

(AES-128-CTR)

• Optional non-volatile data storage

• Can be adapted to any serial meter interface

10

KNX-RF

Standard compliance

– First KNX-RF Multi module in the market

– Participation and major contributions to KNX RF task force

Complete KNX RF Multi protocol

– Supports Ready and Multi

– Repeaters

– Handling timing critical two-way communication, LBT, fast acknowledge and retransmissions

Easy to integrate in any product

– UART interface for data and commands

– Lower power modes for battery operation

11

RC1180-KNX1

General: KNX1:

• Small size module with complete • Supports KNX 1.1 and KNX Ready

KNX-RF Multi stack according to the • Complete KNX-RF modem newest KNX standard update • Listen Before Talk (LBT)

• Same small footprint for 868 and other frequency variants

• The most feature rich KNX-RF Multi protocol stack in the industry

• 100% tested module with unique ID and traceable data log

• MTBF > 100 years

• Full industrial temperature range

12

RC1180-KNX2

• Supports KNX 1.1,

KNX Ready, KNX Multi

• Complete KNX-RF modem

• Listen Before Talk (LBT)

• Supports unidirectional and bidirectional devices, S1 and S2 mode

• Supports F3 channel (configurable)

• Configurable call channel

• Supports all 3 fast and 2 slow channels

• Supports PRM and NPRM

(Non / Permanent Receive Mode)

• Supports Fast Ack of up to 64 units

• Supports two hop repeater with history list

• Configurable as

Sender, Receiver or Repeater

• Very low power automatic sleep mode

• Up to 128 devices can be registered, group address or individual address

• Supports addressing using unique Serial

Number or Domain Address (DoA)

• Automatic battery status supervision

• RSSI reading

• Automatic message response

(Fast Ack) for all 64 devices

• Fully autonom bidirectional repeater functionality (configurable)

• Automatic handling of Repetition Counter in Sender and Repeater

• Easy to use UART configuration and data interface

13

ZigBee

Compliant with standard

– Certified ZigBee stack

– FCC certified modules

Fastet way to market

– Built-in ZigBee protocol

– ZigBee Network Module (ZNM)

– Smart Energy module with easy to use interface

Tailored modules

– Embedded antenna

– Extra flash memory

TI 3

rd party design partner

14

TinyMesh

Robust multi-hop mesh protocol

– Bidirectional communication

– LBT, acknowledge and retransmissions

– Encryption

Network redundancy

– Self-configuring, self-healing

Easy to use

– Transparent to any application layer protocol

– UART interface

15

RC232

Very easy to use

– Cable replacement

Very easy to integrate

– Transparent data link; what you send is what you get

– Packet radio with addressing

Same protocol, cover all license free bands

– 169MHz to 2,45GHz ISM bands

Narrowband and high power for longer range

– 12.5KHz bandwidth and 500mW output power

16

Narrowband

The best radio performance in class

– Channel separation 12.5 kHz

– Category 1

High reliability for critical applications

– Industrial remote controls

– Alarm systems

Ultra narrowband radio

– Adjacent channel and blocking properties

Small form-factor

17
