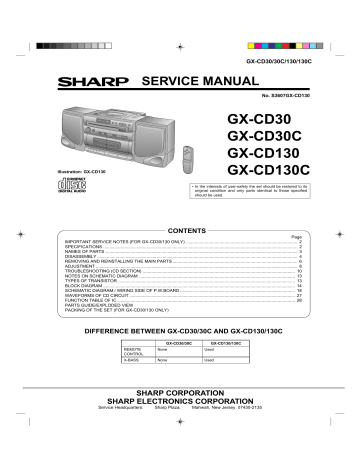

Illustration: GX-CD130

GX-CD30/30C/130/130C

SERVICE MANUAL

No. S3607GX-CD130

GX-CD30

GX-CD30C

GX-CD130

GX-CD130C

• In the interests of user-safety the set should be restored to its original condition and only parts identical to those specified should be used.

CONTENTS

Page

IMPORTANT SERVICE NOTES (FOR GX-CD30/130 ONLY) .......................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................. 2

NAMES OF PARTS ........................................................................................................................................................... 3

DISASSEMBLY .................................................................................................................................................................. 4

REMOVING AND REINSTALLING THE MAIN PARTS ..................................................................................................... 6

ADJUSTMENT ................................................................................................................................................................... 8

TROUBLESHOOTING (CD SECTION) ........................................................................................................................... 10

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 13

TYPES OF TRANSISTOR ............................................................................................................................................... 13

BLOCK DIAGRAM ........................................................................................................................................................... 14

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD ............................................................................................. 18

WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 27

FUNCTION TABLE OF IC ................................................................................................................................................ 28

PARTS GUIDE/EXPLODED VIEW

PACKING OF THE SET (FOR GX-CD30/130 ONLY)

DIFFERENCE BETWEEN GX-CD30/30C AND GX-CD130/130C

REMOTE

CONTROL

X-BASS

None

GX-CD30/30C

None

GX-CD130/130C

Used

Used

SHARP CORPORATION

SHARP ELECTRONICS CORPORATION

Service Headquarters: Sharp Plaza, Mahwah, New Jersey 07430-2135

GX-CD30/30C/130/130C

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

IMPORTANT SERVICE NOTES (FOR GX-CD30/130 ONLY)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the following safety checks.

1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials, cabinet, terminal board, adjustment and compartment covers or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner.

* Plug the AC line cord directly into a 120 volt AC outlet.

* Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled by a 0.15

µ

F capacitor in series with all exposed metal cabinet parts and a known earth ground, such as conduit or electrical ground connected to earth ground.

* Use a VTVM or VOM with 1000 ohm per volt, or higher, sensitivity to measure the AC voltage drop across the resistor (See diagram).

* Connect the resistor connection to all exposed metal parts having a return path to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor.

VTVM

AC SCALE

1.5k ohms

10W

TO EXPOSED

METAL PARTS

0.15 µ F

TEST PROBE

CONNECT TO

KNOWN EARTH

GROUND

All check must be repeated with the AC line cord plug connection reversed.

Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.

AC.) or more is excessive and indicates a potential shock hazard which must be corrected before returning the audio product to the owner.

SPECIFICATIONS

General

Power source:

AC 120V, 60 Hz

DC 12 V [ "D" size (UM/SUM-1, R20 or HP-2) battery x 8]

Power consumption:

25 W

Output power:

FTC; 2.5 W minimum RMS per

(30/130)

channel into 6 ohms from 100 Hz to

Output power:

(30C/130C)

Output terminal:

Dimensions:

Weight:

20 kHz with no more than 10 % total harmonic distortion.

RMS; 3.5 W per channel at 1 kHz,

10 % total harmonic distortion.

(AC operation)

RMS; 7 W (3.5 W + 3.5 W)

(AC operation, 10 % T.H.D.)

Headphones; 16 - 50 ohms

(recommended; 32 ohms)

Width; 12" (304 mm)

Height; 9-1/4" (234 mm)

Depth; 8-9/16" (216 mm)

7.1 Ibs. (3.2 kg) without batteries

Compact disc player

Disc:

Compact disc

Signal readout:

Audio channels:

Quantization:

Filter:

D/A converter:

Wow and flutter:

Non-contact, 3-beam semiconductor laser pickup

2

16-bit linear

4-tims oversampling digital filter

1-bit D/A converter

Unmeasurable

(less than 0.001% W. peak)

Speaker

Type:

Speakers:

Tweeter x 2

Maximum input power:

5 W

Impedance:

6 ohms

Dimensions:

2-way bass-reflex type

4" (10 cm) woofer x 2

Width; 7-5/16" (185 mm)

Height; 8-11/16" (220 mm)

Weight:

Depth; 5-15/16" (150 mm)

2.2 Ibs. (1.0 kg) /each

Radio

Frequency range:

FM; 87.6 - 108 MHz

AM; 530 - 1,702 kHz

Tape recorder

Frequency response:

50 - 14,000 Hz (Normal tape)

Signal/noise ratio:

50 dB (TAPE 1, recording / playback)

Wow and flitter:

Motor:

Bias system:

Erase system:

55 dB (TAPE 2, playback)

0.25 % (WRMS)

DC 12 V electric governor

AC bias

AC erase

Specifications for this model are subject to change without prior notice.

– 2 –

GX-CD30/30C/130/130C

NAMES OF PARTS

H

Main Unit

1. CD Play Indicator:

0 0

0 0 0

2. CD Repeat Indicator:

R R R R R

3. CD Track Number Indicator

4. CD Eject Button:

7 7 7 7 7

5. Remote Control Sensor (GX-CD130/130C ONLY)

6. CD compartment

7. (CD) Track Down/Review Button:

5 5

5 5

5

/

3 3

3 3

3

8. (CD) Track Up/Cue Button:

4 4 4 4 4

/

2 2 2 2 2

9. (CD) Stop Button:

H H

H H H

10. (CD) Play/Repeat Button:

0R 0R 0R 0R 0R

11. (CD) Pause Button:

6 6 6 6 6

14

15

16

17

18

12. Tuning Control

13. Power/Function/Band Selector Switch

14. Beat Cancel Switch

15. X-Bass Switch (GX-CD130/130C ONLY)

19

20

16. Tone Control

17. Volume Control

18. Tweeter

19. Woofer

20. Bass Reflex Port

21. (TAPE1) Cassette Compartment

22. (TAPE1) Record Button:

I I I I I

23. (TAPE1) Play Button:

0 0

0 0

0

24. (TAPE1) Rewind Button:

3 3 3 3 3

25. (TAPE1) Fast Forward Button:

2 2

2 2

2

26. (TAPE1) Stop Eject Button:

H H H H H

/

7 7 7 7 7

27. (TAPE2) Play Button:

0 0

0 0 0

28. (TAPE2) Stop Eject Button:

H H H H H

/

7 7 7 7 7

29. (TAPE2) Cassette Compartment

30. Speaker Terminals

31. FM Telescopic Rod Aerial

32. Speaker Wire

33. Speaker Release Lever

34. Battery Compartment

35. Headphones Socket

36. AC Power Input Socket

32 30

33

1

2

3

4 5 6 7 8 9 10 11 12 13

21 22 23 24 25 26 27 28 29

34

1

31

35 36 33

32

2

5

H

Remote Control (GX-CD130/130C ONLY)

1. Remote Control Transmitter LED

2. (CD) Play/Repeat Button:

0R 0R 0R 0R 0R

3. (CD) Track Down /Review Button:

5 5

5 5

5

/

3 3

3 3

3

4. (CD) Pause Button:

6 6 6 6 6

5. (CD) Track Up/Cue Button:

4 4 4 4 4

/

2 2 2 2 2

6. (CD) Stop Button:

H H H H H

3

4

6

18

19

20

Notes concerning use:

Periodically clean the transmitter LED on the remote control and the sensor on the main unit with a soft cloth.

Exposing the sensor on the main unit to strong light may interfere with operation. Change the lighting or the direction of the unit.

Keep the remote control away from moisture, excessive heat, shock, and vibrations.

25˚

25˚

8" - 20' (0.2 - 6 m)

– 3 –

GX-CD30/30C/130/130C

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need be removed when disassembling the unit. After servicing the unit, be sure to rearrange the leads where they were before disassembling.

4. Take suffcient care on static electricity of integrated circuits and other circuits when servicing.

Front

Cabinet

( A3 ) x1

( A2 ) x1

Power PWB

( A1 ) x2

ø3 x12mm

STEP REMOVAL PROCEDURE FIGURE

UNIT

1 Front Cabinet 1. Screw .................... (A1) x7

2. Socket ................... (A2) x1

3. Flat Cable ............. (A3) x1

4-1

2 Top Cabinet

(with CD Block)

1. Open the CD lid.

2. Screw .................... (B1) x5 4-2

3. Flat Cable ............. (B2) x2 4-2, 4-3

4. Tip ......................... (B3) x1 4-2

3 Tuner PWB 1. Screw ................... (C1) x3

(with Tuner Frame) 2. Flat Cable ............. (C2) x1

4-3

4 Main PWB 1. Screw ................... (D1) x1

2. Knob .................... (D2) x2

3. Flat Cable ............. (D3) x1

4-3

5 Deck PWB 1. Screw .................... (E1) x3

2. Socket ................... (E2) x3

6 Tape Mechanism 1. Open the cassette holder.

2. Screw .................... (F1) x6

4-3

5-1

5-2 7 Display PWB 1. Screw ................... (G1) x2

(with CD control 2. Hook .................... (G2) x3

Button) 3. Flat Cable ............ (G3) x1

8 Switch PWB

9 CD Servo PWB

1. Screw ................... (H1) x1

1. Screw .................... (J1) x3

2. Socket ................... (J2) x3

1. Screw .................... (K1) x3 10 CD Mechanism

11 Power PWB/

Terminal PWB

1. Open the battery lid.

2. Screw .................... (L1) x4

3. Hook ..................... (L2) x1

SPEAKER

1 Front Panel 1. Screw ................... (A1) x4

4-2

5-2

5-2

5-3

5-4

5-5

Front

Cabinet

( B1 ) x2

ø3 x10mm

Front

Cabinet

Rear

Cabinet

OPEN

( B3 ) x1

( D2 ) x2

( A1 ) x4

ø3 x20mm

Figure 4-1

( B1 ) x1

ø3 x8mm

Figure 4-2

( B1 ) x2

ø3 x10mm

Top Cabinet

CD Servo PWB

Tape

Mechanism

( B2 ) x1

Main PWB

( A1 ) x1

ø3 x65mm

( B2 ) x1

( G3 ) x1

CD Servo

PWB

Deck

PWB

Washer

( D1 ) x1

ø3 x10mm

( E1 ) x3

ø3 x10mm

Tuner

PWB

Tape

Mechanism

( E2 ) x1

( C1 ) x3

ø3 x10mm

( D3 ) x1

( E2 ) x2

( C2 ) x1

Tuner

PWB

Figure 4-3

– 4 –

GX-CD30/30C/130/130C

Front Cabinet

Rear Cabinet

Power PWB

( F1 ) x6

ø3 x10mm

Tape

Mechanism

Figure 5-1

( G1 ) x2

ø3 x10mm

( H1 ) x1

ø3 x12mm

( G2 ) x3

Display

PWB

( J1 ) x3

ø3 x10mm

( J2 ) x1

CD Servo

PWB

Top Cabinet

( J2 ) x2

Switch

PWB

Front Panel

( L1 ) x3

ø3 x10mm

Terminal

PWB

( L1 ) x1

ø3 x10mm

Push

Driver

( L2 ) x1

Figure 5-4

( A1 ) x4

ø3 x20mm

Figure 5-5

Figure 5-2

( K1 ) x3

ø2.6 x10mm

CD Mechanism

Figure 5-3

– 5 –

GX-CD30/30C/130/130C

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1, 2, 3, 4, 5 and 6 of the disassembly method to remove the tape mechanism.

How to remove the record/playback and erase heads (TAPE 1) (See Fig. 6-1.)

1. Carefully bend the record/playback head pawls (A1) x 2 pcs., in the direction of the arrow

Â

, and remove the record/ playback head upwards.

2. Remove the screws (B1) x 2 pcs., to remove the erase head.

How to remove the playback head (TAPE 2)

(See Fig. 6-2.)

1. Carefully bend the playback head pawls (C1) x 2 pcs., in the direction of the arrow

È

, and remove the playback head upwards.

How to remove the pinch roller (TAPE 1/2)

(See Fig. 6-3.)

1. Carefully bend the pinch roller pawl in the direction of the arrow

Ê

, and remove the pinch roller (D1) upwards.

How to remove the belt (TAPE 1) (See Fig. 6-4.)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the belt (TAPE 2) (See Fig. 6-4.)

1. Remove the tape 2 main belt (E1) x 1pc., from the motor side.

2. Remove the tape 1 main belt (F1) x 1pc., from the motor side.

( B1 ) x2

ø2 x7mm

Erase Head

Play Button

Figure 6-1

B

Play Button

A

TAPE 1

TAPE 2

B

A

Record/Playback

Head

Playback Head

Pawl

(A1)x2

Pawl

(C1)x2

How to remove the motor

(See Figs. 6-5 and 6-6.)

1. Remove the belt.

2. Remove the screws (G1) x 4 pcs., to remove the motor fixture.

3. Remove the screws (G2) x 2 pcs., to remove the motor.

Note:

When mounting the motor, pay attention to the motor mounting angle.

( G1 ) x2

ø2 x4mm

TAPE2 TAPE1

Figure 6-2

Pinch Roller

(D1) x 1

Pawl

C

Motor

TAPE 2

Figure 6-3

Motor

TAPE 1

FF/REW Belt

(E2)x1

Motor

Bracket

Figure 6-5

( G1 ) x2

ø2 x4mm

Flywheel

Motor

Bracket

Flywheel

Main Belt

(F1)x1

Main Belt

(E1)x1

Motor

Motor

( G1 ) x2

ø2.6 x2mm

Figure 6-6

TAPE2

Main Belt

(F1)x1

TAPE1

Main Belt

(E1)x1

Figure 6-4

– 6 –

CD MECHANISM SECTION

Perform steps 1, 2, 9 and 10 of the disassembly method to remove the CD mechanism.

How to remove the pickup (See Fig. 7-1.)

1. Remove the hooks (F1) x 4 pcs., to remove the CD cover.

2. Remove the screws (F2) x 2 pcs., to remove the shaft (F3) x1 pc.

3. Remove the stop washer (F4) x1 pc., to remove the gear

(F5) x 1 pc.

4. Remove the pickup.

CD Cover

( F1 ) x2

GX-CD30/30C/130/130C

( F1 ) x2

( F2 ) x2

ø2.6 x6mm

CD Mechanism

Shaft

( F3 ) x1

Gear

( F5 ) x1

Pickup

Stop Washer

( F4 ) x1

Figure 7-1

FITTING OF DIAL POINTER

1. Remove the three screws, and remove the tuner PWB from the tuner frame. (See Fig. 7-2)

2. Turn fully the dial wheel in the

Â

direction. (See Fig. 7-3)

3. Set the dial pointer as shown in Figure 7-2, and mount the tuner PWB.

Tuner

Frame

"0" Point

Dial

Pointer

( 229 )

Screw x3

Tuner PWB

(Bottom view)

Figure 7-2

Tuner PWB

(Top view)

Figure 7-3

A

– 7 –

GX-CD30/30C/130/130C

MECHANISM SECTION

• Driving Force Check

Torque Meter

PLAY: TW-2412

• Torque Check

Specified Value

ADJUSTMENT

TUNER SECTION

fL: Low-range frequency fH: High-range frequency

Tape 1: Over 50 g

Tape 2: Over 100 g

• FM IF/RF

Test Stage Specified

Value/Adjusting

Point

IF T1

Specified Value

Torque Meter

Tape 1 Tape 2

Detection T2

Play: TW-2111 30 to 60 g.cm

30 to 60 g.cm

Band Coverage fL: L2 fH: TC2

Fast Forward: TW-2231 80 to 135 g.cm

Rewind: TW-2231 80 to 135 g.cm

Tracking 88.0 MHz: L1

108.0 MHz: TC1

• Tape Speed

• AM IF/RF

Test Tape Test Stage

Nomal MTT-111 speed

Specified

Value

3,000

±

30 Hz

Instrument

Connection

Speaker terminal

(Load resistance:

6 ohms)

IF

Band Coverage

T3

Specified

Value/Adjusting

Point

TAPE SECTION

Position of each switch or control

Tracking fL: L4 fH: TC4

600 kHz: L3

1,400 kHz: TC3

Volume control

Beat cancel

Function/Power switch

Max

A

Tape/Off

• Bias Oscillation Check

Beat cancel

Specified Value

A: 82 + 10 kHz / -6 kHz

B: -2

±

2 kHz

C: +3

±

2 kHz

• Erase Current Check

Resistor for measurement: 1 ohm

Specified Value

50

±

25 mV

• VCO Frequency

Adjusting Point

VR1

Specified

Value

76 kHz

±

200 Hz

Instrument

Connection

Input: Pin 1 of IC1

Output: Pin 17 of IC2

Iuput: Antenna

Output: Headphones

Socket (Load resistance: 32 ohms)

Instrument

Connection

Input: Antenna

Output: Pin 19 of IC2

Input: Antenna

Output: Headphones

Socket (Load resistance: 32 ohms)

Instrument

Connection

Pin 13, pin 21 and ground of IC2

Note:

After preparing the test circuit shown in Fig. 8-1, connect the

Pin 13, Pin 21 and ground of the IC2 with the test circuit, and measure the value. At this time, apply a standard unmodulated signal input and adjust the VCO.

Pin 13 of IC2 Pin 21 of IC2

• Playback Amplifier Sensitivity Check

Test Tape

MTT-118

Specified Value

1.8 V

±

3 dB

Instrument Connection

Speaker Terminal

(Load resistance: 6 ohms)

G

D

S

FET : 2SK19 or 2SK54

TO FREQUENCY

COUNTER

10 kohm

AM TRACKING fH

Figure 8-1 VCO FREQUENCY TEST CIRCUIT

fH AM BAND fL COVERAGE

FM

TRACKING fH fL

L4

VCO

TC3

TC4 L2

TC1

TC2

L1

FM RF

1

IC1

T1

FM IF

T3

T2

FM DET

1

21 19 17

IC2

13

AM IF

VR1

Figure 8-2 ADJUSTMENT POINTS

– 8 – fL FM BAND fH COVERAGE

GX-CD30/30C/130/130C

CD SECTION

Since this CD system incorporates the following automatic adjustment function, when the pickup is replaced, it is necessary to reajust it.

Since this CD unit does not need adjustment, the combination of PWB and laser pickup unit is not restricted.

TEST MODE

Start

While holding down the "STOP" button, move the FUNCTION/POWER switch to "CD".

Then, release the "STOP" button and, within 0.5 second, press the PAUSE button.

Note

Operation

1. When the CD LID switch is in the OFF position, the unit will be able to enter the test mode.

However, playback cannot be performed in this mode.

2. You can only move the pickup.

3. The LCD display should be the same as it is for normal CD operations.

1

2

The use of the "UP/CUE" button will move the pickup to the outermost position.

The use of the "DOWN/REVIEW" button will move the pickup to the innermost position.

When the "PLAY" button is pressed, the laser will be lit, and when the "STOP" button is pressed, it will be turned off. Playback will also start and stop when these buttons are pressed.

a. If the "PLAY" button is pressed while in the stop mode, the laser will simply be turned on at first.

b. If the laser is lit and the "PLAY" button is pressed again, playback will start from the current pickup position.

c. If the "STOP" button is pressed, playback will stop. When pressed again, the laser will be turned off.

3 Turning the tracking servo on or off.

a. Each time the PAUSE button is pressed during playback, the tracking servo will be turned on or off.

(Note: If the PLAY button is pressed while in the stop mode, the tracking servo will automatically be turned on.)

LCD MODE

Start

While holding down the "STOP" button, move the FUNCTION/POWER switch to "CD".

Then, release the "STOP" button and, within 0.5 second, press the PAUSE button.

Display

1 2

3

1 second 1 second

* After the number

has appeared in the display, each time the "UP/CUE" button is pressed, the display will switch in the following order:

,

, and then

.

– 9 –

GX-CD30/30C/130/130C

TROUBLESHOOTING (CD SECTION)

When the CD does not function

When the CD section does not operate When the objective lens of the optical pickup is dirty,this section may not operate.Clean

the objective lens,and check the playback operation.When this section does not operate even after the above step is taken,check the following items.

Remove the cabinet and follow the troubleshooting instructions.

"Track skipping and/or no TOC(Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens.

Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.

Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.

Do not touch the lens with the bare hand.

• The CD function will not work.

The CD operating keys don't work.

Yes

Check the CD, DPS microcomputer (IC701), power supply, 4.19

MHz and 16.93 MHz clock, and reset terminal.

Yes

Check the waveform of SCK, SO (DATA) and SI (COMM).

Yes

See if the pick-up is in the pick-up in SW702 position.

Yes

If the items mentioned above are OK, check the main microcomputer IC701.

• The CD operating keys work.

Check the Focus - HF system.

Playback can be performed without a disc.

Yes

Does the pick-up move up and down twice?

No

Does the output waveform of IC801(16)(FD) match that shown in

Fig. 10?

No

Check the IC801(50)(CLK) line, 4MHz.

Check the microcomputer data on pins (51)(CL), (52)(DAT) and

(53)CE.

Yes

Focus search OK.

Check the area around IC804-BI801/CNS801.

Yes

0.5s

0.50 V

IC801 16 FD

Focus search is performed two times when play operation is done without disc.

0.5s

0.50 V

IC801 15 TD

1

2

Figure 10

– 10 –

GX-CD30/30C/130/130C

• Playback can only be performed when a disc is loaded.

Is the Focus servo active? (Can you hear it working?)

Yes

Does the DRF signal change from "L" to "H"?

Yes

Is HF waveform normal (see the Fig.11-1, 2)?

Check the tracking system.

Yes

HF

0.1V/DIV

0.5µsec/DIV(DC)

(When playing

back the disc)

No

No

No

Check the laser diode driver.

Check the area around IC801(16) - (21) (focus servo circuit).

If the disc is not turning, the DRF should not change to "H".

Yes

Check the spin system.

L

evel is abnormal.

Waveform is unstable.

Yes

Yes

Check the periphery of IC801 pins 41 and

42.

Check the spin system.

Waveform in case of normal playback

0.5s

1.00 V

IC801 16 FD

0.5s

10.0 V

IC801 12 CLV+

0.5s

10.0 V

IC801 54 DRF

0.5s

2.00 V

IC801 7 TE

2

1

3

4

Figure 11-2

Figure 11-1

• Check the tracking system.

Check waveform of IC801 pin 7 (TE).

The waveform shown in Fig. 11-3 appears, and no-disc state appears soon.

Yes

Tracking servo is inoperative.

Yes

Check the periphery of IC801 pin 8 to pin 15, and IC804 to

BI801/CNS801.

Play is possible in

TEST mode.

Yes

Although IL is possible, play is impossible.

Yes

Normal jump is impeded, and the program top cannot be reached.

Yes

Check the periphery of

IC801 pin 14.

Data cannot be read.

5ms

1.00 V

IC801 7 TE

5 ms

5.0 V

IC801 54 DRF

Yes

Check the VCO-PLL system.

4

3

Figure 11-3

– 11 –

GX-CD30/30C/130/130C

• Checking the spin system.

Play operation is performed without disc.

Yes

The turntable rotates a little.

No

The turntable fails to rotate or rotates at high speed.

Yes

The spin driver circuit is normal.

Yes

Check the periphery of IC801 pins 23 to 27, pin 39 and pin 40,

IC802 pin 12 and pin 13, IC804 to BI803/CNS803.

• Checking the VCO-PLL system

Play operation is performed when disc exits.

Yes

Although HF waveform is normal, TOC data cannot be read.

0.5s

1.00 V

IC802 3 PDO

0.5s

1.00 V

IC801 16 FD

2

Stop --> Play

As VCO frequency is locked at

4.32 M Hz, voltage of PDO rises and stabilizes.

Yes

Check PDO waveform (Fig. 12).

Error

Check the IC801 pins 43 and 44, IC802 pins 3, 5, 7, 9 and 10.

3

Figure 12

• Although HF waveform is normal and the time indication is normal, no sound is emitted.

Check IC802 pin 48 (EFLG).

Yes

Check IC802 pins 37and 40.

Abnomal

Check the periphery of IC803 (OPAMP).

No

Usually, the number of pulses of flawless disc is 100 pulses/ sec or less.

– 12 –

GX-CD30/30C/130/130C

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, the symbol as K and M are used: the symbol K means 1000 ohm and the symbol M means 1000 kohm and the resistor without any symbol is an ohm resistor. The resistor designated "Fusible" is a fuse type resistor

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this symbol P means micro-micro-farad and the unit of the capacitor without such a symbol is microfarad. As to electrolytic capacitor, the expression “capacitance/withstand voltage” is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• The indicated voltage in each section is the one measured by

Digital Multimeter between such a section and the chassis with no signal given.

1. Tuner

( ): AM mode

Marking except for ( ): FM mode

2. CD

( ): Play mode

Marking except for ( ): Stop state

3. Deck section

( ): Record mode

Marking except for ( ): Playback mode

Display / Control section:

( ): Active state maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

REF. NO

SW201

SW351

SW500

SW501

SW605

SW606

SW607

DESCRIPTION

RECODE/PLAYBACK

BEAT CANCEL

X-BASS [130/130C ONLY]

POWER/FUNCTION

TAPE 1 MAIN

TAPE 2 MAIN

TAPE1/2 SELECTOR

POSITION

OFF

A

OFF

OFF

OFF

OFF

OFF

REF. NO

SW702

SW761

SW771

SW772

SW773

SW774

SW775

DESCRIPTION

PICKUP IN

CD LID OPEN/CLOSE

CD-PLAY/REPEAT

CD-STOP

CD-UP/CUE

CD-DOWN/REVIEW

CD-PAUSE

POSITION

OFF

OFF

OFF

OFF

OFF

OFF

OFF

FRONT

VIEW

FRONT

VIEW

E C B

(S) (G) (D)

(1) (2) (3)

2SC2001 K

2SD468 C

KRA102 M

KRC102 M

KTA1266 GR

KTC3199 GR

B C E

2SD2394 F

Figure 13 TYPES OF TRANSISTOR

– 13 –

GX-CD30/30C/130/130C

LCD771

CD LCD

RX771

REMOTE

SENSOR

3 2 1

CD

OPERATION

KEY

SW771~SW775

CD LID

OPEN/CLOSE

SW761

1 2 3

1 2 3

CFW772

PICKUP UNIT

X701

4.19MHz

57

~

60 41

~

44 30 33 22 23

24

27

28

31

34

35

36

7 32

LID

37

IC701

IX0105AW

VLC3

VDD

SYSTEM

MICROCOMPUTER

38

25

+5V

(D)

9

~

14 17

~

19 21

SL+

SL–

13

14

20

FOCUS COIL

TRACKING COIL

PU-IN SW

PICKUP IN

SW702

M701

SPIN

MOTOR

M

M702

SLIDE

MOTOR

M

LASER

DRIVER

+5

Q805

6

3

4

1

2

FIN2

FIN1

E

F

IC8

LA92

SERVO

30

31

SL–

SL+

15 16 27 28 29

+5V

3

10 19 23 25

1

2

11

12

IC804

BA5920

17

18

26

27

FOCUS/TRA

/SPIN/SLID

DRIVE

1 2 3

CNP603

FROM MAIN SECTION

Figure 14 BLOCK DIAGRAM (1/4)

– 14 –

GX-CD30/30C/130/130C

LASER

RIVER

+5V

Q805

64 62

2

1

+

IC801

LA9240M

SERVO AMP.

SLI

SLC

CV+

44

43

40

JP–

32

6 27 28 29

49 50

51 52 53

54

CL, DAT, SELIAL CONTROL

+5V

Q804

CONSTANT

VOLTAGE

REGULATOR

0 19 23 25

IC804

BA5920FP

CUS/TRACKING

SPIN/SLIDE

DRIVER

22

5

6

7

8

13

28

2

+7.4V

+5V

XL801

16.93MHz

44

45

6

23 43

9

10

12

13

14

15

16

17

18

19

20

EFMO

EFMIN

CLV+

CLV–

V/P

HFL

IC802

LC78622E

LCHO

SERVO/SIGNAL

CONTROL

TES

TOFF

TGL

37

JP+

JP–

1

RES. CQCK. COIN

SQOUT. RWC. WRQ

61 58 57 56 55 54 53 2 4 8

11

64

63

62

51

46

39

38

33

32

+7.4V

(CD)

CNP851

1

2

R-CH

GND (A)

L-CH

3

4

5

+7.4V (D)

GND (D)

TO

MAIN

SECTION

Figure 15 BLOCK DIAGRAM (2/4)

– 15 –

GX-CD30/30C/130/130C

ROD ANTENNA

1

F1

B. P. F

3 1

RF AMP

2 3

IC1

LA1186N

FM FRONT END

MIX

5

VCC

9 6

OSC

8

7

4

L1

FM RF

FM

+B

L2

FM OSC

T1

FM IF

CF2

10.7MHz

AM IF

T3

L3

AM BAR ANT.

IC2

LA1805

FM/AM

IF MPX.

22

1

RF

3

MPX

FM

LE

AM

23

REG.

OSC

24

G

FROM CD

SECTION

TO CD

SECTION

FW851

R-CH

AUDIO GND

L-CH

CD+7.3V

POWER GND

1

2

3

CNP603

MUTE

SYNC. IN

L-CH

T2 PB HEAD

R-CH

P.B

T1

T1/T2

SELECTOR

SW607

REC/PB

SW201

C, D, E, F

P. B

P. B

L-CH

REC/PB

HEAD

REC

R-CH REC

ERASE

HEAD

SW351

BEAT

CANCEL

23

L (T2)

P.B

2

R (T2)

1

L (T1)

24

R (T1)

19

T1/T2

7

L

REC

18

R

POWER/

FUNCTION

SW501-A, B

CD

RADIO

TAPE

L

21

R

4

IC201

LA7345K

15

12

PLAYBACK AND

RECORD/PLAYBACK

AMP.

+B2

13

L

9

R

16

REC

SW201-B

REC/PB

Q351

L351

BIAS

OSC.

Q252

SW201-A

REC/PB

M

M601

TAPE

MOTOR

TONE

VR532

A, B

VOLTAGE

REGULATOR

Q405

+B1

S

S

Figure 16 BLOCK DIAGRAM (3/4)

– 16 –

GX-CD30/30C/130/130C

F

2

455kHz

CF3

5

FM-IF

DET.

LEVEL-DET.

AM-IF

DET.

AGC

GND

6 4

FM DET

T2

SW501-C

POWER/FUNCTION

TUNER

+B

A M VR1

VCO MONO

20

17

FM +B

16

POST

AMP.

MUTE

12

TU

DRIV.

8 19 18

TUNER +B

11 13 15 14

PILOT

DET.

PHASE

DET.

DECODER

TRIG.

VCO FF

7

ST.

DRIV.

21

VCC

FF

FF

ST.

SWIT.

9

10

E

32

B

GE

ATOR

5

L4

AM OSC

X-BASS

SW500

A, B

CD130/130C

ONLY

VOLUME

VR531

A,B

STAND-BY

MUTING

Q551

Q552

MUTE

DRIVER

2

L

IC501

LA4597

POWER AMP.

12

Q554

6

R

10

Q404

5

11

8

+B1

Q401

RIPPLE

FILTER

+B2

+

+

CNP552

SPEAKERS

TAPE

SW501-D

POWER/

FUNCTION

RADIO

SW501-C

POWER/

FUNCTION

CD

Q403

+B1

TUNER +B

130C/30C

SO651

J551

HEADPHONES

SP3

TWEETER

L-CH

SP1

WOOFER

SP2

WOOFER

R-CH

SP4

TWEETER

130/30

T651

POWER

TRANSFORMER

AC INPUT

AC 120V

60Hz

D651~D654

RECTIFIER

SW605 T1 MAIN

SW606 T2 MAIN

BATTERY

DC 12V

[ “D” size (UM/SUM-1,

R20 or HP-2) battery x 8]

Figure 17 BLOCK DIAGRAM (4/4)

– 17 –

GX-CD30/30C/130/130C

A

B

C

D

E

R842

22

LASER DRIVER

Q805

KTA1266GR

1.8V

3V

2.2V

C848

1/50

C849

0.022

+B

C840 0.33/50

C839

1/50

C838

0.01

C837 10/16

+B

C803

0.1/50

C804

0.001

TE

R802

100K

R804

2.2K

R805

6.8K

C805

0.033

C806

0.033

C807

0.1/50

R806

100

R807

1K

C809

0.047

R803

15K

C808

0.068

R809

27K

R808

12K

C810

180P

R811

3.3K

R840

22K

R828

1K

R839

22K

64 63 62

61 60 59 58 57

VCC

56 55 54 53 52 51 50 49

1

FIN2

FIN1

2 REF –

+

3

E

F

4

5

TB

6

TE–

7

TE

8

9

REF

REF

+

VCR

REF

REF

VCR

BAL

+

REF

HIST. COMP

SHOCK;WCOMP

10

TH

RF

FE1

REF

VCR

+

11

TA

12

TD–

REF

+

TGL1

THDL

THD

GL

REF

+

REF

+

+

+

DEF

HFL

DRF

IC801

LA9240M

SERVO AMP.

VCC

REF

JP

PSTR

REF

+–

+–

WCOMP

JP

13

TD

14

JP

15

TO

16

FD

GEN

+

REF

+

+

REF

REF

TO

FSC

GEN

REF

+

GEN

+ –

REF

+

+

FEBAL

FOSTA

TOSTA

2FREQ

LASER

FSTA

8/12CM

SLOF

JP–

JP+

CV–

CV+

DGND

45

CLK

CE

CL

DAT

REF

SLI

44

P-ON RES

+ –

REF

REF

OR

SLOF

RF

+ –

NC

48

TBC 47

FSC 46

SLC

43

RFS–

42

RFSM

41

CV+

40

39

SLOF 38

HFL 37

TES 36

TOFF

35

TGL 34

JP+

33

R871

4.7K

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

C850

0.1

C833

0.001

C830

2.2P

R833

5.6K

R832

56K

R838

33K

C834

0.033

R836

47K

C832

27P

R837

47K

R834

1K

HF

R835

470

C831

0.0027

C822

220P

R813

33K

R829

1K

R812

15K

C813

0.1

R814

10K

VREF

C812

330P

R815

47K

C814

0.01

R816

1.5K

R817 82K

C815 0.0047

R820 10K

C817 0.47/50

C816

0.001

R821

56K

R822

6.8K

R823 1.2K

R824 10K

R830 1K

C819

47/10

C818 1/50

R825 1.2K

C820 0.0033

R827

220K

R810

82K

C821

1/50

D802

1SS133

C851

0.022

C811

0.1

GND

R849

100K

F

G

H

11

12

13

14

15

16

5

6

7

8

9

10

17

18

19

20

21

22

PIN

NO.

1

2

3

4

23

24

25

26

27

28

29

30

31

32

IC801

VOLTAGE

PIN

NO.

33

2.5V

2.5V

2.5V

2.5V

0V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.2V

2.2V

0V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

VOLTAGE

0V

5V

5V

4.8V

0V

5V

0V

0V

1.5V

2.4V

2.5V

2.5V

0V

2.5V

2.5V

0V

0V

2.4V

4.1V

4.7V

0.9V

0.9V

2.1V

4.2V

0V

5V

0V

0V

5V

5V

2.5V

2.5V

9

10

11

5

6

7

8

12

13

14

15

16

17

18

19

20

PIN

NO.

1

2

3

4

21

22

23

24

25

26

27

28

29

30

31

32

IC802

VOLTAGE

PIN

NO.

33 0V

0V

1.5V

0V

2V

5V

0.3V

0V

2.5V

2.5V

0V

0V

0V

5V

2.5V

0V

5V

0V

0V

0V

0V

0V

0V

5V

2.5V

0V

0V

4.8V

5V

5V

0V

0V

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

VOLTAGE

0.1V

2.2V

0V

2.5V

0V

2.5V

0V

0V

0V

4.1V

4.1V

5V

0V

2.7V

2.4V

0V

0V

0V

0V

0V

5V

4.7V

2V

0V

0V

2V

4.7V

0V

5V

2.3V

2V

0V

P26 6 - F

FW852

TO DISPLAY

PWB

P22 4 - D

FW851

TO MAIN PWB

5V

D-GND

12

11

PUIN

WRQ

SQOUT

DRF

SL–

SL+

RWC

COIN

CQCK

RES

CNP852

1

3

2

5

4

10

9

8

7

6

CNP851

5

4

3

2

1

CD SIGNAL

5V

DIGITAL GND

PU IN

WRQ

SQOUT

DRF

SL (–)

SL (+)

RWC

CO IN

CQCK

RES

DIGITAL GND

DIGTAL +7.4V

L-CH

AUDIO GND

R-CH

SERVO PWB-D

+B

The numbers 1 to 12 are waveform numbers shown in page 27.

1

2 3

– 18 –

4

Figure 18 SCHEMATIC DIAGRAM (1/5)

5 6

GX-CD30/30C/130/130C

+B

+B

K

B

E

A

F

C802

47/10

R801

1K

C801

0.01

5

4

3

2

1

K

E

A

B

F

5

4

3

2

1

5

4

3

2

1

K

E

A

B

F

C847

0.01

R860

1K

+B

IC802

LC78622E

SERVO/SIGNAL

CONTOL

1

DEFI

2

TA1

3

PDO

R858

680

C841

0.047

4 VVSS

C842

0.047

5

ISET

R857

27K

R856

1.2K

6

VVDD

7

FR

8

9

VSS

EFMO

10

EFMIN

11 TEST2

CLV+

12

CLV–

13

14

V/P

15

HFL

16

TES

64 63 62 61 60 59 58 57 56 55 54 53 52

VCO CLOCK

OSC CONTROL

ERROR

CORRECT

FLAG

CONTROL

SLICE LEVEL

CONTROL

CLV

DIGITAL SERVO

SERVO

COMMAND

U-COM

INTERFACE

2K x 8BIT

RAM

SYNC-DETECT

EFM DEMODULATE

EXTERNAL

OUTPUT

51 50 49

SUB-CODE

EFLG

48

SBSY

47

XVSS 46

XIN

45

X-TAL

GENERATOR

XOUT

44

XVDD 43

42

MUTER

RVDD

41

40

RCHO

RVSS 39

1BIT

DAC

LVSS

LCHO

38

LVDD

37

36

MUTEL

NC 35

NC

34

TEST4

33

DIGITAL

OUT

FO+

FO–

TR–

TR+

XL801

16.93MHz

+B

+B

C890

100/10

R874

100

C868

10/16

C867

10/16

R873

100

R876

10K

R875

10K

C870

0.0022

C869

0.0022

R880

100

7

8

5

6

1

2

3

4

TR–

TR+

FO+

FO–

GND

PD

VR

LD

3

4

5

6

1

2

7

8

CNS801

7

8

5

6

1

2

3

4

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

TR–

TR+

FO+

FO–

GND

PD

VR

LD

PICKUP UNIT

1/16

MON

LD

K

E

A

B

F

C

LT0H30M1

TR+

FO+

FO–

TR–

ACTUATOR

+B

+B

DIGITAL GND

AUDIO GND

L-CH

R-CH

C887

0.022

+B

+B

+B

C846

330/10

Q804

2SD468 C

7.4V

4.9V

R877

220

R878

100

+B

5.5V

C889

10/16

CONSTANT

VOLTAGE

REGULATOR

SERVO 7.4V

+B

L801

0.82µH

C843

100/10

C873

0.01

TR+

TR–

FO–

FO+

0V

3.5V

3.5V

1

2

2.5V

2.5V

3

4

5

6

FOCUS/TRACKING/SPIN

SLIDE DRIVER

IC804

BA5920FP

+

– +

+

+ –

0V

7

+

28

0V

27

26

25

3.5V

3.5V

2.5V

VCC

24

23

22

2.5V

2.5V

7.4V

0V

0V

0V

F+

2.5V

2.5V

3.8V

8

9

10

11

– +

+ –

VCC

21

7.4V

20

19

18

2.5V

2.7V

3.8V

F–

3.2V

+ +

0V

6.7V

12

13

14

+

2.9V

2.9V

17

3.2V

16

15

+B

SP+

SP–

SL+

SL–

PU-IN

+B

6

5

4

3

2

1

6

5

4

3

2

1

6

5

4

3

2

1

M701

SPIN MOTOR

+

M

+

M

M702

SLIDE MOTOR

SW702

PICKUP IN

CD MOTOR

PWB-E

NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

7 8 9 10

Figure 19 SCHEMATIC DIAGRAM (2/5)

– 19 –

11 12

GX-CD30/30C/130/130C

A

B

C

D

E

F

FW772

SW761

CD LID

OPEN/CLOSE

SWITCH PWB-A5

130/130C

ONLY

1

FW772

3

3

2

1

3

2

1

Q740

RX771

30/30C

ONLY

LCD771

35

33 32

3

4

5

1

2

6

7

8

48

49

30

40 25

45

50

55

IC701

10

20

15

60

5

17

16

64 1

3

1

12

1

DISPLAY PWB-A2

FW603

TO MAIN PWB

CNP603

P25 10 - A

SW774

DOWN/ REVIEW

SW773

UP/CUE

SW772

STOP

G

SW771

PLAY/REPEAT

SW775

PAUSE

H

The numbers 1 to 12 are waveform numbers shown in page 27.

1 2 3 4

Figure 20 WIRING OF P.W.BOARD (1/4)

– 20 –

5 6

GX-CD30/30C/130/130C

CD MOTOR PWB-E

M701

SPIN MOTOR

SW702

PICKUP IN

+

-

M702

SLIDE MOTOR

+

-

1 2

CNP803

3 4 5 6

PICKUP UNIT

COLOR TABLE

B R

R D ( R )

O R

Y L

G R

B L

V L

G Y

W H ( W )

B K

P K

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

CNS801

1 2 3 4 5 6 7 8

CNS803

4

5

6

1

2

3

RD

WH

GY

WH

GY

WH

6

5

4

3

1 8

7 12 10

CD SERVO PWB-D

CNS802

R810

R839

R840

R830

C844

C818

R824

R825

C846

ZD801

R878

R873

C889

R877

C867

L801

C817

R823

R822

C819

R831

C820

C873

C843

R874

C868

C890

C870

R876

R880

C869

R875

C887

CNP851

XL801

C848

R842

Q805

C849

R829

C813

R828

C811

R819

C815

R820

R821

C816

R812

R813

R814

R815

C814

R816

C812

C807

R806 R805

C809

C806

R807

C808

R809

R811

R808

C810

C804

C805

R804

R802

R803

C803

R817

C830

R833

C832

R832

R826

R827

C822

CNP852

R834

R837

R835

C831

C850

R856

R857

C842

C841

R858

C847

R860

R871

C802

C840

C845

C801

R801

C838

C839

C837

R838

C834

R836

C833

C835

D802

C821

R849

C851

RD

WH

GY

WH

GY

9

2

11

5 4 3 2 1

FW851

TO MAIN PWB

P25 12 - B

12 1

FW852

7 8 9 10

Figure 21 WIRING OF P.W.BOARD (2/4)

– 21 –

11 12

GX-CD30/30C/130/130C

A

B

C

ROD

ANT.

CNW2

B. P. F.

F1

1 2 3

L1

FM RF

C4

22P

(CH)

1

1.6V

C2

0.001

FM FRONT END

IC1

LA1186N

RF AMP

OSC

2 3

MIX

5

VCC

9 6 8

TC1

VC1

R2

33

C5

33P

(CH)

L2

FM

OSC.

7

4

0V

C6

15P

(RH)

R1

10

C15

0.022

R9

22K

C10

0.022

C8

4P

(CH) fL fH

FM BAND

COVERAGE

R5

330K

C29

10/16

VC2

R3

47

FM IF

T1

L3

AM BAR ANT.

C14

0.022

R25

120

R6

820K

+B

C39

0.022

C37

220/10

1.6V

C20

0.022

T2

R27

33K

FM DET.

1.6V

24 23 22 21 20

6.1V (6.4V)

19 18

AM

OSC

STB AM

RF IN

FM IF IN

1.6V

1 2

+B

AM MIX

3

6V

(6.3V)

C26

22/16

FM DET

AGC

AM OUT AM

IN

AM IF GND

ST

IND

4

5

6

7

17

DET

OUT

TUN

IND

8

R30

1.2K

VCO

C24

470P

C27

3.3/50

VR1

6.8K

C25

3.3/50

1.7V

16

MPX-IN

9

R29

15K

15 14

FM-M/ST

LCH

10

13

1.2V

(0V)

MPX VCO

CK 7kKHz

RCHAM/FM

11 12

0.8V (1V)

IC2

LA1805

FM/AM

IF MPX.

(Ra)

1 3

1

3

CF2

C35

1/50

CF3

2

T3

AM IF

2

+B R35

1.8K

+B

R7

390 TC3 VC3 fL fH

AM

TRACKING

C21

0.022

C33

1/50 fL fH

FM TRACKING

C11

220P +B +B

C17

0.022

TC4 VC4 fH AM BAND fL

COVERAGE

TUNER PWB-B

L4

AM OSC.

C36

0.022

+B TUN+B +B

CNP1

1 2 3 4 5 6

D

E

F

G

TAPE2

PLAYBACK HEAD

L-CH

1

2

3

1

2

3

R-CH

TAPE1

RECORD/PLAYBACK

HEAD

L-CH

R-CH

ERASE HEAD

3

4

5

1

2

1

2

3

4

5

R433

3.3K

CD

FM AUTO

AM

TAPE

SW501-A

FUNCTION

FUNCTION

SW501-B

CD

FM AUTO

AM

TAPE

FW1

1

2

3

4

5

6

+B

+B

+B

TO CD SERVO PWB

CNP851

P18 3 - H

FW851

R-CH

1

AUDIO GND.

2

L-CH

3

CD +7.4V

POW GND

4

5

TO DISPLAY PWB

FW603

P26 2 - H

R456

10K

R455

10K

R457

1K

R458

1K

MUTE

SYNC IN

1

2

3

CNP603

H : MUTE

L : REC

R201

1K (HND)

R202

1K

R220

27K

R219

27K

R243

56K

C203

150P

SW201-D

P

SW201-C

R P R

R203

1K

C205

680P

C204

150P

C206

680P

R204

1K

R

P

SW201-F

R P

SW201-E

R232

10K

R231

10K

C249

100/10

C217

0.018

R207

10K

R211

6.8K

0V

(0V) 24

C207

330P

23

0V

(0V) 22

C215

22/16

C219

1/50

21

R213

2.7K

20 19 18

0V

(0V)

17

C233

22/16

0.6V

(0.6V)

16

R229

10K

C239

2.2/50

15

R241

12K

14 13

0V

(0V)

1 2

0V

(0V)

3

C208

330P

C210

330P

C216

22/16

C218

0.018

C220

1/50

4

R206

150

R214

2.7K

R208

10K

R212

6.8K

C230

0.001

5 6 7

IC201 : PLAYBACK AND

RECORD/PLAYBACK AMP.

C351

560P

+B

R250

100

10

IC201

LA7345K

11 12

SW201-B

P R

R265

4.7K

R262

4.7K

8 0.6V

(0.6V)

C234

22/16

9

SW201-A

P

R

R356

47

C353

0.0039

R351

47K

C354

0.027

(ML)

R352

100K

BIAS

OSC.

Q351

2SC2001 K

R354

47

(7.2V)

0V

0V

(1.1V)

R353

22

0V

(0.4V)

C356

47/10

L351

330µH

R355

47

R254

22k

3

L : T1

D254

1SS133

2

1

Q252

KRC102 M

CNP602

L

1

R

2

AUDIO GND

3

L

4

R

5

AUDIO +B

6

SYNC.

7

TAPE +B

8

VCC

9

GND

10

BC-A

11

FW

+B

+B

H

NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

1 2 3

– 22 –

4

Figure 22 SCHEMATIC DIAGRAM (3/5)

5 6

GX-CD30/30C/130/130C

MAIN PWB-A1

CD

M AUTO

AM

APE

SW501-A

FUNCTION

R561

2.7K

FUNCTION

SW501-B

CD

AUTO

AM

TAPE

C509

0.027

TONE

VR532-A

50K (A)

TONE

VR532-B

50K (A)

C510

0.027

R562

2.7K

P602

L

1

R

2

GND

3

L

4

R

5

O +B

6

NC.

7

E +B

8

VCC

9

GND

10

C-A

11

FW602

10

11

6

7

4

5

8

9

1

2

3

R461

68

+B

+B

B A

SW351

BEAT

CANCEL

+B

+B

(130/130C ONLY)

C561

0.027

SW500-A

X-BASS

R517

22K

ON

OFF

R518

22K

SW500-B

X-BASS

OFF

ON

C562

0.027

+B

+B

+B

C567

0.0027

C565

0.1/50

R565

2.7K

VOLUME

VR531-A

20K (B)

MUTING

Q551

KTC3199 GR

R571

1K

0V

0V

0V

R573

4.7K

R575

100K

R566

2.7K

C566

0.1/50

C568

0.0027

VR531-B

20K (B)

VOLUME

R572

1K

0V

C586

0.47/50

0V

R574

4.7K

Q552

KTC3199 GR

MUTING

R570

1K

C569

1/50

POWER AMP.

0V

2

IC501

LA4597

5.8V

12

C579

100/10

C583

1000/10

C571

0.001

C573

100/10

0V

1 1.2V

4

10.3V

13

11

0V

C581

0.1

(ML)

R581

3.3

0V

2

3

C575

220/25

C570

1/50

C572

6

0.001

7

3

1.2V

11.2V

0V

5

10.3V

9

5.8V

10

8

12V

C580

100/10

R582

3.3

C582

0.1

(ML)

C584

1000/10

+B

D501

1SS133

D572

1SS133

C576

0.022

D573

1SS133

R576

1K

C57

4700 or 25V

1

11.4V

D574

1SS133

1

2

3

4

FW652

3

4

1

2

CNP652

R577

120

R578

120

CNP552

SPEAKERS

+

+

C589

2.2/50

C588

100/25

+B

R579

10K

D575

1SS133

FUNCTION

SW501-D

CD

FM AUTO

AM

TAPE

+B

1

2

1

2

1

2

SP3

TWEETER

L-CH

SP1

WOOFER

SP2

WOOFER

R-CH

SP4

TWEETER

130C/30C

T651

POWER TRANSFORMER

AC SOCKET

AC 120V

60Hz

T.F

130/30

+B

D405

1SS133

CD

FM AUTO

AM

FUNCTION

SW501-C

TAPE

+B

RIPPLE

FILTER

Q401

2SD468 C

7.3V

11.8V

7.9V

R402

560

R401

4.7

R403

270

C401

0.022

Q403

KRC102 M

3

0V

CD: 7.3V

0V

1

2

CD: 0V

7.7V

(8V)

C406

330/16

VOLTAGE

REGULATOR

Q405

2SD2394 F

0V

CD: 7.3V

12V

C407

10/16

1

2

7.9V

7.9V

CD:4.2V

3

Q404

KRA102 M

D401

RD8.2JB1

R410

1.5

(1/2W)

R601

2.7

+B

+B

+B

+B

FW651

3

3

1

1

FM SIGNAL

AM SIGNAL

POWER PWB-A3

BATTERY 12V

[ “D” size (UM/SUM-1,

R20 or HP-2) battery x 8 ]

TERMINAL PWB-A4

PLAYBACK SIGNAL

RECORD SIGNAL

CD SIGNAL

+B

+B

+B

+B

C393

0.022

6

5

4

8

7

3

2

1

6

5

4

8

7

3

2

1

CNS204

+

M

TAPE

M601

SW608

T1/T2

MUTE

SW605

MAIN

T1

SW606

MAIN

T2

MECHA GND

TAPE MECHANISM

7 8 11 12 9 10

Figure 23 SCHEMATIC DIAGRAM (4/5)

– 23 –

GX-CD30/30C/130/130C

A

B

C

TUNER PWB-B

C34

C33

C27

AM IF CF3

C26

C17

R7

C21

R3

R25

C15

C20

CF2

R9

C24

C22

C39

C37

C14

C25

R27

R29

R30

C23

FM DET

C29

L2

C38

R35

FM IF

C2

BK

L3

AM BAR ANTENNA

(233)

CNW2

ROD ANNTENA (236)

COLOR TABLE

B R

R D ( R )

O R

Y L

G R

B L

V L

G Y

W H ( W )

B K

P K

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

D

E

F

G

H

1

T651

POWER TRANSFORMER

C652

D653

D651

C653

D654

1 2

CNP651

D652

C651

C654

4 3 2 1

CNP652

3

FW651

1

T.F

SO651

AC INPUT

AC 120V 60Hz

1

FW651

3

BATTERT

SPRING

(249)

BATTERY DC 12V

["D" size (UM/SUM-1,R20 or

HP-2) battery X 8]

R578

R577

J551

J551

HEADPHONES

POWER PWB-A3

L-CH

CNP552

SPEAKERS

R-CH

2

TERMINAL PWB-A4

BATTERT

SPRING

(204)

3 4

Figure 24 WIRING OF P.W.BOARD (3/4)

– 24 –

5

6

CNS651

1

2

VR531

VOLUME

MIN MAX

VR532

TONE

LOW HIGH

[130/130C ONLY]

SW500

X-BASS

OFF

P20 6 - D

FW603

ON

SW351

BEAT CANCEL

B A

TAPE

OFF

SW501

FUNCTION

AM FM AUTO

CD

ON

POWER

C567

R571

R572

9

8

7

6

13

12

11

10

3

2

1

5

4

A

B

C568

R565 C565

C566

A

R518

130/130C

ONLY

R517

B

C509

130/130C ONLY

C561

R561

R562

C510

C562

130/130C

ONLY

D575 R566

C579

R581

C580

C581

R582

C582

C572

C574

D572

D573

D501

R576

R570

C586

C575

C573

R574

R575

R573

C406

D574

C407

C588

C589

C577

C571

E C B

Q405

R410

A

B

A

B

R579

3 2 1

CNP603

C584

11

R601

FW602

C583

5

R442

1

R458

R457

1

R441

R433

FW851

R455

R401

R456

R434

Q403

C404

1

BI651

2

4

FW652

1

D401

R403

C402

R402

Q404

D405

D406

C401

Q401

MAIN PWB-A1

RD

GY

D

C

FW652

GX-CD30/30C/130/130C

P21 9 - G

CNP851

TO CD SERVO

PWB

FW602

FW1

TAPE2

PLAYBACK HEAD

(47)

PK WH BK

(47)

RECORD/PLAYBACK

HEAD

TAPE1

ERASE HEAD

(13)

GY

PK

BK

WH

3

2

1

CNS201

PK WH BK

GY

WH BK

BR

SW606

TAPE2

MAIN

SW605

TAPE1

MAIN

SW607

TAPE1/ 2

SELECTOR

SW601

TAPE MOTOR

PK

BK

WH

BK

WH

3

2

1

5

4

CNS202

+

GY

VL

BL

GR

YL

OR

RD

BR

6

5

8

7

4

3

2

1

CNS601

7

DECK PWB-C

R222

3

2

1

Q252

R356

5

4

3

2

1

B

A

F

E

D

REC.

P.B.

C

3

2

1

Q351

B

C

E

R354

1 2 3 4 5 6 7 8 9

10 11 12

IC201

24 23 22 21 20 19 18 17 16 15 14 13

C244

R250

8

CNP204

7 6 5 4 3 2 1

11

10

5

4

3

2

1

7

6

9

8

8 9 10

Figure 25 WIRING OF P.W.BOARD (4/4)

– 25 –

11 12

GX-CD30/30C/130/130C

A

B

C

D

E

F

G

H

DISPLAY PWB-A2

LCD771

R771

3.9K

R772

2.7K

R773

1.8K

R774

1.5K

SW774

DOWN/

REVIEW

SW773

UP/CUE

SW775

PAUSE

SW771

PLAY/

REPEAT

SW772

STOP

1

REMOTE

SENSOR

RX771

2

3

R779

47

130/130C

ONLY

8 7 6 5 4 3 2 1

R776 10K

R708

1K

+B

+B

C702 0.022

R710

10K

R711

2.7K

R709

1K

49 SEG12

50

51

SEG11

SEG10

52

53

54

SEG9

SEG8

SEG7

TR1 LED

TR2 LED

MTCONT1

55

56

57

58

SEG6

SEG5

SEG4

SEG3

59

60

SEG2

SEG1

61

62

SEG0

P00

63

64

P01

P02

R712

1K

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

SYNC-IN

TORAY2 P32

TORAY1

P31

REMCON INT2 P30

VREF

AVSS

IC701

IX0105AW

SYSTEM

MICROCOMPUTER

XCIN

XCOUT

VDD

VSS

XOUT

XIN

RESET

PU-IN

WRQ

SQOUT

DRF

P23

P22

P21

P20

20

19

18

17

24

23

22

21

32

31

30

29

28

27

26

25

R714

10K

C704

100/10

C705

0.022

R713

1K

X701

4.19MHz

R715

15K

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16

R734

1K R730

1K

R726

R728

R729

R731

R732

R733

R718~

R725: 15K

1K

1K

1K

1K

1K

1K

R735

1K

R716

10K

+B

SL (–)

SL (+)

+B

+B

D740 1SS133

R741

3.3K

Q740

KRC102 M

2 3

R740

4.7K

1

R742

1K

C741

3.3/50

R743

100K

D741

1SS133

C740 0.01

FW603

1 2 3

CNP603

P22 5 - E

TO MAIN PWB

NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

1

2 3

– 26 –

4

Figure 26 SCHEMATIC DIAGRAM (5/5)

1

FW772

1

SWITCH

PWB-A5

3 3

SW761

CD LID

OPEN/CLOSE

12

11

10

9

8

7

6

3

2

1

5

4

FW852

PIN

NO.

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

5

6

3

4

1

2

7

8

9

10

11

12

13

14

15

IC701

VOLTAGE

PIN

NO.

4.1V

4.1V

0V

0V

0V

0.4V

0.4V

0V

0V

0V

0V

0V

0V

0V

0V

3.9V

0V

5V

0V

0V

5V

2.5V

2.5V

0V

5V

5V

0V

0V

5V

4.8V

0V

3.8V

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

VOLTAGE

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

5V

0V

0V

0V

0.4V

5V

3.1V

1.5V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

2.4V

0V

0V

0V

P18 3 - G

CNP852

TO CD SERVO

PWB

5 6

GX-CD30/30C/130/130C

FUNCTION TABLE OF IC

IC701 RH-iX0105AWZZ (IX0105AW): System Control Microcomputer

Pin No.

Terminal

Name

Port Name Input/

Output

Function

1*

2*-5*

6*

7

8*-12

13,14

15*,16*

17

18

19

20

21

22

23

24

25

26*

27

28

29

30

31

32

33

34

35-37

38-40

P03

P10-P13

D0

D1

D2-D6

D7,D8

D9,D10

P20

P21

P22

P23

RESET

XIN

XOUT

VSS

VDD

XCOUT

XCIN

AVSS

VREF

P30

P31

P32

P33

P40

AIN5-AIN7

VLC3-VLC1

41-44 COM3-COM0

45-61*

(45*-56*)

SEG16-SEG0

MTCONT2

POWER-IN,

CK (VOL),

DATA (VOL),

STB (VOL)

POWER-ON

MUTE

SYNC-OUT,

RES,CQCK,

COIN,REC

SL+,SL-

SRS2,SRS1

DRF

SQOUT

WRQ

PU-IN

REMOCONINT2

TORAY1

TORAY2

Input/Output Used to input or output 4 bits at a time. When the output latch is set to "1", the unit will be in the input mode. The key-on wakeup function, which can be switched on or off by the software, and a pull-up transistor, which can be turned on or off by the software, are built in.

Input/Output Used to input or output 4 bits at a time. When the output latch is set to "1", the unit will be in the input mode.The key-on wakeup function, which can be switched on or off by the software, and a pull-up transistor,which can be turned on or off by the software, are built in.

Input

Input

Input

Input

Input

Input

Input

Input

Input

Input/Output Each terminal can be used to input or output 1 bit at a time. The output section has a latch which holds

1 bit. One of the D ports is assigned by register Y as a data point, to execute input or output.

To use the port for input, set the output latch for that bit to "1". All of the output latches on port D can be set to "1" using the CLD command.

Input/Output Each terminal can be used to input or output 1 bit at a time. The output section has a latch which holds

1 bit. One of the D ports is assigned by register Y as a data point, to execute input or output.

To use the port for input, set the output latch for that bit to "1". All of the output latches on port D can be set to "1" using the CLD command.

Input/Output Each terminal can be used to input or output 1 bit at a time. The output section has a latch which holds

1 bit. One of the D ports is assigned by register Y as a data point, to execute input or output.

To use the port for input, set the output latch for that bit to "1". All of the output latches on port D can be set to "1" using the CLD command.

Input/Output Each terminal can be used to input or output 1 bit at a time. The output section has a latch which holds

1 bit. One of the D ports is assigned by register Y as a data point, to execute input or output.

To use the port for input, set the output latch for that bit to "1". All of the output latches on port D can be set to "1" using the CLD command.

Input/Output Each terminal can be used to input or output 1 bit at a time. The output section has a latch which holds

1 bit. One of the D ports is assigned by register Y as a data point, to execute input or output.

To use the port for input, set the output latch for that bit to "1". All of the output latches on port D can be set to "1" using the CLD command.

Input/Output Used to receive 4 bits at a time.

Input/Output Used to receive 4 bits at a time.

Input/Output Used to receive 4 bits at a time.

Input/Output Used to receive 4 bits at a time.

Input/Output Reset pulse input/output terminal. When a reset is caused by the watch dog timer, an "L" level will be output. The output is an N channel open drain.

Input Input/output terminals for the main clock generation circuit. Used by connecting a ceramic resonator between the XIN and XOUT terminals. There is a built-in feedback resistor between the XIN and XOUT terminals.

Output Input/output terminals for the main clock generation circuit. Used by connecting a ceramic resonator between the XIN and XOUT terminals. There is a built-in feedback resistor between the XIN and XOUT terminals.

GND input terminal.

Output

Input

Positive power supply terminal.

Input/output terminals for the sub clock generation circuit. Used by connecting a crystal oscillator between the XCIN and XCOUT terminals. There is a built-in feedback resistor between the XCIN and

XCOUT terminals.

Input/output terminals for the sub clock generation circuit. Used by connecting a crystal oscillator between the XCIN and XCOUT terminals. There is a built-in feedback resistor between the XCIN and

XCOUT terminals.

Output

Output

GND input terminal for the A-D converter.

Reference voltage input terminal for the A-D converter.

Used to receive 4 bits at a time.

Used to receive 4 bits at a time.

Used to receive 4 bits at a time.

Used to receive 4 bits at a time.

Used to receive 4 bits at a time.

Used to receive 4 bits at a time.

LCD power input terminals. To use the internal resistor, connect VLC3 to VDD (if a brightness control is needed, connect VLC3 to VDD through a resistor). When an external power supply is used, apply voltages as follows: 0<VLC1<VLC3<VLCD<VDD.

LCD common output terminals.

LCD segment output terminals.

62*-64* P00-P02 Input/Output Used to input or output 4 bits at a time. When the output latch is set to "1", the unit will be in the input mode. The key-on wakeup function, which can be switched on or off by the software, and a pull-up transistor, which can be turned on or off by the software, are built in.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 28 –

GX-CD30/30C/130/130C

PARTS GUIDE

MODEL

GX-CD30

GX-CD30C

GX-CD130

GX-CD130C

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the following information.

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

1. MODEL NUMBER

3. PART NO.

2. REF. No.

4. DESCRIPTION

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

MARK: SPARE PARTS-DELIVERY SECTION

CAPACITORS

from each other by reading their Part Numbers.

REFERENCE

There are two types of capacitors available and they can be identified

RESISTORS

Unless otherwise specified, resistors are

±

5%, carbon type. Tubular type carbon film resistor

±

5% is identified the symbol TV (TQ/CY)

• Ceramic type capacitor; of the part No. VRS–TV(TQ/CY)0000000; this TV(TQ/CY) does

A symblo “C” or “K” is given at the 3rd digit of its Part Number like

“VCC (or K)······J.”

• Semiconductor type capacitor:

A symblo “T” is given at the 3rd digit of its Part Number like

“VCT······J.” The capacitance error of each capacitor is indicated by not mean lead wire.

Tubular type carbon film resistor

±

5% is identified the symbol

MF(MN) of the part No. VRD–MF(MN)0000000; this MF(MN) does not mean lead wire.

the symbol given at the 13th digit of the Part Number as follows: “J”

(

±

5%), “K” (

±

10%), “M” (

±

20%), “N” (

±

30%), “C” (

±

0.25 pF), “D”

(

±

0.5pF), “Z” (+80—20%).

Tubular type ceramic capacitor is identified by the symbol TV (TQ/

CY) of the part NO. VC00TV(TQ/CY)0000000; this TV(TQ/CY) does not mean the lead wire.

Tubular type ceramic capacitor is identified by the symbol MF(MN) of the part.

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

GX-CD30/30C/130/130C

NO.

PART CODE

PRICE

RANK

INTEGRATED CIRCUITS

DESCRIPTION

IC1

IC2

IC201

IC501

IC701

IC801

IC802

IC804

VHILA1186N/-1

VHILA1805//-1

J AE FM Front End,LA1186N

J AM FM/AM IF MPX.,LA1805

VHIANT345K/-1 J AM Playback and Record/ Playback

Amp.,LA7345K

VHILA4597//-1 J AH Power Amp.,LA4597

RH-IX0105AWZZ J BA System Microcomputer,

IX0105AW

VHILA9240M/-1

VHILC78622E-1

VHIBA5920FP-1

J AV Servo Amp.,LA9240M

J BA Servo/Signal Control,LC78622E

J AR Focus/Tracking/Spin/Slide

Driver,BA5920FP

TRANSISTORS

Q252

Q351

Q401

Q403

Q404

Q405

Q551,552

Q554

Q740

Q804

Q805

DIODES

VSKRC102M//-1

VS2SC2001-K-1

VS2SD468-C/-1

VSKRC102M//-1

VSKRA102M//-1

VS2SD2394F/-1

J AC Digital,NPN,KRC102 M

J AD Silicon,NPN,2SC2001 K

J AD Silicon,NPN,2SD468 C

J AC Digital,NPN,KRC102 M

J AC Digital,PNP,KRA102 M

J AE Silicon,NPN,2SD2394 F

VSKTC3199GR-1 J AB Digital,NPN,KTC3199 GR

VSKRA102M//-1 J AC Digital,PNP,KRA102 M

VSKRC102M//-1 J AC Digital,NPN,KRC102 M

VS2SD468-C/-1 J AD Silicon,NPN,2SD468 C

VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

D203

D251

D254

D401

D405,406

D501

D572

ç

575

î

D651

ç

654

D740,741

D802

ZD801

FILTERS

VHD1SS133//-1

VHD1SS133//-1

J AA Silicon,1SS133

J AA Silicon,1SS133

VHD1SS133//-1 J AA Silicon,1SS133

VHERD8R2JB1-1 J AB Zener,8.2V,RD8.2JB1

VHD1SS133//-1 J AA Silicon,1SS133

VHD1SS133//-1

VHD1SS133//-1

VHDRL104A//-1

VHD1SS133//-1

J

J

J

J

AA

AA

AB

AA

Silicon,1SS133

Silicon,1SS133

Silicon,RL104A

Silicon,1SS133

VHD1SS133//-1 J AA Silicon,1SS133

VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B

CF2

CF3

F1

92LFILT-F1342A J AD FM IF

RFILA0006AWZZ J AG AM IF

92LFILTF1759A J AD FM Band Pass Filter

TRANSFORMERS

T1

T2

T3

î

T651

COILS

RCILI0007AWZZ

RCILI0008AWZZ

RCILI0014AWZZ

J

J

J

AD

AF

AE

FM IF

FM Detection

AM IF

RTRNP0054AWZZ J AX Power

L1

L2

L3

L4

L351

L801

RCILR0364AFZZ J AA FM RF

RCILB0020AWZZ J AA FM Oscillation

RCILA0053AWZZ J AK AM Bar Antenna

RCILB0051AWZZ J AE AM Oscillation

VP-MK331K0000 J AB 330

µ

H,Choke

VP-XHR82K0000 J AC 0.82

µ

H,Choke

VARIABLE RESISTORS

VR1

VR531

VR532

92LVRS682NBUT J AC 6.8 kohms (B),Semi-VR [VCO]

92LVR-524A J AH 20 kohms (B),Semi-VR [Volume]

92LVR-524B J AG 50 kohms (A),Semi-VR [Tone]

VARIABLE CAPACITORS

VC1-4 92LVC-1455A J AN Variable Capacitor with Trimmer

(TC1-4)

VIBRATORS

X701

XL801

RCRM-0009AWZZ J AF Ceramic,4.000 MHz

RCRM-0008AWZZ J AF Ceramic,16.93 MHz

NO.

PARTS CODE

PRICE

RANK

DESCRIPTION

C250

C351

C353

C354

C356

C393

C401

C402

C404

C406

C407

C509,510

C561,562

C565,566

C567,568

C569,570

C211,212

C213,214

C215,216

C217,218

C219,220

C227,228

C229,230

C231,232

C233,234

C235,236

C237,238

C239,240

C241

C242

C243

C244

C249

C24

C25

C26

C27

C28

C29

C31,32

C33

ç

35

C36

C37

C38,39

C201,202

C203,204

C205,206

C207

ç

210

C2

C4

C5

C6

C8

C9

C10

C11

C14

C15

C16

C17

C20,21

C22

C23

C571,572

C573,574

C575

C576

C577

C579,580

C581,582

C583,584

C586

C588

C589

C651

ç

654

C701,702

C704

C705

C740

C741

CAPACITORS

VCKYMN1HB102K J AA 0.001

µ

F,50V

VCCCPA1HH220J J AA 22 pF (CH),50V

VCCCPA1HH330J J AA 33 pF (CH),50V

VCCRPA1HH150J J AA 15 pF (RH),50V

VCCCPA1HH4R0C J AA 4 pF (CH),50V

VCTYPA1EX472M J AA 0.0047

µ

F,25V

VCTYPA1EX223M J AA 0.022

µ

F,25V

VCKYPA1HB221K J AA 220 pF,50V

VCTYMN1EF223Z J AA 0.022

µ

F,25V

VCTYPA1EX223M J AA 0.022

µ

F,25V

VCTYPA1EX472M J AA 0.0047

µ

F,25V

VCTYMN1EF223Z J AA 0.022

µ

F,25V

VCTYMN1EF223Z J AA 0.022

µ

F,25V

VCTYMN1CX222K J AA 0.0022

µ

F,16V

VCTYPA1EX822M J AA 0.0082

µ

F,25V

VCKYMN1HB471K J AA 470 pF,50V

RC-GZA335AF1H J AB 3.3

µ

F,50V,Electrolytic

RC-GZA226AF1C J AB 22

µ

F,16V,Electrolytic

RC-GZA335AF1H J AB 3.3

µ

F,50V,Electrolytic

92LCPU100V1500 J AC 0.0015

µ

F,100V,Polypropylene

RC-GZA106AF1C J AB 10

µ

F,16V,Electrolytic

VCTYPA1EX223M J AA 0.022

µ

F,25V

RC-GZA105AF1H J AB 1

µ

F,50V,Electrolytic

VCTYPA1EX223M J AA 0.022

µ

F,25V

RC-GZA227AF1A J AB 220

µ

F,10V,Electrolytic

VCTYMN1EF223Z J AA 0.022

µ

F,25V

VCKYMN1HB681K J AA 680 pF,50V

VCKYMN1HB151K J AA 150 pF,50V

VCKYMN1HB681K J AA 680 pF,50V

VCKYPA1HB331K J AA 330 pF,50V

VCKYPA1HB151K J AA 150 pF,50V

VCKYMN1HB151K J AA 150 pF,50V

RC-GZA226AF1C J AB 22

µ

F,16V,Electrolytic

VCTYPA1EX183J J AB 0.018

µ

F,25V

RC-GZA105AF1H J AB 1

µ

F,50V,Electrolytic

VCKYPA1HB471K J AA 470 pF,50V

VCKYPA1HB102K J AA 0.001

µ

F,50V

VCKYMN1HB102K J AA 0.001

µ

F,50V

RC-GZA226AF1C J AB 22

µ

F,16V,Electrolytic

VCTYPA1CX473K J AA 0.047

µ

F,16V

VCTYMN1CX332K J AA 0.0033

µ

F,16V

RC-GZA225AF1H J AB 2.2

µ

F,50V,Electrolytic

RC-GZA106AF1C J AB 10

µ

F,16V,Electrolytic

VCTYPA1EX823K J AB 0.082

µ

F,25V

RC-GZA336AF1C J AB 33

µ

F,16V,Electrolytic

RC-GZA226AF1C J AB 22

µ

F,16V,Electrolytic

RC-GZA107AF1A J AB 100

µ

F,10V,Electrolytic

RC-GZA227AF1A J AB 220

µ

F,10V,Electrolytic

VCKYMN1HB561K J AA 560 pF,50V

VCQPKA2AA392J J AB 0.0039

µ

F,100V,Polypropylene

RC-QZA273AFYJ J AB 0.027

µ

F,50V,Mylar

RC-GZA476AF1A J AB 47

µ

F,10V,Electrolytic

VCTYMN1EF223Z J AA 0.022

µ

F,25V

VCTYMN1EF223Z J AA 0.022

µ

F,25V

RC-GZA107AF1A J AB 100

µ

F,10V,Electrolytic

VCTYMN1CY103K J AA 0.01

µ

F,16V

RC-GZA337AF1C J AC 330

µ

F,16V,Electrolytic

RC-GZA106AF1C J AB 10

µ

F,16V,Electrolytic

VCTYPA1CX273K J AA 0.027

µ

F,16V

VCTYPA1CX273K J AA 0.027

µ

F,16V [130/130C Only]

RC-GZA104AF1H J AB 0.1

µ

F,50V,Electrolytic

VCTYMN1CX272K J AA 0.0027

µ

F,16V

RC-GZA105AF1H J AB 1

µ

F,50V,Electrolytic

VCKYMN1HB102K J AA 0.001

µ

F,50V

RC-GZA107AF1A J AB 100

µ

F,10V,Electrolytic

RC-GZA227AF1E J AB 220

µ

F,25V,Electrolytic

VCKZPA1HF223Z J AA 0.022

µ

F,50V

92LCEU20W4700M J AH 4700

µ

F,20V

RC-GZA107AF1A J AB 100

µ

F,10V,Electrolytic

RC-QZA104AFYK J AB 0.1

µ

F,50V,Mylar

RC-GZS108AF1A J AC 1000

µ

F,10V,Electrolytic

RC-GZA474AF1H J AA 0.47

µ

F,50V,Electrolytic

RC-GZA107AF1E J AB 100

µ

F,25V,Electrolytic

RC-GZA225AF1H J AB 2.2

µ

F,50V,Electrolytic

VCKZPA1HF103Z J AA 0.01

µ

F,50V

VCTYMN0JY223N J AA 0.022

µ

F,6.3V

RC-EZY107AF1A J AB 100

µ

F,10V,Electrolytic

VCTYMN0JY223N J AA 0.022

µ

F,6.3V

VCTYMN1CY103K J AA 0.01

µ

F,16V

RC-EZY335AF1H J AB 3.3

µ

F,50V,Electrolytic

– 1 –

NO.

PART CODE

PRICE

RANK

DESCRIPTION

R206

R207,208

R211,212

R213,214

R219,220

R221,222

R223,224

R225,226

R227,228

R229,230

R231,232

R238

R241

R243

R250

R1

R2

R3

R5

R6

R7

R9

R25

R26

R27

R29

R30

R35

R201

R202

ç

204

R205

C820

C821

C822

C830

C831

C832

C833

C834

C835

C837

C838

C839

C840

C841,842

C843

C812

C813

C814

C815

C816

C817

C818

C819

C801

C802

C803

C804

C805,806

C807

C808

C809

C810

C811

C844

C845

C846

C847

C848

C849

C850

C851

C867,868

C869,870

C873

C887

C889

C890

VCTYMN1CY103N J AA 0.01

µ

F,16V

RC-GZA476AF1A J AB 47

µ

F,10V,Electrolytic

RC-GZA104AF1H J AB 0.1

µ

F,50V,Electrolytic

VCKYMN1HB102K J AA 0.001

µ

F,50V

VCTYPA1CX333K J AA 0.033

µ

F,16V

RC-GZA104AF1H J AB 0.1

µ

F,50V,Electrolytic

VCTYPA1CX683K J AA 0.068

µ

F,16V

VCTYPA1CX473K J AA 0.047

µ

F,16V

VCKYMN1HB181K J AA 180 pF,50V

VCTYPA1CX104K J AB 0.1

µ

F,16V

VCKYMN1HB331K J AA 330 pF,50V

VCTYPA1CX104K J AB 0.1

µ

F,16V

VCTYMN1CY103K J AA 0.01

µ

F,16V

VCTYMN1CX472K J AA 0.0047

µ

F,16V

VCKYMN1HB102K J AA 0.001

µ

F,50V

RC-GZA474AF1H J AA 0.47

µ

F,50V,Electrolytic

RC-GZA105AF1H J AB 1

µ

F,50V,Electrolytic

RC-GZA476AF1A J AB 47

µ

F,10V,Electrolytic

VCTYMN1CX332K J AA 0.0033

µ

F,16V

RC-GZA105AF1H J AB 1

µ

F,50V,Electrolytic

VCKYMN1HB221K J AA 220 pF,50V

VCCSMN1HL2R2C J AB 2.2 pF,50V

VCTYMN1CX272K J AA 0.0027

µ

F,16V

VCCSMN1HL270J J AA 27 pF,50V

VCKYMN1HB102K J AA 0.001

µ

F,50V

µ

F,16V VCTYPA1CX333K J AA 0.033

RC-GZA104AF1H J AB 0.1

µ

F,50V,Electrolytic

RC-GZA106AF1C J AB 10

µ

F,16V,Electrolytic

VCTYMN1CY103K J AA 0.01

µ

F,16V

RC-GZA105AF1H J AB 1

µ

F,50V,Electrolytic

RC-GZA334AF1H J AA 0.33

µ

F,50V,Electrolytic

VCTYPA1CX473K J AA 0.047

µ

F,16V

RC-GZA107AF1A J AB 100

µ

F,10V,Electrolytic

RC-GZA337AF1A J AB 330

µ

F,10V,Electrolytic

RC-GZA475AF1H J AB 4.7

µ

F,50V,Electrolytic

RC-GZA337AF1A J AB 330

µ

F,10V,Electrolytic

VCTYMN1CY103K J AA 0.01

µ

F,16V

RC-GZA105AF1H J AB 1

µ

F,50V,Electrolytic

VCTYMN1EF223Z J AA 0.022

µ

F,25V

VCTYPA1EF104Z J AA 0.1

µ

F,25V

VCTYMN1EF223Z J AA 0.022

µ

F,25V

RC-GZA106AF1C J AB 10

µ

F,16V,Electrolytic

VCTYMN1CX222K J AA 0.0022

µ

F,16V

VCTYMN1CY103K J AA 0.01

µ

F,16V

VCTYMN1EF223Z J AA 0.022

µ

F,25V

RC-GZA106AF1C J AB 10

µ

F,16V,Electrolytic

RC-GZA107AF1A J AB 100

µ

F,10V,Electrolytic

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4

×

3.5mm,Ivory

VRD-ST2EE100J J AA 10 ohm,1/4W

VRD-MN2BD330J J AA 33 ohms,1/8W

VRD-MN2BD470J J AA 47 ohms,1/8W

VRD-ST2EE334J J AA 330 kohms,1/4W

VRD-ST2EE824J

VRD-ST2EE391J

J

J

AA

AA

820 kohms,1/4W

390 ohms,1/4W

VRD-MN2BD223J J AA 22 kohms,1/8W

VRD-ST2EE121J J AA 120 ohms,1/4W

VRD-MN2BD392J J AA 3.9 kohms,1/8W

VRD-MN2BD333J J AA 33 kohms,1/8W

VRD-MN2BD153J J AA 15 kohms,1/8W

VRD-MN2BD122J J AA 1.2 kohms,1/8W

VRD-ST2EE182J J AA 1.8 kohms,1/4W

VRD-ST2CD102J J AA 1 kohm,1/6W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD151J J AA 150 ohms,1/8W

VRD-ST2CD151J J AA 150 ohms,1/6W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-MN2BD682J J AA 6.8 kohms,1/8W

VRD-MN2BD272J J AA 2.7 kohms,1/8W

VRD-MN2BD273J J AA 27 kohms,1/8W

VRD-MN2BD822J J AA 8.2 kohms,1/8W

VRD-MN2BD682J J AA 6.8 kohms,1/8W

VRD-MN2BD561J J AA 560 ohms,1/8W

VRD-MN2BD470J J AA 47 ohms,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-ST2EE103J J AA 10 kohm,1/4W

VRD-MN2BD684J J AA 680 kohms,1/8W

VRD-MN2BD123J J AA 12 kohms,1/8W

VRD-MN2BD563J J AA 56 kohms,1/8W

VRD-ST2EE101J J AA 100 ohm,1/4W

NO.

R812

R813

R814

R815

R816

R817

R819

R820

R821

R822

R823

R824

R825

R826,827

R828,829

R830

R831

R832

R833

R804

R805

R806

R807

R808

R809

R810

R811

R773

R774

R776

R779

R801

R802

R803

R711

R712

R713

R714

R715

R716

R718

ç

720

R721

R722,723

R724

R725

R726

ç

735

R740

R741

R742

R743

R771

R772

R457,458

R461

R517,518

R561,562

R565,566

R570

ç

572

R573,574

R575

R576

R577,578

R579

R581,582

R601

R708,709

R710

R254

R262

R264

R265

R351

R352

R353

R354

ç

356

R401

R402

R403

R410

R433,434

R441,442

R455,456

GX-CD30/30C/130/130C

PARTS CODE

PRICE

RANK

DESCRIPTION

VRD-MN2BD223J J AA 22 kohms,1/8W

VRD-MN2BD472J J AA 4.7 kohms,1/8W

VRD-MN2BD104J J AA 100 kohm,1/8W

VRD-MN2BD472J J AA 4.7 kohms,1/8W

VRD-MN2BD473J J AA 47 kohms,1/8W

VRD-MN2BD104J J AA 100 kohm,1/8W

VRD-MN2BD220J J AA 22 ohms,1/8W

VRD-ST2EE470J J AA 47 ohms,1/4W

VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

VRD-MN2BD561J J AA 560 ohms,1/8W

VRD-ST2EE271J J AA 270 ohms,1/4W

VRD-RT2HD1R5J J AB 1.5 ohms,1/2W

VRD-ST2EE332J J AA 3.3 kohms,1/4W

VRD-MN2BD222J J AA 2.2 kohms,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-ST2EE680J J AA 68 ohms,1/4W

VRD-MN2BD223J J AA 22 kohms,1/8W [130/130C Only]

VRD-ST2EE272J J AA 2.7 kohms,1/4W

VRD-MN2BD272J J AA 2.7 kohms,1/8W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD472J J AA 4.7 kohms,1/8W

VRD-MN2BD104J J AA 100 kohm,1/8W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-ST2EE121J J AA 120 ohms,1/4W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-ST2EE3R3J J AA 3.3 ohms,1/4W

VRD-ST2EE2R7J J AA 2.7 ohms,1/4W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-MN2BD272J J AA 2.7 kohms,1/8W

VRD-MN2BD102J J AA 1 kohm,1/8W [130/130C Only]

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-MN2BD153J J AA 15 kohms,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-ST2EE153J J AA 15 kohms,1/4W

VRD-MN2BD153J J AA 15 kohms,1/8W

VRD-ST2EE153J J AA 15 kohms,1/4W

VRD-MN2BD153J J AA 15 kohms,1/8W

VRD-ST2EE153J J AA 15 kohms,1/4W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD472J J AA 4.7 kohms,1/8W

VRD-MN2BD332J J AA 3.3 kohms,1/8W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD104J J AA 100 kohm,1/8W

VRD-MN2BD392J J AA 3.9 kohms,1/8W

VRD-MN2BD272J J AA 2.7 kohms,1/8W

VRD-MN2BD182J J AA 1.8 kohms,1/8W

VRD-MN2BD152J J AA 1.5 kohms,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-MN2BD470J J AA 47 ohms,1/8W [130/130C Only]

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD104J J AA 100 kohm,1/8W

VRD-MN2BD153J J AA 15 kohms,1/8W

VRD-MN2BD222J J AA 2.2 kohms,1/8W

VRD-MN2BD682J J AA 6.8 kohms,1/8W

VRD-MN2BD101J J AA 100 ohm,1/8W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD123J J AA 12 kohms,1/8W

VRD-MN2BD273J J AA 27 kohms,1/8W

VRD-MN2BD823J J AA 82 kohms,1/8W

VRD-MN2BD332J J AA 3.3 kohms,1/8W

VRD-MN2BD153J J AA 15 kohms,1/8W

VRD-MN2BD333J J AA 33 kohms,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-MN2BD473J J AA 47 kohms,1/8W

VRD-MN2BD152J J AA 1.5 kohms,1/8W

VRD-MN2BD823J J AA 82 kohms,1/8W

VRD-MN2BD393J J AA 39 kohms,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-MN2BD563J J AA 56 kohms,1/8W

VRD-MN2BD682J J AA 6.8 kohms,1/8W

VRD-MN2BD122J J AA 1.2 kohms,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-MN2BD122J J AA 1.2 kohms,1/8W

VRD-MN2BD224J J AA 220 kohms,1/8W

VRD-ST2EE102J J AA 1 kohm,1/4W

VRD-ST2EE102J J AA 1 kohm,1/4W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD563J J AA 56 kohms,1/8W

VRD-MN2BD562J J AA 5.6 kohms,1/8W

– 2 –

GX-CD30/30C/130/130C

NO.

PART CODE

PRICE

RANK

DESCRIPTION

NO.

PARTS CODE

PRICE

RANK

DESCRIPTION

R834

R835

R836,837

R838

R839,840

R842

R849

R856

R857

R858

R860

R871

R873,874

R875,876

R877

R878

R880

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD471J J AA 470 ohms,1/8W

VRD-MN2BD473J J AA 47 kohms,1/8W

VRD-MN2BD333J J AA 33 kohms,1/8W

VRD-MN2BD223J

VRD-ST2EE220J

VRD-MN2BD104J

VRD-MN2BD122J J AA 1.2 kohms,1/8W

VRD-MN2BD273J J AA 27 kohms,1/8W

VRD-MN2BD681J J AA 680 ohms,1/8W

VRD-MN2BD102J J AA 1 kohm,1/8W

VRD-MN2BD472J

VRD-MN2BD101J J AA 100 ohm,1/8W

VRD-MN2BD103J J AA 10 kohm,1/8W

VRD-ST2EE221J

VRD-MN2BD101J

VRD-MN2BD101J

J

J

J

J

J

J

J

OTHER CIRCUITRY PARTS

AA

AA

AA

AA

AA

AA

AA

22 kohms,1/8W

22 ohms,1/4W

100 kohm,1/8W

4.7 kohms,1/8W

220 ohms,1/4W

100 ohm,1/8W

100 ohm,1/8W

î

î

CNP852

CNS201

CNS202

CNS204

CNS653

CNW2

FW1

FW602

FW603

FW651

FW652

FW772

FW851

FW852

J551

BI651/CNS651 QCNWN0602AWZZ J AG Connector Ass’y,2-2Pin

BI801/CNS801 QCNWN0605AWZZ J AL Connector Ass’y,8-8Pin

BI802/CNS802 QCNWN0606AWZZ J AH Connector Ass’y,5-5Pin

BI803/CNS803 QCNWN0607AWZZ J AH Connector Ass’y,6-6Pin

CNP1 92LCONE6P52287 J AC Plug,6Pin

CNP201

CNP202

CNP204

CNP552

92LCONE3P53253 J

92LCONE5P53253 J

QCNCW027HAWZZ J

QTANA0404AWZZ J

AB

AB

AC

AF

Plug,3Pin

Plug,5Pin

Plug,8Pin

Terminal,Ext.Speaker

CNP602

CNP603

CNP651

CNP652

CNP803

CNP851

QCNCW012LAWZZ J

92LCONE3P52287 J

QCNCM742BAFZZ J

AE

AC

AA

Plug,11Pin

Plug,3Pin

Plug,2Pin

92LCONE4P52287 J AC Plug,4Pin

QCNCM932FAFZZ J AC Plug,6Pin

QCNCW026EAWZZ J AE Plug,5Pin

LCD771

M601

M701

M702

RX771

SO651

SO651

SP1,2

SP3,4

SW201

SW351

SW500

QCNCW026MAWZZ J

QCNWN0595AWZZ J

QCNWN0596AWZZ J

QCNWN0600AWZZ J AH Connector Ass’y,8Pin

QCNWN0487AWZZ J AB Connector Ass’y,1Pin

QCNWN0716AWZZ J AD Tip with Lead

QCNWN0687AWZZ J AE Flat Cable,6Pin

QCNWN0601AWZZ J AG Flat Cable,11Pin

QCNWN0717AWZZ J AD Flat Cable,2Pin

QCNWN0594AWZZ J

QCNWN0718AWZZ J AD Flat Cable,4Pin

QCNWN0603AWZZ J AC Flat Cable,2Pin

QCNWN0689AWZZ J AE Flat Cable,5Pin

QCNWN0604AWZZ J AH Flat Cable,12Pin

QJAKM0004AWZZ

RV-LX0018AWZZ

J

J

92LMTR1746AASY J

92LMTR1906CASY J

AG Plug,12Pin

AH

AL

AD

AK

Connector Ass’y,3Pin

Connector Ass’y,5Pin

Flat Cable,2Pin

Jack,Headphones

AQ LCD

AP

AS

Motor with Pulley [Tape]

Motor with Chassis [Spin]

92LMTR1854BASY J AP Motor with Gear [Slide]

VHLSPS4201C-1 J AN Remote Sensor,LSPS4201C

[130/130C Only]

QSOCA0201AWZZ J AL Socket,AC Power Supply Input

[130/30]

QSOCA0203AWZZ J AL Socket,AC Power Supply Input

[130C/30C]

VSP0010PBR26A J AP Woofer

RALMB0101AFZZ J AB Tweeter

QSW-S0018AWZZ J AG Switch,Slide Type [Record/

Playback]

QSW-S0024AWZZ J AE Switch,Slide Type [Beat Cancel]

SW501

SW605

SW606

SW607

SW702

SW761

SW771

SW772

SW773

SW774

QSW-S0026AWZZ J AF Switch,Slide Type [X-BASS] [130/

130C Only]

QSW-S0022AWZZ J AK Switch,Slide Type [Power/

Function]

QSW-F0340AFZZ J AE Switch,Leaf Type [Tape 1 Main]

QSW-F0340AFZZ J AE Switch,Leaf Type [Tape 2 Main]

92LM-SW1658A J AB Switch,Leaf Type [Tape 1/2

Selector]

QSW-F9001AWZZ J AE Switch,Push Type [Pickup In]

QSW-P0004AWZZ J AE Switch,Push Type [CD Lid Open/

Close]

QSW-K0003AWZZ J AD Switch,Key Type [CD-Play/

Repeat]

QSW-K0003AWZZ J AD Switch,Key Type [CD-Stop]

QSW-K0003AWZZ J AD Switch,Key Type [CD-Up/Cue]

QSW-K0003AWZZ J AD Switch,Key Type [CD-Down/

Review]

SW775 QSW-K0003AWZZ J AD Switch,Key Type [CD-Pause]

DECK MECHANISM PARTS

67

69

70

71

72

501

504

505

506

508

509

511

M601

SW605

SW606

SW607

52

53

55

56

58

64

66

38

40

42

45

46

47

50

51

28

29

30

31

32

33

35

21

22

23

24

25

27

13

14

15

17

18

19

20

1

3

4

5

10

12

301

302

303

304

305

î

306

306- 1

306- 2

306- 3

307

701

702

703

704

M701

92LM-ANG1658A J AC Joint Bracket,Mechanism

92LM-BELT1651B J AB FR Belt

92LMBELT1658A1 J AC Drive Belt [Tape 1]

92LMBELT1658B1 J AC Drive Belt [Tape 2]

92LM-CSPR667J J AA Spring,Latch Plate

92LM-CSPR1651F J AA Spring,Back Tention

92LM-EH1658A J AG Head,Erase

92LM-ESPR1651A J AA Spring,Lock Plate

92LM-ESPR1651B J AA Spring,Holder Lock Lever

92LM-FRRA1651A J AF FR Roller Ass’y

92LM-FWA1651A J AG Flywheel Ass’y [Tape 2]

92LM-FWA1658A J AG Flywheel Ass’y [Tape 1]

92LM-GEAR1651C J AA Gear,FF

92LM-HPLT1746A J AC Plate,Head

92LM-ICAM1651A J AB Cam,Idler

92LM-ILA1651A J AB Idler Lever Ass’y

92LM-LEV1651G1 J AC Lever,Main Lock

92LM-LEV1651I J AA Lever,AS Killer

92LM-LEV1651K J AA Lever,Eject Joint

92LM-LEV1651L J AB Lever,Erase Prevention

92LM-LEV1658A1 J AB Lever,Record

92LM-LEV1658B

92LM-LEV1658C

J

J

AA

AA

Lever,Play

Lever,Rewind

92LM-LEV1658D

92LM-LEV1658E

92LM-LEV1658H

J

J

J

AB

AB

AB

Lever,FF

Lever,Stop

Lever,Holder Lock

92LM-LGA1746A J AF Lever Guide Ass’y

92LM-MCA1654A J AK Main Chassis Ass’y [Tape 2]

MSPRP0492AFFW J AA Spring,Cassette

92LM-PRA1651A J AE Pinch Roller Ass’y

92LM-REL1651B J AB Supply Reel

92LM-RPH1746A J AM Head,Record/Playback

92LM-TSPR1746A J AA Spring,Pinch Roller

92LM-TSPR1651B J AA Spring,Operate Lever

92LM-TSPR1651C J AA Spring,Record Lever

92LM-TSPR1651D J AA Spring,Idler Lever

92LM-TSPR1651F J AA Spring,AS Killer Lever

92LMTURA1651A1 J AF Take-up Reel Ass’y

92LM-TSPR1651G J AA Spring,Pause Stop Lever

92L1R5WC3R8R5P J AA Washer,ø1.5

×

ø3.8

×

0.5mm

92L1R8WC3R4R5P J AA Washer,ø1.8

×

ø3.4

×

0.5mm

J AA Washer,ø2.3

×

ø6

×

0.5mm

92L2R3W6R5P

92L1R2WC4-R5P J AA Washer,ø1.2

×

ø4

×

0.5mm

92L3R6W6-R5P J AA Washer,ø3.6

×

ø6

×

0.5mm

92LS2R7W6R4R5L J AA Washer,ø2.7

×

ø6.4

×

0.5mm

92LM-MCA1858A J AH Main Chassis Ass’y [Tape 1]

92LS2R6S1746A

92L2BTS+5BZ

92L2BTS+7BZ

92L2TTS+3BZ

92L2TTS+4BZ

92L2TTS+4PZ

92L2BTS+5PZ

J AA Motor Screw,ø2.6mm

J AA Screw,ø2

×

5mm

J AA Screw,ø2

×

7mm

J AA Screw,ø2

×

3mm

J AA Screw,ø2

×

4mm

J AA Screw,ø2

×

4mm

J AA Screw,ø2

×

5mm

92LMTR1746AASY J AP Motor with Pulley [Tape]

QSW-F0340AFZZ J AE Switch,Leaf Type [Tape 1 Main]

QSW-F0340AFZZ J AE Switch,Leaf Type [Tape 2 Main]

92LM-SW1658A J AB Switch,Leaf Type [Tape 1/2

Selector]

CD MECHANISM PARTS

NGERH0011AWZZ J AC Gear,Middle

NGERH0012AWZZ J AC Gear,Drive

MLEVP0010AWZZ J AC Rail,Guide

NSFTM0002AWFW J AE Shaft,Guide

PCUSG0427AFSC J AC Cushion

RCTRH8151AFZZ J BG Pickup Unit Ass’y

———— — Pickup Unit (Not Replacement

Item)

NGERR0043AFZZ J AC Gear,Rack

MSPRC0961AFZZ J AA Spring,Rack

PCOVP1001AWSA J AE Mechanism Cover

92L2R6S+6CZ

92L2TTS+5BB

J AB Screw,ø2.6

×

6mm

J AB Screw,ø2

×

5mm

92L2S+3PZ J AA Screw,ø2

×

3mm

92L1R5WC3R8R25 J AA Washer,ø1.5

×

ø3.8

×

0.25mm

92LMTR1906CASY J AS Motor with Chassis [Spin]

– 3 –

GX-CD30/30C/130/130C

NO.

PART CODE

PRICE

RANK

DESCRIPTION

233

234

235

236

237

239

240

241

243

227

228

229

230

231

232

243

244

245

246

247

248

249

250

218

219

220

221

222

223

224

225

226

211- 2

211- 2

213

214

215

216

217

M702

SW702

92LMTR1854BASY J AP Motor with Gear [Slide]

QSW-F9001AWZZ J AE Switch,Push Type [Pickup In]

CABINET PARTS

201

201

201- 1

202

203

203

203

204

205

206

206

206- 1

206- 2

207

207

207- 1

207- 2

208

209

210

211

211

211- 1

251

252

252

92LCAB2237AS1 J AV Front Cabinet Ass’y [30/30C]

92LCAB2238AS1 J BD Front Cabinet Ass’y [130/130C]

———— — Front Cabinet (Not Replacement

Item)

GCABC1129AWSA J AX Top Cabinet

GCABB1129AWSA J AZ Rear Cabinet [130]

GCABB1140AWSA J AZ Rear Cabinet [130C/30C]

GCABB1143AWSA J AS Rear Cabinet [30]

92LBSPR1401A J AC Spring,Battery,+/-

GFTAB1001AWSA J AE Battery,Lid

92LMEC2237CTS1 J AK Cassette Holder Ass’y,Tape 1

[30/30C]

92LMEC2238CTS1 J AP Cassette Holder Ass’y,Tape 1

[130/130C]

———— — Cassette Holder,Tape 1 (Not

Replacement Item)

HPNLH1063AWSA J AE Panel,Cassette,Tape 1

92LMEC2237CTS2 J AK Cassette Holder Ass’y,Tape 2

[30/30C]

92LMEC2238CTS2 J AP Cassette Holder Ass’y,Tape 2

————

[130/130C]

— Cassette Holder,Tape 2 (Not

Replacement Item)

HPNLH1064AWSA J AE Panel,Cassette,Tape 2

92LMAG2238AS1 J AN Magnet Ass’y

MLIFP0003AWZZ J AE Damper [CD Lid]

HPNLD1003AWSA J AG Panel,Dial

92LPNL2237AS1 J AK Decoration Panel Ass’y [30/30C]

92LPNL2238AS1 J AQ Decoration Panel Ass’y

[130/130C]

———— — Decoration Panel (Not Replace

ment Item)

HPNLH1065AWSA J AF Panel,LCD [130/130C]

HPNLH1066AWSA J AD Panel,LCD [30/30C]

92LKNOB1596C J AA Knob,Function/Power

JKNBK0032AWSA J AE Knob,Volume

JKNBK0033AWSA J AE Knob,Tone

92LDAMPER1651A J AD Damper [Cassette Holder]

92LCSPR1596A J AA Spring,Cassette Up

LANGK0044AWZZ J AD Bracket,Front Cabinet

PSPAZ0010AWZZ J AG Joint Boss

LANGK0041AWZZ J AF Bracket,Cassette Button

92LFELT666B J AA Felt

JKNBZ0190AWSA J AD Button,Record [Tape 1]

JKNBZ0191AWSA J AD Button,Play [Tape 1]

JKNBZ0192AWSA J AD Button,Rewind [Tape 1]

JKNBZ0193AWSA J AD Button,FF [Tape 1]

JKNBZ0194AWSA J AD Button,Stop [Tape 1]

JKNBZ0195AWSA J AE Button,Play [Tape 2]

JKNBZ0196AWSA J AE Button,Stop [Tape 2]

HSSND0008AWSA J AE Dial Pointer

LHLDZ1093AWZZ J AH Tuner Frame

JKNBZ0189AWSA J AG Knob,Tuning

92LWHEL1569A J AE Dial Wheel

92LATML1455A J AB Antenna Terminal

GDORT0011AWSA J AP CD Lid

MSPRD0067AWZZ J AG Spring,CD Lid Up

QANTR0006AWZZ J AQ Rod Antenna

92LHNDL2238AS1 J AQ Handle Ass’y

JKNBZ0119AWSC J AE Knob,CD Eject

JKNBZ0188AWSA J AF Knob,CD Control

92LRDAT1524A J AE Heat Sink

TSPC-0357AWZZ J AE Label,Specifications [30C]

TSPC-0358AWZZ J AE Label,Specifications [130C]

92LCAUT1459C J AA Caution,Battery [130C/30C]

LANGK0042AWZZ J AD Bracket,Deck PWB

LANGK0043AWZZ J AC Bracket,Tuner PWB

92LM-LEV1746A J AB Spring,Record

LHLDZ1094AWZZ J AE Holder,LCD

92LBSPR1595C

————

J AB

Spring,Battery,-

Spacer,PWB Washer (Not

Replacement Item)

92LCUSN1585A J AA Leg Cushion

TLABH0041AWSA J AE Cassette Label,Tape 1

[130/130C]

TLABH0041AWSB J AE Cassette Label,Tape 1 [30/30C]

NO.

PARTS CODE

PRICE

RANK

DESCRIPTION

607

608

610

611

612

613

614

253

601

602

603

604

605

606

615

616

617

618

619

253 TLABH0042AWSA J AE Cassette Label,Tape 2

[130/130C]

TLABH0042AWSB J AE Cassette Label,Tape 2 [30/30C]

LX-CZ0011AFFD J AA Screw,ø3

×

65mm

XEBSD30P12000 J AA Screw,ø3

×

12mm

XEBSD30P20000L J AB Screw,ø3

×

20mm

XHSSF30P08000 J AA Screw,ø3

×

8mm

XJSSF30P10000 J AA Screw,ø3

×

10mm

XEBSD30P10000 J AA Screw,ø3

×

10mm

XWHSD32-15140 J AA Washer,ø3.2

×

ø14

×

1.0mm

XBPSD26P06J00 J AA Screw,ø2.6

×

6mm

XWSSJ30-07000 J AA Washer,ø3

×

0.7mm

XEBSD26P10000 J AA Screw,ø2.6

×

10mm

XWHSD28-08120 J AB Screw,ø2.8

×

ø12

×

0.8mm

XCBSD30P08000 J AA Screw,ø3

×

8mm

XHBSD20P03000 J AA Screw,ø2

×

3mm

XWHSD32-08170 J AA Washer,ø3.2

×

ø17

×

1.0mm

XEBSD30P08000 J AA Screw,ø3

×

8mm

LX-EZ0002AWFD J AA Screw,ø3

×

40mm

XJSSD30P10000 J AA Screw,ø3

×

10mm

XEBSD30P12000 J AA Screw,ø3

×

12mm

SPEAKER BOX PARTS

703

704

705

901

902

701

701

702

702

92LSCAB2237AS1 J AU Front Cabinet Ass’y,Speaker,Left

[30/30C]

92LSCAB2238AS1 J AZ Front Cabinet Ass’y,Speaker,Left

[130/130C]

92LSCAB2237AS2 J AU Front Cabinet Ass’y,Speaker,

Right [30/30C]

92LSCAB2238AS2 J AZ Front Cabinet Ass’y,Speaker,

Right [130/130C]

GCABB1130AWSA J AY Rear Cabinet,Left

GCABB1131AWSA J AY Rear Cabinet,Right

QCNWN0597AWZZ J AE Speaker Wire

XEBSD30P10000 J AA Screw,ø3

×

10mm

XEBSD30P20000 J AA Screw,ø3

×

20mm

PACKING PARTS [FOR GX-CD30C/130C]

SPAKA0093AWZZ J AH Packing Add.,Unit (Left/Right)

SPAKA0094AWZZ J AK Packing Add.,Speaker,Top/

Bottom

SPAKC0347AWZZ J AP Packing Case [30C]

SPAKC0348AWZZ J AP Packing Case [130C]

SSAKH0017AWZZ J AC Polyethylene Bag,Unit

92LBAG1607A1 J AB Polyethylene Bag,Speaker

ACCESSORIES

î

î

TINSE0115AWZZ J AG Operation Manual [130/30]

TINSK0040AWZZ J AH Operation Manual [130C/30C]

92LCORD-1651A J AM AC Power Supply Cord

[130/30]

92LCORD-1207A J AM AC Power Supply Cord

[130C/30C]

92LPOPLABEL001 J AR Feature Label,Speaker [130C]

92LPOPLABEL004 J AE Feature Label,Speaker [30C]

RRMCG0052AWSA J BB Remote Control [130/130C Only]

GFTAB1016AWSA J Battery Lid,Remote Control

[130/130C Only]

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1

ç

5

PWB-A1

ç

5

PWB-B

PWB-C

PWB-D

PWB-E

92LPWB2237MANS J — Main/Display/Power/Terminal/

Switch [30/30C]

92LPWB2238MANS J — Main/Display/Power/Terminal/

Switch [130/130C]

92LPWB2238TUNS J — Tuner

92LPWB2238DEKS J — Deck

92LPWB2238CDUS J — CD Servo

QPWBF0027AWZZ J AD CD Motor (PWB Only)

– 4 –

GX-CD30/30C/130/130C

— M E M O —

– 5 –

— M E M O —

GX-CD30/30C/130/130C

– 6 –

GX-CD30/30C/130/130C

A

B

C

D

E

306-2

306

306-1

702

702

306-3

701

304

704

302

301

701

303

703x2

M701

F

M702

305

G

305x2

SW702

H

1

2

PWB-E

3 4

Figure 7 CD MECHANISM EXPLODED VIEW

– 7 –

5

307

6

GX-CD30/30C/130/130C

A

B

13

505

47

50

C

D

E

F

G

H

21

1

TAPE 1

64

46

12

71

66

45

64

56

TAPE 2

47

511

SW607

12

71

64

46

45

66

64

56

31

30

24

32

55

33

23

38

25

21

28

42

506

50

24

30

55

23

38

33

25

29

42

506

40

504

SW606

509

51

58

504

27

52 504 53

18

67

14

15

69

20

3

22

10

70

69

17

5

501x2

508

508

M601

35

72

504

SW605

58

504

509

14

504

53

67

27

69

19

15

22

4

508

1

BELT CONNECTION

4

19

5

( TAPE 2 )

17

( TAPE 1 )

18

3

35

6 2 3 4

Figure 8 TAPE MECHANISM EXPLODED VIEW

– 8 –

5

GX-CD30/30C/130/130C

A

B

C

D

E

F

G

H

235

234

237

205

GX-CD30C/130C Only

243

603x4

602x2

604

236

239

208

204

601

202

233

610

619

PWB-A5

219

209

606

PWB-A2

606

248

LCD771

240

606

211

612x3

611x3

PWB-D

211-1

211-2

201

214

215

605x2

201-1

606

606x2

606

250

CD

MECHANISM

PWB-A3

606

615

249

203

244

PWB-A4

606x3

229

606x3

607

606

218

606

606

216

210

230

231

246

615

606

605x2

606x4

PWB-B

606

216

617

613

241

IC501

606x2

608

618

PWB-C

Silicon

Grease

613

Q405

PWB-A1

232

221

x2

CNW2

213

245

614

614

247

TAPE

MECHANISM

206-1

206-2

252

206

217

253

207-2

217

220

616x2

207-1

207

251x2

222

223

224

225

226

227

228

616x2

220

1

2 5 6 3 4

Figure 9 CABINET EXPLODED VIEW

– 9 –

GX-CD30/30C/130/130C

A

B

C

SP3 (L-CH)

SP4 (R-CH)

WHITE

LINE

D

E

SP1 (L-CH)

SP2 (R-CH)

F

G

H

1

2

701

702

901x4

902x4

3 4

Figure 10 SPEAKER BOX VIEW

– 10 –

5

SP3,4

SP1,2

6

703

704

705

GX-CD30/30C/130/130C

PACKING OF THE SET (FOR GX-CD30/130 ONLY)

Setting position of switches and knobs

Tape Mechanism Control

TUNING

POWER/FUNCTION

Beat Cancel Switch

X-BASS(GX-CD130 ONLY)

TONE

STOP STATE

LOW

STAND-BY/TAPE

LEFT

OFF

CENTER

Polyethylene Bag,Unit

SSAKH0017AWZZ

Operation Manual

TiNSE0115AWZZ

Polyethylene

Bag,Speaker

92LBAG1607A1

Left

Right

Feature Label

92LPOPLABEL001 [130]

92LPOPLABEL004 [30]

(Right Speaker Only)

Battery Lid

AC Power Supply Cord

92LCoRD1651A

Packing Add.,Unit

SPAKA0093AWZZ

(Left/RIght)

Remote Control

RRMCG0052AWSA

[130 ONLY]

TOP

FRONT

Packing Add.,

Speaker, Top/

Bottom

SPAKA0094AWZZ

Packing Case

SPAKC0342AWZZ [130]

SPAKC0346AWZZ [30]

: Not Replaceable Items

Writer and Editor: Quality & Reliability Control Center of Communication & Audio Systems Group, Sharp Corp.

A9603-3632NS•KJ•M

Printed in Japan

SC • SL

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
