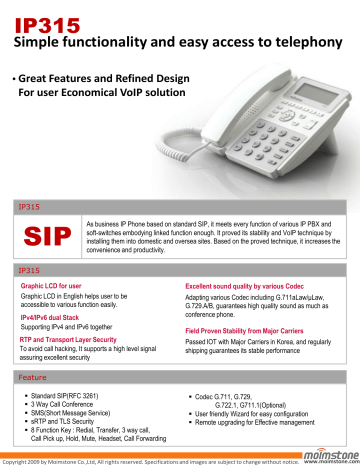

IP315
Simple functionality and easy access to telephony
Great Features and Refined Design
For user Economical VoIP solution
IP315
SIP
As business IP Phone based on standard SIP, it meets every function of various IP PBX and
soft-switches embodying linked function enough. It proved its stability and VoIP technique by
installing them into domestic and oversea sites. Based on the proved technique, it increases the
convenience and productivity.
IP315
Graphic LCD for user
Graphic LCD in English helps user to be
accessible to various function easily.
IPv4/IPv6 dual Stack
Supporting IPv4 and IPv6 together
RTP and Transport Layer Security
To avoid call hacking, It supports a high level signal
assuring excellent security
Excellent sound quality by various Codec
Adapting various Codec including G.711aLaw/μLaw,
G.729.A/B, guarantees high quality sound as much as
conference phone.
Field Proven Stability from Major Carriers
Passed IOT with Major Carriers in Korea, and regularly
shipping guarantees its stable performance
Feature





Standard SIP(RFC 3261)
3 Way Call Conference
SMS(Short Message Service)
sRTP and TLS Security
8 Function Key : Redial, Transfer, 3 way call,
Call Pick up, Hold, Mute, Headset, Call Forwarding
 Codec G.711, G.729,
G.722.1, G711.1(Optional)
 User friendly Wizard for easy configuration
 Remote upgrading for Effective management
Copyright 2009 by Moimstone Co.,Ltd, All rights reserved. Specifications and images are subject to change without notice. www.moimstone.com
IP315
SPECIFICATION
Call Function
•
•
•
•
•
•
•
•
•
Call Forwarding
Call Hold
Call Screen
Call Pickup
Call Transfer
Call Waiting
3 way Conference Call
Simple based Instant Messaging and Presence
Auto Provisioning (HTTPS, HTTP and TFTP)
SIP Protocol
•
•
•
•
•
•
•
•
•
•
•
•
Proxy Registration and Failover
Outbound Proxy
Registration Timer
SIP Transport – UDP, TCP, TLS
Secured media negotiation(sRTP)
Realm-based authentication (Digest Authentication)
Session Timers
DNS query (A record, SRV, NAPTR)
Codec Negotiation
DTMF relay RTP payload(RFC 2833) or SIP info
Hook flash signaling
Visual Message Waiting Indicator
Codec
CNG (Comfort Noise Generation)
Echo Cancellation: G.168 Compliance
Codec Auto Negotiation
Codecs
- Narrow Band - G.711uLaw/aLaw, G.729A/B
- Wide Band – G.722.1, G711.1(Optional)
• Echo Suppression (G.164)
• Enhanced Packet Loss Concealment
• Silence Suppression (G.164)
• VAD(Voice Active Detector)
• Adaptive Jitter Buffer
• Dynamic Payload Support
• Adjustable Audio Frames per Packet
• Flexible Dial Plan Support with Inter-Digit Timers
•
•
•
•
Ethernet
Dual switched10/100 Based-T Through RJ-45 Interfaces
10/100BASE-T : 2 Ports Providing quto-MD I/MDIX.
Enabling the Use of Straight or Crossover Cable in Either Port
1RJ-45 Port to connect LAN or Wan, this Port Supports
Optional PoE(IEEE802.3af or In line power
• 1RJ-45 port to Connect PC
•
•
•
•
DTMF / Ring Signal
Hardware Specification
DTMF (Dual-Tone Multi-Frequency)
Multiple Ring Tones
My Bell: 10 Rings
Call Progress Tone Generation
(Dial Tone, Busy and Audible Ring back)
• DTMF generation
(RFC 2833 In-Audio or Out-of-band SIP Info)
• 128 x 64 Graphic LCD with Back light
• Language: English, Italian, Czech, Portuguese,
Japanese, Korean
• Ringing and Message Indicator : LCD Backlight
• Power Adaptor : Output DC5V/1A,rated Input AC100~240V.50/60Hz
• Power consumption: 5Watts(max)
• PoE(Power over Ethernet)(Optional)
• Operating Temp: 0~45
• Storage Temp: 20~60
• Humidity: 10~85% (Non-Condensing)
• Phone Stand
• Handset: RJ-9 Modular Connector
•
•
•
•
IP Network
•
•
•
•
•
•
RTP/RTCP, Secure RTP
DNS : A record(RFC 1706), SRV record (RFC 2783)
NAT / NAPT
VLAN : IEEE 802.1q
QoS : IEEE 802.1p, DiffServ(RFC2475)
Network Address Assignment: Static IP/DHCP, PPPoE
Contact Email :[email protected] TEL : + 82-70-7791-3700
Copyright 2009 by Moimstone Co.,Ltd, All rights reserved. Specifications and images are subject to change without notice. www.moimstone.com
