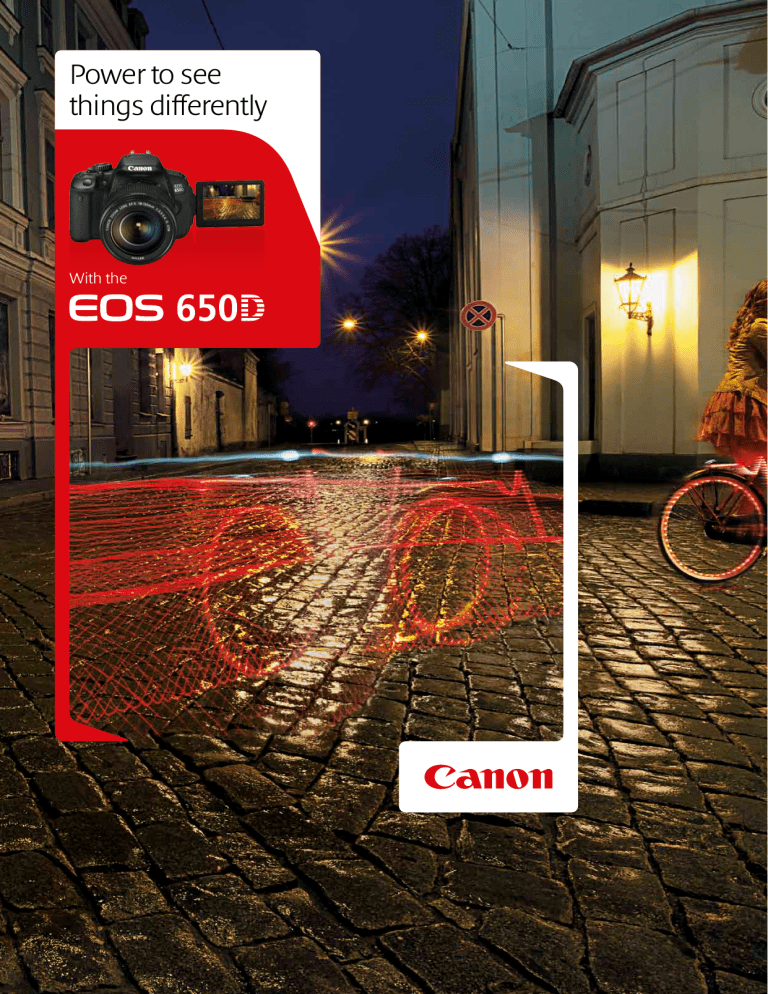

Power to see things differently

Power to see things differently
Power to see
things differently
With the
Brilliance made easy
Intelligent thinking
Creative movies shot simply
A system like no other
Start your journey with the innovative
EOS 650D, a powerful 18.0 MP camera with
DIGIC 5 technology that inspires creativity
and lets you capture great photographs and
Full HD movies with ease.
Make your own EOS Movie in Full HD,
thanks to the EOS 650D’s fully featured
Movie function. Shooting like an expert has
never been easier thanks to continuous AF
and editable Video snapshot modes.
With the EOS 650D you have access to
the expansive EOS system, developed from
over 25 years continuous advancement and
providing you with the ultimate choice of
lenses, flashguns and accessories.
Tv (Shutter Speed): 1/250
Av (Aperture Value): f/8.0
ISO Speed: 100
Lens: EF-S10-22mm f/3.5-4.5 USM
Focal length: 16.0mm
Image shot using wide angle to
put the subject in context with their
environment and provide sharp detail
in both subject and background.
Your world is our vision
Tv (Shutter Speed): 2.5
Av (Aperture Value): f/5.0
ISO Speed: 100
Lens: EF-S10-22 f/3.5-4.5 USM
EOS 650D is your first step towards a world of creative
adventure and fun. With a host of special features,
it blends technology with ease-of-use and is the
number one choice for the entry-level user.
Superior processing power
18-megapixel resolution
Rich colours and smooth tonal
gradation with fine detail, the
EOS 650D has the new DIGIC 5
14-bit processor at its heart,
which works with you to
optimise all settings and Modes,
delivering stunning images with
reduced noise in all light levels,
even at night.
Thanks to an 18.0 Megapixel
sensor, the EOS 650D captures
images in stunning high
resolution at a maximum size
of 5184 x 3456 pixels. Print
poster sized images, or crop to
make new compositions with
abundant detail.
Focal length: 14.0mm
CMOS technology enables stunning
low-light shooting capability.
CMOS sensor technology
Original image
Only Canon designs, develops
and manufactures all its own
sensors, which means quality is
guaranteed at every production
stage. With advanced metering
and stunning low-light capability
up to an incredible ISO 12800,
the EOS 650D can handle
difficult shooting scenarios with
ease, in many cases eliminating
the need for a flash or tripod.
Image showing cropped layout
Its highly sensitive CMOS sensor
can be expanded to ISO 25600
enabling you to push its
performance even further in
low light.
ISO 200
ISO 3200
ISO 800
ISO 12800
Cropped image
Advanced metering
Capture the action
A state-of-the-art exposure
metering system analyses each
scene over 63 separate zones.
Light intensity and colour
information plus data from the
camera’s lens and focus points
are also used to help calculate
the optimum exposure in all
lighting conditions.
Football and other fast-paced
sports require the very best
performance from a camera.
Rapid action is recorded in full
resolution thanks to a continuous
5fps, which means you will never
miss that critical moment.
Advanced metering
Tv (Shutter Speed): 1/200
Av (Aperture Value): f/8.0
ISO Speed: 100
Lens: EF-S10-22 f/3.5-4.5 USM
Focal length: 10.0mm
The vari-angle LCD screen provides
access to alternative shooting angles.
The creative
Vari-angle 7.7cm (3.0”) 3:2 ratio
Clear View LCD II Touch
Understanding the EOS 650D is made even
easier thanks to a highly intuitive screen
with 1,040,000 dots.
A first on any Canon DSLR, touch screen
technology offers control over viewing
images and movies with pinch to zoom,
plus control camera settings and even fire
the shutter with a touch of the screen.
The LCD can be angled and tilted for any
shooting situation and performs well even
in bright sunlight meaning you can always
see what’s going on. Focus and compose
using all of the screen’s display, safe in the
knowledge that the aspect ratio is the
same as the captured image.
Four ways to focus – better, faster AF
The EOS 650D boasts superior autofocus
performance with nine cross-type focus
points, allowing you to create sharply
focused pictures with confidence – even in
the trickiest situations. There are four ways
to focus, from Face Detection and Tracking,
FlexiZone and FlexiZone Multi (which allows
you to select one of nine zones on the LCD),
to Quick mode that lets you change the focus
point by touching the LCD and dragging the
highlighted square to where you want the
lens to focus.
Vari-angle screen
The LCD screen is articulated and rotates
through 270 degrees, making it easy to get
great shots from low or high angles. Clear
View II technology enables the screen to
perform better in direct sunlight making
Live View composition a pleasure.
Touch Screen technology,
a first for EOS
Autofocus points Examples
Tv (Shutter Speed): 1/250
Av (Aperture Value): f/8.0
ISO Speed: 100
Lens: EF-S10-22 f/3.5-4.5 USM
Focal length: 10.0mm
Great still images and video
from the same camera.
Movies made easy
Full HD quality
AF in movies
Video snapshot
Creative movie making is made even easier
on the EOS 650D thanks to high-speed
autofocus, on-screen editing and full stereo
sound. Canon’s advances in Full HD Movies
means the joy of creating a movie is exciting
and easy to achieve.
Faster and more accurate continuous focus
in Movie mode allows you to keep sharp
focus throughout the duration of your
recording. Combined with the new
EF-S 18-135mm f/3.5-5.6 IS STM lens
your Movies will always be sharply
focused during recording.
Enhance your Movie footage with Video
Snapshot. Shoot a series of short videos up
to eight seconds in length, edit them and
play the album as a video slideshow in one
movie file. The EOS 650D makes this easy
and fun and the results give your movies
pace and excitement with the look and feel
of professionally edited footage.
To find out more about this
exciting new product, view the
EOS 650D Video here:
Scene Intelligent Auto takes
the guesswork out of
creating the perfect image.
Scene Intelligent Auto
Intelligent thinking
for any scene
Choose Scene Intelligent Auto and with
the powerful DIGIC 5 processor at work,
each scene is analysed for the presence of
movement, faces (in Live View), lighting,
contrast and colour. Even the EOS 650D’s
Auto Lighting Optimiser is fine-tuned
according to dynamic range, so that
highlights and shadows are recorded
and reproduced perfectly.
Manual exposure
Aperture-priority AE
HDR Backlight Control
Shutter-priority AE
Movie shooting
Program AE
Scene Intelligent Auto
Handheld Night Scene
Flash Off
Night Portrait
Creative Auto
Shot with Scene Intelligent Auto
Nature and Outdoors
The saturation of the blue sky is increased
to create a vivid image.
Vivid Colours
For highly saturated subjects a suitable correction
is applied without diluting the saturation.
The facial tones look more natural. The image is
adjusted to obtain the correct brightness of the face.
Tv (Shutter Speed): 1/100
Av (Aperture Value): f/5.6
ISO Speed: 100
Lens: EF-S18-200 f/3.5-5.6 IS
Focal length: 60.0mm
The saturation of a sunset scene is
increased so the sunset looks vivid.
Define your creative style
Intelligently designed and packed full of
features, the EOS 650D brings creative effects
to the fore, putting you in control.
Tv (Shutter Speed): 1/15
Av (Aperture Value): f/6.3
ISO Speed: 400
Lens: EF-S10-22mm f/3.5-4.5 USM
Focal length: 10.0mm
Control off-camera flash with an
Integrated Speedlite Transmitter.
Creative filters to enhance and inspire
Creative filters bring a world of possibilities
to your fingertips, and with EOS 650D you
can choose from any one of seven filters to
enhance and add extra drama and effects
to your chosen image.
Shooting with Integrated Speedlite Transmitter
Art bold effect
Lighting effects made easy
Fish-eye effect
Grainy B/W
Toy camera effect
Soft focus
Water painting effect
Miniature effect
Get creative with off-camera flash thanks
to the EOS 650D’s Integrated Speedlite
Transmitter, which allows you to add
additional Speedlite flashguns triggered
remotely by the camera with no need for
any cables or complications.
Position another compatible Speedlite
to one side for dramatic side lighting or
use more than one flash placed in
different areas to light subject and
background independently.
Flash setup
Resulting image
HDR Backlight Control
Handheld Night Scene
Selecting the Handheld Night Scene mode
allows the EOS 650D to shoot a series of
pictures in very low light at a fast enough
shutter speed to prevent camera shake,
blending them together to create one stunning
result, eliminating the need for a tripod.
Select direct from the Mode dial and shoot
images with HDR Backlight Control for
stunning results in backlit conditions.
With the power of the DIGIC 5 processor,
three continuous shots at different exposures
are taken. The shots are under, correctly and
over exposed and then combined to create an
image having minimal loss of highlight detail
and shadow detail – even in backlit conditions.
HDR Overexposed
With Handheld Night Scene
HDR Underexposed
Without Handheld Night Scene
HDR combined
the extensive
EOS System
With a EOS 650D at your side, you have
access to the extensive EOS system of lens
and flash accessories designed to work
seamlessly with your camera.
A system for any occasion
For over 25 years the EOS system has been one of the most successful camera
systems in the world. The range comprises over 60 EF and EF-S lenses plus a range of
fully dedicated flashguns. The EOS 650D features an Integrated Speedlite Transmitter
enabling the remote operation of a Speedlite flash off the camera for additional
creative lighting effects.
Tv (Shutter Speed): 1/100
Av (Aperture Value): f/5.6
ISO Speed: 100
Lens: EF-S18-200 f/3.5-5.6 IS
Focal length: 200.0mm
Long lens shooting made easy
with Image Stabilisation.
Landscape and travel
EF-S 10-22mm f/3.5-4.5 USM
EF-S 60mm f/2.8 Macro USM
This ultra wide-angle lens is ideal to show the
power of a dramatic landscape, or the detail
of exquisite architecture interiors.
Focus within 20cm and fill your frame
with stunning detail.
Digital Photo Professional
and EOS Solution software
Supplied with every Canon EOS camera,
Digital Photo Professional (DPP) is
professional imaging software for viewing,
editing and processing RAW and JPEG files. Its
intuitive interface allows photographers to
adjust images for exposure, colour saturation
and contrast as well as apply settings such as
white balance and sharpening retrospectively.
Canon Photographic Printing
Canon’s range of PIXMA inkjet printers allow
EOS photographers to make fine-art quality
prints at home. Tiny ink-droplet sizes deliver
remarkable image quality and phenomenal
levels of detail in borderless print up to A3+
in size. Canon SELPHY dye-sublimation
printers offer the speed and affordability
of a high-street minilab in a compact,
easy-to-use form.
Digital Photo
Also included on the EOS Solution disk are
other applications that add new functionality
to your EOS camera. ImageBrowser EX (Mac
and PC) offers simple download and image
browsing, while EOS Utility provides remote
and tethered shooting facilities. Picture Style
Editor lets photographers create and edit
their own picture styles and upload them to
their cameras.
A4 Photo Printer
Wildlife / Long Lens Shooting
EF 50mm f/1.4 USM
EF-S 17-55mm f/2.8 IS USM
EF-S 55-250mm f/4-5.6 IS II
EF-S 18-200mm f/3.5-5.6 IS
Two classic lenses capable of great
natural portraits in low light thanks
to fast maximum apertures.
Zoom in on details or pull distant
subjects closer and let the Image
Stabilizer reduce the risk of camera shake.
To find out more go to:
EOS 650D
Specifications: EOS 650D
Effective Pixels
Total Pixels
Aspect Ratio
Low-Pass Filter
Sensor Cleaning
Colour Filter Type
Built-in Flash GN
(ISO 100, meters)
Built-in Flash Coverage
Built-in Flash recycle time
Red-Eye Reduction
Flash Exposure
Flash Exposure
Flash Exposure Lock
Second Curtain
HotShoe/ PC terminal
External Flash
External Flash Control
Lens Mount
Focal Length
Equivalent to 1.6x the focal length of the lens
AF System/ Points
AF working range
AF Modes
AF Point Selection
Selected AF point display
Predictive AF (7)
AF Lock
AF Assist Beam
Manual Focus
TTL secondary image forming, phase difference
detection with AF dedicated CMOS sensor
9 cross-type AF points (f/2.8 at centre)
EV -0.5 -18 (at 23°C & ISO100)
AI Focus
One Shot
AI Servo
Automatic selection, Manual selection
Superimposed in viewfinder and indicated on
LCD monitor
Yes, up to 10m
Locked when shutter button is pressed half way
Intermittent firing of built-in flash or emitted by
optional dedicated Speedlite
Selected on lens
Metering Range
AE Lock
Exposure Compensation
ISO Sensitivity (8)
Picture Styles
Colour Space
Image Processing
TTL full aperture metering with 63-zone SPC
(1) Evaluative metering (linked to all AF points)
(2) Partial metering at center
(approx. 9% of viewfinder)
(3) Spot metering (approx. 4% of viewfinder
at center)
(4) Center weighted average metering
EV 1-20 (at 23°C with 50mm f/1.4 lens
Auto: In One-shot AF mode with evaluative
metering exposure is locked when focus is
Manual: By AE lock button in creative
zone modes.
+/-5 EV in 1/3 or 1/2 stop increments
(can be combined with AEB).
3 shots +/- 2 EV, 1/2 or 1/3-stop increments
AUTO(100-6400), 100-12800 in 1-stop
increments ISO can be expandable to H:
Drive modes
Continuous Shooting
Frame Rate
Electronically-controlled focal-plane shutter
30-1/4000 sec (1/2 or 1/3 stop increments),
Bulb (Total shutter speed range. Available
range varies by shooting mode)
Display Options
Custom White Balance
WB Bracketing
Auto white balance with the imaging sensor
AWB, Daylight, Shade, Cloudy, Tungsten, White
Fluorescent light, Flash, Custom.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9.
Yes, 1 setting can be registered
+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/
Green bias.
Still Image Type
RAW+JPEG simultaneous
Image Size
Coverage (Vertical/
Dioptre Correction
Focusing Screen
Viewfinder Information
Depth of field preview
Eyepiece shutter
Approx. 95%
Approx. 0.85x (4)
Approx. 19mm (from eyepiece lens centre)
-3 to +1 m-1 (dioptre)
Quick-return half mirror (Transmission:
reflection ratio of 40:60, no mirror cut-off with
EF600mm f/4 or shorter)
AF information: AF points, focus confirmation
Exposure information: Shutter speed, aperture
value, ISO speed (always displayed), AE lock,
exposure level/compensation, spot metering
circle, exposure warning, AEB
Flash information: Flash ready, high-speed
sync, FE lock, flash exposure compensation,
red-eye reduction light
Image information: Highlight tone priority
(D+), monochrome shooting, maximum burst
(1 digit display), White balance correction, SD
card information
Yes, with Depth of Field preview button.
On strap
Movie Type
Movie Size
Movie Length
File Numbering
Viewing Angle
Brightness Adjustment
Display Options
Touch screen vari angle 7.7cm (3.0")
3:2 Clear View II TFT, approx. 1040K dots
Approx. 100%
Approx 170°
Anti smudge
Adjustable to one of seven levels
(1) Quick Control Screen
(2) Camera settings
Custom Functions
Metadata Tag
Orientation Sensor
Playback zoom
Display Formats
Slide Show
Yes/ No
E-TTL II with EX series Speedlites, wireless
multi-flash support
via camera menu screen
Scene Intelligent Auto, No Flash, Creative Auto,
Portrait, Landscape, Close-up, Sports, Night
Portrait, Handheld Night Scene, HDR Backlight
Control, Program AE , Shutter priority AE,
Aperture priority AE, Manual
Auto, Standard, Portrait, Landscape, Neutral,
Faithful, Monochrome, User Defined (x3)
sRGB and Adobe RGB
Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Multi Shot Noise Reduction
Auto Correction of Lens Peripheral illumination
Basic+ (Shoot by ambience selection, Shoot by
lighting or scene type)
Creative filters (Art Bold, Water painting, Grainy
B/W, Soft focus, Toy camera, Miniature effect,
Fish-eye) - during image Playback only
Single, Continuous, Self timer (2s, 10s+remote,
10s + continuous shots 2-10)
Max. Approx. 5fps for approx. 22 JPEG
images (1), 6 images RAW (2) (10)
Electronic viewfinder with image sensor
Approx. 99% (horizontally and vertically)
30 fps
Manual Focus (Magnify the image 5x or 10x
at any point on screen)
Autofocus: Hybrid CMOS AF (Face detection
and Tracking AF, FlexiZone-Multi, FlexiZoneSingle), Phase detection AF (Quick mode)
Real-time evaluative metering with image
Evaluative metering, partial metering, spot
metering, center-weighted average metering.
Grid overlay, Histogram
JPEG 3:2: (L) 5184x3456, (M) 3456x2304,
(S1) 2592x1728, (S2) 1920x1280, (S3)
JPEG 4:3: (L) 4608x3456, (M) 3072x2304,
(S1) 2304x1728, (S2) 1696x1280, (S3)
JPEG 16:9: (L) 5184x2912, (M) 3456x1944,
(S1) 2592x1456 (S2) 1920x1080, (S3)
JPEG 1:1: (L) 3456x3456, (M) 2304x2304,
(S1) 1728x1728, (S2) 1280x1280, (S3)
RAW: (RAW) 5184x3456, (M-RAW)
3888x2592, (S-RAW) 2592x1728
MOV (Video: H.264, Sound: Linear PCM,
recording level can be manually adjusted
by user)
1920 x 1080 (29.97, 25, 23.976 fps)
1280 x 720 (59.94, 50 fps)
640 x 480 (30, 25 fps)
Max duration 29min 59sec, Max file size 4GB
New folders can be manually created
and selected
(1) Consecutive numbering
(2) Auto reset
(3) Manual reset
8 Custom Functions with 34 settings
User copyright information (can be set in
Image rating (0-5 stars)
1.5x - 10x enabled in 15steps
(1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) Jump Display
Image selection: All images, by Date, by Folder,
Movies, Stills Playback time: 1/2/3/5 seconds
Repeat: On/Off
Canon Europe Ltd
3 The Square, Stockley Park
Uxbridge, Middlesex
UB11 1ET, UK
English Edition
© Canon Europa N.V., 2012
Menu Categories
Menu Languages
Firmware Update
Brightness: Yes
RGB: Yes
Erase: Single image, All images in folder,
Checkmarked images, unprotected images
Protection: Erase protection of one image
at a time
(1) Shooting menu (x5)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) Custom Functions menu
(5) My Menu
25 Languages
English, German, French, Dutch, Danish,
Portuguese, Finnish, Italian, Norwegian,
Swedish, Spanish, Greek, Russian, Polish,
Czech, Hungarian, Romanian, Ukrainian,
Turkish, Arabic, Thai, Simplified Chinese,
Traditional Chinese, Korean and Japanese
Update possible by the user.
Hi-Speed USB
Video output (PAL/ NTSC) (integrated with
USB terminal), HDMI mini output (HDMI-CEC
compatible), External microphone (3.5mm
Stereo mini jack)
Canon Printers
Canon Compact Photo Printers and PIXMA
Printers supporting PictBridge
Type SD, SDHC or SDXC (UHS-I)card
PC & Macintosh
Windows XP inc SP3 / Vista inc SP1 and SP2
(excl. Starter Edition) / 7 (excl. Starter Edition)
OS X v10.6-10.7 (Intel processor required)
Browsing & Printing
Image Processing
ImageBrowser EX
Digital Photo Professional
PhotoStitch, EOS Utility (inc. Remote Capture),
Picture Style Editor
Battery life
Battery Indicator
Power saving
Power Supply & Battery
1 x Rechargeable Li-ion Battery LP-E8
Approx. 440 (at 23°C, AE 50%, FE 50%) (5)
Approx. 400 (at 0°C, AE 50%, FE 50%)
4 levels
Power turns off after 30sec or 1, 2, 4, 8 or
AC Adapter Kit ACK-E8, Battery charger LC-E8,
Body Materials
JPEG: Fine, Normal (Exif 2.30 compliant) /
Design rule for Camera File system (2.0),
RAW: RAW (14bit, Canon original RAW 2nd
edition), Digital Print Order Format [DPOF]
Version 1.1 compliant
Yes, RAW + Large JPEG
Canon Inc.
Canon Europe
Highlight Alert
Image Erase/Protection
Yes, with compatible External Flash
up to 17mm focal length
(35mm equivalent: 28mm)
Approx. 3 seconds
Auto, Manual flash, Integrated Speedlite
Yes - with red eye reduction lamp
+/- 2EV in 1/2 or 1/3 increments
Metering modes
22.3 x 14.9mm CMOS
Approx. 18.0 megapixels
Approx. 18.5 megapixels
EOS integrated cleaning system
Primary Colour
Operating Environment
Dimensions (WxHxD)
Weight (body only)
Stainless Steel and polycarbonate resin with
glass fiber
0 – 40°C, 85% or less humidity
133.1 x 99.8 x 78.8 mm
Approx. 575g (CIPA testing standard, including
battery and memory card)
Wireless File Transmitter
Battery Grip
Remote Controller/
Eyecup Ef, E-series Dioptric Adjustment Lens
with Rubber Frame Ef, Eyepiece Extender
EP-EX15II, Angle Finder C
Semi-Hard Case EH22-L
Compatible with Eye-Fi cards
All EF and EF-S lenses
Canon Speedlites (220EX, 270EX, 270EX II,
320EX, 420EX, 430EX, 430EX II, 550EX, 580EX,
580EX II, 600EX, 600EX-RT, Macro-Ring-Lite,
MR-14EX, Macro Twin Lite MT-24EX, Speedlite
Transmitter ST-E2, Speedlite Transmitter
Remote Switch RS-60E3, Remote Controller
Hand Strap E2
All data is based on Canon standard testing methods except where
indicated. Subject to change without notice.
1 Large/Fine(Quality 8) resolution
2Based on Canon’s testing conditions, JPEG, ISO 100, Standard Picture
Style. Varies depending on the subject, memory card brand and
capacity, image recording quality, ISO speed, drive mode, Picture Style,
Custom functions etc.
3Compatible with large memory card capacities, including cards of 2GB
and more (camera may require firmware update).
4 With 50mm lens at infinity, -1m-1 dpt
5Based on the CIPA Standard and using the batteries and memory card
format supplied with the camera, except where indicated
6 Memory card and battery door only
7 With EF300mm f/2.8L IS USM at 50kph
8 Recommended Exposure Index
9 Environmental protection
10 Maximum fps and buffer capacity may be reduced depending on the
cameras settings and light level
11 Peripheral Cross type AF points will not function as a cross type AF
points with the following lenses: EF 35-80mm f4-5.6 (II/III/USM),
EF35-105mm f4.5-5.6 (USM). EF 80-200mm f4.5-5.6 (II)
12 With Battery strength 75% or higher
Some images are simulated for clarity of reproduction. All company and/or
product names are trademarks and/or registered trademarks or their
respective manufacturers in their markets and/or countries
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
