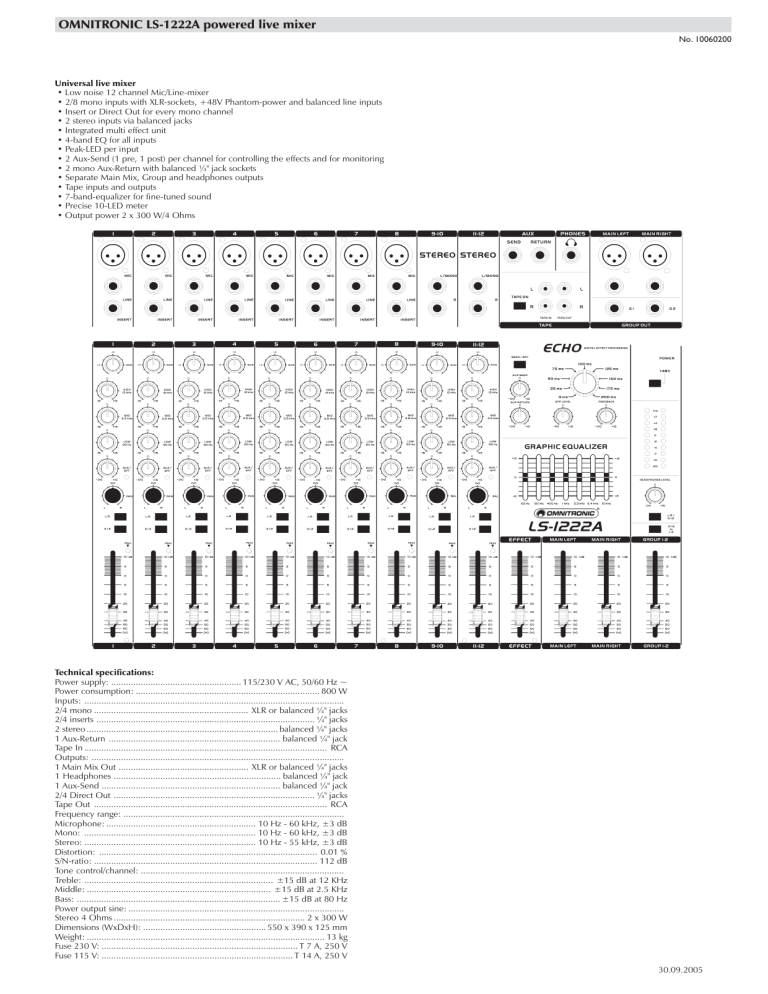

OMNITRONIC LS-1222A powered live mixer

OMNITRONIC LS-1222A powered live mixer
OMNITRONIC LS-1222A powered live mixer
No. 10060200
Universal live mixer
• Low noise 12 channel Mic/Line-mixer
• 2/8 mono inputs with XLR-sockets, +48V Phantom-power and balanced line inputs
• Insert or Direct Out for every mono channel
• 2 stereo inputs via balanced jacks
• Integrated multi effect unit
• 4-band EQ for all inputs
• Peak-LED per input
• 2 Aux-Send (1 pre, 1 post) per channel for controlling the effects and for monitoring
• 2 mono Aux-Return with balanced ¼" jack sockets
• Separate Main Mix, Group and headphones outputs
• Tape inputs and outputs
• 7-band-equalizer for fine-tuned sound
• Precise 10-LED meter
• Output power 2 x 300 W/4 Ohms
Technical specifications:
Power supply: ..................................................... 115/230 V AC, 50/60 Hz ~
Power consumption: ........................................................................... 800 W
Inputs: ..........................................................................................................
2/4 mono ............................................................... XLR or balanced ¼" jacks
2/4 inserts ......................................................................................... ¼" jacks
2 stereo .............................................................................. balanced ¼" jacks
1 Aux-Return ...................................................................... balanced ¼" jack
Tape In ................................................................................................... RCA
Outputs: .......................................................................................................
1 Main Mix Out ..................................................... XLR or balanced ¼" jacks
1 Headphones .................................................................... balanced ¼" jack
1 Aux-Send ......................................................................... balanced ¼" jack
2/4 Direct Out .................................................................................. ¼" jacks
Tape Out ............................................................................................... RCA
Frequency range: ..........................................................................................
Microphone: ............................................................. 10 Hz - 60 kHz, ±3 dB
Mono: ...................................................................... 10 Hz - 60 kHz, ±3 dB
Stereo: ...................................................................... 10 Hz - 55 kHz, ±3 dB
Distortion: ......................................................................................... 0.01 %
S/N-ratio: ........................................................................................... 112 dB
Tone control/channel: ...................................................................................
Treble: ............................................................................. ±15 dB at 12 KHz
Middle: ........................................................................... ±15 dB at 2.5 KHz
Bass: ................................................................................... ±15 dB at 80 Hz
Power output sine: ........................................................................................
Stereo 4 Ohms .............................................................................. 2 x 300 W
Dimensions (WxDxH): .................................................. 550 x 390 x 125 mm
Weight: ................................................................................................. 13 kg
Fuse 230 V: ................................................................................ T 7 A, 250 V
Fuse 115 V: .............................................................................. T 14 A, 250 V
30.09.2005
