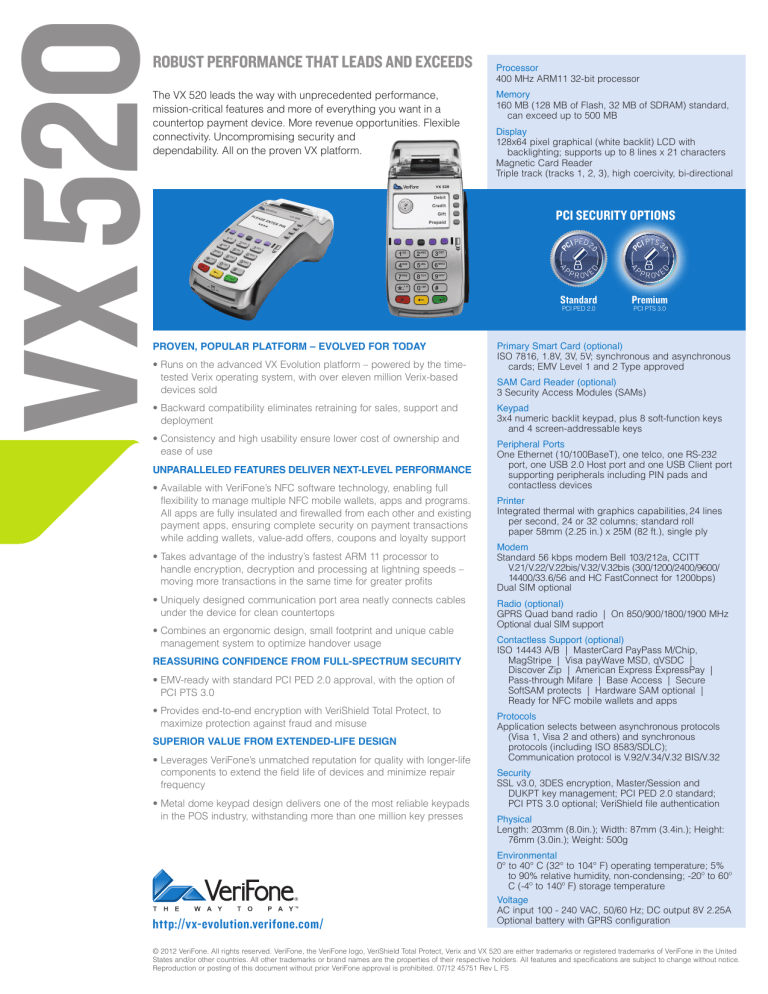

ROBUST PERFORMANCE THAT lEAdS ANd ExCEEdS

ROBUST PERFORMANCE THAT lEAdS ANd ExCEEdS
VX 520
ROBUST PERFORMANCE THAT leads and exceeds
The VX 520 leads the way with unprecedented performance,
mission-critical features and more of everything you want in a
countertop payment device. More revenue opportunities. Flexible
connectivity. Uncompromising security and
dependability. All on the proven VX platform.
Proven, Popular Platform – Evolved For Today
• Runs on the advanced VX Evolution platform – powered by the timetested Verix operating system, with over eleven million Verix-based
devices sold
• Backward compatibility eliminates retraining for sales, support and
deployment
• Consistency and high usability ensure lower cost of ownership and
ease of use
Unparalleled Features Deliver Next-Level Performance
•A
vailable with VeriFone’s NFC software technology, enabling full
flexibility to manage multiple NFC mobile wallets, apps and programs.
All apps are fully insulated and firewalled from each other and existing
payment apps, ensuring complete security on payment transactions
while adding wallets, value-add offers, coupons and loyalty support
• Takes advantage of the industry’s fastest ARM 11 processor to
handle encryption, decryption and processing at lightning speeds –
moving more transactions in the same time for greater profits
• Uniquely designed communication port area neatly connects cables
under the device for clean countertops
• Combines an ergonomic design, small footprint and unique cable
management system to optimize handover usage
Reassuring Confidence From Full-Spectrum Security
• EMV-ready with standard PCI PED 2.0 approval, with the option of
PCI PTS 3.0
• Provides end-to-end encryption with VeriShield Total Protect, to
maximize protection against fraud and misuse
Superior Value From Extended-Life Design
• Leverages VeriFone’s unmatched reputation for quality with longer-life
components to extend the field life of devices and minimize repair
frequency
• Metal dome keypad design delivers one of the most reliable keypads
in the POS industry, withstanding more than one million key presses
http://vx-evolution.verifone.com/
Processor
400 MHz ARM11 32-bit processor
Memory
160 MB (128 MB of Flash, 32 MB of SDRAM) standard,
can exceed up to 500 MB
Display
128x64 pixel graphical (white backlit) LCD with
backlighting; supports up to 8 lines x 21 characters
Magnetic Card Reader
Triple track (tracks 1, 2, 3), high coercivity, bi-directional
pci security options
Standard
PCI PED 2.0
Premium
PCI PTS 3.0
Primary Smart Card (optional)
ISO 7816, 1.8V, 3V, 5V; synchronous and asynchronous
cards; EMV Level 1 and 2 Type approved
SAM Card Reader (optional)
3 Security Access Modules (SAMs)
Keypad
3x4 numeric backlit keypad, plus 8 soft-function keys
and 4 screen-addressable keys
Peripheral Ports
One Ethernet (10/100BaseT), one telco, one RS-232
port, one USB 2.0 Host port and one USB Client port
supporting peripherals including PIN pads and
contactless devices
Printer
Integrated thermal with graphics capabilities, 24 lines
per second, 24 or 32 columns; standard roll
paper 58mm (2.25 in.) x 25M (82 ft.), single ply
Modem
Standard 56 kbps modem Bell 103/212a, CCITT
V.21/ V.22/ V.22bis/ V.32/ V.32bis (300/1200/2400/9600/
14400/33.6/56 and HC FastConnect for 1200bps)
Dual SIM optional
Radio (optional)
GPRS Quad band radio | On 850/900/1800/1900 MHz
Optional dual SIM support
Contactless Support (optional)
ISO 14443 A/B | MasterCard PayPass M/Chip,
MagStripe | Visa payWave MSD, qVSDC |
Discover Zip | American Express ExpressPay |
Pass-through Mifare | Base Access | Secure
SoftSAM protects | Hardware SAM optional |
Ready for NFC mobile wallets and apps
Protocols
Application selects between asynchronous protocols
(Visa 1, Visa 2 and others) and synchronous
protocols (including ISO 8583/SDLC);
Communication protocol is V.92/V.34/V.32 BIS/V.32
Security
SSL v3.0, 3DES encryption, Master/Session and
DUKPT key management; PCI PED 2.0 standard;
PCI PTS 3.0 optional; VeriShield file authentication
Physical
Length: 203mm (8.0in.); Width: 87mm (3.4in.); Height:
76mm (3.0in.); Weight: 500g
Environmental
0° to 40° C (32° to 104° F) operating temperature; 5%
to 90% relative humidity, non-condensing; -20º to 60º
C (-4º to 140º F) storage temperature
Voltage
AC input 100 - 240 VAC, 50/60 Hz; DC output 8V 2.25A
Optional battery with GPRS configuration
© 2012 VeriFone. All rights reserved. VeriFone, the VeriFone logo, VeriShield Total Protect, Verix and VX 520 are either trademarks or registered trademarks of VeriFone in the United
States and/or other countries. All other trademarks or brand names are the properties of their respective holders. All features and specifications are subject to change without notice.
Reproduction or posting of this document without prior VeriFone approval is prohibited. 07/12 45751 Rev L FS
