(1.0 Vp-p,75 ) Output 1 BNC

(1.0 Vp-p,75 ) Output 1 BNC

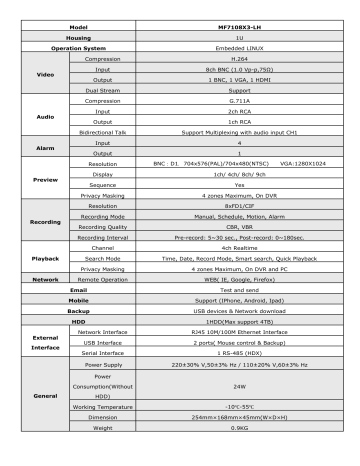

Model
MF7108X3-LH
Housing
1U
Operation System
Embedded LINUX
Compression
H.264
Input
8ch BNC (1.0 Vp-p,75Ω)
Output
1 BNC, 1 VGA, 1 HDMI
Dual Stream
Support
Compression
G.711A
Input
2ch RCA
Output
1ch RCA
Bidirectional Talk
Support Multiplexing with audio input CH1
Input
4
Output
1
Video
Audio
Alarm
Resolution
:D1,704x576(PAL)/704x480(NTSC)
BNC
VGA:1280X1024
Display
1ch/ 4ch/ 8ch/ 9ch
Sequence
Yes
Privacy Masking
4 zones Maximum, On DVR
Resolution
8xFD1/CIF
Recording Mode
Manual, Schedule, Motion, Alarm
Recording Quality
CBR, VBR
Recording Interval
Pre-record: 5~30 sec., Post-record: 0~180sec.
Channel
4ch Realtime
Search Mode
Time, Date, Record Mode, Smart search, Quick Playback
Privacy Masking
4 zones Maximum, On DVR and PC
Remote Operation
WEB( IE, Google, Firefox)
Preview
Recording
Playback
Network
Email
Test and send
Mobile
Support (IPhone, Android, Ipad)
Backup
USB devices & Network download
HDD
1HDD(Max support 4TB)
Network Interface
RJ45 10M/100M Ethernet Interface
USB Interface
2 ports( Mouse control & Backup)
Serial Interface
1 RS-485 (HDX)
Power Supply
220±30% V,50±3% Hz / 110±20% V,60±3% Hz
External
Interface
Power
Consumption(Without
General
24W
HDD)
Working Temperature
-10℃-55℃
Dimension
254mm×168mm×45mm(W×D×H)
Weight
0.9KG
