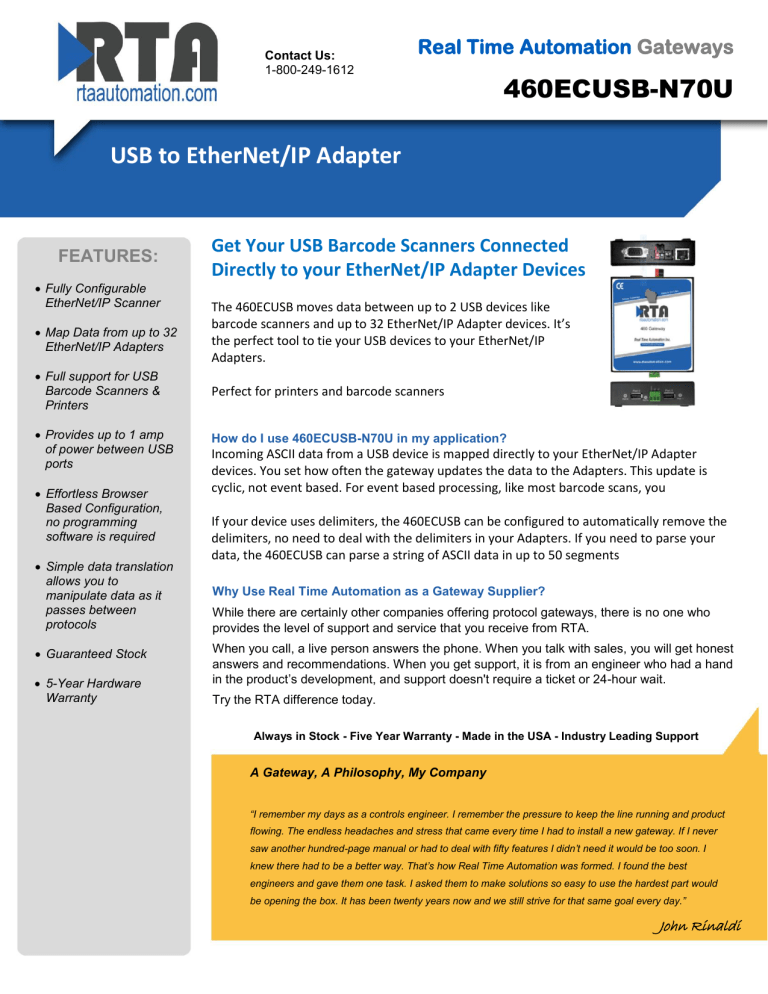

USB to EtherNet/IP Adapter 460ECUSB-N70U
Contact Us:
1-800-249-1612
Real Time Automation Gateways
460ECUSB-N70U
USB to EtherNet/IP Adapter
FEATURES:
• Fully Configurable
EtherNet/IP Scanner
Get Your USB Barcode Scanners Connected
Directly to your EtherNet/IP Adapter Devices
• Map Data from up to 32
EtherNet/IP Adapters
The 460ECUSB moves data between up to 2 USB devices like
barcode scanners and up to 32 EtherNet/IP Adapter devices. It’s
the perfect tool to tie your USB devices to your EtherNet/IP
Adapters.
• Full support for USB
Barcode Scanners &
Printers
Perfect for printers and barcode scanners
• Provides up to 1 amp
of power between USB
ports
• Effortless Browser
Based Configuration,
no programming
software is required
• Simple data translation
allows you to
manipulate data as it
passes between
protocols
• Guaranteed Stock
• 5-Year Hardware
Warranty
How do I use 460ECUSB-N70U in my application?
Incoming ASCII data from a USB device is mapped directly to your EtherNet/IP Adapter
devices. You set how often the gateway updates the data to the Adapters. This update is
cyclic, not event based. For event based processing, like most barcode scans, you
If your device uses delimiters, the 460ECUSB can be configured to automatically remove the
delimiters, no need to deal with the delimiters in your Adapters. If you need to parse your
data, the 460ECUSB can parse a string of ASCII data in up to 50 segments
Why Use Real Time Automation as a Gateway Supplier?
While there are certainly other companies offering protocol gateways, there is no one who
provides the level of support and service that you receive from RTA.
When you call, a live person answers the phone. When you talk with sales, you will get honest
answers and recommendations. When you get support, it is from an engineer who had a hand
in the product’s development, and support doesn't require a ticket or 24-hour wait.
Try the RTA difference today.
Always in Stock - Five Year Warranty - Made in the USA - Industry Leading Support
A Gateway, A Philosophy, My Company
“I remember my days as a controls engineer. I remember the pressure to keep the line running and product
flowing. The endless headaches and stress that came every time I had to install a new gateway. If I never
saw another hundred-page manual or had to deal with fifty features I didn’t need it would be too soon. I
knew there had to be a better way. That’s how Real Time Automation was formed. I found the best
engineers and gave them one task. I asked them to make solutions so easy to use the hardest part would
be opening the box. It has been twenty years now and we still strive for that same goal every day.”
John Rinaldi
Ethernet/IP Client Scanner FEATURES
Operation Mode
Message Support
Data Types
Maximum EtherNet/IP Adapter Devices
Max Data Per Adapter Connection
Maximum IO Scan Rate
USB FEATURES
Operation Mode
Maximum Number of Devices Supported
ASCII Device Interfaces
Maximum Number of ASCII Characters Transferred
Delimiter Processing
Class 1 I/O Scanner
Implicit Class 1 Cyclic I/O, Explicit not supported
BIT8,16 & 32; INT8, 16, 32 & 64; UINT8,16, 32 & 64; Float & Double
32
Up to 496 bytes in each direction
20 msec
Device to Gateway only
2
USB
128
Incoming delimiters can be automatically removed; Outgoing delimiters automatically added if
configured
Parse string of ASCII data in up to 50 segments by delimiter or offset
Parsing
INCLUDED WITH GATEWAY
120-volt AC wall power supply
Manual
6’ power cable with flying leads
5-year hardware warranty
IPSetup software – automatically locates RTA gateway
Unlimited firmware feature upgrades for life
on the network
CAT5 crossover cable for direct connection to PC
Complete, unlimited access to our industry leading support staff
during programming
ELECTRICAL / ENVIRONMENTAL
DIMENSIONS
DC Input Voltage
8 VDC @ 230mA to 28 VDC @ 80 mA
Maximum Baud Rate
115K baud
Operating Temperature
-40 C to 85 C
Certification
RoHS-Compliant, UL, CUL, CE Approvals
ENCLOSURE / HARDWARE
Size
4.4″ x 3.87″ x 1.15″
Weight
5 oz
Enclosure Type
Anodized Aluminum
Mounting
Din rail or panel mount
Ethernet link/data LED, Ethernet speed LED, power
LEDs
LED, & 2 USB LEDs
GATEWAY FEATURES & FUNCTIONS
Alarming
Set <, <=, >=, ==, ! =, and change-of-state rules on
any data moving through the gateway. If alarm rule is
triggered an email notification can be sent.
Gateway Security
You can configure up to 9 different users access to
diagnostic and configuration screens.
Translation Table
Status and Counters
Diagnostic Logging Page
CATALOG #
460ECUSB-N70U
Allows for data manipulation during protocol
translation. Scaling and other data format changes
can occur in the gateway.
NOT EXACTLY WHAT YOU WERE LOOKING FOR?
Real Time Automation offers a full line of gateway products. If this is not the one
you were looking for, give us a call at 1-800-249-1612. Or, check out a listing at
www.rtaautomation.com/products. We also offer custom gateways to help
customers dealing with unique needs or proprietary protocols.
Protocol specific status, counters, and error
messages are accessible within the gateways
diagnostics page. They can also be delivered to a
connected device.
Allows users to see and log start up sequences,
protocol specific messages & error messages.
DESCRIPTION
Connects up to 32 EtherNet/IP Adapters with up to 2
USB devices
Allen-Bradley, ControlLogix, CompactLogix, PLC-5 are registered trademarks of Rockwell Automation, Inc.
