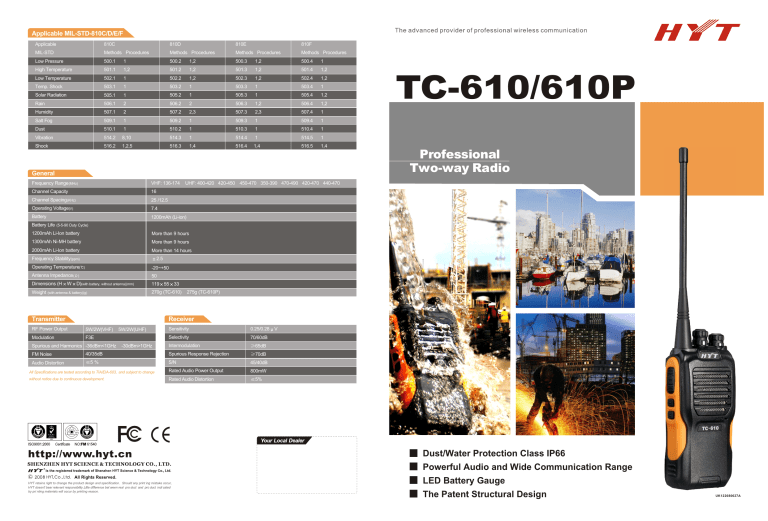

TC-610/610P
Applicable MIL-STD-810C/D/E/F
Applicable
810C
MIL-STD
Methods Procedures
Methods Procedures
Methods Procedures
Methods Procedures
Low Pressure
500.1
1
500.2
1,2
500.3
1,2
500.4
1
High Temperature
501.1
1,2
501.2
1,2
501.3
1,2
501.4
1,2
Low Temperature
502.1
1
502.2
1,2
502.3
1,2
502.4
1,2
Temp. Shock
503.1
1
503.2
1
503.3
1
503.4
1
Solar Radiation
505.1
1
505.2
1
505.3
1
505.4
1,2
Rain
506.1
2
506.2
2
506.3
1,2
506.4
1,2
Humidity
507.1
2
507.2
2,3
507.3
2,3
507.4
1
Salt Fog
509.1
1
509.2
1
509.3
1
509.4
1
Dust
510.1
1
510.2
1
510.3
1
510.4
1
Vibration
514.2
8,10
514.3
1
514.4
1
514.5
1
Shock
516.2
1,2,5
516.3
1,4
516.4
1,4
516.5
1,4
810D
810E
810F
Professional
Two-way Radio
General
Frequency Range(MHz)
VHF: 136-174
Channel Capacity
16
Channel Spacing (KHz)
25 /12.5
Operating Voltage(V)
7.4
Battery
1200mAh (Li-ion)
Battery Life
TC-610/610P
UHF: 400-420 420-450 450-470 350-390 470-490 420-470 440-470
(5-5-90 Duty Cycle)
1200mAh Li-Ion battery
More than 9 hours
1300mAh Ni-MH battery
More than 9 hours
2000mAh Li-Ion battery
More than 14 hours
Frequency Stability(ppm)
Operating Temperature(
Antenna Impedance(
Dimensions (H
2.5
)
-20~+50
50
)
W D)(with battery, without antenna)(mm)
119 55
Weight (with antenna & battery)(g)
Transmitter
275g (TC-610P)
Receiver
RF Power Output
5W/2W(VHF)
Modulation
F3E
Spurious and Harmonics -36dBm<1GHz
FM Noise
33
270g (TC-610)
5W/2W(UHF)
-30dBm>1GHz
40/35dB
5%
Sensitivity
0.25/0.28 V
Selectivity
70/60dB
Intermodulation
Spurious Response Rejection
65dB
70dB
S/N
45/40dB
All Specifications are tested according to TIA/EIA-603, and subject to change
Rated Audio Power Output
800mW
without notice due to continuous development.
Rated Audio Distortion
Audio Distortion
http://www.hyt.cn
5%
Dust/Water Protection Class IP66
Powerful Audio and Wide Communication Range
HYT retains right to change the product design and specification. Should any print ing mistake occur,
HYT doesn't bear relevant responsibility .Little difference bet ween real pro duct and pro duct indi cated
by pri nting materials will occur by printing reason.
LED Battery Gauge
The Patent Structural Design
UK122080627A
Main Features
2-Tone Decode (for TC-610P only)
A Rugged Radio for Harsh Environments
HYT TC-610/610P are IP66-rated dust-tight and protected against powerful
water jets.
Harsh, noisy and dusty working conditions in mega-project and
construction sites may lower your efficiency and productivity by smudging
the radio or shadowing the talk. HYT TC-610/610P portable radios are the
option customized for users in these industries. Thanks to their robust
construction and the IP66 protection they can withstand even the harshest
conditions.
High/Low Power Switchable
Allows you to receive Select Call, Alert Call, and Alert Call w/Voice.
By simple pressing one button, users can switch to low power when
communicating within limited range coverage or switch to high power
when further distance is required. High transmit power optimizes range
coverage while low transmit power conserves battery consumption, all at
the user s control.
HDC1200 PTT ID (for TC-610P only)
Programmable 12.5kHz / 25kHz Channel
Spacing
The feature enables flexibility and easy migration of channel spacing
requirements when the need arises, with no need to buy new radios.
Enables the transmission of caller ID and allows user to identify incoming callers.
ATIS
ATIS is an automatic identification device compliant with special technology regulations. This feature may be enabled
by your dealer for specific areas.
DOS (Data Operated Squelch)
Helps to eliminate noise that occurred at the receiver.
Monitor
Allows users to monitor the activity on the current channel. The feature is
especially helpful for receiving a weak signal.
Battery Save
The Battery Save feature is automatically activated once no activity on
the channel and no operation performed, for extended operation time.
Low Battery Alert
Alert users to recharge the battery should the battery level run low.
TX Admit
Prevent users from
talking over
each other by restricting the user
from transmitting if activity is detected on the channel.
IMPORTANT
1. TC-610/610P series are NOT submersible! Never immerse the radio in water.
2. KEEP the radio's accessory jack cover attached when the speaker-microphone is not in use.
Water may get into the radio when the cover is not attached.
Recommended Applications
Construction sites
Stocking
Hotel
Ports
Property management
Time-out Timer
The feature allows for more efficient use of channels by limiting the
amount of time of each transmission.
PC Programmable
You are able to customize the features of each radio for each user.
Wired Clone
Easily copy the features of one radio to another.
CTCSS/CDCSS
TC-610/610P
Professional Two-way Radio
The channel scan feature enables the radio to continuously scan each
channel in the scan list for activity. Simply press a side function button to
activate scanning. When activity is detected on a channel the scan
process will stop and you will hear the transmission.
In harsh, noisy and dusty working conditions such as construction sites, your
radio is apt to be smudged. The TC-610/610P series will bring you reliable
communication and high productivity in these working conditions, and the IP66
protection allows you to wash off mud and dust on your radio. Other radios with
poor waterproof performance may not work after you expose them to water.
Double Injection Molding
A powerful speaker with a diameter of 45mm (36mm for speakers of common
radios) ensures superb clear, crisp sound, even in noisy environments.
High transmit power (5W for UHF frequency band) accommodates wide
communication coverage.
LED Battery Gauge
Non-display radios generally have no battery power indicator. The TC-610/610P
series allow you to simply press one button to illuminate the tri-color LED
battery gauge, which indicates battery strength levels for more effective power
management.
The Patent Structural Design
The battery latch structure of TC-610/610P series radios is another patent
owned by HYT. It delivers secure connection between the battery and the radio,
as well as simple operation.
Switching Power (Varies from different countries and areas)
MCU Rapid-rate Charger (for Li-ion/Ni-MH Batteries) CH10A03
Belt Clip BC12
Antenna
Strap RO03
Optional
Accessories
Channel Scan
MCU Multi-unit Rapid-rate
Charger (for Li-ion/Ni-MH
Batteries) MCA02
Audio Accessories
Li-Ion Battery (2000mAh)
BL2001
Ni-MH Battery (1300mAh)
BH1303
Six-unit Switching Power
PS7001
Vehicle Adapter
CHV09
TC-610P Contact Pin Accessory Jack
Universal Nylon Chest Pack
(Black) LCBN13
Leather Carrying Case
(non-swivel) LCBN56
TC-610
2-Pin Accessory Jack
Enjoy the convenience of hands-free operation when used with optional
accessories.
The IP Code is a designation that indicates the level or
amount of protection. The IP Code designation consists
of the letters IP (International Protection) followed by
two numerals example:
The TC-610/610P series employ double injection molding, which is a technique
with high difficulty coefficient and high risk. Owning to this superior technique,
the radio is comfortable to handle, rugged and durable.
Powerful Audio and Wide Communication Range
Li-Ion Battery (1200mAh) BL1204
Selectable Squelch Level (0-9)
Voice Operated Transmit (VOX)
Dust/Water Protection Class IP66
Standard
Accessories
Set up workgroups/users with unique CDCSS/CTCSS to prevent
unwanted conversations on the same frequency.
Helps minimize interference from undesired weak signals and helps weak
signals be heard.
Super Features
Accessories
I P66
Earbud with in-Line PTT
ESN05(TC-610P) / ESM11 (TC-610)
Earbud with on-MIC PTT
ESN06 / ESM12(TC-610)
Behind-the-Head, Noise-Canceling
Headset ECN09 (TC-610P) /
ECM14(TC-610)
Heavy Weight, Noise-Canceling
Headset ECN08(TC-610P)/
ECM13(TC-610)
Light-weight, Single-muff Headset
ECN07(TC-610P) / ECM12(TC-610)
Light-weight, Behind-the-head
Earpiece ECN06(TC-610P) /
ECM11(TC-610)
Remote Speaker Microphone
SM08N1(TC-610P) /
SM08M3(TC-610)
Receive-only Earbud (for use with
remote speaker microphone) ESS07
Receive-only Earpiece with
Transparent Acoustic Tube
(for use with remote
speaker microphone) ESS08
Noise-Canceling Remote Speaker
Microphone (IP56) SM13N5
(TC-610P) / SM13M1(TC-610)
Noise-Cancelling Remote
Speaker Microphone (Antenna
Applicable) SM13N4(TC-610P) /
SM13M2(TC-610)
Code Let ters
Intern ational Protec tion
Degree of protect ion agains t th e
ingress of s olid f oreign objec ts .
6 = Dust-tight
Degree of protect ion agains t th e
ingress of w ater w ith harm ful
effects.
6 = Protec tion agai nst the eff ect s
of pow erful w ater jet s
IP66 water protection ensures the radio to be protected against a water jet for one minute. The diameter of the water jet is 40 mm.
Light Weight, Throat-Vibrating
Earpiece ELN02(TC-610P) /
ELM01(TC-610)
Ear Canal Bone Induction
Earpiece EBN01(TC-610P) /
EBM01(TC-610)
Programming Cable (COM port) PC18(TC-610P) / PC19(TC-610)
Programming Cable (USB to Serial Port) PC25(TC-610P) / PC26 (TC-610)
Earpiece with on-MIC PTT &
Transparent Acoustic Tube
EAN04(TC-610P) / EAM12(TC-610)
2-wire Surveillance Earpiece with
Transparent Acoustic Tube (black)
EAN07(TC-610P) / EAM13(TC-610)
3-Wire Surveillance Earpiece with
Transparent Acoustic Tube
EAN02(TC-610P,black) /
EAN06(TC-610P,beige) /
EAM16(TC-610,black) /
EAM15(TC-610,beige)
2-Wire Earpiece with Wireless
Receiver and Neck Loop
EWN03(TC-610P) / EWM03(TC-610)
D-earset with Boom Microphone
EHN08(TC-610P) / EHM16(TC-610)
D-earset with in-line Microphone
EHN07 / EHM15(TC-610)
