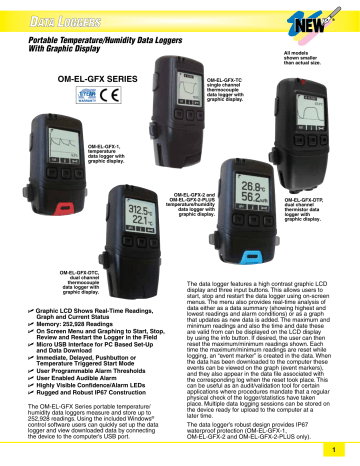

Portable Temperature/Humidity Data Loggers
With Graphic Display
OM-EL-GFX SERIES
All models
shown smaller
than actual size.
OM-EL-GFX-TC
single channel
thermocouple
data logger with
graphic display.
OM-EL-GFX-1,
temperature
data logger with
graphic display.
OM-EL-GFX-2 and
OM-EL-GFX-2-PLUS
temperature/humidity
data logger with
graphic display.
OM-EL-GFX-DTC,
dual channel
thermocouple
data logger with
graphic display.
U Graphic LCD Shows Real-Time Readings,
Graph and Current Status
U Memory: 252,928 Readings
U On Screen Menu and Graphing to Start, Stop,
Review and Restart the Logger in the Field
U Micro USB Interface for PC Based Set-Up
and Data Download
U Immediate, Delayed, Pushbutton or
Temperature Triggered Start Mode
U User Programmable Alarm Thresholds
U User Enabled Audible Alarm
U Highly Visible Confidence/Alarm LEDs
U Rugged and Robust IP67 Construction
The OM-EL-GFX Series portable temperature/
humidity data loggers measure and store up to
252,928 readings. Using the included Windows®
control software users can quickly set up the data
logger and view downloaded data by connecting
the device to the computer’s USB port.
OM-EL-GFX-DTP,
dual channel
thermistor data
logger with
graphic display.
The data logger features a high contrast graphic LCD
display and three input buttons. This allows users to
start, stop and restart the data logger using on-screen
menus. The menu also provides real-time analysis of
data either as a data summary (showing highest and
lowest readings and alarm conditions) or as a graph
that updates as new data is added. The maximum and
minimum readings and also the time and date these
are valid from can be displayed on the LCD display
by using the info button. If desired, the user can then
reset the maximum/minimum readings shown. Each
time the maximum/minimum readings are reset while
logging, an “event marker” is created in the data. When
the data has been downloaded to the computer these
events can be viewed on the graph (event markers),
and they also appear in the data file associated with
the corresponding log when the reset took place. This
can be useful as an audit/validation tool for certain
applications where procedures mandate that a regular
physical check of the logger/statistics have taken
place. Multiple data logging sessions can be stored on
the device ready for upload to the computer at a
later time.
The data logger’s robust design provides IP67
waterproof protection (OM-EL-GFX-1,
OM-EL-GFX-2 and OM-EL-GFX-2-PLUS only).
1
CONTROL SOFTWARE
The Easylog USB control software is easy to install and
use, and runs under Windows XP, Vista, 7 and 8. The
software is used to set-up the data logger as well as
download, graph and export data to Excel. Each stored
logging session is saved as a separate file.
The software allows the following parameters to be
configured:
• Logger name
• Measurement parameter (ºC or ºF)
• Logging Rate (user-selectable between 10 seconds and 1 hour for OM-EL-GFX-1, OM-EL-GFX-2 and
OM-EL-GFX-2-PLUS and between 2 seconds and
1 hour for OM-EL-GFX-DTC, OM-EL-GFX-TC and
OM-EL-GFX-DTP)
• High and low temperature alarms
• Immediate, delayed, push-button or temperature triggered start mode
• Disable or enable LEDs and audible alarm with
delayed activation
• Display and backlight behavior after button press
These data loggers do not lose stored readings when
the batteries are discharged or when the batteries are
replaced; however, the data logging process will be
stopped. If the batteries are changed within a 2 minute
window the data loggers will retain its settings (internal
clock and logging mode). This will allow logging to be
restarted without additional connection to a PC via USB.
Windows software shows data in graphical format.
Windows Software
Data Logger Setup
2
Alarm Setup
Alarm Setup
Specifications
OM-EL-GFX-1
Measurement Range: -30 to 80°C (-22 to 176°F)
Internal Resolution: 0.1°C (0.1°F)
Accuracy (Overall Error @ 25°C): ±0.1°C (±0.2°F)
typical; ±0.75°C (±1.5°F) maximum
Logging Interval: 1 reading every 10 seconds to 1 every hour
Battery Life: 6 months typical at 25°C (77°F) and 10 minute
logging rate
Weight: 99 g (3.5 oz)
Dimensions: 88 H x 48.5 W x 30.5 mm D (3.46 x 1.91 x 1.20")
OM-EL-GFX-2, OM-EL-GFX-2-PLUS
Temperature
Measurement Range: -30 to 80°C (-22 to 176°F)
Repeatability: ±0.1°C (±0.2°F) typical
Internal Resolution: 0.1°C (0.1°F)
Accuracy (Overall Error):
OM-EL-GFX-2: ±0.5°C (±1.0°F) typical,
±2.0°C (± 4.0°F) maximum
OM-EL-GFX-2-PLUS: ±0.2°C (±0.4°F) typical,
±0.8°C (±1.6°F) maximum
Humidity
Measurement Range: 0 to 100% RH
Repeatability: ±0.5% RH
Long Term Stability: ±0.5% RH/year
Internal Resolution: 0.1% RH
Accuracy (20 to 80% RH):
OM-EL-GFX-2: ±3.0% RH typical,
±5.0% RH maximum
OM-EL-GFX-2-PLUS: ±1.8% RH typical,
±4.0% RH maximum
Dew Point
Accuracy (Overall Error in the Calculated Dew
Point, for RH Measurement Between 40 to
100% RH @ 25°C): ±1.1°C (±2.0°F)
Logging Interval: 1 reading every 10 seconds
to 1 every hour
Battery Life: 4 months typical at 25°C (77°F) and 10 minute
logging rate
Dimensions: 88 H x 48.5 W x 30.5 mm D
(3.46 x 1.91 x 1.20")
Weight: 99 g (3.5 oz)
OM-EL-GFX-DTC (2 channels),
OM-EL-GFX-TC (1 channel)
Temperature Measurement Range:
Type K: -200 to 1350°C (-328 to 2462°F)
Type J: -200 to 1190°C (-328 to 2174°F)
Type T: -200 to 390°C (-328 to 734°F)
Internal Resolution: 0.1°C (0.1°F)
Accuracy (Overall Error @ 25°C): ±0.5°C (±0.9°F)
typical
Operating Temperature Range: -10 to 40°C
(-14 to 104°F)
Logging Interval: 1 reading every 2 seconds to 1 every
hour
Battery Life:
OM-EL-GFX-DTC: 4 months typical at
25°C (77°F) and 10 minute logging rate,
no alarm LEDs or audible alarm and minimal LCD use
OM-EL-GFX-TC: 1 year typical at 25°C (77°F) and 1
minute logging rate, LCD off
Weight: 105 g (3.7 oz)
Dimensions: 102 H x 48.5 W x 30.5 mm D
(4.06 x 1.91 x 1.20")
OM-EL-GFX-DTP
Temperature Measurement Range (with Included
Thermistor Probe): -40 to 125°C (-40 to 257°F)
Internal Resolution: 0.1°C (0.2°F)
Accuracy (Data Logger Error @ 25°C):
±0.1°C (±0.2°F) typical (does not include thermistor
probe error)
Operating Temperature Range: -10 to 40°C
(-14 to 104°F)
Logging Interval: 1 reading every 2 seconds to 1
every hour
Battery Life: 4 months typical at 25°C (77°F) and 10
minute logging rate
Dimensions:
Data Logger: 101 H x 48.5 W x 30.5 mm D
(3.98 x 1.91 x 1.20")
Thermistor Probe:
Cable: 1 m (3')
Probe Tip: Stainless steel, 25 L x 5 mm dia (1 x 3⁄16")
Weight: 105 g (3.7 oz)
COMMON SPECIFICATIONS
Memory: 252,928 readings
Software: Windows XP/VISTA/7 and 8 (32 and 64-bit)
Power: 2 1⁄2 “AA” 3.6V lithium batteries (included)
Enclosure: IP67 with USB cover attached
(excludes OM-EL-GFX-DTC, OM-EL-GFX-TC and
OM-EL-GFX-DTP)
Display: High contrast graphic backlit LCD
Accuracy chart for standard OM-EL-PROBE-TP-2-1M
thermistor probe (2 included with OM-EL-GFX-DTP).
Accuracy chart for optional OM-EL-PROBE-TP-A-3M
thermistor probe (used with OM-EL-GFX-DTP).
3
OM-EL-GFX-DTC
shown smaller
than actual size
with 2 5SC Series
thermocouples
(included).
OM-EL-GFX-DTP
shown smaller
than actual size
with 2 thermistor
probes (included).
SM
Extended Warranty
Program
OMEGACARESM extended warranty program is
available for models shown on this page. Ask
your sales representative for full details when
placing an order. OMEGACARESM covers parts,
labor and equivalent loaners.
Free Thermocouple Included!
Model OM-EL-GFX-DTC includes 2 free 1 m (40") Type K insulated beaded
wire thermocouple with subminiature connector and wire spool caddy
(1 per channel). Model OM-EL-GFX-TC includes 1 free Type K insulated
beaded wire thermocouple Order a Spare! Model No. SC-GG-K-30-36
To Order
Model No.Description
OM-EL-GFX-1
Temperature data logger with graphic display
OM-EL-GFX-2
Temperature and relative humidity data logger with graphic display
OM-EL-GFX-2-PLUS
High accuracy temperature and relative humidity data logger with graphic display
OM-EL-GFX-DTC
Dual channel K, J, and T Type thermocouple data logger with graphic display
OM-EL-GFX-TC
Single channel K, J, and T Type thermocouple data logger with graphic display
OM-EL-GFX-DTP
Dual channel thermistor data logger with graphic display
OM-EL-PROBE-TP-2-1MSpare standard thermistor probe for OM-EL-GFX-DTP (2 included with data logger),
1 m (3') cable
OM-EL-PROBE-TP-A-3M
Optional higher accuracy thermistor probe for OM-EL-GFX-DTP, 3 m (10') cable
OM-EL-PROBE-TP-A-GLY-3MOptional higher accuracy thermistor probe (in sealed glycol filled chamber for temperature
stabilization) for OM-EL-GFX-DTP, 3 m (10') cable
OM-EL-PROBE-EXT-CAB-1.5M
Thermistor probe extension cable, 1.5 m (5') for OM-EL-GFX-DTP
OM-EL-PROBE-EXT-CAB-5M
Thermistor probe extension cable, 5 m (16.5') for OM-EL-GFX-DTP
OM-EL-PROBE-EXT-CAB-10M
Thermistor probe extension cable, 10 m (33') for OM-EL-GFX-DTP
OM-EL-BATT
Replacement 3.6V lithium battery (2 required)
Comes complete with Windows software and operator’s manual on CD-ROM, two replaceable 1/2 AA 3.6V lithium batteries, USB cover,
mounting clip and 1 m (3.2') USB cable. OM-EL-GFX-DTC also includes 2 Type K insulated beaded wire thermocouples. OM-EL-GFX-TC
includes 1 Type K insulated beaded wire thermocouple. OM-EL-GFX-DTP includes 2 OM-EL-PROBE-TP-2-1M standard thermistor probes.
Ordering Example: OM-EL-GFX-DTC, dual channel K, J and T Type thermocouple data logger with graphic display, OCW-1 OMEGACARESM
extended warranty adds 1 year to standard 1 year warranty, and two OM-EL-BATT replacement batteries.
