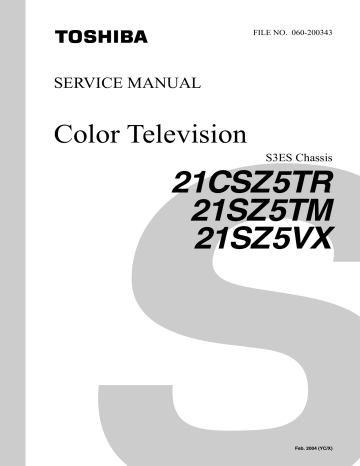

FILE NO. 060-200343

SERVICE MANUAL

Color Television

S3ES Chassis

21CSZ5TR

21SZ5TM

21SZ5VX

Feb. 2004 (YC/X)

TABLE OF CONTENTS

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS ........................................................................................................................................ 3

SET-UP ADJUSTMENT ............................................................................................................................................ 4

SERVICE MODE ...................................................................................................................................................... 6

DESIGN MODE ........................................................................................................................................................ 9

ELECTRICAL ADJUSTMENTS .............................................................................................................................. 10

CIRCUIT CHECK .................................................................................................................................................... 12

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .............................................................................................................................. 13

LOCATION OF CONTROLS ................................................................................................................................... 14

PROGRAMMING CHANNEL MEMORY ................................................................................................................. 15

CHASSIS AND CABINET REPLACEMENT PARTS LIST ...................................................................................... 17

PC BOARDS BOTTOM VIEW ................................................................................................................................. 2 5

TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 2 9

CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 32

SPECIFICATIONS .............................................................................................................................................. END

APPENDIX:

CIRCUIT DIAGRAM

– 2 –

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value of the high voltage of this receiver is (A) kV at zero beam current (minimum brightness) under a (C) V AC power source. The high voltage must not, under any circumstances, exceed (B) kV.

2. The only source of X-RAY RADIATION in this TV receiver is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as specified in the parts list.

3. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only after referring to the PRODUCT SAFETY NOTICE below.

Refer to table-1 for high voltage (A), (B) & AC voltage (C).

(See SETTING & ADJUSTING DATA on page 13)

Each time a receiver requires servicing, the high voltage should be checked following the HIGH VOLTAGE CHECK procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service record. It is important to use an accurate and reliable high voltage meter.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; nonmetallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the international hazard symbols on the schematic diagram and the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.

– 3 –

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

SET-UP ADJUSTMENT

■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed.

Perform the adjustments in order as follows :

1. Color Purity

2. Convergence

3. White Balance

Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.

Refer to figure 1.

Mounting position of the purity magnet assembly should fit to same position as old one because slightly difference to the position depend on a kind of tube.

*

There are no adjustment of purity and convergence in some picture tube (Unified with purity magnet)

COLOR PURITY ADJUSTMENT

NOTE : Before attempting any purity adjustments, the receiver should be operated for at least fifteen minutes.

1. Demagnetize the picture tube and cabinet using a degaussing coil.

2. Set the brightness and contrast to maximum.

3. Use a green raster from among the built-in test signals.

4. Loosen the clamp screw holding the yoke and slide the yoke backward or forward to provide vertical green belt

(zone) in the picture screen.

5. Remove the Rubber Wedges.

6. Rotate and spread the tabs of the purity magnet (See figure 2.) around the neck of the picture tube until the green belt is in the center of the screen. At the same time, enter the raster vertically.

7. Slowly move the yoke forward or backward until a uniform green screen is obtained. Tighten the clamp screw of the yoke temporarily.

8. Check the purity of the red and blue raster.

TEMPORARY

MOUNTING

DEFLECTION

YOKE

29.1mm(28", 29")

25mm(25")

19mm(19", 20", 21")

14mm(13", 14")

RUBBER WEDGE

DEFLECTION

YOKE

ADHESIVE

GLASS CLOTH

TAPES

PURITY/

CONVERGENCE

MAGNET ASS'Y

Figure 1.

– 4 –

CONVERGENCE ADJUSTMENTS

NOTE: Before attempting any convergence adjustments, the receiver should be operated for at least fifteen minutes.

CENTER CONVERGENCE ADJUSTMENT

1. Use the cross-dot pattern from among the built-in test signals.

2. Set the brightness and contrast for well defined pattern.

3. Adjust two tabs of the 4-Pole Magnets to change the angle between them (See figure 2.) and superimpose red and blue vertical lines in the center area of the picture screen.

4. Turn the both tabs at the same time keeping the angle constant to superimpose red and blue horizontal lines at the center of the screen.

5. Adjust two tabs of 6-Pole Magnets to superimpose red/ blue line and green one. Adjusting the angle affects the vertical lines and rotating both magnets affects the horizontal lines.

6. Repeat adjustments 3, 4, 5 keeping in mind red, green and blue movement, because 4-Pole Magnets and 6-Pole

Magnets have mutual interaction and make dot movement complex.

6-POLE

MAGNETS

4-POLE

MAGNETS

ADJUST THE ANGLE

(VERTICAL LINES)

CIRCUMFERENCE CONVERGENCE ADJUSTMENT

1. Loosen the clamping screw of deflection yoke slightly to allow the yoke to tilt.

2. Temporarily put a wedge as shown in figure 1. (Do not remove cover paper on adhesive part of the wedge.)

3. Tilt front of the deflection yoke up or down to obtain better convergence in circumference. (See figure 3.) Push the mounted wedge into the space between picture tube and the yoke to fix the yoke temporarily.

4. Put other wedge into bottom space and remove the cover paper to stick.

5. Tilt front of the yoke right or left to obtain better convergence in circumference. (See figure 3.)

6. Keep the yoke position and put another wedge in either upper space. Remove cover paper and stick the wedge on picture tube to fix the yoke.

7. Detach the temporarily mounted wedge and put it in another upper space. Stick it on picture tube to fix the yoke.

8. After fixing three wedges, recheck overall convergence.

Tighten the screw firmly to fix the yoke and check the yoke is firm.

9. Stick three adhesive tapes on wedges as shown in figure

1.

FIXED

ROTATE TWO TABS

AT THE SAME TIME

(HORIZONTAL LINES)

PURITY

MAGNETS

CONVERGENCE MAGNET ASSEMBLY

BLU RED

Figure 2.

ADJUSTMENT OF MAGNETS

RED/BLU GRN

BLU

RED

RED/BLU

GRN

4-POLE MAGNETS MOVEMENT 6-POLE MAGNETS MOVEMENT

Center Convergence by Convergence Magnets

BGR

B

G

R

RGB

R

G

B

B

G

R

RGB

INCLINE THE YOKE UP (OR DOWN)

BGR

R

G

B

INCLINE THE YOKE RIGHT (OR LEFT)

Circumference Convergence by DEF Yoke

Figure 3. Dot Movement Pattern

– 5 –

1. ENTERING TO SERVICE MODE

1) Press o button once on

Remote Control.

SERVICE MODE

2) Press o button again to keep pressing.

3) While pressing the o button, press MENU button on TV set.

Item

Data

S

(Service mode display)

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode Adjustment mode

S

Press

Press

Item

Data

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

A single horizontal line ON/OFF: - / - - button (on Remote) or a button (on TV)

Test signal selection :

Selection of the adjustment items :

Change of the data value :

Adjustment menu mode ON/OFF : circuit to “00”:

“RCUT” selection : a button (on Remote)

Channel s/t (on TV or Remote)

Volume ; +/– (on TV or Remote)

MENU button (on TV)

Initialization of the memory (QA 10 ) : CALL + Channel button on TV (s)

Reset the count of operating protect

CALL + Channel button on TV (t)

1 button

“GCUT” selection :

“BCUT” selection :

2 button

3 button

“CNTX” (or “SCNT”) selection :

“COLC” selection :

“TNTC” selection :

Test audio signal ON/OFF (1kHz) :

Self diagnostic display ON/OFF :

4 button

5 button

6 button

8 button

9 button

Color thickness correction note: Displayed differently as shown below, depending on the setting of the receiving color system.

COLP (PAL)

COLC (NTSC)

COLS (SECAM)

CAUTION : Never try to perform initialization unless you have changed the memory IC.

– 6 –

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2.

(t button for reverse order)

Refer to table-2 for preset data of adjustment mode.

(See SETTING & ADJUSTING DATA on page 13)

5. ADJUSTING THE DATA

1) Pressing of VOLUME ; +/– button will change the value of data in the range from 00H to FFH. The variable range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

INITIALIZATION OF MEMORY DATA OF QA

10

After replacing QA 10 , the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA 10 has been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above.

Perform “Auto search Memory” on the owner’s manual.

CAUTION: Never attempt to initialize the data unless QA 10 has been replaced.

7. TEST SIGNAL SELECTION

1) Every pressing of a button on the Remote Control changes the built-in test patterns on screen as described below in SERVICE MODE.

Signal off

NTSC signals (14 patterns)

PAL signals (14 patterns)

Picture Signals

• Red raster

• Green raster

• Blue raster

• All Black

• All White

• Black & White

• Black cross-bar

• White cross-bar

• Black cross-bar on green raster

• Black cross-hatch

• White cross-hatch

• Black cross-dot

• White cross-dot

• H signal (white)

• H signal (black)

*

The signals marked with are not usable to display in the Test signal for some model.

– 7 –

8. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode.

The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

Indicated color of mode now selected : Green and Red

Indicated color of other modes : White

<SELF CHECK>

23******

POWER : 00

BUS LINE : OK

BUS CONT : OK

BLOCK : UV V1 V2

Green : Normal

Red : The microprocessor operates to provide judgement of no video signal. The red color is still indicated though the signal is input, failure may exist in input signal line.

� Part number of microprocessor (QA 5 1)

� Operation number of protecting circuit ----“00” is normal.

When indication is other than “00”, overcurrent apts to flow, and circuit parts may possibly be damaged.

� BUS LINE CHECK ----“OK” is normal.

“SDA1-GND” ------------- SDA-GND short circuit.

“SCL1-GND” -------------- SCL-GND short circuit.

“SCL1-SDA1” ------------- SCL-SDA short circuit.

� BUS CONT ----“OK” is normal.

When indication shows “Q uuu NG”, the device with the number may possibly be damaged.

� BLOCK

UV : TV reception mode

V1 : VIDEO 1 input mode (a1)

V2 : VIDEO 2 input mode (a2)

*

The items marked with are not usable to display in the SELF DIAGNOSTIC FUNCTION for some model.

– 8 –

DESIGN MODE

1. ENTERING TO DESIGN MODE

1) Select the Service mode.

2) While pressing o (or CALL) button on

Remote and press MENU button on TV.

3) Press MENU button on TV.

S D

Press

Press

ITEM

DATA

(Design mode) (Adjustment mode)

When QA 10 is initialized, items “OPT0” and “OPT1” of DESIGN MODE are set to the data of the representative model of this chassis family.

Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to reset the data of items “OPT0” and “OPT1”.

2. SELECTING THE ADJUSTING ITEMS

Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3.

(s button for reverse order)

Refer to table-3 for data of design mode.

(See SETTING & ADJUSTING DATA on page 13)

3. ADJUSTING THE DATA

Pressing of VOLUME s or t button will change the value of data.

– 9 –

ELECTRICAL ADJUSTMENTS

ITEM

FOCUS VR ADJ

SUB-BRIGHTNESS

(BRTC)

Note: Constrict the picture height until the vertical retrace line appears adjusting the item

HIT (HEIGHT).

HORIZONTAL POSITION

ADJUSTMENT (HPOS)

VERTICAL POSITION

ADJUSTMENT (VPOS)

ADJUSTMENT PROCEDURE

1. Enter the service mode, then select any register item.

2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern appears on the screen.

3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture screen.

1. Set CONTRAST to minimum, and

BRIGHTNESS to center by adjusting user controls.

2. Set the TV in service mode to get white cross-bar of inside pattern.

3. Select BRTC (brightness correction), and adjust the ; – /+ button to reduce the value so that white portion of inside pattern slightly light.

4. Adjust ; – /+ button to increase the data value of BRTC, and set it just before the difference between the belt of vertical retrace and the border of black portion of inside pattern is visible.

After that, return vertical height and contrast.

1. Set the TV in service mode, and get black or white cross-bar signal with

VIDEO button on remote hand unit.

2. Select either HPOS (Horizontal picture phase) or VPOS (Vertical picture phase) with CHANNEL s, t buttons, and adjust horizontal or vertical picture position in the center of screen with VOLUME ; – /+ buttons.

Belt of vertical retrace

VERTICAL AMPLITUDE

ADJUSTMENT (HIT)

1. Set the TV in service mode, and get black or white cross-hatch signal with VIDEO button on remote hand unit.

2. Select HIT (Vertical amplitude) with

CHANNEL s, t buttons, and adjust vertical amplitude with VOLUME

; – /+ buttons so that vertical amplitude lacks a little.

3. Adjust vertical amplitude with VOL-

UME ; – /+ buttons so that the first bar on cross-hatch signal touches edge of screen.

The first

– 10 –

ITEM

WHITE BALANCE

ADJUSTMENT

CUTOFF ADJUSTMENT

(RCUT)

(GCUT)

(BCUT)

DRIVE ADJUSTMENT

(GDRV)

(BDRV)

ADJUSTMENT PROCEDURE

1. Set Contrast to 40, and brightness to +20 by picture control.

2. Set the TV in service mode, and get the inside W/B adjusting signal with VIDEO button.

3. Select RCUT, GCUT and BCUT with CHANNEL s, t buttons, to set individual values to Initial reference data, and to set GDRV and BDRV to Initial reference data with VOLUME ; – /+ buttons.

4. Press -/- - button on the remote control and rotate Screen VR to get one slight horizontal line on screen.

Note: Every pressing of -/- - button provides Horizontal line picture and Normal picture alternately.

5. Press -/- - button to release horizontal line picture, and select the two other colors which did not light in the above step with CHANNEL s, t buttons. Then tap VOL-

UME ; – /+ buttons so that three colors slightly light in the same level.

X To correct white balance in light area, select GDRV and BDRV with CHANNEL s, t buttons to adjust.

X To correct white balance in dark area, perform fine adjustment of RCUT, GCUT and BCUT.

Light area check

(to show white)

Dark area check

(to show black)

NOTE: It is released built-in test pattern by changing the adjustment item for some model.

In this case, select the adjustment item with channel s t buttons first and then select the built-in test pattern with

-/- - button.

– 11 –

CIRCUIT CHECK

HIGH VOLTAGE CHECK

CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below.

1. Connect an accurate high voltage meter to the second anode of the picture tube.

2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST controls to minimum (zero beam current).

3. High voltage must be measured below (B) kV.

Refer to table-1 for high voltage (B).

(See SETTING & ADJUSTING DATA on page 13)

4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.

– 12 –

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

SAFETY INSTRUCTIONS

21"

HIGH VOLTAGE AT ZERO BEAM:

(A)

29.7

kV

MAX HIGH VOLTAGE:

AV VOLTAGE

(B)

(C)

32.0 kV

110~240 V

Table-1

SERVICE MODE

ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:

Item

RCUT

GCUT

BCUT

GDRV

BDRV

BRTC

COLC

TNTC

COLP

COLS

SCNT

HPOS

VPOS

HIT

VLIN

SRY

SBY

RAGC

Adjustment

R CUTOFF (B/W)

G CUTOFF (B/W)

B CUTOFF (B/W)

G DRIVE

B DRIVE

SUB BRIGHT CEN

SUB COLOR CEN NTSC

SUB TINT CEN

SUB COLOR CEN PAL

SUB COLOR CEN SECAM

SUB CONTRAST

50Hz H-POSITION

V-POSITION

HEIGHT

V-LINEARITY

SECAM R-Y

SECAM-B-Y

RF AGC

Reference data Data

21CSZ5TR 21SZ5TM 21SZ5VX 21CSZ5TR 21SZ5TM 21SZ5VX

09H

30H

08H

26H

74H

7BH

5DH

08H

08H

2AH

00H

00H

00H

00H

00H

40H

30H

45H

80H

4FH

80H

90H

ACH

30H

74H

9CH

44H

33H

79H

83H

45H

00H

B7H

00H

00H

00H

30H

74H

9CH

44H

Table-2

DESIGN MODE

ADJUSTING ITEMS AND DATA IN THE DESIGN MODE:

Item Name of adjustment

* There are no adjusting items in the design mode.

Table-3

Data

– 13 –

Front

LOCATION OF CONTROLS

5

4

6

&

(

Remote

!

" a

VIDEO L

AUDIO

R

MENU

a

;

+ t c s j i h d e f g c b a

1

7

2

9

3

8

#

$

%

– 14 –

NAMES OF PARTS

TV Set a q Main power on/off

Remote Control

1 f

2

0~9

Power on/standby

Direct select b c q

Infrared sensor

Power indicator

(red) d

MENU Menu open e a

TV/VIDEO select f –;+ g tcs

3 CH s/t

Channel up/down.

Item select

4 ; –/+

Volume down/up,

Menu select,

Level adjust

5

–/--

Digit select

6 MENU

Menu open

Volume down/up,

Menu select,

Level adjust

7

8 o

Channel down/up,

Item select

9 a

! CALL i

Sound mute

Picture control

TV/VIDEO select,

On-screen on/off

Teletext initial index h L i AUDIO j VIDEO

L/R

Headphone jack

Audio input terminals

Video input terminal

TXT/TV

#

^

$

?

% y/X

& v

(

Teletext/TV select

Full/stop/bottom

Reveal/Conceal

Time/Text cancel

Stop a page of text

Text select

Red/Green/Yellow/Blue

Note: The shaded buttons are not available for your TV.

PROGRAMMING CHANNEL MEMORY

• For easy Channel selection, the chosen Position should have the same number as Channel stored there. For this operation, you may use the “SEARCH” and “SKIP” functions.

Example : Presetting Channel 12 to Position 12

Channel Preset

Auto search memory (ASM)

All the channels that can be received are preset automatically.

Manual Search and Changing the assigned position

Manual Search

1

Select Position 12.

Press CH s/t repeatedly until 12 is displayed. Or, press

-/-- twice to display “--” on the screen then press the “1” and “2” buttons in this order.

1

Select the starting position for ASM. Press (0~9) or CH s/t.

2

Set the correct broadcast system for your region. Press

MENU and ; –/+ to call up the “SET UP” menu D7 .

Set “COLOR” to “AUTO” and set “SOUND” according to the table above using CHs/t and ; –/+.

2

Press MENU and ; –/+ to call up the “TUNING” menu

D8 . Press CH s/t and select “SEARCH”.

Press ; –/+ to search. Pressing “-” searches for channels at lower frequencies while pressing “+” searches for channels at higher frequencies.

3

Press MENU and ; –/+ to call up the “TUNING” menu

D8 . Select “ASM”, then press ; + to start the search.

When the TV screen returns to the start position, the procedure is complete.

3

When Channel 12 is found, press CH s/t to select

“MEMORY”. Press “+” to complete the presetting.

Store Position

1

Select Channel 12.

Press (0~9) or CH s/t to find the position preset for

Channel 12.

2

When Channel 12 is selected, press MENU and

; –/+ to call up the “TUNING” menu D8 . Press CH s/t and select “POSITION”. Press ; –/+ and set “PO-

SITION” to P012. Pressing “-” and “+” respectively decreases and increases the position number.

3

When Position 12 is found, press CH s/t to select

“MEMORY”. Press “+” to complete the presetting.

– 15 –

• Under some reception conditions, fine tuning may be necessary to improve the picture quality. In such cases, adjust the manual fine tuning (MFT).

• If the signal frequency is unstable due to environmental conditions, use auto fine tuning.

Skip Function

If you set “SKIP ON” for unnecessary position numbers, these will be skipped when selecting channels using CH s/t.

Example : Skipping Channel 13

Auto fine tuning (AFT)

1

Press MENU and ; –/+ to call up the “TUNING” menu

D8 .

1

Select Position 13 using the same method for selecting Position 12 (above).

2

Press CH s/t and select “AFT”. Press ; –/+ to switch it to “ON”. This completes the setting.

Notes:

• When you operate MFT, AFT is switched OFF automatically. If you switch on AFT after fine tuning with MFT, MFT may be cancelled.

• AFT may be set independently for each Position.

2

Press MENU and ; –/+ to call up the “SET UP” menu

D7 . Press CH s/t and select “SKIP”.

Press ; –/+ to switch the “SKIP” setting from “OFF” to “ON”. This completes the setting for skipping Position 13.

Note:

• When “SKIP” is ON, the Position number is prefixed by

“*”.

Example: *13. To confirm this, select Position 13 using the -/-- and 0~9 buttons.

• If you want to restore a skipped position number, select it using the -/-- and 0~9 buttons then switch the

“SKIP” setting to “OFF” as in step 2 above.

Manual fine tuning (MFT)

1

Press MENU and ; –/+ to call up the “TUNING” menu

D8 .

2

Press CH s/t and select “MFT”. Press ; –/+ to start fine tuning. Pressing “-” fine tunes to a lower frequency while pressing “+” fine tunes to a higher frequency.

– 16 –

CHASSIS AND CABINET REPLACEMENT PARTS LIST

WARNING

: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRE-

CAUTION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL.

CAUTION

: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

·····

The part number must be used when ordering parts, in order to assist in processing, be sure to include the

Model number and Description.

·····

The PC board assembly with

*

mark is no longer available after the end of the production.

Model : 21CSZ5TR/21SZ5TM/21SZ5VX

Capacitors ............. CD : Ceramic Disk

Resistors ............... CF : Carbon Film

PF : Plastic Film

CC : Carbon Composition

EL : Electrolytic

MF : Metal Film

OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor

(All CD and PF capacitors are

±

5%, 50V and all resistors,

±

5%, 1/6W unless otherwise noted.)

Location

No.

Parts No. Description

#1 : [21CSZ5TR]

#2 : [21SZ5TM]

#3 : [21SZ5VX]

CAPACITORS

C101 #1 24797479 ELECTROLYTIC, 50V 4.7UF M

#2 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

C103

C105

C106

#3 24797479 ELECTROLYTIC, 50V 4.7UF M

24797221 ELECTROLYTIC, 50V 220UF M

24109102 CERAMIC CHIP, 50V B 1000PF K

24797100 ELECTROLYTIC, 50V 10UF M

C110

C200

C201

C202

C203

C204

C205

C207

24797221 ELECTROLYTIC, 50V 220UF M

24793101 ELECTROLYTIC, 10V 100UF M

24092538 CERAMIC CHIP, 10V F 1UF Z

24092538 CERAMIC CHIP, 10V F 1UF Z

24092538 CERAMIC CHIP, 10V F 1UF Z

24793470 ELECTROLYTIC CE04G 10V 47UF M

24092538 CERAMIC CHIP, 10V F 1UF Z

24092538 CERAMIC CHIP, 10V F 1UF Z

C208 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

C209 #1 24794220 ELECTROLYTIC, 16V 22UF M

C210

C211

C220

C221

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

24085949 ELEC. NONPOLAR CE04J 25V 10UF M 11L NP

24092538 CERAMIC CHIP, 10V F 1UF Z

24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L

24092538 CERAMIC CHIP, 10V F 1UF Z

C298 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

C299 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

C303

C306

24214471 CERAMIC DISC, 500V B 470PF K

24666332 ELECTROLYTIC, 16V 3300UF M 3A

C308 #1 24669101 ELECTROLYTIC, 50V 100UF M 3A

#2 24766101 ELECTROLYTIC, 50V 100UF M

#3 24766101 ELECTROLYTIC, 50V 100UF M

C309 #1 24669331 ELECTROLYTIC, 50V 330UF M 3A

#2 24766331 ELECTROLYTIC CE04G 50V 330UF M

#3 24766331 ELECTROLYTIC CE04G 50V 330UF M

C310 #1 24669222 ELECTROLYTIC, 50V 2200UF M 3A

#2 24766222 ELECTROLYTIC CE04G 50V 2200UF M

#3 24766222 ELECTROLYTIC CE04G 50V 2200UF M

Location

No.

Parts No. Description

C311 #1 24435560 CERAMIC DISC, 500V SL 56PF J

#2 24435560 CERAMIC DISC, 500V SL 56PF J

#3 24434560 CERAMIC DISC, 500V SL 56PF J

C313

C314

C315

C320

24082061 PLASTIC FILM, 100V 0.47UF J

24693472 PLASTIC FILM, 100V 4700PF J

24109102 CERAMIC CHIP, 50V B 1000PF K

24503052 MT PLA CAP 63V 0.82UF J

C321 24591183 PLASTIC FILM, 50V 0.018UF J

C323 #1 24668101 ELECTROLYTIC, 35V 100UF M 3A

#2 24765101 ELECTROLYITC, 35V 100UF M

#3 24765101 ELECTROLYITC, 35V 100UF M

C325

C341

C342

C363

24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

24794101 ELECTROLYTIC, 16V 100UF M

24795100 ELECTROLYTIC, 25V 10UF M

24693473 PLASTIC FILM, 100V 0.047UF J

C413

C415

C416

C417

C418

C419

C430

C401

C402

C406

C407

24108680 CERAMIC CHIP, 50V SL 68PF J

24693393 PLASTIC FILM, 100V 0.039UF J

24109221 CERAMIC CHIP, 50V B 220PF K

24092730 CERAMIC CHIP, 16V B 0.1UF K

C408

C409

24108330 CERAMIC CHIP, 50V SL 33PF J

24109103 CERAMIC CHIP, 50V B 0.01UF K

C410 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M

24214821 CERAMIC DISC, 500V B 820PF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24678229 ELECTROLYTIC, 200V 2.2UF M 3A

24214391 CERAMIC DISC, 500V B 390PF K

24109221 CERAMIC CHIP, 50V B 220PF K

24668221 ELECTROLYTIC, 35V 220UF M 3A

24092730 CERAMIC CHIP, 16V B 0.1UF K

C431 24794101 ELECTROLYTIC, 16V 100UF M

C440 #1 24503193 PLASTIC FILM, 1500VH 1000PF H

#2 24503193 PLASTIC FILM, 1500VH 1000PF H

#3 24503211 PLASTIC FILM, 1500VH 1200PF H

C442

C444

C445

C447

24082995 PLASTIC FILM, 250V 0.36 UF J

24503279 PLASTIC FILM, 1500VH 9100PF H

24828563 PLASTIC FILM, 200V 56000PF J

24679220 ELECTROLYTIC, 250V 22UF M 3A

C448 #1 24640908 ELECTROLYTIC, 160V 33UF M 3A LI

#2 24073118 ELECTROLYTIC, 160V 33UF M

#3 24073118 ELECTROLYTIC, 160V 33UF M

C449 #1 24667102 ELECTROLYTIC, 25V 1000UF M 3A

C463

#2 24764102 ELECTROLYTIC, 25V 1000UF M

#3 24764102 ELECTROLYTIC, 25V 1000UF M

24212222 CERAMIC DISC, 50V B 2200PF K

– 17 –

Location

No.

Parts No. Description

C464 #1 24640872 ELECTROLYTIC, 100V 10UF M 3A

#2 24073124 100V 10U TOKUSHU 100YXG10MCA10X20

#3 24073124 100V 10U TOKUSHU 100YXG10MCA10X20

C467 #1 24820433 PLASTIC FILM, 630V 0.043UF J

#2 24820433 PLASTIC FILM, 630V 0.043UF J

#3 24503158 PLASTIC FILM, 630V 0.036UF J

C470 24797101 ELECTROLYTIC, 50V 100UF M

C472 #1 24539474 PLASTIC FILM, 50V 0.47UF J

C475

C499

C500

C501

C502

C503

#2 24503049 PLASTIC FILM, 63V 0.47UF J

#3 24503049 PLASTIC FILM, 63V 0.47UF J

24092730 CERAMIC CHIP, 16V B 0.1UF K

24353100 CERAMIC DISC, 50V CH 10PF C

24092730 CERAMIC CHIP, 16V B 0.1UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24793102 ELECTROLYTIC, 10V 1000UF M

24109103 CERAMIC CHIP, 50V B 0.01UF K

C543 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

C547

C560

C561

#3 24794100 ELECTROLYTIC, 16V 10UF M

24793101 ELECTROLYTIC, 10V 100UF M

24794101 ELECTROLYTIC, 16V 100UF M

24109103 CERAMIC CHIP, 50V B 0.01UF K

C597

C598

24436390 CERAMIC DISC, 50V SL 39PFJ

24436390 CERAMIC DISC, 50V SL 39PFJ

C599 24436390 CERAMIC DISC, 50V SL 39PFJ

C624 #1 24797478 ELECTROLYTIC, 50V 0.47UF M

#2 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

#3 24797478 ELECTROLYTIC, 50V 0.47UF M

C664 #1 24797478 ELECTROLYTIC, 50V 0.47UF M

#2 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

C666

C670

C671

#3 24797478 ELECTROLYTIC, 50V 0.47UF M

24591563 PLASTIC FILM, 50V 0.056UF J

24797470 ELECTROLYTIC, 50V 47UF M

24797471 ELECTROLYTIC, 50V 470UF M

C672 24766470 ELECTROLYTIC, 50V 47UF M

C674 #1 24797478 ELECTROLYTIC, 50V 0.47UF M

#2 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

#3 24797478 ELECTROLYTIC, 50V 0.47UF M

C675 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

C676 24591823 PLASTIC FILM, 50V 0.082UF J

C677 #1 24539823 PLASTIC FILM, 50V 0.082UF J

#2 24591823 PLASTIC FILM, 50V 0.082UF J

#3 24591823 PLASTIC FILM, 50V 0.082UF J

C678 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

C679 #1 24539563 PLASTIC FILM, 50V 0.056UF J

#2 24591563 PLASTIC FILM, 50V 0.056UF J

#3 24591563 PLASTIC FILM, 50V 0.056UF J

C680 #1 24669229 ELECTROLYTIC, 50V 2.2UF M 3A

#2 24766229 ELECTROLYTIC, 50V 2.2UF M

#3 24766229 ELECTROLYTIC, 50V 2.2UF M

C681 #1 24669229 ELECTROLYTIC, 50V 2.2UF M 3A

#2 24766229 ELECTROLYTIC, 50V 2.2UF M

#3 24766229 ELECTROLYTIC, 50V 2.2UF M

C682 #1 24669229 ELECTROLYTIC, 50V 2.2UF M 3A

C683

C684

C685

C686

C687

C688

#2 24766229 ELECTROLYTIC, 50V 2.2UF M

#3 24766229 ELECTROLYTIC, 50V 2.2UF M

24795101 ELECTROLYTIC, 25V 100UF M

24503049 PLASTIC FILM, 63V 0.47UF J

24797100 ELECTROLYTIC, 50V 10UF M

24795102 ELECTROLYTIC, 25V 1000UF M

24797100 ELECTROLYTIC, 50V 10UF M

24503049 PLASTIC FILM, 63V 0.47UF J

C689 #1 24667471 ELECTROLYTIC, 25V 470UF M 3A

#2 24764471 ELECTROLYTIC, 25V 470UF M

#3 24764471 ELECTROLYTIC, 25V 470UF M

C690 #1 24667471 ELECTROLYTIC, 25V 470UF M 3A

#2 24764471 ELECTROLYTIC, 25V 470UF M

#3 24764471 ELECTROLYTIC, 25V 470UF M

C739 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

C801

#3 24794100 ELECTROLYTIC, 16V 10UF M

24503507 PLASTIC FILM, AC275V 0.22UF K

C802

C805

24503507 PLASTIC FILM, AC275V 0.22UF K

24092281 CERAMIC DISC, AC250V E 4700PF

C806 24092281 CERAMIC DISC, AC250V E 4700PF

C808 #1 24668101 ELECTROLYTIC, 35V 100UF M 3A

Location

No.

Parts No. Description

C815

C817

C818

C821

C822

C823

C829

C830

#2 24765101 ELECTROLYITC, 35V 100UF M

#3 24765101 ELECTROLYITC, 35V 100UF M

C810 #1 24086857 ELECTROLYTIC, 400V 560UF

#2 24086857 ELECTROLYTIC, 400V 560UF

C811

C813

C814

#3 24086934 ELECTROLYTIC, 450V 560UF M 35F

24092555 CERAMIC DISC, AC250V E 1000PF M

24092555 CERAMIC DISC, AC250V E 1000PF M

24092555 CERAMIC DISC, AC250V E 1000PF M

24092551 CERAMIC DISC, AC250V B 220PF K

24092338 CERAMIC DISC, 2KV R 270PF K

24092341 CERAMIC DISC, 2KV R 470PF K

24214561 CERAMIC DISC, 500V B 560PF K

24214102 CERAMIC DISC, 500V B 1000PF K

24214471 CERAMIC DISC, 500V B 470PF K

24212561 CERAMIC DISC, 50V B 560PF K

24503047 PLASTIC FILM, 63V 0.33UF J

C831

C832

C834

C840

C841

C842

C862

C883

24503047 PLASTIC FILM, 63V 0.33UF J

24503047 PLASTIC FILM, 63V 0.33UF J

24503047 PLASTIC FILM, 63V 0.33UF J

24666470 ELECTORLYTIC CE04Q, 16V 47UF M 3A

24503047 PLASTIC FILM, 63V 0.33UF J

24503047 PLASTIC FILM, 63V 0.33UF J

24092339 CERAMIC DISC, 2KV 330PF K

24214561 CERAMIC DISC, 500V B 560PF K

C884

C885

24086052 ELECTRORYTIC, 200V 220UF M 22A

24214471 CERAMIC DISC, 500V B 470PF K

C889 #1 24668222 ELECTROLYTIC CE04Q, 35V 2200UF M 3A

#2 24765222 ELECTROLYTIC CE04G 35V 2200UF M

#3 24765222 ELECTROLYTIC CE04G 35V 2200UF M

C891 #1 24666102 ELECTROLYTIC, 16V 1000UF M 3A

#2 24763102 ELECTROLYTIC, 16V 1000UF M

#3 24763102 ELECTROLYTIC, 16V 1000UF M

C893

C898

C899

C902

24092337 CERAMIC DISC, 2KV 220PF K

24503045 PLASTIC FILM, 63V 0.22UF J

24214471 CERAMIC DISC, 500V B 470PF K

24092339 CERAMIC DISC, 2KV 330PF K

C904 #1 24436681 CERAMIC DISC, 50V SL 680PF J

#2 24436681 CERAMIC DISC, 50V SL 680PF J

#3 24436471 CERAMIC DISC, 50V SL 470PF J

C905 #1 24436821 CERAMIC DISC, 50V SL 820PF J

#2 24436821 CERAMIC DISC, 50V SL 820PF J

#3 24436561 CERAMIC DISC, 50V SL 560PF J

C907 #1 24436102 CERAMIC DISC, 50V SL 1000PF J

#2 24436102 CERAMIC DISC, 50V SL 1000PF J

C909

C910

C912

#3 24436681 CERAMIC DISC, 50V SL 680PF J

24679220 ELECTROLYTIC, 250V 22UF M 3A

24797100 ELECTROLYTIC, 50V 10UF M

24794222 ELECTROLYTIC, 16V 2200UF M

C999

C4200

C4300

C4712

CA09

CA14

CA15

CA48

C913 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

C915 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

C930

C931

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

24214101 CERAMIC DISC, 500V B 100PF K

24214101 CERAMIC DISC, 500V B 100PF K

C997 #3 24214102 CERAMIC DISC, 500V B 1000PF K

C998 #3 24214102 CERAMIC DISC, 500V B 1000PF K

24436221 CERAMIC DISC, 50V SL 220PF J

24109221 CERAMIC CHIP, 50V B 220PF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24105680 CERAMIC CHIP, 50V CH 68PF J

24105680 CERAMIC CHIP, 50V CH 68PF J

24105221 CERAMIC CHIP, 50V CH 220PF J

CA49 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

CA50

#3 24794100 ELECTROLYTIC, 16V 10UF M

24105270 CERAMIC CHIP, 50V CH 27PF J

CA51

CA53

CA54

CA55

CA56

CA60

24105270 CERAMIC CHIP, 50V CH 27PF J

24105101 CERAMIC CHIP, 50V CH 100PF J

24092730 CERAMIC CHIP, 16V B 0.1UF K

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24092538 CERAMIC CHIP, 10V F 1UF Z

– 18 –

Location

No.

Parts No. Description

CA61

CA65

CA72

CA73

24793101 ELECTROLYTIC, 10V 100UF M

24092729 CERAMIC CHIP CK73B 16V 68000PFK

24105680 CERAMIC CHIP, 50V CH 68PF J

24105680 CERAMIC CHIP, 50V CH 68PF J

CA74 24105101 CERAMIC CHIP, 50V CH 100PF J

CA76 #1 24797229 ELECTROLYTIC, 50V 2.2UF M

#2 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

#3 24797229 ELECTROLYTIC, 50V 2.2UF M

CA77

CA82

24092538 CERAMIC CHIP, 10V F 1UF Z

24793470 ELECTROLYTIC CE04G 10V 47UF M

CA99 24353101 CERAMIC DISC, 50V CH 100PF J

CB01 #1 24794470 ELECTROLYTIC, 16V 47UF M

#2 24203470 ELECTROLYTIC, 16V 47UF M 7L 3A

#3 24794470 ELECTROLYTIC, 16V 47UF M

CB05 #1 24666100 ELECTROLYTIC, 10V 10UF M 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

CC01

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

24109103 CERAMIC CHIP, 50V B 0.01UF K

CC11 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

CC12 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

CC25 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

CC26 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

CC32 #1 24232103 CERAMIC DISC, 50V F 0.01UF Z

CC33 #1 24232103 CERAMIC DISC, 50V F 0.01UF Z

CI01

CI02

CI03

CI04

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

CI05

CI06

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

CI08 #1 24797010 ELECTROLYTIC, 50V 1UF M

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

CI09

CI10

CI12

#3 24797010 ELECTROLYTIC, 50V 1UF M

24109103 CERAMIC CHIP, 50V B 0.01UF K

24794101 ELECTROLYTIC, 16V 100UF M

24092573 CERAMIC CHIP, 16V B 0.47UF K

CI13

CI14

24109102 CERAMIC CHIP, 50V B 1000PF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

CI16 24105150 CERAMIC CHIP, 50V CH 15PF J

CI17 #1 24797229 ELECTROLYTIC, 50V 2.2UF M

#2 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

#3 24797229 ELECTROLYTIC, 50V 2.2UF M

CI18 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

CI20

CI21

CI30

#3 24794220 ELECTROLYTIC, 16V 22UF M

24105560 CERAMIC CHIP, 50V CH 56PF J

24105430 CERAMIC CHIP CC73CH 50V 43PF J

24109103 CERAMIC CHIP, 50V B 0.01UF K

CI63

CI65

CI71

CI81

CI90

CI91

CI92

CI93

CI31 #1 24797479 ELECTROLYTIC, 50V 4.7UF M

#2 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

CI56

#3 24797479 ELECTROLYTIC, 50V 4.7UF M

24105120 CERAMIC CHIP, 50V CH 12PF J

CI57

CI60

CI61

CI62

24105510 CERAMIC CHIP, 50V CH 51PF J

24105470 CERAMIC CHIP, 50V CH 47PF J

24105470 CERAMIC CHIP, 50V CH 47PF J

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109153 CERAMIC CHIP, 50V B 0.015UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24105470 CERAMIC CHIP, 50V CH 47PF J

24105470 CERAMIC CHIP, 50V CH 47PF J

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

CS10 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M

CS11 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M

CS12 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

CS13 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

– 19 –

Location

No.

Parts No. Description

CS15 24109103 CERAMIC CHIP, 50V B 0.01UF K

CS16 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

CS17 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

CS29 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

CV01 #1 24212102 CERAMIC DISC, 50V B 1000PF K

CV02 #1 24212102 CERAMIC DISC, 50V B 1000PF K

CV03 #1 24212102 CERAMIC DISC, 50V B 1000PF K

CV04 #1 24212102 CERAMIC DISC, 50V B 1000PF K

CV13 24085942 ELECTROLYTIC, NONPOLAR, 16V 10UF M 5L

CV14 #1 24794100 ELECTROLYTIC, 16V 10UF M

CV34

CV36

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M

24762471 ELECTROLYTIC, 10V 470UF M

24794221 ELECTROIYTIC, 16V 220UF M

RESISTORS

R101

R121

24553153 OXIDE METAL FILM, 1W 15K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

R201

R202

R203

R204

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

R205

R206

R207

R208

R209

R210

R212

R215

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J

24011821 CHIP, METAL FILM, 1/20W 820 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011272 CHIP, 1/20W 2.7K OHM J

24011273 CHIP, METAL FILM, 1/20W 27K OHM J

24011362 CHIP, 1/20W 3.6K OHM J

R217

R218

R219

R220

R221

R222

R227

R231

24366103 CARBON FILM, 1/6W 10K OHM J

24367272 CARBON FILM, 1/6W 2.7K OHM J

24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

24011822 CHIP, METAL FILM, 1/20W 8.2K OHM J

24011183 CHIP, METAL FILM, 1/20W 18K OHM J

24011681 CHIP, METAL FILM, 1/20W 680 OHM J

24367113 CARBON FILM, 1/2W 11K OHM J

24011622 CHIP, METAL FILM, 1/20W 6.2K OHM J

R232

R233

24011123 CHIP, METAL FILM, 1/20W 12K OHM J

24367273 CARBON FILM, 1/6W 27K OHM G

R303 24321109 OXIDE METAL FILM, 1/2W 1 OHM J

R305 #1 24338159 OXIDE METAL FILM, 1W 1.5 OHM J

R312

R314

R319

R320

R321

R322

R324

R325

R327

R328

R329

R330

R331

R336

R341

R342

R343

R344

R349

R401

R402

R403

R404

R405

R406

R407

#2 24338159 OXIDE METAL FILM, 1W 1.5 OHM J

#3 24338109 OXIDE METAL FILM, 1W 1 OHM J

24552561 OXIDE METAL FILM, 1/2W 560 OHM J

24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24011183 CHIP, METAL FILM, 1/20W 18K OHM J

24011303 CHIP, METAL FILM, 1/20W 30K OHM J

24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J

24011752 CHIP, METAL FILM, 1/20W 7.5K OHM J

24323159 OXIDE METAL FILM, 2W 1.5 OHM J

24367472 CARBON FILM, 1/6W 4.7K OHM G

24000633 METAL FILM, 1/4W 10K OHM F

24000245 METAL FILM, 1/4W 33K OHM F

24366153 CARBON FILM, 1/6W 15K OHM J

24383101 OXIDE METAL FILM, 2W 100 OHM J

24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J

24366562 CARBON FILM, 1/6W 5.6K OHM J

24310189 OXIDE METAL FILM, 1/2W 1.8 OHM J

24366392 CARBON FILM, 1/6W 3.9K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24382123 OXIDE METAL FILM, 1W 12K OHM J

24011680 CHIP, METAL FILM, 1/20W 68 OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

Location

No.

Parts No. Description

R827

R829

R840

R842

R843

R844

R863

R865

R868

R898

R808

R809

R810

R811

R815

R820

R821

R823

R674

R675

R690

R691

R801

R802

R805

R807

R663

R664

R665

R666

R667

R668

R669

R673

R522

R544

R545

R623

R624

R660

R661

R662

R479

R501

R502

R512

R513

R515

R520

R521

R408

R409

R410

R411

R415

R416

R417

R418

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24872102 CHIP, 1/16W 1K OHM J

24011470 CHIP, METAL FILM, 1/20W 47 OHM J

24553272 OXIDE METAL FILM, 1W 2.7K OHM J

24019330 OXIDE METAL FILM, 5W 3.6K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

R420

R424

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

R425 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

R429 #1 24366560 CARBON FILM, 1/6W 56 OHM J

R431

R432

R433

R434

R441

R448

R470

R471

#2 24366560 CARBON FILM, 1/6W 56 OHM J

#3 24552560 OXIDE METAL FILM, 1/2W 56 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24366332 CARBON FILM, 1/6W 3.3K OHM J

24531680 FUSIBLE, 1/2W 68 OHM J

24366101 CARBON FILM, 1/6W 100 OHM J

24532102 FUSIBLE, 1W 1K OHM J

24338398 OXIDE METAL FILM, 1W 0.39 OHM J

24338688 OXIDE METAL FILM, 1W 0.68 OHM J

24381820 OXIDE METAL FILM, 1/2W 82 OHM J

R473 24000637 METAL FILM, 1/4W 15K OHM F

R474 #1 24383181 OXIDE METAL FILM, 2W 180 OHM J

#2 24383181 OXIDE METAL FILM, 2W 180 OHM J

#3 24383910 OXIDE METAL FILM, 2W 91 OHM J

24381331 OXIDE FILM 1/2W 330 J

24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J

24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J

24011121 CHIP, METAL FILM, 1/20W 120 OHM J

24011121 CHIP, METAL FILM, 1/20W 120 OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24011121 CHIP, METAL FILM, 1/20W 120 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011220 CHIP, METAL FILM, 1/20W 22 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J

24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J

24011273 CHIP, METAL FILM, 1/20W 27K OHM J

24011272 CHIP, 1/20W 2.7K OHM J

24011273 CHIP, METAL FILM, 1/20W 27K OHM J

24011272 CHIP, 1/20W 2.7K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011220 CHIP, METAL FILM, 1/20W 22 OHM J

24009954 METAL FILN, 1/2W 2.2M OHM J

24383104 OXIDE METAL FILM, 2W 100K OHM J

24366681 CARBON FILM, 1/6W 680 OHM J

24376684

24019476 THERMISTOR, POSITIVE, AC290V 18 OHM M

24376433 RD14B2H433J

24007737 CERAMIC COVERED, 15W 2.2 OHM J

24568271 CERAMIC COVERED, 7W 270 OHM J

24366562 CARBON FILM, 1/6W 5.6K OHM J

24019463 METAL PLATE RK99 2W R22 J

24310479 OXIDE METAL FILM, 1/2W 4.7 OHM J

24376152 CARBON FILM, 1/2W 1.5K OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24988027 METAL FILM 1W R47 J

24366471 CARBON FILM, 1/6W 470 OHM J

24366332 CARBON FILM, 1/6W 3.3K OHM J

24366471 CARBON FILM, 1/6W 470 OHM J

24321478 OXIDE METAL FILM, 1/2W 0.47 OHM J

24366132 CARBON FILM, 1/6W 1.3K OHM J

24366332 CARBON FILM, 1/6W 3.3K OHM J

24366472 CARBON FILM, 1/6W 4.7K OHM J

24321228 OXIDE METAL FILM, 1/2W 0.22 OHM J

Location

No.

Parts No. Description

RA44

RA45

RA49

RA50

RA53

RA54

RA55

RA56

RA04

RA05

RA11

RA12

RA40

RA41

RA42

RA43

RA59

RA63

RA64

RA65

RA66

RA67

R945

R946

R960

R961

R962

R977

R992

R4200

R4711

R4712

R4715

R4716

R4760

R4770

RA03

R899 24004718 METAL GLAZE 1/2W 8R2M J

R901 #1 24376102 CARBON FILM, 1/2W 1K OHM J

#2 24376102 CARBON FILM, 1/2W 1K OHM J

#3 24376152 CARBON FILM, 1/2W 1.5K OHM J

R902 #1 24376102 CARBON FILM, 1/2W 1K OHM J

#2 24376102 CARBON FILM, 1/2W 1K OHM J

#3 24376152 CARBON FILM, 1/2W 1.5K OHM J

R903 #1 24376102 CARBON FILM, 1/2W 1K OHM J

R904

R905

R912

R914

R915

R916

R917

R918

R919

R920

R921

R922

R924

R925

R926

R928

R929

R930

R932

R934

R935

R936

#2 24376102 CARBON FILM, 1/2W 1K OHM J

#3 24376152 CARBON FILM, 1/2W 1.5K OHM J

24366472 CARBON FILM, 1/6W 4.7K OHM J

24366150 CARBON FILM, 1/6W 15 OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24366561 CARBON FILM, 1/6W 560 OHM J

24366121 CARBON FILM, 1/6W 120 OHM J

24366181 CARBON FILM, 1/6W 180 OHM J

24366821 CARBON FILM, 1/6W 820 OHM J

24366270 CARBON FILM, 1/6W 27 OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24000880 FUSIBLE, 1W 5.1 OHM J

24366561 CARBON FILM, 1/6W 560 OHM J

24366121 CARBON FILM, 1/6W 120 OHM J

24366270 CARBON FILM, 1/6W 27 OHM J

24366821 CARBON FILM, 1/6W 820 OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24366561 CARBON FILM, 1/6W 560 OHM J

24366121 CARBON FILM, 1/6W 120 OHM J

24366270 CARBON FILM, 1/6W 27 OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24366561 CARBON FILM, 1/6W 560 OHM J

24366392 CARBON FILM, 1/6W 3.9K OHM J

24545150 FUSIBLE, 1/4W 15 OHM J

R937 24366821 CARBON FILM, 1/6W 820 OHM J

R942 #1 24366562 CARBON FILM, 1/6W 5.6K OHM J

#2 24366562 CARBON FILM, 1/6W 5.6K OHM J

R943 #1 24366562 CARBON FILM, 1/6W 5.6K OHM J

#2 24366562 CARBON FILM, 1/6W 5.6K OHM J

R944 #1 24366562 CARBON FILM, 1/6W 5.6K OHM J

#2 24366562 CARBON FILM, 1/6W 5.6K OHM J

24366181 CARBON FILM, 1/6W 180 OHM J

24366181 CARBON FILM, 1/6W 180 OHM J

24383153 OXIDE METAL FILM, 2W 15K OHM J

24383153 OXIDE METAL FILM, 2W 15K OHM J

24383153 OXIDE METAL FILM, 2W 15K OHM J

24366122 CARBON FILM, 1/6W 1.2K OHM J

24366150 CARBON FILM, 1/6W 15 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011684 CHIP, METAL FILM, 1/20W 680K OHM J

24011224 CHIP, METAL FILM, 1/20W 220K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24000247 METAL FILM, 1/4W 39K OHM F

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24366683 CARBON FILM, 1/6W 68K OHM J

24366223 CARBON FILM, 1/6W 22K OHM J

24366103 CARBON FILM, 1/6W 10K OHM J

24366103 CARBON FILM, 1/6W 10K OHM J

24366223 CARBON FILM, 1/6W 22K OHM J

24366683 CARBON FILM, 1/6W 68K OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011680 CHIP, METAL FILM, 1/20W 68 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24367333 CARBON FILM, 1/6W 33K OHM G

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

– 20 –

Location

No.

Parts No. Description

RI51

RI52

RI61

RI62

RI63

RI65

RI67

RI68

RI69

RI71

RI72

RI73

RA76

RA77

RA78

RA79

RB01

RB05

RB09

RB48

RA68

RA69

RA70

RA71

RA72

RA73

RA74

RA75

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011123 CHIP, METAL FILM, 1/20W 12K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011123 CHIP, METAL FILM, 1/20W 12K OHM J

24011183 CHIP, METAL FILM, 1/20W 18K OHM J

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24366271 CARBON FILM, 1/6W 270 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24366470 CARBON FILM, 1/6W 47 OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

RB49 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

RC11 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

RC12 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

RC16 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

RC17 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

RI01

RI02

RI03

#3 24000445 CHIP JUMPER, 1608TYPE

24011330 CHIP, 1/20W 33 OHM J

24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

24011272 CHIP, 1/20W 2.7K OHM J

RI12

RI13

RI14

RI15

RI16

RI17

RI18

RI19

RI04

RI05

RI06

RI07

RI08

RI09

RI10

RI11

24011330 CHIP, 1/20W 33 OHM J

24011751 CHIP, METAL FILM, 1/20W 750 OHM J

24011330 CHIP, 1/20W 33 OHM J

24871390 CHIP, 1/8W 39 OHM J

24011821 CHIP, METAL FILM, 1/20W 820 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011302 CHIP, METAL FILM, 1/20W 3K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011331 CHIP, METAL FILM, 1/20W 330 OHM J

24011105 CHIP, METAL FILM, 1/20W 1M OHM J

RI40

RI41

RI42

RI43

RI44

RI45

RI46

RI47

RI20

RI21

RI30

RI31

24011821 CHIP, METAL FILM, 1/20W 820 OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011433 CHIP, METAL FILM, 1/20W 43K OHM J

RI32 24011123 CHIP, METAL FILM, 1/20W 12K OHM J

RI33 #1 24011272 CHIP, 1/20W 2.7K OHM J

#2 24011272 CHIP, 1/20W 2.7K OHM J

#3 24011302 CHIP, METAL FILM, 1/20W 3K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011112 CHIP, 1/20W 1.1K OHM J

24011561 CHIP, METAL FILM, 1/20W 560 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011561 CHIP, METAL FILM, 1/20W 560 OHM J

24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24066046 VARIABLE. CARBON, 0.1W 20K N

24011331 CHIP, METAL FILM, 1/20W 330 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011563 CHIP, METAL FILM, 1/20W 56K OHM J

24011563 CHIP, METAL FILM, 1/20W 56K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011134 CHIP, METAL FILM, 1/2OW 130K OHM J

24011134 CHIP, METAL FILM, 1/2OW 130K OHM J

24011303 CHIP, METAL FILM, 1/20W 30K OHM J

– 21 –

Location

No.

Parts No. Description

RS21

RS22

RS23

RS24

RS27

RS61

RS62

RV01

RS01

RS02

RS03

RS04

RS11

RS12

RS19

RS20

RI84

RI85

RI87

RI88

RI91

RI97

RI98

RI99

RI74

RI77

RI78

RI79

RI80

RI81

RI82

RI83

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24011183 CHIP, METAL FILM, 1/20W 18K OHM J

24011301 CHIP, METAL FILM, 1/20W 300 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011203 CHIP, METAL FILM, 1/20W 20K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011563 CHIP, METAL FILM, 1/20W 56K OHM J

24011563 CHIP, METAL FILM, 1/20W 56K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011561 CHIP, METAL FILM, 1/20W 560 OHM J

24552221 OXIDE METAL FILM, 1/2W 220 OHM J

24552221 OXIDE METAL FILM, 1/2W 220 OHM J

24366223 CARBON FILM, 1/6W 22K OHM J

GJ331

GR30

GR301

GRI01

GRI02

JP242

JP247

JR001

RV02 24366223 CARBON FILM, 1/6W 22K OHM J

RV03 #1 24366102 CARBON FILM, 1/6W 1K OHM J

RV04 #1 24366102 CARBON FILM, 1/6W 1K OHM J

RV06 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

RV07

RV08

RV17

RV18

24366202 CARBON FILM, 1/6W 2K OHM J

24366202 CARBON FILM, 1/6W 2K OHM J

24366750 CARBON FILM, 1/6W 75 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

RV24

RV25

RV26

RV33

24552181 OXIDE METAL FILM, 1/2W 180 OHM J

24011750 CHIP, METAL FILM, 1/20W 75 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011750 CHIP, METAL FILM, 1/20W 75 OHM J

RV34

GJ04

24011750 CHIP, METAL FILM, 1/20W 75 OHM J

24000445 CHIP JUMPER, 1608TYPE

GJ44 #2 24366472 CARBON FILM, 1/6W 4.7K OHM J

GJ45 #2 24366472 CARBON FILM, 1/6W 4.7K OHM J

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

COILS & TRANSFORMERS

L101 #1 23248296 COIL, CHOKE

#2 23248367 COIL, CHOKE 9X13H 221MMH 0.6A TLN3278AC

L301

L320

L441

#3 23248367 COIL, CHOKE 9X13H 221MMH 0.6A TLN3278AC

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23233999 COIL, LINEALITY, TLN2215AY

L461 #1 23248177 COIL, CHOKE, TLN3337AD

#2 23248364 COIL, CHOKE 17X29H 680MMH 1.7A TLN3337AC

#3 23248364 COIL, CHOKE 17X29H 680MMH 1.7A TLN3337AC

L462 #1 23231355 COIL, DEFLECTION YOKE, TDY-821AZ

#2 23231355 COIL, DEFLECTION YOKE, TDY-821AZ

L462A #1 23993696 BOARD, CORRECTION

#2 23993696 BOARD, CORRECTION

L462B #1 23949616 CONVER CORRECTOR, YV TC-R TC-R(YV)

#2 23949616 CONVER CORRECTOR, YV TC-R TC-R(YV)

L462C #1 23993081 METAL SHEET, CONV. CORRECTION TCRMXH01H

#2 23993081 METAL SHEET, CONV. CORRECTION TCRMXH01H

L462D #1 23948535 SHEET, MAGNETIC FERRITE

Location

No.

Parts No. Description

#2 23948535 SHEET, MAGNETIC FERRITE

L462E #1 23948536 SHEET, MAGNETIC FERRITE

L501

#2 23948536 SHEET, MAGNETIC FERRITE

23289912 COIL, PEAKING COIL 3.3MMH TRF4339AU

L502

L503

L505

L506

23289924 COIL, PEAKING COIL 33MMH TRF4330AU

23289924 COIL, PEAKING COIL 33MMH TRF4330AU

23289924 COIL, PEAKING COIL 33MMH TRF4330AU

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

L507

L805

L806

L810

23289924 COIL, PEAKING COIL 33MMH TRF4330AU

23248234 COIL, CHOKE, TLN3481AC

23248234 COIL, CHOKE, TLN3481AC

23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

L811

L883

23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

L885 #1 23248288 COIL, CHOKE, TLN3299GH

#2 23248327 COIL, CHOKE 10X13.3H 100MMH TLN3299AC

L886

L888

L889

#3 23248327 COIL, CHOKE 10X13.3H 100MMH TLN3299AC

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23280016 COIL, PEAKING, TRF4100AZ

23280016 COIL, PEAKING, TRF4100AZ

L891

L893

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23280016 COIL, PEAKING, TRF4100AZ

L900 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

L901 #1 23200534 COIL, DG-0.37 TSB-2301AH

#2 23200534 COIL, DG-0.37 TSB-2301AH

#3 23200486 COIL, DG-0.37, 55T 22.5R-8TYPE TSB-2301BV

L902 #1 23289221 COIL, PEAKING, TRF4221AF

#2 23289221 COIL, PEAKING, TRF4221AF

L903 #1 23289221 COIL, PEAKING, TRF4221AF

#2 23289221 COIL, PEAKING, TRF4221AF

L904 #1 23289221 COIL, PEAKING, TRF4221AF

#2 23289221 COIL, PEAKING, TRF4221AF

L905 #1 23289390 COIL, PEAKING, TRF4390AF

#2 23289390 COIL, PEAKING, TRF4390AF

#3 23289925 COIL, PEAKING, TRF4390AU

L906 #1 23289390 COIL, PEAKING, TRF4390AF

#2 23289390 COIL, PEAKING, TRF4390AF

#3 23289925 COIL, PEAKING, TRF4390AU

L907 #1 23289390 COIL, PEAKING, TRF4390AF

#2 23289390 COIL, PEAKING, TRF4390AF

LA01

#3 23289925 COIL, PEAKING, TRF4390AU

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

LC01 #1 23221129 CHOKE COIL , TRF9240AC

LC02 #1 23221129 CHOKE COIL , TRF9240AC

LC03 #1 23221129 CHOKE COIL , TRF9240AC

LC04 #1 23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

#2 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

#3 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

LC05 #1 23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

#2 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

LI01

#3 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

23238554 COIL, PEAKING, TRF4R22AJ

LI03

LI04

LI06

LI07

23238503 COIL, PEAKING, TRF4129AJ

23238706 COIL, PEAKING, TRF4470AJ

23238719 COIL, PEAKING, TRF4399AJ

23238712 COIL, PEAKING, TRF4150AJ

LI10

LI51

LI56

LI57

23289270 COIL, PEAKING, TRF4270AF

23232032 COIL, VARIABLE TRF3546D

23238562 COIL, PEAKING, TRF4109AJ

23238562 COIL, PEAKING, TRF4109AJ

LI61

LI91

23238710 COIL, PEAKING, TRF4220AJ

23238713 COIL, PEAKING, TRF4120AJ

T401 23224391 TRANSFORMER, DRIVE, TLN1104AH

T461 #1 23236738 TRANSFORMER, HORIZ OUTPUT, TFB4159AS(NO SEVICE PART)

T461Z

T801

T802

#2 23236738 TRANSFORMER, HORIZ OUTPUT, TFB4159AS(NO SEVICE PART)

23236612 TRANSFORMER, HORIZ OUTPUT, SERVICE, TFB4159ZD

23211731 COIL, LINE FILTER, TRF3164AC

23211777 COIL, LINE FILTER 37X40H 4.7MH TRF3202AR

T862 23217638 TRANSFORMER, TPW3534AM

G103 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

G104 #1 23248234 COIL, CHOKE, TLN3481AC

G105 #1 23248234 COIL, CHOKE, TLN3481AC

G106 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

G107 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

G108 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

G109 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

Location

No.

Parts No. Description

G402

G461

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

G815 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

GL10 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

SEMICONDUCTORS

Q104 70200934 IC, PST9126NR

Q107 #2 23205238 TRANSISTOR, NPN R1=R2=10K KRC402 (USM)

Q203 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y

Q204 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y

Q205 #1 23205045 TRANSISTOR, 2SA1037AKQ

#2 23314163 TRANSISTOR, 2SA1162-Y

#3 23314163 TRANSISTOR, 2SA1162-Y

Q208 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y

Q210 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y

Q211 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y

Q301 23009352 IC, AN5522

Q321 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y

Q340 #1 23205045 TRANSISTOR, 2SA1037AKQ

#2 23314163 TRANSISTOR, 2SA1162-Y

Q402

#3 23314163 TRANSISTOR, 2SA1162-Y

23114755 TRANSISTOR, 2SC2482FA-1

Q403 70114402 TRANSISTOR, 2SC3437-Y

Q404 #1 23314375 TRANSISTOR, ON4409

Q843

Q901

Q902

Q903

Q904

Q905

Q906

Q907

#1 23314970 TRANSISTOR, 2SD2539(FA)

#2 23314375 TRANSISTOR, ON4409

#2 23314970 TRANSISTOR, 2SD2539(FA)

#3 23314375 TRANSISTOR, ON4409

Q430 23114733 TRANSISTOR, 2SC2655-Y

Q431 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y

Q471 #1 23114759 TRANSISTOR, 2SA949-Y

#2 23205257 TRANSISTOR, PNP VCBO=-150V KTA1024-Y

Q502

#3 23205257 TRANSISTOR, PNP VCBO=-150V KTA1024-Y

23009508 IC, RGB AMP MATSUSHITA AN15931A

Q610 23000867 IC, AN5274

Q623 #1 23114493 TRANSISTOR, RN2404

#2 23205222 TRANSISTOR, PNP R1=R2=47KOHM SRA2204S (SOT-23)

#3 23205222 TRANSISTOR, PNP R1=R2=47KOHM SRA2204S (SOT-23)

Q670

Q801

23205005 TRANSISTOR, KTA2014Y

23009322 IC, POW SW.REG.IC VDS=650V,PO= STR-G8656

Q826 23906937 IC, PHOTO COUPLER, ON3171-R

Q830 #1 23009188 IC, KIA7805API

#2 23009843 IC, REGULATOR +5V 4% S7805PI

#3 23009843 IC, REGULATOR +5V 4% S7805PI

Q835 #1 23009187 IC, REGULATOR +9V 4% KIA7809API

#2 23009844 IC, REGULATOR +9V 4% S7809PI

#3 23009844 IC, REGULATOR +9V 4% S7809PI

Q840 #1 23314141 TRANSISTOR, 2SC3852

#2 23205160 TRANSISTOR, NPN VCBO=100V KTD2092

#3 23205160 TRANSISTOR, NPN VCBO=100V KTD2092

Q841 23114879 TRANSISTOR, 2SC2230A-Y(C)

Q842 #1 23314965 TRANSISTOR, KTC3198 Y

#2 23205085 TRANSISTOR, 2SC5343-Y

#3 23205085 TRANSISTOR, 2SC5343-Y

23009512 IC, REGULATOR, +3.3V 2% TO-220F NJU7223F33

23314780 TRANSISTOR, 2SC4544

23205085 TRANSISTOR, 2SC5343-Y

23314780 TRANSISTOR, 2SC4544

23205085 TRANSISTOR, 2SC5343-Y

23314780 TRANSISTOR, 2SC4544

23205085 TRANSISTOR, 2SC5343-Y

23205081 TRANSISTOR, 2SA1980-Y

– 22 –

Location

No.

Parts No. Description

Q908 23205202 TRANSISTOR, 2SC5344Y

Q4030 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y

Q4710 #1 23205045 TRANSISTOR, 2SA1037AKQ

#2 23314163 TRANSISTOR, 2SA1162-Y

QA10

#3 23314163 TRANSISTOR, 2SA1162-Y

23009648 IC, AT24C32A-10PI-2.7

QA51 #1 23009951 IC, PANA MICRO VCD COMB TEXT MN101E02HME

#2 23009951 IC, PANA MICRO VCD COMB TEXT MN101E02HME

#3 23009948 IC, PANA MICRO VCD COMB TEXT MN101E04GAF

QA71 #1 23205045 TRANSISTOR, 2SA1037AKQ

#2 23314163 TRANSISTOR, 2SA1162-Y

#3 23314163 TRANSISTOR, 2SA1162-Y

QA72 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

QA73

#3 23314475 TRANSISTOR, 2SC2712-Y

23114460 TRANSISTOR, RN1204

QB05 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

QI01

QI02

QI04

#3 23314475 TRANSISTOR, 2SC2712-Y

23906820 IC, VIF/SIF SSOP 24PIN TA1267AF(FA02,EL)

23114611 TRANSISTOR, 2SC3357

23205005 TRANSISTOR, KTA2014Y

QI05

QI06

23205006 TRANSISTOR, KTC4075Y

23205005 TRANSISTOR, KTA2014Y

QI07 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QI08 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QI09 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QI12

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

23314926 TRANSISTOR, FET, 2SK880-Y

QI15 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QI16 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QI17 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QI61

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

23205006 TRANSISTOR, KTC4075Y

QI63 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QI64 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QI65

QI71

23205006 TRANSISTOR, KTC4075Y

23205006 TRANSISTOR, KTC4075Y

QI81 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QI91

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

23205006 TRANSISTOR, KTC4075Y

QI92 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

QS01

#3 23205214 TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

23205006 TRANSISTOR, KTC4075Y

QS02 23205006 TRANSISTOR, KTC4075Y

QS03 #1 70114396 TRANSISTOR, 2SC3326B

#2 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

#3 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

QS04 #1 70114396 TRANSISTOR, 2SC3326B

#2 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

QS11

#3 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

23000359 IC, MM1111XF

QS12 23000359 IC, MM1111XF

QV02 #1 23314962 TRANSISTOR, KTA1266 Y

#2 23205081 TRANSISTOR, 2SA1980-Y

#3 23205081 TRANSISTOR, 2SA1980-Y

QV10 #1 23114498 TRANSISTOR, RN1405

#2 23205209 TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

Location

No.

Parts No. Description

D470

D473

D474

D670

D671

D672

D673

D674

D406

D408

D431

D432

D441

D444

D461

D467

QV11

QV12

D101

#3 23205209 TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

23905020 IC, MM1116XF

23114462 TRANSISTOR, RN1202

23118607 DIODE, ZENER, RD33ESA B3

D210 #1 23316231 DIODE, 1SS355

#2 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#3 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

D211 #1 23316231 DIODE, 1SS355

#2 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#3 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

D301 #1 23118822 DIODE, ERB12-02

#2 23357448 DIODE, DIODE IF=1.0A GP10D

D302

D303

D340

#3 23357448 DIODE, DIODE IF=1.0A GP10D

23357372 DIODE, AXIAL EU2JGF-41U2

23316794 DIODE, SC570A

23118529 DIODE, ZENER, RD5.6ES B2

23357372 DIODE, AXIAL EU2JGF-41U2

23357375 DIODE, 3JHJGR-M2

23118530 DIODE, ZENER, RD5.6ESA B1

23316231 DIODE, 1SS355

23118531 DIODE, ZENER, RD5.1ESA B3

23316254 DIODE, ERC06-15

23357364 DIODE, RU4JGF- M2 RU4JGF- M2

23357372 DIODE, AXIAL EU2JGF-41U2

23118511 DIODE, ZENER, RD12ES B2

23118635 DIODE, ZENER, RD2.7ESA B2

23118635 DIODE, ZENER, RD2.7ESA B2

23316231 DIODE, 1SS355

23316231 DIODE, 1SS355

23316231 DIODE, 1SS355

23316231 DIODE, 1SS355

23316231 DIODE, 1SS355

D819

D840

D848

D872

D883

D885

D891

D901

D801 #1 23357237 DIODE, TS4B05G-A1

#2 23357237 DIODE, TS4B05G-A1

D805

#3 23118173 DIODE, RBV-406M

23357012 DIODE, 1SS244

D806

D809

D810

D812

23357372 DIODE, AXIAL EU2JGF-41U2

23118529 DIODE, ZENER, RD5.6ES B2

23118616 DIODE, ZENER, RD27ESA B2

23357372 DIODE, AXIAL EU2JGF-41U2

23118526 DIODE, ZENER, RD6.8ES B2

23118528 DIODE, ZENER, RD5.6ESA B3

23118531 DIODE, ZENER, RD5.1ESA B3

23118511 DIODE, ZENER, RD12ES B2

23357336 DIODE, RL3A LF014-3

23357372 DIODE, AXIAL EU2JGF-41U2

23357372 DIODE, AXIAL EU2JGF-41U2

23357450 DIODE, VRM=90V IO=130MA ISS133

D903

D904

D905

D906

D907

D908

D909

D910

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

D911

D4710

23357449 DIODE, DIODE IO=1.0A ERB10JGR-41A-1AU

23316231 DIODE, 1SS355

DA78 #1 23316231 DIODE, 1SS355

#2 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

DB01Z

#3 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23358571 DIODE, LED, BT-H254N-31-SH

DI01 #1 23314428 DIODE, SILICON BAND SWICHING 1SS312(TE85L)

#2 23357446 DIODE, VR=30V IF=50MA KDS112-RTK/USM

#3 23357446 DIODE, VR=30V IF=50MA KDS112-RTK/USM

DI02 #1 23118043 DIODE, CHIP VRM80V 100MA A-C US DAP202U T106

#2 23357212 DIODE, CHIP VRM=85V IO=200MA KC KDS120-RTK

#3 23357212 DIODE, CHIP VRM=85V IO=200MA KC KDS120-RTK

DI03 #1 23118138 DIODE, MA77

#2 23357445 DIODE, KDS114-RTK/USC KDS114-RTK/USC

KB01

#3 23357445 DIODE, KDS114-RTK/USC KDS114-RTK/USC

23009490 IC, REMOCON RECEIVER, PIC-TB19

MISCELLANEOUS

F470

F470A

23144646 FUSE, CARTRIDGE 5X20 250V 0.8A

23165433 FUSE HOLDER, 5.2 SOC

– 23 –

Location

No.

Parts No. Description

F801

F801A

M461A

M461B

23144508 FUSE, CARTRIDGE 5.2X20, 250V 4.0A

23165433 FUSE HOLDER, 5.2 SOC

23192962 ANODE CAP ASSY, TCC5606AT

23509110 CABLE, FOCUS

M461C 23509371 CABLE ASSY, SCREEN

N724 #1 23965900 TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18

#2 23965900 TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18

N728 #1 23960101 SILICONE RUBBER, TSE-382 RTV

P661

#2 23960101 SILICONE RUBBER, TSE-382 RTV

23023116 PLUG, HEAD PHONE JACK 3.5MM PJ3-14-7

P801 #1 23372052 POWER CORD, 250V2.5A

#2 23372160 POWER CORD, SSA 127V15A 250V6A CMC-02

#3 23372224 POWER CORD, CEE 250V 2.5A VIET M4206N

P802 #1 23368249 POWER CORD, 2P 11.88MM VH-JST

P900

#2 23368249 POWER CORD, 2P 11.88MM VH-JST

23164725 CONNECTOR, PLUG 2P

P910

PI01A

23164725 CONNECTOR, PLUG 2P

23023145 PLUG, B15PS-TB-2 B15PS-TB-2

PI02A 23023145 PLUG, B15PS-TB-2 B15PS-TB-2

PV01 #1 23023139 JACK, PIN JACK 3P AV3-23-002

PV02

S801

#2 23023139 JACK, PIN JACK 3P AV3-23-002

#3 23023057 JACK, 3P KM04036B01-01

23023200 JACK, 8P (3SW) DAV8-31B01113S01

23344481 SWITCH, POWER, AAPY2211

SA01 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

SA02 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

SA03 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

SA04 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

SA05 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

SA06 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

V901A 23903147 SOCKET, ISH46S-E ICE 29MM

V901B #1 23102959 MAGNET, RUBBER

#2 23102959 MAGNET, RUBBER

V901M #1 23102424 CONVERGENCE MAGNET, MAG-1082

W661

W662

XA03

#2 23102424 CONVERGENCE MAGNET, MAG-1082

23351227 SPEAKER, 60X120 16-OHM 3W SEA SPK-1418AC

23351227 SPEAKER, 60X120 16-OHM 3W SEA SPK-1418AC

23153759 CRYSTAL RESONATOR, 10MHZ

ZI55

ZI61

ZI62

ZI63

ZI64

Z891 23144542 PROTECTOR, 491SERIES, 125V 4A

Z902 #3 23103840 FERRITE CORE, TFE1013

ZI01

ZI02

23303223 SAW FILTER, PIF

23303210 SAW FILTER, SIF

ZI05

ZI06

ZI07

ZI54

23303085 CERAMIC TRAP, TCF1092

23303136 CERAMIC TRAP, TCF1097

23303290 FILTER, FIL-CTRAP-4.5MHZ TCF1142AM

23303166 CERAMIC TRAP, 39.5MHZ TCF1107

23303224 CERAMIC TRAP, TCF1120AM

23303294 FILTER, FIL CFILT 5.5MHZ TCF1146AM

23303269 FILTER, FIL CFILT 6.0MHZ TCF1136AM

23303270 FILTER, CFILT 6.5MHZ, TCF1137AM

23303289 FILTER, TCF1141AM

PC BOARD ASSEMBLIES

*

U901 #1 23761146 PC BOARD ASSY, PD0607C CRT/D TSP2003040360

#2 23761146 PC BOARD ASSY, PD0607C CRT/D TSP2003040360

#3 23761589 PC BOARD ASSY, PD0607D CRT/D TSP2003063034

*

U902 #1 23761789 PC BOARD ASSY, PD1563B SIG 21S TSP2003082887

#2 23761595 PC BOARD ASSY, PD1420K SIG 21S TSP2003063040

#3 23761738 PC BOARD ASSY, PD1420P SIG 21S TSP2003073105

*

U903 #1 23761819 PC BOARD ASSY, PD1346J IF/MONO TSP2003091602

#2 23761148 PC BD ASSY PD1346A IF/MONO, TSP2003040362

#3 23761704 PC BOARD ASSY, PD1346E IF/MONO TSP2003072912

*

U904 #1 23761790 PC BOARD ASSY, PD1421I CONT 21 TSP2003082888

#2 23761344 PC BD ASSY, PD1421A CONT 21S TSP2003050238

Location

No.

Parts No. Description

#3 23761597 PC BOARD ASSY, PD1421E CONT 21 TSP2003063042

PICTURE TUBE

V901 #1 23312954 PICTURE TUBE, A51LVV896X, 21FFG02

#2 23312954 PICTURE TUBE, A51LVV896X, 21FFG02

#3 23324023 P I C T U R E T U B E , 2 0 V P F I T C Z E R O

A51LVV897X06

TUNER

H001 #1 23321450 TUNER, ASIA HYPER FS D-J, ENV59DA7G3

#2 23321417 TUNER, ASIA MLT IICPLL D-J LG ECA33LX6

#2 23321428 TUNER, ASIA MLT IICPLL SANYO ECA33LX8

#2 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

#2 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#3 23321357 TUNER, ECA33LX1, ASIA MLT IICPLL D-J MATU

#3 23321450 TUNER, ASIA HYPER FS D-J, ENV59DA7G3

ACCESSORIES

K902 23306459 REMOCON HAND UNIT IR, CTVPAL CT-90119

Y101A #1 23566082 OWNER’S MANUAL

#2 23566081 OWNER’S MANUAL

#3 23566083 OWNER’S MANUAL

Y108 #2 23725049 CONNECTOR, AC ADAPTER NC3528

Y120 23943846 BAG, POLY

Y125 #3 23142083 ADAPTOR

Y126 #2 23124089 ANTENNA, ROD ANTENNA 700MM 2-52245 CA

#3 23124081 ANTENNA, ROD TT-ANT07-TB

CABINET PARTS

A201 #1 23532539 COVER, FRONT ASSY TSP2003090403

#2 23532539 COVER, FRONT ASSY TSP2003090403

#3 23532418 COVER, FRONT ASSY F/C ASSY

A264

A265

23929509 HOLDER, BUTTON

23445744 KNOB, POWER BUTTON TSP2003021909

A266 #1 23428269 DOOR, FRONT TSP2003090402

#2 23428269 DOOR, FRONT TSP2003090402

A270

#3 23428218 DOOR, FRONT TSP2003021918

23451204 PUSH CATCH

A401 #1 23532018 COVER, BACK PROPER TSP2003021919

#2 23532018 COVER, BACK PROPER TSP2003021919

A701 #1 23067211 CARTON, BOX

#2 23067210 CARTON, BOX

#3 23067208 CARTON, BOX

A702A #1 23946613 PACKING, TOP TSP2003050607

#2 23946613 PACKING, TOP TSP2003050607

#3 23946695 PACKING, TOP

A702B #1 23946614 PACKING, BOTTOM TSP2003050608

#2 23946614 PACKING, BOTTOM TSP2003050608

AT03

#3 23946696 PACKING, BOTTOM

23588765 REMOCON PART, BATTERY COVER, CT-90119

E501 23198694 WIRE, CRT EARTH, 21D7DXE

E912 #1 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

#2 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

– 24 –

P900

E

Q903

C

CRT/D BOARD PD0607C (21CSZ5TR/21SZ5TM) (U901)

CRT/D BOARD PD0607D (21SZ5VX) (U901)

BOTTOM (FOIL) SIDE

B

TP47G

E

C

R946

R924

R922

R919

B

Q901

TP47R

L905

P905

E

Q904

B

R901

R916

R918

C903

R917

R915

E

D907 R912

B

Q902

P501B

R903

CCP-3400

TP46B

TP46G

TP46R

R935

B

Q907

E

R977

E

R936

23546994

C910

D903 D901

D910

R904

B E

Q908

R945

C

Q905

B

B

C908

E

R929

Q906

R920

P502B

14

13

12

11

R963

IF/MONO BOARD PD1346J (21CSZ5TR) (U903)

IF/MONO BOARD PD1346A (21SZ5TM) (U903)

IF/MONO BOARD PD1346E (21SZ5VX) (U903)

TOP (COMPONENT) SIDE

CI31

LI56

LI57

ZI54

LI10

+

ZI55

LI03

LI04

+

C641

QI16

QI17

DI01

RI84

RI84

DI02

+

+

C630

C642

C628

C628

C625

C625

C627

R627

R628

R628

C627

R627

C626

C626

C632

Q620

C634

+

ZI02

+

LI51

ZI64

ZI61

ZI63

+

+

ZI62

+

LI61

CI18

CI08

IF/MONO BOARD PD1346J (21CSZ5TR) (U903)

IF/MONO BOARD PD1346A (21SZ5TM) (U903)

IF/MONO BOARD PD1346E (21SZ5VX) (U903)

BOTTOM (FOIL) SIDE

RI18

QI04

RI20

RI14

CI81

CI81

RI18

CI17

CI12

CI12

CI13

ZI07

CI92

CI18

CI92

QI92

RI80

RI79

CI25

RI80

CI21

RI78

ZI62

RI78

ZI61

CI21

RI16

GJ04

GJ04

CI25

ZI06

QI01

CI20

LI06

RI41

RI41

RI31

CI30

RI31

CI30

ZI01

RI08

GJ01

ZI02

CI09

QI07

10

RI09

CI03

RI13

LI03

RI09

LI01

CI03

RI13

QI07

RI12

CI14

RI04

CI14

CI05

CI05

RI11

1

RI11

RI07

CI04 CI04

RI04

QI05

RI45

RI45

QI12

RI52

RI52

RI01

RI01

LI56

QI06

RI46

ZI54

ZI55

RI46

RI10

CI10

QI09

LI04

RI83

CI57

LI57

RI47

RI47

CI56

GRI01

GRI02

GRI01

RI83

GRI02

LI61

RI61

RI61

RI98

CI60

RI98

CI60

CI61

CI61

RI99

RI99

CI93

QI63

GJ03

QI63

ZI63

RI63

CI63

CI63

CI65

CI71

QI64

CI65

RI65

RI65

QI65

RI69

RI69

ZI64

RI62

RI62

CI62 CI62

C620

C621

QI15

R624

C641

R624

C642

R625

R630

R630

R629 R629

C629

C629

RI33 RI33

C633

C633

C630

R626

R626

DS-1107A

C636 C640 C634 C632

– 25 –

FRONT AV BOARD PD1421I (21CSZ5TR) (U904)

FRONT AV BOARD PD1421A (21SZ5TM) (U904)

FRONT AV BOARD PD1421E (21SZ5VX) (U904)

BOTTOM (FOIL) SIDE

CB01

PV01

P661

P611

RA44

RA43

RA45

1 2 3 4

RS61

CC32

LC01

LC03

LC02

3 RV0

2 RV0

4 RV0

1 RV0

RB03

RB02

1 2 3

1

P802B

2 3 4

– 26 –

MAIN BOARD PD1563B (U902)

MAIN BOARD PD1420K (U902)

MAIN BOARD PD1420P (U902)

BOTTOM (FOIL) SIDE

R411

R433

C4300

C4300

C415

C415

Q431

Q431

R431 R431

Q320

R321

R321

Q402

C413

E

C

B

P496

R415

+

C416

Q430

Q403

R417

+

R418

R418

C418

C419

C321

R329

T401

R330

Q321

C314

+

R319

C325

+

R319

1

Q301

+

2

C463

C440

C444

Q404

D444

1

10

+

C448

T461

9

2

8

7

13

3

6

4

5

L461

G461

D303

R331

R303

R305

SL1

C304

B

+

D883

C815

C811

R810

D801

CAUTION LIVE AREA

P910

R811

6

7

C312

+

C324

R325

R325

+

R899

L810

R802

P499

+

2

3

R808

1

R807

D809

R820

R829

C810

+

T862

L811

Q801

5

3

1

4

2

R815

D810

R809

L806

D310

D310 G109 G105

+

G108

D872

R823

C898

+

L886

C889

R868

R821

3 4

C821

+

C808

D806

T801

+ C464

R843

B

B

E

C

L893

D848

C

R842

G107

G106

F801

T4A L/250V

R101

2 1

Q826

E

P903B

6

5 4

3

+

2 1

C447

R416

+

C341

+

R344

C342

R349

+

Q340

C303

C220

R403

C449 +

R471

R479

3

Q843

2 1

E

+

C470

R4760

P902A

Q471

B

C472

D470

C841

E B

D840

R4620

R4810

+

Q4860

+

C503 C503

+

P497X

Q4840

D340

TE6

P497R

Q4840

R844

Q840

R840

C4880

+

D4810

D4810

R4770

R4770

R4820

R4820

C471

JP242

JP242

+

RA55

RA65

RA66

RA56

1

7

8

3

4

5

RA65

RA56

RA66

RA55

6

1 RA12

JR001

JR001

4

8

CA09

CA09

5

QB05

CA14

QB05

CA14

CA15

CA15

QA10

C

CA55

CA60

LA102

CA53

CA53

RA76

CA49

C547 C543

C739

R512

R512

C431

+

JP247

CA61

RA67

L502

RA64

RA64

RA68

RA68

+

RA54

+

RA50

RA50

CA51

CA50

CA50

QA51

CA54

CA54

63

64

QA72

C500

R545

RA49

+

RA49

R501

R501

+

R544

R513

43 42

R502

RA71

RA71

CA75 CA75

84

QA51

1

C430

+

R401

C401

C401

C407

+

D474

GR45

GR45

GR30

R402

C408

C406

C408

R424

R424

R425

R405

R405

C475

D473

R219 R219

C221

22

21 R220

R220

R221

R221

C209

C207

C207

C205

C208

+

Q204

C410

C211

R209

+

C211

R209

C213

C213

R204 R204

C201

C201

+

C204

+

Q203

R201

R202

C212

C212

R201

R202

Q204

CA76 +

+

QV11

24 23

22

21

20

R522

R520

8

Q502

R521

5

C561

+

C561

IN

1

Q502

4

R207

R207

OUT

Q835

LC03

LC02

C831

30

LC01

CV13

CS12

+

QS12

R206

R206

RV18

QS11 +

L503

Q104

D441

Q211

R215 R215

R213

R213

D210

R214

D211

R214

Q211

DA78

QA71

QA71

Q4030

R4711

R4713

C4712

R4711

R4713

R4716

Q4710

R4712

D4710

R408

R408

R4714

R4712

R409

R409

C405

R406

R406

C403

+

CS29

R407

C4711

Q4710

C4710

RA79

RA79

RA59

RA59

QV02

E C B RV24

6 RV2

+

RV25

RV25

RV26

CV36

RS21

QS02 QS01

QS02

QS01

C624

+

+

RS23

RS23

QS04

QS04

Q623

+

Q623

RS03

RS03

RC17

+

CS11

QS03

RS01 CS15

RS01 CS15

QS03

L208

Cb

RV33

RV33

Cr

DVD

RV34

RV34

L209

V

L

CC12 RC12

CC12 RC12

R

E1

QV10

GL10

PV02

RV06

RV06

+

V

L

R

CC25

CC25

10

MON OUT

RS11

+

P511A

+

RS12

RS12

6 5 4 3 2 1

Q671

Q671

+

R662

R662

R663

R663

C688

25

G103

Q672

Q672

LC04

LC05

+

+

C687

R675

D674

R675

+

D674

R674

D673

D670

D670

Q670

C670

D672

+

+

C672

D672

D671

D671

CS18

CS18

20

SDA

SCL

ADR

Vt

AGC

C686

+

IF

+

15

+

12

C674 C666

NC

32V

NC

+5V

NC

+

R660

R660

C685

R665

Q610

R691

C683

+

OUT

C106

CC01

CC01

+

10

C834

+

+

+

C682

+

C680

Q830

GND

C832

+

IN

C677

5

1

P497

1

C813

C679 C664

+

P495

– 27 – – 28 –

2SD2253

(old)

2SC5243

E

C

B

TERMINAL VIEW OF TRANSISTORS

2SC3852

2SD1763A

2SC1569

2SC4544

2SA1788

2SA1306

2SA1186A

E

C

B

2SC752GTM

2SC2482

2SC2655

2SC4721P

2SC752

2SA562TM

2SA1015

2SC1815

2SC2878

2SC1740S

2SC2120

2SA9335

B

CE

B

CE

2SA1788

E

C

B

RN2203

RN2201

RN2004

RN1203

RN1204

RN2204

RN1205

RN1202

RN1201

E

C B

2SD1554

2SD2253

2SD1556

2SC5143

2SD2553

E

C

B

ON4409

E

C

B

– 29 –

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 30 –

SCHEMATIC DIAGRAM

MODEL : 21CSZ5TR/21SZ5TM/21SZ5VX

WARNING

: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION

: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance carbon resistor, unless otherwise noted as the following marks.

1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt

1RF = Fuse resistor of 1 watt

K =

±

10% G =

±

2% F =

±

1%

10W = Cement of 10 watt

2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in µ F, and the values more than 1 in pF.

All capacitors are ceramic 50V, unless otherwise noted as the following marks.

Electolytic capacitor Mylar capacitor

3. The parts indicated with " " have special characteristics, and should be replaced with identical parts only.

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all controls at normal, line voltage at 220 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary

±

20% except H.V.

SCHEMATIC DIAGRAM STRUCTURE:

MAIN Circuit TUNER

AV SW

VERT

HDEF

VCD/MICON

A-PRO/AUDIO-AMP

[ SHEET– 1/9 ] ........................ 1/12

[ SHEET– 2/9 ] ........................ 2/12

[ SHEET– 3/9 ] ........................ 3/12

[ SHEET– 4/9 ] ........................ 4/12

[ SHEET– 5/9 ] ........................ 5/12

[ SHEET– 6/9 ] ........................ 6/12

PROTECTOR

POWER

LOW B REG

[ SHEET– 7/9 ] ........................ 7/12

[ SHEET– 8/9 ] ........................ 8/12

[ SHEET– 9/9 ] ........................ 9/12

CRT DRIVE Circuit ........................................................................................................................ 10/12

FRONT AV Circuit .......................................................................................................................... 11/12

IF Circuit ........................................................................................................................................ 12/12

– 31 –

– 32 –

Rated voltage

Power consumption

(at ~ 220V 50Hz)

Dimensions

MODEL

(Width x Depth x Height)

Mass

Picture Tube

SPECIFICATIONS

21CSZ5TR

~ 220 - 240V, 50Hz

110W

21SZ5TM

~ 110 - 240V, 50/60Hz

21SZ5VX

107W

Television system

(Aerial input)

Color system

Sound output

Terminals

Channel coverage

Special

RF signal

Speaker

* Please refer to owner's manual in detail.

613(W) X 487(D) X 470(H) mm

Type 21

System

PAL B/G

PAL I

PAL D/K

SECAM B/G

SECAM D/K

NTSC M

NTSC M

23.4kg

Flat square picture tube

(549.1mm) Overall picture tube measured diagonally

(505.5mm) Viewable picture tube measured diagonally

90

° deflection

Channel

CCIR

UK

CHINA

CCIR

OIRT

US

JAPAN

VHF

2 - 12

––

1 - 12

2 - 12

1 - 12

2 - 13

1 - 12

Color system:

NTSC4.43

Sound system: 5.5/6.0/6.5 MHz

UHF

21 - 69

21 - 69

13 - 57

21 - 69

21 - 69

14 - 69

13 - 62

CATV

X~Z+2, S1~S41

––

Z-1~ Z-38

X~Z+2, S1~S41

X1~X19

A-6~A-1, A~W, AA~ZZ, AAA, BBB

M1~M10, S1~41

PAL / SECAM / NTSC4.43 / NTSC3.58

2.5 W x 2

DVD Component input:

Video/Y, P

B

/C

B

, P

R

/C

R

,

Audio L, Audio R

Input: Video/Audio (monaural)

Monitor output: Video/Audio (monaural)

Monitor output:

Video, Audio L, Audio R

Headphone output:

Ø

3.5 mm

(mini jack stereo type)

6 x 12cm (2)

– END –

TOSHIBA CORPORATION

1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

FILE NO. 060-200210

SERVICE MANUAL

COLOUR TELEVISION

S2ES Chassis

29VZ6DE

,

29VZ6DA

29VZ6SH

Sep., 2002

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
