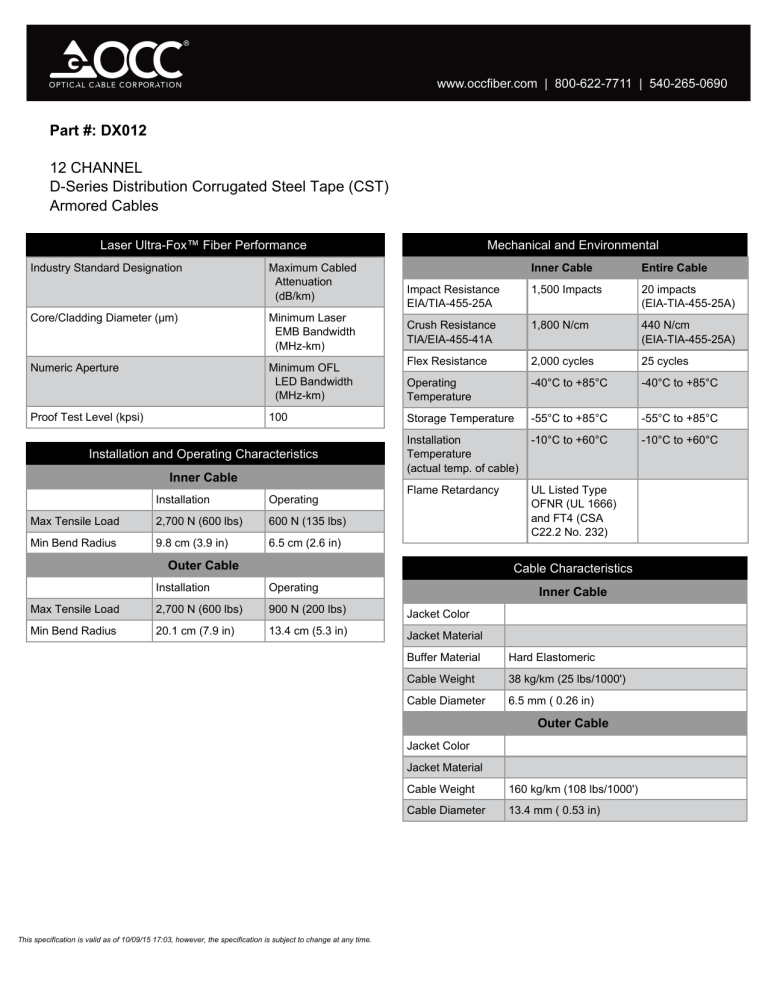

DX012 12 CHANNEL D-Series Distribution

DX012 12 CHANNEL D-Series Distribution
Part #: DX012
12 CHANNEL
D-Series Distribution Corrugated Steel Tape (CST)
Armored Cables
Laser Ultra-Fox™ Fiber Performance
Industry Standard Designation
Maximum Cabled
Attenuation
(dB/km)
Core/Cladding Diameter (µm)
Minimum Laser
EMB Bandwidth
(MHz-km)
Numeric Aperture
Minimum OFL
LED Bandwidth
(MHz-km)
Proof Test Level (kpsi)
100
Installation and Operating Characteristics
Inner Cable
Installation
Operating
Max Tensile Load
2,700 N (600 lbs)
600 N (135 lbs)
Min Bend Radius
9.8 cm (3.9 in)
6.5 cm (2.6 in)
Mechanical and Environmental
Inner Cable
Entire Cable
Impact Resistance
EIA/TIA-455-25A
1,500 Impacts
20 impacts
(EIA-TIA-455-25A)
Crush Resistance
TIA/EIA-455-41A
1,800 N/cm
440 N/cm
(EIA-TIA-455-25A)
Flex Resistance
2,000 cycles
25 cycles
Operating
Temperature
-40°C to +85°C
-40°C to +85°C
Storage Temperature
-55°C to +85°C
-55°C to +85°C
Installation
Temperature
(actual temp. of cable)
-10°C to +60°C
-10°C to +60°C
Flame Retardancy
UL Listed Type
OFNR (UL 1666)
and FT4 (CSA
C22.2 No. 232)
Outer Cable
Cable Characteristics
Installation
Operating
Max Tensile Load
2,700 N (600 lbs)
900 N (200 lbs)
Jacket Color
Min Bend Radius
20.1 cm (7.9 in)
13.4 cm (5.3 in)
Jacket Material
Inner Cable
Buffer Material
Hard Elastomeric
Cable Weight
38 kg/km (25 lbs/1000')
Cable Diameter
6.5 mm ( 0.26 in)
Outer Cable
Jacket Color
Jacket Material
This specification is valid as of 10/09/15 17:03, however, the specification is subject to change at any time.
Cable Weight
160 kg/km (108 lbs/1000')
Cable Diameter
13.4 mm ( 0.53 in)
12 CHANNEL
D-Series Distribution Corrugated Steel Tape (CST) Armored
Cables
Standards
OCC CST armored tight-buffered fiber optic cables meet
the functional requirements of the following standards:
Part #: DX012
ICEA-S-104-696
TIA-568
TIA-598
Applications:
Ideal for installation where direct-burial or rodent protection is required
Features:
The steel armor is easily removed with an internal ripcord, leaving a fully functional intact riser-rated inner cable, with original cable
markings for identification.
Armored jacket is an add-on option which can be applied to most outdoor and indoor/outdoor riser-rated cables
Inner tight-buffered cable is suitable for direct field termination with standard optical connectors
This specification is valid as of 10/09/15 17:03, however, the specification is subject to change at any time.
