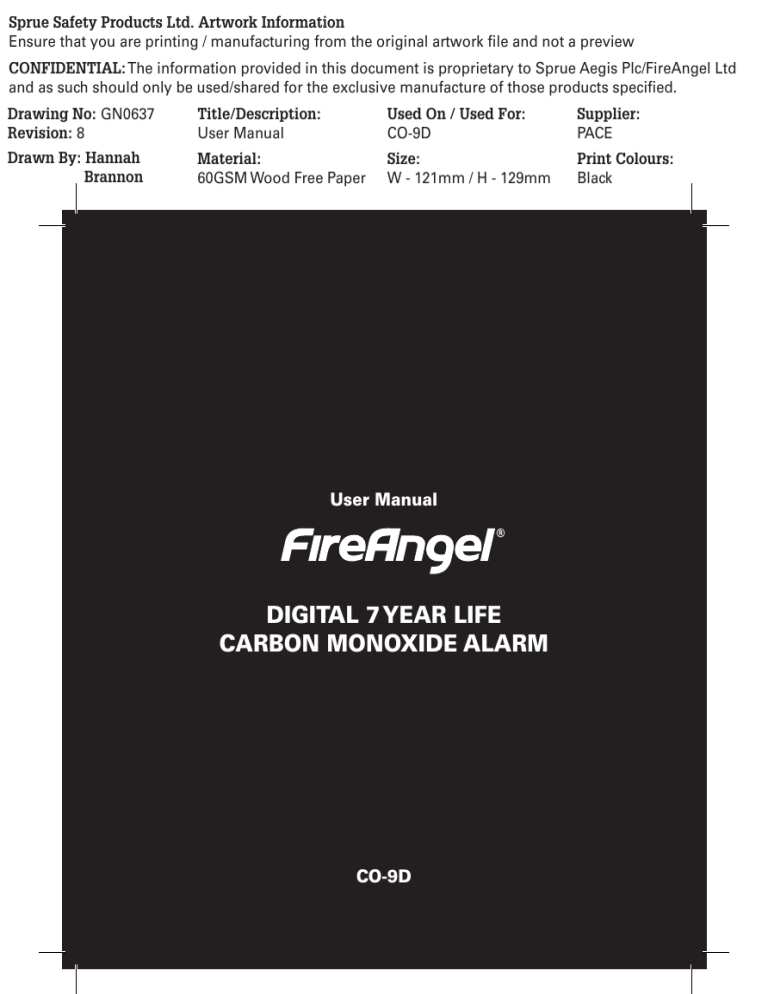

Sprue Safety Products Ltd. Artwork Information
Ensure that you are printing / manufacturing from the original artwork file and not a preview
CONFIDENTIAL: The information provided in this document is proprietary to Sprue Aegis Plc/FireAngel Ltd
and as such should only be used/shared for the exclusive manufacture of those products specified.
Drawing No: GN0637
Revision: 8
Title/Description:
User Manual
Used On / Used For:
CO-9D
Supplier:
PACE
Drawn By: Hannah
Brannon
Material:
60GSM Wood Free Paper
Size:
W - 121mm / H - 129mm
Print Colours:
Black
User Manual
DIGITAL 7 YEAR LIFE
CARBON MONOXIDE ALARM
CO-9D
1
Introdu
Feature
Carbon
it can a
your fa
Where
How to
Power
Power
Operat
EN 50291-1:2010
EN 50291-2:2010
KM551504
CO-9D
GN0637R8
A Sprue Safety Brand
Sprue Safety Products Ltd.
Vanguard Centre, Sir William Lyons Road, Coventry CV4 7EZ UK
Technical Support: 0800 141 2561
Email: [email protected] / Web: www.fireangel.co.uk
2
Note
text a
for fu
CONTENTS
Introduction . . . . . . . . . . . 4
Sensor test . . . . . . . . . . . 11
Features . . . . . . . . . . . . . 4
Understanding the
product’s indicators . . . . . . 12
Carbon monoxide and how
it can affect you and
your family . . . . . . . . . . . 4
Alarm test . . . . . . . . . . . . 15
Where to install your detector . 6
What to do in the event
of an alarm . . . . . . . . . . . 15
How to install your detector . . 8
Maintenance . . . . . . . . . . 16
Power pack activation . . . . . . 9
Technical information . . . . . 16
Power pack deactivation . . . . 10
Disposal . . . . . . . . . . . . . 17
Operating features . . . . . . . 10
Warranty . . . . . . . . . . . . 17
Disabling tab storage page . . 18
Note: This user manual is also available in large
text and other formats. Please call 0800 141 2561
for further information.
3
INTRODUCTION
The CO-9D digital carbon monoxide alarm
is one of a new generation of domestic
life safety products from Sprue Safety
Products Limited, which combines the
latest technology and innovative design
to provide an aesthetically pleasing and
effective contribution to your home safety.
FEATURES
• An advanced electrochemical sensor
designed to accurately measure
low levels of carbon monoxide (CO)
providing an early warning of toxic CO
levels in your home.
• Detects carbon monoxide continuously.
• Resistant to false alarms caused by
normal household contaminants.
• Sounds a loud 85dB(A) alarm (at
1metre (3 feet)) to alert you in case of
an emergency.
• Test/Silence button to regularly
self-check to ensure detector is
operating correctly.
• Can be free-standing or easily mounted
on a wall.
• Portable, ideal for travelling.
• Certified to the European Carbon
Monoxide Alarm Standard
EN 50291-1: 2010, EN 50291-2: 2010.
• 7 year warranty.
• Multi-function LCD screen.
• Built-in room temperature indicator.
4
CARBON MONOXIDE
AND HOW IT CAN
AFFECT YOU AND
YOUR FAMILY
Carbon monoxide is a dangerous,
poisonous gas that kills hundreds of
people each year and injures many more.
It is often referred to as the silent killer
because it has no odour or taste and
cannot be seen. Like oxygen, CO enters
the body through the lungs during the
normal breathing process. It competes
with oxygen by replacing it in the red
blood cells, thereby reducing the flow of
oxygen to the heart, brain and other vital
organs. In high concentrations, CO can kill
in minutes.
Many cases of reported carbon monoxide
poisoning indicate that while victims
are aware they are not feeling well, they
become disorientated and unable to save
themselves by either exiting the building
or calling for assistance. Exposure during
sleep is particularly dangerous because
the victim usually does not wake up.
Symptoms of CO poisoning
The following symptoms may be related
to CO poisoning which all household
members should be made aware of:
• Mild Exposure: Slight headache,
nausea, vomiting, fatigue (often
described as ‘flu-like’ symptoms).
• Medi
heada
heart
• Extre
convu
death
Your CO
of CO a
atmosph
35ppm
200ppm
400ppm
800ppm
Should
you or
windows
turn off
the prem
should b
of the ca
the build
IDE
AN
D
ngerous,
reds of
ny more.
ent killer
ste and
O enters
ring the
ompetes
the red
flow of
her vital
O can kill
onoxide
victims
ell, they
to save
building
e during
because
up.
e related
ousehold
of:
he,
s).
• Medium Exposure: Severe throbbing
headache, drowsiness, confusion, fast
heart rate.
• Extreme Exposure: Unconsciousness,
convulsions, cardiorespiratory failure,
death.
Your CO detector monitors the level
of CO as parts per million (ppm) in the
atmosphere surrounding the detector.
35ppm
The maximum allowable
concentration for continuous
exposure for healthy adults
in any 8 hour period, as
recommended by the
Occupational Safety and Health
Administration (OSHA).
200ppm Slight headache, fatigue,
dizziness, nausea after
2 - 3 hours.
400ppm Frontal headaches within 1 - 2
hours, life threatening after
3 hours.
800ppm Dizziness, nausea and
convulsions within 45 minutes.
Unconsciousness within 2
hours. Death within 2 - 3 hours.
Should you suspect CO may be affecting
you or your family, open the doors and
windows of your property to ventilate,
turn off your appliances and evacuate
the premises. At this time the authorities
should be contacted to locate the source
of the carbon monoxide before re-entering
the building. Medical attention should be
sought for anyone suffering the effects of
CO poisoning (headache, nausea).
Common sources of CO
• Oil and gas boilers
• Portable generators
• Oil or solid fuel cookers
• Gas or paraffin heaters
•Barbecues
• Clogged chimneys
• Wood or gas fireplaces
• Cigarette smoke
• Gas appliances
• Any fossil fuel-burning appliance
WARNING: This carbon monoxide
detector is not a combustible gas detector,
nor a smoke detector. Please install the
proper detectors to detect combustible
gases, or smoke.
This CO detector should not be seen as
a substitute for the proper installation,
use, and maintenance of fuel-burning
appliances
(including
appropriate
ventilation and exhaust systems), nor the
sweeping of chimneys.
WARNING: Variables relating to your
fuel-burning appliances can change at
any point eg. the flue or chimney could
suddenly become blocked or damaged,
appliances may stop running correctly or
circumstances in neighbouring properties
may change resulting in the presence
of carbon monoxide. For this and other
5
reasons do not use this carbon monoxide
detector on an intermittent basis, or as a
portable detector for trying to trace one
source of the spillage of combustion
products from fuel-burning appliances or
from chimneys.
• Have your appliances checked regularly
by a qualified service engineer.
Do not:
• IGNORE ANY WARNING FROM YOUR
CO DETECTOR!
• Open windows when a fireplace or oil/
solid fuel cooker is in use.
• Burn charcoal inside your home,
caravan, tent or cabin.
• Install, convert or service fuel-burning
appliances without proper knowledge,
skill and expertise.
• Use a gas cooker for heating a room.
• Operate unvented gas burning
appliances using paraffin or natural gas
in closed rooms.
• Operate petrol-powered engines
indoors or in confined areas.
• Ignore a safety device when it shuts an
appliance off.
• Barbecue indoors, or in an attached
garage.
• Have your chimneys and flues cleaned
professionally every year.
• Make regular visual inspections of all
fuel-burning appliances.
• Only install CO detectors that meet the
requirements of EN 50291-1: 2010 in
your home.
• Be aware of CO poisoning symptoms.
Educate yourself and your family on
the sources and symptoms of CO
poisoning and how to use your carbon
monoxide detector!
WHERE TO INSTALL
YOUR DETECTOR
This CO alarm is suitable for use in
domestic premises, caravan holiday
homes, caravans and motor caravans.
Always:
• Buy appliances accepted by a
recognised testing laboratory.
• Install appliances according to the
manufacturer’s instructions.
• Have appliance installations carried out
by professionals (for gas appliances
engineers should be registered).
6
The following advice is applicable to all
intended applications, there are special
instructions at the end of this section
relating to positioning in caravan holiday
homes, caravans and motor caravans.
WARNIN
indicate
gas at t
may be p
In whic
be insta
Ideally,
in every
applianc
installed
is given
locating
• Remo
spend
and fr
able h
anoth
• Every
Howeve
applianc
and the
the follo
when
the appa
• Locate
conta
applia
• Locate
occup
• If the
single
bedro
put as
as pos
perso
egularly
leaned
of all
e or oil/
meet the
10 in
ptoms.
mily on
of CO
carbon
LL
R
use in
holiday
ans.
le to all
special
section
holiday
ans.
WARNING: This detector will only
indicate the presence of carbon monoxide
gas at the sensor. Carbon monoxide gas
may be present in other areas.
In which room should the detector
be installed?
Ideally, an apparatus should be installed
in every room containing a fuel-burning
appliance. Additional apparatus may be
installed to ensure that adequate warning
is given for occupants in other rooms, by
locating apparatus in:
• Remote rooms in which the occupant(s)
spend considerable time whilst awake
and from which they may not be
able hear an alarm from apparatus in
another part of the premises, and
• Every sleeping room.
However, if there is a fuel-burning
appliance in more than one room
and the number of apparatus is limited,
the following points should be considered
when deciding where best to put
the apparatus:
• Locate the apparatus in a room
containing a flueless or open-flued
appliance, and
• Locate apparatus in a room where the
occupant(s) spend most time.
• If the domestic premises is a bedsit (a
single room serving as both sitting and
bedroom) then the apparatus should be
put as far from the cooking appliances
as possible but near to where the
person sleeps.
• If the appliance is in a room not
normally used (for example a boiler
room), the apparatus should be
put just outside the room so that
the alarm may be heard more easily.
Alternatively, a remote alarm siren
may be connected to a type A
apparatus located in a room(s)
containing a fuel-burning appliance.
Where in the room should I place
the detector?
Apparatus located in the same room
as a fuel-burning appliance, for both
wall and ceiling mounted apparatus the
following applies:
a The apparatus should be at a horizontal
distance of between 1m and 3m from
the potential source.
b If there is a partition in a room, the
apparatus should be located on the
same side of the partition as the
potential source.
c Carbon monoxide detectors in rooms
with sloped ceilings should be located
at the high side of the room.
In addition to the above the following must
be observed if the apparatus is located on
a wall:
a it should be located close to the ceiling;
bit should be located at a height greater
than the height of any door or window;
c it should be at least 150mm from
the ceiling.
7
If the apparatus is located on the ceiling:
a it should be at least 300mm from any
wall and any ceiling obstruction e.g.
light fittings.
Apparatus located in sleeping rooms
and in rooms remote from a fuelburning appliance should be located
relatively close to the breathing zone of
the occupants.
Caravans
Caravans may have additional risks
of carbon monoxide ingress through
air vents due to the nearby presence
of other vehicles, engines, generators
or barbecues, however this does not
change the basic guidance on location
of the alarm. Caravans should be fitted
with an alarm in the same room as any
combustion appliance(s), located in
accordance with previous advice in this
section. If the caravan has a single living
space which incorporates the sleeping
accommodation, it can be considered to
be equivalent to a bedsit, and a single
alarm is sufficient. However, any sleeping
accommodation which is in a separate
room from the combustion appliance(s)
should also contain an alarm, located
in accordance with previous advice in
this section.
It is not always possible to find an
optimum location for an apparatus,
for example, a small caravan may not
have suitable vertical surfaces available.
Nevertheless, when fitting an apparatus
in such situations, the two most important
considerations
when
selecting
an
appropriate location are:
• Not mounting the apparatus directly
above a source of heat or steam; and
• Mounting the apparatus at a distance
of 1 – 3 m from the nearest edge of
the potential source.
HOW TO INSTALL
YOUR DETECTOR
NOTE: This apparatus should be installed
by a competent person who feels able to
install it according to the instructions.
Firstly write the installation date on
your detector in the area provided. We
recommend that your detector is installed
on the wall.
To mount on a wall or ceiling:
Please ensure that you use the screws
provided, as they were chosen specifically
for use with this product. Use the template
Drill hole spacing
65mm
8
here fo
position
the plast
Ensure
the wall
onto scr
To place
The base
to allow
WARNIN
please
recomm
to install
aYour d
integra
power
activat
pull th
pull ou
is attac
the dis
the un
disabli
to pag
bWhen
screen
after a
curren
LED be
flash g
indicat
find an
paratus,
may not
vailable.
pparatus
mportant
ng
an
irectly
m; and
istance
ge of
L
R
installed
s able to
ons.
date on
ded. We
installed
screws
ecifically
emplate
here for guidance on marking hole
positions. Drill holes into the wall. Insert
the plastic wall plugs. Screw in the screws.
Ensure screws are protruding from
the wall by 3mm to allow detector to slot
onto screws.
To place on a shelf:
The base of the detector has been designed
to allow it to stand freely on a shelf.
WARNING: When placing on a shelf,
please adhere to the same positional
recommendations as described in ‘Where
to install your detector’.
POWER PACK
ACTIVATION
aYour detector comes complete with an
integrated power pack that will provide
power for its entire operational life. To
activate the power pack you need to
pull the disabling tab. This will in turn
pull out the metal disabling clip, which
is attached to the end of the tab, from
the disabling socket which is situated on
the underside of the detector. Retain the
disabling tab for future use by taping it
to page 18 of this manual.
bWhen the detector is activated the
screen will display all of the icons, then
after a few seconds will show the
current CO level. The power indicator
LED below the
symbol will also
flash green once every minute to
indicate that the detector is receiving
power from the power pack and is fully
operational. A
symbol will also
flash briefly on the LCD screen
approximately once every minute.
cTest the sounder, power pack and
circuitry by pushing the centre of the
Test/Silence button briefly to confirm
that the detector is operating properly.
The sounder will sound as soon as the
button is pressed, and the alarm LED
will illuminate red indicating that the
sounder is working and the power pack
is providing power to the unit. You’ll
notice that the display will switch to
temperature mode, this is explained
later in the manual, press the button
again to return to the CO display. This
test for the sounder, power pack and
circuitry should be performed on a
weekly basis and should be continued
for the lifetime of the product.
9
WARNING: Prolonged exposure to the
sounder in close proximity to your ears
may damage your hearing.
Under normal operating conditions, the
power pack will last for the lifetime of the
product i.e. 7 years.
The clip must
remain in the
disabling socket
to keep the power
pack deactivated.
The detector will not protect against the
risk of carbon monoxide poisoning when
the power pack has drained.
WARNING: Prolonged exposure to
extreme high or low temperatures may
reduce the life of the power pack.
POWER PACK
DEACTIVATION
Your CO-9D is portable, making it ideal
for taking with you on holiday. You will
need to deactivate your detector when
travelling or even when storing e.g.
when decorating. Fitting is the reverse of
removal. To deactivate the detector the two
ends of the metal clip must be inserted into
the corresponding holes in the disabling
socket located on the underside of the
detector. You can ensure that the product
is disabled by pressing the test button - if
there is no sound from the sounder then
the clip has been fitted correctly.
NOTE: If the disabling tab is no longer
available then the clip can be replicated
by opening out a thin metal paper clip into
a U-shape.
FireAnge
displays
is detec
(PPM). I
from 10P
NOTE:
between
as 0PPM
When th
room tem
similar t
OPERATING FEATURES
Your detector offers many features which
set it apart from other CO detectors on the
market today.
Standby mode
The alarm can display two views when in
normal standby mode, the current level of
CO or provide an indication of the current
room temperature in degrees centigrade
(ºC). When the alarm is showing the
current CO level you will see something
similar to the following:
In both
symbol
corner o
This is
you that
the flash
To switc
view, sim
briefly. T
pressing
two disp
You will
between
slightly,
10
o longer
eplicated
clip into
FireAngel’s unique digital read out
displays the amount of CO that the sensor
is detecting shown in parts per million
(PPM). It is designed to indicate levels
from 10PPM to 999PPM.
NOTE: Ambient background levels
between 0PPM and 10PPM will show
as 0PPM.
When the alarm is showing the indicated
room temperature you will see something
similar to the following:
URES
es which
s on the
when in
level of
e current
ntigrade
ing the
mething
In both modes you will notice a
symbol appear briefly in the top left hand
corner of the screen once every minute.
This is an additional indication to show
you that the alarm is operating as well as
the flashing green LED.
To switch between CO and temperature
view, simply press the Test/Silence button
briefly. The unit will also sound when
pressing the button to switch between the
two display modes.
displaying the Peak Level CO reading that
it has recorded in the last 4 weeks, please
see the following peak level reading
feature section for further description.
NOTE: If the alarm is in temperature view
and detects CO it will automatically switch
back to CO display mode.
Power pack, sounder and circuitry
test
Pressing the Test/Silence button will also
test the power pack, sounder and circuitry
of the alarm. The unit will sound and the
will illuminate red.
alarm LED below
You should perform this test once
per week.
Peak level reading feature
The alarm will record the highest reading
of CO that is has detected in the last 4
weeks. This information is useful if your
alarm has sounded so you can see the
highest level of CO detected during that
time. It is also useful to check periodically
to see if a readable level of CO has been
detected for a short time, but not long
enough to trigger a full alarm. The peak
level reading is shown briefly every time
you press the Test/Silence button and will
look something like the image below.
You will also notice that when switching
between modes the display will change
slightly, this is because the alarm is
11
NOTE: It is possible and quite normal
for the peak level to remain at 0ppm, i.e.
this simply means that the alarm has not
detected any CO in the last 4 weeks.
sensor has increased and the alarm can be
tested using a known source of CO.
the end
return to
Step 3: Light an incense stick using a
match or lighter. Extinguish the lighter, or
put out the match and place it into a dish
of water.
Step 5
placing i
all flame
Step 4: Hold the incense stick 15cm (6
inches) below the detector, so that the
smoke goes into the holes at the bottom
of the detector.
The peak level reading will be reset to
0ppm whenever a Sensor Test is carried
out (see section ‘Sensor Test’).
SENSOR TEST
CAUTION: Sensor testing should only
be performed by a responsible adult. This
test should only be performed annually.
Excessive testing will shorten the life of
the power pack.
UN
T
15cm
(6”)
NOTE: Aerosol CO test kits may be
used in order to avoid having to burn
incense sticks.
Step 1: If the alarm is wall mounted
unhook it from the fixing screws.
Step 2: Hold the Test/Silence button down
until the spanner icon appears in the
bottom left hand corner of the screen
and the bar graph ‘scans’ from left to
right. This indicates the alarm is in sensor
test mode where the sampling rate of the
12
NOTE:
doesn’t
mode wi
after 3 m
reach 50
a readin
that the
you hav
the sen
Support
As the smoke gets into the alarm the
display will show the amount of CO
being detected. When the level of CO in
the sensor reaches 50ppm the alarm will
sound a single alarm cycle, this confirms
that the sensor is working correctly and is
Digital
The LCD
or more
m can be
O.
the end of the sensor test. The alarm will
return to normal standby mode.
using a
ghter, or
o a dish
Step 5: Put out the incense stick by
placing it into a dish of water. Ensure that
all flames have been extinguished.
15cm (6
that the
bottom
5cm
6”)
arm the
of CO
of CO in
arm will
confirms
ly and is
NOTE: If the level of CO in the sensor
doesn’t reach 50ppm then the Sensor Test
mode will time out and finish automatically
after 3 minutes. Even if the level doesn’t
reach 50ppm, as long as the display shows
a reading of CO then you can be confident
that the alarm is working correctly. If
you have any questions about testing
the sensor please contact the Technical
Support team.
UNDERSTANDING
THE PRODUCT’S
INDICATORS
Digital display
The LCD screen has many icons with one
or more being shown at any one time.
Bar graph to show early build up
of CO
To understand the role of the product
indicators please refer to section ‘Carbon
monoxide and how it can affect your
family’. The alarm has a bar graph which
mimics the way CO levels build up in the
blood stream. The response times of the
alarm are determined by the European
Standard EN 50291-1: 2010 so the alarm
will only sound when it has detected CO
for a prescribed length of time, the higher
the level of CO the quicker the alarm must
sound. However with FireAngel’s CO-9D
there is an early visual warning that CO is
present. When CO is first detected the
alarm indicates it’s presence by displaying
the level on the screen in parts per million
(ppm). If CO continues to be present
additional bars will appear on the graph.
When the graph is full i.e. the 6th segment
is shown the unit will sound a loud audible
alarm (85 dB at 1m (3 feet)) and the alarm
LED below the
symbol on the front
of the detector will flash red once
every second.
The alarm will sound:
• Between 60 and 90 minutes when
exposed to a minimum of 50ppm
of CO.
• Between 10 and 40 minutes when
exposed to a minimum of 100ppm
of CO.
• Within 3 minutes when exposed to a
minimum of 300ppm of CO.
13
WARNING: A loud alarm is a warning that
unusually high and potentially lethal levels
of carbon monoxide are present. Never
ignore this alarm, further exposure can
be fatal. Immediately check residents for
symptoms of carbon monoxide poisoning,
and contact the proper authorities to
resolve all CO problems. NEVER IGNORE
ANY ALARM.
Alarm silence:
It is possible to temporarily silence
the alarm up to two times if the
level of CO that triggered the
alarm is less than 200ppm. After
ventilating
the
property
you
can
temporarily silence the alarm by pressing
the Test/Silence button, the alarm will stop
and the silence mode symbol will appear
on the screen. The silence mode will last
for up to 3 minutes. If the CO level remains
too high the alarm will trigger again or if
the level of CO rises above 200ppm then
the detector will automatically re-enter
alarm mode. If the level of CO has fallen to
a satisfactory level the silence mode icon
will disappear, the unit will exit alarm
mode and the segments of the bar graph
will slowly disappear as the CO in the
sensor clears.
Alarm in absence:
If the peak level reading symbol
is showing on the screen but
there is no full alarm sound and
you are not pressing the test button, then
your detector is warning that it has
14
detected carbon monoxide in your
absence. Immediately vacate the premises
and seek medical attention for anyone
suffering the effects of CO poisoning. Treat
this as a serious warning. Call a qualified
technician and have the problem
investigated and rectified immediately.
the sen
conditio
sensor
detector
from the
Error signal:
The unit continuously checks
the settings of its sensor and
circuitry. If any of these
settings are found to be incorrect, the
detector will emit a single chirp once per
minute and the display will show “Err” for
error and an error code, cycling between
“Err”and the particular error code.
Test th
circuitry
Test/Sile
alarm is
should s
pressed,
red indic
and the
the unit.
a weekl
annually
Low power pack signal:
If the power pack becomes low then
the detector will emit a single chirp
once per minute and the low power
pack icon will flash on the screen.
WH
EVE
IMPORTANT: A single chirp once per
minute together with an error signal
or low power pack warning does NOT
mean that the detector has detected
carbon monoxide.
If you experience an error condition or low
power pack warning and the product is
still within warranty then contact technical
support. If the product is no longer in
warranty replace immediately!
WARNIN
that po
monoxid
this ala
fatal. Im
symptom
and con
resolve
ANY ALA
IMPORTANT: The selected power pack
was chosen to provide power beyond
the lifetime of the product, in particular
Please
ensure t
in the ev
n your
premises
anyone
ng. Treat
qualified
problem
ately.
y checks
nsor and
f these
ect, the
once per
“Err” for
between
.
ow then
le chirp
w power
reen.
nce per
r signal
es NOT
detected
n or low
oduct is
echnical
onger in
wer pack
beyond
articular
the sensor (under normal operating
conditions). The operational life of the
sensor is 7 years, for this reason, the
detector should be replaced after 7 years
from the date of installation.
ALARM TEST
Test the sounder, power pack and
circuitry by pressing and releasing the
Test/Silence button to confirm that the
alarm is operating properly. The alarm
should sound as soon as the Test button is
pressed, and the Alarm LED will illuminate
red indicating that the sounder is working
and the power pack is providing power to
the unit. This test should be performed on
a weekly basis. Perform the Sensor Test
annually.
WHAT TO DO IN THE
EVENT OF AN ALARM
WARNING: A loud alarm is a warning
that potentially lethal levels of carbon
monoxide are present. Never ignore
this alarm, further exposure can be
fatal. Immediately check residents for
symptoms of carbon monoxide poisoning,
and contact the proper authorities to
resolve all CO problems. NEVER IGNORE
ANY ALARM.
Please carefully review this guide to
ensure that you know what actions to take
in the event of an alarm.
What to do during an alarm:
• Keep calm and open the doors and
windows to ventilate the property.
• Stop using all fuel-burning appliances
and ensure, if possible, that they are
turned off.
• Evacuate the property leaving the doors
and windows open.
• Ring your gas or other fuel supplier
on their emergency number; keep the
number in a prominent place.
• Do not re-enter the property until the
alarm has stopped. When exposed to
fresh air it can take up to 10 minutes
for the sensor to clear and the alarm to
stop depending on the level of carbon
monoxide detected.
• Get medical help immediately for anyone
suffering the effects of carbon monoxide
poisoning (headache, nausea), and
advise that carbon monoxide poisoning
is suspected.
• Do not use the appliances again until
they have been checked by an expert.
In the case of gas appliances the
engineer must be registered on the Gas
Safe register.
WARNING: Alarms conforming to this
standard may not protect people who
are at special risk from carbon monoxide
exposure by reason of age, pregnancy
or medical condition. If in doubt, consult
your doctor.
15
MAINTENANCE
Your detector will alert you to potentially
hazardous CO concentrations in your
home when maintained properly. To keep
your alarm in proper working order, and
to ensure that the sensor will last for the
lifetime of the product, it is recommended
that you keep it free of dust by gently
vacuuming the case with a soft brush
attachment every 3 months.
To prevent the possibility of contaminating
the sensor in your detector and thus
affecting its reliability:
• Never use cleaning solutions on your
detector. Simply wipe with a slightly
damp cloth.
• Do not paint the detector.
• Do not spray aerosols on or near
the detector.
• Do not use any solvent based products
near the detector.
• Do not attempt to repair your CO
detector. Do not remove any screws
or open the main casing of your
detector. Any attempt to do so may
cause malfunction and will invalidate
the warranty.
TECHNICAL
INFORMATION
Detector Specifications: Model CO-9D
Sensor Type: Electrochemical
Sensor Life: 7 Years
Alarm Sound Level: 85dB at 1m (3 feet)
Power Pack Life: 7 years (life of product)
Temperature Range: -10ºC (14ºF) to
40ºC (104ºF)
Operating Humidity Range: 30 - 90% RH
Weight: 120 grams (4.23oz)
Certified to: EN 50291-1: 2010
EN 50291-2: 2010
This carbon monoxide detector is
designed to continuously monitor
for CO. Its response times meet the
requirements of European standard
EN 50291-1: 2010 and EN 50291-2: 2010.
WARNING: Apparatus conforming to
this standard may not protect people who
are at special risk from carbon monoxide
exposure by reason of age, pregnancy or
medical condition. If in doubt, consult your
doctor.
A carbon monoxide detector is not
a substitute for a smoke alarm or a
combustible gas detector.
Replace unit after 7 years of operation.
16
Waste
be disp
waste. P
Check w
manufac
as region
The pow
before d
ends of
disabling
on the
disabling
the clip c
thin met
WARNIN
DO NOT
Sprue S
original
monoxid
in mate
normal
period o
purchase
to Sprue
date of
Ltd here
(seven) y
date of
Ltd, at it
unit free
DISPOSAL
-9D
feet)
oduct)
0% RH
ctor is
monitor
eet the
tandard
2: 2010.
ming to
ple who
onoxide
nancy or
sult your
is not
m or a
tion.
Waste electrical products should not
be disposed of with regular household
waste. Please recycle where facilities exist.
Check with your local authority, retailer or
manufacturer for recycling/disposal advice
as regional variations apply.
The power pack should be deactivated
before disposal. To do this, insert the two
ends of the metal clip on the end of the
disabling tab back in to the socket located
on the underside of the detector. If the
disabling tab is no longer available then
the clip can be replicated by opening out a
thin metal paper clip into a U-shape.
WARNING: DO NOT ATTEMPT TO OPEN DO NOT BURN.
WARRANTY
Sprue Safety Products Ltd warrants to the
original purchaser that its enclosed carbon
monoxide alarm be free from defects
in materials and workmanship under
normal residential use and service for a
period of 7 (seven) years from the date of
purchase. Provided product is sent back
to Sprue Safety products with proof and
date of purchase, Sprue Safety Products
Ltd hereby warrants that during the 7
(seven) year period commencing from the
date of purchase Sprue Safety Products
Ltd, at its discretion, agrees to replace the
unit free of charge. The warranty on any
replacement CO-9D alarm, will last for the
remainder of the period of the original
warranty in respect of the alarm originally
purchased – that is from the date of original
purchase and not from the date of receipt
of the replacement product. Sprue Safety
Products Ltd reserves the right to offer an
alternative product similar to that being
replaced if the original model is no longer
available or in stock. This warranty applies
to the original retail purchaser from
the date of original retail purchase and
is not transferable. Proof of purchase
is required.
This warranty does not cover damage
resulting
from
accident,
misuse,
disassembly, abuse or lack of reasonable
care of the product, or applications not in
accordance with the user manual. It does
not cover events and conditions outside of
Sprue Safety Products Ltd’s control, such
as Acts of God (fire, severe weather etc.).
It does not apply to retail stores, service
centres or any distributors or agents. Sprue
Safety Products Ltd will not recognise any
changes to this warranty by third parties.
Sprue Safety Products Ltd shall not be
liable for any incidental or consequential
damages caused by the breach of any
expressed or implied warranty. Except to
the extent prohibited by applicable law,
any implied warranty of merchantability or
fitness for a particular purpose is limited in
duration for 7 (seven) years.
17
This warranty does not affect your statutory
rights. Except for death or personal injury,
Sprue Safety Products Ltd shall not be
liable for any loss of use, damage, cost or
expense relating to this product or for any
indirect, or consequential loss, damages
or costs incurred by you or any other user
of this product.
STORE DISABLING TAB HERE
Tape disabling tab here for future use
18
19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
