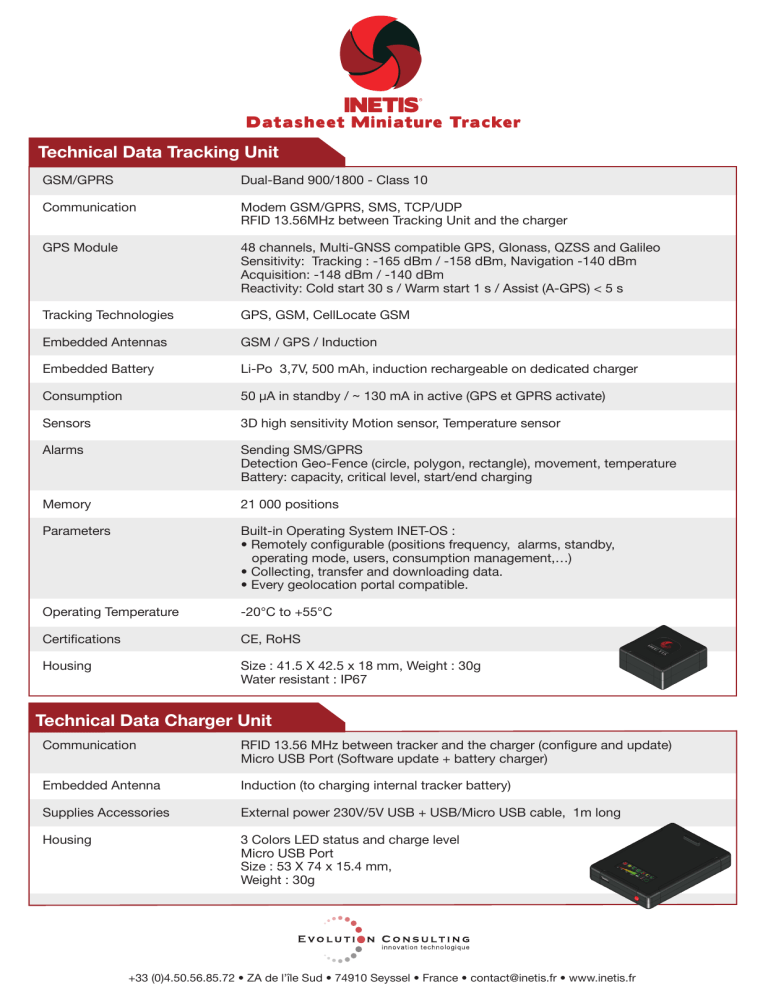

Datasheet Miniature Tracker
Technical Data Tracking Unit
GSM/GPRS
Dual-Band 900/1800 - Class 10
Communication
Modem GSM/GPRS, SMS, TCP/UDP
RFID 13.56MHz between Tracking Unit and the charger
GPS Module
48 channels, Multi-GNSS compatible GPS, Glonass, QZSS and Galileo
Sensitivity: Tracking : -165 dBm / -158 dBm, Navigation -140 dBm
Acquisition: -148 dBm / -140 dBm
Reactivity: Cold start 30 s / Warm start 1 s / Assist (A-GPS) < 5 s
Tracking Technologies
GPS, GSM, CellLocate GSM
Embedded Antennas
GSM / GPS / Induction
Embedded Battery
Li-Po 3,7V, 500 mAh, induction rechargeable on dedicated charger
Consumption
50 μA in standby / ~ 130 mA in active (GPS et GPRS activate)
Sensors
3D high sensitivity Motion sensor, Temperature sensor
Alarms
Sending SMS/GPRS
Detection Geo-Fence (circle, polygon, rectangle), movement, temperature
Battery: capacity, critical level, start/end charging
Memory
21 000 positions
Parameters
Built-in Operating System INET-OS :
� Remotely configurable (positions frequency, alarms, standby,
operating mode, users, consumption management,…)
� Collecting, transfer and downloading data.
� Every geolocation portal compatible.
Operating Temperature
-20°C to +55°C
Certifications
CE, RoHS
Housing
Size : 41.5 X 42.5 x 18 mm, Weight : 30g
Water resistant : IP67
Technical Data Charger Unit
Communication
RFID 13.56 MHz between tracker and the charger (configure and update)
Micro USB Port (Software update + battery charger)
Embedded Antenna
Induction (to charging internal tracker battery)
Supplies Accessories
External power 230V/5V USB + USB/Micro USB cable, 1m long
Housing
3 Colors LED status and charge level
Micro USB Port
Size : 53 X 74 x 15.4 mm,
Weight : 30g
+33 (0)4.50.56.85.72 � ZA de l’île Sud � 74910 Seyssel � France � [email protected] � www.inetis.fr
