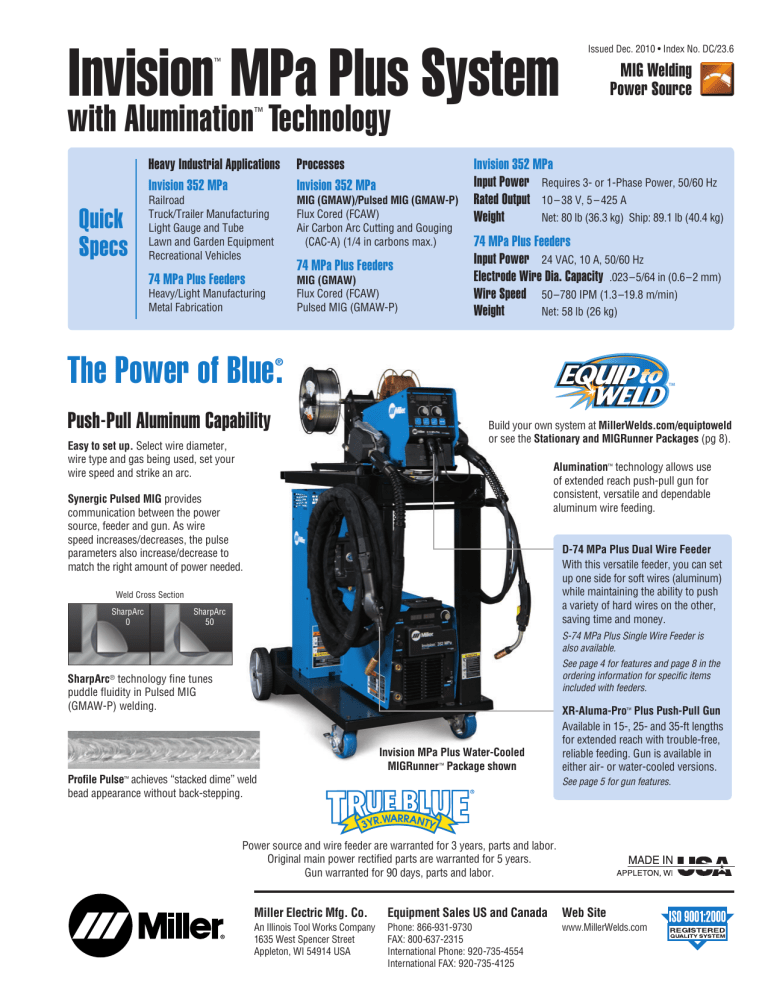

Invision MPa Plus System
Issued Dec. 2010 • Index No. DC/23.6
™
MIG Welding
Power Source
with Alumination Technology
™
Quick
Specs
Heavy Industrial Applications
Invision 352 MPa
Processes
Invision 352 MPa
Railroad
Truck/Trailer Manufacturing
Light Gauge and Tube
Lawn and Garden Equipment
Recreational Vehicles
MIG (GMAW)/Pulsed MIG (GMAW-P)
Flux Cored (FCAW)
Air Carbon Arc Cutting and Gouging
(CAC-A) (1/4 in carbons max.)
74 MPa Plus Feeders
MIG (GMAW)
Flux Cored (FCAW)
Pulsed MIG (GMAW-P)
74 MPa Plus Feeders
Heavy/Light Manufacturing
Metal Fabrication
Invision 352 MPa
Input Power Requires 3- or 1-Phase Power, 50/60 Hz
Rated Output 10 – 38 V, 5 – 425 A
Weight
Net: 80 lb (36.3 kg) Ship: 89.1 lb (40.4 kg)
74 MPa Plus Feeders
Input Power 24 VAC, 10 A, 50/60 Hz
Electrode Wire Dia. Capacity .023–5/64 in (0.6–2 mm)
Wire Speed 50–780 IPM (1.3–19.8 m/min)
Weight
Net: 58 lb (26 kg)
The Power of Blue .
®
Push-Pull Aluminum Capability
Easy to set up. Select wire diameter,
wire type and gas being used, set your
wire speed and strike an arc.
Build your own system at MillerWelds.com/equiptoweld
or see the Stationary and MIGRunner Packages (pg 8).
Alumination™ technology allows use
of extended reach push-pull gun for
consistent, versatile and dependable
aluminum wire feeding.
Synergic Pulsed MIG provides
communication between the power
source, feeder and gun. As wire
speed increases/decreases, the pulse
parameters also increase/decrease to
match the right amount of power needed.
D-74 MPa Plus Dual Wire Feeder
With this versatile feeder, you can set
up one side for soft wires (aluminum)
while maintaining the ability to push
a variety of hard wires on the other,
saving time and money.
Weld Cross Section
SharpArc
0
SharpArc
50
S-74 MPa Plus Single Wire Feeder is
also available.
See page 4 for features and page 8 in the
ordering information for specific items
included with feeders.
SharpArc® technology fine tunes
puddle fluidity in Pulsed MIG
(GMAW-P) welding.
Invision MPa Plus Water-Cooled
MIGRunner ™ Package shown
Profile Pulse™ achieves “stacked dime” weld
bead appearance without back-stepping.
XR-Aluma-Pro™ Plus Push-Pull Gun
Available in 15-, 25- and 35-ft lengths
for extended reach with trouble-free,
reliable feeding. Gun is available in
either air- or water-cooled versions.
See page 5 for gun features.
Power source and wire feeder are warranted for 3 years, parts and labor.
Original main power rectified parts are warranted for 5 years.
Gun warranted for 90 days, parts and labor.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
www.MillerWelds.com
Invision 352 MPa Features
™
Synergic “one-knob” control makes
adjustments easy. Set the wire feed speed
control and the system handles the rest.
Dual feeder capable so you can always have
two wires ready as particular jobs change,
saving time and money with less set-up.
Exceptional electrical efficiency. At 400 A,
efficiency is 87.24%!
Auto-Line™ Power Management Technology
allows for any input voltage hook-up
(208 –575 V) with no manual linking required,
providing convenience in any job setting.
Ideal solution for dirty or unreliable power.
350 A of welding output at 60% duty cycle
with superior low-end performance.
Power factor of .95 enables smaller fuses/
breakers and primary wiring. Primary
amperage draw at rated output is 25% less
than the competition.
Fan-On-Demand ™ cooling system operates
only when needed, reducing noise, energy
use and the amount of contaminants pulled
through machine.
Ultra-tough, polycarbonate-blended cover
for control panel protects front controls
from damage.
Specifications
(Subject to change without notice.)
Voltage
Range in
CV Mode
Amperage
Range in
CC Mode
Rated Output
at 60%
Duty Cycle
ThreePhase
10–38 V
5–425 A
SinglePhase
10–38 V
5–425 A
Input
Power
Line Voltage Compensation keeps welding
output constant even if input power varies
by +/- 10%. 350 MPa models further expand
line voltage compensation on 460 VAC to an
amazing +37%,-59%.
Amps Input at Rated Load Output, 60 Hz,
208 V 230 V 400 V 460 V 575 V KVA KW
Max. OpenCircuit
Voltage
350 A at
34 VDC
40.4
36.1
20.6
17.8
14.1
14.2 13.6
75 VDC
300 A at
32 VDC*
60.8
54.6
29.7
24.5
19.9
11.7 11.2
75 VDC
Dimensions
Weight
H: 17 in (432 mm)
W: 12-1/2 in (318 mm)
D: 24 in (610 mm)
80 lb
(36.3 kg)
*Duty cycle rating achieved with 6 gauge input power cord. (8 gauge cord supplied with unit.)
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
Performance Data
CV VOLT/AMP CURVE
DUTY CYCLE CHART
100
500
425
400
80
70
300
1-PHASE OPERATION
VOLTAGE
WELDING AMPERES
350
90
3-PHASE OPERATION
250
6 AWG POWER CORD
200
60
50
MAX
40
8 AWG POWER CORD
30
150
20
MIN
10
0
100
10
15
20
25
30
DUTY CYCLE
2
40
50
60
70 80 90 100
0
100
200
300
AMPS
400
500
Control Panel
The Invision™ 352 MPa and 74 MPa Plus single or dual wire feeder combine for a synergic system that
simplifies and improves MIG and Pulsed MIG welding applications for industrial manufacturing.
MPa
6
1
OUTPUT ON
Setup
2
3
4
7
8
9
Arc Control
Process
Wire/Gas
5
10
SETUP
1.
2.
3.
4.
5.
6.
7.
Output ON Indicator Light
Left Display
Voltage Indicator
Arc Length Indicator
Wire Feeder Receptacle
Adjustment Control
Right Display
8. Setup Indicator
9. Amperage Indicator
10. Setup Indicator Lights
• Arc Control Indicator
• Process Indicator
• Wire/Gas Type Indicator
• Setup Button
MPa: M (MIG), P (Pulse), a (Advanced Arc
Control). Advanced arc control enables an
improved pulse welding arc. The operator
has more control over puddle and bead
characteristics using SharpArc™. In addition,
the unit provides a more robust and stable
arc at very low arc length, reducing heat
input, and providing the ability to weld on
a wider range of material thickness.
Synergic pulsing is available only with the
74 MPa Plus dedicated wire feeders.
What are some of the benefits of
Synergic-Pulsed MIG?
1. Easier to set up
2. No more changing wire speed, and
then having to go back to reset the
welding output.
Additional Features
SharpArc®
Changes welding arc characteristics in
Pulsed MIG (GMAW-P) welding mode.
Built-In Pulsed MIG Programs
Weld Cross Section
The Invision 352 MPa has built-in dynamic Pulsed MIG capabilities. See the table below for the wide
range of Pulsed MIG (GMAW-P) welding applications the Invision 352 MPa can handle.
Wire Types
SharpArc
0
SharpArc
50
Gas Types
Steel
.035 STL
.045 STL
ARGN CO2 (Argon/Carbon Dioxide)
ARGN OXY (Argon/Oxygen)
Metal Core
.035 MCOR
.045 MCOR
.052 MCOR
ARGN CO2 (Argon/Carbon Dioxide)
Stainless Steel
.035 SSTL
.045 SSTL
TRI MIX (Tri-gas mixture)
ARGN OXY (Argon/Oxygen)
ARGN CO2 (Argon/Carbon Dioxide)
Aluminum
.035 AL4X (4000 Series)
.040 AL4X (4000 Series)
3/64 AL4X (4000 Series)
1/16 AL4X (4000 Series)
.035 AL5X (5000 Series)
.040 AL5X (5000 Series)
3/64 AL5X (5000 Series)
1/16 AL5X (5000 Series)
ARGN (Argon)
ARGN HE (Argon/Helium)
Nickel
.035 NI
.045 NI
ARGN HE (Argon/Helium)
Silicon Bronze
.035 SIBR
ARGN (Argon)
Copper Nickel
.045 CUNI
HE ARGN (Helium/Argon)
If a gas is used other than what is listed
on the Pulsed MIG welding program chart
(at left), the SharpArc® can be adjusted
to help customize your arc to the gas
being used.
Lower SharpArc® settings widen the arc
cone, increase puddle fluidity and flattens
the weld bead.
Auto Remote Sense™
Enables unit to automatically use remote
control if connected to remote control
receptacle.
Dinse International-style weld disconnects
Provide high-quality weld cable connections.
Dinse and Tweco connectors are available.
Optional 115 VAC auxiliary power
Provides 10 amps of circuit-breakerprotected power for water circulators, etc.
3
74 MPa Plus Wire Feeder Features
Control Panel
D-74 MPa Plus Dual Feeder Panel Shown
S-74 MPa Plus Single Feeder
D-74 MPa Plus Dual Feeder
Trigger schedule select allows the operator to select the alternative
schedule by quickly tapping the gun trigger when not welding. When
optimized with the Invision 352 MPa the operator can also switch
from MIG to Pulsed MIG.
Trigger hold reduces fatigue by allowing the operator to weld without
holding the trigger.
Alumination™ gives you the ability to use the extended reach of a pushpull system to feed your aluminum wire. Alumination gives you the
versatility to handle whatever aluminum welding job you want to tackle.
Program locks allow you to maintain proper weld parameters.
Profile Pulse™ gives you the cosmetic bead appearance for the welds
you want to show off.
Specifications
Input
Power
24 VAC,
10 A,
50/60 Hz
1
6
2
7
3
8
4
9
5
10
RO17
RO21
RO16
11
JOG
1. Left Dual Schedule Indicator
2. Voltage/Arc Length
Display Meter
3. Left Adjust Knob
4. Setup Button
5. Start Button
PURGE
6. Right Dual Schedule Indicator
7. Amperage/Wire Speed
Display Meter
8. Right Adjust Knob
9. Left/Right Select Button
10. Crater Button
11. Jog/Purge
(Use with CV, DC
Power Sources.)
(Subject to change without notice.)
Electrode Wire Diameter Capacity
Wire Speed
.023–5/64 in (0.6 – 2 mm)
.035–1/16 in (0.9 –1.6 mm) Aluminum
Wire kit #230 708 required to run
1/16 in (1.6 mm) wire
50 –780 IPM
(1.3 –19.8 m/min)
Drive Roll Kits and Guides
Dimensions
S-74 MPa Plus
(Single Feeder)
D-74 MPa Plus
(Dual Feeder)
H: 14 in (356 mm)
W: 12 in (305 mm)
D: 28 in (711 mm)
H: 14 in (356 mm)
W: 21 in (533 mm)
D: 35 in (889 mm)
Net Weight
S-74 MPa Plus
(Single Feeder)
D-74 MPa Plus
(Dual Feeder)
58 lb (26 kg)
87 lb (35.5 kg)
(Order from Miller Service Parts.)
Select drive roll kits from chart below according to type and wire size being used. Drive roll kits include 4 drive rolls, the necessary guides and feature an anti-wear sleeve for inlet guide.
Wire Size
.035 in (0.9 mm)
.040 in (1.0 mm)
.045 in (1.1/1.2 mm)
.052 in (1.3/1.4 mm)
1/16 in (1.6 mm)
.068/.072 in (1.8 mm)
5/64 in (2.0 mm)
3/32 in (2.4 mm)
“V” groove
for hard wire
#151 026
#161 190
#151 027
#151 028
#151 029
—
—
—
“U” groove for
soft wire or
soft-shelled
cored wires
—
—
#151 037*
#151 038
#151 039
—
#151 040
#151 041
“V” knurled for
hard-shelled
cored wires
“U” cogged
for extremely soft
wire or soft-shelled
cored wires (i.e.,
hard facing types)
#151 052
—
#151 053
#151 054
#151 055
#151 056
#151 057
#151 058
—
—
#151 070
#151 071
#151 072
—
#151 073
#151 074
“U” groove for
aluminum
wires contains
nylon guides
#243 233
—
#243 234*
—
#243 235
—
—
—
*Accommodates .045 and .047 (3/64 in) wire.
Nylon Wire Guides for Feeding Aluminum Wire
Wire Size
.035 in (0.9 mm)
.047 in (1.2 mm)
1/16 in (1.6 mm)
Inlet Guide
#221 912
#221 912
#221 912
Intermediate Guide
#242 417
#205 936
#205 937
Note: “U” groove drive rolls are recommended when feeding aluminum wire.
4
Wire Guides
Wire Size
.023 – .040 in (0.6 – 1.0 mm)
.045 – .052 in (1.1 – 1.4 mm)
1/16 – 5/64 in (1.6 – 2 mm)
3/32 –7/64 in (2.4 – 2.8 mm)
Inlet Guide
#221 030
#221 030
#221 030
#229 919
Intermediate Guide
#149 518
#149 519
#149 520
#149 521
Power Source Compatibility for 74 MPa Plus Wire Feeders
Power Source
Invision™ 352 MPa
XMT® 350 MPa
AlumaPower™ 350 MPa
XMT® 350 CC/CV
XMT® 304 CC/CV
Invision™ 456P
Invision™ 456MP
Invision™ 354P
Invision™ 354MP
Deltaweld® (after KF790532)
Dimension™ (after KE614131)
Pulse Capable
Yes
Yes
Yes (Aluminum only)
Yes (with Optima)
Yes (with Optima)
Yes (with Optima)
Yes
Yes (with Optima)
Yes
No
No
Synergic
Pulsed MIG
Yes
Yes
Yes (Aluminum only)
No
No
No
No
No
No
No
No
Dual Pulse Wire
Capable
Yes
No
No
No
No
No
No
No
No
No
No
System Communication
Enhanced Arc Control
Yes
Yes
Yes
No
No
No
No
No
No
No
No
Electronic Inductance/
SharpArc
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Compatibility
Optimized
Best
Best
Better
Better
Better
Better
Better
Better
Good
Good
Note: Power sources not included in this list are not recommended. For specific information, please contact your local Miller distributor.
XR-Aluma-Pro Plus Gun Features
™
Easy-to-rotate self-seating head tube allows
for better access into tight spots, preventing
leaks and providing excellent current transfer.
Isolated common, knurled drive roll helps
reduce wear, reducing down time and cost.
Serviceability. This gun features a full length
Velcro-seamed leather jacket with integrated
strain reliefs for easy cable maintenance and
protection. The gun also features quick connectors between the control cable and electrical
components (trigger, motor, potentiometer).
Replaceable feed cable liner is designed to
provide consistent arc performance. It also
reduces parts cost and service time by allowing
a simple means of removing and replacing
liner and not the complete feed cable.
Note: XR-Aluma-Pro Plus
guns are only compatible
with MPa Plus feeders.
Specifications
Aluminum-series-specific tension setting
ensures smooth wire feeding performance
with 4000 or 5000 series aluminum wires.
(Subject to change without notice.)
Welding Output Range with
100% Argon and Peak Amperages
Electrode Wire Diameter Capacity
Wire Speed
Dimensions
XR-Aluma-Pro Plus
Air-Cooled Gun
300 A at 100% Duty Cycle
with 15, 25, or 35 ft
(4.6, 7.6, or 10.6 m) gun
.030–1/16 in (0.8–1.6 mm) Aluminum
Wire kit #230 708 required to run
1/16 in (1.6 mm) wire
50–780 IPM
(1.3–19.8 m/min)
(Dependent on
feeder used.)
H: 5 in (127 mm)
W: 2-1/2 in (64 mm)
D: 17 in (432 mm)
2.5 lb
(1.1 kg)
XR-Aluma-Pro Plus
Water-Cooled Gun
400 A at 100% Duty Cycle
with 15, 25, or 35 ft
(4.6, 7.6, or 10.6 m) gun
.030–1/16 in (0.8–1.6 mm) Aluminum
Wire kit #230 708 required to run
1/16 in (1.6 mm) wire
50–780 IPM
(1.3–19.8 m/min)
H: 5 in (127 mm)
W: 2-1/2 in (64 mm)
D: 17 in (432 mm)
2.9 lb
(1.3 kg)
Model
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
Standard Consumables
2 pc (N-3414 − N-HDC)
Conforms to European sta
(Order from Miller Service Parts.)
Insulators
Centerfire Nozzles
N– 5818C
Net Weight
(Torch only)
Centerfire
Contact Tips
Centerfire
Diffusers
T-035AL
T-047AL
T-062AL
D-1AP
Note: Many other Centerfire™ options are available.
Visit BernardWelds.com for more information.
Inner Rear
(#227 416)
XR-Aluma-Pro Plus
6 in Head Tube
Air (Long)
(#245 979)
Outer Air Long
(#229 673)
Outer Water Long
(#230 420)
Water
(#245 981)
5
Genuine Miller Accessories
Wire Feeders/Guns
D-74 MPa Plus
feeder shown
70 Series Wire Feeders
S-74 MPa Plus #951 291 Single feeder
Includes 15 ft Bernard® Q400 Gun and
set of .035/.045 in V-groove drive rolls.
D-74 MPa Plus #951 292 Dual feeder
Includes two 15 ft Bernard® Q400 Guns
and two sets of .035/.045 in V-groove
drive rolls.
Order XR-Aluma-Pro Plus gun and U-groove drive
rolls separately to match your aluminum needs.
Above models are optimized for Invision 352 MPa,
with push-pull capability.
S-74S
#195 057 Single feeder
S-74D
#195 058 Single feeder
S-74DX
#195 059 Single feeder
D-74S
#195 060 Dual feeder
D-74D
#195 061 Dual feeder
D-74DX
#195 062 Dual feeder
Wire feeder features Posifeed™ wire drive
assembly and handles a variety of wires up
to 1/8 in. All feeders include 15 ft Bernard®
Q400 Gun. See Lit. Index No. M/3.0.
A variety of MIG guns are also available.
Visit MillerWelds.com/equiptoweld for
more information.
XR-Aluma-Pro™ Plus Gun
#300 000 001 15 ft (4.6 m) air-cooled
#300 001 001 25 ft (7.6 m) air-cooled
#300 264 001 35 ft (10.6 m) air-cooled
#300 003 001 15 ft (4.6 m) water-cooled
#300 004 001 25 ft (7.6 m) water-cooled
#300 265 001 35 ft (10.6 m) water-cooled
Above gun models are specific to the 74 MPa Plus
wire feeders.
This easy-to-use and easy-to-maintain
gooseneck-style MIG gun is designed for
push-pull wire feed systems. Available in
air- or water-cooled versions. Trigger hold
reduces operator fatigue. Gun design
allows for better access into tight spots.
1/16 Inch (1.6 mm) Wire Kit #230 708
Specially designed for 1/16 in wire.
Includes idler roll, head tube liner and
inlet guide. Required when running
1/16 in wires. Not included with standard
XR-Aluma-Pro Plus gun.
Extension Cables*
#247 831 025 25 ft (7.6 m)
#247 831 050 50 ft (15.2 m)
#247 831 080 80 ft (24.4 m)
Eleven conductors to support contactor
control and remote voltage control on all
Miller electronic CV 14-pin power sources.
Additional functions supported when using
the Invision 352 MPa power source include
Synergic Pulsed MIG, and remote process
select and side select capabilities.
*Custom lengths available in 5 ft increments up to
50 ft and 10 ft increments up to 100 ft.
Spool Covers
#057 607 For single
feeders or left side of
dual feeders
#090 389 For right side
of dual feeders
For 12 in (305 mm) spool.
Note: Spool Cover cannot be installed if the wire drive
assembly is in a rotated position.
Wire Reel Assembly
#108 008
For 60 lb (27 kg) coil
of wire.
Hardwire Liner Kit for Steel and Stainless
#198 377 For 15, 25, or 35 ft guns
(4.6, 7.6 or 10.6 m)
Kit consists of gun head tube liner and feed
cable liner. Recommend using .030 –.045 in
mild steel, or stainless steel electrode wire.
.052 and 1/16 in wires not recommended.
Phosphorous Bronze Liner (Optional)
#233 999 Long Head Tube (air or water)
#233 998 Short Head Tube (air only)
Steel Liner (Optional)
#242 191 Short Head Tube (air only)
Industrial MIG 4/0 Kit with Dinse
Connector #300 405
This useful pulse-ready MIG kit can be
purchased separately. Includes Smith®
flowmeter/regulator with 10 ft (3 m) gas
hose, 10 ft (3 m) 4/0 feeder weld cable with
Dinse connector on one end and a lug on
the other, 15 ft (4.6 m) work cable with
Dinse connector on one end and 600 A
C-clamp on the other.
Protective Cover
#195 478
For Invision
352 MPa power
source. Mildew and
water resistant,
odor-free cover
protects your
machine’s finish.
6
Genuine Miller Accessories
Running Gear
MIGRunner ™ Cart #195 445
Small footprint and easily maneuverable,
with cylinder rack low enough that you do
not have to lift bottles.
Universal Carrying Cart and Cylinder Rack
#042 934
Holds power source, and gas cylinder up to
56 in (142.2 cm) high measuring 6 to 9 in
(15.2 to 22.8 cm) in diameter.
(continued)
Coolant Systems
Cable Connectors and Adapters
For more information, see the Miller Coolant
Systems literature sheet, Index No. AY/7.2.
Note: Invision 352 MPa power sources are equipped
with Dinse-style connectors for secondary connections.
Coolmate™ 3 #043 007 115 VAC
For use with water-cooled torches rated
up to 600 amps. Unique paddle-wheel
indicator, external filter and easy-fill spout.
Coolmate™ V3
#043 009 115 VAC
For use with watercooled torches rated
up to 500 amps.
Vertical design
conveniently mounts
to Miller cylinder
rack in place of one
cylinder.
Dinse-Style Connector Kit
#042 418
Accepts #4 to #1/0 AWG cable size.
#042 533
Accepts #1/0 to #2/0 AWG cable size.
Required if male plugs shipped with power
source must be replaced or if additional
plugs are needed. Kit includes one Dinsestyle male plug which attaches to the work
and/or weld cables and plugs into the
Dinse-style receptacles on the power source.
Extension Kit for Dinse-Style
Cable Connectors
#042 419
Accepts #4 to #1/0 AWG cable size.
#042 534
Accepts #1/0 to #2/0 AWG cable size.
Used to adapt or extend weld and/or work
cables. Kit includes one male Dinse-style plug
and one in-line female Dinse-style receptacle.
Dinse/Tweco® Adapter
#042 465
Dinse/Cam-Lok Adapter
#042 466
One-piece adapter with Dinse-style male
plug (to power source) on one end and
female receptacle (Tweco or Cam-Lok for
weld cable connection) on other end.
Coolmate™ 3.5 #300 245 115 VAC
Industrial, 3.5-gallon cooler designed for
water-cooled torches rated up to 600 A.
Running Gear Cylinder Rack #300 408
Holds two large gas cylinders and has gun
cable hangers and a consumable drawer in
front for easy access. A convenient handle
allows the cart to be pulled easily through
doorways. System components including
power source, single- or dual feeders, and
Coolmate™ V3 can be mounted to the cart
and secured.
Coolant #043 809
Sold in cases of four 1-gallon recyclable
plastic bottles. Miller coolants contain a
base of ethylene glycol and deionized water
to protect against freezing to -37°F (-38°C)
or boiling to 227°F (108°C). Also contains a
compound that resists algae growth.
7
Ordering Information
Power Source and Options
Stock No.
Description
Invision™ 352 MPa
#907 431
#907 431 001
Power source only. 208 – 575 VAC with Auto-Line™
Power source only. 208 – 575 VAC with Auto-Line™ and Auxiliary Power
Invision™ MPa Plus Air-Cooled
Stationary Packages
#951 283
Power source, single feeder, 25 ft XR-Aluma-Pro™ Plus gun, .035/.047 in U-groove drive rolls,
15 ft Bernard™ Q400 gun, .035/.045 in V-groove drive rolls, and Industrial MIG 4/0 Kit
Power source, dual feeder, 25 ft XR-Aluma-Pro™ Plus gun, .035/.047 in U-groove drive rolls,
two 15 ft Bernard™ Q400 guns, .035/.045 in V-groove drive rolls, and Industrial MIG 4/0 Kit
#951 285
Invision™ MPa Plus Water-Cooled
Stationary Packages
#951 377
Power source with auxiliary power, single feeder, 25 ft XR-Aluma-Pro™ Plus gun, .035/.047 in
U-groove drive rolls, 15 ft Bernard™ Q400 gun, .035/.045 in V-groove drive rolls,
Industrial MIG 4/0 Kit, Coolmate™ 3, and coolant
Power source with auxiliary power, dual feeder, 25 ft XR-Aluma-Pro™ Plus gun, .035/.047 in
U-groove drive rolls, two 15 ft Bernard™ Q400 guns, .035/.045 in V-groove drive rolls,
Industrial MIG 4/0 Kit, Coolmate™ 3, and coolant
#951 378
Invision™ MPa Plus Air-Cooled
MIGRunner™ Packages
#951 287
Power source, single feeder, 25 ft XR-Aluma-Pro™ Plus gun, .035/.047 in U-groove drive rolls,
15 ft Bernard™ Q400 gun, .035/.045 in V-groove drive rolls, Industrial MIG 4/0 Kit, and
MIGRunner Cart
Power source, dual feeder, 25 ft XR-Aluma-Pro™ Plus gun, .035/.047 in U-groove drive rolls,
two 15 ft Bernard™ Q400 Guns, .035/.045 in V-groove drive rolls, Industrial MIG 4/0 Kit, and
Running Gear Cylinder Rack
#951 289
Invision™ MPa Plus Water-Cooled
MIGRunner™ Packages
Qty.
#951 379
Power source with auxiliary power, single feeder, 25 ft XR-Aluma-Pro™ Plus gun, .035/.047 in
U-groove drive rolls, 15 ft Bernard™ Q400 gun, .035/.045 in V-groove drive rolls, Industrial MIG
4/0 Kit, Coolmate™ 3, coolant, and MIGRunner Cart
Power source with auxiliary power, dual feeder, 25 ft XR-Aluma-Pro™ Plus gun, .035/.047 in
U-groove drive rolls, two 15 ft Bernard™ Q400 guns, .035/.045 in V-groove drive rolls,
Industrial MIG 4/0 Kit, Coolmate™ V3, coolant, and Running Gear Cylinder Rack
#951 380
Wire Feeders/Guns
70 Series Feeders
*Order XR-Aluma-Pro Plus and
U-groove drive rolls separately.
XR-Aluma-Pro™ Plus Gun
#951 291*
#951 196
#951 198
#951 200
#951 203
#951 204
#951 206
S-74 MPa Plus. Single feeder optimized for Invision 352 MPa with push-pull capability.
Includes Bernard™ Q400 gun and set of .035/.045 in V-groove drive rolls.
D-74 MPa Plus. Dual feeder optimized for Invision 352 MPa with push-pull capability.
Includes two Bernard™ Q400 guns and two sets of .035/.045 in V-groove drive rolls
S-74S. Single feeder. See Lit. Index No. M/3.0
S-74D. Single feeder. See Lit. Index No. M/3.0
S-74DX. Single feeder. See Lit. Index No. M/3.0
D-74S. Dual feeder. See Lit. Index No. M/3.0
D-74D. Dual feeder. See Lit. Index No. M/3.0
D-74DX. Dual feeder. See Lit. Index No. M/3.0
#300 000 001
#300 001 001
#300 264 001
#300 003 001
#300 004 001
#300 265 001
15 ft (4.6 m) air-cooled
25 ft (7.6 m) air-cooled
35 ft (10.6 m) air-cooled
15 ft (4.6 m) water-cooled
25 ft (7.6 m) water-cooled
35 ft (10.6 m) water-cooled
#951 292*
Extension Cables
See page 6
Spool Covers
#057 607
#090 389
12 in (305 mm) spool for single feeders or left side of dual feeders
12 in (305 mm) spool for right side of dual feeders
Wire Reel Assembly
#108 008
60 lb (27 kg)
Industrial MIG 4/0 Kit
#300 405
With Dinse connector. See page 6
Protective Cover
#195 478
For Invision™ MPa Plus power source
Accessories
Running Gear
MIGRunner™ Cart
#195 445
Universal Cart/Cylinder Rack
#042 934
Running Gear Cylinder Rack
#300 408
Cart for dual feeder system
Coolant Systems
See page 7. See Lit. Index No. AY/7.2
Cable Connectors and Adapters
See page 7
Date:
Total Quoted Price:
Distributed by:
Litho in USA
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
