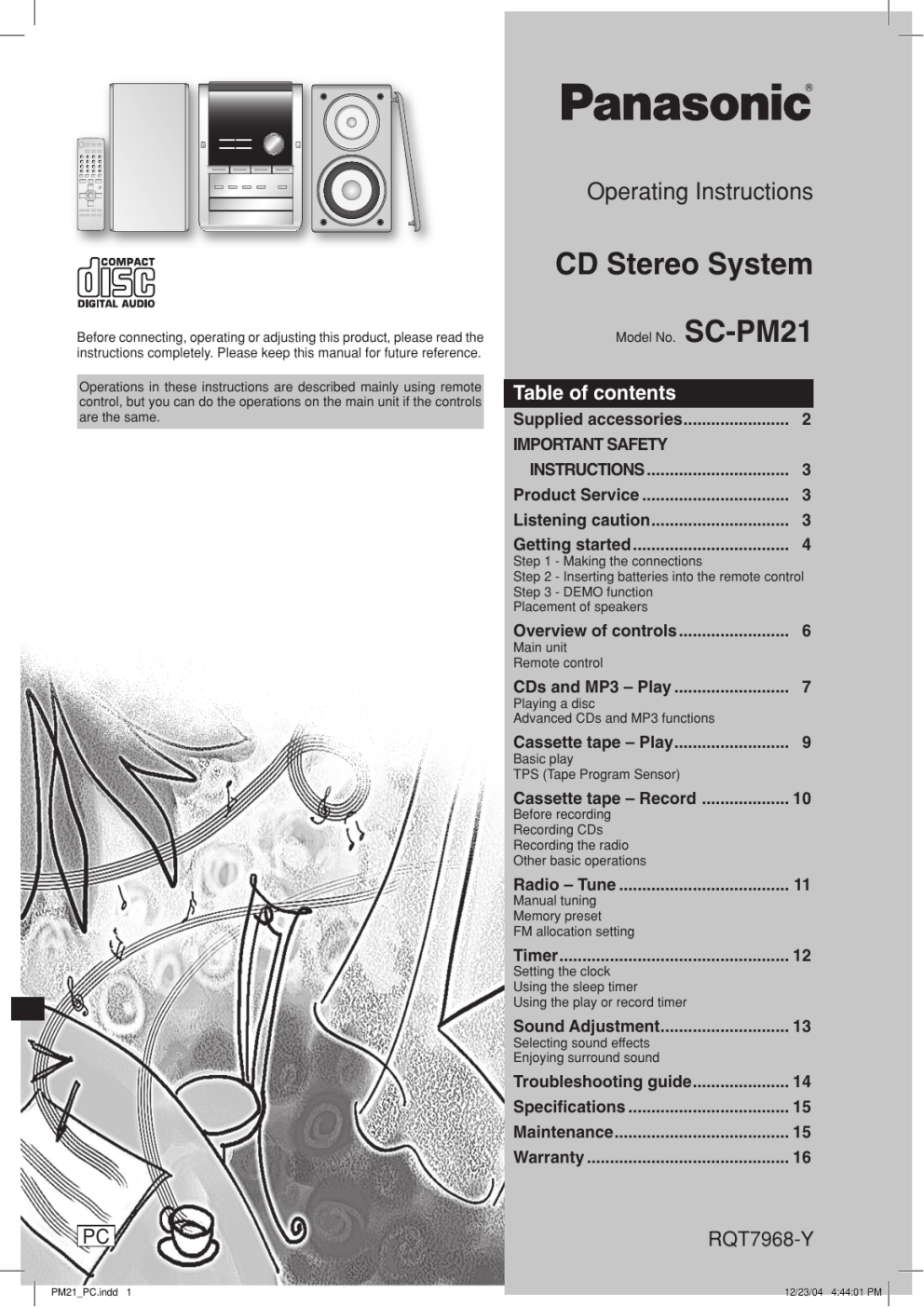

Panasonic SCPM21 User manual

Operating Instructions

CD Stereo System

Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

Operations in these instructions are described mainly using remote control, but you can do the operations on the main unit if the controls are the same.

Model No.

SC-PM21

Table of contents

Supplied accessories ....................... 2

IMPORTANT SAFETY

INSTRUCTIONS ............................... 3

Product Service ................................ 3

Listening caution .............................. 3

Getting started .................................. 4

Step 1 - Making the connections

Step 2 - Inserting batteries into the remote control

Step 3 - DEMO function

Placement of speakers

Overview of controls ........................ 6

Main unit

Remote control

CDs and MP3 – Play ......................... 7

Playing a disc

Advanced CDs and MP3 functions

Cassette tape – Play ......................... 9

Basic play

TPS (Tape Program Sensor)

Cassette tape – Record ................... 10

Before recording

Recording CDs

Recording the radio

Other basic operations

Radio – Tune ..................................... 11

Manual tuning

Memory preset

FM allocation setting

Timer .................................................. 12

Setting the clock

Using the sleep timer

Using the play or record timer

Sound Adjustment ............................ 13

Selecting sound effects

Enjoying surround sound

Troubleshooting guide ..................... 14

Specifications ................................... 15

Maintenance ...................................... 15

Warranty ............................................ 16

PC

PM21_PC.indd 1

RQT7968-Y

12/23/04 4:44:01 PM

2

RQT7968

PM21_PC.indd 2

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

These operating instructions are applicable to the following system.

System

Main unit

SC-PM21

SA-PM21

Speakers SB-PM21

Supplied accessories

Use numbers indicated in parentheses when asking for replacement parts. (As of January 2005)

1 x Remote control 1 x AM loop antenna

(N2QAJB000131)

1 x AC power supply cord

(N1DAAAA00001)

1 x FM indoor

antenna

The model number and serial number of this product can be found on either the back or the bottom of the unit.

Please note them in the space provided below and keep for future reference.

MODEL NUMBER

SERIAL NUMBER

(K2CB2CB00006)

(RSA0007-L)

2 x Remote control batteries

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK

OR PRODUCT DAMAGE, DO NOT EXPOSE THIS

APPARATUS TO RAIN, MOISTURE, DRIPPING OR

SPLASHING AND THAT NO OBJECTS FILLED WITH

LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON

THE APPARATUS.

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A

BOOKCASE, BUILT-IN CABINET OR IN ANOTHER

CONFINED SPACE. ENSURE THE UNIT IS WELL

VENTILATED. TO PREVENT RISK OF ELECTRIC

SHOCK OR FIRE HAZARD DUE TO OVERHEATING,

ENSURE THAT CURTAINS AND ANY OTHER

MATERIALS DO NOT OBSTRUCT THE VENTILATION

VENTS.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Inside of product

12/23/04 4:44:06 PM

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Product Service

Listening caution

1. Damage requiring service —The unit should be serviced by qualified service personnel if:

(a) The AC power supply cord or the plug has been damaged; or

(b) Objects or liquids have gotten into the unit; or

(c) The unit has been exposed to rain; or

(d) The unit does not operate normally or exhibits a marked change in performance; or

(e) The unit has been dropped or the cabinet damaged.

2. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.

3. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

4. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

The servicer will require all components to service your system. Therefore, should service ever be necessary, be sure to bring the entire system.

Product information

For product information or assistance with product operation:

Contact the Panasonic Canada Inc. Customer Care Centre at

905-624-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

EST. 1924

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic

Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion—and, most importantly, without affecting your sensitive hearing.

We recommend that you avoid prolonged exposure to excessive noise.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds

“normal” can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level

BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

3

RQT7968

12/23/04 4:44:09 PM PM21_PC.indd 3

Getting started

Step 1

- Making the connections

Connect the AC power supply cord only after all other connections have been made.

Preparation

Twist and pull off the vinyl tip of the speaker cords.

1

Connect the FM indoor antenna.

Adhesive tape

FM indoor antenna

������

��

Tape the antenna to a wall or column, in a position with least amount of interference.

3

Connect the speaker cables.

White

Blue

Red

Black

2

Connect the AM loop antenna.

AM loop antenna

�

������

���

����

�

Stand the antenna up on its base. Keep loose antenna cord away from other wires and cords.

�

Grey (+)

Blue (–)

�

�

�

�������

��

�

�

Black (–)

Red (+)

������

��

�

Cords with white and blue tags are for high frequency.

Cords with red and black tags are for low frequency.

Incorrect connection can damage the unit.

4

To household mains socket

Connect the AC power supply cord.

• The included AC power supply cord is for use with this unit only. Do not use it with other equipment.

Optional antenna connections

FM outdoor antenna

FM outdoor antenna

(not included)

AM outdoor antenna

AM outdoor antenna

(not included)

4

RQT7968

75

Ω coaxial cable

(not included)

�����

������

���

����

������

��

AM loop antenna

(included)

• Never use an outdoor antenna during a lightning storm.

• You can connect the FM outdoor antenna for better reception. Please consult your dealer for installation.

• Disconnect the FM indoor antenna if an FM outdoor antenna is installed.

• Connect the AM outdoor antenna without removing the AM loop antenna. Run 5 to 12m vinyl-covered wire horizontally along a window or other convenient location.

PM21_PC.indd 4 12/23/04 4:44:16 PM

Getting started

Step 2

- Inserting batteries into the remote control

�

�

�

�

�����������

■

Batteries

• Insert so the poles (+ and –) match those in the remote control.

• Remove if the remote control is not going to be used for a long period of time.

Store in a cool, dark place.

• Do not use rechargeable type batteries.

• Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Do not:

• mix old and new batteries.

• use different types at the same time.

• heat or expose to flame.

• take apart or short circuit.

• attempt to recharge alkaline or manganese batteries.

• use batteries if the covering has been peeled off.

■

Use

• Aim at the remote control sensor, avoiding obstacles, at a maximum range of

7 m (23 feet) directly in front of the unit.

Refer to page 6 for remote control signal sensor position.

Step 3

- DEMO function

When the unit is first plugged in, a demonstration of its functions may be shown on the display.

If the demo setting is off, you can show a demonstration by selecting “DEMO

ON”.

Press and hold [STOP

7, -DEMO].

The display change each time the button is held down.

DEMO OFF DEMO ON

While in standby mode, select “DEMO OFF” to reduce power consumption.

Placement of speakers

Speakers are designed identically so that no left or right channel orientation is necessary.

• These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily influenced by magnetism.

• To avoid damage to the speakers, do not touch the speaker cones if you have taken the nets off.

Note

• Keep your speakers at least 10 mm (

13

/

32

˝) away from the system for proper ventilation.

Use only the supplied speakers.

• The combination of the main unit and speakers provide the best sound. Using other speakers can damage the unit and sound quality will be negatively affected.

Caution

• Use the speakers only with the recommended system.

Failure to do so can damage the amplifier and speakers, and can cause fire. Consult a qualified service person if damage occurs or if a sudden change in performance is apparent.

• Do not attach these speakers to walls or ceilings.

PM21_PC.indd 5

5

RQT7968

12/23/04 4:44:21 PM

Overview of controls

Main unit

Refer numbers in parentheses for page reference.

Top of the unit

������

Headphone jack (PHONES)

Avoid listening for prolonged periods of time to prevent hearing damage.

Plug type: 3.5 mm (

1

/

8

(not included)

˝

) stereo

Cassette lid (9, 10)

����

Cassette open (9, 10)

1

Album selection (7, 8)

Remote control sensor

2

Standby/on switch (y/l POWER) (7, 12)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power

.

AC supply indicator (AC IN)

This indicator lights when the unit is connected to the AC power supply.

Stop/Demo (5, 7, 8, 9, 10)

3

Tuner/Band selection (11)

4

Surround sound (13)

Sound (13)

CD tray (7)

Display panel

5

Volume control (7, 13)

Recording start/pause (10)

Track selection (7, 8 , 9, 10)

6

CD play/pause (7, 8 ,9)

7

Tape play (9, 10)

CD tray open/close (7, 8)

8

CD skip/search, tape fast-forward/rewind, tune/ preset channel selection, time adjustment (7, 8, 9,

11, 12)

6

RQT7968

Remote control

Buttons such as 3 function the same as the controls on the main unit.

Sleep timer (12)

2

Auto off

Clock/Timer (12)

Play timer/Record timer (12)

Display (7)

Dimmer

Program (8, 11)

Clear (8)

Play mode (7, 10, 11)

Repeat (8)

1

3

7

Numeric, characters (7, 8, 9)

Delete (8, 9)

8

6

Stop (7, 8, 9, 10,)

5

Treble/bass adjustment (13)

Enter (8, 9)

4

Intro (8)

Bass (13)

Treble (13)

Title search (9)

Marker (8)

Muting

Preset EQ (13)

PM21_PC.indd 6

This function allows you to turn off the unit in

CDs or

tape mode only after left unused for 10 minutes.

• The setting is maintained even if the unit is turned off.

To dim the display panel.

To mute the sound

• Press the button to activate.

• Press again to cancel.

12/23/04 4:44:28 PM

CDs and MP3 – Play

Numeric buttons

Disc tray

Playing a disc

1

Press [y] to turn the unit on.

2

Press [

0 OPEN/CLOSE] to open the disc tray and

then load the disc. Press again to close the tray.

Label must face upward

Disc tray

3

Press [CD

6] to start play.

4

Adjust the volume.

Other basic operations

To

stop the disc pause play skip tracks search through tracks

(CD-DA Only)

skip album

(MP3 Only)

Action

Press [STOP

7].

Press [CD

6]. Press again to resume play.

Press [4/REW/

4] or [3/FF/¢].

Press and hold [4/REW/

4] or

[3/FF/

¢] during play or pause.

Press [ALBUM or ] in the play mode.

Press [ALBUM or ] once and then the numeric buttons in the stop mode.

Play Mode function

1

Press [CD

6].

2

Press [PLAY MODE] to select the desired mode.

Mode

1-TRACK

1TR

1-ALBUM

1ALBUM

(MP3 only)

To play

one selected track on the disc.

Press the numeric buttons to select the track.

one selected album on the disc.

Press [ALBUM or ] to select the album.

a disc randomly.

RANDOM

RND

1-ALBUM RANDOM

1ALBUM RND

(MP3 only)

all tracks in one selected album randomly.

Press [ALBUM or ] to select the album.

• During RANDOM or 1-ALBUM RANDOM play, you cannot skip to tracks which have been played.

• During CD-DA RANDOM play, you can search backward or forward only within the current track.

CD display

This function allows you to display the information of the current track.

Press [DISPLAY] repeatedly during play or pause mode.

CD-DA

Elapsed play time

↔

Remaining play time

MP3

Elapsed time Album name Track name

ID3 (Artist) ID3 (Track) ID3 (Album)

• Maximum number of displayable characters: 30

• This unit supports ver. 1.0 & 1.1 ID3 tags. Text data that is not supported will not be displayed.

• ID3 is a tag embedded in MP3 track to provide information about the track.

PM21_PC.indd 7

(Continued on next page)

7

RQT7968

12/23/04 4:44:35 PM

8

RQT7968

PM21_PC.indd 8

CDs and MP3 – Play (Continued)

Advanced CDs and MP3 functions

Direct access play

This function allows you to start play from a specific track.

CD-DA

Press the numeric buttons to select and play your desired track.

MP3

1

Press [ALBUM or ] to select the album.

2

Press [4/REW/

4] or [

3

/FF/

¢

] once and then the numeric buttons to select and play your desired track.

For two-digit track, press [ h10] once then the two digits.

For three-digit track, press [ h10] twice then the three digits.

• This function does not work during any random/program mode.

Repeat play

CD-DA MP3

You can repeat program play or other selected play mode.

Press [REPEAT] before or during play.

“REPEAT ON” and “ ” are displayed.

To cancel

Press [REPEAT] again.

“REPEAT OFF” is displayed and “ ” is cleared.

Marking a track

CD-DA MP3

Enable you to mark one track on the disc loaded so that you can directly play the track later.

During play, press and hold the [MARKER] until

“STORING” blinks on the display to mark your favorite track.

Press [MARKER] during play or stop mode to recall and play a marked track.

• The marker memory is cleared when you open the CD tray.

• This function does not work during any random/program mode.

Program play

This function allows you to program up to 24 tracks.

CD-DA

1

Press [CD

6] and then [STOP

7

].

2

Press [PROGRAM].

3

Press the numeric buttons to select your desired track.

Repeat this step to program other tracks.

Example:

Track number

MP3

1

Press [CD

6] and then [STOP

7

].

2

Press [PROGRAM].

3

Press [ALBUM or ] to select your desired album.

4

Press [3/FF/

¢] once and then numeric buttons to

select your desired track.

Example:

Album number

Track number

5

Press [ENTER] to store the program.

Repeat steps 3 to 5 to program other tracks.

6

Press [CD

6] to start play.

To

cancel program mode replay the program

Action

Press [PROGRAM] in the stop mode. check program contents add to the program clear the last track clear all programmed tracks

Press [PROGRAM] then [CD

6].

Press [4/REW/

4] or [3/FF/¢] when

“PGM” is displayed in the stop mode.

To check while programming, press

[PROGRAM] twice after “PGM” appears, then press [4/REW/

4] or [3/FF/¢].

Repeat step 3 in the stop mode for CD-DA.

Repeat steps 3 to 5 in the stop mode for

MP3.

Press [DEL] in the stop mode.

Press [CLEAR] in the stop mode.

“PGM CLEAR” is displayed.

• When you try to programme more than 24 tracks “PGM FULL” appears.

• During program play for CD-DA, you can search backward or forward only within the current track.

• The program memory is cleared when you open the CD tray.

INTRO function (Album scan)

MP3

This function allows you to find an album by listening to the first track of all albums in the current disc for

10 seconds each.

1

Press [CD

6] and then [STOP

7

].

2

Press [INTRO] to start the intro function.

3

While your desired album is playing, press [CD

6].

Intro mode cancelled and the playback continues.

INTRO function is cancelled after playing the first track in the last album.

To stop during the process, press [INTRO] or [STOP

7].

• This function does not work during any random/program mode.

Program number

Program indicator

4

Press [CD

6] to start play.

12/23/04 4:44:42 PM

CDs and MP3 – Play (Continued)

MP3

1

Press [CD

6] and then [STOP

7

].

2

Press [PROGRAM].

3

Press [ALBUM or ] to select your desired album.

4

Press [3/FF/

¢] once and then numeric buttons to

select your desired track.

Example:

Album number

Track number

5

Press [ENTER] to store the program.

Repeat steps 3 to 5 to program other tracks.

6

Press [CD

6] to start play.

To

cancel program mode replay the program

Action

Press [PROGRAM] in the stop mode. check program contents add to the program clear the last track clear all programmed tracks

Press [PROGRAM] then [CD

6].

Press [4/REW/

4] or [3/FF/¢] when

“PGM” is displayed in the stop mode.

To check while programming, press

[PROGRAM] twice after “PGM” appears, then press [4/REW/

4] or [3/FF/¢].

Repeat step 3 in the stop mode for CD-DA.

Repeat steps 3 to 5 in the stop mode for

MP3.

Press [DEL] in the stop mode.

Press [CLEAR] in the stop mode.

“PGM CLEAR” is displayed.

• When you try to programme more than 24 tracks “PGM FULL” appears.

• During program play for CD-DA, you can search backward or forward only within the current track.

• The program memory is cleared when you open the CD tray.

INTRO function (Album scan)

MP3

This function allows you to find an album by listening to the first track of all albums in the current disc for

10 seconds each.

1

Press [CD

6] and then [STOP

7

].

2

Press [INTRO] to start the intro function.

3

While your desired album is playing, press [CD

6].

Intro mode cancelled and the playback continues.

INTRO function is cancelled after playing the first track in the last album.

To stop during the process, press [INTRO] or [STOP

7].

• This function does not work during any random/program mode.

Cassette tape – Play

Album/Track title search

MP3

Enable you to search your desired album or track.

1

Press [CD

6] and then [STOP

7

].

2

For album title search, press [TITLE SEARCH] once.

For track title search, press [TITLE SEARCH] twice.

3

Press the numeric buttons repeatedly to select your

desired character then press [3/FF/

¢] to key in the

next character.

• You can enter up to 9 characters.

• To edit, press [4/REW/

4] or [3/FF/¢] to revise any characters.

• To delete, move the cursor over the character and then press [DEL].

Numbered buttons

1

2

3

4

5 h10

Characters

1

A B C 2

D E F 3

G H I 4

Numbered buttons

6

7

8

9

J K L 5 0

space !“#$ %&’() ∗+,– ./:;=?_

8

Characters

M N O 6

P Q R S 7

T U V 8

W X Y Z 9

0

4

Press [ENTER].

Press [4/REW/

4] or [3/FF/¢] to search for

previous or next match.

5

Press [CD found.

6] to start play from the album/track

• “NOT FOUND” is displayed when there is no match.

• This function does not work during any random/program mode.

NOTE on CDs

• This unit can access up to 99 tracks.

• Choose CD with this mark.

Basic play

1

Press [OPEN

0] on top of the unit.

2

Insert a cassette.

•

OPEN

Insert inside the guides

Forward side

3

Close the lid by hand.

4

Press [TAPE

3]

to start play.

To play the other side of the cassette, turn the cassette over.

• This unit can play MP3 files and CD-DA format audio CD-R/RW that have been finalized.

• It may not be able to play some CD-R/RW due to the condition of the recording.

• Do not use irregular shaped disc.

• Do not use disc with labels and stickers that are coming off or with adhesive exuding from under labels and stickers.

• Do not attach extra labels or stickers on the disc.

• Do not write anything on the CD.

NOTE on MP3

• Files are treated as tracks and folders are treated as albums.

• This unit can access up to 999 tracks, 255 albums and 20 sessions.

• Disc must conform to ISO9660 level 1 or 2 (except for extended formats).

• To play in a certain order, prefix the folder and file names with 3-digits numbers in the order you want to play them.

MPEG Layer-3 audio decoding technology licensed from

Fraunhofer IIS and Thomson multimedia.

To

stop tape playback

Action

Press [STOP

7].

start one touch play Press [TAPE

3] when the unit is OFF with the cassette loaded.

fast-forward and rewind

Press [4/REW/

4] or [3/FF/¢] in the stop mode.

TPS (Tape Program Sensor)

This function enables you to search the beginning of a track, up to a maximum of 9.

Press [4/REW/

4] or [3/FF/¢] during play.

Play resumes from the track found.

TPS may not function properly with:

• Short silent parts

• Noise occurs between tunes

• Silent parts found within tunes

PM21_PC.indd 9

9

RQT7968

12/23/04 4:44:49 PM

Cassette tape – Record

Before recording

Preparation:

Wind up the leader tape so that recording can begin immediately.

• Use normal position tapes.

• High position and metal position tapes can be used, but this unit will not be able to record or erase them correctly.

Recording CDs

Recording the radio

1

Insert the cassette to be recorded on.

2

Tune to the required station (refer page 11).

3

Press [

¶/8 REC] to start recording.

Other basic operations

1

Insert the cassette to be recorded on.

•

OPEN

Insert inside the guides

2

Press [

Forward side

0 OPEN/CLOSE] to insert the CD.

Press again to close.

3

Press [CD

3/8] and then [STOP 7, -DEMO].

4

Press [

¶/8 REC] to start recording.

Recording specific CDs or tracks

1

Press [CD

3/8] and then [STOP 7, -DEMO].

2

Press [PLAY MODE] to select your desired mode

(refer page 7).

3

Press [

¶/8 REC] to start recording.

Recording programmed tracks

1

Program the tracks you want (refer page 8).

2

Press [

¶/8 REC] to start recording.

To

erase a recorded sound stop recording stop recording temporarily record on the other side of the tape

Action

1) Insert the cassette to be recorded on.

2) Press [TAPE

3] and then [STOP 7].

3) Press [

¶/8 REC].

Press [STOP

7].

1) Press [

¶/8 REC].

2) Press again to resume recording.

Turn the cassette over and press

[

¶/8 REC].

Erasure prevention

The illustration shows how to remove the tabs to prevent recording. To record on the tape again, cover as shown.

Side A

To re-record

Normal tape

Tab for side B Tab for side A

Adhesive tape

10

RQT7968

PM21_PC.indd 10 12/23/04 4:44:54 PM

Radio – Tune

Numeric buttons

Manual tuning

1

Press [TUNER/BAND] to select “FM” or “AM”.

2

Press [PLAY MODE] to select “MANUAL”.

3

Press [4/REW/

4] or [3/FF/¢] to select the

frequency of the required station.

• is displayed when a stereo FM broadcast is being received.

To tune automatically

Press [4/REW/

4] or [3/FF/¢] for a moment until the frequency starts changing rapidly. The unit begins auto tuning, stopping when it finds a station.

• Auto tuning may not function when there is excessive interference.

• To cancel auto tuning, press [4/REW/

4] or [3/FF/¢] once again.

• Sound is momentarily interrupted if you load or unload tapes while listening to an AM broadcast.

To improve FM sound quality

Press and hold [PLAY MODE] to display “MONO”

To cancel

Press and hold [PLAY MODE] again until “MONO” disappear.

• MONO is also cancelled if the frequency is changed.

• Turn off “MONO” for normal listening.

Memory preset

Up to 15 stations each can be set in the FM and AM bands.

Preparation

Press [TUNER/BAND] to select “FM” or “AM”.

Automatic presetting

Press and hold [PROGRAM] to start presetting.

Manual presetting

1

Press [PLAY MODE] to select “MANUAL”.

2

Press [4/REW/

4] or [3/FF/¢] to tune to the

required station.

3

Press [PROGRAM].

4

Press numeric buttons to select a channel.

• The station occupying a channel is erased if another station is preset in that channel.

5

Repeat steps 2 to 4 to preset more stations.

Selecting a preset station

Press numeric buttons to select the channel.

• For channels 10 to 15 press [ h10], then the two digits.

OR

1

Press [PLAY MODE] to select “PRESET”.

2

Press [4/REW/

4] or [3/FF/¢] to select the

channel.

FM allocation setting

• This system can also receive FM broadcasts allocated in

0.1 MHz steps.

To change the step to 0.1 MHz

1

Press [TUNER/BAND] to select “AM”.

2

Press and hold [TUNER/BAND].

• After a few seconds the display changes to a flashing display of the current minimum frequency.

3

Continue to hold down [TUNER/BAND].

• When the minimum frequency changes, release the button. To return to the original step, repeat the above steps.

• After changing the setting, previously preset frequency will be cleared.

PM21_PC.indd 11

11

RQT7968

12/23/04 4:44:58 PM

Timer

Setting the clock

This is a 12-hour clock.

1

Press [CLOCK/TIMER] to select “CLOCK”.

Each time you press the button:

CLOCK

˚ PLAY

Original display

˚ REC

Using the play or record timer

You can set the timer to come on at a certain time to wake you up (play timer) or to record from the radio (record timer).

Preparation

Turn the unit on and set the clock.

Timer Action

Play timer Prepare the music source you want to listen to; cassette, CD or radio, and set the volume.

Record timer Check the cassette’s erasure prevention tabs (refer page 10), insert the tape and tune to the radio station (refer page 11).

1

Press [CLOCK/TIMER] to select your desired timer.

Each time you press the button:

CLOCK

˚ PLAY ˚ REC

Original display

2

Within 5 seconds, press [4/REW/

to set the starting time.

4] or [3/FF/¢]

Start time

2

Within 5 seconds, press [4/REW/

4] or [3/FF/¢]

to set the time.

3

4

Play timer indicator Record timer indicator

Press [CLOCK/TIMER] to confirm.

Repeat steps 2 to 3 to set the finishing time.

Finish time

3

Press [CLOCK/TIMER] again to confirm.

Displaying the clock

Press [CLOCK/TIMER] to display the clock for few seconds.

• The clock may lose or gain some time over a period. Readjust if necessary.

Using the sleep timer

This function enables you to turn off the unit automatically after the set time.

Press [SLEEP] to select your desired time.

SLEEP 30 SLEEP 60 SLEEP 90

SLEEP OFF SLEEP 120

Sleep timer indicator

12

RQT7968

To cancel

Press [SLEEP] to select “SLEEP OFF”.

Changing the remaining time

Press [SLEEP] to show the time and press [SLEEP] again to select your desired time.

• The play and sleep timer or the record and sleep timer can be used together.

• The sleep timer always has priority. Be sure not to overlap timer settings.

To activate the timer

5

Press [˚PLAY/REC] to turn on your desired timer.

˚ PLAY ˚ REC no display (off)

6

Press [y] to turn off the unit.

The unit must be off for the timers to operate.

Other basic operations

To Action

change the settings Repeat steps 1 to 4 and 6 above. change the source or volume check the settings

(when the unit is on or in standby mode)

1

Press [

˚

PLAY/REC] to clear the timer indicator from the display.

2

Make changes to the source or volume.

3

Do steps 5 to 6 as above.

Press [CLOCK/TIMER] repeatedly to select

˚

PLAY or

˚

REC.

cancel Press [˚PLAY/REC] to clear the timer indicators from the display.

• Play timer and record timer cannot be used together.

• The play timer will start at the preset time and volume level you preset.

• The timer comes on at the set time everyday if the timer is on.

• The unit must be in the standby mode for the timer to function.

• If you turn the unit off and on again while a timer is functioning, the finish time setting will not be activated.

PM21_PC.indd 12 12/23/04 4:45:04 PM

Sound Adjustment

�

Selecting sound effects

You can change the sound effect by selecting Preset EQ or adjusting the bass or treble effect.

Preset EQ

Press [PRESET EQ] repeatedly to select your desired setting.

HEAVY → CLEAR → SOFT → VOCAL → EQ-OFF

Enjoying surround sound

Enable you to add natural width and depth to the stereo sound.

To activate

Press [SURROUND] to display “ ” indicator.

To cancel

Press [SURROUND] again to clear “ ” indicator.

• Surround sound is less discernible when listening through headphones.

• If interference in FM stereo reception increases, cancel the surround sound effect.

OR

To select Preset EQ using the main unit:

1

Press and hold [SOUND] to select “PRESET EQ”.

Each time you press and hold the button:

PRESET EQ ↔ MANUAL EQ

2

Press [SOUND] repeatedly to select your desired setting.

Setting

HEAVY

CLEAR

SOFT

VOCAL

EQ-OFF

Effect

Adds punch to rock

Clarifies higher frequencies

For background music

Adds gloss to vocal

No effect

Bass or treble

Enable you to enjoy the lower or higher pitch sound.

1

Press [BASS] or [TREBLE] to select your desired setting.

Setting

BASS

TREBLE

Effect

For lower pitch sound

For higher pitch sound

2

Press [

∞] or [5] to adjust the level.

OR

To select bass or treble using the main unit:

1

Press and hold [SOUND] to select “MANUAL EQ”.

2

Press [SOUND] to select bass or treble.

Each time you press the button:

BASS TREBLE

original display

3

Turn the [VOLUME] up or down to adjust the bass or treble level.

• The tone level can be varied within -5 to +5.

13

RQT7968

PM21_PC.indd 13 12/23/04 4:45:07 PM

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the “Product information” on page 3.

Common problems

No sound.

Turn the volume up.

The speaker cords may be shorted. Turn the unit off, check and correct the connections and turn the unit on (refer page 4).

Check the speaker connections (refer page 4).

Sound is unfixed, reversed or comes from one speaker only.

Humming heard during play.

“ERROR” is displayed.

“– –:– –” appears on the display.

An AC power supply cord or fluorescent light is near the cables. Keep other appliances and cords away from this unit’s cables.

Incorrect operation performed. Read the instructions and try again.

You plugged the AC power supply cord in for the first time or there was a power failure recently.

Set the time (refer page 12).

“F76” is displayed.

Check and correct the speaker cord connections (refer page 4).

If this does not fix the problem, there is a power supply problem. Consult the dealer.

Listening to the radio

Noise is heard.

The stereo indicator flickers or doesn’t light.

Sound is distorted.

A beat sound is heard.

A low hum is heard during AM broadcast.

Use an outdoor antenna (refer page 4).

Turn the TV off or separate it from the unit.

Separate the antenna from other cables and cords.

When there is a television set nearby

The picture on the TV disappears or stripes appear on the screen.

The location and orientation of the antenna are incorrect. If you are using an indoor antenna, change to an outdoor antenna (refer page 4).

The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the unit.

Using the cassette deck

Recording is not possible.

If the erasure prevention tabs have been removed, cover the holes with adhesive tape (refer page 10).

Playing discs

The display is wrong or play won’t start.

The disc may be upside down (refer page 7).

Wipe the disc.

Replace the disc if it is scratched, warped, or non-standard.

Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again.

The remote control

Remote control doesn’t work.

Check that the batteries are inserted correctly (refer page 5).

Replace the batteries if they are worn.

14

RQT7968

PM21_PC.indd 14 12/23/04 4:45:08 PM

Specifications

AMPLIFIER SECTION

FTC Output Power both channel driven

10% Total harmonic distortion

20 Hz–3.5 kHz

SC-PM19

15 W per channel (6

Ω)

(Low channel)

3.5 kHz–20 kHz

(High channel)

SC-PM19

5 W per channel (6

Ω)

RMS Output Power both channel driven

10% total harmonic distortion

1 kHz

(Low channel)

8 kHz

(High channel)

Total Bi-Amp power

SC-PM19

15 W per channel (6

Ω)

SC-PM19

5 W per channel (6

SC-PM1

Ω)

20 W per channel

Output Impedance

Headphone 16

Ω – 32 Ω

FM TUNER SECTION

Frequency range

Sensitivity

S/N 26 dB

Antenna terminal(s)

87.5 MHz – 108.0 MHz (100 kHz steps)

87.9 MHz – 107.9 MHz (200 kHz steps)

1.5 µV (IHF)

1.25 µV

75

Ω (unbalanced)

AM TUNER SECTION

Frequency range

Sensitivity

520 kHz – 1710 kHz (10 kHz steps)

S/N 20 dB (at 1000 kHz) 500 µV/m

CASSETTE DECK SECTION

Track system

Heads

Record/playback

Erasure

Motor

Recording system

Erasing system

Tape speed

4 track, 2 channel

Solid permalloy head

AC erase head

DC servo motor

AC bias 100 kHz

AC erase 100 kHz

4.8 cm/s

Overall frequency response

(+3 dB, –6 dB at DECK OUT)

NORMAL

S/N RATIO

Wow and flutter

Fast forward and rewind time

35 Hz – 14 kHz

50 dB (A weighted)

0.08% (WRMS)

Approx. 120 seconds with C-60 cassette tape

CD SECTION

Disc

CD, CD-R, CD-RW, MP3

Sampling frequency

Decoding

Beam source/wavelength

Number of channels

Frequency response

Wow and flutter

Digital filter

D/A converter

MP3

Bit rate

Sampling frequency

SPEAKER SECTION

Type

Speaker(s)

Woofer

Tweeter

Impedance

Input power

HIGH

LOW

Output sound pressure level

Frequency range

Dimensions (WxHxD)

Mass

8 cm/12 cm (3 3 /

20

˝/4 73 /

100

˝)

44.1 kHz

16 bit linear

Semiconductor laser/780 nm

Stereo

20 Hz–20 kHz (+1dB, –2 dB)

Below measurable limit

8 fs

MASH (1 bit DAC)

32 kbps – 320 kbps

32 kHz, 44.1 kHz, 48 kHz

2 way, 2 speaker system

10 cm (4˝) cone type

6 cm (2

3

/

8

˝) cone type

6

Ω

82 dB/W (1.0 m)

50 Hz–30 kHz (–16 dB)

55 Hz–25 kHz (–10 dB)

140 mm x 225 mm x 218 mm

(5 1 /

2

˝ x 9

40 W (Max)

40 W (Max)

7 /

8

˝ x 8 9 /

16

˝)

1.95 kg (4.30 lbs.)

GENERAL

Power supply

Power consumption

Dimensions (WxHxD)

Mass

(6

1

/

AC 120 V, 60 Hz

57 W

165 mm x 228 mm x 315.6 mm

2

˝ x 9˝ x 12

7

/

16

˝)

3.6 kg (7.94 lbs.)

Power consumption in standby mode 0.5 W

Notes:

1. Specifications are subject to change without notice.

Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum analyzer.Maintenance

Maintenance

If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

For a cleaner crisper sound

Clean the heads regularly to assure good quality playback and recording.

Use a cleaning tape (not included).

PM21_PC.indd 15

15

RQT7968

12/23/04 4:45:09 PM

Warranty

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC/TECHNICS PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect, or at its option, replace the product for a period as stated below from the date of original purchase.

Technics Audio Product

Panasonic Audio & DVD Product

Accessories including rechargeable batteries

One (1) year, parts and labour

One (1) year, parts and labour

Ninety (90) days

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability of detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty.

This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS

OR IMPLIED, EXCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT

OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY SERVICE

For product operation and information assistance, please contact your Dealer or our Customer

Care Centre at: Telephone #: (905) 624-5505 Fax #: (905) 238-2360 Web: www.panasonic.ca

For product repairs, please contact one of the following:

•

Your Dealer who will inform you of an authorized Servicentre nearest you.

•

Our Customer Care Centre at (905) 624-5505 or www.panasonic.ca

•

A Panasonic Factory Servicentre listed below:

Richmond,

British Columbia

Panasonic Canada Inc.

12111 Riverside Way

Richmond, BC

V6W 1K8

Tel: (604) 278-4211

Fax: (604) 278-5627

Calgary, Alberta

Panasonic Canada Inc.

6835-8 th

St. N. E.

Calgary, AB

T2E 7H7

Tel: (403) 295-3955

Fax: (403) 274-5493

Mississauga, Ontario Lachine, Québec

Panasonic Canada Inc.

5770 Ambler Dr.

Mississauga, ON

L4W 2T3

Tel: (905) 624-8447

Fax: (905) 238-2418

Panasonic Canada Inc.

3075, rue Louis A. Amos

Lachine, QC

H8T 1C4

Tel: (514) 633-8684

Fax: (514) 633-8020

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario,L4W 2T3

www.panasonic.ca

© 2004 Matsushita Electric Industrial Co., Ltd.

Printed in Malaysia

PM21_PC.indd 16

RQA0225

F1204MO

En

RQT7968-Y

L1204CP0

12/23/04 4:45:10 PM
