User manual | CAM-5Z-36X-WM-DN CAM-5Z-36X-WM-DN

CAM-5Z-36X-WM-DN

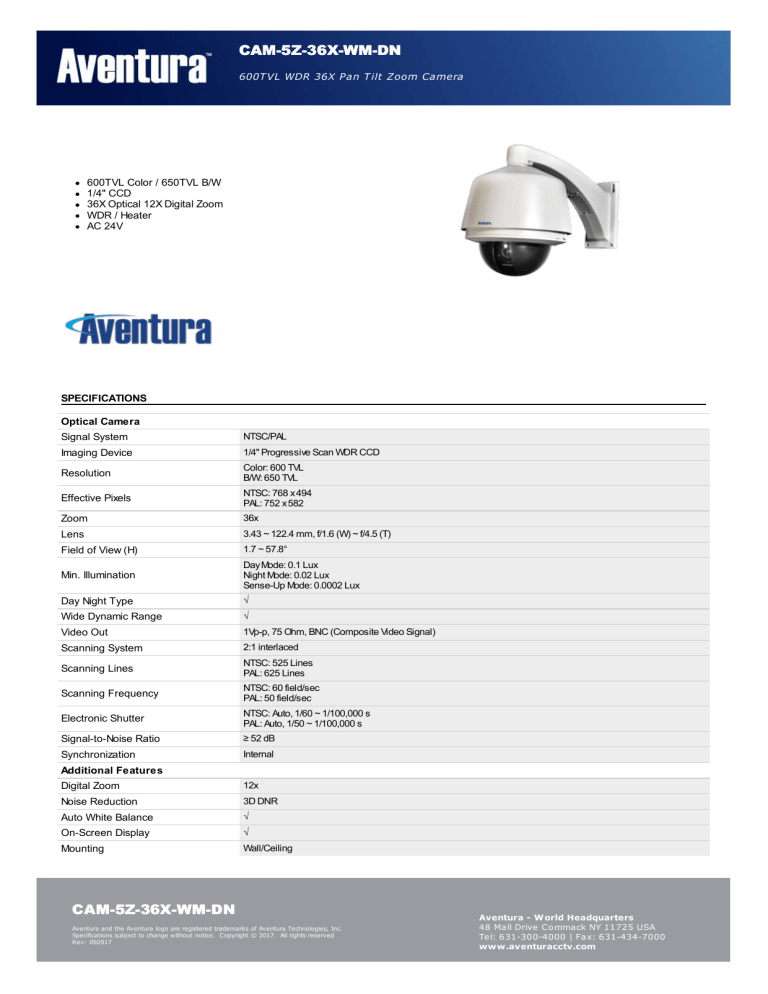

600T VL WDR 36X Pan T ilt Zoom Camera
600TVL Color / 650TVL B/W
1/4" CCD
36X Optical 12X Digital Zoom
WDR / Heater
AC 24V
SPECIFICATIONS
Optical Camera
Signal System
Imaging Device
Resolution
Effective Pixels
Zoom
Lens
Field of View (H)
Min. Illumination
Day Night Type
Wide Dynamic Range
Video Out
Scanning System
Scanning Lines
Scanning Frequency
Electronic Shutter
Signal-to-Noise Ratio
Synchronization
Additional Features
Digital Zoom
Noise Reduction
Auto White Balance
On-Screen Display
Mounting
NTSC/PAL
1/4" Progressive Scan WDR CCD
Color: 600 TVL
B/W: 650 TVL
NTSC: 768 x 494
PAL: 752 x 582
36x
3.43 ~ 122.4 mm, f/1.6 (W) ~ f/4.5 (T)
1.7 ~ 57.8°
Day Mode: 0.1 Lux
Night Mode: 0.02 Lux
Sense-Up Mode: 0.0002 Lux
√
√
1Vp-p, 75 Ohm, BNC (Composite Video Signal)
2:1 interlaced
NTSC: 525 Lines
PAL: 625 Lines
NTSC: 60 field/sec
PAL: 50 field/sec
NTSC: Auto, 1/60 ~ 1/100,000 s
PAL: Auto, 1/50 ~ 1/100,000 s
≥ 52 dB
Internal
12x
3D DNR
√
√
Wall/Ceiling
CAM-5Z-36X-WM-DN
Aventura and the Aventura logo are registered trademarks of Aventura Technologies, Inc.
Specifications subject to change without notice. Copyright © 2017. All rights reserved
Rev: 092917
Aventura - World Headquarters
48 Mall Drive Commack NY 11725 USA
Tel: 631-300-4000 | Fax: 631-434-7000
www.aventuracctv.com
CAM-5Z-36X-WM-DN
600T VL WDR 36X Pan T ilt Zoom Camera
Pan/Tilt
Pan Range
Pan Speed
Tilt Range
Tilt Speed
Presets
Protocol
Serial Communication
Environment
Operating Environment
Ingress Protection
Vandal Proof
Heater
Storage Temperature
Operating Temperature
Operating Humidity
Electrical
Input Voltage
Current Draw
Power Consumption
General
360° Continuous
0.05 ~ 400°/s
0 ~ 92° (Auto Flip)
0.03 ˜ 240°/s
220
Pelco-D (Pelco-P available)
RS-485
Indoor/Outdoor
IP66
IEC60068-2-75Eh, 50J; EN50102, IK10
√
-4 ~ 140° F (-20 ~ 60° C)
14 ~ 122° F (-10 ~ 50° C)
≤ 95% RH non-condensing
AC 24V
500 mA ˜ 2 A
48 W
Aluminum/Zinc housing
Polycarbonate bubble
Light Gray
Material
Finish
Weight
Dimensions
Regulatory Type
9.25 lb (4195 g)
8.5" x 12.5" (216 x 305 mm)
CE, FCC, UL
Brackets:
CAM-BKT-PTZ-PMB Series
CAM-BKT-PTZ-CNR
CAM-BKT-PTZ-PIL
CAM-BKT-PTZ-PPT Series
5 Years
Optional Accessories
Warranty
AVAILABLE MODELS
Part number
Description
CAM-5Z-36X-WM-DN
CAM-5Z-36X-WM-DNP
[NTSC] 600/650 TVL 36x Color PTZ Camera, Wall/Ceiling Mount, 3.4-122 mm
[PAL] 600/650 TVL 36x Color PTZ Camera, Wall/Ceiling Mount, 3.4-122 mm
CAM-5Z-36X-WM-DN
