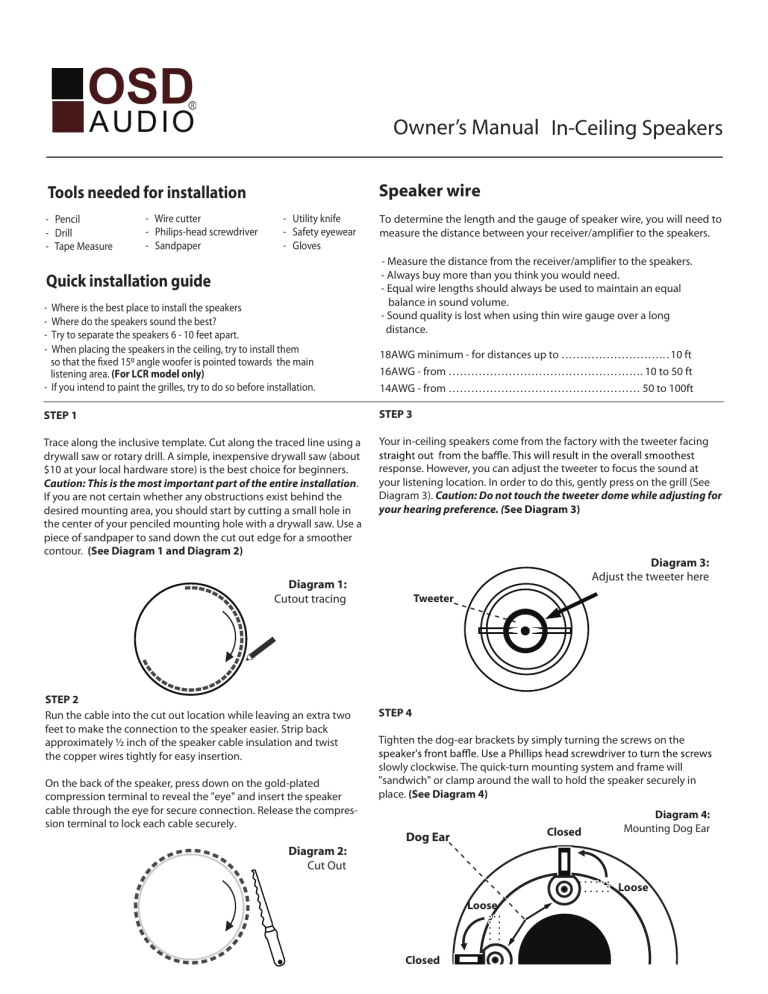

Owner’s Manual In-Ceiling Speakers
Tools needed for installation
- Pencil
- Drill
- Tape Measure
- Wire cutter
- Philips-head screwdriver
- Sandpaper
Speaker wire
- Utility knife
- Safety eyewear
- Gloves
Quick installation guide
- Measure the distance from the receiver/amplifier to the speakers.
- Always buy more than you think you would need.
- Equal wire lengths should always be used to maintain an equal
balance in sound volume.
- Sound quality is lost when using thin wire gauge over a long
distance.
Where is the best place to install the speakers
Where do the speakers sound the best?
Try to separate the speakers 6 - 10 feet apart.
When placing the speakers in the ceiling, try to install them
so that the fixed 150 angle woofer is pointed towards the main
listening area. (For LCR model only)
- If you intend to paint the grilles, try to do so before installation.
18AWG minimum - for distances up to ………………………. . 10 ft
16AWG - from ……………………………………………. 10 to 50 ft
14AWG - from …………………………………………… 50 to 100ft
STEP 1
STEP 3
Trace along the inclusive template. Cut along the traced line using a
drywall saw or rotary drill. A simple, inexpensive drywall saw (about
$10 at your local hardware store) is the best choice for beginners.
Caution: This is the most important part of the entire installation.
If you are not certain whether any obstructions exist behind the
desired mounting area, you should start by cutting a small hole in
the center of your penciled mounting hole with a drywall saw. Use a
piece of sandpaper to sand down the cut out edge for a smoother
contour. (See Diagram 1 and Diagram 2)
Your in-ceiling speakers come from the factory with the tweeter facing
Diagram 3:
Adjust the tweeter here
Tweeter
--
-
--------
slowly clockwise. The quick-turn mounting system and frame will
"sandwich" or clamp around the wall to hold the speaker securely in
place. (See Diagram 4)
Diagram 4:
Mounting Dog Ear
Closed
Dog Ear
Diagram 2:
Cut Out
---
............
Closed
.......
.....
Loose
..
-------
Loose
--
--------------
Tighten the dog-ear brackets by simply turning the screws on the
-
On the back of the speaker, press down on the gold-plated
compression terminal to reveal the "eye" and insert the speaker
cable through the eye for secure connection. Release the compression terminal to lock each cable securely.
STEP 4
--
---------
STEP 2
Run the cable into the cut out location while leaving an extra two
feet to make the connection to the speaker easier. Strip back
approximately ½ inch of the speaker cable insulation and twist
the copper wires tightly for easy insertion.
..
--
--
-
Diagram 1:
Cutout tracing
--
---
-----
response. However, you can adjust the tweeter to focus the sound at
your listening location. In order to do this, gently press on the grill (See
Diagram 3). Caution: Do not touch the tweeter dome while adjusting for
your hearing preference. (See Diagram 3)
---
-
To determine the length and the gauge of speaker wire, you will need to
measure the distance between your receiver/amplifier to the speakers.
--
-------
Diagram 7
STEP 5 (Not applicable to certain models)
TIP: Adjust the bass and the treble setting on your speakers by
shifting the knob either to the left or right. Speakers positioned
closer to a corner often produce more bass and will usually benefit
with the tweeter switch in the +3dB position. Speakers located
within a few feet of a listener's ear will often sound better with the
tweeter switch set to -3dB. Furthermore, rolled in insulation materials, such as a foam bedding would work as a dampening material
(See Diagram 5)
Diagram 5
RIGHT OUT
LEFT OUT
-+
Receiver/Amplifier
+-
Adjustment Switches
+
+3 0 -3
_
TREBLE
+
+3 0 -3
_
BASS
LEFT
Treble Adjustment Switch
Power handling
(10 watts)
minimum
RIGHT
Bass Adjustment Switch
TIP: Blown-in insulation can sometimes work its way into the moving
components of the speaker, negatively impacting performance. It is
best to replace about a one square foot section directly behind the
speaker with rolled-in (bat) insulation. (See Diagram 6)
Note: Speaker terminals have corresponding (+) and (-) terminals. It is
important to connect both speakers in phase. Out of phase will result in
thin sound and weak bass.
Note: The wire for both speakers should be about the same length.
the excess wire behind the wall
Diagram 6
Terminal identification
wattage is comparable to the speaker’s power handling. Please refer to
your owner’s manual for reference.
Diagram 8
-2
.5w - 5w - 1
0
w
70 Volts Consideration ( Applicable to only 70V tap Speakers)
The 70V transformer offers you the ability to daisy chain multiple
number of speakers in series. In doing so, you would simply connect
1 pair of outputs to each speaker and daisy to subsequential
speaker/s. If you don’t intend to daisy chain the speakers, set the
default setting to 8 Ohm (See Diagram 8)
8Ω
When connecting any speakers to the amplifier or receiver, always make
sure the power is off. Locate the connection terminals on the back of
your receiver or amplifier. Always make sure to connect audio out from
the back of your receiver or amplifier to the speakers. (See Diagram 7)
Warranty & Repair
All OSD AUDIO speaker products have (10) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany all claims.
During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for either parts or labor
OSD AUDIO may replace returned speakers with a product of equal value and performance. In such cases, some modifications to the mounting may be necessary and
are not OSD AUDIO’s responsibility.
For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD AUDIO. The unit
must be returned to OSD AUDIO at the owner's expense and with prior written permission. Accidental damage and shipping damage are not considered defects, nor
is damaged resulting from abuse or from servicing performed by an agency or person not specifically authorized in writing by OSD Audio
OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD AUDIO product
purchased from an unauthorized dealer or other source, including retailers, mail over dealers and online sellers will not be honored or serviced under existing OSD
AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the warranty on the applicable
product.
Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be made on the basis of the retail
value of the parts and labor. To return for repairs, you must email customer service at [email protected] for a Returned Merchandise Authorization (RMA) number# then
the unit must be shipped to OSD AUDIO at the owner's expense, along with a note explaining the nature of service required. Be sure to pack the speaker(s) in a corrugated
container with at least 3 inches of resilient material to protect the unit from damage in transit.
This Warranty Does Not Cover:
Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that have been altered or modified • Any product whose
identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and maintenance.
MKW-850
IW-850
IW-840
CW - 840SQ
In Wall Speakers
8” Kevlar In wall
Home Theater Speakers
Pro Series In Wall Speakers
8” Squared Co-Axial
Speaker In Wall Speaker
1”Pivoting Aluminum
Tweeter
8” Kevlar Cones
1” Pivoting Silk Dome
1” Pivoting Silk Dome
Woofer:
1” Pivoting Aluminum
Tweeter
8” Kevlar Cones
8” Polypropylene
8” Polypropylene
Impedance:
8Ω
8Ω
8Ω
8Ω
Sensitivity:
92dB 1w/1m
92dB 1w/1m
90dB
90dB
Contour Switches:
2-Position Front-Mounted
2-Position Front-Mounted
2-Position Front-Mounted
±3dB Bass & Treble Switches ±3dB Bass & Treble Switches ±3dB Bass & Treble Switches
In Wall Model
Speaker Type:
Tweeter:
N/A
N/A
36Hz - 20kHz
150 Watts
10” x 10” x 3 ½”
Frequency Response:
Power Handling:
Dimensions: (H x W x D)
Wall Cut Out: (H x W)
Unit of Measure:
25Hz - 22kHz
200 Watts
26Hz - 22kHz
175 Watts
Pair
Pair
36Hz - 22kHz
175 Watts
13 ¾” x 10“ x 3 ¾”
12 ¾” x 8 ¾”
Pair
IW-810
IW-800
IW-690
IW-680
IW-670
8” Custom Series
In Wall Speakers
8” Contractor Series
In Wall Speakers
6 ½” Kevlar Inwall
Home Theater Speakers
Pro Series In Wall Speakers
6 ½” Custom Series
In Wall Speakers
1” Pivoting Silk Dome
1” Pivoting Silk Dome
8” Polypropylene
1” Pivoting Aluminum
Tweeter
6 ½” Polypropylene
1” Pivoting Silk Dome
8” Polypropylene
1”Pivoting Aluminum
Tweeter
6 ½” Kevlar Cones
8Ω
8Ω
8Ω
8Ω
8Ω
Pair
6 ½” Polypropylene
90dB
89dB
92dB 1w/1m
90dB
87dB
N/A
N/A
N/A
N/A
2-Position Front-Mounted
±3dB Bass & Treble Switches
N/A
N/A
N/A
N/A
38Hz - 22kHz
150 Watts
45Hz - 22kHz
120 watts
30Hz - 22kHz
150 watts
38Hz - 22kHz
150 watts
48Hz - 22kHz
125 Watts
12 ¾” x 8 ¾”
Pair
12 ¾” x 8 ¾”
Pair
Pair
Pair
Pair
MKW-650
CW - 640SQ
IW-620
CW - 540SQ
IW-540
”
In Wall Speakers
1” Pivoting Aluminum
Tweeter
6 ½” Squared Co-Axial
Speaker In Wall Speaker
6 ½” Contractor Series
In Wall Speakers
5 ¼” Squared Co-Axial
Speaker In Wall Speaker
Pro Series In Wall Speaker
1” Pivoting Silk Dome
1/2 ” PEI Dome
1” Pivoting Silk Dome
1” Pivoting Silk Dome
6 ½” Polypropylene
6 ½” Polypropylene
6 ½” Polypropylene
5 ¼” Polypropylene
5 ¼” Polypropylene
8Ω
8Ω
8Ω
8Ω
8Ω
92dB
91dB
N/A
88dB
90dB
90dB
N/A
N/A
N/A
N/A
N/A
60Hz - 22kHz
100 Watts
N/A
58Hz - 22kHz
125 Watts
Pair
5 ¾” x 5 ¾”
Pair
2-Position Front-Mounted
±3dB Bass & Treble Switches
28Hz - 22kHz
175 Watts
N/A
38Hz - 22kHz
150 Watts
Pair
Pair
”
58Hz - 22kHz
100 Watts
Pair
In Wall Model
IW-530
IW-520
Speaker Type:
5 ¼” Custom Series
In Wall Speakers
5 ¼” Contractor Series
In Wall Speakers
Tweeter:
1” Pivoting Silk Dome
1/2” PEI Dome
Woofer:
5 ¼” Polypropylene
5 ¼” Polypropylene
Impedance:
8Ω
8Ω
Sensitivity:
87dB
88dB
N/A
N/A
N/A
N/A
Frequency Response:
Power Handling:
Dimensions: (H x W x D)
Wall Cut Out: (H x W)
Unit of Measure:
68Hz - 22kHz
75Hz - 22kHz
100 Watts
90 Watts
Pair
Pair
In Wall Center LCR
IW-550 LCR
IW-545 LCR
IW-525 LCR
Speaker Type:
5 ¼” Kevlar Center Channel
LCR In Wall Home Theater
Speaker
Pro Series Center
In Wall LCR Speaker
Tweeter:
1” Pivoting Silk Dome
Woofer:
1” Pivoting Aluminum
Tweeter
Dual 5 ¼” Kevlar Cones
5 ¼” Custom Series
Center Channel LCR
In Wall Speaker
1” Pivoting Silk Dome
Dual 5 ¼” Polypropylene
Dual 5 ¼” Polypropylene
Impedance:
Sensitivity:
8Ω
91dB 1w/1m
8Ω
90dB
8Ω
90dB
Contour Switches:
2-Position Front-Mounted
±3dB Bass & Treble Switches
N/A
N/A
Frequency Response:
Power Handling:
Dimensions: (H x W x D)
30Hz - 22kHz
150 watts
N/A
50Hz - 22kHz
125 Watts
N/A
55Hz - 22kHz
100 Watts
Unit of Measure:
Each
Each
Each
In Wall Subwoofer
IW-S10
IW-S8
Speaker Type:
10” In Wall Subwoofer
8” In Wall Subwoofer
Woofer:
10“ Polyproplene
8Ω
8” Polypropylene
8Ω
86dB
N/A
87dB
Contour Switches:
Wall Cut Out: (H x W)
Impedance:
Sensitivity:
Contour Switches:
Frequency Response:
Power Handling:
Mounting Depth:
38Hz - 200Hz +/- 3dB
25-200 watts
3 ¾”
8 ¾” x 8 ¾”
Wall Cut Out: (H x W)
Unit of Measure:
N/A
40Hz - 200Hz +/- 3dB
25-150 Watts
Each
Each
Weather Resistant
Ceiling Speakers
ICE-800WRS
ICE-800WRSTT
ICE-600WRS
ICE-600WRSTT
Speaker Type:
8” Weather Resistant
Ceiling Speakers
8” Weather Resistant
Stereo Ceiling Speaker
6 ½” Weather Resistant
Ceiling Speakers
6 ½” Weather Resistant
Stereo Ceiling Speaker
Tweeter:
1” Polycarbonate
Tweeter
8” Polypropylene
Dual 1” polycarbonate
Tweeter
8” Polypropylene
1” Polycarbonate
Tweeter
6 ½” Polypropylene
Dual 1” polycarbonate
Tweeter
6 ½” Polypropy lene
Impedance:
Sensitivity:
8Ω
8Ω
8Ω
8Ω
90dB
86/89dB
90dB
86/89dB
Contour Switches:
Frequency Response:
Power Handling:
imensions:(D x H)
Ceiling Cut Out:
Unit of Measure:
N/A
36Hz - 20kHz
150 Watts
N/A
36Hz - 20kHz
150 Watts
N/A
48Hz - 20kHz
150 Watts
N/A
48Hz - 20kHz
150 Watts
Each
Each
Each
Each
Woofer:
Dual Tweeter
Ceiling Speakers
ICE-840TT
ICE-640TT
ICE-620TT
Pro Series Ceiling Speaker
Pro Series Ceiling Speaker
6 ½” Custom Series
Stereo Speaker
Tweeter:
Dual ¾” Silk Dome
Dual ¾” Silk Dome
Dual ¾” Silk Dome
Woofer:
6 ½” Polypropylene
6 ½” Polypropy
Impedance:
8” Polypropylene
8Ω
8Ω
8Ω
Sensitivity:
86/89dB
86/89dB
86/89dB
N/A
Speaker Type:
Contour Switches:
Frequency Response:
Power Handling:
Dimensions:(D x H)
Ceiling Cut Out:
Unit of Measure:
N/A
36Hz - 22kHz
175 Watts
N/A
40Hz - 22kHz
150 Watts
Each
Each
Architectural
Ceiling Element
ACE-400
ACE-750
Speaker Type:
3” Architectural Ceiling
Speakers
7” Kevlar Architectural
Ceiling Speakers
Tweeter:
Woofer:
Impedance:
Sensitivity:
Contour Switches:
N/A
3” Polyproplene
8Ω
92dB 1W/1m
Pivoting 1” Silk High Teleron Dome
7” Kevlar Cones
8Ω
92dB 1W/1m
2-Position Front-Mounted
±3dB Bass & Treble Switches
Frequency Response:
Power Handling:
Dimensions: (H x W x D)
Wall Cut Out: (H x W)
Unit of Measure:
N/A
N/A
120Hz - 20kHz
60 Watts
4 3⁄8” x 2 ½”
4 ½”
Pair
36Hz - 22kHz
175 Watts
7 5⁄8” x 4 ½”
7 5⁄8”
Pair
40Hz - 22kHz
125 Watts
7 ¾”
Each
In-Ceiling Model
MK-850
Speaker Type:
ICE-850
ICE-870
MK-840
Ceiling Speakers
1” Pivoting Aluminum
Tweeter
8” Kevlar Cones
8” Kevlar Ceiling Home
Theater Speakers
8” Kevlar LCR Ceiling
Home Theater Speaker
Ceiling Speakers
1” Pivoting Aluminum
Tweeter
8” Kevlar Cones
1” Pivoting Aluminum
Tweeter
8” Kevlar Cone
1” Pivoting Titanium
Tweeter
8” Polypropylene
8Ω
92dB 1W/1m
8Ω
92dB
8Ω
92dB 1w/1m
8Ω
92dB 1W/1m
Contour Switches:
2-Position Front-Mounted
±3dB Bass & Treble Switches
2-Position Front-Mounted
±3dB Bass & Treble Switches
2-Position Front-Mounted
2-Position Front-Mounted
±3dB Bass & Treble Switches
Frequency Response:
Power Handling:
Dimensions: (H x W x D)
Wall Cut Out: (H x W)
Unit of Measure:
25Hz - 22kHz
200 Watts
26Hz - 22kHz
175 Watts
26Hz - 22kHz
±3dB Bass & Treble Switches
32Hz - 22kHz
175 Watts
175 Watts
Pair
Pair
Pair
Pair
ICE-840
ICE-810
ICE-800ST
ICE-800
MK-650
Pro Series Ceiling Speakers
8” Custom Series
Ceiling Speakers
8” Ceiling Speaker
With Back Can
8” Contractor Series
Ceiling Speakers
Ceiling Speakers
1” Pivoting Silk Dome
1” Pivoting Silk Dome
1” Pivoting Tweeter
1/2 PEI Dome
1” Pivoting Aluminum
Tweeter
8” Polypropylene
8” Polypropylene
8Ω
89dB
N/A
N/A
38Hz - 22kHz
140 Watts
8” Polypropylene
8 Ω or 70v
89dB
N/A
N/A
45Hz - 20kHz
120 Watts
11” x 7”
8” Polypropylene
8Ω
91dB
N/A
N/A
36Hz - 22kHz
175 Watts
8Ω
89dB
N/A
N/A
45Hz - 22kHz
120 Watts
6 ½” Kevlar Cones
8Ω
92dB 1W/1m
2-Position Front-Mounted
±3dB Bass & Treble Switches
28Hz - 22kHz
175 Watts
Pair
Pair
Each
Pair
Pair
ICE-650
ICE-670
ICE-660
MK-640
ICE-645
6 ½” Kevlar Ceiling
Home Theater Speakers
6 ½” Kevlar LCR Ceiling
Home Theater Speaker
Ceiling Speakers
1” Pivoting Aluminum
Tweeter
1” Pivoting Aluminum
Tweeter
6 ½” Kevlar Cone
8Ω
92dB 1w/1m
N/A
Pro LCR Ceiling Speaker
1” Pivoting Silk Dome
Pro Series Ceiling Speakers
1” Pivoting Silk High
Tenacity Teteron Dome
Tweeter:
Woofer:
Impedance:
Sensitivity:
6 ½” Kevlar Cones
8Ω
92dB 1w/1m
2-Position Front-Mounted
±3dB Bass & Treble Switches
30Hz - 22kHz
150 watts
Pair
N/A
30Hz - 22kHz
150 watts
8 ¼”
Each
6 ½” Polypropylen
8Ω
92dB 1w/1m
N/A
N/A
50Hz - 22kHz
150 watts
10 ½” x 5”
Each
1” Pivoting Titanium
Tweeter
6 ½” Polypropylene
e
6 ½” Polypropylene
8Ω
92dB 1W/1m
2-Position Front-Mounted
±3dB Bass & Treble Switches
32Hz - 22kHz
150 Watts
8Ω
92dB
Pair
Pair
N/A
N/A
36Hz - 22kHz
175 Watts
In-Ceiling Model
ICE-640
ICE-630
ICE-620ST
ICE-620
Pro Series Ceiling Speakers
1” Pivoting Silk Dome
6 ½” Polypropylen
6 ½” Custom LCR Series
Ceiling Speaker
1” Pivoting Silk Dome
6 ½” Polypropylene
6 ½” Ceiling Speaker
With Back Can
1/2” PEI Dome
6 ½” Polypropylene
6 ½” Custom Series
Ceiling Speakers
1” Pivoting Silk Dome
6 ½” Polypropylene
8Ω
8Ω
91dB
N/A
91dB
8 Ω or 70v
89dB
8Ω
89dB
N/A
38Hz - 22kHz
150 watts
N/A
N/A
52Hz - 22kHz
125 Watts
10 ½” x 5”
N/A
N/A
60Hz - 20kHz
100 Watts
9 ½” x 5 ½”
N/A
N/A
58Hz - 22kHz
125 Watts
Pair
Pair
Each
7 ¾”
Pair
MK-550
MK-540
ICE-540
ICE-530
Ceiling Speakers
Pro Series Ceiling Speakers
1/2 PEI Dome
Ceiling Speakers
1” Pivoting Aluminum
Tweeter
¾” Silk Dome
6 ½” Polypropylene
8Ω
88dB
5 ¼” Kevlar Cones
8Ω
92dB 1W/1m
1” Pivoting Titanium
Tweeter
5 ¼” Polypropylene
8Ω
92dB 1W/1m
5 ¼” Custom Series
Ceiling Speakers
¾” Pivoting Silk Dome
5 ¼” Polypropylene
5 ¼” Polypropylene
N/A
N/A
60Hz - 22kHz
100 Watts
2-Position Front-Mounted
±3dB Bass & Treble Switches
50Hz - 22kHz
150 Watts
2-Position Front-Mounted
±3dB Bass & Treble Switches
55Hz - 22kHz
125 Watts
8Ω
90dB
N/A
N/A
58Hz - 22kHz
80 Watts
7 ¾” x 2 ¾”
8Ω
88dB
N/A
N/A
65Hz - 22kHz
100 Watts
8” x 2 ¾”
7 ¾”
Pair
6 ½”
Pair
6 ½”
Pair
Pair
Pair
ICE-520
ICE-1080HD
5 ¼” Contractor Series
Ceiling Speakers
3-way 10” Ceiling
Speaker
1 ½” Silk Dome Tweeter
With 2 ½” Mylar Cone
Speaker Type:
Tweeter:
Woofer:
Impedance:
Sensitivity:
Contour Switches:
Frequency Response:
Power Handling:
Dimensions: (H x
Wall Cut Out: (H x W)
Unit of Measure:
ICE-610
6 ½” Contractor Series
Ceiling Speakers
1/2 PEI Dome
5 ¼” Polypropylene
8Ω
88dB
N/A
N/A
75Hz - 22kHz
90 Watts
8” x 2 ¾”
Pair
10” Polypropylene
8Ω
90dB
N/A
N/A
36Hz - 20kHz
150 Watts
Each
OSD Audio • 1405 Pioneer St • Brea • CA • 92821 • www.osdaudio.com • Tel (562) 697-2600 • Fax (562) 697-2668
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
