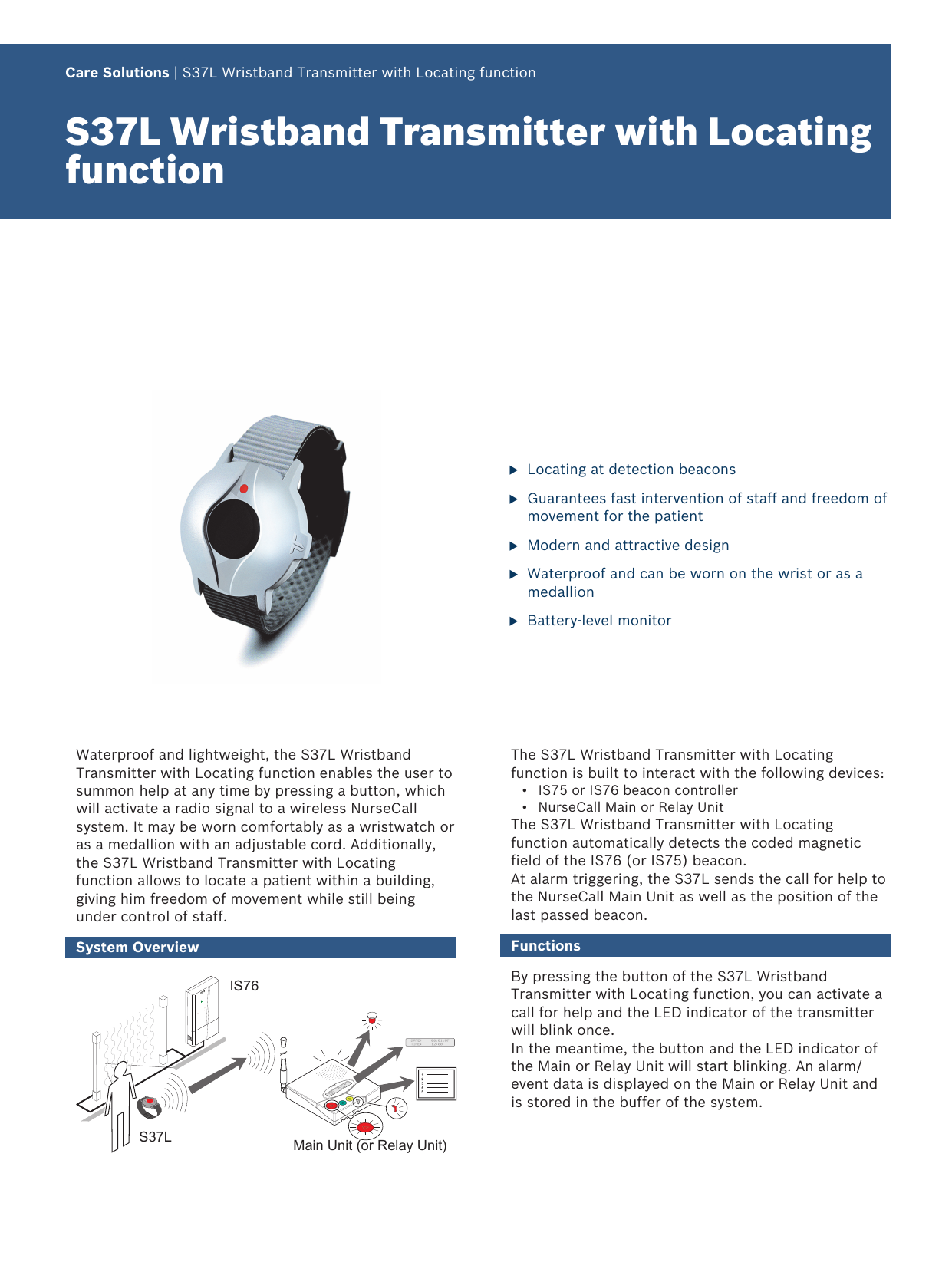

S37L Wristband Transmitter with Locating function

Care Solutions | S37L Wristband Transmitter with Locating function
S37L Wristband Transmitter with Locating
function
www.boschsecurity.com
u
Locating at detection beacons
u
Guarantees fast intervention of staff and freedom of
movement for the patient
u
Modern and attractive design
u
Waterproof and can be worn on the wrist or as a
medallion
u
Battery-level monitor
Waterproof and lightweight, the S37L Wristband
Transmitter with Locating function enables the user to
summon help at any time by pressing a button, which
will activate a radio signal to a wireless NurseCall
system. It may be worn comfortably as a wristwatch or
as a medallion with an adjustable cord. Additionally,
the S37L Wristband Transmitter with Locating
function allows to locate a patient within a building,
giving him freedom of movement while still being
under control of staff.
The S37L Wristband Transmitter with Locating
function automatically detects the coded magnetic
field of the IS76 (or IS75) beacon.
At alarm triggering, the S37L sends the call for help to
the NurseCall Main Unit as well as the position of the
last passed beacon.
System Overview
Functions
• IS75 or IS76 beacon controller
• NurseCall Main or Relay Unit
By pressing the button of the S37L Wristband
Transmitter with Locating function, you can activate a
call for help and the LED indicator of the transmitter
will blink once.
In the meantime, the button and the LED indicator of
the Main or Relay Unit will start blinking. An alarm/
event data is displayed on the Main or Relay Unit and
is stored in the buffer of the system.
IS76
S37L
The S37L Wristband Transmitter with Locating
function is built to interact with the following devices:
Main Unit (or Relay Unit)
2 | S37L Wristband Transmitter with Locating function
Cancelling an alarm can be done in two ways. It is
always possible on the Main or Relay Unit, or can be
done locally by a magnet on the S37L Wristband
Transmitter with Locating function, available as an
option.
The S37L Wristband Transmitter with Locating
function can also be used to locate the patient. The
Transmitter sends the call for help and the position of
the last passed beacon. It can also be used to
automatically generate an alarm if the person is
approaching a forbidden door/zone ("Dementia"
alarm).
The S37L Wristband Transmitter with Locating
function offers an IP67 waterproof protection and has
a built-in automatic battery monitoring with battery
low transmission. To ensure correct functioning, it will
send an automatic radio daily message to the receiver
through radio monitoring. The call button is available
in black.
Battery life
18 months, under following conditions:
3 alarms transmissions without repetition
per day and 1 daily test transmission (incl.
battery status)
15 door beacons passed with a 1-minute
pause in the detected area
Battery alarm
at approx. 20 % remaining
Automatic battery test
daily check and at every alarm
Permissible
temperature
0 °C to 55 °C
Stability (0 to +55 °C)
< 3 KHz
Modulation:
FSK
Antenna
Integrated loop
Radiated power
50 µW
Transmission time
2 x 1300 ms
Certifications and Approvals
Pause between
transmissions
200 to 600 ms (random)
R&TTE 1999/5/EC
Minimum range in free
field
250 m
EMC 2004/108/EC
Ordering Information
LVD 2006/95/EC
EN 50371 (2002)
S37L Wristband Transmitter with Locating function
EN 55022 (2006, A1: 2007)
basic version
EN 60950-1 (2011)
Order number CRS-NC-S37L
S37L Wristband Transmitter with Locating function
EN 300220-2 V2.3.1
without dementia alarm
EN 301489-1 V1.8.1
Order number CRS-NC-S37L-WD
S37L Wristband Transmitter with Locating function
EN 301489-3 V1.4.1
EN 50130-4 (1995, A1: 1998, A2: 2003)
Parts Included
only dementia alarm
Order number CRS-NC-S37L-OD
S37L Wristband Transmitter with Locating function
Quantity
Component
1
S37L Wristband Transmitter with Locating function
without manual trigger
Order number CRS-NC-S37L-WM
S37L Wristband Transmitter with Locating function
with extended dementia codes
Technical Specifications
Order number CRS-NC-S37L-EX
Dimensions (H x W x D)
48 x 42 x 13.5 mm
Accessories
Weight
22 g
CR2025 3V Battery for S37 Wristband Transmitter
Set of 5 pieces
Frequency
434.01 MHz
Order number CRS-BATT-CR2025
Protection class
IP 67 (EN 60529)
Power supply
3V lithium battery CR2025
Magnet with key holder
Order number CRS-SV-03800
Consumption
Transmission: < 20 mA
Idle mode: < 7 µA
Case opener
for S37, S37L and S37E Wristband Transmitters
Order number CRS-SV-09900
