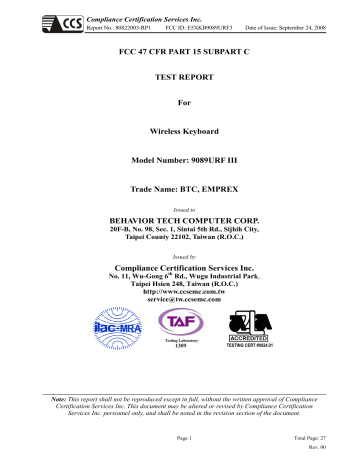

FCC 47 CFR PART 15 SUBPART C TEST REPORT For

FCC 47 CFR PART 15 SUBPART C TEST REPORT For

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

FCC 47 CFR PART 15 SUBPART C

TEST REPORT

For

Wireless Keyboard

Model Number: 9089URF III

Trade Name: BTC, EMPREX

Issued to

BEHAVIOR TECH COMPUTER CORP.

20F-B, No. 98, Sec. 1, Sintai 5th Rd., Sijhih City,

Taipei County 22102, Taiwan (R.O.C.)

Issued by

Compliance Certification Services Inc.

No. 11, Wu-Gong 6 th

Rd., Wugu Industrial Park,

Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsemc.com.tw [email protected]

Note: This report shall not be reproduced except in full, without the written approval of Compliance

Certification Services Inc. This document may be altered or revised by Compliance Certification

Services Inc. personnel only, and shall be noted in the revision section of the document.

Page 1 Total Page: 27

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

TABLE OF CONTENTS

1. TEST RESULT CERTIFICATION................................................................................................. 3

3.1

EUT CONFIGURATION

................................................................................................................. 5

3.2

EUT EXERCISE

............................................................................................................................. 5

3.3

GENERAL TEST PROCEDURES

...................................................................................................... 5

3.4

FCC PART

15.205 RESTRICTED BANDS OF OPERATIONS................................................. 6

3.5

DESCRIPTION OF TEST MODES

.................................................................................................... 6

............................................................................... 7

5.1

FACILITIES

.................................................................................................................................. 8

5.2

EQUIPMENT

................................................................................................................................. 8

5.3

TABLE OF ACCREDITATIONS AND LISTINGS

................................................................................ 9

6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 10

6.1

SETUP CONFIGURATION OF EUT

................................................................................................ 10

7. FCC PART 15.249 REQUIREMENTS......................................................................................... 11

7.1 20 DB BANDWIDTH ............................................................................................................. 11

7.2 BAND EDGES MEASUREMENT......................................................................................... 14

APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 27

Page 2 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

1. TEST RESULT CERTIFICATION

Applicant:

Equipment Under Test:

Trade Name:

Model Number:

Date of Test:

BEHAVIOR TECH COMPUTER CORP.

20F-B, No. 98, Sec. 1, Sintai 5th Rd., Sijhih City,

Taipei County 22102, Taiwan (R.O.C.)

Wireless Keyboard

BTC, EMPREX

9089URF III

September 1 ~ 15, 2008

APPLICABLE STANDARDS

STANDARD TEST RESULT

FCC 47 CFR Part 15 Subpart C No non-compliance noted

We hereby certify that:

The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249.

The test results of this report relate only to the tested sample identified in this report.

Approved by:

Rex Lai

Section Manager

Compliance Certification Services Inc.

Reviewed by:

Amanda Wu

Section Manager

Compliance Certification Services Inc.

Page 3 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

2. EUT DESCRIPTION

Product

Wireless Keyboard

Trade Name

Model Number

BTC, EMPREX

9089URF III

Model Discrepancy

Power Supply

Frequency Range

Frequency Spacing

N/A

Keyboard: Powered by AA batteries × 2 (DC: 3V)

2402~2479MHz

1MHz

Frequency Number

78 Channels

Modulation Technique

GFSK

Antenna Gain

-1.20dBi

Antenna Designation

Printed Antenna

Remark:

1. The sample selected for test was production product and was provided by manufacturer.

2. This submittal(s) (test report) is intended for FCC ID: E5XKB9089URF3 filing to comply with Section 15.107, 15.109, 15.207, 15.209, 15.249 (FCC Part 15, Subpart C

Rules.)

Page 4 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

3. TEST METHODOLOGY

The tests documented in this report were performed in accordance with ANSI C63.4 and FCC

CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.249.

3.1 EUT CONFIGURATION

The EUT configuration for testing is installed on RF field strength measurement to meet the

Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application.

3.2 EUT EXERCISE

The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements.

According to its specifications, the EUT must comply with the requirements of the Section

15.107 and 15.109 under the FCC Rules Part 15 Subpart B and Section 15.207, 15.209,15.249 under the FCC Rules Part 15 Subpart C.

3.3 GENERAL TEST PROCEDURES

Conducted Emissions

The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4 Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes.

Radiated Emissions

The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate

360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied from 1m to 4m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. In order to find out the maximum emissions, exploratory radiated emission measurements were made according to the requirements in Section 13.1.4.1 of ANSI C63.4.

Page 5 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS

(a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below:

MHz

1

0.090 - 0.110

0.495 - 0.505

2.1735 - 2.1905

4.125 - 4.128

4.17725 - 4.17775

4.20725 - 4.20775

6.215 - 6.218

6.26775 - 6.26825

6.31175 - 6.31225

8.291 - 8.294

8.362 - 8.366

8.37625 - 8.38675

8.41425 - 8.41475

12.29 - 12.293

12.51975 - 12.52025

12.57675 - 12.57725

13.36 - 13.41

MHz

16.42 - 16.423

16.69475 - 16.69525

16.80425 - 16.80475

25.5 - 25.67

37.5 - 38.25

73 - 74.6

74.8 - 75.2

108 - 121.94

123 - 138

149.9 - 150.05

156.52475 -

156.52525

156.7 - 156.9

162.0125 - 167.17

167.72 - 173.2

240 - 285

322 - 335.4

MHz

399.9 - 410

608 - 614

960 - 1240

1300 - 1427

1435 - 1626.5

1645.5 - 1646.5

1660 - 1710

1718.8 - 1722.2

2200 - 2300

2310 - 2390

2483.5 - 2500

2655 - 2900

3260 - 3267

3332 - 3339

3345.8 - 3358

3600 - 4400

1

Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz.

2

Above 38.6

GHz

4.5 - 5.15

5.35 - 5.46

7.25 - 7.75

8.025 - 8.5

9.0 - 9.2

9.3 - 9.5

10.6 - 12.7

13.25 - 13.4

14.47 - 14.5

15.35 - 16.2

17.7 - 21.4

22.01 - 23.12

23.6 - 24.0

31.2 - 31.8

36.43 - 36.5

(

2

)

(b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown in Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector.

Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in

Section 15.35 apply to these measurements.

3.5 DESCRIPTION OF TEST MODES

The EUT (model: 9089URF III) had been tested under operating condition.

After verification, all tests were carried out with the worst case test modes as shown below except radiated spurious emission below 1GHz, which worst case was in normal link mode only

Channel Low (2402MHz), Channel Mid (2441MHz) and Channel High (2479MHz) were chosen for full testing.

Page 6 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

4. INSTRUMENT CALIBRATION

4.1 MEASURING INSTRUMENT CALIBRATION

The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards.

4.2 MEASUREMENT EQUIPMENT USED

Equipment Used for Emissions Measurement

Remark: Each piece of equipment is scheduled for calibration once a year.

Name of Equipment

Spectrum Analyzer

Test Receiver

Switch Controller

4 Port Switch

3M Semi Anechoic Chamber

Manufacturer Model Serial Number

Agilent

Rohde&Schwarz

E4446A

ESCI

US42510252

100064

TRC

TRC

Switch Controller

4 Port Switch

SC94050010

SC94050020

Calibration Due

09/10/2009

11/30/2008

05/05/2009

05/05/2009

Bilog- Antenna

Turn Table

Antenna Tower

Sunol Sciences

Max-Full

Max-Full

JB3

MFT-120S

MFA-430

A030205

T120S940302

A440940302

03/28/2009

N.C.R.

N.C.R.

Site NSA CCS N/A

FCC: 965860, 868658

IC: IC 6106

09/25/2009

Test S/W LABVIEW (V 6.1)

Remark: The measurement uncertainty is less than +/-3.7046dB (30MHz ~ 1GHz), +/-3.0958dB (Above 1GHz) which is evaluated as per the NAMAS NIS 81 and CISPR/A/291/CDV.

Page 7 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

5. FACILITIES AND ACCREDITATIONS

5.1 FACILITIES

All measurement facilities used to collect the measurement data are located at

No. 199, Chunghsen Road, Hsintien City, Taipei County 22102, Taiwan (R.O.C.)

Tel: 886-2-2217-0894 / Fax: 886-2-2217-1029

No.11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan

Tel: 886-2-2299-9720 / Fax: 886-2-2298-4045

No.81-1, Lane 210, Bade 2nd Rd., Luchu Hsiang, Taoyuan Hsien 338, Taiwan

Tel: 886-3-324-0332 / Fax: 886-3-324-5235

The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and

CISPR Publication 22.

5.2 EQUIPMENT

Radiated emissions are measured with one or more of the following types of linearly polarized antennas: tuned dipole, biconical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum analyzers with pre-selectors and quasi-peak detectors are used to perform radiated measurements.

Conducted emissions are measured with Line Impedance Stabilization Networks and EMI Test

Receivers.

Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements.

All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring

Apparatus and Measurement Methods.”

Page 8 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

5.3 TABLE OF ACCREDITATIONS AND LISTINGS

Country Agency Scope of Accreditation

EN 55011, EN 55014-1/2, CISPR 11, CISPR 14-1/2,

EN 55022, EN 55015, CISPR 22, CISPR 15,

AS/NZS 3548, VCCI V3 (2001), CFR 47, FCC Part 15/18,

CNS 13783-1, CNS 13439, CNS 13438, CNS 13803,

CNS 14115, EN 55024, IEC 801-2, IEC 801-3, IEC 801-4,

IEC/EN 61000-3-2, EIC/EN 61000-3-3,

IEC/EN 61000-4-2/3/4/5/6/8/11, EN 50081-1/

EN 61000-6-3, EN 50081-2/EN 61000-6-4,

EN 50081-2/EN 61000-6-1: 2001

Logo

965860, 898658

Taiwan TAF

LP0002, RTTE01, FCC Method-47 CFR Part 15 Subpart C, D, E,

RSS-210, RSS-310

IDA TS SRD, AS/NZS 4268, AS/NZS 4771, TS 12.1 & 12,2,

ETSI EN 300 440-1, ETSI EN 300 440-2, ETSI EN 300 328,

ETSI EN 300 220-1, ETSI EN 300 220-2, ETSI EN 301 893,

ETSI EN 301 489-1/3/7/17

FCC OET Bulletin 65 + Supplement C,

EN 50360, EN 50361, EN 50371, RSS 102, EN 50383, EN 50385,

EN 50392, IEC 62209, CNS 14958-1, CNS 14959

FCC Method –47 CFR Part 15 Subpart B

IEC / EN 61000-3-2, IEC / EN 61000-3-3,

IEC / EN 61000-4-2/3/4/5/6/8/11

Canada

Industry

Canada

3M Semi Anechoic Chamber (IC 6106 & IC 6106A-2) to perform

RSS 212 Issue 1

IC 6106

IC 6106A-2

* No part of this report may be used to claim or imply product endorsement by A2LA or any agency of the US

Government.

Page 9 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

6. SETUP OF EQUIPMENT UNDER TEST

6.1 SETUP CONFIGURATION OF EUT

See test photographs attached in Appendix I for the actual connections between EUT and support equipment.

6.2 SUPPORT EQUIPMENT

No Equipment Trade Name Model Serial No. FCC ID Data Cable Power Cord

N/A N/A N/A N/A N/A N/A N/A

Remark:

1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test.

2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use.

Page 10 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

7. FCC PART 15.249 REQUIREMENTS

7.1 20 DB BANDWIDTH

LIMIT

None; for reporting purposes only.

Test Configuration

EUT

Spectrum

Analyzer

TEST PROCEDURE

1. Place the EUT on the table and set it in the transmitting mode.

2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer.

3. Set the spectrum analyzer as RBW=30kHz, VBW = 91 kHz, Span = 5MHz, Sweep = auto.

4. Mark the peak frequency and 20dB (upper and lower) frequency.

5. Repeat until all the rest channels are investigated.

TEST RESULTS

No non-compliance noted

Page 11 Rev. 00

Test Plot

CH Low

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

CH Mid

Page 12 Rev. 00

CH High

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Page 13 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

7.2 BAND EDGES MEASUREMENT

LIMIT

1. In the above emission table, the tighter limit applies at the band edges.

2.

Frequency

(MHz)

Field Strength

(µV/m at 3-meter)

Field Strength

(dBµV/m at 3-meter)

30-88 100 40

88-216 150 43.5

216-960 200 46

Above 960 500 54

As shown in Section 15.35(b), for frequencies above 1000 MHz, the above field strength limits in paragraphs (a) and (b) of this section are based on average limits. However, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. For point-to-point operation under paragraph (b) of this section, the peak field strength shall not exceed 2500 millivolts/meter at 3 meters along the antenna azimuth.

Test Configuration

Antenna tower

3m

Horn antenna

EUT

4m

Spectrum analyzer

Turntable

0.8m

1m

Pre-amp

TEST PROCEDURE

1. The EUT is placed on a turntable, which is 0.8m above the ground plane.

2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level.

3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emission.

4. Set the spectrum analyzer in the following setting in order to capture the lower and upper band-edges of the emission:

(a) PEAK: RBW=VBW=1MHz / Sweep=AUTO

(b) AVERAGE: RBW=1MHz / VBW=10Hz / Sweep=AUTO

5. Repeat the procedures until all the PEAK and AVERAGE versus POLARIZATION are measured.

TEST RESULTS

Refer to attach spectrum analyzer data chart.

Page 14 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Band Edges (CH Low)

Detector mode: Peak Polarity: Vertical

Detector mode: Average Polarity: Vertical

Page 15 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Detector mode: Peak Polarity: Horizontal

Detector mode: Average Polarity: Horizontal

Page 16 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Band Edges (CH High)

Detector mode: Peak Polarity: Vertical

Detector mode: Average Polarity: Vertical

Page 17 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Detector mode: Peak Polarity: Horizontal

Detector mode: Average Polarity: Horizontal

Page 18 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

7.3 SPURIOUS EMISSION

LIMIT

1.

In the section 15.249(a):

Except as provided in paragraph (b) of this section, the field strength of emissions from intentional radiators operated within these frequency bands shall comply with the following:

Fundamental

Frequency

(MHz)

902-928 MHz

Field Strength of Fundamental

Field Strength

(mV/m)

50

Field Strength of Harmonics

(µV/m)

500

2400 - 2483.5 MHz

5725 - 5875 MHz

50

50

500

500

24.0 - 24.25 GHz 250 2500

2.

Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table:

Frequency

(MHz)

Field Strength

(µV/m)

Measurement Distance

(m)

30-88 100* 3

88-216 150* 3

216-960 200*

Above 960 500

3

3

Remark: Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72

MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz. However, operation within these frequency bands is permitted under other sections of this Part, e.g., Sections 15.231 and

15.241.

3.

In the above emission table, the tighter limit applies at the band edges.

Frequency

(MHz)

Field Strength

(µV/m at 3-meter)

Field Strength

(dBµV/m at 3-meter)

30-88 100 40

88-216 150 43.5

216-960 200 46

Above 960 500 54

Page 19 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Test Configuration

Below 1 GHz

EUT

3m

4m

Antenna tower

Bi-log antenna

Spectrum

analyzer

Turntable

0.8m

1m

Reference ground plane

Above 1 GHz

EUT

3m

4m

Turntable

0.8m

1m

Antenna tower

Horn antenna

Spectrum analyzer

Pre-amp

Page 20 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

TEST PROCEDURE

1. The EUT is placed on a turntable, which is 0.8m above ground plane.

2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level.

3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emissions.

4. Maximum procedure was performed on the six highest emissions to ensure EUT compliance.

5. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical.

6. Set the spectrum analyzer in the following setting as:

Below 1GHz:

RBW=100kHz / VBW=300kHz / Sweep=AUTO

Above 1GHz:

(a) PEAK: RBW=VBW=1MHz / Sweep=AUTO

(b) AVERAGE: RBW=1MHz / VBW=10Hz / Sweep=AUTO

7. Repeat above procedures until the measurements for all frequencies are complete.

TEST RESULTS

No non-compliance noted.

Page 21 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Below 1 GHz

Operation Mode: Normal Link

Temperature:

23°C

Humidity:

53% RH

Frequency

(MHz)

136.70

170.65

Test Date: September 15, 2008

Tested by: Mimic Yang

Polarity:

Ver. / Hor.

Ant.Pol.

(H/V)

Detector

Mode

(PK/QP)

V

Reading

(dBuV)

Correction Factor

(dB/m)

Peak 48.19 -25.40

Result

(dBuV/m)

Limit 3m

(dBuV/m)

Margin

(dB)

22.79 43.50 -20.71

V

Peak 52.79 -27.11 25.68 43.50 -17.82

181.97

227.23

489.13

513.38

V

V

V

V

Peak 56.20 -27.21 28.99 43.50 -14.51

Peak 56.81 -26.46 30.35 46.00 -15.65

Peak 45.90 -20.53 25.37 46.00 -20.63

Peak 44.96 -19.57 25.39 46.00 -20.61

136.70

185.20

204.60

215.92

227.23

511.77

Remark:

H

H

H

H

H

H

Peak 57.31 -25.40 31.92 43.50 -11.58

Peak 61.85 -26.89 34.96 43.50 -8.54

Peak 63.37 -25.67 37.69 43.50 -5.81

Peak 65.22 -26.31 38.91 43.50 -4.59

Peak 66.74 -26.46 40.28 46.00 -5.72

Peak 53.09 -19.62 33.48 46.00 -12.52

1. Measuring frequencies from 30 MHz to the 1GHz.

2. Radiated emissions measured in frequency range from 30 MHz to 1000MHz were made with an instrument using peak/quasi-peak detector mode.

3. Quasi-peak test would be performed if the peak result were greater than the quasi-peak limit or as required by the applicant.

4. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's already beyond the background noise floor.

5. Margin (dB) = Remark result (dBuV/m) – Quasi-peak limit (dBuV/m).

Page 22 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Above 1 GHz

Operation Mode: Tx / CH Low Test Date: September 1, 2008

Temperature:

25°C

Humidity:

Freq.

(MHz)

Ant.

Pol

H/V

56% RH

Peak

Reading

(dBuV)

Tested by: Wolf Huang

Polarity:

Ver. / Hor.

AV

Reading

(dBuV)

Ant. / CL

CF

(dB)

Result

Peak

(dBuV/m)

AV

(dBuV/m)

Peak

Limit

(dBuV/m)

AV

Limit

(dBuV/m)

Margin

(dB)

Remark

2402.00 V 87.08 --- -2.93 84.15 --- 114.00 94.00 -29.85

Peak

4150.00 V 48.84 --- 0.87 49.72 --- 74.00 54.00 -4.28 Peak

4800.00 V 52.38 38.62 0.40 52.79 39.02 74.00 54.00 -14.98

AVG

7208.33 V 51.00 38.54 2.97 53.96 41.51 74.00 54.00 -12.49

AVG

N/A

2402.00 H 97.97 --- -2.93 95.04 --- 114.00 94.00 -18.96

Peak

1600.00 H 62.97 44.49 -7.52 55.45 36.97 74.00 54.00 -17.03

AVG

4808.33 H 51.54 40.14 0.39 51.93 40.53 74.00 54.00 -13.47

AVG

7208.33 H 54.92 39.54 2.97 57.89 42.51 74.00 54.00 -11.49

AVG

N/A

Remark:

1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency.

2. Radiated emissions measured in frequency above 1000MHz were made with an instrument using peak/average detector mode.

3. Average test would be performed if the peak result were greater than the average limit or as required by the applicant.

4. Data of measurement within this frequency range shown “ --- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured.

5. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's already beyond the background noise floor.

6. Margin (dB) = Remark result (dBuV/m) – Average limit (dBuV/m). Peak detector mode and average detector mode of the emission shown in Result column.

Page 23 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Operation Mode: Tx / CH Mid

Temperature:

25°C

Test Date: September 1, 2008

Tested by: Wolf Huang

Humidity:

Freq.

(MHz)

Ant.

Pol

H/V

56% RH

Polarity:

Ver. / Hor.

Peak

Reading

(dBuV)

AV

Reading

(dBuV)

Ant. / CL

CF

(dB)

Result

Peak

(dBuV/m)

AV

(dBuV/m)

Peak

Limit

(dBuV/m)

AV

Limit

(dBuV/m)

Margin

(dB)

Remark

2441.00 V 88.70 --- -2.82 85.88 --- 114.00 94.00 -28.12

Peak

1626.67 V 53.94 --- -7.30 46.64 --- 74.00 54.00 -7.36 Peak

4883.33 V 52.11 38.54 0.22 52.33 38.76 74.00 54.00 -15.24

AVG

7325.00 V 50.45 35.80 2.94 53.39 38.74 74.00 54.00 -15.26

AVG

N/A

2441.00 H 97.00 --- -2.82 94.18 --- 114.00 94.00 19.82 Peak

1626.67 H 61.85 44.63 -7.30 54.55 37.33 74.00 54.00 -16.67

AVG

4883.33 H 52.64 39.83 0.22 52.86 40.05 74.00 54.00 -13.95

AVG

7325.00 H 55.15 38.41 2.94 58.10 41.35 74.00 54.00 -12.65

AVG

N/A

Remark:

1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency.

2. Radiated emissions measured in frequency above 1000MHz were made with an instrument using peak/average detector mode.

3. Average test would be performed if the peak result were greater than the average limit or as required by the applicant.

4. Data of measurement within this frequency range shown “ --- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured.

5. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's already beyond the background noise floor.

6. Margin (dB) = Remark result (dBuV/m) – Average limit (dBuV/m). Peak detector mode and average detector mode of the emission shown in Result column.

Page 24 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

Operation Mode: Tx / CH High

Temperature:

25°C

Test Date: September 1, 2008

Tested by: Wolf Huang

Humidity:

Freq.

(MHz)

Ant.

Pol

H/V

56% RH

Polarity:

Ver. / Hor.

Peak

Reading

(dBuV)

AV

Reading

(dBuV)

Ant. / CL

CF

(dB)

Result

Peak

(dBuV/m)

AV

(dBuV/m)

Peak

Limit

(dBuV/m)

AV

Limit

(dBuV/m)

Margin

(dB)

Remark

2479.00 V 88.34 --- -2.69 85.65 --- 114.00 94.00 -28.35

Peak

1653.33 V 52.87 --- -7.08 45.79 --- 74.00 54.00 -8.21 Peak

V 51.52 38.96 0.05 51.57 39.01 74.00 54.00 AVG

V 53.36 38.55 2.92 56.28 41.47 74.00 54.00 AVG

N/A

2479.00 H 97.94 --- -2.69 95.25 --- 114.00 94.00 -18.75

Peak

1653.33 H 62.90 45.13 -7.08 55.82 38.05 74.00 54.00 -15.95

AVG

4958.33 H 53.89 38.57 0.05 53.94 38.62 74.00 54.00 -15.38

AVG

7441.67 H 54.21 39.46 2.92 57.13 42.38 74.00 54.00 -11.62

AVG

N/A

Remark:

1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency.

2. Radiated emissions measured in frequency above 1000MHz were made with an instrument using peak/average detector mode.

3. Average test would be performed if the peak result were greater than the average limit or as required by the applicant.

4. Data of measurement within this frequency range shown “ --- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured.

5. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's already beyond the background noise floor.

6. Margin (dB) = Remark result (dBuV/m) – Average limit (dBuV/m). Peak detector mode and average detector mode of the emission shown in Result column.

Page 25 Rev. 00

Compliance Certification Services Inc.

Report No.: 80822003-RP1 FCC ID: E5XKB9089URF3 Date of Issue: September 24, 2008

7.4 POWERLINE CONDUCTED EMISSIONS

LIMIT

According to §15.207(a), except as shown in paragraphs (b) and (c) of this section, for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies within the band 150 kHz to 30 MHz shall not exceed the limits in the following table, as measured using a 50 µH/50 ohms line impedance stabilization network (LISN). Compliance with the provisions of this paragraph shall be based on the measurement of the radio frequency voltage between each power line and ground at the power terminal. The lower limit applies at the boundary between the frequency ranges.

Limits

(dBµV)

Frequency Range

(MHz)

0.15 to 0.50

0.50 to 5

5 to 30

Quasi-peak

66 to 56*

* Decreases with the logarithm of the frequency.

56

60

Average

56 to 46*

46

50

Test Configuration

See test photographs attached in Appendix I for the actual connections between EUT and support equipment.

TEST PROCEDURE

1. The EUT was placed on a table, which is 0.8m above ground plane.

2. Maximum procedure was performed on the six highest emissions to ensure EUT compliance.

3. Repeat above procedures until all frequency measured were complete.

TEST RESULTS

Not applicable, because EUT no connect to AC Main Source.

Page 26 Rev. 00

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
