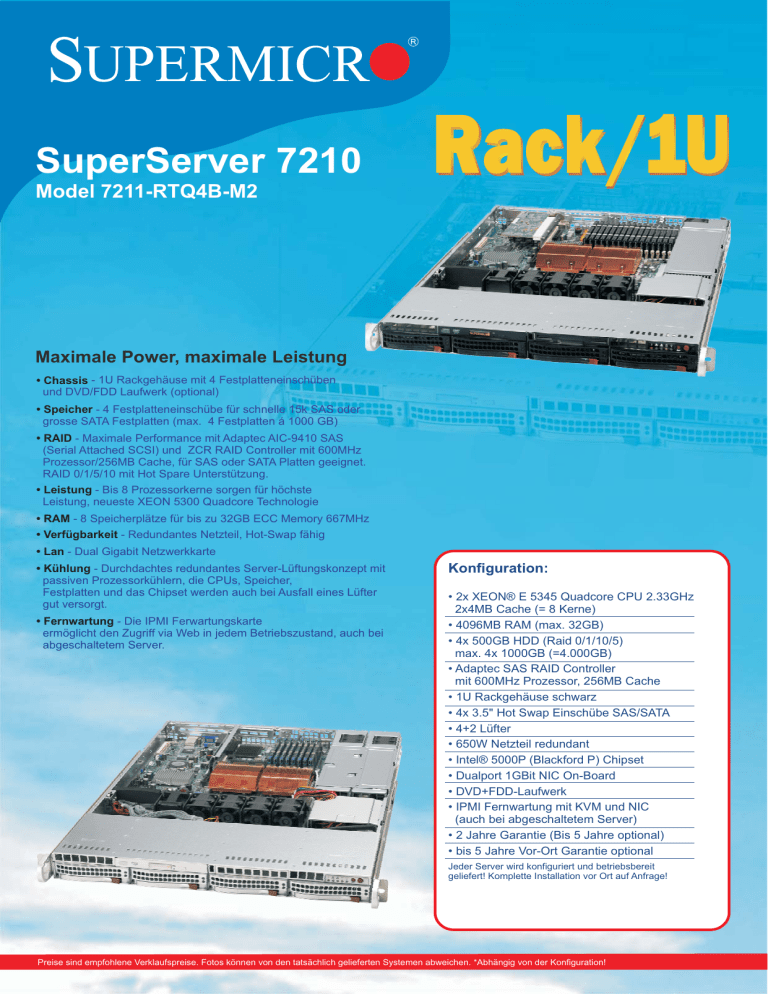

SuperServer 7210
SuperServer 7210
Model 7211-RTQ4B-M2
Rack/1U
Maximale Power, maximale Leistung
• Chassis - 1U Rackgehäuse mit 4 Festplatteneinschüben
und DVD/FDD Laufwerk (optional)
• Speicher - 4 Festplatteneinschübe für schnelle 15k SAS oder
grosse SATA Festplatten (max. 4 Festplatten á 1000 GB)
• RAID - Maximale Performance mit Adaptec AIC-9410 SAS
(Serial Attached SCSI) und ZCR RAID Controller mit 600MHz
Prozessor/256MB Cache, für SAS oder SATA Platten geeignet.
RAID 0/1/5/10 mit Hot Spare Unterstützung.
• Leistung - Bis 8 Prozessorkerne sorgen für höchste
Leistung, neueste XEON 5300 Quadcore Technologie
• RAM - 8 Speicherplätze für bis zu 32GB ECC Memory 667MHz
• Verfügbarkeit - Redundantes Netzteil, Hot-Swap fähig
• Lan - Dual Gigabit Netzwerkkarte
• Kühlung - Durchdachtes redundantes Server-Lüftungskonzept mit
passiven Prozessorkühlern, die CPUs, Speicher,
Festplatten und das Chipset werden auch bei Ausfall eines Lüfter
gut versorgt.
• Fernwartung - Die IPMI Ferwartungskarte
ermöglicht den Zugriff via Web in jedem Betriebszustand, auch bei
abgeschaltetem Server.
Konfiguration:
• 2x XEON® E 5345 Quadcore CPU 2.33GHz
2x4MB Cache (= 8 Kerne)
• 4096MB RAM (max. 32GB)
• 4x 500GB HDD (Raid 0/1/10/5)
max. 4x 1000GB (=4.000GB)
• Adaptec SAS RAID Controller
mit 600MHz Prozessor, 256MB Cache
• 1U Rackgehäuse schwarz
• 4x 3.5" Hot Swap Einschübe SAS/SATA
• 4+2 Lüfter
• 650W Netzteil redundant
• Intel® 5000P (Blackford P) Chipset
• Dualport 1GBit NIC On-Board
• DVD+FDD-Laufwerk
• IPMI Fernwartung mit KVM und NIC
(auch bei abgeschaltetem Server)
• 2 Jahre Garantie (Bis 5 Jahre optional)
• bis 5 Jahre Vor-Ort Garantie optional
Jeder Server wird konfiguriert und betriebsbereit
geliefert! Komplette Installation vor Ort auf Anfrage!
Preise sind empfohlene Verklaufspreise. Fotos können von den tatsächlich gelieferten Systemen abweichen. *Abhängig von der Konfiguration!
Product SKUs
SYS-7211-RTQ4V-M2 SuperServer 7211-RTQ4-M2 (Silver)
SYS-7211-RTQ4B-M2 SuperServer 7211-RTQ4-M2 (Black)
BIOS
Features
Motherboard
Super X7DBR-3
Processor & Cache
CPU
• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit
• Xeon® processor(s) of the same
type below:
• Quad-Core Intel®
Xeon® Processor 5300 sequence
Dual-Core Intel®
Xeon® Processor 5100/5000
• Dual-Core Intel®
Xeon® Processor 5100/5000
sequence (Woodcrest/Dempsey
processor) up to 3.73 GHz
System Bus
• 1333 / 1066 / 667 MHz system bus
Operating System • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory
Capacity
Memory
Type
DIMM Sizes
Memory
Voltage
Error
Detection
On-Board Devices
Chipset
SAS
RAID
SATA
IPMI
Network
Controllers
Graphics
Super I/O
• Eight 240-pin DIMM sockets
• Supports up to 32 GB 667 / 533MHz
DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
• Best performance with 4 or 8
memories of the same size
• 667 / 533MHz FB-DIMM (Fully
Buffered DIMM) ECC DDR2 SDRAM
72-bit, 240-pin gold-plated DIMMs
• 512 MB, 1GB, 2GB, 4GB
• 1.8 V only
• 1.5V(AMB)
• Corrects single-bit errors
• Detects double-bit errors
(using ECC memory)
• Supports Intel® x4 and x8 Single
Device Data Correction (SDDC)
• Intel® 5000P (Blackford) chipset
• MCH + PXH-V + ESB2
• Adaptec AIC-9410 Serial-Attached
SCSI (SAS) Controller
• Dual-Channel SAS (1 internal,
1 external)
• Each SAS channel supports up to 4
SAS / SATA drives for a total of up to
8 SAS or SATA hard drives
• Host RAID 0, 1, & 10 support
• Support for Zero-Channel RAID with
Supermicro All-In-One-ZCR Card:
AOC-LPZCR2
• Optional: (Card not included)
• RAID 0, 1, 5, 10
• Intel ESB2 SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support
• (SATA Controller not connected)
• IPMI with KVM Over LAN
• Virtual Media Over LAN
• Dedicated LAN Port
• VSC 2.0 supports Video Solutions
up to 1600 x 1200
• OS Independent
• Remote Power Control
• Support RMCP & RMCP + Protocols
• Intel® (ESB2/Gilgal) 82563EB DualPort Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX,
and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast,
scaleable, and reliable networking
• ATI ES1000 controller with 16 MB
of video memory
• Winbond® 83627HG chip
Expansion Slots
Left Universal Slot
• 1 64-bit 133MHz PCI-X OR
• 1 (x8) PCI-e Slot
• Supports Full-height, Full-length
Add-on Cards
Right Universal Slot • 1 64-bit 100MHz PCI-X OR
• 1 (x8) PCI-e Slot
Supports Low-profile Add-on Cards
Input / Output
SAS
IDE
Floppy
LAN
USB
VGA
Keyboard /
Mouse
Serial Ports/
Header
System BIOS
BIOS Type
• Eight SAS / SATA ports (4 internal,
4 external)
• Dual-Channel SAS controller
• Eight SAS / SATA hard drives
supported
• Single EIDE channel supports up to
two UDMA IDE devices (IDE-M, IDE-S)
including CF(Compact Flash) Card
• Compact Flash (40-pin connector,
IDE 1, single channel) slot
• Supports UDMA Mode 5, PIO Mode 4
and ATA/100
• 1 Floppy controller; 1.44 MB, 2.88 MB
• 2x RJ45 LAN port
• 2x USB rear ports
• 3x USB internal headers
• Total 5 USB 2.0/1.1 Compliant
• 1x VGA Port
• PS/2ke yboard and mouse ports
Chassis
Form Factor
Model
Dimensions
Height
Width
Depth
Weight
Available Colors
Front Panel
Buttons
LEDs
Ports
Drive Bays
Hot-swap
Bays
Peripheral Bays
Peripheral Drives
DVD-ROM
FDD
System Cooling
Fans
Shroud
R
• 8Mb Flash EEPROM with
Phoenix® BIOS
• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
• Hardware BIOS Virus protection
• 1U Rackmount Chassis
• SC815TQR650V / SC815TQR650B
•
•
•
•
•
43mm
437mm
650mm
~22kg (depends on Config)
Black, Silver
•
•
•
•
•
•
•
Power On/Off button
System Reset button
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
none
• 4x 3.5" SAS/SATA
Hot-swap Drive Bays
• Slim DVD ROM Drive Bay
• Slim 3.5" FDD Drive Bay
• DVD ROM Drive
• 1.44MB FDD Drive
• 4x Cooling Fans
• 2x Power Supply Fans
• 1x Air Shroud
SAS/SATA Backplane
1x 1U SAS / SATA Backplane With SES2 Enclorure
Management
Power Supply
(1 + 1) Redundant 650W AC power supply w/ PFC
AC Volta ge
• 100 - 240V, 60-50Hz, 8-4 Amp
+5V
• 25 Amp
+5V standby
• 3 Amp
+12V
• 54 Amp
-12V
• 0.5 Amp
+3.3V
• 12 Amp
PC Health Monitoring
CPU
• Monitors for CPU Cores, +3.3V,
+5V, ±12V
• 5-Phase-switching voltage regulator
with auto-sense from 0.8375V-1.60V
FAN
• Total of ei ght 4-pin fan headers
supporting up to 8 fans
• 8x fans with tachometer status
monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
Temperature
• Monitoring for CPU and chassis
environment
• CPU thermal trip support
• Thermal Control for 8x fan
connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) Support
LED
• CPU / System Overheat LED
Other
• Chassis intrusion detection
Features
• Chassis intrusion header
• SDDC Support
Zero Channel RAID Controller
Processor
• Intel 80321 600MHz I/O Processor
RAID Levels
• 0, 1, 5, 10 and JBOD
• 50 (SAS mode only)
Cache Memory
• 256 MB onboard ECC DDR Memory
Bus Type
• 64-bit / 100MHz PCI-X
Key RAID Features • RAID detection, buildup, delete, error
detection
• Disk initialization and verification
• Hot-spare disk drive support for easy
replacement
• Hot-spare disk support with automatic
rebuild
• Monitors the functionality of LED and
alarm for attached disk drives
• Indicates disk drive failure with audible
alarm and LED
• Indicates disk drive rebuild through LED
• Eliminates human error such as
removal of wrong disk drive(s)
Monitors temperature and system
•
overheat
• 1x Fast UART 16550 serial port
• 1 Fast UART 16550 serial header
Windows 2003
Linux*
Rackmountable
Hardware RAID
Irrtum, Änderung und Druckfehler vorbehalten. Stand: 17.7.2007
* Alle gängigen Linux Derrivate werden unterstützt. Prüfen Sie ggf. die Treiberunterstützung ihrer Version.
www.supermicro.cc
