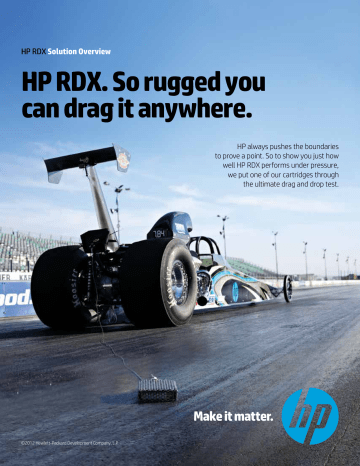

HP RDX. So rugged you can drag it anywhere.

HP RDX. So rugged you can drag it anywhere.
HP RDX Solution Overview
HP RDX. So rugged you
can drag it anywhere.
HP always pushes the boundaries
to prove a point. So to show you just how
well HP RDX performs under pressure,
we put one of our cartridges through
the ultimate drag and drop test.
©2012 Hewlett-Packard Development Company, L.P.
Businesses
must protect their
investments
Businesses have
their most important
investment in their
growing data.
According to Percept
Technology Labs,
the RDX survived a
54 inch drop 97% of
the time while the
USB external hard
drives had a 0%
survivability rate.
We tied an HP RDX cartridge,
packed with data, to the back of a
dragster and ran it up the Santa Pod
raceway at 170mph over a quarter
of a mile. It came as no surprise to
us that we were able to recover all
its data intact at the end of the run.
But then HP RDX is no stranger to
high speeds. With a blistering 650
GB/hour transfer rate, awesome
1 TB storage capacity and amazing
drag and drop simplicity, you’ll
never be hanging around waiting for
your backup to cross the finishing
line. Trust HP RDX to leave other
backup solutions standing.
The simple way to protect
your business data
• Backup made easy
The HP RDX Removable Disk Backup System drag
and drop file access makes backup as simple and
convenient as the click of a mouse. For a hands free
backup experience use the HP RDX Continuous Data
Protection Software designed for ease of use and
complete workstation and server backup protection.
• Spend less time on backups
Backup data at fast hard drive speeds (up to 650 GB/hr)
and restore critical files in seconds instead of hours with
random disk access.
• Easy scalability and expandability
Flexibly meet your budget and capacity requirements
with a choice of 320 GB, 500 GB or 1 TB removable
disk cartridges. Scaling capacity is a simple matter of
adding cartridges.
Key features and benefits
• Choice of 320 GB, 500 GB or 1 TB capacity removable
disk cartridges.
• Drag and drop file access makes backup as easy and
convenient as the click of a mouse.
• Compatible with leading CDP/ISV backup
software applications.
• Backup data at fast hard drive speeds (up to 650 GB/hr)
and restore critical files in seconds with random
disk access.
• Disk cartridges designed for long usage life –
over 5,000 load/unload insertions.
• Portable, durable and shock proof cartridges
(can withstand drop of 3 feet/1 meter).
• Broad compatibility with a wide range of servers and
operating systems (using HP RDX internal or external
docking station).
• Cartridges are interchangeable in any HP RDX
docking station.
HP RDX delivers an easy to
use, affordable and rugged
removable backup solution
for small businesses with
limited time, knowledge
or experience to dedicate
to data protection.
Plug and-play implementation
• Easily connect the USB docking station: Internally to a server or
rack-mount kit, or externally as a tabletop. Insert a removable disk
cartridge into the docking station and the cartridge automatically
appears as a letter drive in Windows Explorer with no extra steps
or formatting.
Reduces total cost of protecting
your business data
• Affordable cost of ownership: Lower on-going media and upgrade
costs with disk cartridges designed for long usage life.
• Future proof: The HP RDX Removable Disk Backup System
docking station is designed to work with all current and future
higher capacity removable disk cartridges so the system is
fully multi-generational.
Simply and securely store backups
off-site for complete data protection
• Rugged removability: Rugged, portable and durable removable disk
cartridges enable business critical backup data to be simply and
securely taken off-site for disaster recovery, archive or data transfer.
• Reliability: Reliable long term data retention is enabled with docking
stations specified for more than 10,000 load and unload cycles and
individual RDX cartridges specified for over 5,000 load and unload
cycles and long life expectancy.
Flexibility to suit most small
business environments
• Compatibility with range of hardware and software:
Suits almost every small business operating environment.
(Visit http://www.hp.com/go/connect for latest information.)
• Small form factor and choice of models: Available as half-height external,
internal or rack-mount models to fit both servers and workstations.
HP StorageWorks
RDX 320 Removable
Disk Backup System
Technical Specifications
HP StorageWorks
RDX 500 Removable
Disk Backup System
HP StorageWorks
RDX 1 TB Removable
Disk Backup System
Ideal For
Budget conscious micro or small businesses with
little or no IT resources who currently have no or
only rudimentary backup processes in place
Budget conscious micro or small businesses with
little or no IT resources who currently have no or
only rudimentary backup processes in place
Budget conscious micro or small businesses with
little or no IT resources who currently have no or
only rudimentary backup processes in place
Maximum
Capacity (Native)
320 GB
Note: 640 GB compressed capacity available
through 2:1 application – based data compression
500 GB
Note: 1 TB compressed capacity available through
2:1 application – based data compression
1 TB
Note: 2 TB compressed capacity available through
2:1 application – based data compression
Performance (Maximum
Data Transfer Rate)
650 GB/hr
650 GB/hr
650 GB/hr
Load/unload cycles
(Cartridge)
5,000
Note: Minimum cartridge usage life
5,000
Note: Minimum cartridge usage life
5,000
Note: Minimum cartridge usage life
Media Compatibility
HP RDX 320 GB Removable Disk Cartridge,
HP RDX 500 GB Removable Disk Cartridge,
HP RDX 1 TB Removable Disk Cartridge
Note: Forward and backward compatibility
to all current and future RDX Cartridges
HP RDX 320 GB Removable Disk Cartridge,
HP RDX 500 GB Removable Disk Cartridge,
HP RDX 1 TB Removable Disk Cartridge
Note: Forward and backward compatibility
to all current and future RDX Cartridges
HP RDX 320 GB Removable Disk Cartridge,
HP RDX 500 GB Removable Disk Cartridge,
HP RDX 1 TB Removable Disk Cartridge
Note: Forward and backward compatibility
to all current and future RDX Cartridges
Interface
USB 3.0
USB 3.0
USB 3.0
Cartridge Robustness
(Shock, Non-Operating)
1 m (39.4 in.) drop to tile over concrete floor
1 m (39.4 in.) drop to tile over concrete floor
1 m (39.4 in.) drop to tile over concrete floor
Form Factor
Half-height, 5¼ inches (internal module)
Half-height, 5¼ inches (internal module)
Half-height, 5¼ inches (internal module)
Warranty
(abbreviated
description)
One year, next-day, parts exchange, limited
warranty plus 9x5 phone support for the duration
of the warranty
One year, next-day, parts exchange, limited
warranty plus 9x5 phone support for the duration
of the warranty
One year, next-day, parts exchange, limited
warranty plus 9x5 phone support for the
duration of the warranty
Modules
RDX 320 Removable Disk Backup System
comes in two modules – Internal and External
RDX 500 Removable Disk Backup System
comes in two modules – Internal and External
RDX 1 TB Removable Disk Backup System
comes in two modules – Internal and External
To quickly find the HP storage products that fit your specific needs, visit www.hp.com/go/product-selector
Warranty
Customer Technical Training
HP warrants only that the media is free of physical defects for a
period of 90 days from delivery. For more information about HP
Global Limited Warranty and Technical Support, visit
www.hp.com/products/storageworks/warranty
Service and Support
Factory Express
Consider education as an integral part of your strategy to get better
return on investment from your HP storage solution. HP offers a range
of training classes on storage software, networking, archiving and disk
storage systems. Our classes are available in many delivery modalities
from traditional instructor-led classes at one of our 80 training centres
worldwide to on-site training customised to your needs or on-line at
www.hp.com/learn/storage
Financial Services
HP Factory Express is designed to help you get a better return from
your IT investment by providing customisation, integration and
deployment services along with your storage and server purchases.
It provides predictable, trusted and tested IT solutions tailored to your
business needs. We allow you to customise hardware to your exact
specifications in the factory – helping to speed up deployment and
free up internal resources. To learn more, visit
www.hp.com/go/factoryexpress
HP Financial Services provides innovative financing and financial asset
management programmes to help customers cost-effectively acquire,
manage and ultimately retire their HP solutions. For more information
on these services,please contact your HP representative or visit
www.hp.com/go/hpfinancialservices
Get connected
hp.com/go/getconnected
Current HP driver, support, and security alerts delivered directly to your desktop
For information on HP RDX products, visit: hp.com/go/rdx
© Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject
to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting
an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Follow HP Storage Media:
@hpstoragemedia
4AA3-9702ENW Rev 1, Created October 2012
