OT DMX 9x2A DIM SO
Dimmer for constant
voltage LED modules
Technical information
issue: April 2010
subject to change without notes

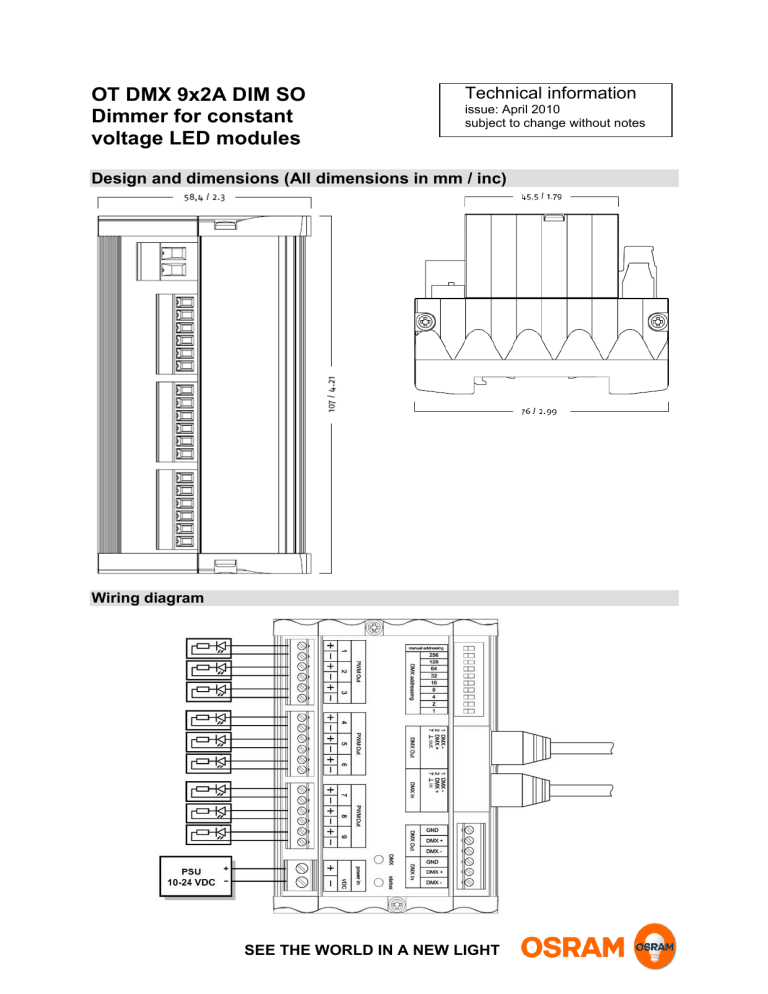

Design and dimensions (All dimensions in mm / inc)
Wiring diagram
SEE THE WORLD IN A NEW LIGHT
Connection schema with the reverse supply protection of all LED fixtures and the dimmer itself
Alternative connection schema without the reverse supply protection
Technical data
Reference:
For LED modules:
Operating voltage:
Voltage max. range:
Supply input current max:
Power losses:
Control:
Galvanic separation:
Maximum voltage range (control
input)
Start channel assignment:
Dimming modus:
Dimming range:
Dimming curve:
No. of LED Outputs:
Output current max:
Output load range per channel:
Reverse supply protection:
Open circuit proof:
Yes
Supply input wire cross section:
Output wiring cross section:
Operating temperature:
Protection type:
CE requirement:
Dimensions:
Approvals:
OT DMX 9x2A DIM SO
PWM constant voltage driven.
With respect to the output conditions, for instance: LINEARlight Colormix, etc.
10 - 24 VDC (SELV equivalent PSU)
6 - 55 VDC
14 A
Max. < 5W
DMX: USITT DMX-512A, DMX512 (DIN 56930-2)
DMX input: RJ-45 or screws
Isolated DMX output (signal amplified): RJ-45 or screws
Yes, DMX output
-5,5 – +5,5 VDC (without destruction of the device)
“One-hot-DMX Frame” configuration or Auto-addressing (user selectable)
Refer to instruction sheet for operational information
PWM
0 - 100 % per channel
Optimized dimming curve – 14 bit resolution
9
2 A for each channel
0 - 20 W per channel @ 10 V DC / 0 - 48 W per channel @ 24 V DC
Yes
Overload protection:
Automatic restart after
Short circuit protection:
overload: Yes
Yes (overcurrent)
Yes
0.75 mm2 to 2,5 mm2
Max. 1,5mm2
0 °C …+ 50 °C
IP 20
EN 60950; EN 55022; EN 61547;
107 x 76 x 59 mm
CE
Logistic data
Designation
OT DMX 9x2A DIM SO
description
9 channels DMX DIN RAIL dimmer for constant
voltage LED, with selectable manual (by dip switch)
or auto addressing mode.
Product number
Shipment unit
4008321533302
10pcs.
