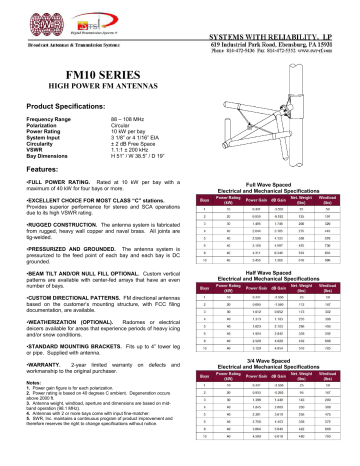

FM10 SERIES
FM10 SERIES
HIGH POWER FM ANTENNAS
Product Specifications:
Frequency Range
Polarization
Power Rating
System Input
Circularity
VSWR
Bay Dimensions
88 – 108 MHz
Circular
10 kW per bay
3 1/8” or 4 1/16” EIA
± 2 dB Free Space
1.1:1 ± 200 kHz
H 51” / W 38.5” / D 19”
Features:
•FULL POWER RATING. Rated at 10 kW per bay with a
maximum of 40 kW for four bays or more.
Full Wave Spaced
Electrical and Mechanical Specifications
•EXCELLENT CHOICE FOR MOST CLASS “C” stations.
Provides superior performance for stereo and SCA operations
due to its high VSWR rating.
•RUGGED CONSTRUCTION. The antenna system is fabricated
from rugged, heavy wall copper and naval brass. All joints are
tig-welded.
•PRESSURIZED AND GROUNDED. The antenna system is
pressurized to the feed point of each bay and each bay is DC
grounded.
•BEAM TILT AND/OR NULL FILL OPTIONAL. Custom vertical
patterns are available with center-fed arrays that have an even
number of bays.
Half Wave Spaced
Electrical and Mechanical Specifications
•CUSTOM DIRECTIONAL PATTERNS. FM directional antennas
based on the customer’s mounting structure, with FCC filing
documentation, are available.
•WEATHERIZATION (OPTIONAL).
Radomes or electrical
deicers available for areas that experience periods of heavy icing
and/or snow conditions.
•STANDARD MOUNTING BRACKETS. Fits up to 4” tower leg
or pipe. Supplied with antenna.
•WARRANTY.
2-year limited warranty on
workmanship to the original purchaser.
defects and
Notes:
1. Power gain figure is for each polarization.
2. Power rating is based on 40 degrees C ambient. Degeneration occurs
above 2000 ft.
3. Antenna weight, windload, aperture and dimensions are based on midband operation (98.1 MHz).
4. Antennas with 2 or more bays come with input fine-matcher.
5. SWR, Inc. maintains a continuous program of product improvement and
therefore reserves the right to change specifications without notice.
3/4 Wave Spaced
Electrical and Mechanical Specifications
