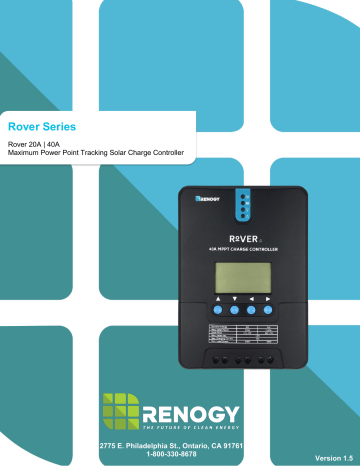

Rover Series

Rover Series

Rover 20A | 40A

Maximum Power Point Tracking Solar Charge Controller

2775 E. Philadelphia St., Ontario, CA 91761

1-800-330-8678

0

Version 1.5

Important Safety Instructions

Please save these instructions.

This manual contains important safety, installation, and operating instructions for the charge controller. The following symbols are used throughout the manual to indicate potentially dangerous conditions or important safety information.

WARNING: Indicates a potentially dangerous condition. Use extreme caution when performing this task.

CAUTION: Indicates a critical procedure for safe and proper operation of the controller

NOTE: Indicates a procedure or function that is important to the safe and proper operation of the controller.

General Safety Information

• Read all of the instructions and cautions in the manual before beginning the installation.

• There are no serviceable parts for this controller. Do

NOT disassemble or attempt to repair the controller.

• Do

NOT

allow water to enter the controller.

• Make sure all connections going into and from the controller are tight.

Charge Controller Safety

NEVER

connect the solar panel array to the controller without a battery. Battery must be connected first.

• Ensure input voltage does not exceed 100 VDC to prevent permanent damage.

Use the Open Circuit (V oc

) to make sure the voltage does not exceed this value when connecting panels together.

• Do not exceed 20A (ROV-20) or 40A (ROV-40). The Short Circuit (I sc

) of the solar array should be less than 20A (ROV-20) or 40A (ROV-40).

Battery Safety

• Use only sealed lead-acid, flooded, gel or lithium batteries which must be deep

cycle.

1

• Explosive battery gases may be present while charging. Be certain there is enough ventilation to release the gases.

• Be careful when working with large lead acid batteries. Wear eye protection and have fresh water available in case there is contact with the battery acid.

• Carefully read battery manuals before operation.

• Do

NOT

let the positive (+) and negative (-) terminals of the battery touch each other.

• Recycle battery when it is replaced.

• Over-charging and excessive gas precipitation may damage the battery plates and activate material shedding on them. Too high of an equalizing charge or too long of one may cause damage. Please carefully review the specific requirements of the battery used in the system.

• Equalization is carried out only for non-sealed / vented/ flooded / wet cell lead acid batteries.

• Do

NOT

equalize VRLA type AGM / Gel / Lithium cell batteries

UNLESS

permitted by battery manufacturer.

WARNING: Connect battery terminals to the charge controller BEFORE connecting the solar panel(s) to the charge controller. NEVER connect solar panels to charge controller until the battery is connected.

WARNING: Do NOT connect any inverters or battery charger into the load terminal of the charge controller.

WARNING: Once equalization is active in the battery charging, it will not exit this stage unless there is adequate charging current from the solar panel. There should be NO load on the batteries when in equalization charging stage.

2

Table of Contents

General Information

............................................................................................................................................ 4

Additional Components

..................................................................................................................................... 8

Identification of Parts

......................................................................................................................................... 9

Operation

.............................................................................................................................................................. 14

LED Indicators

.................................................................................................................................................... 18

Rover Protections

............................................................................................................................................. 20

System Status Troubleshooting

................................................................................................................. 21

Maintenance

........................................................................................................................................................ 22

Fusing

..................................................................................................................................................................... 22

Technical Specifications

................................................................................................................................ 23

Electrical Parameters

................................................................................................................................. 23

Battery Charging Parameters

................................................................................................................. 23

Mechanical Parameters

............................................................................................................................ 24

ROVER: PV Power

– Conversion Efficiency Curves ....................................................................... 25

Dimensions

.......................................................................................................................................................... 26

3

General Information

The Rover Series charge controllers are suitable for various off-grid solar applications. It protects the battery from being over-charged by the solar modules and over-discharged by the loads. The controller features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging.

The

Rover’s charging process has been optimized for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

Key Features

• Automatically detect 12V or 24V DC system voltages**


• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%

• Deep cycle Sealed, Gel, Flooded and Lithium battery option ready


• Electronic protection: Overcharging, over-discharging, overload, and short circuit

• Reverse protection: Any combination of solar module and battery, without causing damage to any component

• Customizable charging voltages

• Charges over-discharged lithium-ion batteries

MPPT Technology

The MPPT Charge Controller utilizes Maximum Power Point Tracking technology to extract maximum power from the solar module(s). The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology will track the array

’s maximum power point voltage (V mp

) as it varies with weather conditions, ensuring that the maximum power is harvested from the array throughout the course of the day.

Current Boost

In many cases, the MPPT charge controll er will “boost” up the current in the solar system.

The current does not come out of thin air. Instead, the power generated in the solar panels is the same power that is transmitted into the battery bank. Power is the product of Voltage

(V) x Amperage (A).

4

Therefore, assuming 100% efficiency:

Power In = Power Out

Volts In * Amps In = Volts out * Amps out

Although MPPT controllers are not 100% efficient, they are very close at about 92-95% efficient. Therefore, when the user has a solar system whose Vmp is greater than the battery bank voltage, then that potential difference is proportional to the current boost.

The voltage generated at the solar module needs to be stepped down to a rate that could charge the battery in a stable fashion by which the amperage is boosted accordingly to the drop. It is entirely possible to have a solar module generate 8 amps going into the charge controller and likewise have the charge controller send 10 amps to the battery bank. This is the essence of the MPPT charge controllers and their advantage over traditional charge controllers. In traditional charge controllers, that stepped down voltage amount is wasted because the controller algorithm can only dissipate it as heat. The following demonstrates a graphical point regarding the output of MPPT technology.

Current vs. Voltage (12V System)

Typical Battery

Voltage Range

Maximum

Power Point

Output Power (12V System)

Maximum

Power Point

Traditional

Controller

Operating

Range

Limiting Effectiveness

Temperature is a huge enemy of solar modules. As the environmental temperature increases, the operating voltage (Vmp) is reduced and limits the power generation of the solar module. Despite the effectiveness of MPPT technology, the charging algorithm will possibly not have much to work with and therefore there is an inevitable decrease in performance. In this scenario, it would be preferred to have modules with higher nominal voltage, so that despite the drop in performance of the panel, the battery is still receiving a current boost because of the proportional drop in module voltage.

5

Four Charging Stages

The Rover MPPT charge controller has a 4-stage battery charging algorithm for a rapid, efficient, and safe battery charging. They include: Bulk Charge, Boost Charge, Float

Charge, and Equalization*.

Bulk Charge: This algorithm is used for day to day charging. It uses 100% of available solar power to recharge the battery and is equivalent to constant current. In this stage the battery voltage has not yet reached constant voltage (Equalize or Boost), the controller operates in constant current mode, delivering its maximum current to the batteries (MPPT

Charging)

Constant Charging: When the battery reaches the constant voltage set point, the controller will start to operate in constant charging mode, where it is no longer MPPT charging. The current will drop gradually. This has two stages, equalize and boost and they are not carried out constantly in a full charge process to avoid too much gas precipitation or overheating of the battery.

Boost Charge: Boost stage maintains a charge for 2 hours by default. The user can adjust the constant time and preset value of boost per their demand.

Float Charge: After the constant voltage stage, the controller will reduce the battery voltage to a float voltage set point. Once the battery is fully charged, there will be no more chemical reactions and all the charge current would turn into heat or gas. Because of this,

6

the charge controller will reduce the voltage charge to smaller quantity, while lightly charging the battery. The purpose for this is to offset the power consumption while maintaining a full battery storage capacity. In the event that a load drawn from the battery exceeds the charge current, the controller will no longer be able to maintain the battery to a Float set point and the controller will end the float charge stage and refer back to bulk charging.

Equalization: Is carried out every 28 days of the month. It is intentional overcharging of the battery for a controlled period of time. Certain types of batteries benefit from periodic equalizing charge, which can stir the electrolyte, balance battery voltage and complete chemical reaction. Equalizing charge increases the battery voltage, higher than the standard complement voltage, which gasifies the battery electrolyte.

WARNING: Once equalization is active in the battery charging, it will not exit this stage unless there is adequate charging current from the solar panel. There should

be NO load on the batteries when in equalization charging stage.

WARNING: Over-charging and excessive gas precipitation may damage the battery plates and activate material shedding on them. Too high of equalizing charge or for too long may cause damage. Please carefully review the specific requirements of the battery used in the system.

WARNING: Equalization may increase battery voltage to a level damaging to sensitive DC loads. Ensure that all load allowable input voltages are greater than the equalizing charging set point voltage.

Lithium Battery Activation

The Rover MPPT charge controller has a reactivation feature to awaken a sleeping lithium battery. The protection circuit of Li-ion battery will typically turn the battery off and make it unusable if over-discharged. This can happen when storing a Li-ion pack in a discharged state for any length of time as self-discharge would gradually deplete the remaining charge. Without the wake-up feature to reactivate and recharge batteries, these batteries would become unserviceable and the packs would be discarded. The Rover will apply a small charge current to activate the protection circuit and if a correct cell voltage can be reached, it starts a normal charge.

CAUTION: When using the Rover to charge a 24V lithium battery bank, set the system voltage to 24V instead of auto recognition. If auto recognition is accidently selected the

Rover will allow you to change it to 24V when the Lithium battery activation feature is activated. In the activation interface press and hold the enter button to trigger the system voltage selector. To change the system voltage, press the Up or Down buttons then long press Enter to save the selected system voltage.

7

Additional Components

Additional components included in the package:

Remote Temperature Sensor:

This sensor measures the temperature at the battery and uses this data for very accurate temperature compensation. Accurate temperature compensation is important in ensuring proper battery charging regardless of the temperature.

NOTE: Do Not use this sensor when charging lithium battery.

Figure 1

USB to RS-232 Converter Cable:

This PC communication cable is needed for remote monitoring using an optional PC software.

Through the software, users could customize their charge parameters and other settings. Download the PC software through

Renogy’s website under the “Downloads” section.

NOTE: PC Communication requires the USB be connected at all times.

Wireless capability not available.

WARNING:

Do NOT use a PC Ethernet cable. This can and will cause permanent damage to a computer.

8

Identification of Parts

11

Key Parts

1. PV LED Indicator

2. Battery LED Indicator

3. Load LED Indicator

4. System Error LED Indicator

5. LCD Screen

6. Operating Keys

7. Mounting Holes

8. Remote Temperature Sensor Port (optional accessory)

9. PV Terminals

10. Battery Terminals

11. Load Terminals

12. RS-232 Port (optional accessory)

9

Installation

Recommended tools to have before installation:

Screwdriver Multi-Meter

WARNING: Connect battery terminal wires to the charge controller FIRST then connect the solar panel(s) to the charge controller. NEVER connect solar panel to charge controller before the battery.

WARNING: Do NOT connect any inverters or battery chargers into the LOAD

TERMINAL of the charge controller

INVERTER

BATTERY

CHARGER

HIGH AMP

DRAWING DEVICE

CAUTION: Do not over tighten the screw terminals. This could potentially break the piece that holds the wire to the charge controller.

CAUTION: Refer to the technical specifications for max wire sizes on the controller and for the maximum amperage going through wires.

You are now ready to begin connecting your battery to your charge controller.

10

1

3

Battery

2

11

1

Load (optional)

2

1

Solar Panels

2

12

1

PC communication (optional)

2

1

Temperature Sensor (optional, not polarity sensitive)

2

Mounting Recommendations

WARNING: Never install the controller in a sealed enclosure with flooded batteries.

Gas can accumulate and there is a risk of explosion.

1. Choose Mounting Location

place the controller on a vertical surface protected from direct sunlight, high temperatures, and water. Make sure there is good ventilation.

2. Check for Clearance

verify that there is sufficient room to run wires, as well as clearance above and below the controller for ventilation. The clearance should be at least 6 inches (150mm).

13

3. Mark Holes

4. Drill Holes

5. Secure the charge controller.

Operation

Rover is very simple to use. Simply connect the batteries, and the controller will automatically determine the battery voltage. The controller comes equipped with an LCD screen and 4 buttons to maneuver though the menus.

Startup Interface

14

Main Display

Main Screen

Solar Panel Voltage

Charging Current

Error Code

Battery Voltage

Battery Capacity

Load Current

Accumulated AH

Load mode

Ambient Temperature Discharged AH

NOTE:

The Battery Capacity (SOC%) is an estimation based on the charging voltage.

15

 /

 / -

ENTER/ 

Programming Parameters

Battery type

System voltage

Page Up/ Increase parameter value

Page Down/ Decrease parameter value

Return to the previous menu

Enter sub menu/ save parameter value/ turn load on or off in manual mode

Equalizing voltage Boost voltage

Over-discharge voltage Over-discharge return voltage

Float voltage

To enter the programming interface simply press and hold the right arrow button. After entering this feature press the Enter/Right button to switch between parameters. To change the parameters, press the Up or Down button. To save the parameter press and hold the Enter/Right button.

16

Programming Load Terminal

1 2 3 4

5

1. This screen is displaying the current Load Mode.

2. To enter screen 2 press and hold the Enter button. This screen will allow you to change the load mode.

3. To change the load mode press the up or down button.

4. Once you have selected the desired load mode press the Enter button to save the setting.

5. To exit the programming setting press the left button.

Load Mode Options

Setting Mode Description

0

1-14

15

16

17

Automatic(On/Off)

Time control

Manual

Test

24Hr

The load will turn on at night when the solar panel is no longer producing any power after a short time delay. The load will turn off when the panel starts producing power.

When the panel is no longer producing power the load will be ON for 1-14 hours or until the panel starts producing power.

In this mode, the user can turn the Load

On/Off by pressing the Enter button at any time.

Used to troubleshoot load terminal (No Time

Delay). When voltage is detected load will be off and when no voltage is detected load will be on.

The load will be on for 24 hours a day.

17

LCD Indicators

LED Indicators

1

2

3

4

---PV array indicator

Indicating the controller's current charging mode.

---BAT indicator

Indicating the battery's current state.

---LOAD indicator Indicating the loads' On/ Off state.

---ERROR indicator

Indicating whether the controller is functioning normally.

18

PV Indicator (1)

White Solid

White Slow

Flashing

White

Single

Flashing

White Fast

Flashing

White

Double

Flashing

Off

BATT Indicator (2)

White Solid

White Slow

Flashing

White Fast

Flashing

LOAD Indicator (3)

White Solid

White Fast

Flashing

Off

Error Indicator (4)

White Solid

Off

Status

The PV system is charging the battery bank

The Controller is undergoing boost stage

The Controller is undergoing float stage

The Controller is undergoing equalization stage

The PV system is charging the battery bank at a slow rate.

Make sure panels are not shaded. Low Amperage

The PV system is not charging the battery bank. PV not detected.

Status

Battery is normal

Battery over-discharged

Battery over-voltage

Status

Load is on

Load is over-loaded or short-circuited

Load is off

Status

System Error. Please check LCD for Error code

System is operating normally

19

Rover Protections

Protection

PV Array Short

Circuit

PV Overvoltage

PV Overcurrent

Load Overload

Load Short Circuit

PV Reverse Polarity

Battery Reverse

Polarity

Over-Temperature

Behavior

When PV shot circuit occurs, the controller will stop charging.

Clear it to resume normal operation

If the PV voltage is larger than maximum input open voltage

100VDC, PV will remain disconnected until the voltage drops below 100VDC.

The controller will limit the battery charging current to the maximum battery current rating. Therefore, an over-sized solar array will not operate at peak power.

If the current exceeds the maximum load current rating 1.05 times, the controller will disconnect the load. Overloading must be cleared up by reducing the load and restarting the controller.

Fully protected against the load wiring short-circuit. Once the load short (more than quadruple rate current), the load short protection will start automatically. After 5 automatic load reconnect attempts, the faults must be cleared by restarting the controller.

The controller will not operate if the PV wires are switched. Wire them correctly to resume normal controller operation.

The controller will not operate if the battery wires are switched.

Wire them correctly to resume normal controller operation.

If the temperature of the controller heat sink exceeds 65

O

C, the controller will automatically start the reducing the charging current and shut down when temperature exceeds 80

O

C

20

System Status Troubleshooting

PV indicator

Off during daylight

Troubleshoot

Ensure that the PV wires are correctly and tightly secured inside the charge controller PV terminals. Use a multi-meter to make sure the poles are correctly connected to the charge controller.

BATT Indicator Troubleshoot

Disconnect loads, if any, and let the PV modules charge the battery

White Slow

Flashing bank. Use a multi-meter to frequently check on any change in battery voltage to see if condition improves. This should ensure a fast charge. Otherwise, monitor the system and check to see if system improves.

White Fast

Flashing

Using a multimeter check the battery voltage and verify it is not exceeding 32 volts.

Load Indicator Troubleshoot

The Load circuit on the controller is being shorted or overloaded.

White Fast

Flashing

Please ensure the device is properly connected to the controller and make sure it does not exceed 20A (DC).

Error Indicator Troubleshoot

White Solid System Error. Please check LCD for Error code

Error Number

E0

E1

E2

E3

E4

E5

E6

E8

E10

E13

Error Codes

Description

No error detected

Battery over-discharged

Battery over-voltage

Battery under-voltage

Load short circuit

Load overloaded

Controller over-temperature

PV input over-current

PV over-voltage

PV reverse polarity

21

Maintenance

WARNING: Risk of Electric Shock! Make sure that all power is turned off before touching the terminals on the charge controller.

For best controller performance, it is recommended that these tasks be performed from time to time.

1. Check that controller is mounted in a clean, dry, and ventilated area.

2. Check wiring going into the charge controller and make sure there is no wire damage or wear.

3. Tighten all terminals and inspect any loose, broken, or burnt up connections.

4. Make sure LED readings are consistent. Take necessary corrective action.

5. Check to make sure none of the terminals have any corrosion, insulation damage, high temperature, or any burnt/discoloration marks.

Fusing

Fusing is a recommended in PV systems to provide a safety measure for connections going from panel to controller and controller to battery. Remember to always use the recommended wire gauge size based on the PV system and the controller.

NEC Maximum Current for different Copper Wire Sizes

AWG 16 14 12 10 8 6 4 2 0

Max.

Current

18A 25A 30A 40A 55A 75A 95A 130A 170A

Note: The NEC code requires the overcurrent protection shall not exceed 15A for 14AWG, 20A for 12 AWG, and 30A for 10AWG copper wire.

Fuse from Controller to Battery

Controller to Battery Fuse = Current Rating of Charge Controller

Ex. 20A MPPT CC = 20A fuse from Controller to Battery

Fuse from Solar Panel(s) to Controller

Ex. 200W; 2 X 100 W panels

**Utilize 1.56 Sizing Factor (SF)

NOTE: Different safety factors could be used. The purpose is to oversize.

Series: Parallel

Total Amperage = I sc1

= I sc2

* SF

= 5.75A * 1.56 = 8.97

Fuse = 9A fuse

Total Amperage = (I sc1

+ I sc2

) * SF

(5.75A + 5.75A) * 1.56 = 17.94

Fuse = 18A fuse

22

Electrical Parameters

Model

Nominal system voltage

Rated Battery Current

Rated Load Current

Max. PV Input Short Current

Max. Battery Voltage

Max Solar Input Voltage

Max. Solar Input Power

Self-Consumption

Technical Specifications

Charge circuit voltage drop

Discharge circuit voltage drop

Temp. Compensation

Communication

Battery Charging Parameters

ROV-20 ROV-40

12V/24V Auto Recognition

20A 40A

20A

25A

20A

50A

32V

100 VDC

12V @ 260W 12V @ 520W

24V @ 520W 24V @ 1040W

≤100mA @ 12V

≤58Ma @ 24V

≤ 0.26V

≤ 0.15V

-3mV/°C/2V (default)

RS232

GEL

16 V

SEALED

16 V

FLOODED LITHIUM USER

16 V 16 V

*

9-17 V

Battery

High Voltage

Disconnect

Equalization

Voltage

Boost Voltage

Float Voltage

Boost Return

Voltage

Low Voltage

Reconnect

Under Voltage

Warning

Low Voltage

Disconnect

Discharging Limit

Voltage

Equalization

Duration

Boost Duration

-----

14.2 V

13.8 V

13.2 V

12.6 V

12 V

11.0 V

10.6 V

-----

2 hours

14.6 V

14.4 V

13.8 V

13.2 V

12.6 V

12 V

11.0 V

10.6 V

2 hours

2 hours

14.8 V

14.6 V

13.8 V

13.2 V

12.6 V

12 V

11.0 V

10.6 V

2 hours

2 hours

-----

14.4 V

-----

13.2 V

12.6 V

12 V

11.0 V

10.6 V

-----

-----

*

*

*

*

*

9-17 V

9-17 V

9-17 V

9-17 V

9-17 V

9-17 V

9-17 V

9-17 V

0-10 Hrs.

1-10 Hrs.

23

*

These parameters can only be changed using the Solar Monitoring Software

**

Parameters are multiplied by 2 for 24V systems.

Environment Parameters

Model ROV-20 ROV-40

Working

-35°C to +45°C

Temperature

-35°C to +75°C

Storage

Temperature

Rated Load Current

Humidity Range

Enclosure

Altitude

10% to 90% NC

≤ 95% (NC)

IP32

< 3000m

Mechanical Parameters

Model

Overall Dimension

Mounting Oval

Max Terminal Size

Net Weight

ROV-20

210 x 151 x 59.5mm

8.27 x 5.94 x 2.34in

7.66 x 4.70mm

0.30 x 0.18in

ROV-40

238 x 173 x 72.5mm

9.37 x 6.81 x 2.85in

6mm

2

10 AWG

1.4 kg

3.08 lb.

10mm

2

8 AWG

2.0 kg

4.41 lb.

24

ROVER: PV Power

– Conversion Efficiency Curves

Illumination Intensity: 1000W/ m

2

1. 12 Volt System Conversion Efficiency

Temp 25 o

C

MPPT 12V conversion efficiency (12V battery)

Output power(W)

2. 24 Volt System Conversion Efficiency

MPPT 24V conversion efficiency (24V battery)

Output power(W)

25

ROV-20

Dimensions

NOTE: Dimensions in millimeters (mm)

Product dimensions: 210*151*59.5mm

Hole positions: 154*131mm

Hole diameter: Ø 3mm

Maximum Wire Gauge 10 AWG

26

ROV-40

Product dimensions: 238*173*72.5mm

Hole positions: 180*147mm

Hole diameter: Ø 3mm

Maximum Wire Gauge 8 AWG

NOTE: Dimensions in millimeters (mm)

Renogy reserves the right to change the contents of this manual without notice.

Revision: 5/12/2017

27

Hole diameter

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
