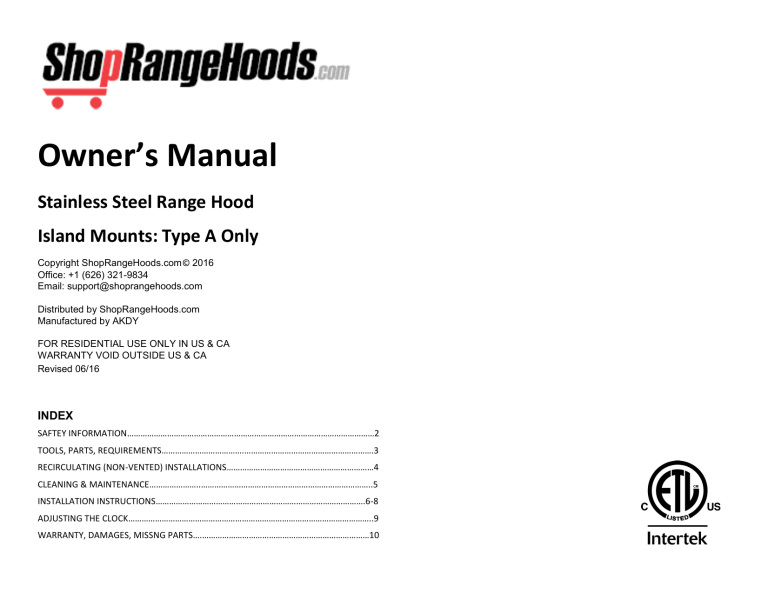

Owner`s Manual

Owner’s Manual

Stainless Steel Range Hood

Island Mounts: Type A Only

Copyright ShopRangeHoods.com© 2016

Office: +1 (626) 321-9834

Email: [email protected]

Distributed by ShopRangeHoods.com

Manufactured by AKDY

FOR RESIDENTIAL USE ONLY IN US & CA

WARRANTY VOID OUTSIDE US & CA

Revised 06/16

INDEX

SAFTEY INFORMATION…………………………………………………………………………………………………2

TOOLS, PARTS, REQUIREMENTS……………………………….………………………………………………….3

RECIRCULATING (NON-VENTED) INSTALLATIONS…………………………………………………………4

CLEANING & MAINTENANCE…………………..…………………………………………………………………..5

INSTALLATION INSTRUCTIONS………………………………………………………………………………….6-8

ADJUSTING THE CLOCK………………………………………………………………………………………………..9

WARRANTY, DAMAGES, MISSNG PARTS….…………………………………………………………………10

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue

(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire

Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit

Interrupter) - protected branch circuit (ceiling installation only).

8. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

2. This product can be installed in a wall if mounted 8-ft. or more above the floor.

3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

4. Please read specification label on product for further information and requirements.

TOOLS & PARTS REQUIREMENTS

Electrical drill or ratchet driver

1/2” drill bit for drilling pilot holes

1¼” drill bit for drilling electrical wiring access hole

Screwdrivers: Philips & Straight blade

Pliers

Tape measure or ruler and pencil

Electrical supplies for wiring

Aluminum foil tape and/or HVAC tape

Hammer

Jigsaw or saber saw

Stud finder

PARTS SUPPLIED

Body & Main Unit: 1 pc.

Chimney Mounting Bracket: 1 pc.

Installation Manual: 1 set

Chimney Cover: 1 set

Metal Grease Filter: 1-4 pcs.

Air Outlet & Air Damper: 1 set

Exhaust Pipe & Ducting: 1 pc.

Hardware: 1 set

LOCATION REQUIREMENTS

Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the installer’s responsibility to comply with installation clearances specified on the model serial rating plate.

Canopy hood's location should be away from strong draft areas, such as windows, doors, and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

VENTILATION REQUIREMENTS

Range hoods must be ventilated to the outdoors, except for nonvented (recirculating) installations.

Do not ventilate the range hood into an attic or other enclosed areas.

Do not use 4" (10.2 cm) laundry-type wall caps.

The length of the range hood and the number of elbows should be kept to a minimum to provide maximum performance.

A. Countertop Height

B. Hood height from ceiling to bottom of the range hood filter surface: D-A-C=B

C. 29” (73.66 cm) min. from cooking surface, suggested

31” (78.74 cm) max.

D. Ceiling Height

For the Most Efficient and Quiet Operation

Use no more than three 90° elbows.

Make sure there is a minimum of 24" (61 cm) of straight duct between the elbows if more than one elbow is used.

Do not install two elbows together.

Use clamps to seal all joints in the vent system.

The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.

Use caulking to seal exterior walls or roof openings around the cap.

The size of the vents should be uniform.

Makeup Air

Local building codes may require the use of makeup air systems, when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from state to state. Consult your HVAC professional for specific requirements in your area.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air flow. A thermal break should be installed to minimize conduction of outside temper-atures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house.

Venting Method

This canopy hood is factory set for through the roof or wall. A

6" (15.2 cm) round vent system is needed for installation. The hood exhaust opening is 6" (15.2 cm) round. To vent through a wall, a 90° elbow is needed. If exhaust ducting with a diameter of less than 5.91” (150 mm) or if flat ducting is used, the noise level of the range hood will Increase and extraction will be less efficient.

Rear Discharge

A 90° elbow may be installed immediately above the hood.

Recirculating Installations & Carbon Filters

Non-Vented (Recirculating) Installations

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating version, fitting a carbon filter at the motor. Fumes and vapors are then recycled through the top grille. Do not block the chimney holes and vents on either side.

Installation Steps for Recirculating

Prerequisites:

1 set of carbon filters (2 pcs.) ]”Recirculating Kit”]

Step 1: Remove the mesh or baffle filters

Step 2: Locate the motor and the carbon filter clips on each side

Step 3: Place the carbon filters into the corresponding ends of the motor

Step 4: Twist each carbon filter until it clips into place

Carbon Filter Care Guide

Carbon filters have to be replaced approximately every 6 months depending on the frequency of use. They cannot be washed and reused. Please replace carbon filters when your kitchen air is no longer smelling fresh and dispose of the used ones.

DO NOT WASH

DO NOT REUSE

DO NOT OPEN

Ordering Carbon Filters

Carbon filters can be ordered on: ShopRangeHoods.com or by phone at: +1 (626) 321-9834. Please ask for Sales.

Navigate to Replacement Parts in the navigation bar

Click Recirculating Kit

Under Options, click and choose your model number/PID

Checkout to complete the ordering process

Cleaning & Maintenance

Cleaning Mesh or Baffle Filters

Mesh and baffle filters can be cleaned with regular household dish washing soap and hot water. Please wear gloves while cleaning filters to protect against scrapes or cuts. Exercise caution around sharp metal edges and corners.

Ingredients

Very hot or boiling water

Dishwashing soap or degreaser

Baking soda

Non-abrasive scrubbing brush or pad

Dish cloth or paper towels

Instructions



Remove the Filters from the Hood: Using the included latch (on mesh filters only), remove them from underneath the range hood.



Fill Your Sink Hot or Boiling Water: Hot water will help dissolve hard grease and oil built up on the filters.



Add Dishwashing Soap or Degreaser: Pour in a generous amount of cleaning solution and make sure it is completely dissolved in the water.



Add Baking Soda: Pour in baking soda to the solution,



Soak Mesh Filters: Place your filters into the solution and let it soak for up to 30 minutes.



Scrub the Filters: After soaking, take a scrubbing brush or pad to further remove grease and oil.



Rinse and Let Dry: Thoroughly rinse with clean water and let dry them with a cloth or paper towels.



Reinstall the Filters: Carefully reinstall the metal filters once fully dry.

Types of Metal Filters

Mesh

Baffle: Type A

Baffle: Type B

Interior Range Hood Cleaning

The unit must be turned off before being cleaned. Also avoid spraying cleaner directly onto the light bulb or light bulb socket.

You can clean the interior of the vent hood with a standard household degreaser/cleaner and a sponge or rag; it will probably get quite dirty, so make sure to use something that you don't mind throwing away afterward.

Exterior Oven Vent Cleaning

The exterior of a vent hood may also be cleaned with a standard household degreaser/cleaner or a non-abrasive cleanser. Since exterior range hood cleaning is a lot easier to do, you may want to incorporate it into your daily or weekly cleaning routine. If your vent hoods have never been cleaned, you may want to call in a professional to do the job the first time, as it is very likely that it will be pretty messy.

AKDY Island Mount Range Hood: Type A (L-Brackets)

Installation Steps: 1-8

For best results, please watch our accompanying installation video on YouTube: https://www.youtube.com/watch?v=0rD9pmHi7Rg

AKDY Island Mount Range Hood: Type A (L-Brackets)

Installation Steps: 9-16

For best results, please watch our accompanying installation video on YouTube: https://www.youtube.com/watch?v=0rD9pmHi7Rg

AKDY Island Mount Range Hood: Type A (L-Brackets)

Installation Steps: 17-24

For best results, please watch our accompanying installation video on YouTube: https://www.youtube.com/watch?v=0rD9pmHi7Rg

Adjusting the Clock

Control Panel: Type A

Control Panel: Type B

Control Panel: Type C

*If your control panel is not listed, please contact us at: [email protected] | +1-626-321-

9834.

Clock Setting: Type A

Step 1: Tap and hold for 3 secs.

Step 2: Tap

Step 3: Tap

Step 4: Tap

Step 5: Tap

Clock Setting: Type B

Step 1: Tap and hold for 3 secs.

Step 2: Tap

Step 3: Tap repeated to set the hour. to switch to mins. again repeatedly to set the mins. again to finish.

repeated to set the hour. to switch to mins.

Step 4: Tap again repeatedly to set the mins.

Step 5: Tap again to finish.

Clock Setting: Type C

Step 1: Tap and hold for 3 secs.

Step 2: Tap repeatedly to set the hour.

Step 3: Tap

Step 4: Tap repeatedly to set the mins. again to finish.

RETURNS & WARRANTY

RETURNS, DAMAGES, MISSING PARTS

We thank you for your purchase. If you are not satisfied with your purchase or have an issue with our product, please kindly let us know. Our full returns policy is outlined below. Carefully read over our terms before contacting us. If you have questions, our customer service team can be reached at: +1 (626) 321-9834 or [email protected]

Ground Shipments – Range Hoods, Shower

Heads/Wands, Sinks, Tub Fillers

We accept all returns within 30 days with return shipping to be paid by the customer if the item was:

For 1-3 years from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, ShopRangeHoods.com will pay for Factory Specified Parts. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased.

Outside the United States and Canada, this limited warranty is null and void Proof of original purchase date is required to obtain service under this limited warranty.

 deemed unsuitable

 the wrong size

 purchased but not used

 an accidental purchase

 buyer’s remorse

Resolution Process for Damages or Missing

Items (Ground Shipments)

1a. Customer provides images of damage (mandatory)

DISCLAIMER OF IMPLIED WARRANTIES: LIMI-

TATION OF REMEDIES

1b. Customer notifies us (ShopRangeHoods.com) for missing parts or items

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS

LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PRO-

VIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WAR-

RANTIES OF MERCHANTABILITY OR FITNESS FOR A PAR-

TICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE

SHORTEST PERIOD ALLOWED BY LAW. SHOPRANGE-

HOODS.COM SHALL NOT BE LIABLE FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINC-

ES DO NOT ALLOW THE EXCLU-SION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITA-

TIONS ON THE DURATION OF IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS

OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRAN-

TY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY

ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO

STATE OR PROVINCE TO PROVINCE.

2a. We send a replacement unit (discretionary)

2b. We send replacement parts

3. Customer is provided a new tracking number for the replacement or parts shipped via Ground shipping or Parcel

Freight Shipments – Bathtubs, Oversized Range

Hoods

All bathtubs will ship via freight. Due to the large size and weight, please allow approximately 2 weeks for the item to arrive. If you have received a freight shipment, please kindly:

 inspect for damages (ex: cracks, chips, etc.)

 inspect for missing parts or items part of a bundle

MANUFACTURER’S WARRANTY

Resolution Process for Damages or Missing

Items (Freight Shipments)

ShopRangeHoods.com provides a 3-year limited parts warranty for all range hoods, and a 1-year limited parts warranty for all bathtubs, tub fillers, kitchen sinks, kitchen sinks, shower heads, shower wands, and shower panels. Under this warranty, you (the customer), is entitled to replacement parts at no cost to repair and restore functionality if any part of the product were to fail. No labor is provided. Certain consumables that are not covered under this warranty include:

1a. Customer provides images of damage (mandatory)

1b. Customer notifies us (ShopRangeHoods.com) for missing parts or items

2a. We send a replacement unit (discretionary)

2b. We send replacement parts

3. Customer is provided a new tracking number via our 3 rd

LTL carrier for the replacement or parts party

 Lights (halogen and LEDs)

 Carbon Filters

 Mesh or Baffle Filters

 Ducting

The above parts are guaranteed to last one year beginning from the date of purchase. If they fail prematurely or are defective within 1 year of purchase, ShopRangeHoods.com will replace them at no charge.

If a main unit or complete replacement has to be sent,

ShopRangeHoods.com will require that the customer pay for shipping. Shipping for parts are free under the warranty period.

If the customer contacts us after the 30-day window for a return,

ShopRangeHoods.com will require a 15-40% restocking fee to be applied to the return depending on the condition of the item and the number of days passed the standard 30-day window.

If shipping damage is noticeable upon arrival, please immediately reject the package, take pictures of the damages, and contact customer support for assistance.

If the item is delivered and arrived damaged, we will either send a replacement and take back the damaged item, or send parts to repair the item depending on the severity of the damage. A full replacement will be issued only under our discretion. Under certain authorized venders who carry our products, shipping damages that require a full replacement will require contacting the seller and not ShopRangeHoods.com .

All shipping damages must be reported within 30 days of delivery.

Missing or lost items must be reported within 7 days of delivery.

The customer must also notify the local authorities to obtain a police report if the tracking information shows the item as being delivered, but not received. A replacement part or unit will be shipped out only if these rules are met. After the 30-day window for damaged items or 7 days for lost and missing packages,

ShopRangeHoods.com reserves the right to not ship replacement parts or complete units. No exceptions will be made and we will not be held responsible.

WARRANTY EXCLUSIONS

The included warranty is null/void and does not cover the following conditions:

1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing.

2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage.

3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by us.

5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to us within 30 days from the date of purchase.

6. Any food loss due to refrigerator or freezer product failures.

7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

10. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined.

This warranty is void if the factory applied serial number has been altered or removed from your major appliance. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
