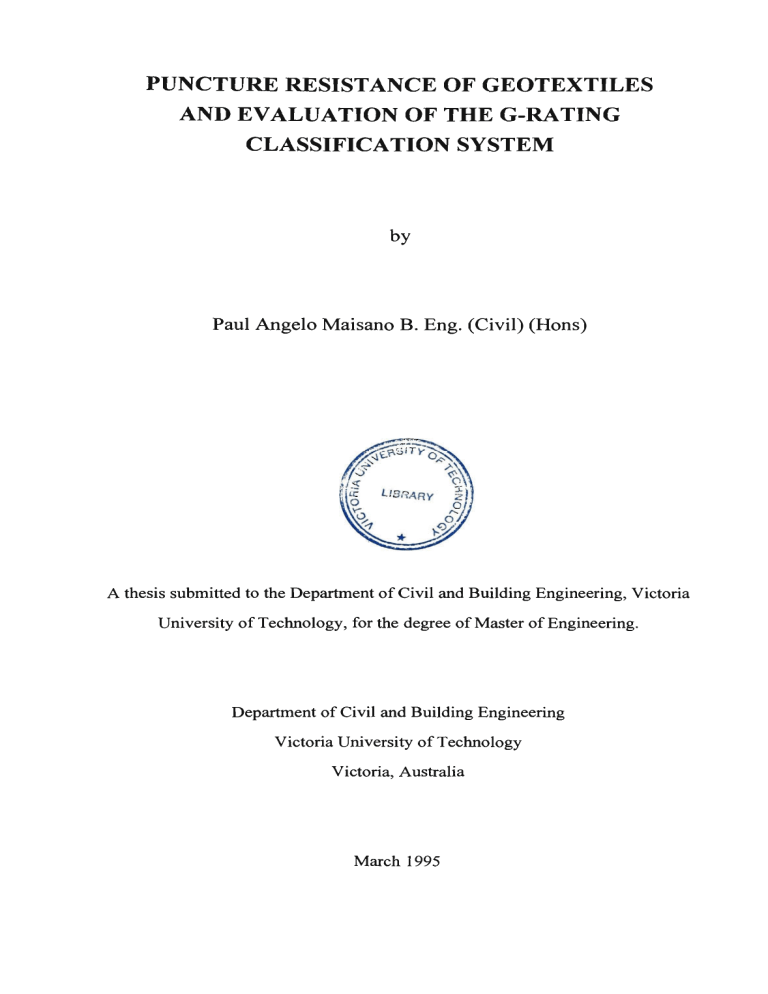

PUNCTURE RESISTANCE OF GEOTEXTILES

AND EVALUATION OF THE G-RATING

CLASSIFICATION SYSTEM

by

Paul Angelo Maisano B. Eng. (Civil) (Hons)

A thesis submitted to the Department of Civil and Building Engineering, Victoria

University of Technology, for the degree of Master of Engineering.

Department of Civil and Building Engineering

Victoria University of Technology

Victoria, Australia

March 1995

FTS THESIS

677.40287 MAI

30001004467090

Maisano, Paul Angelo

Puncture resistance of geotextiles and evaluation of the g-rating

TO M Y WIFE:

Cathy

DECLARATION

This thesis contains no material which has previously been submitted for an award or degree at any University. T o m y knowledge the work reported in this thesis is original and contains n o material published by other investigations, except where appropriate reference has been given to the source of the material.

P. A. Maisano

ii

SYNOPSIS

T h e puncture resistance of geotextiles in Australia is measured in terms of the G-

Rating, which is the product of CBR and drop cone puncture test results.

CBR and drop cone puncture tests were conducted on 24 geotextiles to provide upto-date results, and to evaluate the G-Rating. CBR puncture tests using modified plungers were also conducted to assess the accuracy of shape factors quoted in the literature- 3.0 for angular aggregate and 0.8 for rounded aggregate. Wide strip tensile tests were also conducted to compare with CBR puncture test results.

The results of the testing program show no relationship between wide strip tensile test results and CBR puncture test results. The modified plunger CBR puncture test results show that shape factors are not only shape dependent, but are fabric dependent as well, with the results somewhat different from those commonly quoted. The exponent used to calculate the G-Rating varies for the same fabric tested at different drop heights in the drop cone puncture test. Also, the restriction of elongation in CBR puncture tests to 80 per cent by the G-Rating classification system, was found unnecessary for all the geotextiles tested, as elongation at failure in all cases did not exceed 80 per cent.

A Rupture Index classification is proposed, being the product of failure load and vertical plunger displacement at failure in a CBR puncture test. It is considered to be simpler than the G-Rating as it relies on the results of only one test. The

Rupture Index calculated for a given fabric will not vary by more than the inherent variability of the specimens tested. However, G-Rating values were shown to vary considerably for the same fabric tested at different drop heights in the drop cone puncture test. iii

ACKNOWLEDGMENTS

T h e author is grateful to m a n y people and organisations for their assistance during the term of the project. Many thanks are extended especially to the following:

Mr D. O. Jordan, Senior Lecturer, Department of Civil and Building Engineering, for his invaluable advice, guidance and patience as my principal supervisor. His assistance and friendship throughout this period is greatly appreciated.

Mr R. G. Brown, Senior Geotechnical Engineer, VicRoads, for his helpful advice and input, particularly his help in conceptualising much of the project in the initial stages.

Technical staff of the Department of Civil and Building Engineering (Mr J. Sibly,

Mr N. Welgus and Mr L. Martin) for the fabrication of various pieces of testing equipment used in the testing program.

Victoria University of Technology for the provision of a VUT - Postgraduate

Research Award.

Geofabrics Australasia Pty Ltd for their provision of geotextile samples. In particular, Mr R. McKenna for his invaluable advice, discussion and critique of various aspects of the project, and Mr T. Loffel for many discussions and for use of the Geofabrics Australasia library.

Soil Filters Australia for their provision of geotextile samples. In particular Mr J.

Day for many worthwhile discussions and advice on many aspects of the project. iv

Polyfelt Geosynthetics Pty Ltd for their provision of geotextile samples. In particular Mr M. Sadlier (formerly of Polyfelt Geosynthetics) for several discussions about the project.

Rheem Australia Ltd for their provision of geotextile samples. In particular Ms L.

Fern for several discussions about the project.

Nylex Corporation Ltd for their provision of geotextile samples. In particular Mr

G. Burdeu for several discussions about the project.

Sarlon Industries Pty Ltd for their provision of geotextile samples, in particular Mr

M. Kandilas.

Geosynthetic Testing Services for permission to use their testing laboratory for the entire testing program. In particular Mr R. Kang for his advice and Ms B. Grant for many hours of assistance and patience throughout the testing period. Special thanks are extended to all the staff of Geofabrics Australasia Pty Ltd and

Geosynthetic Testing Services for making my stays at Albury pleasant ones.

My research colleagues Anthony, Simon, Soheil, Stuart and Brian for their friendship, assistance and support in many general discussions, and for providing a pleasant working atmosphere.

Finally, I would like to thank my wife Cathy for her patience, encouragement and support throughout the project, and also my family for their support throughout the course of my studies. v
