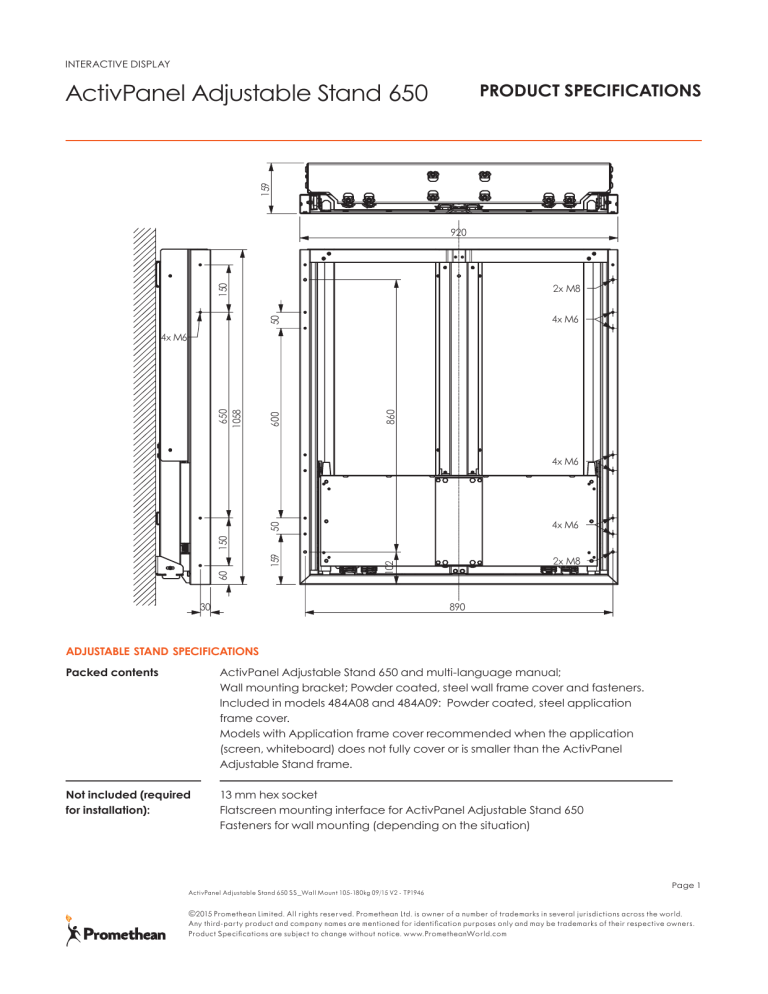

INTERACTIVE DISPLAY

ActivPanel Adjustable Stand 650 PRODUCT SPECIFICATIONS

920

2x M8

4x M6

4x M6

4x M6

4x M6

2x M8

30 890 adjustable stand specifications

Packed contents ActivPanel Adjustable Stand 650 and multi-language manual;

Wall mounting bracket; Powder coated, steel wall frame cover and fasteners.

Included in models 484A08 and 484A09: Powder coated, steel application frame cover.

Models with Application frame cover recommended when the application

(screen, whiteboard) does not fully cover or is smaller than the ActivPanel

Adjustable Stand frame.

Not included (required for installation):

13 mm hex socket

Flatscreen mounting interface for ActivPanel Adjustable Stand 650

Fasteners for wall mounting (depending on the situation)

Page 1

ActivPanel Adjustable Stand 650 SS_Wall Mount 105-180kg 09/15 V2 - TP1946

©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across the world.

Any third-party product and company names are mentioned for identification purposes only and may be trademarks of their respective owners.

Product Specifications are subject to change without notice. www.PrometheanWorld.com

45 1.8"

INTERACTIVE DISPLAY

ActivPanel Adjustable Stand 650 PRODUCT SPECIFICATIONS

300

12"

410

16"

610

24"

700

27.5"

Wall Frame Cover

Application Frame Cover

89 3.5" adjustable stand specifications

Part Numbers and Accessories

Part Number Product Name

APTASBB650-130

APTASBB650-180

Accesories

APTVMBB650

APTFSBB650

ActivPanel Adjustable Stand 650 - 78-138kg

ActivPanel Adjustable Stand 650- 105-180kg

Description

ActivPanel Adjustable Stand 650 - Vesa Mount including wall cover

ActivPanel Adjustable Stand 650 - Floor Support including wall cover

Weight Range

67-127 kg (147.7-280 lbs)

94-169 kg (207.2-372.6 lbs)

Product Weight

4.6 kg (10.1 lbs)

12 kg (17.6 lbs)

Weight and Dimensions

Shipping with application cover

Product with application cover

Material

Width

1005 mm

1005 mm

923 mm

923 mm

Height

1155 mm

1155 mm

1058 mm

1058 mm

Depth

240 mm

240 mm

159 mm

161 mm

Weight

70 kg

75 kg

46.5 kg

46.5 kg

Width

39.6 in

39.6 in

36.3 in

36.3 in

Height

45.5 in

45.5 in

41.6 in

41.6 in

Depth

9.4 in

9.4 in

6.25 in

6.3 in

Steel frame and covers; powder coated for corrosion resistance colour RAL7037

Weight

154 lbs

165 lbs

102.3 lbs

128 lbs

Page 2

ActivPanel Adjustable Stand 650 SS_Wall Mount 105-180kg 09/15 V2 - TP1946

©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across the world.

Any third-party product and company names are mentioned for identification purposes only and may be trademarks of their respective owners.

Product Specifications are subject to change without notice. www.PrometheanWorld.com
