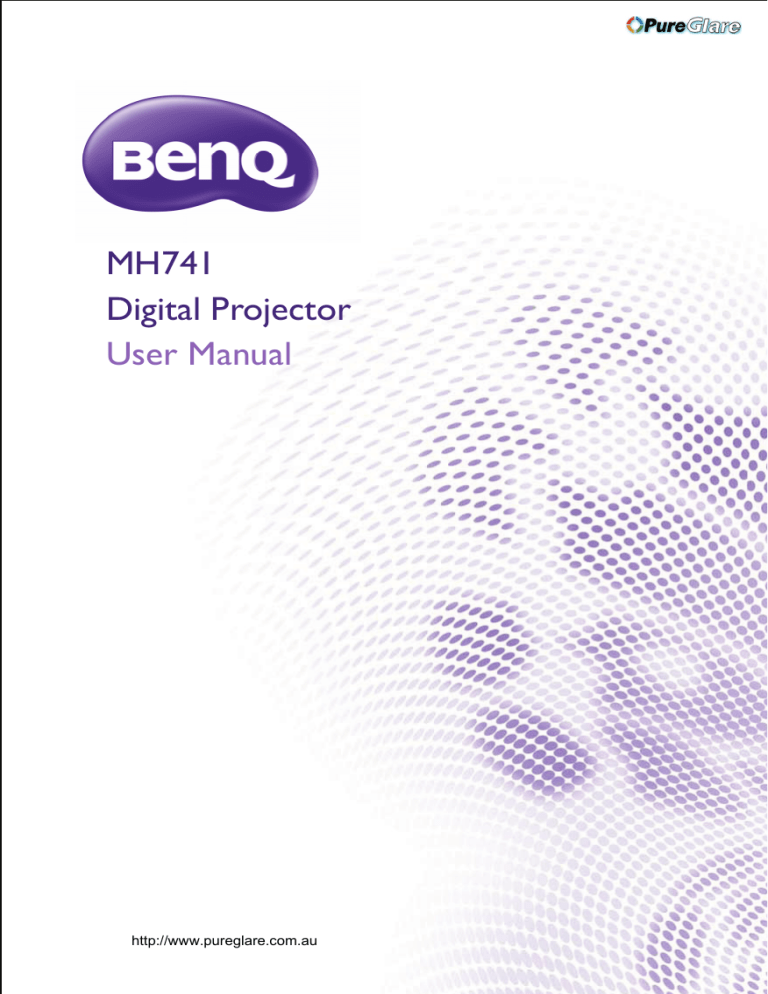

Projector
MH741
Digital Projector
User Manual
http://www.pureglare.com.au
Table of contents
Important safety
instructions ................... 3
Introduction.................. 7
Projector features.....................................7
Shipping contents ......................................8
Projector exterior view...........................9
Controls and functions ..........................11
Positioning your
projector ..................... 18
Choosing a location................................18
Obtaining a preferred projected
image size..................................................19
Connection ................. 21
Connecting video source devices........22
Playing sound through the
projector ...................................................23
Operation ................... 24
Starting up the projector ......................24
Adjusting the projected image .............25
Using the menus......................................28
Securing the projector...........................29
Utilizing the password function ...........29
Switching input signal .............................32
Magnifying and searching for details ...33
Selecting the aspect ratio ......................33
Optimizing the image .............................35
Setting the presentation timer.............39
Remote paging operations ....................40
Freezing the image ..................................40
Hiding the image......................................40
Locking control keys ..............................41
2
Tablehttp://www.pureglare.com.au
of contents
Operating in a high altitude
environment............................................. 41
Adjusting the sound ............................... 41
Using the test pattern............................ 42
Using the teaching templates ............... 43
Using the quick install............................ 43
Shutting down the projector ............... 44
Menu operation ...................................... 45
Maintenance ............... 56
Care of the projector............................ 56
Lamp information ................................... 57
Troubleshooting......... 64
Specifications.............. 65
Projector specifications......................... 65
Dimensions .............................................. 66
Timing chart............................................. 67
Warranty and
Copyright
information................. 73
Important safety instructions
Your projector is designed and tested to meet the latest standards for safety of information
technology equipment. However, to ensure safe use of this product, it is important that
you follow the instructions mentioned in this manual and marked on the product.
Safety Instructions
1.
Please read this manual before
you operate your projector. Save
it for future reference.
2.
Do not look straight at the
projector lens during operation.
The intense light beam may damage
your eyes.
3.
Refer servicing to qualified
service personnel.
Importanthttp://www.pureglare.com.au
safety instructions
4.
Always open the lens shutter or
remove the lens cap when the
projector lamp is on.
5.
In some countries, the line voltage is
NOT stable. This projector is
designed to operate safely within a
mains voltage between 100 to 240
volts AC, but could fail if power cuts
or surges of ±10 volts occur. In
areas where the mains voltage
may fluctuate or cut out, it is
recommended that you connect
your projector through a power
stabilizer, surge protector or
uninterruptible power supply
(UPS).
3
Safety Instructions
6.
7.
8.
4
Do not block the projection lens with 9.
any objects when the projector is
under operation as this could cause
the objects to become heated and
deformed or even cause a fire. To
temporarily turn off the lamp, press
ECO BLANK on the projector or
remote control.
Never replace the lamp assembly or
any electronic components unless the
projector is unplugged.
10.
Do not place this product on an
unstable cart, stand, or table. The
product may fall, sustaining serious
damage.
11.
Do not attempt to disassemble this
projector. There are dangerous high
voltages inside which may cause death
if you should come into contact with
live parts. The only user serviceable
part is the lamp which has its own
removable cover.
Under no circumstances should you
ever undo or remove any other
covers. Refer servicing only to
suitably qualified professional service
personnel.
The lamp becomes extremely hot
during operation. Allow the projector
to cool for approximately 45 minutes
prior to removing the lamp assembly
for replacement.
Do not operate lamps beyond the
rated lamp life. Excessive operation of
lamps beyond the rated life could
cause them to break on rare
occasions.
http://www.pureglare.com.au
Important
safety instructions
Safety Instructions (Continued)
12.
13.
When the projector is under
operation, you may sense some
heated air and odor from its
ventilation grill. It is a normal
phenomenon and not a product
defect.
Do not place this projector in any
of the following environments.
14.
Do not block the ventilation holes.
- Do not place this projector on a
blanket, bedding or any other soft
surface.
- Do not cover this projector with a
cloth or any other item.
- Do not place inflammables near the
projector.
- Space that is poorly ventilated or
confined. Allow at least 50 cm
clearance from walls and free flow of
air around the projector.
- Locations where temperatures may
become excessively high, such as the
inside of a car with all windows rolled
up.
- Locations where excessive humidity,
dust, or cigarette smoke may
contaminate optical components,
shortening the projector's life span
and darkening the image.
15.
If the ventilation holes are seriously
obstructed, overheating inside the
projector may result in a fire.
Always place the projector on a
level, horizontal surface during
operation.
- Do not use if tilted at an angle of more
than 10 degrees left to right, nor at
angle of more than 15 degrees front
to back. Using the projector when it is
not fully horizontal may cause a
malfunction of, or damage to, the
lamp.
- Locations near fire alarms
- Locations with an ambient
temperature above 40°C / 104°F
- Locations where the altitudes are
higher than 3000 m (10000 feet).
3000 m
(10000 feet)
0m
(0 feet)
Importanthttp://www.pureglare.com.au
safety instructions
5
Safety Instructions (Continued)
16.
17.
19.
Do not stand the projector on end
vertically. Doing so may cause the
projector to fall over, causing injury or
resulting in damage to the projector.
This product is capable of displaying
inverted images for ceiling mount
installation.
Use only BenQ's Ceiling Mount Kit for
mounting the projector and ensure it is
securely installed.
Do not step on the projector or place
Ceiling mounting the
any objects upon it. Besides probable
projector
physical damage to the projector,
doing so may result in accidents and We want you to have a pleasant experience
using your BenQ projector, so we need to bring
possible injury.
this safety matter to your attention to prevent
possible damage to person and property.
18.
6
Do not place liquids near or on the
projector. Liquids spilled into the
projector may cause it to fail. If the
projector does become wet,
disconnect it from the power supply's
wall socket and call BenQ to have the
projector serviced.
http://www.pureglare.com.au
Important
safety instructions
If you intend to mount your projector
on the ceiling, we strongly recommend
that you use a proper fitting BenQ
projector ceiling mount kit and that
you ensure it is securely and safely
installed.
If you use a non-BenQ brand
projector ceiling mount kit, there is a
safety risk that the projector may fall
from the ceiling due to an improper
attachment through the use of the
wrong gauge or length screws.
You can purchase a BenQ projector
ceiling mount kit from the place you
purchased your BenQ projector. BenQ
recommends that you also purchase a
separate Kensington lock compatible
security cable and attach it securely to
both the Kensington lock slot on the
projector and the base of the ceiling
mount bracket. This will perform the
secondary role of restraining the
projector should its attachment to the
mounting bracket become loose.
Hg - Lamp contains mercury. Manage
in accordance with local disposal laws.
See www.lamprecycle.org.
Introduction
Projector features
The projector offers the following features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
SmartEco™ starts your dynamic power saving
The SmartEco™ technology offers a new way of operating the projector lamp system
and saves lamp power up to 70% depending on the content brightness level.
Longer lamp life with SmartEco™ technology
The SmartEco™ technology lowers the power consumption and increases the lamp life
when SmartEco mode is selected.
HDMI/MHL compatible
You can project the content from your smart devices via HDMI-1/MHL connection.
ECO BLANK saves 70% of lamp power
By pressing the ECO BLANK button to hide the image and immediately lower 70% of
the lamp power at the same time.
USB MINI-B jack to use the page up/down commands (like Microsoft PowerPoint)
using the remote control when connected a PC.
USB TYPE A jack to support 5V/1.5A output.
Less than 0.5W in standby condition
Less than 0.5W power consumption under standby mode.
Filter Free
Filter free design to lower maintenance and operating costs.
One-key auto-adjustment
Pressing AUTO on the keypad or remote control to show the best picture quality
immediately.
Built-in 10W speaker(s)
Built-in 10W speaker(s) providing mixed mono audio when an audio input is
connected.
Quick Cooling, Auto Power Off, Signal Power On, Direct Power On Quick
Cooling function speeds up the cooling process when turning off the projector. Auto
Power Off function allows the projector to turn off automatically if no input signal is
detected after a set period of time. Signal Power On function turns on your
projector automatically once detecting the signal input and Direct Power On boots
up the projector automatically when the power is connected.
Instant Restart
Selectable Instant Restart function enables you to restart the projector immediately
within 90 seconds after turning it off.
3D Function supported
Various 3D formats make the 3D function more flexible. By presenting the depth of the
images, you can wear BenQ 3D glasses to enjoy the 3D movies, videos and sporting
events in a more realistic way.
Auto keystone function to correct image keystoning automatically.
•
The apparent brightness of the projected image will vary depending on the ambient lighting
conditions, selected input signal contrast/brightness settings, and is directly proportional to
projection distance.
•
The lamp brightness will decline over time and may vary within the lamp manufacturers
specifications. This is normal and expected behavior.
http://www.pureglare.com.au
Introduction
7
Shipping contents
Carefully unpack and verify that you have all of the items shown below. If any of these items
are missing, please contact your place of purchase.
Standard accessories
The supplied accessories will be suitable for your region, and may differ from those illustrated.
Projector
Power cord
Remote control with battery
VGA cable
Soft carry case
User manual CD
Warranty card*
Digita
l
Quick Projector
Start
Guide
Quick start guide
Optional accessories
1.
2.
Spare lamp kit
Ceiling mount kit
3.
4.
Soft carry case
3D glasses
*The warranty card is only supplied in some specific regions. Please consult your dealer for
detailed information.
8
http://www.pureglare.com.au
Introduction
Projector exterior view
1.
2.
Front/upper side
3.
4.
5.
6.
7.
Lamp compartment cover
External control panel
(See "Projector" on page 11 for
details.)
Focus ring and Zoom ring
Vent (cool air intake)
Lens cap & string
Projection lens
Front IR remote sensor
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
HDMI-1 input jack
VIDEO input jack
HDMI-2/MHL input jack
Audio (L/R) input jack
Audio input/output jack
MONITOR-OUT output jack
RS232 control port
PC input jack
Kensington anti-theft lock slot
Rear adjuster foot
Rear IR remote sensor
USB Mini-B port
Front adjuster foot
Microphone jack
S-VIDEO input jack
USB Type-A port
AC power cord inlet
2
3
1
4
7
6
5
Rear/lower side
8
24
9 10 11 12 13 14 15
23 22
21 20
19
18
http://www.pureglare.com.au
Introduction
17 16
9
25.
26.
27.
Bottom side
25
27
10
26
26
http://www.pureglare.com.au
Introduction
26
Front adjuster foot
Ceiling mount holes
Rear adjuster foot
Controls and functions
Projector
1
7.
7 8
9
10
2
3
4
5
11
12
13
14
6
1.
2.
3.
4.
5.
6.
8.
9.
FOCUS/ZOOM Ring
Used to adjust the projected image
appearance. See "Fine-tuning the image
10.
size and clarity" on page 25 for details.
MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD menu,
exits and saves menu settings. See "Using
11.
the menus" on page 28 for details.
MODE/ENTER
Selects an available picture setup mode.
See "Selecting a picture mode" on page 35
for details.
12.
Enacts the selected On-Screen Display
(OSD) menu item. See "Using the menus"
on page 28 for details.
POWER
Toggles the projector between standby
mode and on.
See "Starting up the projector" on page 24
and "Shutting down the projector" on page
13.
44 for details.
◄ Left/
Decrease volume level
Decreases volume. See "Adjusting the
sound level" on page 42 for details.
14.
ECO BLANK
Used to hide the screen picture. See "Hiding
the image" on page 40 for details.
http://www.pureglare.com.au
Introduction
POWER indicator light
Lights up or flashes when the projector is
under operation. See "Indicators" on
page 63 for details.
Keystone/Arrow keys (
/▲ Up)
Manually corrects distorted images
resulting from an angled projection. See
"Correcting 2D Keystone" on page 26 for
details.
TEMPerature indicator light
Lights up red if the projector's
temperature becomes too high. See
"Indicators" on page 63 for details.
LAMP indicator light
Indicates the status of the lamp. Lights up
or flashes when the lamp has developed a
problem. See "Indicators" on page 63 for
details.
AUTO
Automatically determines the best
picture timings for the displayed image.
See "Auto-adjusting the image" on page
25 for details.
► Right/
Increase volume level
Increases volume. See "Adjusting the
sound level" on page 42 for details.
When the On-Screen Display (OSD)
menu is activated, the #5, #8, #12, and
#14 keys are used as directional arrows
to select the desired menu items and to
make adjustments. See "Using the menus"
on page 28 for details.
SOURCE
Displays the source selection bar. See
"Switching input signal" on page 32 for
details.
Keystone/Arrow keys (
/▼ Down)
Manually corrects distorted images
resulting from an angled projection. See
"Correcting 2D Keystone" on page 26 for
details.
11
Remote Control
7.
1
8.
2
14
3
4
15
5
16
17
6
7
18
9.
3
10.
8
19
9
11.
20
12.
10
11
21
12
22
13
23
13.
LASER
Emits visible laser pointer light for
presentation purposes.
MHL control buttons
Goes to the previous file/Plays/Pauses/
Goes to the next file/Rewinds/Stops/
Fastforwards during media playback.
Only available when controlling your
smart device in MHL mode.
ZOOM+/ZOOMMagnifies or reduces the projected
picture size.
ASPECT
Selects the display aspect ratio.
FREEZE
Freezes the projected image.
NETWORK SETTING
Displays the Network Settings OSD
menu.
Numeric buttons
Enters numbers in network settings.
Numeric buttons 1, 2, 3, 4 cannot be
pressed when asked to enter password.
1.
2.
3.
4.
5.
6.
12
ON /
OFF
Toggles the projector between standby
mode and on.
Source selection buttons
Selects an input source for display.
Keystone/Arrow keys (
/▲ Up,
/▼ Down)
Manually corrects distorted images
resulting from an angled projection.
MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD
menu, exits and saves menu settings.
◄ Left/
Decreases the projector volume.
ECO BLANK
Used to hide the screen picture.
http://www.pureglare.com.au
Introduction
14. NETWORK
Selects Network Display as the input
signal source.
15. AUTO
Automatically determines the best
picture timings for the displayed image.
When there is no OSD menu and at
MHL source, long press for 3 seconds to
switch between MHL mode and DLP
mode on remote control for MHL keys.
16. ► Right/
Increases the projector volume.
When the On-Screen Display (OSD)
menu is activated, the #3, #5, and #16
keys are used as directional arrows to
select the desired menu items and to
make adjustments.
When MHL function, the #3, #5 and #16
are used as directional arrows. #4 for
MENU/EXIT and #17 for MODE/
ENTER.
17. MODE/ENTER
Selects an available picture setup mode.
Activates the selected On-Screen Display
(OSD) menu item.
18. SOURCE
Displays the source selection bar.
19. PAGE +/PAGE Operate your display software program
(on a connected PC) which responds to
page up/down commands (like Microsoft
PowerPoint).
20. MIC/VOL +/MIC/VOL Microphone input level adjustment.
21. MUTE
Toggles projector audio between on and
off.
22. SMART ECO
Switch the lamp mode between Eco/
Normal and SmartEco.
23. QUICK INSTALL
Displays the Quick Install OSD menu.
Operating the LASER pointer
The Laser Pointer is a
presentation aid for
professionals. It emits a
beam of red light when you
press it.
The laser beam is visible. It
is necessary to press and
hold LASER for continuous
output.
Do not look into the
laser light window or shine the laser light
beam on yourself or others. See the
warning messages on the back of the
remote control prior to using it.
The laser pointer is not a toy. Parents should
be mindful of the dangers of laser energy and
keep this remote control out of the reach of
children.
When the projector is under MHL mode, The keypad on projector should be with the same
definition of the key on remote control.
Controlling your smart device with the remote control
When the projector projects the contents from your MHL compatible smart device, you
can use the remote control to control your smart device.
To enter the MHL mode, press and hold AUTO for 3 seconds. The following buttons are
available for controlling your smart device, Arrow keys (
/▲ Up,
/▼ Down,
◄ Left, ► Right), MENU/EXIT, MHL control buttons.
To leave the MHL mode, press and hold AUTO for 3 seconds.
http://www.pureglare.com.au
Introduction
13
7.
(Available in Japan region)
1
2
12
3
4
13
5
14
6
16
15
3
17
7
18
8
19
9
10
TEST
11
1.
2.
3.
4.
5.
6.
14
20
21
ON /
OFF
Toggles the projector between standby
mode and on.
Source selection buttons
Selects an input source for display.
Keystone/Arrow keys (
/▲ Up,
/▼ Down)
Manually corrects distorted images
resulting from an angled projection.
MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD
menu, exits and saves menu settings.
◄ Left/
Decreases the projector volume.
ECO BLANK
Used to hide the screen picture.
http://www.pureglare.com.au
Introduction
ZOOM+/ZOOMMagnifies or reduces the projected
picture size.
8.
ASPECT
Selects the display aspect ratio.
9.
FREEZE
Freezes the projected image.
10. NETWORK SETTING
Displays the Network Settings OSD
menu.
11. Numeric buttons
Enters numbers in network settings.
Numeric buttons 1, 2, 3, 4 cannot be
pressed when asked to enter password.
12. NETWORK
Selects Network Display as the input
signal source.
13. AUTO
Automatically determines the best
picture timings for the displayed image.
When there is no OSD menu and at
MHL source, long press for 3 seconds to
switch between MHL mode and DLP
mode on remote control for MHL keys.
14. ► Right/
Increases the projector volume.
When the On-Screen Display (OSD)
menu is activated, the #3, #5, and #14
keys are used as directional arrows to
select the desired menu items and to
make adjustments.
When MHL function, the #3, #5 and
#14 are used as directional arrows. #4
for MENU/EXIT and #15 for MODE/
ENTER.
15. MODE/ENTER
Selects an available picture setup mode.
Activates the selected On-Screen
Display (OSD) menu item.
16. SOURCE
Displays the source selection bar.
17. PAGE +/PAGE Operate your display software program
(on a connected PC) which responds to
page up/down commands (like Microsoft
PowerPoint).
18. MIC/VOL +/MIC/VOL Microphone input level adjustment.
19. MUTE
Toggles projector audio between on and
off.
20. SMART ECO
Switch the lamp mode between Eco/
Normal and SmartEco.
21. TEST
Displays the test pattern.
http://www.pureglare.com.au
Introduction
15
Remote control effective range
Infra-Red (IR) remote control sensor is located on
the front and the rear of the projector. The remote
control must be held at an angle within 30 degrees
perpendicular to the projector's IR remote control
sensor to function correctly. The distance between
the remote control and the sensor should not exceed
8 meters (~ 26 feet).
Make sure that there are no obstacles between the
remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
16
http://www.pureglare.com.au
Introduction
App
App
r
ox .
r ox
± 30
°
. ±3
0°
Replacing the remote control battery
1.
2.
3.
To open the battery cover, turn the remote control over to view its back, push on
the finger grip on the cover and slide it up in the direction of the arrow as illustrated.
The cover will slide off.
Remove any existing batteries (if necessary) and install two AAA batteries observing
the battery polarities as indicated in the base of the battery compartment. Positive
(+) goes to positive and negative (-) goes to negative.
Refit the cover by aligning it with the base and sliding it back down into position. Stop
when it clicks into place.
•
Avoid excessive heat and humidity.
•
There may be battery damage if the battery is incorrectly replaced.
•
Replace only with the same or equivalent type recommended by the battery manufacturer.
•
Dispose of the used battery according to the battery manufacturer’s instructions.
•
Never throw a battery into a fire. There may be danger of an explosion.
•
If the battery is dead or if you will not be using the remote control for a long time, remove
the battery to prevent damage to the remote control from possible battery leakage.
http://www.pureglare.com.au
Introduction
17
Positioning your projector
Choosing a location
Your projector is designed to be installed in one of four possible installation locations:
1.
Front Table
Select this location with the projector
placed on a table in front of the screen.
This is the most common way to position
the projector for quick setup and
portability.
2.
Rear Table
Select this location with the projector
placed on a table behind the screen.
Note that a special rear projection screen
is required.
*Set Rear Table in the SYSTEM
SETUP: Basic > Projector Installation
menu after you turn the projector on.
3.
Front Ceiling
Select this location with the projector
suspended upside-down from the ceiling in
front of the screen.
4.
Rear Ceiling
Select this location with the projector
suspended upside-down from the ceiling
behind the screen.
Purchase the BenQ Projector Ceiling
Mounting Kit from your dealer to mount
your projector on the ceiling.
Note that a special rear projection screen
and the BenQ Projector Ceiling Mounting
Kit are required for this installation
location.
*Set Front Ceiling in the SYSTEM
SETUP: Basic > Projector Installation *Set Rear Ceiling in the SYSTEM
menu after you turn the projector on.
SETUP: Basic > Projector Installation
menu after you turn the projector on.
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable
power outlet, as well as the location and distance between the projector and the rest of
your equipment.
18
http://www.pureglare.com.au
Positioning
your projector
Obtaining a preferred projected image size
The distance from the projector lens to the screen, the zoom setting (if available), and the
video format each factors in the projected image size.
Projection dimensions
Refer to "Dimensions" on page 66 for the center of lens dimensions of this projector
before calculating the appropriate position.
Maximum zoom
Minimum zoom
Screen
Center of lens
H
Vertical offset
W
Projection distance
The screen aspect ratio is 16:9 and the projected picture is 16:9.
Screen size
Diagonal
Distance from screen [mm]
Offset
[mm]
Width
Height
mm
mm
mm
Min Distance
Average
inch
Max Distance
50
1270
1107
623
1273
1461
1649
93
60
1524
1328
747
1528
1753
1979
112
70
1778
1550
872
1782
2046
2309
131
80
2032
1771
996
2037
2338
2639
149
90
2286
1992
1121
2291
2630
2969
168
100
2540
2214
1245
2546
2922
3299
187
110
2794
2435
1370
2800
3214
3628
205
120
3048
2657
1494
3055
3507
3957
224
130
3302
2878
1619
3310
3799
4288
243
140
3556
3099
1743
3564
4091
4618
262
150
3810
3321
1868
3819
4383
4948
280
160
4064
3542
1992
4073
4676
5278
299
170
4318
3763
2117
4328
4968
5608
318
180
4572
3985
2241
4583
5260
5937
336
190
4826
4206
2366
4837
5552
6267
355
http://www.pureglare.com.au
Positioning
your projector
A [mm] @
Wide
mode
19
Screen size
Diagonal
Distance from screen [mm]
Offset
[mm]
Width
Height
mm
mm
mm
Min Distance
Average
inch
Max Distance
A [mm] @
Wide
mode
200
5080
4428
2491
5092
5844
6597
374
250
6350
5535
3113
6365
7306
8246
467
300
7620
6641
3736
7638
8767
9896
560
There is 5% tolerance among these numbers due to optical component variations. BenQ
recommends that if you intend to permanently install the projector, you should physically test
the projection size and distance using the actual projector before you permanently install it, so
as to make allowance for this projector's optical characteristics. This will help you determine
the exact mounting position so that it best suits your installation location.
20
http://www.pureglare.com.au
Positioning
your projector
Connection
When connecting a signal source to the projector, be sure to:
1.
2.
3.
Turn all equipment off before making any connections.
Use the correct signal cables for each source.
Ensure the cables are firmly inserted.
In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 8). They are commercially available from electronics stores.
A/V device
Notebook or desktop
computer
Monitor
Microphone
Speakers
1
2
3
4
5
(VGA)
6
or
7
(DVI)
8
6
2
2
9
10
Smartphone or
tablet
11
or
1
1.
2.
3.
4.
5.
HDMI cable
Audio cable
S-Video cable
Video cable
Audio L/R cable
6.
7.
8.
9.
10.
11.
VGA cable
VGA to DVI-A cable
USB cable
Microphone
Type-A port power 1.5A
HDMI-Micro USB cable
Many notebooks do not turn on their external video ports when connected to a projector.
Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a
function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press
http://www.pureglare.com.au
Connection
21
FN and the labeled function key simultaneously. Refer to your notebook's documentation to find
your notebook's key combination.
Connecting video source devices
You need only connect the projector to a video source device using just one of the
connecting methods, however each provides a different level of video quality. The method
you choose will most likely depend upon the availability of matching terminals on both the
projector and the video source device as described below:
Terminal name
HDMI
Terminal appearance
Picture quality
Best
Component Video
Better
S-Video
Good
Video
Normal
Connecting audio
The projector has one built-in mono speaker which are designed to provide basic audio
functionality accompanying data presentations for business purposes only. They are not
designed for, nor intended for stereo audio reproduction use as might be expected in
home theater or home cinema applications. Any stereo audio input (if provided), is mixed
into a common mono audio output through the projector speaker.
The built-in speaker will be muted when the AUDIO OUT jack is connected.
22
•
The projector is only capable of playing mixed mono audio, even if a stereo audio input is
connected. See "Connecting audio" on page 22 for details.
•
If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
http://www.pureglare.com.au
Connection
Playing sound through the projector
You can make use of the projector (mixed mono) speaker in your presentations, and also
connect separate amplified speakers to the AUDIO OUT socket of the projector.
If you have a separate sound system, you will most likely want to connect the audio output
of your Video source device to that sound system, instead of to the mono audio projector.
Once connected, the audio can be controlled by the projector On-Screen Display (OSD)
menus.
The table below describes the connection methods for different devices, and where the
sound is from.
Device
PC
Audio input port
Component/
S Video/Video
AUDIO (L/R)
HDMI-1/
HDMI-2/MHL
HDMI
AUDIO IN
(mini jack)
The projector can play the
AUDIO IN
AUDIO (L/R)
HDMI
sound from...
(mini jack)
Audio output port
AUDIO OUT
AUDIO OUT
AUDIO OUT
The selected input signal determines which sound will be played by the projector speaker, and
which sound will be output from the projector when AUDIO OUT is connected. If you select the
PC signal, the projector can play the sound received from AUDIO IN mini jack. If you select the
S-VIDEO/VIDEO signal, the projector can play the sound received from AUDIO (L/R).
http://www.pureglare.com.au
Connection
23
Operation
Starting up the projector
1.
2.
Remove the lens cap.
Plug the power cord into the projector and into a
wall socket. Turn on the wall socket switch
(where fitted). Check that the POWER
indicator light on the projector lights orange
after power has been applied.
Please use the original accessories (e.g. power cable) only
with the device to avoid possible dangers such as electric
shock and fire.
3.
Press POWER on the projector
or remote control
to start the projector
and a start up tone sounds. The POWER indicator light flashes green and stays
green when the projector is on.
The start up procedure takes about 30 seconds. In the later stage of start up, a
startup logo is projected.
(If necessary) Rotate the focus ring to adjust the image clearness.
To turn off the ring tone, see "Turning off the Power on/off ring tone" on page 42 for
details.
If the projector is still hot from previous activity, it will run the cooling fan for approximately 90
seconds before energizing the lamp.
4.
5.
6.
7.
To use the OSD menus, please set them to
your familiar language first.
If you are prompted for a password, press
the arrow keys to enter a six digit
password. See "Utilizing the password
function" on page 29 for details.
Switch all of the connected equipment on.
The projector will start to search for input
signals. The current input signal being scanned displays in the upper left corner of the
screen. If the projector doesn't detect a valid signal, the message 'No Signal' will
continue displaying until an input signal is found.
You can also press SOURCE on the projector or remote control to select your
desired input signal. See "Switching input signal" on page 32 for details.
If the frequency/resolution of the input signal exceeds the projector's operating range, you will
see the message 'Out of Range' displayed on a blank screen. Please change to an input signal
which is compatible with the projector's resolution or set the input signal to a lower setting. See
"Timing chart" on page 67 for details.
To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before turning
if off.
24
http://www.pureglare.com.au
Operation
Adjusting the projected image
Adjusting the projection angle
The projector is equipped with 1 front adjuster foot and 1 rear adjuster foot. These
adjusters change the image height and projection angle. To adjust the projector:
1.
Screw the front adjuster foot. Once the image
is positioned where you want it.
2.
Screw the rear adjuster foot to fine tune the
horizontal angle.
To retract the foot. Screw the front and rear
adjuster foot in a reverse direction.
1
If the projector is not placed on a flat surface or the
screen and the projector are not perpendicular to
each other, the projected image becomes
trapezoidal. To correct this situation, see
"Correcting 2D Keystone" on page 26 for details.
2
•
Do not look into the lens while the lamp is on. The strong light from the lamp may cause
damage to your eyes.
•
Be careful when you press the adjuster button as it is close to the exhaust vent where hot air
comes from.
Auto-adjusting the image
In some cases, you may need to optimize the picture quality. To do this, press AUTO on
the projector or remote control. Within 3 seconds, the built-in Intelligent Auto
Adjustment function will re-adjust the values of Frequency and Clock to provide the best
picture quality.
The current source information will be displayed in the upper left corner of the screen for
3 seconds.
•
The screen will be blank while AUTO is functioning.
•
This function is only available when PC signal (analog RGB) is selected.
Fine-tuning the image size and clarity
1.
Adjust the projected image to the
size that you need using the ZOOM
ring.
Operationhttp://www.pureglare.com.au
2.
Sharpen the image by rotating the
FOCUS ring.
25
Correcting 2D Keystone
2D Keystone function enables a wider projector installation area compared to
conventional projectors with limited positioning in front of the screen.
To correct this, you will need to manually correct it following one of these steps.
•
Using the projector or remote control
Press
/
on the projector or remote
control to display the 2D Keystone page. Press ▲/▼ to adjust
vertical values from -30 to 30. Press ◄/► to adjust horizontal
values from -30 to 30.
• Using the OSD menu
1.
Press MENU/EXIT and then press ◄/► until
the Display menu is highlighted.
2.
Press ▼ to highlight 2D Keystone and press
MODE/ENTER. The 2D Keystone page
displays.
3.
Press ▲, ▼, ◄, ► to adjust the keystone
values.
• Using the QUICK INSTALL key
1.
Press QUICK INSTALL on the remote control.
2.
3.
26
Press ▼ to highlight 2D Keystone and press
MODE/ENTER. The 2D Keystone page
displays.
Press ▲, ▼, ◄, ► to adjust the keystone
values.
http://www.pureglare.com.au
Operation
Correcting Corner Fit
Manually adjust four corners of the image by setting the horizontal and vertical values.
• Using the OSD menu
1.
Press MENU/EXIT and then press ◄/► until
the Display menu is highlighted.
2.
Press ▼ to highlight Corner Fit and press
MODE/ENTER. The Corner Fit page
displays.
3.
Press ▲, ▼, ◄, ► to select one of the four
corners and press MODE/ENTER.
4.
Press ▲/▼ to adjust vertical values from 0 to
60.
Press ◄/► to adjust horizontal values from 0
to 60.
5.
Operationhttp://www.pureglare.com.au
27
Using the menus
The projector is equipped with On-Screen Display (OSD) menus for making various
adjustments and settings.
Below is the overview of the OSD menu.
Main menu icon
Main menu
Status
Highlight
Sub-menu
Press MENU/
EXIT to the
previous page
or to exit.
Current input
signal
To use the OSD menus, please set them to your familiar language first.
1.
Press MODE/ENTER on the projector or 3.
remote control to turn the OSD menu on.
Press ▼ to highlight Language
and press ◄/► to select a
preferred language.
2.
Use ◄/► to highlight the System Setup: 4.
Basic menu.
Press MODE/ENTER twice* on
the projector or remote control
to leave and save the settings.
*The first press leads you back to the
main menu and the second press
closes the OSD menu.
28
http://www.pureglare.com.au
Operation
Securing the projector
Using a security cable lock
The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a
lock, such as a Kensington lock, to secure the projector. You can locate a Kensington lock
slot on the left side of the projector. See "Kensington anti-theft lock slot" on page 9 for
details.
A Kensington security cable lock is usually a combination of key(s) and a lock. Refer to the
lock’s documentation for finding out how to use it.
Utilizing the password function
For security purposes and to help prevent unauthorized use, the projector includes an
option for setting up password security. The password can be set through the On-Screen
Display (OSD) menu.
WARNING: You will be inconvenienced if you activate the power-on lock functionality and
subsequently forget the password. Print out this manual (if necessary) and write the password
you used in this manual, and keep the manual in a safe place for later recall.
Setting a password
Once a password has been set, the projector cannot be used unless the correct password is
entered every time the projector is started.
1.
2.
3.
4.
5.
Open the OSD menu and go to the System Setup: Advanced > Security
Settings menu. Press MODE/ENTER. The Security Settings page displays.
Highlight Change Security Settings and press MODE/ENTER.
As pictured to the right, the four arrow keys (▲,
▼, ◄, ►) respectively represent 4 digits (1, 2, 3,
4). According to the password you desire to set,
press the arrow keys to enter six digits for the
password.
Confirm the new password by re-entering the
new password.
Once the password is set, the OSD menu returns
to the Security Settings page.
To activate the Power on Lock function, press
▲/▼ to highlight Power on Lock and press ◄/► to select On.
The digits being input will display as asterisks on-screen. Write your selected password down
here in this manual in advance or right after the password is entered so that it is available to you
should you ever forget it.
Password: __ __ __ __ __ __
Keep this manual in a safe place.
6.
To leave the OSD menu, press MENU/EXIT.
Operationhttp://www.pureglare.com.au
29
If you forget the password
If the password function is activated, you will be asked
to enter the six-digit password every time you turn on
Password Error
the projector. If you enter the wrong password, the
Please Try again.
password error message as pictured to the right
displays lasting for three seconds, and the message
'INPUT PASSWORD' follows. You can retry by
entering another six-digit password, or if you did not
record the password in this manual, and you absolutely do not remember it, you can use
the password recall procedure. See "Entering the password recall procedure" on page 30
for details.
If you enter an incorrect password 5 times in succession, the projector will automatically
shut down in a short time.
Entering the password recall procedure
1.
2.
3.
30
Press and hold AUTO on the projector or
remote control for 3 seconds. The
projector will display a coded number on
the screen.
Write down the number and turn off your
projector.
Seek help from the local BenQ service
center to decode the number. You may be
required to provide proof of purchase
documentation to verify that you are an
authorized user of the projector.
http://www.pureglare.com.au
Operation
RECALL PASSWORD
Please write down the recall code,
and contact BenQ
Customer Center.
Recall code:
12345678
MENU Back
Changing the password
1.
2.
3.
4.
Open the OSD menu and go to the System Setup: Advanced > Security
Settings > Change password menu.
Press MODE/ENTER. The message 'INPUT CURRENT PASSWORD' displays.
Enter the old password.
•
If the password is correct, another message 'INPUT NEW PASSWORD'
displays.
•
If the password is incorrect, the password error message displays lasting for three
seconds, and the message 'INPUT CURRENT PASSWORD' displays for
your retry. You can press MENU/EXIT to cancel the change or try another
password.
Enter a new password.
The digits being input will display as asterisks on-screen. Write your selected password down
here in this manual in advance or right after the password is entered so that it is available to you
should you ever forget it.
Password: __ __ __ __ __ __
Keep this manual in a safe place.
5.
6.
7.
Confirm the new password by re-entering the new password.
You have successfully assigned a new password
to the projector. Remember to enter the new
Password Changed
password next time the projector is started.
To leave the OSD menu, press MENU/EXIT.
Disabling the password function
To disable password protection, go back to the System Setup: Advanced > Security
Settings > Change Security Settings menu after opening the OSD menu system. Press
MODE/ENTER. The message "INPUT PASSWORD" appears. Enter the current
password.
i. If the password is correct, the OSD menu returns to the Security Settings.
Press ▼ highlight Power On Lock and press ◄/► to select Off. You will not
have to enter the password next time you turn on the projector.
ii. If the password is incorrect, the password error message displays lasting for
three seconds, and the message 'INPUT PASSWORD' displays for your retry.
You can press MENU/EXIT to cancel the change or try another password.
Though the password function is disabled, you need to keep the old password in hand should you
ever need to re-activate the password function by entering the old password.
Operationhttp://www.pureglare.com.au
31
Switching input signal
The projector can be connected to multiple devices at the same time. However, it can only
display one full screen at a time.
Be sure the Quick Auto Search function in the Source menu is On (which is the
default of this projector) if you want the projector to automatically search for the signals.
You can also manually cycle through the available input signals.
1.
2.
Press SOURCE on the projector or press input source directly from the remote
control. A source selection bar displays.
Press ▲/▼ until your desired signal is selected and press MODE/ENTER.
Once detected, the selected source information will display on the screen for
seconds. If there is multiple equipment connected to the projector, repeat steps 1-2
to search for another signal.
•
The brightness level of the projected image will change accordingly when you switch
between different input signals. Data (graphic) "PC" presentations using mostly static
images are generally brighter than "Video" using mostly moving images (movies).
•
For best display picture results, you should select and use an input signal which outputs at
this resolution. Any other resolutions will be scaled by the projector depending upon the
'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See
"Selecting the aspect ratio" on page 33 for details.
Changing Color Space
In the unlikely event that you connect the projector to a DVD player via the projector’s
HDMI input and the projected picture displays wrong colors, please change the color
space.
To do this:
1.
2.
Press MENU/EXIT and then press ◄/► until the SOURCE menu is highlighted.
Press ▼ to highlight Color Space Conversion and press ◄/► to select the
setting.
This function is only available when the HDMI input socket is in use.
32
http://www.pureglare.com.au
Operation
Magnifying and searching for details
If you need to find the details on the projected picture, magnify the picture. Use the
direction arrow keys for navigating the picture.
• Using the remote control
1.
Press Digital Zoom+/- to display the Zoom bar. Press Digital Zoom+ to magnify
the center of the picture. Press the key repeatedly until the picture size is suitable for
your need.
2.
Use the directional arrows (▲, ▼, ◄, ►) on the projector or remote control to
navigate the picture.
3.
To restore the picture to its original size, press AUTO. You can also press Digital
Zoom-. When the key is pressed again, the picture is further reduced until it is
restored to the original size.
• Using the OSD menu
1.
Press MENU/EXIT and then press ◄/► until the Display menu is highlighted.
2.
Press ▼ to highlight Digital Zoom and press MODE/ENTER. The Zoom bar
displays.
3.
Press ▼ on the projector repeatedly to magnify the picture to a desired size.
4.
To navigate the picture, press MODE/ENTER to switch to the paning mode and
press the directional arrows (▲, ▼, ◄, ►) to navigate the picture.
5.
To reduce size of the picture, press MODE/ENTER to switch back to the zoom in/
out functionality, and press AUTO to restore the picture to its original size. You can
also press ▼ repeatedly until it is restored to the original size.
The picture can only be navigated after the picture is magnified. You can further magnify the
picture while searching for details.
Selecting the aspect ratio
The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and
computers are in 4:3 ratio, and digital TV and DVDs are usually in 16:9 ratio.
With the advent of digital signal processing, digital display devices like this projector can
dynamically stretch and scale the image output to a different aspect than that of the image
input signal.
To change the projected image ratio (no matter what aspect the source is):
• Using the remote control
1.
Press Aspect to show the current setting.
2.
Press Aspect repeatedly to select an aspect ratio to suit the format of the video
signal and your display requirements.
• Using the OSD menu
1.
Press MENU/EXIT and then press ◄/► until the Display menu is highlighted.
2.
Press ▼ to highlight Aspect Ratio.
3.
Press ◄/► to select an aspect ratio to suit the format of the video signal and your
display requirements.
Operationhttp://www.pureglare.com.au
33
About the aspect ratio
In the pictures below, the black portions are inactive areas and the white portions are active
areas. OSD menus can be displayed on those unused black areas.
1.
Auto: Scales an image
proportionally to fit the projector's
native resolution in its horizontal
width. This is suitable for the
incoming image which is neither in
4:3 nor 16:9 and you want to make
most use of the screen without
altering the image's aspect ratio.
3.
4:3 picture
15:9 picture
2.
Real: The image is projected as its
original resolution, and resized to fit
within the display area. For input
signals with lower resolutions, the
projected image will display smaller
than if resized to full screen. You
could adjust the zoom setting or
move the projector away from the
screen to increase the image size if
necessary. You may also need to
refocus the projector after making
these adjustments.
4:3 picture
4:3: Scales an image so that it is
displayed in the center of the screen
with a 4:3 aspect ratio. This is most
suitable for 4:3 images like
computer monitors, standard
definition TV and 4:3 images aspect
DVD movies, as it displays them
without aspect alteration.
4.
16:9: Scales an image so that it is
displayed in the center of the screen
with a 16:9 aspect ratio. This is
most suitable for images which are
already in a 16:9 aspect, like high
definition TV, as it displays them
without aspect alteration.
16:9 picture
5.
16:10: Scales an image so that it is
displayed in the center of the screen
with a 16:10 aspect ratio. This is
most suitable for images which are
already in a 16:10 aspect, as it
displays them without aspect
alteration.
16:9 picture
16:10 picture
34
http://www.pureglare.com.au
Operation
Optimizing the image
Using Wall Color
In the situation where you are projecting onto a colored surface such as a painted wall
which may not be white, the Wall Color feature can help correct the projected picture’s
color to prevent possible color difference between the source and projected pictures.
To use this function, go to the Display > Wall Color menu and press ◄/► to select a
color which is the closest to the color of the projection surface. There are several
precalibrated colors to choose from: Light Yellow, Pink, Light Green, Blue, and
Blackboard.
Selecting a picture mode
The projector is preset with several predefined picture modes so that you can choose one
to suit your operating environment and input signal picture type.
To select an operation mode that suits your need, you can follow one of the following
steps.
•
•
1.
2.
3.
4.
5.
6.
Press MODE/ENTER on the projector repeatedly until your desired mode is
selected.
Go to the Picture > Picture Mode menu and press ◄/► to select a desired mode.
Bright mode: Maximizes the brightness of the projected image. This mode is
suitable for environments where extra-high brightness is required, such as using the
projector in well lit rooms.
Presentation mode: Is designed for presentation. The brightness is emphasized in
this mode to match PC and notebook coloring..
sRGB mode: Maximizes the purity of RGB colors to provide true-to-life images
regardless of brightness setting. It is most suitable for viewing photos taken with an
sRGB compatible and properly calibrated camera, and for viewing PC graphic and
drawing applications such as AutoCAD.
Cinema mode: Is appropriate for playing colorful movies, video clips from digital
cameras or DVs through the PC input for best viewing in a blackened (dimly lit)
environment.
3D mode: Is appropriate for playing 3D images and 3D video clips.
User 1/User 2 mode: Recalls the settings customized based on the current
available picture modes. See "Setting the User 1/User 2 mode" on page 36 for details.
Operationhttp://www.pureglare.com.au
35
Setting the User 1/User 2 mode
There are two user-definable modes if the current available picture modes are not suitable
for your need. You can use one of the picture modes (except the User 1/User 2) as a
starting point and customize the settings.
1.
2.
3.
4.
Press MENU/EXIT to open the On-Screen Display (OSD) menu.
Go to the Picture > Picture Mode menu.
Press ◄/► to select User 1 to User 2.
Press ▼ to highlight Reference Mode.
This function is only available when User 1 or User 2 mode is selected up in the Picture Mode
sub-menu item.
5.
6.
Press ◄/► to select a picture mode that is closest to your need.
Press ▼ to select a sub-menu item to be changed and adjust the value with ◄/►.
See "Fine-tuning the image quality in user modes" below for details.
Fine-tuning the image quality in user modes
According to the detected signal type, and selected picture mode, some of the functions
listed below may not be available. Base on your need, you can make adjustments to these
functions by highlighting them and press ◄/► on the projector or remote control.
Adjusting Brightness
The higher the value, the brighter the image. And
lower the setting, darker the image. Adjust this control
so the black areas of the image appear just as black and
that detail in the dark areas is visible.
Adjusting Contrast
The higher the value, the greater the contrast. Use this
to set the peak white level after you have previously
adjusted the Brightness setting to suit your selected
input and viewing environment.
Adjusting Color
Lower setting produces less saturated colors. If the setting is too high, colors on the image
will be overpowering, which makes the image unrealistic.
Adjusting Tint
The higher the value, the more reddish the picture becomes. The lower the value, the
more greenish the picture becomes.
Adjusting Sharpness
The higher the value, the sharper the picture becomes. The lower the value, the softer the
picture becomes.
Adjusting Brilliant Color
This feature utilizes a new color-processing algorithm and system level enhancements to
enable higher brightness while providing truer, more vibrant colors in picture. It enables a
greater than 50% brightness increase in mid-tone images, which are common in video and
natural scenes, so the projector reproduces images in realistic and true colors. If you
prefer images with that quality, select On. If you don’t need it, select Off.
When Off is selected, the Color Temperature function is not available.
36
http://www.pureglare.com.au
Operation
Selecting a Color Temperature
The options available for color temperature* settings vary according to the signal type
selected.
1.
2.
3.
Cooler: makes the image appear bluish white.
Normal: Maintains normal colorings for white.
Warm: Makes images appear reddish white.
*About color temperatures:
There are many different shades that are considered to be "white" for various purposes.
One of the common methods of representing white color is known as the “color
temperature”. A white color with a low color temperature appears to be reddish white. A
white color with a high color temperature appears to have more blue in it.
Setting a preferred color temperature
To set a preferred color temperature:
1.
2.
3.
4.
Highlight Color Temperature and select Warm, Normal or Cool by pressing
◄/► on the projector or remote control.
Press ▼ to highlight Color Temperature Fine Tuning and press MODE/
ENTER. The Color Temperature Fine Tuning page appears.
Press ▲/▼ to highlight the item you want to change and adjust the values by
pressing ◄/►.
•
R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue.
•
R Offset/G Offset/B Offset: Adjusts the brightness levels of Red, Green, and
Blue.
Press MENU/EXIT to exit and save the settings.
3D Color Management
In most installation situations, color management will not be necessary, such as in
classroom, meeting room, or lounge room situations where lights remain on, or where
building external windows allow daylight into the room.
Only in permanent installations with controlled lighting levels such as boardrooms, lecture
theaters, or home theaters, should color management be considered. Color management
provides fine color control adjustment to allow for more accurate color reproduction,
should you require it.
Proper color management can only be achieved under controlled and reproducible viewing
conditions. You will need to use a colorimeter (color light meter), and provide a set of
suitable source images to measure color reproduction. These tools are not provided with
the projector, however, your projector supplier should be able to provide you with suitable
guidance, or even an experienced professional installer.
The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you
select each color, you can independently adjust its range and saturation according to your
preference.
If you have purchased a test disc which contains various color test patterns and can be
used to test the color presentation on monitors, TVs, projectors, etc. You can project any
image from the disc on the screen and enter the 3D Color Management menu to make
adjustments.
To adjust the settings:
1.
Go to the Picture menu and highlight 3D Color Management.
Operationhttp://www.pureglare.com.au
37
2.
3.
4.
5.
Press MODE/ENTER and the 3D Color Management page displays.
Highlight Primary color and press ◄/► to select a color from among Red, Green,
Blue, Cyan, Magenta and Yellow.
Press ▼ to highlight Hue and press ◄/► to select its range. Increase in the range
will include colors consisted of more proportions of its two adjacent colors.
Please refer to the illustration to the right for
how the colors relate to each other.
For example, if you select Red and set its
Yellow
GREEN
RED
range at 0, only pure red in the projected
picture will be selected. Increasing its range
will include red close to yellow and red close
to magenta.
Cyan
Magenta
Press ▼ to highlight Saturation and adjust
its values to your preference by pressing ◄/
BLUE
►. Every adjustment made will reflect to the
image immediately.
For example, if you select Red and set its
value at 0, only the saturation of pure red will be affected.
Saturation is the amount of that color in a video picture. Lower settings produce less saturated
colors; a setting of “0” removes that color from the image entirely. If the saturation is too high,
that color will be overpowering and unrealistic.
6.
7.
8.
9.
Press ▼ to highlight Gain and adjust its values to your preference by pressing ◄/►.
The contrast level of the primary color you select will be affected. Every adjustment
made will reflect to the image immediately.
Repeat steps 3 to 6 for other color adjustments.
Make sure you have made all of the desired adjustments.
Press MENU/EXIT to exit and save the settings.
Resetting current or all picture modes
1.
2.
38
Go to the Picture menu and highlight Reset Picture Settings.
Press MODE/ENTER and press ▲/▼ to select Current or All.
•
Current: returns current picture mode to the factory preset settings.
•
All: returns all settings, except User 1/User 2 in the Picture menu to the
factory preset settings.
http://www.pureglare.com.au
Operation
Setting the presentation timer
Presentation timer can indicate the presentation time on the screen to help you achieve
better time management when giving presentations. Follow these steps to utilize this
function:
1.
2.
Go to the System Setup: Basic > Presentation Timer menu and press MODE/
ENTER to display the Presentation Timer page.
Highlight Timer Period and decide the time period by pressing ◄/►. The length of
time can be set from 1 to 5 minutes in 1-minute increments and 5 to 240 minutes in
5-minute increments.
If the timer is already on, the timer will restart whenever the Timer Period is reset.
3.
Press ▼ to highlight Timer Display and choose if you want the timer to show up
on the screen by pressing ◄/►.
Selection
Always
3 min/2 min/1 min
Never
4.
5.
Count Up
Count Down
7.
8.
Displays the timer on screen throughout the presentation time.
Displays the timer on screen in the last 3/2/1 minute(s).
Hides the timer throughout the presentation time.
Press ▼ to highlight Timer Position and set the timer position by pressing ◄/►.
Press ▼ to highlight Timer Counting Direction and select your desired counting
direction by pressing ◄/►.
Selection
6.
Description
Description
Increases from 0 to the preset time.
Decreases from the preset time to 0.
Press ▼ to highlight Sound Reminder and decide if you want to activate sound
reminder by pressing ◄/►. If you select On, a double beep sound will be heard at
the last 30 seconds of counting down/up, and a triple beep sound will be produced
when the timer is up.
To activate the presentation timer, press ▼ and press ◄/► to highlight On and
press MODE/ENTER.
A confirmation message appears. Highlight Yes and press MODE/ENTER on the
projector or remote control to confirm. You will see the message “Timer is On”
appearing on the screen. The timer starts counting when the timer is on.
To cancel the timer, perform the following steps:
1.
2.
Go to the System Setup: Basic > Presentation Timer menu and highlight Off.
Press MODE/ENTER. A confirmation message appears.
Highlight Yes and press MODE/ENTER to confirm. You will see the message
“Timer is Off” appearing on the screen.
Operationhttp://www.pureglare.com.au
39
Remote paging operations
Connect the projector to your PC or notebook with a USB cable prior to using the paging
function. See "Connection" on page 21 for details.
You can operate your display software program (on a connected PC) which responds to
page up/down commands (like Microsoft PowerPoint) by pressing PAGE +/PAGE - on the
remote control.
If remote paging function doesn't work, check if the USB connection is correctly made and
the mouse driver on your computer is updated to the latest version.
The remote paging function cannot work with Microsoft® Windows® 98 operating system.
Windows® XP or higher operating systems are recommended.
Freezing the image
Press FREEZE on the remote control to freeze the image. The word 'FREEZE' will
appear on the screen. To release the function, press any key on the projector or remote
control.
If your remote control has the following keys, please note that they cannot be pressed to
release the function: LASER, #2, #5, PAGE +/PAGE -.
Even if an image is frozen on the screen, the pictures are running on the video or other
device. If the connected devices have active audio output, you will still hear the audio even
though the image is frozen on screen.
Hiding the image
In order to draw the audience's full attention to the presenter, you can use ECO BLANK
on the projector or ECO BLANK on the remote control to hide the screen image.
When the function is activated with an audio input connected, the audio can still heard.
You can set the blank time in the System Setup: Basic > Operating Settings >
Blank Timer menu to let the projector return the image automatically after a period of
time when there is no action taken on the blank screen. The length of time can be set from
5 to 30 minutes in 5-minute increments.
If the preset time spans are not suitable for your presentation, select Disable.
No matter Blank Timer is activated or disabled, you can press most of the keys on the
projector or remote control to restore the picture.
•
40
Do not block the projection lens from projecting as this could cause the blocking object to
become heated and deformed or even cause a fire.
http://www.pureglare.com.au
Operation
Locking control keys
With the control keys on the projector locked, you can prevent your projector settings
from being changed accidentally (by children, for example). When the Panel Key Lock is
on, no control keys on the projector will operate except
POWER.
1.
Go to the System Setup: Basic > Panel Key Lock menu, and select On by
pressing ◄/► on the projector or remote control. A confirmation message appears.
2.
Highlight Yes and press MODE/ENTER to confirm.
To release panel key lock, use the remote control to enter the System Setup: Basic >
Panel Key Lock menu and press ◄/► to select Off.
•
Keys on the remote control are still active when panel key lock is enabled.
•
If you press
POWER to turn off the projector without disabling panel key lock, the
projector will still be in locked status the next time it is turned on.
Operating in a high altitude environment
We recommend you use the High Altitude Mode when your environment is between
1500 m –3000 m above sea level, and temperature is between 0°C–30°C.
Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and temperature
is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on under such
a condition.
To activate the High Altitude Mode:
1.
Press MENU/EXIT and then press ◄/► until the System Setup: Advanced
menu is highlighted.
2.
Press ▼ to highlight High Altitude Mode and press ◄/► to select On. A
confirmation message displays.
3.
Highlight Yes and press MODE/ENTER.
Operation under "High Altitude Mode" may cause a higher decibel operating noise level
because of increased fan speed necessary to improve overall system cooling and
performance.
If you use this projector under other extreme conditions excluding the above, it may
display auto shut-down symptoms, which is designed to protect your projector from overheating. In cases like this, you should switch to High Altitude mode to solve these
symptoms. However, this is not to state that this projector can operate under any and all
harsh or extreme conditions.
Adjusting the sound
The sound adjustments made as below will have an effect on the projector speakers. Be
sure you have made a correct connection to the projector audio input. See "Connection"
on page 21 for how the audio input is connected.
INPUT SOURCE
PC
HDMI-1, HDMI-2/MHL
VIDEO
S-VIDEO
Operationhttp://www.pureglare.com.au
AUDIO IN
mini jack
HDMI
RCA
RCA
AUDIO OUT
mini jack
mini jack
mini jack
mini jack
41
Muting the sound
To temporarily turn off the sound,
• Using the remote control
Press MUTE to temporarily turn off the sound. While the sound is off, the screen will
display
in the upper right corner of the screen.
To restore the sound, press MUTE again.
• Using the OSD menu
1.
Press MENU/EXIT and then press ◄/► until the System Setup: Advanced
menu is highlighted.
2.
Press ▼ to highlight Audio Settings and press MODE/ENTER. The Audio
Settings page displays.
3.
Highlight Mute and press ◄/► to select On.
4.
To restore the sound, repeat steps 1-3 and press ◄/► to select Off.
Adjusting the sound level
To adjust the sound level,
• Using the remote control
Press
or
to select a desired sound level.
• Using the OSD menu
1.
Repeat steps 1-2 above.
2.
Press ▼ to highlight Volume and press ◄/► to select a desired sound level.
Microphone Volume
To adjust the microphone sound level, press MIC/VOL keys (+/-) on the remote control,
or:
1.
2.
Repeat steps 1-2 above.
Press ▼ to highlight Microphone Volume and press ◄/► to select a desired
sound level.
Turning off the Power on/off ring tone
1.
2.
Repeat steps 1-2 above.
Press ▼ to highlight Power on/off ring tone and press ◄/► to select Off.
The only way to change Power on/off ring tone is setting On or Off here. Setting the sound mute
or changing the sound level will not affect the Power on/off ring tone.
Using the test pattern
The projector is capable of displaying the grid test
pattern. It can be used to assist you with the
adjustment of image size and focus, ensuring that the
projected image is free from distortion.
To display the test pattern, open the OSD menu and
go to the System Setup: Advanced > Test
Pattern and press ◄/► to select On.
42
http://www.pureglare.com.au
Operation
Using the teaching templates
The projector provides several preset patterns for various teaching purposes. To activate
the pattern:
1.
2.
3.
Open the OSD menu and go to the Display > Teaching Template and press ▲/▼
to select Blackboard or Whiteboard.
Press ◄/► to choose the pattern you need.
Press MODE/ENTER to activate the pattern.
Teaching
Template
Whiteboard
Blackboard
Letter
Formation
Worksheet
Coordinate
Chart
Using the quick install
The projector provides a hot key to set Projector Installation, Test Pattern, and
Keystone quickly.
Press Quick Install on the remote control and press ▲/▼ to select:
•
•
•
Projector Installation: See "Positioning your projector" on page 18.
Test Pattern: See "Using the test pattern" on page 42.
Keystone: See "Correcting 2D Keystone" on page 26.
Operationhttp://www.pureglare.com.au
43
Shutting down the projector
1.
Press
POWER or
OFF and a confirmation message will appear prompting
you.
If you don't respond in a few seconds, the message will disappear.
2.
Press
POWER or
OFF a second time. The POWER indicator light
flashes orange, the projection lamp shuts down, and the fans will continue to run for
approximately 90 seconds to cool down the projector.
To protect the lamp, the projector will not respond to any commands during the cooling
process. To shorten the cooling time, you can also activate the Quick Cooling function. See
"Quick Cooling" on page 52 for details.
3.
Once the cooling process finishes, a "Power Off
Ring Tone" will be heard. The POWER
indicator light is a steady orange and fans stop.
Disconnect the power cord from the power
outlet.
•
To turn off the power ring tone, see "Turning off the
Power on/off ring tone" on page 42 for details.
•
If the projector is not properly shut down, to protect
the lamp, when you attempt to re-start the projector, the fans will run for a few minutes to
POWER or
ON again to start the projector after the fans stop
cool down. Press
and the POWER indicator light turns orange.
•
44
Lamp life results will vary depending on environmental conditions and usage.
http://www.pureglare.com.au
Operation
Menu operation
Menu system
Please note that the on-screen display (OSD) menus vary according to the signal type
selected.
Main menu
Sub-menu
Options
Wall color
Off/Light Yellow/Pink/Light Green/
Blue/Blackboard
Aspect Ratio
Auto/Real/4:3/16:9/16:10
Auto Keystone
On/Off
2D Keystone
Top Left/Top Right/Bottom Left/
Bottom Right
Corner Fit
Position
Phase
1.
Display
H.size
Digital zoom
3D
PC:1.0X~2.0X; Video: 1.0X~1.8X
3D mode
Auto/Off/Frame sequential/Frame
packing/Top bottom/Side by side
3D Sync Invert
Disable/Invert
Save 3D Setting
3D Settings 1/3D Settings 2/3D
Settings 3
Apply 3D Setting
3D Settings 1/3D Settings 2/3D
Settings 3
Blackboard
Off/Letter Formation/Worksheet/
Coordinate Chart
Whiteboard
Off/Letter Formation/Worksheet/
Coordinate Chart
Teaching Template
Operationhttp://www.pureglare.com.au
45
Main menu
Sub-menu
Options
Picture Mode
Bright/Presentation/sRGB/Cinema/
3D/User 1/User 2
Reference Mode
Bright/Presentation/sRGB/Cinema/
3D
Brightness
Contrast
Color
Tint
Sharpness
2.
Brilliant Color
On/Off
Color
Temperature
Cool/Normal/Warm
Color
Temperature Fine
Tuning
R Gain/G Gain/B Gain/
R Offset/G Offset/B Offset
Primary Color
3D Color
Management
R/G/B/C/M/Y
Hue
Saturation
Gain
3.
Source
46
Reset picture
settings
Current/All/Cancel
Quick Auto Search
On/Off
Color Space
Conversion
Auto/RGB/YUV
http://www.pureglare.com.au
Operation
Main menu
Sub-menu
Presentation
Timer
Options
Timer Period
1~240 min
Timer Display
Always/1 min/2mins/3 mins/Never
Timer Position
Top-Left/Bottom-Left/
Top-Right/Bottom-Right
Timer Counting
Direction
Count Down/Count up
Sound Reminder
On/Off
On/Off
Yes/No
Language
Projector
Installation
4.
System
Setup: Basic Menu Setting
Front Table/Rear Table/Rear
Celling/Front Ceiling
Menu Display Time 5 sec/10 sec/20 sec/30 sec/Always
Menu Position
Center/Top-Left/Top-Right/
Bottom-Right/Bottom-Left
Reminder Message On/Off
Direct Power On
On/Off
Auto Power Off
Disable/3 mins/10 mins/15 mins/
20 mins/25 mins/30 mins
Quick Cooling
Operation Setting Instant Restart
Remote Receiver
On/Off
Signal Power On
On/Off
On/Off
Blank Timer
Disable/5 mins/10 mins/
15 mins/20 mins/25 mins/
30 mins
Sleep Timer
Disable/30 mins/1 hr/2 hrs/3hrs/
4hrs/8 hrs/12hrs
Front+Rear/Front/Rear
Panel Key Lock
On/Off
Background Color
BenQ/Black/Blue/Purple
Splash Screen
BenQ/Black/Blue
Operationhttp://www.pureglare.com.au
47
Main menu
Sub-menu
Options
High Altitude
Mode
On/Off
Mute
On/Off
Volume
Audio Settings
Lamp Settings
Microphone
Volume
Power on/off Ring
On/Off
Lamp Mode
Normal/Economic/SmartEco
Reset Lamp Timer Reset/Cancel
Lamp Timer
5.
System
Setup:
Advanced
Change Passward
Security Setting
Change Security
Settings
Power On Lock
Baud Rate
Test Pattern
Closed Caption
Standby Settings
Reset All Settings
6.
Current System
Information Status
On/Off
2400/4800/9600/14400/19200/
38400/57600/1152000
On/Off
Closed Caption
Enable
On/Off
Caption Version
CC1/CC2/CC3/CC4
Microphone
On/Off
Monitor Out
On/Off
Audio Pass
Through
Off/Audio in/Audio L/R/HDMI 1/
HDMI 2/MHL
Reset / Cancel
•
•
•
•
•
•
•
•
Source
Picture Mode
Lamp Mode
Resolution
3D Format
Color System
Lamp Usage Time
Firmware Version
Note that the menu items are available when the projector detects at least one valid signal.
If there is no equipment connected to the projector or no signal detected, limited menu
items are accessible.
48
http://www.pureglare.com.au
Operation
Description of each menu
FUNCTION
DESCRIPTION
Corrects the projected picture’s color when the projection surface is
not white. See "Using Wall Color" on page 35 for details.
There are several options to set the image's aspect ratio depending
on your input signal source. See "Selecting the aspect ratio" on page
Aspect Ratio
33 for details.
Auto Keystone Corrects vertical keystoning of the image automatically.
Wall color
2D Keystone
1. Display menu
Corner Fit
Position
Phase
H.size
Digital zoom
Adjusts the shape of the projected image to ensure straight lines on
all four corners. See "Correcting 2D Keystone" on page 26 for
details.
Adjusts the shape of the projected image to ensure a specific corner
is straight. See "Correcting Corner Fit" on page 27 for details.
Displays the position adjustment page. To move the projected image,
use the directional arrow keys. The values shown on the lower
position of the page change with every key press you made until they
reach their maximum or minimum.
This function is only available when a PC signal (analog RGB) is
selected.
Adjusts the clock phase to reduce image
distortion.
This function is only available when a PC signal
(analog RGB) is selected.
Adjusts the horizontal width of the image. This function is only
available when a PC signal (analog RGB) is selected.
Magnifies or reduces the projected image. See "Magnifying and
searching for details" on page 33 for details.
Operationhttp://www.pureglare.com.au
49
FUNCTION
DESCRIPTION
This projector features a 3D function which enables you to enjoy the
3D movies, videos, and sporting events in a more realistic way by
presenting the depth of the images. You need to wear a pair of 3D
glasses to view the 3D images.
3D Mode
The default setting is Auto and the projector automatically chooses
an appropriate 3D format when detecting 3D contents. If the
projector cannot recognize the 3D format, press ◄/► to choose a
3D mode.
When the 3D function is on:
•The brightness level of the projected image will decrease.
1. Display menu
•The following settings cannot be adjusted: Picture Mode,
Reference Mode.
3D
•The Keystone can only be adjusted within limited degrees.
3D Sync Invert
When you discover the inversion of the image depth, enable this
function to correct the problem.
Save 3D Settings
When you have successfully displayed the 3D contents after making
the appropriate adjustments, you can enable this function and choose
a set of 3D settings to memorize current 3D settings.
Apply 3D Settings
After the 3D settings are saved, you can decide if you would like to
apply them by choosing a set of 3D settings that you have saved.
Once applied, the projector will automatically play the incoming 3D
contents if it matches the 3D settings saved.
Only the set(s) of 3D settings with memorized data is available.
Teaching
Template
50
See "Using the teaching templates" on page 43 for details.
http://www.pureglare.com.au
Operation
FUNCTION
Picture Mode
Reference
Mode
Brightness
Contrast
Color
2. Picture menu
Tint
Sharpness
DESCRIPTION
Pre-defined picture modes are provided so you can optimize your
projector image set-up to suit your program type. See "Selecting a
picture mode" on page 35 for details.
Selects a picture mode that most suits your need for the image
quality and further fine-tune the image based on the selections listed
on the same page below. See "Setting the User 1/User 2 mode" on
page 36 for details.
Adjusts the brightness of the image. See "Adjusting Brightness" on
page 36 for details.
Adjusts the degree of difference between dark and light in the image.
See "Adjusting Contrast" on page 36 for details.
Adjusts the color saturation level -- the amount of each color in a
video image. See "Adjusting Color" on page 36 for details.
The function is only available when Video or S-Video with NTSC
system is selected.
Adjusts the red and green color tones of the image. See "Adjusting
Tint" on page 36 for details.
The function is only available when Video or S-Video with NTSC
system is selected.
Adjusts the image to make it look sharper or softer. See "Adjusting
Sharpness" on page 36 for details.
The function is only available when Video or S-Video with NTSC
system is selected.
white peaking while maintaining correct color presentation.
Brilliant Color Adjusts
See "Adjusting Brilliant Color" on page 36 for details.
3. Source menu
Color
Temperature
See "Selecting a Color Temperature" on page 37 for details.
Color
Temperature
Fine Tuning
See "Setting a preferred color temperature" on page 37 for details.
3D Color
Management
See "3D Color Management" on page 37 for details.
Reset picture
settings
See "Resetting current or all picture modes" on page 38 for details.
Quick Auto
Search
See "Switching input signal" on page 32 for details.
See "Changing Color Space" on page 32 for details.
Color Space
Conversion
Operationhttp://www.pureglare.com.au
51
FUNCTION
DESCRIPTION
Presentation
Timer
Reminds the presenter to finish the presentation within a certain
time frame. See "Setting the presentation timer" on page 39 for details.
Language
Sets the language for the On-Screen Display (OSD) menus.
See "Using the menus" on page 28 for details.
The projector can be installed on a ceiling or behind a screen, or with
one or more mirrors. See "Choosing a location" on page 18 for
details.
Projector
Installation
Menu display time
Sets the length of time the OSD will remain active after your last key
press. The range is from 5 to 30 seconds in 5-second increments.
Menu Setting
Menu Position
Sets the On-Screen Display (OSD) menu position.
Reminder Message
Selecting On allows the projector to remind you to clean the filter.
4. System Setup: Basic menu
Direct Power On
Powers projector on automatically when the power cable is
connected.
Signal Power On
Sets whether to turn the projector directly on without pressing
POWER or ON when the projector is in standby mode and the
signal is feed through the VGA cable.
Auto Power Off
Allows the projector to turn off automatically if no input signal is
detected after a set period of time. See "Setting Auto Power Off" on
page 58 for details.
Quick Cooling
Operation
Setting
Enables or disables the Quick Cooling function. Selecting On
enables the function and the projector cooling time will be shortened
from a normal 90 second duration to approximately 2 seconds.
If you attempt to restart the projector right after the quick
cooling process, it may not be turned on successfully and will
rerun its cooling fans.
Instant Restart
Selecting On enables you to restart the projector immediately within
90 seconds after turning it off.
Blank Timer
Sets the image blank time when the Blank feature is activated, once
elapsed the image will return to the screen. See "Hiding the image"
on page 40 for details.
Sleep Timer
Sets the auto-shutdown timer. The timer can be set to a value
between 30 minutes and 12 hours.
52
http://www.pureglare.com.au
Operation
4. System Setup: Basic menu
FUNCTION
DESCRIPTION
Remote
Receiver
Sets the preferred remote receiver (Front and Rear) allowing the
projector to accept signals from the remote control.
Panel Key
Lock
Disables or enables all panel key functions except
POWER on
the projector and keys on the remote control. See "Locking control
keys" on page 41 for details.
Selects background appearance when there is no signal.
Background
Color
Splash Screen
High Altitude
Mode
Allows you to select which logo screen will appear during projector
start-up
A mode for operation in high altitude areas. See "Operating in a high
altitude environment" on page 41 for details.
See "Adjusting the sound" on page 41 for details.
Mute
Sets the mute function.
Volume
Audio Settings Adjusts the audio volume level.
5. System Setup: Advanced menu
Microphone volume
Adjusts the microphone sound level.
Power on/off Ring Tone
Sets the power on/off ring tone.
Lamp Mode
See "Setting Lamp mode as Economic or SmartEco" on page 57 for
details.
Lamp Settings
Reset lamp timer
See "Resetting the lamp timer" on page 62 for details.
Lamp Timer
See "Getting to know the lamp hour" on page 57 for details on how
the total lamp hour is calculated.
Change password
You will be asked to enter the current password before changing to a
new one. See "Utilizing the password function" on page 29 for details.
Security
Setting
Change Security Settings
Power On Lock
When Power On Lock is activated, you will be asked to enter the
current password before powering on the projector.
If you enter incorrect password 5 times in succession, the projector
will automatically shut down in a short time.
Operationhttp://www.pureglare.com.au
53
FUNCTION
Baud Rate
Test Pattern
DESCRIPTION
Selects a baud rate that is identical with your computer’s so that you
can connect the projector using a suitable RS-232 cable and update
or download the projector’s firmware. This function is intended for
qualified service personnel.
Selecting On enables the function and the projector displays the grid
test pattern. It helps you adjust the image size and focus and check
that the projected image is free from distortion.
Closed Caption Enable
Activates the function by selecting On when the selected input signal
carries closed captions.
Closed
Caption
•
Captions: An on-screen display of the dialogue, narration, and
sound effects of TV programs and videos that are closed
captioned (usually marked as "CC" in TV listings).
Caption Version
5. System Setup: Advanced menu
Selects a preferred closed captioning mode. To view captions, select
CC1, CC2, CC3, or CC4 (CC1 displays captions in the primary
language in your area).
Microphone
Selecting On enables the function, and the microphone can be used
even in standby mode.
Monitor Out
Selecting On enables the function. The projector can output a VGA
signal when it is in standby mode and the PC jack is correctly
connected to devices. See "Connection" on page 21 for how to make
the connection.
Audio Pass Through
Standby
Settings
Press ◄/► to choose the source that you wish to use in operation
mode. See "Connection" on page 21 for how to make the connection.
When the corresponding jacks are correctly connected to the
device, the projector can output an audio signal to the external
speaker when it is in standby mode. The built-in speaker(s) will be
muted in standby mode.
Enabling this function slightly increases the standby power
consumption.
Reset All
Settings
54
Returns all settings to the factory preset values.
The following settings will still remain: Position, Phase, H. Size,
Projector Installation, Language, High Altitude Mode, Security
Settings, Baud Rate.
http://www.pureglare.com.au
Operation
FUNCTION
DESCRIPTION
Source
Shows the current signal source.
Picture Mode
Shows the selected mode in the Picture menu.
6. Information menu
Lamp Mode
Shows the current lamp mode.
Resolution
Shows the native resolution of the input signal.
Current
System Status 3D Format
Shows the current 3D mode.
Color System
Shows input system format, NTSC, PAL, SECAM or RGB.
Lamp Usage Time
Displays the number of hours the lamp has been used.
Firmware Version
Displays the firmware version of the projector.
The Information menu shows you the current operating status of the projector.
Operationhttp://www.pureglare.com.au
55
Maintenance
Care of the projector
Your projector needs little maintenance. The only thing you need to do on a regular basis
is to keep the lens clean.
Never remove any parts of the projector except the lamp. Contact your dealer if other
parts need replacing.
Cleaning the lens
Clean the lens whenever you notice dirt or dust on the surface.
•
•
Use a canister of compressed air to remove dust.
If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens
cleaner and gently wipe the lens surface.
Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent,
such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged
contact with rubber or vinyl materials may result in damage to the projector surface and
cabinet material.
Cleaning the projector case
Before you clean the case, turn the projector off using the proper shutdown procedure as
described in "Shutting down the projector" on page 44 and unplug the power cord.
•
•
To remove dirt or dust, wipe the case with a soft, lint-free cloth.
To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH
detergent. Then wipe the case.
Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the
case.
Storing the projector
If you need to store the projector for an extended time, please follow the instructions
below:
•
•
•
•
Make sure the temperature and humidity of the storage area are within the
recommended range for the projector. Please refer to "Specifications" on page 65 or
consult your dealer about the range.
Retract the adjuster feet.
Remove the battery from the remote control.
Pack the projector in its original packing or equivalent.
Transporting the projector
It is recommended that you ship the projector with its original packing or equivalent.
When you carry the projector yourself, please use the original box or a suitable soft carry
case.
56
http://www.pureglare.com.au
Maintenance
Lamp information
Getting to know the lamp hour
When the projector is in operation, the duration (in hours) of lamp usage is automatically
calculated by the built-in timer. The method of calculating the equivalent lamp hour is as
follows:
Lamp Usage Time = (hours used in Normal mode) + (hours used in Economic mode) +
(hours used in SmartEco mode)
Equivalent lamp hour = 1.8*(hours used in Normal mode) + 1.3*(hours used in Economic
mode) + 1.00*(hours used in SmartEco mode)
See "Setting Lamp mode as Economic or SmartEco" below for more information on Economic
mode.
To obtain the lamp hour information:
1.
Press MENU/EXIT and then press ◄/► until the SYSTEM SETUP: Advanced
menu is highlighted.
2.
Press ▼ to highlight Lamp Settings and press MODE/ENTER. The Lamp
Settings page displays.
3.
You will see the Lamp Timer information displaying on the menu.
4.
To leave the menu, press MENU/EXIT.
You can also get the lamp hour information on the INFORMATION menu.
Extending lamp life
The projection lamp is a consumable item. To keep the lamp life as long as possible, you
can do the following settings via the OSD menu.
Setting Lamp mode as Economic or SmartEco
Using Economic mode reduces system noise and power consumption by 20%. Using
SmartEco mode reduces system noise and lamp power consumption by up to 70%. If the
Economic or SmartEco mode is selected, the light output will be reduced and result in
darker projected pictures.
Setting the projector in Economic or SmartEco mode also extends the lamp operation
life. To set Economic or SmartEco mode, go into the SYSTEM SETUP: Advanced >
Lamp Settings > Lamp mode menu and press ◄/► until your desired mode is
selected.
Lamp mode
Normal
Economic
SmartEco
Description
100% lamp brightness
Saves 20% lamp power consumption.
Save up to 30% lamp power consumption depending on the content
brightness level.
http://www.pureglare.com.au
Maintenance
57
Setting Auto Power Off
This function allows the projector to turn off automatically if no input source is detected
after a set period of time to prevent unnecessary waste of lamp life.
To set Auto Power Off, go into the SYSTEM SETUP: Basic > Auto Power Off
menu and press ◄/►. The time period can be set from 5 to 30 minutes in 5-minute
increments. If the preset time lengths are not suitable for your presentation, select
Disable. The projector will not automatically shut down in a certain time period.
58
http://www.pureglare.com.au
Maintenance
Timing of replacing the lamp
When the Lamp indicator lights up red or a message appears suggesting it is time to
replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a
malfunction in the projector and in some instances the lamp may explode.
Go to http://www.benq.com for a replacement lamp.
The Lamp indicator light and Temperature warning light will light up if the lamp becomes too
hot. Turn the projector off and let the projector cool for 45 minutes. If the lamp or Temp
indicator still lights up after turning the power back on, please contact your dealer. See
"Indicators" on page 63 for details.
The following lamp warning displays will remind you to change the lamp.
The warning messages below are for reference only. Please follow the actual on-screen
instructions to prepare and replace the lamp.
Status
Message
Install a new lamp for optimal performance. If
the projector is normally run with Economic
selected (See "Setting Lamp mode as Economic
or SmartEco" on page 57), you may continue to
operate the projector until the next lamp
warning appears.
Press MODE/ENTER to dismiss the message.
It is strongly recommended that you replace the
lamp at this age. The lamp is a consumable item.
The lamp brightness diminishes with use. This is
normal lamp behavior. You can replace the lamp
whenever you notice that the brightness level
has significantly diminished.
Press MODE/ENTER to dismiss the message.
The lamp MUST be replaced before the
projector will operate normally.
Press MODE/ENTER to dismiss the message.
http://www.pureglare.com.au
Maintenance
59
Replacing the lamp
•
If lamp replacement is performed while the projector is suspended upside-down from the
ceiling, make sure that no one is underneath the lamp socket to avoid any possible injury or
damage to the human eyes caused by fractured lamp.
•
To reduce the risk of electrical shock, always turn the projector off and disconnect the power
cord before changing the lamp.
•
To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before
replacing the lamp.
•
To reduce the risk of injuries to fingers and damage to internal components, use caution
when removing lamp glass that has shattered into sharp pieces.
•
To reduce the risk of injuries to fingers and/or compromising image quality by touching the
lens, do not touch the empty lamp compartment when the lamp is removed.
•
This lamp contains mercury. Consult your local hazardous waste regulations to dispose of
this lamp in a proper manner.
•
To assure optimal performance from the projector, it is recommended that you purchase a
BenQ projector lamp for lamp replacement.
•
Ensure good ventilation when handling broken lamps. We recommend that you use
respirators, safety glasses, goggles or face shield and wear protective clothing such as gloves.
1.
Turn the power off and disconnect the projector from the wall socket. If the lamp is
hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.
Loosen the captive screws from the left
and rear side.
Remove the lamp compartment cover
as shown.
2.
3.
4.
60
Disconnect the lamp connector from
the projector as illustrated.
http://www.pureglare.com.au
Maintenance
5.
Loosen the two captive screws that
secure the lamp.
•
Do not turn the power on with the lamp
cover removed.
•
Do not insert your fingers between the
lamp and the projector. The sharp edges
inside the projector may cause injuries.
6.
Lift the handle so that it stands up. Use
the handle to slowly pull the lamp out
of the projector.
•
Pulling it too quickly may cause the lamp to
break and scatter broken glass in the
projector.
•
Do not place the lamp in locations where
water might splash on it, children can reach
it, or near flammable materials.
•
Do not insert your hands into the projector
after the lamp is removed. If you touch the
optical components inside, it could cause
color unevenness and distortion of the
projected images.
7.
Insert the new lamp into the lamp
compartment and make sure it fits in
the projector.
•
Ensure the connectors are aligned.
•
If you experience resistance, lift the lamp
and start again.
8.
9.
Tighten the screws that secure the
lamp.
Ensure the handle is fully laid flat and
locked in place.
•
Loose screw may cause a bad connection,
which could result in malfunction.
•
Do not over tighten the screw.
http://www.pureglare.com.au
Maintenance
61
10.
•
Connect the lamp connector properly
and place as drawing before lamp
compartment cover installation back.
Lamp connector must be installed flush
with the connector base as shown in the
image below. A gap between the lamp
connector and the connector base will
cause damage to the projector. The
following images illustrate correct and
incorrect lamp connector installations.
No gap
Gap
Correct
11.
Replace the lamp compartment cover
on the projector and tighten the
captive screw.
12.
Restart the projector.
Incorrect
Do not turn the power on with the lamp cover removed.
Resetting the lamp timer
13.
After the startup logo, open the On-Screen Display (OSD) menu. Go to the
SYSTEM SETUP: Advanced > Lamp Settings menu. Press MODE/ENTER.
The Lamp Settings page displays. Highlight Reset lamp timer. A warning
message displays asking if you want to reset the lamp timer. Highlight Reset and
press MODE/ENTER. The lamp time will be reset to '0'.
Do not reset if the lamp is not new or replaced as this could cause damage.
62
http://www.pureglare.com.au
Maintenance
Indicators
Light
Power
Status & Description
Temp
Lamp
Power events
Orange
Green
Flashing
Green
Orange
Flashing
Off
Off
Off
Off
Off
Off
Off
Off
Stand-by mode
Powering up
Normal operation
Projector is cooling.
Lamp events
Off
Off
Off
Off
Orange
The lamp ignition is not lit up.
Flashing
Red
1.
The projector needs 90 seconds to cool down. Or
2.
Please contact your dealer for assistance.
Thermal events
Red
Red
Red
Red
Green
Green
Green
Green
Green
Red
Red
Flashing
Green
Green
Flashing
Red
Red
Flashing
Green
Green
Flashing
Red
Off
Off
Off
Off
Off
Off
Off
Off
Red
The fans are not
working.
The projector has shutdown
automatically. If you try to re-start
the projector, it will shutdown
again. Please contact your dealer
for assistance.
Temperature 1 error (over limited temperature).
Thermal sensor 1 open error.
Thermal sensor 1 short error.
Thermal IC #1 I2C connection error.
Thermal break error.
System events
Green
Red
Flashing
Red
Off
Off
Off
Red
Off
Off
Green
Red
Red
Green
Red
Off
Off
Orange
Off
The projector has shutdown automatically. If you try to restart the projector, it will shutdown again. Please contact
your dealer for assistance.
Lamp door is open. Please check if the lamp door is open or
not closed properly.
Lamp life exhausted.
Download.
http://www.pureglare.com.au
Maintenance
63
Troubleshooting
The projector does not turn on.
Cause
Remedy
Plug the power cord into the AC inlet on the
projector, and plug the power cord into the
There is no power from the power cable.
power outlet. If the power outlet has a switch,
make sure that it is switched on.
Attempting to turn the projector on again Wait until the cooling down process has
during the cooling process.
completed.
No picture.
Cause
Remedy
The video source is not turned on or
connected correctly.
Turn the video source on and check that the signal
cable is connected correctly.
The projector is not correctly connected
to the input signal device.
Check the connection.
The input signal has not been correctly
selected.
Select the correct input signal with the SOURCE
key on the projector or remote control.
Blurred image.
Cause
Remedy
The projection lens is not correctly
focused.
Adjust the focus of the lens using the focus ring.
The projector and the screen are not
aligned properly.
Adjust the projection angle and direction as well
as the height of the unit if necessary.
The lens cover is still closed.
Open the lens cover.
Remote control does not work.
Cause
Remedy
The battery is out of power.
Replace the battery with new one.
There is an obstacle between the remote
control and the projector.
Remove the obstacle.
You are too far away from the projector.
Stand within 7 meters (23 feet) of the projector.
The password is incorrect.
64
Cause
Remedy
You do not remember the password.
Please see "Entering the password recall
procedure" on page 30 for details.
http://www.pureglare.com.au
Troubleshooting
Specifications
Projector specifications
All specifications are subject to change without notice.
Optical
Control
Resolution
MH741
1920 x 1080
Display system
Single-chip DLP™ system
Lens F/Number
F=2.59 to 2.91, f=16.87 to 21.87mm
Lamp
260W lamp
USB
MINI-B
RS-232 serial control
9 pin x 1
IR receiver x 2
Electrical
Power supply
AC100-240V
50-60 Hz (Automatic)
3.5A
Power consumption
350W (Max); < 0.5W (Standby)
Mechanical
Weight
7.28 lbs (3.3 Kg)
Output terminals
Speaker
(Mono) 10 watt x 1
Audio signal output
PC audio jack x 1
Monitor Out
D-Sub 15-pin (female) x1
USB
TYPE-A (5V/1.5A)
http://www.pureglare.com.au
Specifications
Input terminals
PC input
RGB input
D-Sub 15-pin (female) x 1
Video signal input
S-VIDEO
Mini DIN 4-pin port x 1
VIDEO
RCA jack x 1
SD/HDTV signal input
Digital - HDMI-1 x 1
Digital - HDMI-2/MHL x 1
Audio signal input
Audio in
PC audio jack x 1
RCA audio jack (L/R) x 1
MIC
PC audio jack x 1
Environmental Requirements
Operating temperature
0°C–40°C at sea level
Operating relative humidity
10%–90% (without condensation)
Operating altitude
0–1499 m at 0°C–35°C
1500–3000 m at 0°C–30°C (with
High Altitude Mode on)
65
Dimensions
314.2 mm (W) x 116 mm (H) x 216.3 mm (D)
314.2
Unit: mm
314.2
216.3
51.2 65.2
Ceiling Mount Installation
*Ceiling Mount Screws:
M4 (Max. L=25, Min. L=20)
90.5
71.0
45.6
76.0
636.9
577.7
109.0
537.9
81.8
314.2
66
http://www.pureglare.com.au
Specifications
216.3
116.0
Timing chart
Supported timing for PC input
Resolution
Mode
Refresh
rate
(Hz)
Hfrequency
(kHz)
Clock
(MHz)
720 x 400
720 x 400_70
VGA_60
VGA_72
VGA_75
VGA_85
70.087
59.940
72.809
75.000
85.008
31.469
31.469
37.861
37.500
43.269
28.3221
25.175
31.500
31.500
36.000
60.317
72.188
75.000
85.061
37.879
48.077
46.875
53.674
119.854
640 x 480
SVGA_60
SVGA_72
SVGA_75
800 x 600
SVGA_85
SVGA_120
(Reduce Blanking)
XGA_60
XGA_70
XGA_75
1024 x 768
XGA_85
XGA_120
(Reduce Blanking)
1152 x 864 1152 x 864_75
1024 x 576 BenQ NB Timing
1024 x 600 BenQ NB Timing
1280 x 720 1280 x 720_60
1280 x 768 1280 x 768_60
WXGA_60
WXGA_75
1280 x 800
WXGA_85
WXGA_120
(Reduce Blanking)
SXGA_60
SXGA_75
1280 x 1024
SXGA_85
3D
3D
3D Field
over- sideSequential
under by-side
Ϩ
Ϩ
Ϩ
40.000
50.000
49.500
56.250
Ϩ
Ϩ
Ϩ
77.425
83.000
Ϩ
60.004
70.069
75.029
84.997
48.363
56.476
60.023
68.667
65.000
75.000
78.750
94.500
Ϩ
Ϩ
Ϩ
119.989
97.551
115.500
Ϩ
75.00
67.500
108.000
60.00
64.995
60
35.820
41.467
45.000
46.996
51.419
74.250
Ϩ
Ϩ
Ϩ
59.870
47.776
79.5
Ϩ
Ϩ
Ϩ
59.810
49.702
83.500
Ϩ
Ϩ
Ϩ
74.934
84.880
62.795
71.554
106.500
122.500
119.909
101.563
146.25
60.020
75.025
85.024
63.981
79.976
91.146
108.000
135.000
157.500
Ϩ
Ϩ
http://www.pureglare.com.au
Specifications
Ϩ
67
Refresh
rate
(Hz)
Hfrequency
(kHz)
Clock
(MHz)
1280 x 960_60
1280 x 960_85
1360 x 768 1360 x 768_60
1440 x 900 WXGA+_60
SXGA+_60
1400 x 1050
UXGA
1600 x 1200
1680 x 1050 1680 x 1050_60
60.000
85.002
60.015
60.000
85.938
47.712
108
148.500
85.500
˖
˖
˖
˖
59.887
59.978
60.000
59.954
55.935
65.317
106.500
121.750
˖
˖
˖
˖
75.000
65.290
162.000
146.250
˖
˖
˖
˖
640 x 480
@67Hz
832 x 624
@75Hz
1024 x 768
@75Hz
1152 x 870
@75Hz
MAC13
66.667
35.000
30.240
MAC16
74.546
49.722
57.280
MAC19
74.93
60.241
80.000
MAC21
75.06
68.68
100.00
1920x1080 1920 x 1080_60
@60Hz (Reduce Blanking)
60
67.5
148.5
1920x1200 1920 x 1200_60
@60Hz (Reduce Blanking)
59.95
74.038
154
Resolution
Mode
1280 x 960
3D
3D
3D Field
over- sideSequential
under by-side
There 3D timing showing depend the EDID file and VGA display card. It is possible that user
cannot choose the above 3D timings on VGA display card.
68
http://www.pureglare.com.au
Specifications
Support timing for Component - YPbPr input
Timing
Resolution
Horizontal
frequency
(KHz)
Vertical
Frequency
(Hz)
Dot Clock
Frequency
(MHz)
3D Field
Sequential
480i
720 x 480
15.73
59.94
13.5
˖
480p
720 x 480
31.47
59.94
27
˖
576i
720 x 576
15.63
50
13.5
576p
720 x 576
31.25
50
27
720/50p
1280 x 720
37.5
50
74.25
720/60p
1280 x 720
45.00
60
74.25
1080/50i
1920 x 1080
28.13
50
74.25
1080/60i
1920 x 1080
33.75
60
74.25
1080/24p
1920 x 1080
27
24
74.25
1080/25p
1920 x 1080
28.13
25
74.25
1080/30p
1920 x 1080
33.75
30
74.25
1080/50p
1920 x 1080
56.25
50
148.5
1080/60p
1920 x 1080
67.5
60
148.5
http://www.pureglare.com.au
Specifications
˖
69
Support timing for Video and S-Video input
Video mode
Vertical
Frequency
(Hz)
Horizontal
frequency
(KHz)
Sub-carrier
Frequency
(MHz)
3D Field
Sequential
˖
NTSC
15.73
60
3.58
PAL
15.63
50
4.43
SECAM
15.63
50
4.25 or 4.41
PAL-M
15.73
60
3.58
PAL-N
15.63
50
3.58
PAL-60
15.73
60
4.43
NTSC4.43
15.73
60
4.43
Support timing for HDMI (HDCP) input
Resolution
Mode
VGA_60
VGA_72
640 x 480
VGA_75
VGA_85
720 x 400 720 x 400_70
SVGA_60
SVGA_72
SVGA_75
800 x 600
SVGA_85
SVGA_120
(Reduce Blanking)
XGA_60
XGA_70
XGA_75
1024 x 768
XGA_85
XGA_120
(Reduce Blanking)
1152 x 864 1152 x 864_75
BenQ
1024 x 576 Notebook Timing
BenQ
1024 x 600 Notebook Timing
1280 x 720 1280 x 720_60
70
3D
3D
3D Field
over- sideSequential
under by-side
Refresh
rate
(Hz)
Hfrequency
(kHz)
Clock
(MHz)
59.940
72.809
75.000
85.008
70.087
60.317
72.188
75.000
85.061
31.469
37.861
37.500
43.269
31.469
37.879
48.077
46.875
53.674
25.175
31.500
31.500
36.000
28.3221
40.000
50.000
49.500
56.250
˖
˖
˖
˖
˖
˖
119.854
77.425
83.000
˖
60.004
70.069
75.029
84.997
48.363
56.476
60.023
68.667
65.000
75.000
78.750
94.500
˖
˖
˖
119.989
97.551
115.500
˖
75.00
67.500
108.000
60.00
35.820
46.996
˖
˖
64.995
41.467
51.419
60
45.000
74.250
http://www.pureglare.com.au
Specifications
˖
3D
3D
3D Field
over- sideSequential
under by-side
Refresh
rate
(Hz)
Hfrequency
(kHz)
59.870
47.776
79.5
˖
˖
˖
59.810
49.702
83.500
˖
˖
˖
74.934
84.880
62.795
71.554
106.500
122.500
119.909
101.563
146.25
60.020
75.025
85.024
60.000
85.002
60.015
63.981
79.976
91.146
60.000
85.938
47.712
108.000
135.000
157.500
108
148.500
85.500
˖
˖
˖
˖
˖
˖
59.887
59.978
60.000
59.954
55.935
65.317
75.000
65.290
106.500
121.750
162.000
146.250
˖
˖
˖
˖
640 x 480
MAC13
@67Hz
832 x 624
MAC16
@75Hz
1024 x 768
MAC19
@75Hz
1152 x 870
MAC21
@75Hz
1920x1080 1920 x 1080_60
@60Hz (Reduce Blanking)
66.667
35.000
30.240
74.546
49.722
57.280
75.020
60.241
80.000
75.06
68.68
100.00
60
67.5
148.5
1920x1200 1920 x 1200_60
@60Hz (Reduce Blanking)
59.95
74.038
154
Resolution
Mode
1280 x 768 1280 x 768_60
WXGA_60
WXGA_75
1280 x 800
WXGA_85
WXGA_120
(Reduce Blanking)
SXGA_60
SXGA_75
1280 x 1024
SXGA_85
1280 x 960_60
1280 x 960
1280 x 960_85
1360 x 768 1360 x 768_60
1440 x 900 WXGA+_60
SXGA+_60
1400 x 1050
1600 x 1200
UXGA
1680 x 1050 1680 x 1050_60
Clock
(MHz)
˖
˖
˖
˖
There timing showing depend the EDID file and VGA graphic card limitation. It is possible that
user cannot choose the above timings on VGA display card.
http://www.pureglare.com.au
Specifications
71
Supporting timing for HDMI Video input
Timing
Resolution
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Dot Clock
Frequency
(MHz)
480i
720 (1440) x 480
15.73
59.94
27
˖
480p
720 x 480
31.47
59.94
27
˖
576i
720 (1440) x 576
15.63
50
27
576p
720 x 576
31.25
50
27
720/50p
1280 x 720
37.5
50
74.25
720/60p
1280 x 720
45.00
60
74.25
1080/24p
1920 x 1080
27
24
74.25
1080/25p
1920 x 1080
28.13
25
74.25
1080/30p
1920 x 1080
33.75
30
74.25
1080/50i
1920 x 1080
28.13
50
74.25
˖
1080/60i
1920 x 1080
33.75
60
74.25
˖
1080/50p
1920 x 1080
56.25
50
148.5
˖
˖
1080/60p
1920 x 1080
67.5
60
148.5
˖
˖
3D
3D
3D Field 3D frame
over- sideSequential packing
under by-side
˖
˖
˖
˖
˖
˖
˖
˖
˖
˖
Supporting timing for MHL input
72
Timing
Resolution
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Dot Clock
Frequency
(MHz)
480i*
720 (1440) x 480
15.73
59.94
27
480p
720 x 480
31.47
59.94
27
576i*
720 (1440) x 576
15.63
50
27
576p
720 x 576
31.25
50
27
720/50p
1280 x 720
37.5
50
74.25
720/60p
1280 x 720
45.00
60
74.25
1080/24p
1920 x 1080
27
24
74.25
1080/25p
1920 x 1080
28.13
25
74.25
1080/30p
1920 x 1080
33.75
30
74.25
1080/50i
1920 x 1080
28.13
50
74.25
1080/60i
1920 x 1080
33.75
60
74.25
http://www.pureglare.com.au
Specifications
Warranty and Copyright information
Limited warranty
BenQ warrants this product against any defects in material and workmanship, under
normal usage and storage.
Proof of purchase date will be required with any warranty claim. In the event this product
is found to be defective within the warranty period, BenQ's only obligation and your
exclusive remedy shall be replacement of any defective parts (labor included). To obtain
warranty service, immediately notify the dealer from which you purchased the product of
any defects.
Important: The above warranty shall be void if the customer fails to operate the product in
accordance with BenQ's written instructions, especially the ambient humidity must be inbetween 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 4920
feet, and avoiding to operate the projector in a dusty environment. This warranty gives you
specific legal rights, and you may have other rights which vary from country to country.
For other information, please visit www.BenQ.com.
Copyright
Copyright 2011 by BenQ Corporation. All rights reserved. No part of this publication may
be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any
language or computer language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without the prior written permission of
BenQ Corporation.
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or implied,
with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves
the right to revise this publication and to make changes from time to time in the contents
hereof without obligation to notify any person of such revision or changes.
*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others
are copyrights of their respective companies or organizations.
Patents
Please go to http://patmarking.benq.com/ for the details of the BenQ projector patent.
Warrantyhttp://www.pureglare.com.au
and Copyright information
73
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
