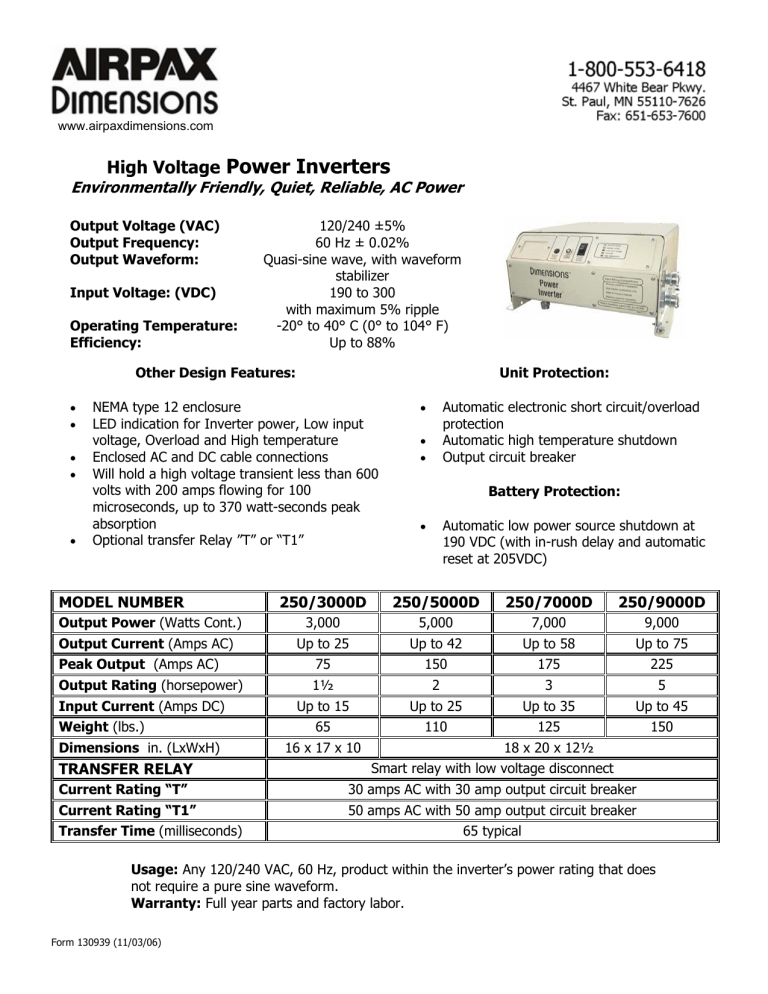

High Voltage Power Inverters
www.airpaxdimensions.com
High Voltage Power Inverters
Environmentally Friendly, Quiet, Reliable, AC Power
Output Voltage (VAC)
Output Frequency:
Output Waveform:
Input Voltage: (VDC)
Operating Temperature:
Efficiency:
120/240 ±5%
60 Hz ± 0.02%
Quasi-sine wave, with waveform
stabilizer
190 to 300
with maximum 5% ripple
-20° to 40° C (0° to 104° F)
Up to 88%
Unit Protection:
Other Design Features:
•
•
•
•
•
NEMA type 12 enclosure
LED indication for Inverter power, Low input
voltage, Overload and High temperature
Enclosed AC and DC cable connections
Will hold a high voltage transient less than 600
volts with 200 amps flowing for 100
microseconds, up to 370 watt-seconds peak
absorption
Optional transfer Relay ”T” or “T1”
MODEL NUMBER
Automatic electronic short circuit/overload
protection
Automatic high temperature shutdown
Output circuit breaker
•
•
•
Battery Protection:
Automatic low power source shutdown at
190 VDC (with in-rush delay and automatic
reset at 205VDC)
•
250/3000D
250/5000D
250/7000D
250/9000D
3,000
5,000
7,000
9,000
Up to 25
Up to 42
Up to 58
Up to 75
Peak Output (Amps AC)
75
150
175
225
Output Rating (horsepower)
1½
2
3
5
Up to 15
Up to 25
Up to 35
Up to 45
65
110
125
150
Output Power (Watts Cont.)
Output Current (Amps AC)
Input Current (Amps DC)
Weight (lbs.)
Dimensions in. (LxWxH)
16 x 17 x 10
18 x 20 x 12½
TRANSFER RELAY
Smart relay with low voltage disconnect
Current Rating “T”
30 amps AC with 30 amp output circuit breaker
Current Rating “T1”
50 amps AC with 50 amp output circuit breaker
Transfer Time (milliseconds)
65 typical
Usage: Any 120/240 VAC, 60 Hz, product within the inverter’s power rating that does
not require a pure sine waveform.
Warranty: Full year parts and factory labor.
Form 130939 (11/03/06)
