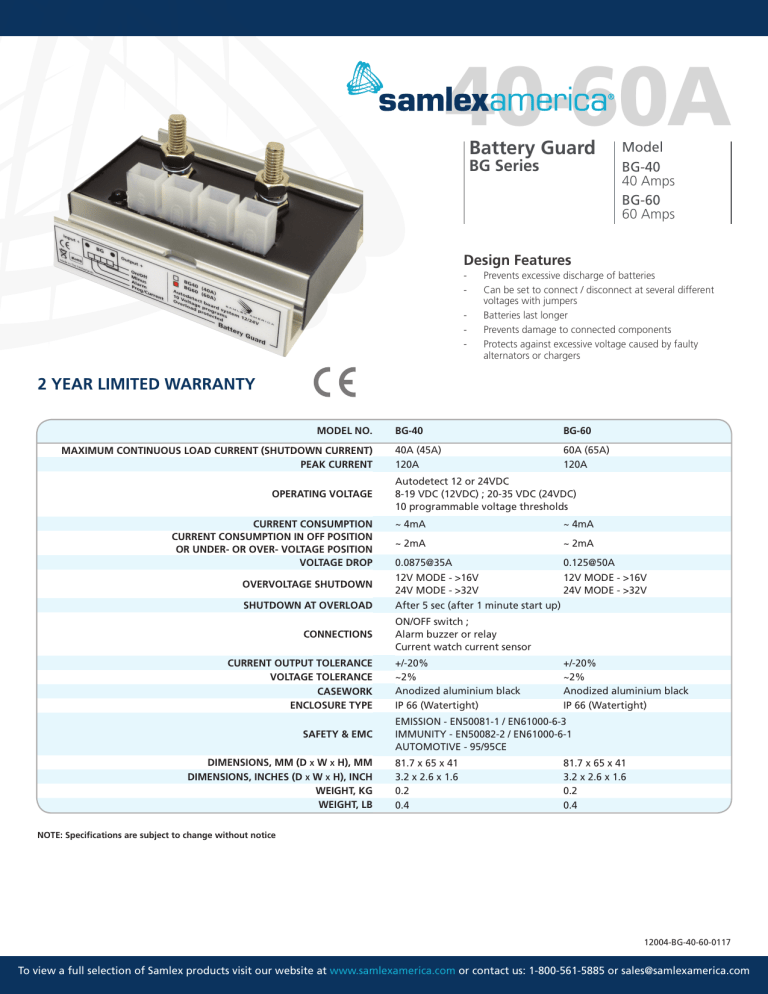

40-60A - Samlex America
40-60A
Battery Guard
BG Series
Model
BG-40
40 Amps
BG-60
60 Amps
Design Features
-
-
-
-
-
Prevents excessive discharge of batteries
Can be set to connect / disconnect at several different
voltages with jumpers
Batteries last longer
Prevents damage to connected components
Protects against excessive voltage caused by faulty
alternators or chargers
2 YEAR LIMITED WARRANTY
Model No.
Maximum Continuous Load Current (Shutdown Current)
Peak Current
Operating Voltage
Current Consumption
Current Consumption in OFF Position
or under- or over- voltage position
Voltage Drop
BG-40
BG-60
40A (45A)
120A
60A (65A)
120A
Autodetect 12 or 24VDC
8-19 VDC (12VDC) ; 20-35 VDC (24VDC)
10 programmable voltage thresholds
~ 4mA
~ 4mA
~ 2mA
~ 2mA
[email protected]
[email protected]
Overvoltage Shutdown
12V MODE - >16V
24V MODE - >32V
12V MODE - >16V
24V MODE - >32V
Shutdown at Overload
After 5 sec (after 1 minute start up)
Connections
Current Output Tolerance
Voltage Tolerance
Casework
Enclosure Type
Safety & EMC
Dimensions, mm (D x w x h), MM
Dimensions, INCHES (D x w x h), Inch
Weight, KG
Weight, LB
On/Off switch ;
Alarm buzzer or relay
Current watch current sensor
+/-20%
~2%
Anodized aluminium black
IP 66 (Watertight)
+/-20%
~2%
Anodized aluminium black
IP 66 (Watertight)
EMISSION - EN50081-1 / EN61000-6-3
IMMUNITY - EN50082-2 / EN61000-6-1
AUTOMOTIVE - 95/95CE
81.7 x 65 x 41
3.2 x 2.6 x 1.6
0.2
0.4
81.7 x 65 x 41
3.2 x 2.6 x 1.6
0.2
0.4
NOTE: Specifications are subject to change without notice
12004-BG-40-60-0117
