CA-BT1 Adpater Manual

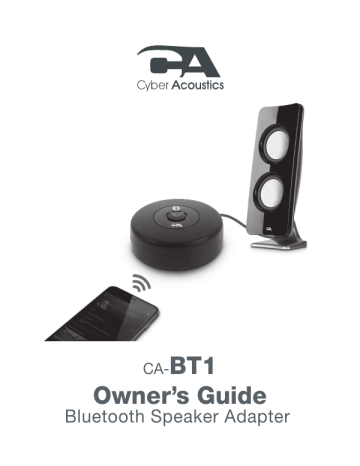

CA-BT1
Owner’s Guide
Bluetooth Speaker Adapter
Thank you!
Getting Started
Welcome.
CA-BT1
Bluetooth Speaker Adapter
Box Contents
• Bluetooth Speaker Adapter
• RCA to 3.5mm adapter cable
• AC Power adapter
• Owner’s guide with connection diagram
Caution
• Do not plug the power adapter in until all connections are made.
• Use only the AC power adapter supplied.
• Keep the CA-BT1 away from sources of extreme heat, such as
stereo amplifiers, space heaters, stoves, and heat vents.
• Use a dry cloth for cleaning. Do not wipe any part of the system
with cleaning solvents, such as furniture wax, bleach, benzene,
acetone, or ammonia.
First Time Connection
1. Plug in the AC power adapter into the power input jack
2a. Plug the RCA end of the RCA adapter cable in to the CA-BT1
with the other end of the cable plugged into a speaker with
3.5mm input jack
OR
2b. Plug the 3.5mm end of the RCA adapter cable into the CA-BT1
with the RCA end plugged into an AV system
OR
2c. Use a 3.5mm to 3.5mm cable (not included) with one end plugged
into the CA-BT1 and the other end of the cable plugged into a
speaker with 3.5mm input jack
3. Press the CA-BT1 power button; you will hear beep and the
button will blink Red and Blue. The adapter is now in pairing mode
4. Then search your source device (smartphone, tablet, laptop, etc.)
Bluetooth settings for device name “CA-BT1” and tap to connect
5. After successful connection, your speakers will beep a connected
sound, and the CA-BT1 power light will turn to solid blue.
Reconnection
Press the power button and the CA-BT1 will automatically
reconnect to the last paired device if it is nearby.
Pair with new device
After the adapter is switched on; press and hold for 3 seconds;
you will hear the pairing sound indicator and the power button will
blink in Red and Blue. The CA-BT1 is now in pairing mode and
you can connect your speakers with a new Bluetooth device.
Controls and Features
Power Button /
Pairing Button
3.5mm
RCA
Stereo output Stereo output
Power input
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user' sauthority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Canada ICES-003 - This Class B digital apparatus complies with
Canadian ICES-003.
