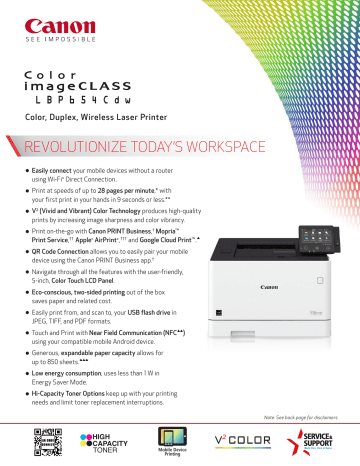

Canon Color imageCLASS LBP654Cdw Spec Sheet

Canon Color imageCLASS LBP654Cdw Spec Sheet
Color, Duplex, Wireless Laser Printer
REVOLUTIONIZE TODAY’S WORKSPACE
•E asily connect your mobile devices without a router
using Wi-Fi® Direct Connection.
•Print at speeds of up to 28 pages per minute,* with
your first print in your hands in 9 seconds or less.**
•V
(Vivid and Vibrant) Color Technology produces high-quality
prints by increasing image sharpness and color vibrancy.
2
•Print on-the-go with Canon PRINT Business, Mopria™
†
††
†††
Print Service, Apple® AirPrint® ,
and Google Cloud Print™.▲
•Q R Code Connection allows you to easily pair your mobile
device using the Canon PRINT Business app.†
•Navigate through all the features with the user-friendly,
5-inch, Color Touch LCD Panel.
•E co-conscious, two-sided printing out of the box
saves paper and related cost.
•E asily print from, and scan to, your USB flash drive in
JPEG, TIFF, and PDF formats.
•Touch and Print with Near Field Communication (NFC
)
▲▲
using your compatible mobile Android device.
•Generous, expandable paper capacity allows for
up to 850 sheets.▲▲▲
•L ow energy consumption; uses less than 1 W in
Energy Saver Mode.
•H i-Capacity Toner Options keep up with your printing
needs and limit toner replacement interruptions.
Note: See back page for disclaimers.
HIGH
CAPACITY
TONER
Mobile Device
Printing
ADVANCED TECHNOLOGIES FOR YOUR OFFICE
Speed and Versatility
Color Touch LCD Panel
The LBP654Cdw delivers high-speed, color and black-and-
The intuitive, customizable,
white output up to 28 ppm* to help keep your business running.
5-inch, Color Touch LCD
With a generous paper capacity of up to 850 sheets
Panel allows you to easily
▲▲▲
and
high-capacity toner options, the LBP654Cdw gives your
navigate through the menu.
business the efficiency and support it deserves.
The wide-screen display is user
friendly, helping you to complete
Print On-the-Go
tasks more quickly.
Print a variety of file types, Web pages, and images
on-the-go with Canon PRINT Business, † Mopria™ Print
Application Library
Service, †† Apple® AirPrint®,††† and Google Cloud Print™
The imageCLASS LBP654Cdw allows you to customize the
using your compatible mobile device. For more information
printer's interface depending on the functions you need and
on Canon supported apps and compatibility, please visit
use the most. You can customize your screensaver, check
https://www.usa.canon.com/mobile-app.
consumable status, create your own print template on your
▲
home screen and organize it based on your business needs.
Image Quality
Achieve high-quality printing and sharp, vibrant colors with
V 2 (Vivid and Vibrant) Color Technology. This technology
expands the color gamut of dark areas and shadows, in
particular, for greater sharpness and detail.
NFC Capability
Near Field Communication (NFC▲▲) allows you to easily
"touch and print" to the LBP654Cdw printer using your
compatible mobile Android device.
Predecessor Canon Product without
V 2 Color Technology
New Canon Product with
V 2 Color Technology
Print images simulated.
2
Note: See back page for disclaimers.
FEATURES
Color imageCLASS LBP654Cdw
BASIC SPECIFICATIONS
Functions
Replaces
Print Speeds
(Default Print Mode: Two-sided)
Connectivity
Operating Systems
Print
LBP7660dn
Up to 28 ppm** (1-sided, plain paper, Letter)
Up to 23 ppm** (2-sided, plain paper, Letter)
USB 2.0 Hi-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11 b/g/n Wireless•
Windows 10/8.1/8/7, Windows Server 2016/2012 R2/2012/2008 R2/2008, Windows Vista, Mac OS 10.7.5 or Later
(Drivers available for download from www.usa.canon.com)
PAPER HANDLING
Paper Types
Standard Cassette
Multipurpose Tray
Optional Cassette
Output Tray
Duplex
Duty Cycle
Recommended Monthly Print Volume (RMPV)
Security
Letter, Legal, A4, A5,•• B5, Statement, Executive
Up to 250 Sheets▲▲▲ (14-43 lb. Bond)
Up to 50 Sheets▲▲▲ (16-47 lb. Bond)
Up to 550 Sheets (x1)▲▲▲ (14-43 lb. Bond)
150 Sheets (face-down)
Yes
Up to 50,000 Pages per Month
750-4,000 Pages
IP/MAC Address Filtering, HTTPS, SNMPv3, IEEE802.1x, Department ID Management (up to 300 IDs)
PRINTER SPECIFICATIONS
First-Print Time
Printer Language
Print Resolution
Print Features
Print Memory
Mobile Print
Black/Color: 9 Seconds or Less (Letter)**
UFR II, PCL (6, 5c), Adobe PostScript, PDF, XPS
Up to 600 x 600 dpi, 1200 x 1200 dpi Quality
Poster, Booklet, Watermark, Toner Saver, Page Composer
1 GB
Canon PRINT Business,† Mopria™ Print Service,†† Apple AirPrint,††† Google Cloud Print™▲
Dimensions
Weight
Package Weight
Warranty
18.7" (W) x 18.5" (D) x 15" (H)
41.9 lb. (w/o CRG); 46.3 lb. (w/CRG)
Approx. 53.5 lb.
One-Year Limited Exchange/Carry-in ♦ (Extended warranty available)
GENERAL SPECIFICATIONS
ENVIRONMENTAL SPECIFICATIONS
Typical Energy Consumption (TEC)
Power Consumption
Noise Level♦♦
ENERGY STAR
EPEAT
1.0 kWh
Operation: Approx. 480 W (during operation); Standby: Approx. 20 W;
Energy Saver/Sleep Mode: Approx. 0.7 W (USB/wired); Energy Saver/Sleep Mode: Approx. 0.6 W (wireless)
Operation: 48 dB in Color/Black Printing (sound pressure) 63 dB or Less in Color/Black Printing (sound power);
Standby: 28 dB (sound pressure) 42 dB or Less (sound power)
Yes
Silver
WHAT COMES IN THE BOX
LBP654Cdw Product, Cartridge 046 Starter: CMY: 1,200 Yield/BLK: 1,100 Yield (ISO/IEC Standard),
Power Cord (USB not included), Starter Guide, User Software DVD-ROM, Warranty Card
Note: See back page for disclaimers.
3
5-Inch, Color
Touch LCD Panel
Standard 250-Sheet Cassette
Near Field
Communication (NFC)
50-Sheet
Multipurpose Tray
Optional 550-Sheet Cassette
(Total 850-Sheet Capacity)
LBP654Cdw shown with optional
550-sheet cassette.
Color imageCLASS LBP654Cdw and Accessories
imageCLASS LBP654Cdw
1476C004
Cassette Feeding Unit AF-1 (550-sheet capacity)
Cartridge 046 Black - Full Yield Cartridge; 2,200 Sheets ISO/IEC
1250C001
Barcode Printing Kit-E1
Cartridge 046 Cyan - Full Yield Cartridge; 2,300 Sheets ISO/IEC
1249C001
Cartridge 046 Magenta - Full Yield Cartridge; 2,300 Sheets ISO/IEC
1248C001
Exchange/Carry-In eCarePAKs:
Cartridge 046 Yellow - Full Yield Cartridge; 2,300 Sheets ISO/IEC
1247C001
Cartridge 046 Hi-Capacity Black - Full Yield Cartridge; 6,300 Sheets ISO/IEC
1254C001
Cartridge 046 Hi-Capacity Cyan - Full Yield Cartridge; 5,000 Sheets ISO/IEC
1253C001
Cartridge 046 Hi-Capacity Magenta - Full Yield Cartridge; 5,000 Sheets ISO/IEC
1252C001
Tier 4E eCarePAK, One-Year Exchange/Carry-in
Tier 4E eCarePAK, Two-Year Exchange/Carry-in
Tier 4E eCarePAK, Three-Year Exchange/Carry-in
Tier 4E eCarePAK, Four-Year Exchange/Carry-in
Cartridge 046 Hi-Capacity Yellow - Full Yield Cartridge; 5,000 Sheets ISO/IEC
1251C001
0732A032
5143B001
5707B050
5707B051
5707B052
5707B053
Footnotes
*Copy/print speeds are measured based on internal testing using letter size paper copied/printed with
100% copy/print ratio to original on one-sided paper. Internal testing involved continuously copying/
printing the same one page of content on plain paper (copy speed is tested by copying on the platen glass).
Copy/print speeds may vary depending on paper type, paper size or paper feeding direction. The device
may automatically pause or slow down in order to adjust printer condition such as controlling temperature
of a certain unit or limiting impact to image quality during continuous copying/printing.
**May vary depending on the output environment.
†
Canon PRINT Business is available free on the App Store® and Google Play Store; compatible with iPhone
6 Plus, iPhone 6, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPhone 4, iPad Air 2, iPad Air, iPad 4, iPad 3,
iPad 2, Original iPad, iPad mini, iPad mini Retina, iPad mini 3 running iOS 7.0 - 8.0. Supports Android Tablets
and Phones running OS 4.0 - 5.0. Canon PRINT Business combines the functions of Canon Mobile Printing
and Canon Mobile Scanning for Business apps into one, streamlining both apps and adds new features and
functionality for users of all types, from small or home offices to large enterprise offices. Users of Canon
Mobile Printing can simply update the app to use Canon PRINT Business. Users who have installed Canon
Mobile Scanning for Business should install Canon PRINT Business. After Canon PRINT Business is installed,
users can reregister their Canon Mobile Scanning for Business device list and local documents.
††
Mopria Print Service, available free at the Google Play Store, requires a compatible Android 4.0 - 5.0
smartphone or tablet. The printer must be either wirelessly connected to the network router or with
an Ethernet cable. The mobile device and printermust be connected to the same network.
Apple AirPrint functionality requires an iPad, iPad Mini, iPad 2, the new iPad, iPhone 3GS or later, or
iPod touch 3rd generation or later device running iOS 7.0 - 8.0 or later, and an AirPrint-enabled printer
connected to the same network as your iOS device. A printer connected to the USB port of your Mac,
PC, AirPort Base Station, or Time Capsule is not supported.
▲Google Cloud Print requires an Internet connection and Google Account. Printer firmware update may
be necessary for Google Cloud Print™ function. Certain exceptions may apply. A PC running Windows
XP or later or a Mac running OS 10.4.11 or later and USB cable are required to perform firmware update.
▲▲
Requires an Android mobile device with NFC hardware running Android 4.0 or later and the Canon Print
Business app, available for free at Google Play. Canon Print Business app must be open to use tap and
print functionality.
▲▲▲
Based on 20 lb. Bond paper.
•
Wireless performance may vary based on terrain/distance between printer and wireless network clients.
••A5 paper is supported in Simplex mode only.
uWarranty program is subject to certain conditions and restrictions. See the warranty card for details.
u uDeclared noise emission in accordance with ISO 9296.
†††
USA.CANON.COM
Wi-Fi® is a registered trademark of the Wi-Fi Alliance®. The Wi-Fi CERTIFIED™ Logo is a certification mark of the
Wi-Fi Alliance. As an ENERGY STAR partner, Canon U.S.A., Inc. has certified this model as meeting the ENERGY
STAR energy efficiency criteria through an EPA recognized certification body. ENERGY STAR and the ENERGY
STAR mark are registered U.S. marks. Canon, imageCLASS, the GENUINE Logo, and the Super G3 logo are
registered trademarks of Canon Inc. in the United States and may also be registered trademarks or trademarks
in other countries. Android is a trademark of Google Inc. App Store is a service mark of Apple Inc. iPhone, iPad
Air, iPad, iPad mini are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a trademark
or registered trademark of Cisco in the United States and other countries and is used under license. All other
referenced product names and marks are trademarks of their respective owners. Specifications and availability
subject to change without notice. Not responsible for typographical errors.
©2017 Canon U.S.A., Inc. All rights reserved.
0204W687R2
00617R2-LBP654Cdw-1M-PFIH
