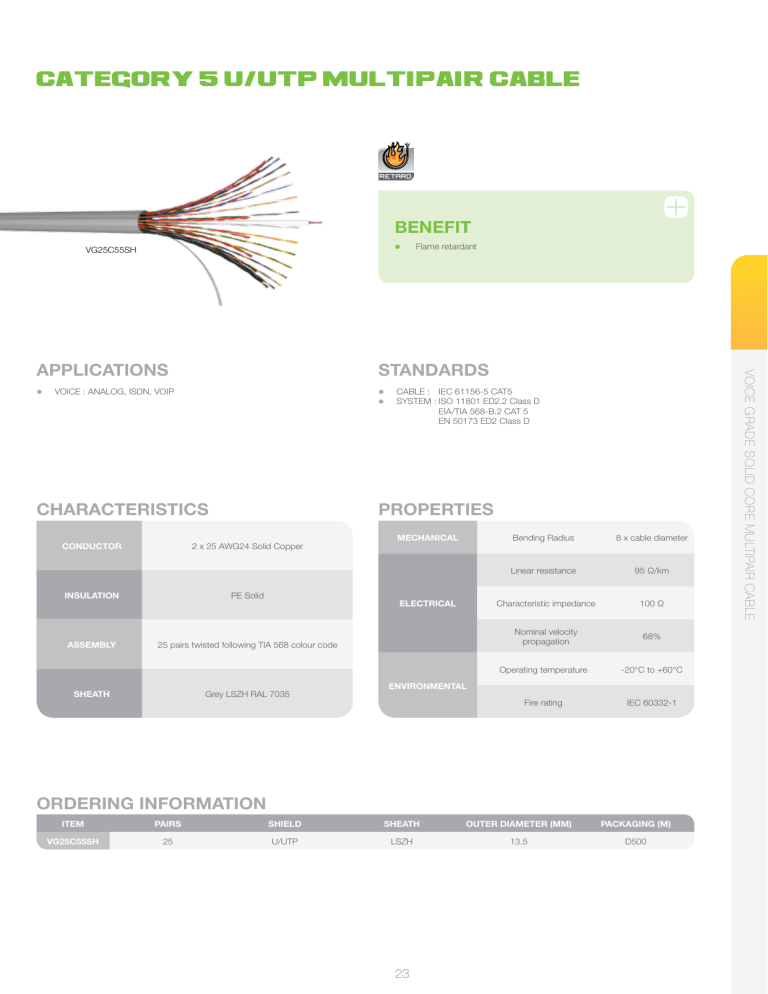

Category 5 U/UTP multipair cable
RETARD
BENEFIT
VG25C55SH
l
VOICE : ANALOG, ISDN, VOIP
l
l
ChARACTERISTICS
PROPERTIES
2 x 25 AWG24 Solid Copper
Conductor
Insulation
PE Solid
Assembly
25 pairs twisted following TIA 568 colour code
MECHANICAL
ELECTRICAL
Grey LSZH RAL 7035
Sheath
CABLE : IEC 61156-5 CAT5
SYSTEM :ISO 11801 ED2.2 Class D
EIA/TIA 568-B.2 CAT 5
EN 50173 ED2 Class D
Bending Radius
8 x cable diameter
Linear resistance
95 Ω/km
Characteristic impedance
100 Ω
Nominal velocity
propagation
68%
Operating temperature
-20°C to +60°C
Fire rating
IEC 60332-1
ENVIRONMENTAL
ORDERING INFORMATION
Item
Pairs
Shield
Sheath
Outer diameter (mm)
Packaging (m)
VG25C55SH
25
U/UTP
LSZH
13.5
D500
23
Voice grade solid core multipair cable
STANDARDS
APPLICATIONS
l
Flame retardant
