LF06E -840-P

LF06E -840-P

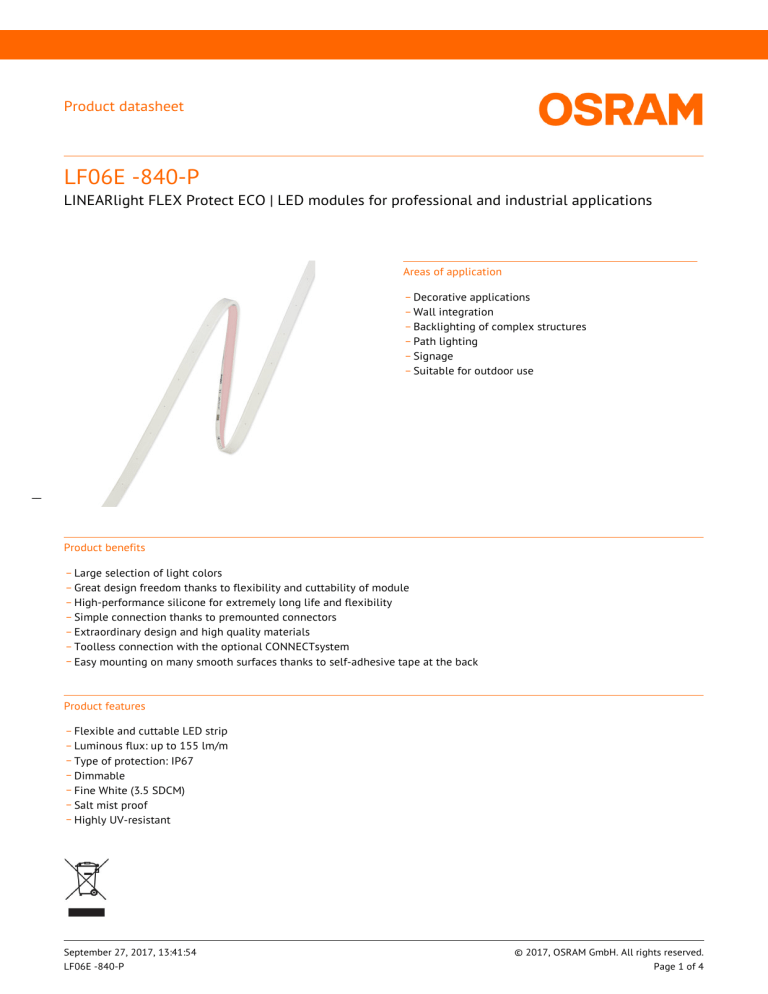

Product datasheet
LF06E -840-P
LINEARlight FLEX Protect ECO | LED modules for professional and industrial applications
Areas of application
_ Decorative applications
_ Wall integration
_ Backlighting of complex structures
_ Path lighting
_ Signage
_ Suitable for outdoor use
__
Product benefits
_ Large selection of light colors
_ Great design freedom thanks to flexibility and cuttability of module
_ High-performance silicone for extremely long life and flexibility
_ Simple connection thanks to premounted connectors
_ Extraordinary design and high quality materials
_ Toolless connection with the optional CONNECTsystem
_ Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Product features
_ Flexible and cuttable LED strip
_ Luminous flux: up to 155 lm/m
_ Type of protection: IP67
_ Dimmable
_ Fine White (3.5 SDCM)
_ Salt mist proof
_ Highly UV-resistant
September 27, 2017, 13:41:54
LF06E -840-P
© 2017, OSRAM GmbH. All rights reserved.
Page 1 of 4
Product datasheet
Technical data
Electrical data
Nominal voltage
24.0 V
Nominal current
0.8 A
Rated wattage
20.00 W
Nominal wattage per meter
2.0 W
Reverse Voltage
25 V
Type of current
DC
Input voltage range
23…25 V
Photometrical data
__
Color temperature
4000 K
Color rendering index Ra
80
Light color (designation)
White
Light color LED
White
Nominal dominant wavelength
-
Luminous flux per meter
200 lm
Luminous flux
2000 lm
Luminous efficacy
100 lm/W
Light technical data
Beam angle
120 °
LED module information
Number of LEDs per module
600
Number of LEDs per meter
60
Number of LEDs per smallest unit
6
Dimensions & weight
Length
10000 mm
Length – smallest unit
100.0 mm
Width
11.0 mm
Height
3.5 mm
Cable length
500.0 mm
Product weight
470.00 g
Colors & materials
Cover material
September 27, 2017, 13:41:54
LF06E -840-P
Silicone
© 2017, OSRAM GmbH. All rights reserved.
Page 2 of 4
Product datasheet
Body material
Silicone
Temperatures & operating conditions
Temperature range in operation
-20…70 °C
Lifespan
Lifespan
50000 h 1)
1) L70/B50 at T 40 °C
c
Additional product data
Product remark
__
Modules perfectly matched to OSRAM OPTOTRONIC
LED drivers (see relevant table)/For current
photometric data and important safety, installation
and application information, see www.osram.com/ledsystems/All the technical parameters apply to the
entire module. In view of the complex manufacturing
process for light emitting diodes, the typical values
given above for the technical LED parameters are
merely statistical values that do not necessarily
correspond to the actual technical parameters of an
individual product; individual products may vary from
the typical values
Capabilities
Dimmable
Yes
With end piece
Yes
With connection set
Yes
Self-adhesive
Yes
Certificates & standards
Energy consumption
20 kWh/1000h
Type of protection
IP67
Energy efficiency class
A++
Standards
UL/CE
1)
1) Applicable on smallest operable unit
Logistical data
Temperature range at storage
-40…80 °C
Equipment / Accessories
_ Simplified connection with optional matching CONNECTsystem
_ Quick installation with optional SLIM TRACK System
_ Perfectly matched to OPTOTRONIC 24 V electronic control gears
September 27, 2017, 13:41:54
LF06E -840-P
© 2017, OSRAM GmbH. All rights reserved.
Page 3 of 4
Product datasheet
Download Data
File
Certificates
UL Certificate
Declarations of conformity
Declaration of conformity LINEARlight FLEX Protect ADVANCED & ECO
Declarations of conformity
Manufacturerś Declaration of conformity LINEARlight FLEX Protect ADVANCED & ECO
Eulumdat
Eulumdat LF06E-840-P
IES data
IES Data LF06E-840-P
Logistical Data
__
Product code
Product description
Packaging unit (Pieces/Unit)
Dimensions (length x width x
height)
Volume
Gross weight
4052899475809
LF06E -840-P
Shipping carton box
8
365 mm x 286 mm x 366 mm
38.21 dm³
7978.00 g
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or
more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit.
References / Links
System configurator tool is available online at https://flex.osram.info/en/flex-configurator
Disclaimer
Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release.
September 27, 2017, 13:41:54
LF06E -840-P
© 2017, OSRAM GmbH. All rights reserved.
Page 4 of 4
