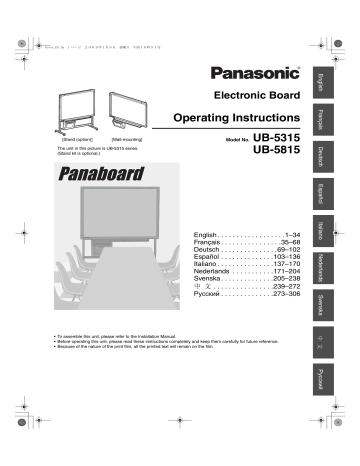

Cover_EN.fm 1 ページ 2009年1月9日 金曜日 午前10時51分

[Stand (option)] [Wall-mounting]

The unit in this picture is UB-5315 series.

(Stand kit is optional.)

Electronic Board

Operating Instructions

Model No.

UB-5315

UB-5815

English . . . . . . . . . . . . . . . . . .1–34

Français . . . . . . . . . . . . . . . .35–68

Deutsch . . . . . . . . . . . . . . .69–102

Español . . . . . . . . . . . . . .103–136

Italiano . . . . . . . . . . . . . . .137–170

Nederlands . . . . . . . . . . .171–204

Svenska . . . . . . . . . . . . . .205–238

中 文 . . . . . . . . . . . . . . . .239–272

Русский . . . . . . . . . . . . . .273–306

• To assemble this unit, please refer to the Installation Manual.

• Before operating this unit, please read these instructions completely and keep them carefully for future reference.

• Because of the nature of the print film, all the printed text will remain on the film.

UB-5315_EN.book 2 ページ 2008年1月8日 火曜日 午前9時26分

Thank you for purchasing the Panasonic Electronic Board.

For optimum performance and safety, please read these instructions carefully.

Record these items for future reference

Model number: _________________________

Serial number: _________________________

Date of purchase: ________________________

Dealer’s name: __________________________

Accessories

Q’ty

• Thermal transfer film . . . . . . . . . . . . . . 1

• Markers (red, black, and blue) . . . . . . 1 each

• Operating Instructions . . . . . . . . . . . . . 1

• Installation Manual . . . . . . . . . . . . . . . 1

Q’ty

• Eraser . . . . . . . . . . . . . . . . . . . . . . 1

• Power cord . . . . . . . . . . . . . . . . . . . 1

• A4 (Letter*) size copy paper . . . . . . . . . . 20

• Software CD-ROM . . . . . . . . . . . . . . . 1

* Letter size is for U.S.A. and Canada models.

* The stand is optional. By way of example, this manual describes an Electronic Board which is used with the stand.

* USB cable is not included.

2

• Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• IBM and AT are trademarks of International Business Machines Corporation in the United States, other countries, or both.

• Pentium is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries.

• Adobe, Acrobat, Acrobat Reader and Reader are either registered trademarks or trademarks of Adobe Systems

Incorporated in the United States and/or other countries.

• All trademarks referred to in this manual are property of their respective companies.

• This software is based in part of the work of the IndependentJPEG Group.

• This software is based on the “libtiff” which has the following copyrights:

Copyright (C) 1988-1997 Sam Leffler

Copyright (C) 1991-1997 Silicon Graphics, Inc.

The information given in this Operating Instructions is subject to change without notice.

Warning about saving data

When the system storage device or any of its optional storage device is adversely effected by operational errors, static electricity, electrical noise, vibration, dust or when the power has been cut off due to malfunction, repair or inadvertently, the memory contents may be lost or changed. Before operating the system, make a point of reading the precautionary notes in the Operating Instructions and the help information, and observe them during operation.

Please observe carefully the following precaution:

• Make absolutely sure that all important data is saved by back-up or the original is saved.

The manufacturer hereby declares that it cannot be held accountable for any loss or change in any data stored on floppy disks, hard disks, optical disks, or other memory devices.

UB-5315_EN.book 3 ページ 2008年1月8日 火曜日 午前9時26分

Before

You Start

Using

Help

Table of Contents

Page

For Your Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

• CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

• Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the Thermal Transfer Film. . . . . . . . . . . . . . . . . . . . . . . 10

Loading Copy Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

• Copy types and procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Replacing the Thermal Transfer Film . . . . . . . . . . . . . . . . . . . . . . 16

Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Screen Height Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Computer Interfacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

• System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

• Contents of CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

• Installing Drivers / Board Image Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

• Installing Quick Image Navigator / Panasonic-DMS . . . . . . . . . . . . . . . . . . . . 24

• Removing Drivers / Board Image Capture / Quick Image Navigator . . . . . . . . 25

• Removing Panasonic-DMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

• Scanning with the Board Image Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

• Scanning with the Quick Image Navigator / Panasonic-DMS . . . . . . . . . . . . . 27

• Panaboard Operation Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

• Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Daily Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

• Cleaning the screen and the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

• Caring for the eraser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

• Cleaning the printer head, platen roller and pick-up roller . . . . . . . . . . . . . . . . 30

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

• Meanings of error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

• Option and Separately available . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3

ForYourSefety_EN.fm 4 ページ 2010年2月23日 火曜日 午前8時39分

For Your Safety

English

CAUTION:

TO PREVENT RISK OF ELECTRIC SHOCK

HAZARD, DO NOT REMOVE THE COVER OF THIS

PRODUCT, REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS PRODUCT TO RAIN OR ANY TYPE

OF MOISTURE.

THE SOCKET-OUTLET MUST BE NEAR THIS

EQUIPMENT AND MUST BE EASILY ACCESSIBLE.

The product should be used only with the power cord that is supplied by the manufacturer.

Stop operation immediately if your product emits smoke, excessive heat, abnormal smell or unusual noise. These conditions can cause fire or electric shock. Immediately turn the product off and unplug the power cord, and contact your dealer for service.

• (220–240 V equipment)

A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply cord is not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227

(designation H05VV-F 3G 1.0 mm 2 ).

CLASS 1 LED PRODUCT

Für Benutzer in der BRD

Hinweis:

Maschinenlärminformations-Verordnung - 3. GPSGV, der höchste Schalldruckpegel beträgt < 70 dB (A) oder weniger gemäss EN ISO 7779.

Das Gerät ist nicht für die Benutzung im unmittelbaren Gesichtsfeld am Bildschirmarbeitsplatz vorgesehen.

Um störende Reflexionen am Bildschirmarbeitsplatz zu vermeiden, darf dieses Produkt nicht im unmittelbaren Gesichtsfeld platziert werden.

For users in the United Kingdom only

Safety Information

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp. fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amps. and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the

BSI mark on the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safely.

There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp. socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

WARNING:

This appliance must be earthed.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code.

Green-and-Yellow: Earth

Blue:

Brown:

Neutral

Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured Green-and-Yellow must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol or coloured

Green or Green-and-Yellow.

The wire which is coloured Blue must be connected to the terminal in the plug which is marked with the letter N or coloured Black.

The wire which is coloured Brown must be connected to the terminal in the plug which is marked with the letter L or coloured Red.

How to replace the fuse:

Open the fuse compartment with a screwdriver and replace the fuse.

4

UB-5315_EN.book 5 ページ 2008年1月8日 火曜日 午前9時26分

Precautions

Never remove the cover, take apart or modify the product. This will void the warranty.

Do not position the electronic board in a location where it is unstable.

Do not put drinks, other liquids or heavy items on the tray or screen.

After installing or moving the electronic board, lock the casters and set the fall-prevention extension legs.

Do not use the electronic board in an excessively humid or dusty location.

Push to lock

Locking the casters

(Push this side)

If the electronic board is not going to be used for an extended period of time (e.g., during extended holidays), turn off the power and remove the plug from the wall outlet.

Do not lean against the screen or on the cover (lower), even if the electronic board is mounted on the wall.

Adjust the screen height with two persons after installation.

Confirm both sides of the screen are hung in the same height slots.

Slot 3

Slot 2

Slot 3

Slot 2

Make sure to tighten the height adjustment handles after adjusting the screen height.

Tighten the height adjustment handles

Tighten the height adjustment handles

Slot 1

Slot 1

5

UB-5315_EN.book 6 ページ 2008年1月8日 火曜日 午前9時26分

Precautions

Have the unit installed, removed and disposed of only by qualified service personnel.

When the unit will no longer be used, in order to prevent it from falling, do not leave the unit installed, but remove it. If the unit falls, it can cause injury.

CHOKING HAZARD

Keep the marker’s cap out of reach of children to prevent swallowing.

CD-ROM

To prevent the CD-ROMs from accidental damages:

Do not touch or write on the surface of the disc.

Do not leave the disc out of the protective case.

Do not leave the disc in direct sunlight or near heat sources.

Do not place heavy objects on the disc case or drop the case.

To clean the disc, hold the disc by its edges and wipe it from the center to the edges with a dry, soft cloth.

6

Information on Disposal for Users of Waste Electrical & Electronic Equipment

(private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

UB-5315_EN.book 7 ページ 2008年1月8日 火曜日 午前9時26分

Precautions

Installation

Screen Film

Markers,

Erasers and

Thermal

Transfer Film

Power Cord

Replacing the Thermal

Transfer Film

USB Cable

• Do not install the unit where it may be exposed to direct sunlight, near heating equipment, or near air-conditioning vents as this may cause stretching and/or discoloration of the screen.

• Do not install the unit in strong sunlight or strong lighting. Proper copying may become impossible.

• Do not install the unit in locations where the temperature may change suddenly as this may disable the unit’s ability to make copies.

• Make thick and dark lines inside the copying area. Note that any writing inside the shaded area (on right) cannot be copied.

• Do not allow writing to remain on the screen for an extended period of time as it will become harder to erase.

0 mm

• Do not touch the screen, write with markers, or erase while the screen is moving as this may result in damage to the unit.

• Do not erase with an overly dirty eraser (see page 30).

25 mm

Copying area

25 mm

12.5 mm

• Use only the included or designated markers, erasers and thermal transfer film.

(See page 34.)

Use of accessories other than those included or designated (such as oil-based markers) may damage the screen or result in hard-to-erase markings.

• Do not store the thermal transfer film in a location subject to extreme changes in temperature (such as near air conditioning or heating equipment) as this may cause condensation on the thermal transfer film and result in poor print quality and/or paper jams.

• The length of one roll of designated thermal transfer film (Replacement film:

UG-6001) is approximately 50 meters. One roll of thermal transfer film can make approximately 150 sheets of copies.

Note that the total number of copies may differ depending on the operating conditions.

Also note that the length of the thermal transfer film supplied with the unit is shorter than the replacement film roll and is only approximately 10 meters.

• Store markers horizontally as vertical storage may stop the ink from coming out.

• The included power cord is for use with this unit only. Do not use it with other devices.

• When moving the unit, disconnect the power cord from the electrical power socket and from the printer’s power connector and coil it for transportation as stepping on the power cord or having it catch on something during movement may result in damage to the cord.

• Dispose of the used thermal transfer film in a trash receptacle for burnable trash.

• A negative of the copied image will remain on the thermal transfer film. (To protect the security of your information, we recommend cutting up the used thermal transfer film with scissors or shredder before disposing of it.)

• Use a shielded USB cable that is certified as logo by USB-IF.

• If you connect the electronic board to a USB hub, it is not guaranteed to work.

• Do not connect two or more Panasonic electronic boards to a computer. It may cause the computer operation to become unstable.

7

UB-5315_EN.book 8 ページ 2008年1月8日 火曜日 午前9時26分

Part Names and Functions

Scanner

Printer

Output Port

This port holds up to 10 sheets of output paper.

Printer Open Lever

Push down this lever to open the printer door.

8

USB Connector

(See page 22.)

Paper Cover

Open this cover to load copy paper.

Printer Door

Open this door to load a thermal transfer film or to remove jammed paper.

(See pages 10, 17.)

Screen Film

Tray

Stand

The stand is optional.

Control Panel

(See page 9 for details.)

Power Switch

ON

OFF

AC Inlet

Cord Holder

Power Cord

UB-5315_EN.book 9 ページ 2008年1月8日 火曜日 午前9時26分

Control panel

Contrast/Remaining Film

Indicator

Part Names and Functions

Advance Key

Copy Key

Panel

Contrast Key

2-Screen Copy Key

Name

Contrast/

Remaining

Film

Indicator

Contrast

Key

2-Screen

Copy Key

Multi-Copy/

Error

Indicator

Multi-Copy/

Stop Key

Multi-Copy/Stop Key

Multi-Copy/Error Indicator

Description

This lamp indicator notifies the user when the time to replace the thermal transfer film is approaching (estimated) and of the printing contrast used during copying.

Indicator off: Normal printing contrast

Indicator on: Darker than normal printing contrast

Indicator flashing*: Almost time to replace the thermal transfer film

(Note that only about 15 more sheets may be copied when this indicator starts flashing.)

Replacement film (UG-6001) is separately available from the dealer where you purchased your unit.

* The flashing indicator will go out after the power is turned off and the printer has been opened and closed. (When copying is performed, this indicator will begin flashing again.)

Each time this key is pressed, the unit will alternate between normal and dark contrast modes (Normal/Dark).

This key causes the front and back of the screen to be copied on a single sheet of paper.

This indicator displays the number of copies to be made. The display changes each time the Multi-Copy/Stop Key is pressed.

When an error occurred, a flashing symbol will appear in this display to

indicate the error status. (See page 33.)

When making multiple copies, press this key until the desired number of copies is displayed on the Multi-Copy/Error Indicator.

This key can also be pressed while multiple copies are being made to stop the copying process. The display indication changes while multiple copies are being made as shown below.

After reaching 0, the display will reset to 1.

(countdown display during copying)

Copy Key

This key causes the screen to be copied.

Advance

Key

This key advances the screen from right to left.

9

UB-5315_EN.book 10 ページ 2008年1月8日 火曜日 午前9時26分

Installing the Thermal Transfer Film

Install the thermal transfer film in the printer.

1

Set the power switch to on ( I ).

• “ ” will flash on the Multi-Copy/Error Indicator when the thermal transfer film has run out.

• The screen will move to home position and stop.

ON

OFF

2

Push down the printer open lever and open the printer door.

3

Printer door

Install the thermal transfer film.

1) Set the thermal transfer film, with the blue gear in front, on the right.

Blue gear

2) Insert the blue shaft into the front left hole.

Blue shaft

10

UB-5315_EN.book 11 ページ 2008年1月8日 火曜日 午前9時26分

Installing the Thermal Transfer Film

3) Place the blue gear on the front right groove.

Blue gear

4) Place the white shaft on both sides of the back grooves.

4

Latches

White shaft

Tighten the film, then close the printer door.

1) Rotate the blue gear in the direction of the arrow to take up the slack on the film.

• If a slack remains, perform step 3-2) through 4-1) again.

Blue gear

2) Securely close the printer door by using both hands until a click is heard.

• “ ” flashing on the Multi-Copy/Error Indicator will go out.

Notes

• If “ ” is still flashing after closing the printer door, make sure that the thermal transfer film has been installed properly and tightened.

• The printer door should be closed to make copies properly. Confirm both latches are locked.

11

UB-5315_EN.book 12 ページ 2008年1月8日 火曜日 午前9時26分

Loading Copy Paper

It is possible to load up to 40 sheets of A4 (Letter*) size copy paper (assuming a paper weight of 80 g/m

2

).

Note that only A4 (Letter*) size paper may be used.

When the unit is first used or when “ ” flashes on the Multi-Copy/Error Indicator to indicate that the unit is out of paper, load copy paper as described below.

* Letter size is for U.S.A. and Canada models.

Notes on Loading Copy Paper

Follow the guidelines below to ensure smooth and accurate printing by the unit.

• Only use A4 (Letter) size copy paper having a weight of 60 to 90 g/m 2 as the copy paper for this unit.

• Do not simultaneously load paper of varying type and thickness as this may result in paper jams.

• Before adding copy paper, be sure to remove all the copy paper remaining inside the unit’s paper cover. (Note that copy paper will slightly resist being removed, but may be pulled out without problems.)

After removing the copy paper, stack the removed paper together with the new paper, fan it thoroughly, square it and reload.

DO NOT USE THE FOLLOWING TYPES OF PAPER

• Extremely smooth or glossy paper

• Coated paper

• Thermal paper

• Paper that is printed on one side

• Wrinkled paper, creased paper, etc.

1

ON

Set the power switch to on ( I ).

• “ ” will flash on the Multi-Copy/Error Indicator when copy paper has run out.

• The screen will move to home position and stop.

OFF

2

Pull the paper cover forward as shown in the left figure.

12

UB-5315_EN.book 13 ページ 2008年1月8日 火曜日 午前9時26分

3

4

Guide

Maximum paper limit

Loading Copy Paper

To prevent paper jams such as those caused by multiple sheets feeding at once, fan the paper thoroughly, square it, align it with the guide inside, and insert as far as it will go.

Notes

• Only use A4 (Letter*) size copying paper having a

weight of 60 to 90 g/m

2

as the copy paper for this unit.

* Letter size is for U.S.A. and Canada models.

• Do not stack more copy paper in the unit than the maximum paper limit indicated by the guide (see figure to the left) as this may result in paper jams. (Note that the unit can hold about 40 sheets of paper having a weight of 80 g/m

2

.)

Close the paper cover until a click is heard.

Notes

• Close the paper cover, or the unit will not work properly.

• The paper cover should be closed to make copies properly. Confirm the both latches are locked.

13

UB-5315_EN.book 14 ページ 2008年1月8日 火曜日 午前9時26分

Making Copies

This section describes how to copy text and illustrations drawn on the screen.

1

Set the power switch to on ( I ).

• “ ” will light on the Multi-Copy/Error Indicator to indicate that the unit is ready to copy.

• The screen will move to home position and stop.

ON

OFF

2

Press the Copy Key .

• Text and illustrations on the screen will be copied and copies emerge from the output port.

• The output port can hold up to 10 sheets of copy paper.

(Note that exceeding the output port’s capacity may result in paper jams.)

• For details on making multiple copies, 2-screen copies

and so on, see page 15.

Notes

• Do not use paper that has been copied on one side by this printer as copy paper in this unit or in any other copiers or printers as this may result in dirty rollers, degradation of printing quality, paper jams, and streaks and smudges on output paper.

• Do not write on the output paper from this unit with the printed side down. The ink on the printed side will be copied on the surface underneath the output paper.

• Text or images in shades of yellow will not copy.

14

UB-5315_EN.book 15 ページ 2008年1月8日 火曜日 午前9時26分

Making Copies

Copy types and procedures

Copy Type

Copying the front of the screen

Copying the back of the screen

Making multiple copies (up to 9)

Press .

Procedure

Press to move the screen to be copied to the front.

Press .

Select the number of copies (1 to 9) by pressing as necessary.

Press .

• Press to stop copying in mid-operation.

Press .

Making 2-screen copies

• Copying the front and back of the screen on a single sheet of paper

Copying chart paper

Chart paper can be attached to the screen as shown in the figure and copied. (Be sure to take the chart off the screen soon after copying is finished.)

• Wrinkles, slackness or folds in the chart when attached to the screen will show up in copies as dark shadows.

• Affix it to the screen with drafting tape made by 3M

® or other similar tape with medium adhesive.

3M

®

is a registered trademark of 3M Corporation.

15

UB-5315_EN.book 16 ページ 2008年1月8日 火曜日 午前9時26分

Replacing the Thermal Transfer Film

The unit is capable of producing about 15 more copies when the Contrast/Remaining Film Indicator begins to flash.

The unit has run out of thermal transfer film and can no longer make copies when the Multi-Copy/Error Indicator flashes “ ”. Separately available replacement film (UG-6001) may be purchased from the dealer where you purchased the unit. Thermal transfer film is replaced as follows.

Notes on Replacing Thermal Transfer Film

• Only use the designated product (UG-6001) from Panasonic as the replacement film. (Note that using another type of replacement film may result in degraded printing quality or damage to the unit.)

• Thermal transfer film is disposable. Dispose of used thermal transfer film as burnable or nonrecyclable rubbish.

• A negative of the copied image will remain on the thermal transfer film. To protect the security of your information, we recommend cutting up the used thermal transfer film with scissors or shredder before disposing of it.

1

Push down the printer open lever to open the printer door, and remove the used film.

2

Refer to steps 3 and 4 in the section of “Installing the Thermal Transfer Film” on page 10, 11.

Notes

• If “ ” is still flashing after closing the printer door, make sure that the thermal transfer film has been installed properly and tightened.

• The printer door should be closed to make copies properly. Confirm both latches are locked.

16

UB-5315_EN.book 17 ページ 2008年1月8日 火曜日 午前9時26分

Paper Jams

Remove paper jams by the following procedure when copy paper does not come out of the output port or when flashes on the Multi-Copy/Error Indicator.

1

Push down the printer open lever to open the printer door.

2

Remove the thermal transfer film with both hands.

3

Jammed paper

Remove the jammed paper.

17

UB-5315_EN.book 18 ページ 2008年1月8日 火曜日 午前9時26分

Paper Jams

4

Install the thermal transfer film.

• Refer to steps 3 and 4 in the section of “Installing the

Thermal Transfer Film” on page 10, 11.

• “ ” flashing on the Multi-Copy/Error Indicator will go out.

Notes

• If “ ” is still flashing after closing the printer door, make sure that the thermal transfer film has been installed properly and tightened.

• The printer door should be closed to make copies properly. Confirm both latches are locked.

If the flashing does not go out after the foregoing procedure has been performed; this may indicate that the paper feeder is not functioning properly.

Reload the copy paper by following the steps given below.

1

Turn the power off.

ON

OFF

2

Open the paper cover and remove all the copy paper remaining inside the unit’s paper cover.

Note

• The copy paper will slightly resist being removed, but may be pulled out without problems.

18

UB-5315_EN.book 19 ページ 2008年1月8日 火曜日 午前9時26分

3

4

5

Paper Jams

To prevent paper jams such as those caused by multiple sheets feeding at once, fan the paper thoroughly, square it, align it with the guide inside, and insert as far as it will go.

Note

• Do not stack more copy paper in the unit than the maximum paper limit indicated by the guide (see figure to the left) as this may result in paper jams. (Note that the unit can hold about 40 sheets of paper having a weight of 80 g/m

2

.)

Guide

Maximum paper limit

Close the paper cover until a click is heard.

Notes

• Close the paper cover, or the unit will not work properly.

• The paper cover should be closed to make copies properly. Confirm the both latches are locked.

ON

Turn the power on.

• “ ” will light on the Multi-Copy/Error Indicator to indicate that the unit is ready to copy.

• The screen will move to home position and stop.

OFF

19

UB-5315_EN.book 20 ページ 2008年1月8日 火曜日 午前9時26分

Screen Height Adjustment

The screen can be adjusted at 3 levels except for the lowest level. The lowest level of the board attachment frame is designed for installation of the screen, so the printer cannot be attached at this level. Adjust the level of the screen unit as follows.

Please lock the casters when you adjust the screen height. (Refer to page 5.)

1

Loosen the height adjustment handles.

Height adjustment handles

Height adjustment handles

20

2

3

Board attachment

(lower)

Slide groove

Down

Hang the step frame on the reinforce pipe.

Lift the board attachment (lower) by stepping on the step frame.

Slide along the slide groove.

Step frame

Reinforce pipe

Lift

Do not handle the tray.

Adjust the screen height with two persons after installation.

Hang the screen in the desired slots of the slide plates.

Slot 4

Slot 3

Slot 2

Slot 1

Slot

Slot 1

Slot 2

Slot 3

Adjustment

Available

Available

Available

Slot 4 Cannot be used

Screen Height

2000 mm

1875 mm

1750 mm

Do not use slot 4.

Slot 4 cannot be used for screen height adjustment.

Confirm both sides of the screen are hung in the same height slots securely.

UB-5315_EN.book 21 ページ 2008年1月8日 火曜日 午前9時26分

4

Height adjustment handles

Height adjustment handles

Screen Height Adjustment

Tighten the height adjustment handles.

Be sure to tighten the height adjustment handles firmly after adjusting the level of the screen.

5

Step frame

Board attachment

(upper)

Store the step frame by hanging it on the board attachment (upper).

21

Using_EN.fm 22 ページ 2010年2月26日 金曜日 午後6時15分

Computer Interfacing

Drivers and software must be installed in your computer to use Board Image Capture, Quick Image

Navigator, Panasonic-DMS, printer and TWAIN driver.

System requirements

Computer

IBM® PC/AT® or compatible machine with a CD-ROM drive

CPU

Pentium® II or higher processor

Interface

USB 2.0 or USB 1.1

*

1

OS

Windows® 98*

2

Windows 2000*

/ Windows Me*

4

/ Windows XP*

Windows Vista®*

6

/ Windows 7*

3

/

5

7

/

(Windows XP 64-bit edition is not supported.)

Memory

HD

128 MB or more (Windows 98 /

Windows Me)

256 MB or more (Windows 2000 /

Windows XP / Windows Vista /

Windows 7)

At least 200 MB free space (except saving space for data files)

*

1

This electronic board does not function with Hi-Speed

USB 2.0. Even if using a computer equipped with Hi-

*

2

*

3

*

4

*

5

*

6

*

7

Speed USB 2.0, this electronic board functions with

Full Speed USB 2.0.

Microsoft

® Windows® 98 operating system

(hereafter Windows 98)

Microsoft

® Windows® Millennium Edition operating system (hereafter Windows Me)

Microsoft

® Windows® 2000 operating system

(hereafter Windows 2000)

Microsoft

® Windows® XP operating system

(hereafter Windows XP)

Microsoft

® Windows Vista® operating system

(hereafter Windows Vista)

Microsoft

® Windows® 7 operating system

(hereafter Windows 7)

• The system requirements above do not meet the recommended specifications of all operating systems and of the included software.

Contents of CD-ROM

The provided CD-ROM includes the following items.

• USB driver

• Printer driver

• TWAIN driver

• Board Image Capture

Allows you to scan hand-written text and diagrams on the Panaboard and save the scanned image as a PDF file.

• Electronic board operating instructions

Note

•The “menu” window contains links to “Quick

Image Navigator”, “Panasonic-DMS” and

“Adobe® Reader®”.

Notes when connecting the electronic board to a computer

• First install the USB, printer and TWAIN driver to your computer, then connect the electronic board

to the computer (refer to “Installing Drivers /

Board Image Capture” on page 23).

• If you connect the electronic board to a USB hub, it is not guaranteed to work.

• Do not connect two or more Panasonic electronic boards to a computer. It may cause the computer operation to become unstable.

• Use a shielded USB cable that is certified as logo by USB-IF.

22

Using_EN.fm 23 ページ 2010年3月8日 月曜日 午後3時28分

Installing Drivers / Board Image

Capture

The USB, printer, TWAIN driver and Board Image

Capture are installed in your computer by following procedures.

Note

• Do not yet connect a USB cable to the electronic board.

1

Power on your computer and start Windows*

1

.

• Log on as an administrator for Windows 2000,

Windows XP, Windows Vista or Windows 7.

*

1

Microsoft

® Windows® operating system

(hereafter Windows)

2

Insert the CD-ROM into the CD-ROM drive.

The Setup window appears automatically.

• Depending on the operating system or the settings that you are using, the Setup window may not appear automatically.

In such a case, execute “Menu.exe” in the

CD-ROM from the Explorer.

• If the Autoplay dialog box appears in

Windows Vista or Window 7, click “Run

Menu.exe”.

3

When “Welcome” window appears, click [Next].

4

Click [

Install Panaboard Software].

Computer Interfacing

5

Read “End-User License Agreement” carefully and click [Yes].

6

When the following window appears, check that the electronic board is not connected to your computer and click [OK].

• If “Windows can't verify the publisher of this driver software” is displayed in Windows

Vista or Windows 7, select “Install this driver software anyway” to continue the installation.

• For Windows 98 or Windows Me, a floppy disk or CD-ROM for installing the operating system may be required

.

• If the screen prompts to restart Windows, restart Windows.

• If “User Account Control” window is displayed in Windows Vista, select

[Continue] to continue the installation.

• If “User Account Control” window is displayed in Windows 7, click [Yes] to continue the installation.

• To read the operating instructions in the provided CD-ROM, the Adobe Reader or

Acrobat

® Reader must be installed in your computer. It can be downloaded from the

Adobe’s Web site if Internet is available.

23

Using_EN.fm 24 ページ 2010年2月26日 金曜日 午後6時15分

Computer Interfacing

7

When the following window appears after files are copied, power the electronic board on, and connect a USB cable from the electronic board to your computer.

8

Follow the on-screen instructions if the wizard windows appear.

• If the wizard window is displayed to select the file (##.inf) for the printer driver in

Windows XP, select “windows\inf\oem##.inf”.

• If the wizard window is displayed to connect to the Windows Update in Windows XP SP2, select [No].

• If the warning dialog is displayed in

Windows 2000 / Windows XP, select [Yes] or

[Continue Anyway] to continue the installation. In Windows Vista or Windows 7, no warning window is displayed and installation will continue.

• The new hardware wizard windows may be displayed several times depending on the operating system.

• For Windows 98 or Windows Me, a floppy disk or CD-ROM for installing the operating system may be required

.

9

When the installation is completed, click [OK].

Note

• If the Panaboard is powered on and connected to the computer with a USB cable when [Exit] is clicked after the installation is completed, the Board

Image Capture software will automatically start in

Windows 2000 / Windows XP / Windows Vista /

Windows 7. (For further details, refer to “Scanning with the Board Image Capture” on page 26.)

Installing Quick Image Navigator /

Panasonic-DMS

After confirming your operating system, install the software.

For Windows 2000 / Windows XP / Windows Vista /

Windows 7: Quick Image Navigator

For Windows 98 / Windows Me: Panasonic-DMS

If Panasonic-DMS is already installed, you do not need to uninstall it.

1

Power on your computer and start Windows.

• Log on as an administrator for Windows 2000,

Windows XP, Windows Vista or Windows 7.

2

Insert the CD-ROM into the CD-ROM drive.

The Setup window appears automatically.

• Depending on the operating system or the settings that you are using, the Setup window may not appear automatically.

In such a case, double-click “Menu.exe” in the CD-ROM from the Explorer.

• If the Autoplay dialog box appears in Windows

Vista or Windows 7, click “Run Menu.exe”.

3

When “Welcome” window appears, click [Next].

4

Click [Download Quick Image Navigator].

• To download Quick Image Navigator and

Panasonic-DMS, your computer must be able to access the Internet.

24

Using_EN.fm 25 ページ 2010年2月26日 金曜日 午後6時15分

5

Download the desired software from the appropriate download web site, then doubleclick the downloaded installer.

6

Follow the on-screen instructions when messages appear.

7

When the setup process is completed, restart

Windows.

• For information about Quick Image Navigator or Panasonic-DMS, refer to the corresponding operating instructions, which can be downloaded from the web site.

• To read the Quick Image Navigator operating instructions or the Panasonic-DMS operating instructions, Adobe Reader or Acrobat

Reader must be installed on your computer.

Computer Interfacing

Removing Drivers / Board Image

Capture / Quick Image Navigator

If you need to remove the USB driver, printer driver,

TWAIN driver, Board Image Capture and Quick Image

Navigator, perform the following steps.

1

Power on your computer and start Windows.

• Log on as an administrator for Windows

2000, Windows XP, Windows Vista or

Windows 7.

2

In the Control Panel, double-click Add/

Remove Programs (Windows XP: Add or

Remove Programs, Windows Vista /

Windows 7: Uninstall a program).

3

Select the software you want to remove, then remove it.

• To remove the USB and TWAIN driver, select

Panaboard UB5-7 Driver.

To remove Board Image Capture, select

Panasonic Board Image Capture.

To remove Quick Image Navigator, select

Panasonic Quick Image Navigator.

4

Follows the instructions on the screen.

5

After uninstalling, restart your computer.

Removing Panasonic-DMS

If you need to remove Panasonic-DMS, perform the following steps.

1

Power on your computer and start Windows.

2

Click [Start], move the pointer to Programs

PanasonicPanasonic Document

Management SystemUninstall.

3

Click [OK].

4

After uninstalling, restart your computer.

25

Using_EN.fm 26 ページ 2010年2月26日 金曜日 午後6時15分

26

Computer Interfacing

Scanning with the Board Image

Capture

Board Image Capture allows you to scan handwritten text and diagrams on the Panaboard and save the scanned image as a PDF file.

1

Power on the Panaboard.

2

Power on your computer and start Windows.

3

Connect your computer and Panaboard with the USB cable.

• Board Image Capture automatically starts, then the Panaboard Operation Panel appears.

Note

• If the Panaboard Operation Panel does not appear, check the USB cable connection or the status of the unit.

4

Click the (Scan) button or the

(2-Screen Scan) button.

• When scanning is completed, the Save Scan

Image dialog box appears.

5

Specify the folder where you want to save the file, enter the file name, then click [OK].

• When the Launch Application check box is checked, the scanned image will be displayed after the file is saved.

To display the scanned image successfully,

Adobe Reader or Acrobat Reader must be installed on your computer.

Note

• The last 5 folders used are displayed in the

Save Folder dropdown list.

6

Click [Close] on the Panaboard Operation

Panel window to end the session.

Note

• Board Image Capture cannot be started while the Panaboard Operation Panel is displayed using Quick Image Navigator or Panasonic-DMS.

To start Board Image Capture, click [Close] in the Panaboard Operation Panel window, then start Board Image Capture.

• To stop Board Image Capture from starting automatically when the Panaboard is connected, follow the steps below:

1) Connect your computer and Panaboard with the USB cable.

2) Click [Start], move the pointer to Settings

Control Panel, then double-click Scanners

and Cameras.

• For Windows XP, click [Start] and move the pointer to Control Panel.

For Windows Vista, click [Start] and move the pointer to Control Panel, then click

Hardware and Sound.

• For Windows 7, click [Start] and move the pointer to Device and Printers.

3) Double-click Panaboard-UB5 USB Device

Driver and check the Disable device events check box in the Events tab.

• For Windows 7, right-click Panaboard-UB5

(A4/LT)* and then move the pointer to Scan

properties. If the “User Account Control” window is displayed, click [Yes].

* A4 or LT (Letter) changes with the models.

To start Board Image Capture, click [Start], then move the pointer to ProgramsPanasonic

Board Image CaptureBoard Image Capture.

(For Windows XP / Windows Vista / Windows 7,

All Programs is displayed instead of Programs.)

Using_EN.fm 27 ページ 2010年2月26日 金曜日 午後6時15分

Scanning with the Quick Image

Navigator / Panasonic-DMS

You can scan images on the screen to your computer by operating Quick Image Navigator or

Panasonic-DMS.

1

Click [Start], move the pointer to Programs

PanasonicPanasonic Document

Management SystemQuick Image

Navigator (for Quick Image Navigator) or

Document Manager (for Panasonic-DMS).

(For Windows XP / Windows Vista /

Windows 7, All Programs instead of

Programs.)

2

For Quick Image Navigator: From the File menu, click Environment Setup..., click

TWAIN tab, then click Select TWAIN-

compliant scanning device....

For Panasonic-DMS: Click the File menu, then click Select source....

3

Select Panaboard UB5-7 USB TWAIN Driver and click [Select].

4

For Quick Image Navigator: From the File menu, click Acquire Image... - To Import

Folder... (or To Current Folder...), or click the

(scanner) icon on the Toolbar.

For Panasonic-DMS: Click the File menu, then click Acquire Image..., or click the (scanner) icon on the Toolbar.

• The Panaboard Operation Panel appears.

Computer Interfacing

5

Click the (Scan) button or the

(2-Screen Scan) button.

• Scanning starts and the scanned image will be displayed on the screen of the computer.

It is also possible to start scanning using the

(Copy Key) or (2-Screen Copy

Key) on the electronic board.

6

Click [Close] on the Panaboard Operation

Panel to finish scanning.

• For Quick Image Navigator, the Panaboard

Operation Panel is closed automatically after scanning.

• For more information about Quick Image

Navigator, refer to the Quick Image Navigator operating instructions.

• For more information about Document

Manager, refer to the Panasonic-DMS operating instructions.

Note

• Dragging the Panaboard Operation Panel using the mouse or activating other software programs during scanning may cause scanning troubles.

Note

• When the Panaboard Operation Panel is not displayed, check the USB cable connection or the condition of the electronic board.

27

UB-5315_EN.book 28 ページ 2008年1月8日 火曜日 午前9時26分

28

Computer Interfacing

Panaboard Operation Panel

It is possible to perform the same operations as with the electronic board control panel (page 9) from the following

Panaboard Operation buttons.

Note

• While the Panaboard Operation Panel is displayed, the Copy Key and 2-Screen Copy Key on the electronic board control panel are used for scanning images into the computer.

Panel Name

Contrast/

Remaining Film

Indicator

Description

This lamp indicator notifies the user when the time to replace the thermal transfer film is approaching (estimated) and of the contrast used during scanning or copying.

Indicator off: Normal scanning or copying contrast

Indicator on: Darker than normal scanning or copying contrast

Indicator flashing*: Almost time to replace the thermal transfer film

(Note that only about 15 more sheets may be copied when this indicator starts flashing.)

Contrast Button

2-Screen Scan

Button

Multi-Copy/

Error Indicator

Replacement film (UG-6001) is separately available from the dealer where you purchased your unit.

*The flashing indicator will go out after the power is turned off, or the printer has been opened and closed. (When copying is performed, this indicator will begin flashing again.)

Each time this button is pressed, the unit will alternate between normal and dark contrast modes (Normal/Dark).

This button scans the front and back of the screen on a single page.

This indicator displays the number of copies to be made.

The display changes each time the Multi-Copy/Stop Button is pressed.

Multi-Copy/Stop

Button

When an error occurs, a flashing symbol will appear in this display to

indicate the error status. (See page 33.)

When making multiple copies, press this button until the desired number of copies is displayed on the Multi-Copy/

Error Indicator. This button can also be pressed to stop copying while executing multiple copies.

• The display changes as shown below each time the screen is copied.

After reaching 0, the display will reset to 1.

Example: 5

(Number is counted down.)

* If scanning, the setting 1 to 9 for the number of copies is ignored.

Scan Button

This button scans the screen.

Advance Button

Clicking this button advances the screen from right to left.

Using_EN.fm 29 ページ 2010年2月26日 金曜日 午後6時16分

Computer Interfacing

Panel Name

2-Screen Copy

Button

Copy Button

Status Box

Description

This button causes the front and back of the screen to be copied on a single sheet of paper.

This button causes the screen to be copied.

The status box displays the status of the TWAIN driver and the electronic board.

Stand by: The electronic board is stand by.

Both of the Panaboard Operation Panel and the electronic board control panel are operational.

Rotating: The electronic board is rotating the screen.

Copying: The electronic board is copying the screen.

Scanning: The electronic board is now scanning the images on the screen.

Converting: Indicates that the image data is being converted so that

Busy:

Error: the computer will be able to display the scanned data.

The electronic board is processing jobs.

An error has occurred with the electronic board.

About Button

Help Button

Close Button

Click to display information about the TWAIN driver.

Click to display help information.

Click to close the Panaboard Operation Panel.

Printing

To print documents from the computer to the printer, select the Print menu of the application software and select the printer name set when installing.

For Windows 98 or Windows Me, the standard printer name is “Panaboard-UB5 USB Printer (A4/LT)*”.

For Windows 2000, Windows XP, Windows Vista or Windows 7, the standard printer name is “Panaboard-UB5

(A4/LT)*”.

* A4 or LT (Letter) changes with the models.

Note

• The Multi-Copy/Error Indicator flashes when printing.

After printing, all the panel keys are disabled until the Multi-Copy/Error Indicator lights.

• You cannot stop printing after printing starts. Do not attempt to stop printing.

• Do not turn off the power of the electronic board or unplug the USB cable before printing finishes. It may cause the computer operation to become unstable.

• A maximum 9 copies are available.

• The output port can hold up to 10 sheets of copied paper. (Note that exceeding the output port’s capacity may result in paper jams.)

• The Contrast Key is not effective for adjusting the contrast of print.

• When printing almost black pages continuously uniform color density and light line streaks may appear. In such a case, try again after waiting a while.

• When the unit falls in abnormal condition during printing, printing jobs (jobs in the spooler) may be lost. In such a case, print again.

29

UB-5315_EN.book 30 ページ 2008年1月8日 火曜日 午前9時26分

Daily Care and Maintenance

Always turn off the power switch and unplug the power plug when cleaning outside and inside the unit.

Cleaning the screen and the unit

Gently wipe the screen film and unit with a waterdampened cloth that has been thoroughly wrung.

Notes

• Use a neutral kitchen cleaner diluted with water for hard-to-clean stains. (If you accidentally write on the screen with an oil-based marker, wipe with a small amount of ethyl alcohol.)

• Do not use thinner, benzine or cleaners containing abrasives as this may result in discoloration.

• Do not wipe the screen film with a dry cloth as this may generate a static charge.

Caring for the eraser

White or gray sheet

When the erasing surface of the eraser becomes dirty, hold down the sheet under the top sheet with your finger and peel off the dirty sheet (white or gray sheet) by pulling in the direction of the arrow.

Note

• Be sure to peel off only one sheet; white or gray sheet of the eraser.

• When the eraser becomes thin, make sure that the corners of the eraser do not strike the screen during erasing as this may damage the screen.

Cleaning the printer head, platen roller and pick-up roller

If black streaks appear on the copy, clean the printer head and the platen roller.

If paper jams occur frequently, clean the pick-up roller.

1

Push down the printer open lever and open the printer door.

30

Printer door

UB-5315_EN.book 31 ページ 2008年1月8日 火曜日 午前9時26分

2

3

4

Latches

Daily Care and Maintenance

Clean the Printer Head

Dampen the tip of a cotton swab in ethyl alcohol and gently wipe the printer head.

Note

• Never touch the printer head or the surrounding area with your hands as this may disable copying.

Cotton swab

Printer head

(Gold)

Pick-up roller

Platen roller

Clean the Platen Roller and the Pick-up Roller

Remove the thermal transfer film with both hands and carefully wipe any dirt or stains off the platen roller and pick-up roller.

• For details on removing the thermal transfer film, see

page 16.

• Dampen a soft cloth with neutral kitchen cleaner diluted in water, wring the cloth thoroughly, and wipe the entire surface of the rollers while rotating them. If this does not remove all dirt, wipe with a cloth dampened with ethyl alcohol.

Install the thermal transfer film in its original position and close the printer door.

• For details on installing the thermal transfer film, see

pages 10, 11.

• Close the printer door firmly until a click is heard.

Note

• If “ ” is still flashing after closing the printer door, make sure that the thermal transfer film has been installed properly and tightened.

• The printer door should be closed to make copies properly. Confirm both latches are locked.

31

UB-5315_EN.book 32 ページ 2008年1月8日 火曜日 午前9時26分

Troubleshooting

32

Treat problems according to the information given in the table below. If problems still persist, call your dealer for service.

Symptom Care and Remedy

See

Page

Power switch is on but the indicator is off.

Copied copy paper will not come out.

Nothing is printed on the paper or copies are faint or blurred.

Black streaks or blank

(unprinted) spots appear on the copy (copy paper is dirty).

Check that the power plug is securely plugged in.

(If the indicator still does not light, turn the power off and on again.)

The unit is out of copy paper or thermal transfer film. (The Error

Indicator flashes “ ” or “ ”.)

Insert copy paper or replace the thermal transfer film.

The printer door is open. (The Error Indicator flashes “ ”.)

Close the printer door firmly until a click is heard.

The paper cover is open.

Close the paper cover firmly until a click is heard.

Paper is jammed in the printer. (The Error Indicator flashes “ ”.)

Open the printer door and remove the jammed paper.

The platen roller and pick-up roller are dirty.

Open the printer door and wipe the platen roller and the pick-up roller to clean them.

The writing on the screen is too thin or light.

Make thicker, darker lines or change to a new marker.

The printer door is slightly open.

Close the printer door firmly until a click is heard.

The printer head or platen roller is dirty.

Open the printer door and clean any dirt off the printer head and platen roller.

The thermal transfer film is wrinkled because it was set in place without removing excess slack.

Rewind the used portion of the thermal transfer film to remove the excess slack, then reattach it.

A black or white horizontal line appears, or the page prints in black or blank.

The screen does not advance when the Copy or

Advance Key is pressed.

The unit is in strong sunlight or strong lighting.

Change the direction of the screen or block the light.

Static electricity was generated when the screen film was wiped.

Turn off the power and slowly move the screen by hand.

Contrast/Remaining

Film Indicator flashes.

The software installed before is deleted from the Programs menu or cannot be used after installing the Panasonic-

DMS.

The time to replace the thermal transfer film is approaching. (Only about 15 more sheets may be copied.)

Prepare a new replacement film (UG-6001).

When connecting a USB cable after installing the driver, the warning message is displayed to require the Panaboard UB5-

7 Driver Disk.

The necessary file is not found in Windows 98.

Click the location’s box and select the path

“UB5-7\UsbDrv\Win98-Me” in the pull down menu.

After the existing Panasonic-DMS software is uninstalled, the new

Panasonic-DMS is installed.

Install the new Panasonic-DMS again as follows.

1. Uninstall the current Panasonic-DMS.

2. Install the old Panasonic-DMS.

3. Install the new Panasonic-DMS in the same folder with the old one.

12

16

11

13

17

30

11

30

10

16

24-25

UB-5315_EN.book 33 ページ 2008年1月8日 火曜日 午前9時26分

Troubleshooting

Symptom Care and Remedy

Panasonic Document

Management System menu is remained in the Programs menu even if Panasonic-

DMS is uninstalled.

The USB driver or printer driver does not work properly immediately after the installation of the software.

The computer does not recognize the electronic board.

The old Panasonic-DMS is not uninstalled if the old version of the

Panasonic-DMS has been installed before installing the new one.

Uninstall the old Panasonic-DMS from the

Add / Remove

Programs of the Control Panel. (Refer to “Removing Drivers /

Board Image Capture / Quick Image Navigator” on page 25 and

remove Panasonic-DMS instead of Panasonic UB5-7 Driver.)

The Panaboard has not been registered in [Control Panel]–[Scanners and Cameras] and [Printers].

Run “UB5-7\Uninstall\UB5-7Uninst.exe” in the CD-ROM to uninstall the drivers from the computer. Then, install the drivers.

Check that the electronic board is in the condition that enables operation or that the USB cable is connected properly.

The electronic board is connected via a USB hub.

Do not connect via a USB hub.

See

Page

25

23

Meanings of error codes

The following table describes the meaning of each of the symbols which may flash in the Multi-Copy/Error

Indicator.

Indication Cause Remedy

See

Page

22

Data transfer error Connect the USB cable securely.

(Error)

(Screen)

The screen will not move.

Remove any chart paper attached to the screen and slowly move the screen by hand.

Close the printer door securely.

The printer door is not closed securely.

(door)

(Jam)

Paper jam

The thermal transfer film is slack, has run out or is not installed.

Open the printer door and remove the jammed paper.

Remove the slack from the thermal transfer film, replace or install the thermal transfer film.

(ribbon)

Out of paper

(Paper)

The scanner or screen is in strong sunlight or strong lighting.

(Scanner Failure)

If other indications such as “ ” appear, call your dealer.

Load copy paper.

Change the direction of the screen or block the light.

11

17

10

16

12

33

UB-5315_EN.book 34 ページ 2008年1月8日 火曜日 午前9時26分

34

Specifications

Model No.

UB-5315 UB-5815

General

Power supply

Power consumption

(Operational)

External dimensions

(Height

× Width × Depth, without stand)

Mass (without stand/ with board attachment)

Ambient operating conditions

Refer to the name plate on the printer

Refer to the name plate on the printer

1334 mm

× 1372 mm

× 212 mm

25 kg (55.1 lbs.)

1334 mm

× 1735 mm

× 212 mm

27 kg (59.5 lbs.)

Temperature: 10–35

° C (50–95

°

F)

Humidity: 30–80% RH

Input

Block

Output

Block

Writing implements Dry erase felt-tipped markers (black, red, and blue)

Panel dimensions (Height

× Width)

900 mm

× 1262 mm

900 mm

× 1625 mm

Panel surfaces 2

Panel advance system

Copying area (Height

× Width)

Scanning system

Endless scroll type

850 mm

× 1250 mm

Image sensors

850 mm

× 1613 mm

Printing system

Copy paper

Copy paper size

Copy density

Fusion thermal transfer type

Standard or recycled paper

A4/Letter*

1

8 dots/mm

Copy colour

Contrast adjustment

2-screen compressed copying

Time required for copying

Continuous copies

Paper empty indication

Option and Separately available

Black

Two levels: Normal/Dark

Yes

15 s/sheet

1 to 9 sheets

Yes

Option

Stand: UE-608005

Separately

Available

Replacement film:

Markers:

UG-6001 (Set of 2 rolls [50 m])

KX-B031 (set of 10 black markers),

KX-B032 (set of 10 red markers),

KX-B033 (set of 10 blue markers)

Erasers: KX-B042 (set of 6 erasers)

Marker and eraser set: KX-B035 (contains one black, one red, and one blue markers and one eraser)

*

1

Letter size is for U.S.A. and Canada models.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
