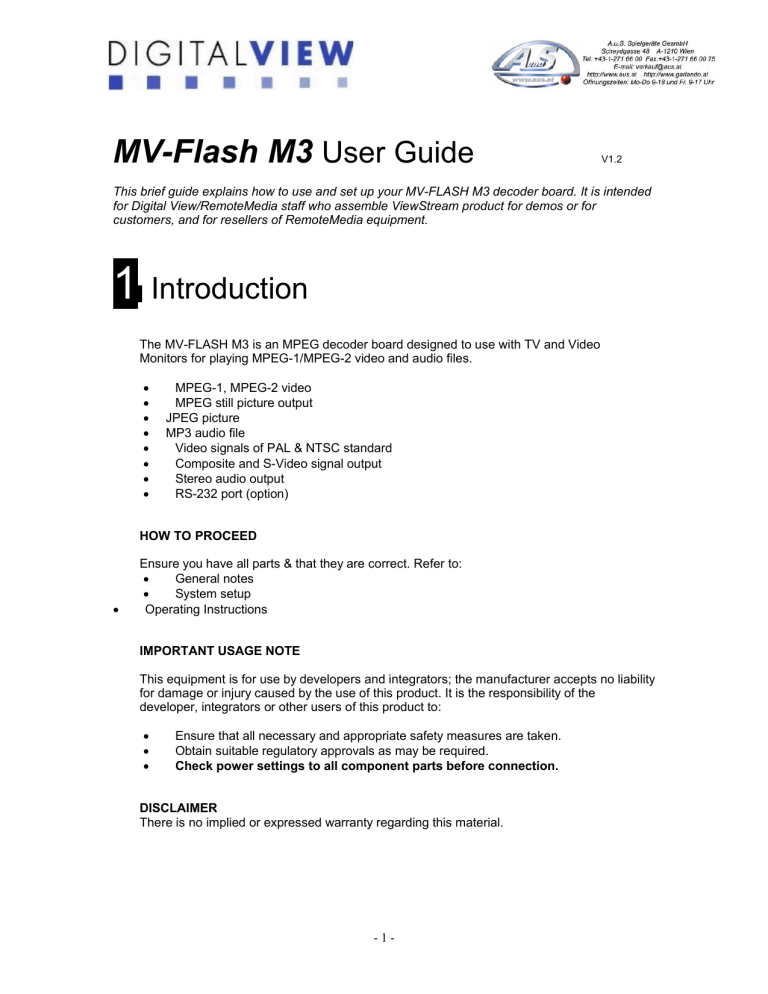

MV-Flash M3 User Guide
V1.2
This brief guide explains how to use and set up your MV-FLASH M3 decoder board. It is intended
for Digital View/RemoteMedia staff who assemble ViewStream product for demos or for
customers, and for resellers of RemoteMedia equipment.
1 Introduction
The MV-FLASH M3 is an MPEG decoder board designed to use with TV and Video
Monitors for playing MPEG-1/MPEG-2 video and audio files.








MPEG-1, MPEG-2 video
MPEG still picture output
JPEG picture
MP3 audio file
Video signals of PAL & NTSC standard
Composite and S-Video signal output
Stereo audio output
RS-232 port (option)
HOW TO PROCEED

Ensure you have all parts & that they are correct. Refer to:

General notes

System setup
Operating Instructions
IMPORTANT USAGE NOTE
This equipment is for use by developers and integrators; the manufacturer accepts no liability
for damage or injury caused by the use of this product. It is the responsibility of the
developer, integrators or other users of this product to:



Ensure that all necessary and appropriate safety measures are taken.
Obtain suitable regulatory approvals as may be required.
Check power settings to all component parts before connection.
DISCLAIMER
There is no implied or expressed warranty regarding this material.
-1-
2 System Design
A typical setup of a Video Monitor display with a MV-FLASH M3 looks like this:
15 REMOTE EXT.
4 COMPACT FLASH CARD
CONNECTOR
16 POWER/REPEAT LED
17 ALTERNATIVE POWER
LED CONNECTOR
LED1
CN5
1 SW AND BUTTON
CONNECTOR
1
LED2
1
CN6
1
CN11
BT1
18 I/O EXPANSION
CONNECTOR
1
JA1
J6
1
2
CN10
IR CONNECTOR
S3
1
3
1
VR1
1
3
SPEAKER OUT (L/R)
CONNECTOR
CN9
1
1
J1
POWER ON/OFF SWITCH
1
CNV1
CN4
14 RESERVED
5
CN1
MV-FLASH M3
1
13 ALTERNATIVE POWER
CONNECTOR
CN7
PP1
1
J2
J3
6 ALTERNATIVE PAL/NTSC
SWITCH
J4
7
PAL/NTSC SWITCH
12 S-VIDEO OUT
8 POWER INPUT (DC12V)
11 COMPOSITE OUT
10 AUDIO [L] OUT
9 AUDIO [R] OUT
Summary:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Switches and Buttons connector
IR connector
Speaker out (L/R) connector
Compact Flash card connector
Power On/Off switch connector
Alternative PAL/NTSC switch connector
PAL/NTSC switch
Power input (DC12V)
Audio right out
Audio left out
Composite out
S-Video out
Alternative power connector
Reserved
Remote Ext. (8 buttons connection only)
16. Power/Status LED
17. Alternative power LED connector
18. I/O expansion connector (eg. RS-232 add-on board)
-2-
A) Mechanical buttons

Standard MV-switchmount with 8 buttons.

Custom made switchmount for 1-8 buttons when connected to the buttons connector
CN6 via the standard switchmount cable.

Custom made switchmount kit for 1-8 buttons when connected to the Remote Ext.
socket (CN5) for alternative remote control buttons.
B) Touch screen segments

The MV-Flash M3 when connected with a LCD interface controller can output videos
on to LCD screen. Button control can be performed via touch screen for panel sizes of
6.4”, 10.4”, 12.1” and 15”

There are one types of button pattern layouts on the touch screen available: 8 buttons
for the 6.4”, 12.1” and 15” panels. (For any special button layout, please contact local
sales office.)
Fig.1
8-buttons for LCD screen sizes 6.4”, 12”, 15”
C) Button function settings

Whether the buttons are of the mechanical type (on the standard switchmount or
custom made) or the touch screen segment type, each button function can be
programmed with the DV Studio Advanced software program to perform a VCD
player mode function or specific track select function. (See DV Studio Advanced
user manual).

The DV Studio Advanced software program is separately provided
-3-
3 Quick Start
CAUTION: Never connect or disconnect parts of the system when the system is powered up
as this may cause serious damage.
CONNECTION – Connection and usage are straightforward. However, care needs to be
taken with the following:






Ensuring parts have been correctly connected – both power & signal considerations.
Checking that all switches and jumpers are set correctly.
The input signal is compatible.
Legal & safety requirements have been met.
If you are using supplied cables & accessories, ensure they are correct for the model
of video monitor.
If you are making your own cables & connectors refer carefully to the video monitor
specifications and the “Connectors, Pin outs & Jumpers” section in this user guide to
ensure the correct pin-to-pin wiring.
Basic connection for MV-FLASH M3 :





Connect the keys pad to CN5 (if required)
Set correct switch (S1) settings. (e.g. PAL/NTSC switch)
Connect the video and audio ext. cables from the MV-FLASH M3 to the AV monitor.
Connect the power supply (DC 12V @ 1.2A minimum. - ensure correct + & orientation) to the controller power input (PP1).
Connect the on/off switch cable (p/n:4266804-01) or short Pin1-2 at S3 for “Auto power
on”
LED1
CN5
To u c h s c r e e n / K e y p a d
1
LED2
1
CN6
1
CN11
CN10
BT1
1
JA1
J6
B a r c o d e re a d e r
1
R S-2 3 2 a d d o n
b o a rd
S3
1
3
1
CN1
MV-FLASH M3
1
VR1
1
CNV1
CN4
1
1
1
J1
M o n it o r
-4-
CN9
CN7
PP1
1
J2
J3
J4
Sp e a ke r
P o w e r s u p p ly
4 General Notes
The MV-FLASH M3 is designed for use with Video Monitors and other analogue signal input
displays. Here are some notes for correct use:

Preparation - Before you proceed, please familiarize yourself with the various
connectors, jacks, switches and function buttons of the MV-FLASH M3 unit (see the
‘System Design’ diagram).

The unit - Handle the unit with care; any knocking may cause components to come
loose and disconnect. Operate in a cool and dry place.

Power Input: 12V DC, 1.2A (minimum) is required; this should be a regulated supply.

Digital Video - use MPEG-1/2* video encoded at Video-CD standard. (See “Content
Creation Guide” for proper encoding rate.)
* For MPEG-2 video, the encoding rate is limited to 5Mb/s (in normal CF card)

Audio & Video output - Video - displays PAL & NTSC signals with either Composite,
S-video or Component signal. The PAL/NTSC switch should be set correctly. Audio Stereo output. Volume is controlled by the switch mount buttons.

Remote Ext. - Using the standard switch mount, the controls are 8 momentary
buttons for video playback control (standard functions (in simple play mode) being :
Play, Stop, Pause, Next Track, Volume decrease, Volume increase, Mute). An
optional function control device is a custom-made switch mount connected to the
switches and buttons connector (CN6) with a maximum of 8 momentary buttons

Remote Ext. cable - The cables to the switches and buttons connector should be of
suitable quality and length so that impedance does not affect performance. Generally
lengths up to 1 meter (3 feet) should be acceptable.

LED (LED1) - The power LED indicator shows power is being supplied to the MVFLASH M3. The Status LED indicates the status of CF card.

RS-232 serial port (option)– A add-on board (p/n:4160113-01) and RS-232 cable
(p/n: 4261708-00) are required. The serial port only supports barcode scanner.

Service & Warranty: Warranty is invalidated if the unit is dismantled in any way. The
unit is not user serviceable or repairable.
CAUTION: do not attempt to remove any part of the casing or internal parts.
-5-
5 Connectors, pinouts & jumpers
The various connectors are:
LED1
CN5
1
LED2
1
CN6
1
CN11
CN10
BT1
1
JA1
J6
1
S3
1
3
1
CN1
MV-FLASH M3
1
VR1
1
CN9
CNV1
CN4
1
Ref
CN1
CN4
CN5
CN6
CN7
CN9
CN10
CN11
CNV1
1
1
J1
CN7
PP1
1
J2
LED1
LED2
J1
J2
J3
J4
J6
PP1
Purpose
Speaker out (L/R) connector
Reserved
Remote Ext.
Switches and buttons connector
Alternative PAL/NTSC connector
Alternative audio output
Alternative power connector
I/O Expansion connector
Alternative S-Video/ Composite video
output
Power/Statust LED
Alternative power LED connector
S-Video out
Composite video out
Audio Left out
Audio Right out
CF Card connector
Main power input
S1
S3
JA1
IR1
VR1
BT1
PAL/NTSC switch
Power On/Off switch connector
5V Logic Power
IR Connector
Ext. Variable Resistor connector
Battery for Real time clock
-6-
J3
J4
Description
JST B4B-XH-A
JST B2B-XH-A
MINI DIN 8-way
Hirose 1.25mm, 9-pin, D3-3-1.25DSA
JST B2B-XH-A
JST B4B-PH-K
JS-1116-04WS
13x2 header socket (0.1” pitch)
JST B5B-PH-K
Stacked housing LED
1x2 header (0.1” pitch)
Mini DIN 4-way
RCA jack (yellow)
RCA jack (red)
RCA jack (white)
CF-CARD, 25x2PIN 3M CF-II SOCKET
DC power jack, 2.5mm contact pin diameter
(Center +)
6mm stem select switch
JST B2B-XH-A
2x2 header (2mm pitch)
JST B3B-XH-A
3x2 header (0.1” pitch)
CR1216 Type
Details:
CN1 – Speaker out (L/R)
PIN
1
2
3
4
SYMBOL
GND
L
GND
R
DESCRIPTION
Ground
Left speaker out
Ground
Right speaker out
SYMBOL
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
DESCRIPTION
Button 1
Button 2
Button 3
Button 4
Button 5
Button 6
Button 7
Button 8
CN4 – Reserved
CN5 - Remote Ext.
PIN
1
2
3
4
5
6
7
8
CN6 – Switches and buttons connector
PIN
1
2
3
4
5
6
7
8
9
SYMBOL
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
GND
DESCRIPTION
Button 1
Button 2
Button 3
Button 4
Button 5
Button 6
Button 7
Button 8
Ground
CN7 – Alternative PAL/NTSC connector
PIN
1
SYMBOL
SYSTEM
2
GND
DESCRIPTION
PAL/NTSC select
1-2 short: NTSC
1-2 open: PAL
Ground
CN9 - Alternative audio output
PIN
1
2
3
4
SYMBOL
GND
AUDIO_L
GND
AUDIO_R
DESCRIPTION
Ground
Audio left channel output
Ground
Audio right channel output
CN10 - Alternative power
-7-
PIN
1
2
3
4
SYMBOL
VCC
GND
GND
+12V
DESCRIPTION
+5V out
Ground
Ground
+12V out
SYMBOL
LD08
LD09
LD10
LD11
LD12
LD13
LD14
LD15
/LCS
/LOE
/LWRHL
/LA20
/LA21
AUX6
AUX7
EAUX32
GPI0
GPI1
GPI2
GPI3
GPI4
GPI5
GND
VCC
VCC3
GND
DESCRIPTION
Port Data 8
Port Data 9
Port Data 10
Port Data 11
Port Data 12
Port Data 13
Port Data 14
Port Data 15
CHIP SELECT
OUTPUT ENABLE
Port High Byte Write Enable
Port Address 20
Port Address 21
Auxiliary Port 6
Auxiliary Port 7
Aux3 Data I/O
General Input 0
General Input 1
General Input 2
General Input 3
General Input 4
General Input 5
Ground
+5V
+3.3V
Ground
CN11 – I/O Expansion
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
CNV1 - Alternative S-Video/Composite video output
PIN
1
2
3
4
5
SYMBOL
CHROMA
LUMA
GND
GND
CVBS
DESCRIPTION
S-Video : Chroma out
S-Video : Luma out
Ground
Ground
Composite video out
LED2 – Alternative power LED connector
PIN
1
2
SYMBOL
LED2
GND
DESCRIPTION
Connect to Anode of LED
Connect to Cathode of LED
J1 - S-Video Out
PIN
1
2
3
4
DESCRIPTION
Ground
Ground
Luma Out
Chroma Out
-8-
J2 - Composite video Out
PIN
1
2
DESCRIPTION
Center pin, composite video output, 0.7Vp-p
Ground
J3 - Audio left out
PIN
1
2
DESCRIPTION
Center pin, Audio Left channel output
Ground
J4 - Audio right out
PIN
1
2
DESCRIPTION
Center pin, Audio Right channel output
Ground
J6 – Compact Flash card connector
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
SYMBOL
GND
D3
D4
D5
D6
D7
/CE1
GND
GND
GND
GND
GND
VCC
GND
GND
GND
GND
A2
A1
A0
D0
D1
D2
NC
/CD1
/CD2
NC
NC
NC
NC
NC
/CE2
NC
/RD
/WR
NC
IRQ
VCC
GND
NC
DESCRIPTION
Ground
Data bit 3
Data bit 4
Data bit 5
Data bit 6
Data bit 7
Card enable 1
Ground
Ground
Ground
Ground
Ground
+5V
Ground
Ground
Ground
Ground
Address bit 2
Address bit 1
Address bit 0
Data bit B3
Data bit B4
Data bit B5
No connection
Card detect pin 1
Card detect pin 2
No connection
No connection
No connection
No connection
No connection
Card enable 2
No connection
Memory read strobe
Memory write strobe
No connection
Interrupt request
+5V
Ground
No connection
-9-
41
42
43
44
45
46
47
48
49
50
RESET
NC
NC
NC
Pin45
Pin46
NC
NC
NC
GND
System reset
No connection
No connection
No connection
BVD2
BVD1
No connection
No connection
No connection
Ground
PP1 - Main power input
PIN
1
2
DESCRIPTION
+12V DC in center pin
Ground
S1 - PAL/NTSC switch
PIN
1-2
2-3
DESCRIPTION
PAL
NTSC
S3 – Power On/Off switch connect
PIN
1
2
SYMBOL
12V_IN
12V_OUT
DESCRIPTION
+12V input
+12V output
SYMBOL
GND
VCC
IR
DESCRIPTION
Ground
+5V
IR Data
IR1 – Infra-red
PIN
1
2
3
Jumper JA1:
1-2, 3-4 closed (Factory default)
Jumper VR1:
1-3, 2-4 closed (Factory default)
- 10 -
6 System Setup
A) SELECT SWITCHES
Before powering on the MV-FLASH M3:


Make sure the corresponding signal cables have been connected from the Composite
or S-Video output jacks.
Set the 'PAL/NTSC' switch (S1) to the chosen output format.
B) POWER UP
Auto-Play start up mode*




Plug in the external power supply
Insert CompactFlash Card containing DV Studio Advanced exported “.pll / .prj” and
other digital files. (e.g. .mpg, .mp3, .jpg) All filename should be in 8+3 format (i.e.
xxxxxxxx.xxx) and avoid using any illegal characters like “~”, “_”, “-“, etc
Switch the power 'on/off' switch to 'on'.
The first track of the collection of MPEG files will be auto-played.
Sleep mode*





Plug in the external power supply
Insert CompactFlash Card containing DV Studio Advanced exported “.pll / .prj” and
other digital files. (e.g. .mpg, .mp3, .jpg) All filename should be in 8+3 format (i.e.
xxxxxxxx.xxx) and avoid using any illegal characters like “~”, “_”, “-“, etc
Switch the power 'on/off' switch to 'on'.
Press the 'play' button'.
The first track of the collection of MPEG files will be played.
Note: special specific track playback activated by assigned button can also be performed in
sleep mode - contact local sales office.
*The Autoplay and Sleep playback mode are selected when writing the MPEG files on to the
CompactFlash Card by using DV Studio Advanced software.
C) AUTO-LOOP PLAYBACK
After Track 1 is set to play, it will play to the end, then Track 2 will start playing from
beginning to end, then Track 3 etc. When the MV-FLASH M3 plays to the end of the last
track, it will automatically jump back to the beginning of Track 1, repeating tracks 1,2 then 3
etc. The MV-FLASH M3 will play in auto-loop play mode, so long as none of the function
buttons are pressed. (NOTE: Loop playback is the standard playback setting of the MVFLASH M3 but the track playback sequence can be changed as required: contact local sales
office.)
- 11 -
7 Operating Instructions
OPERATING MODES
There are two operating modes in MV-Flash M3 – “playlist mode” and “simple play mode”
.
1. Playlist mode
When operating in playlist mode, both project file (*.prj) and playlist file (*.pll) must be present
on the Compact Flash card. These are used to control the sequence for all video tracks.
The project and playlist file are created using DV Studio Advanced software. Using this
software, you can set simple sequences or complex sequences including “jump track“ or
“next track” actions. DV Studio can also program buttons with different function like “play”,
“stop”, “pause”, “mute”, “previous”, “next” and “volume”.
2. Simple play mode
In simple play mode, the user just copies all video files (.mpg) or JPEG files (.jpg) onto the
Compact Flash card. The MV-Flash M3 will play these files in alphabetical sequence.
For MPEG still pictures or JPEG files, the play time can be set by the last digit of the
filename. (For example: APPLE5.mpg, where “5” means the track will be displayed for 5
seconds.) Note: Do not use the same filename on both MPEG and JPEG.
Note: Make sure all capital letters in filename defined in playlist are consistence with the
filename on CompactFlash card. All filename should be in 8+3 format (i.e. xxxxxxxx.xxx) and
avoid using any illegal characters like “~”, “_”, “-“, etc
OPERATING FUNCTIONS
The following key buttons are default in “Simple Play mode”
PLAY (Button 1)

Resumes playback of videos from track 1 after STOP has been pressed.

Resumes playback of the track from the point that it has been set to PAUSE.

Playback is reset back to the beginning of the specific track which is being played at
the time the PLAY button is pressed.
STOP (Button 2)

When STOP is pressed the video stops playing and a blank screen is displayed.
PAUSE (Button 3)

When PAUSE is pressed the video image instantly freezes.

Press Pause again or PLAY to resume normal playback from the position where it was
paused.
REPEAT (Button 4)

When REPEAT is pressed the current track loop back on itself continuously.
- 12 -

To disable the repeat mode press REPEAT, PLAY, PREVIOUS TRACK or NEXT
TRACK . When the track plays to the end it will playback the next track (and etc.) as
normal.
NEXT TRACK (Button 5)

The NEXT TRACK function can be activated only when a track is already playing.
When NEXT TRACK is pressed the current video stops playing and jumps directly to
the start of the next track.
VOLUME DECREASE (Button 6)

Decreases audio output volume setting.
VOLUME INCREASE (Button 7)

Increases audio output volume setting.
MUTE (Button 8)

When MUTE is pressed, all the tracks will have no sound.

Press MUTE again to resume the normal sound in all tracks.
Note : All above buttons can be re-defined by DV Studio Advanced software if operating in playlist mode.
- 13 -
8 Dimensions
146.77
5.07
91.
46
81.31
136.62
18
Unit in mm
The maximum thickness of the controller is 20.6mm with or without video add-on board (measured from bottom of
PCB to top of components, including any underside components & leads). We recommend clearances of:

5mm from bottom of PCB - if mounting on a metal plate we also recommend a layer of suitable insulation
material is added to the mounting plate surface.

10mm above the components

3~5mm around the edges
Any of the holes shown above can be used for mounting the PCB, they are 3.2mm in diameter.
CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high
voltage parts such as the inverter.
- 14 -
9 Specifications
Playable formats:
MPEG-1/2* files (video with audio)
MPEG still picture
MP3 audio
JPEG still picture
Video Storage
medium:
Output Display
Systems:
Video Output:
CompactFlash Memory Cards: Type 1 & Type 2
TV and Video Monitors
Audio Outputs:
Signal type: Composite and S-Video
Output format: PAL and NTSC
Low resolution : 352 x 288 pixels (PAL)
: 352 x 240 pixels (NTSC)
High resolution : 720 x 576 pixels (PAL)
: 720 x 480 pixels (NTSC)
Still picture
: 704 x 576 pixels (PAL)
: 704 x 480 pixels (NTSC)
JPEG picture
: 800 x 600 pixels
Stereo output, connector – RCA jack, 3.2 V p-p max. 5K ohm
Signal-to-Noise:
96 dB
Select Switches:
Power ON/OFF select
PAL/NTSC playback format select
Indicators:
Power On/Off LED
Status LED
Autoplay (at power-on); Sleep mode (after power-on)
Output Resolution:
Start-up Modes:
Power Input:
Power Consumption:
Environment:
Relative Humidity
Dimensions:
Net Weight:
External ports:
Video Storage
Accessories:
12V DC, 500mA typical
6W
0 C to 50 C, free air circulation
5% - 95% relative humidity, non-condensing
146.8mm x 91.5 mm x 18mm (W x D x H)
135g
RS-232 port (option) – for barcode application.
Remote Ext.
– External buttons connection (8-buttons)
CompactFlash Card – various memory capacities available
16, 32, 48, 64, 96, 128, 192, 256, 512MB, 1G
* For MPEG-2 video, the encoding rate is limited to 5Mb/s
- 15 -
WARRANTY
The products are warranted against defects in workmanship and material for a period of one (1) year from the date
of purchase provided no modifications are made to it and it is operated under normal conditions and in compliance
with the instruction manual.
The warranty does not apply to:
 Product that has been installed incorrectly, this specifically includes but is not limited to cases where electrical
short circuit is caused.

Product that has been altered or repaired except by the manufacturer (or with the manufacturer’s
consent).
 Product that has subjected to misuse, accidents, abuse, negligence or unusual stress whether physical or
electrical.

Ordinary wear and tear.
Except for the above express warranties, the manufacturer disclaims all warranties on products furnished
hereunder, including all implied warranties of merchantability and fitness for a particular application or purpose. The
stated express warranties are in lieu of all obligations or liabilities on the part of the manufacturer for damages,
including but not limited to special, indirect consequential damages arising out of or in connection with the use of or
performance of the products.
CAUTION
Whilst care has been taken to provide as much detail as possible for use of this product it cannot be relied upon as
an exhaustive source of information. This product is for use by suitably qualified persons who understand the
nature of the work they are doing and are able to take suitable precautions and design and produce a product that
is safe and meets regulatory requirements.
DISCLAIMER: There is no implied or expressed warranty regarding this material.
LIMITATION OF LIABILITY
The manufacturer’s liability for damages to customer or others resulting from the use of any product supplied
hereunder shall in no event exceed the purchase price of said product.
TRADEMARKS
The



following are trademarks of Digital View Ltd:
DigitalView
ThinSurfer
RemoteMedia
CompactFlash is a registered trademark of SanDisk Corporation.
Other brands and products are trademarks of their respective holder/s.
- 16 -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
