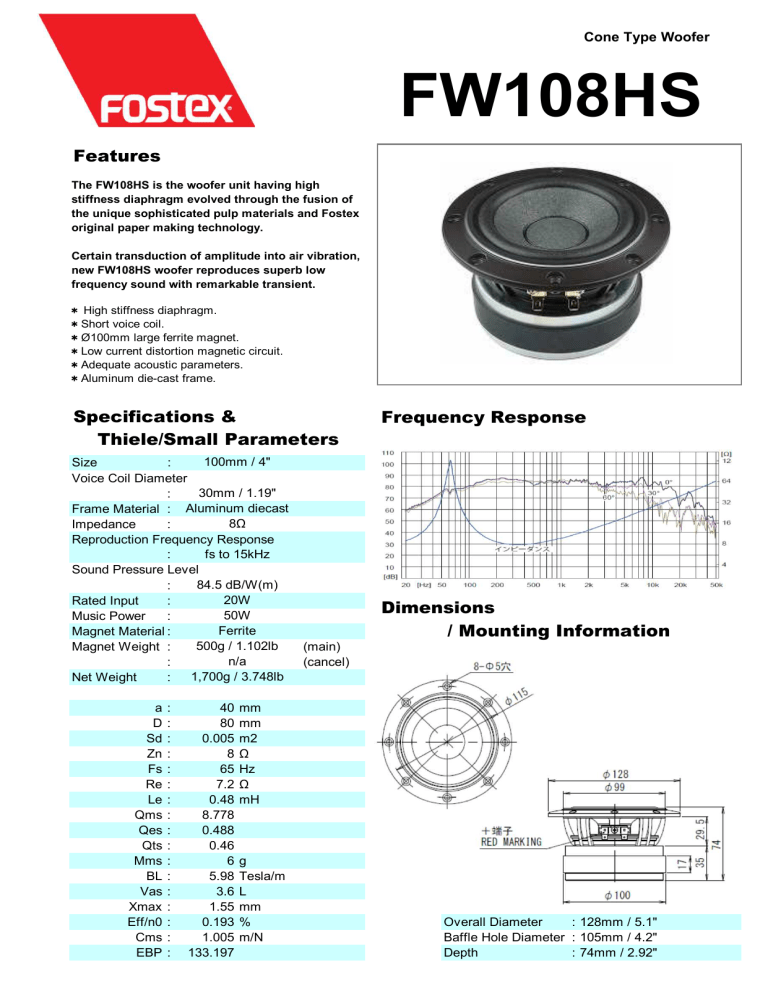

Unit Data Sheet
Cone Type Woofer
FW108HS
Features
The FW108HS is the woofer unit having high
stiffness diaphragm evolved through the fusion of
the unique sophisticated pulp materials and Fostex
original paper making technology.
Certain transduction of amplitude into air vibration,
new FW108HS woofer reproduces superb low
frequency sound with remarkable transient.
*
*
*
*
*
*
High stiffness diaphragm.
Short voice coil.
Ø100mm large ferrite magnet.
Low current distortion magnetic circuit.
Adequate acoustic parameters.
Aluminum die-cast frame.
Specifications &
Thiele/Small Parameters
100mm / 4"
Size
:
Voice Coil Diameter
30mm / 1.19"
:
Frame Material : Aluminum diecast
8Ω
Impedance
:
Reproduction Frequency Response
fs to 15kHz
:
Sound Pressure Level
84.5 dB/W(m)
:
20W
Rated Input
:
50W
Music Power
:
Ferrite
Magnet Material :
500g / 1.102lb
Magnet Weight :
n/a
:
1,700g / 3.748lb
Net Weight
:
a
D
Sd
Zn
Fs
Re
Le
Qms
Qes
Qts
Mms
BL
Vas
Xmax
Eff/n0
Cms
EBP
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
40
80
0.005
8
65
7.2
0.48
8.778
0.488
0.46
6
5.98
3.6
1.55
0.193
1.005
133.197
(main)
(cancel)
Frequency Response
Dimensions
/ Mounting Information
mm
mm
m2
Ω
Hz
Ω
mH
g
Tesla/m
L
mm
%
m/N
Overall Diameter
: 128mm / 5.1"
Baffle Hole Diameter : 105mm / 4.2"
Depth
: 74mm / 2.92"
