PRELIMINARY COPY

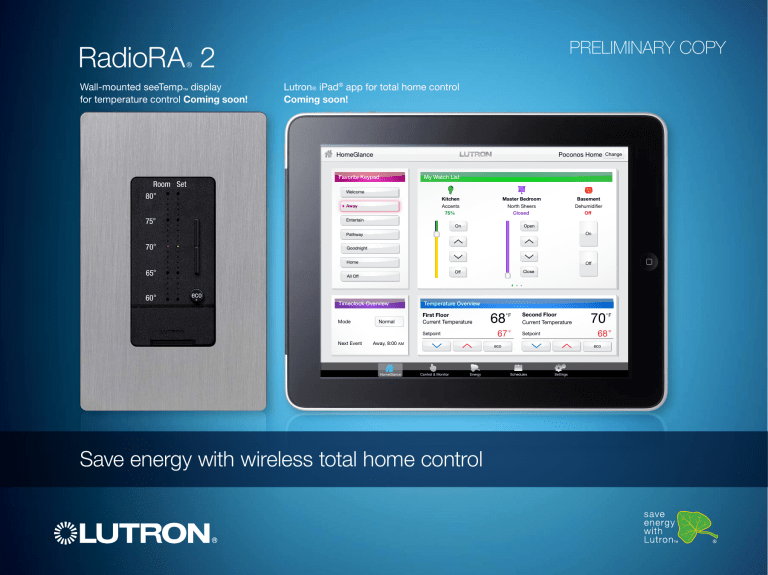

RadioRA 2
®
Wall-mounted seeTemp™ display
for temperature control Coming soon!
Lutron® iPad® app for total home control
Coming soon!
HomeGlance
Poconos Home
Change
My Watch List
Favorite Keypad
Welcome
Kitchen
Accents
75%
Away
Basement
Dehumidifier
Off
Master Bedroom
North Sheers
Closed
Entertain
Open
On
On
Pathway
Goodnight
Home
Off
Close
Off
All Off
Timeclock Overview
Temperature Overview
Mode
First Floor
Current Temperature
Normal
Away, 8:00 AM
Schedules
Settings
HomeGlance
Control & Monitor
Energy
Schedules
Settings
Timeclock Overview
All Off
Home
Goodnight
eco
Energy
Away, 8:00 AM
eco
eco
67 F
Current Temperature
First Floor
68
F
Setpoint
Current Temperature
Second Floor
68 F
70
Temperature Overview
Off
F
68 F
Control & Monitor
Normal
70
Setpoint
HomeGlance
Setpoint
Mode
Second Floor
Current Temperature
eco
Save energy with wireless total home control
Next Event
F
67 F
Setpoint
Next Event
68
Close
Off
F
What is RadioRA 2?
®
RadioRA 2 is a wireless total home control system that provides convenient
and intuitive control of lights, shades, appliances, and temperature
in a single room or throughout a whole home. It installs easily, programs
quickly, and operates reliably thanks to Clear Connect™ RF Technology.
What’s New?
NEW!
Look for
as you look through
the brochure to see recently added
features and components.
Table of contents
page 02
H
ow RadioRA 2
saves energy
page 04
System components
page 08
Open integration
page 10
Easy installation
and programming
page 12
Scalable, flexible, reliable
What are the benefits?
Saves energy
Homeowners today want to cut costs and protect the planet.
With RadioRA 2 they can do both of those things.
The energy-saving benefits of RadioRA 2 are brought to you through
a combination of light, shade, temperature, and appliance control.
Open integration
•
Control from remotes, home automation systems, mobile devices,
and more—all on one repeater
•
Public integration protocol allows virtually any device capable of sending
and/or receiving RS232 or IP commands to control lights and shades
•
Two-way functionality provides the ability to monitor the status of lights
in the home including light level, respond to button presses, and access
database-level system information
seeTouch® wall-mounted keypad in stone
Easy to install and program
•
PC setup tool saves time during design and programming—define
zones, light and shade levels, occupancy/vacancy sensing, and more
•
For simple applications, button-press set up requires no PC
•
Wall-mounted hybrid keypad replaces existing switches with
no new wiring—perfect for retrofit applications
Flexible, scalable, and reliable
•
Choose from a variety of wireless components to customize a system
that fits into any space
•
Simply add components at any time to grow the system from a single
room to a whole home—scale from 2 to 200 devices
•
Works directly with Sivoia® QS Wireless shades and drapes, GRAFIK Eye® QS
Wireless, and Radio Powr Savr™ occupancy/vacancy sensors
•
Clear Connect RF Technology ensures ultra-reliable wireless
communication between components
Lutron | 01
How RadioRA 2 saves energy
®
Light control
When you dim a standard halogen or incandescent light bulb by 25%, you’ll save 20%
lighting energy. Dim more and you’ll save even more. Sensors and a timeclock also help
save energy by turning off lights when they are not needed.
Potential energy savings: 20%
Shade control
Controllable window shades can save you 10% on heating and cooling costs by blocking
the sun’s rays in summer or letting them in to warm a room during colder months.1
Potential energy savings: 10%
Temperature control
The perfect complement to light and shade control, temperature control gives you the ability
to adjust heating and cooling systems any time of day—even while you’re away from home,
saving up to 16% or more of your heating and cooling energy usage.2
Potential energy savings: 16%
Appliance control
Many appliances—like A/V equipment—consume energy 24 hours a day amounting
to 10% of a typical home’s electricity use.3 Turning off this standby power as part
of a total home control system saves energy.
Potential energy savings: 10%
02 | Lutron
1 L
utron commissioned simulation by T.C. Chan Center for Building Simulation
and Energy Studies, University of Pennsylvania, September 2008.
2 www.energystar.gov
3 www.standby.lbl.gov
The energy saving solutions listed below use a combination of light, shade,
temperature and appliance control to capitalize on energy savings in the home.
Dimming incandescent or halogen
bulbs by 25%, saves 20% electricity.
Dim more and you’ll save even more.
Full On
Appliance On Appliance Off
Dim
CFLs and LEDs already use less energy
than standard bulbs, so dimming these highly
efficient bulbs saves additional energy.
NEW!
Full On
Appliance control turns off standby power
to electronic appliances when you’re not
using them. Coming soon!
The “All Off” button turns all lights off with
a single touch.
Scene 1
Scene 1
All Off
All Off
Lights On
Dim
All Lights Off
Occupancy sensing turns lights and standby
power from electronic appliances off when
a person leaves the space.
Occupied: On
Vacant: Off
7am: Dim
7pm: Off
Scheduling can dim or turn off lights and standby
power from electronic appliances when they’re
not needed, as well as set back the temperature
when not as much heating or cooling is needed.
Dim
Demand response automatically reduces energy
use from lights, shades, and heating/cooling
systems during peak electricity usage times.
Coming soon!
Controllable window shades reduce
heating costs in winter and cooling costs
in summer.
Shade Open
Raise Temp
Full On
Shade Closed
Lower Temp
Temperature control automatically sets
back the temperature when heating or
cooling a room, so you use less electricity.
Coming soon!
kWh
kWh
More Energy
Less Energy
The “Green” button reduces energy use from
lights, shades, and heating/cooling systems
with a single touch. Coming soon!
Lutron | 03
System components
Keypads
Use wall-mounted or tabletop keypads to adjust lights, shades, or HVAC.
Handheld controls and the car visor transmitter are convenient ways to adjust
lights and shades. Available in a wide variety of button configurations and colors.
04 | Lutron
seeTouch® wall-mounted keypads
install in a standard wallbox to provide
control of lights and/or shades individually
or in preset scenes. Features backlit
buttons and personalized engraving.
seeTouch® tabletop keypads are powered
by standard AAA batteries or an included
plug-in adapter. Tabletop keypads provide
convenient, portable control of the system with
backlit buttons and personalized engraving.
Pico® wireless controls are battery-powered
remote controls that can be mounted to any wall
surface, placed on available pedestal for tabletop
use, or used as a handheld control. Wall-mount
option provides the convenience of additional “3-way”
control of lights and shades with no new wiring.
The car visor transmitter is a three-button,
battery-powered control that provides control
of lights and shades from your car. HomeLink®
compatibility in the visor control receiver (see
page 13) allows your car's built-in buttons to
adjust lights and shades.
Lighting controls
Lighting controls provide the basic building blocks for the RadioRA® 2 system.
Dimmers, switches, and other components are available in a variety
of colors and finishes.
NEW!
The wall-mounted hybrid keypad installs in place
of a standard light switch to provide dimming of the
attached lighting, plus the benefits of a wall-mounted
keypad. Keypad buttons can be programmed to control
any other lighting control devices as well as shades.
A wall-mounted dimmer installs in place
of a standard light switch to provide dimming
control of the attached lighting, as well as
system control from keypads and other devices.
A wall-mounted switch installs in place of
a standard light switch to provide switching control
of the attached lighting, as well as system control
from keypads, sensors and other devices.
NEW!
The tabletop lamp dimmer provides direct
dimming control of an attached table lamp, and
provides system control of the lamp from keypads
and other devices. The dimmer’s “stack-on” plug
connects to a standard electrical receptacle and
also provides the connection for the lamp.
The plug-in dimming module plugs into
a standard receptacle and provides connection
for floor or table lamps. Plug-in modules are
designed to be concealed behind furnishings.
Connected lights can be controlled only from
keypads, sensors, and other system devices.
GRAFIK Eye® QS Wireless control units provide
integrated control of multiple groups of lighting
fixtures and shading groups within a single room.
Individual lighting loads and shade groups can be
controlled directly from the unit's controls, hidden
below a hinged cover.
Lutron | 05
System components
Sensors
Temperature controls
Sensors provide for automated energy savings and added
convenience. Radio Powr Savr™ sensors are battery powered
and can be installed without the need for any wiring.
Add Lutron's thermostat to your RadioRA® 2 system for convenient
temperature control from keypads, mobile devices and the timeclock.
Save energy by reducing your HVAC using the “eco” button.
Coming soon!
NEW!
Radio Powr Savr wireless occupancy/vacancy sensors work
with RadioRA® 2 lighting controls to turn lights on when people
enter the room and turn lights off automatically when the room
is empty. Available in ceiling, corner, and hallway mount
configurations for appropriate sensor coverage in any room.
Appliance control
Appliance controls save energy by shutting off standby power
to electronic appliances such as TVs, printers, and computer
monitors when they're not in use. Coming soon!
The plug-in appliance module plugs into a standard
receptacle and provides connection for electrical
appliances. Plug-in modules are designed to be
concealed behind furnishings. The connected
appliance can be switched off only from keypads,
sensors, and other system devices.
06 | Lutron
seeTemp™ wall-mounted control displays current temperature and
displays and allows you to adjust set point and system mode (heating,
cooling, auto, fan on/off).
Battery-powered, wireless temperature sensor is surface-mounted
to the wall in the space to be conditioned. It detects temperature and
transmits that information to the HVAC controller.
Behind the scenes
Sivoia QS Wireless shades
System repeaters, receivers, and controllers are required
for system setup and operation. They create a wireless
network in the home and ensure reliable performance.
Sivoia QS Wireless offers ultra-quiet, precision
control of the full family of Lutron® window
treatment styles at the touch of a button.
®
Main repeater provides open integration with other
systems, devices, and the Web. Included astronomic
timeclock allows system control based on time of day
as well as sunrise/sunset. Required for system
set up and operation.
Roller shades provide precision control of daylight
with near-silent operation and minimal, symmetrical
light gaps of 0.75 inch on each side. Available in
a variety of sheer, dim-out, and blackout fabrics.
Auxiliary repeater extends system RF range in larger
applications, outdoor spaces, and between buildings.
Can be used wirelessly within the home or be wired
to another repeater to span longer distances.
Roman shades with CERUS™ (Cord Eliminating
Roman Uptake System) technology are the first
cord-free Roman shades. Available in soft fabrics
and woven woods as part of the Avant Collection™.
Visor control receiver provides system control
from your car. Security feature turns on and flashes
selected lights when the security system is activated.
Contact closure outputs enable remote control
of garage door openers.
Complete drapery systems provide the option
for pinch pleat or ripple fold style of drapes. Drapery
fabric panels are now available in over 70 soft fabrics
as part of the Avant Collection™.
The HVAC controller connects to the home’s
mechanical equipment using standard
thermostat wiring. Coming soon!
Tensioned shades reliably control daylight and heat
gain through skylights and angled windows. They
can be installed at a variety of slopes to provide
bottom-up angled window and skylight solutions.
Open integration
RadioRA® 2 can be integrated with popular control and automation systems.
By utilizing standards such as TCP/IP, and providing well-documented
integration communication protocols, Lutron ensures that its products
work as well in integrated environments as they do in stand-alone systems.
RS232/Ethernet
24 V control relays
RS232/Ethernet
Clear Connect™ RF communication
seeTemp™ thermostat, temperature
sensor, and HVAC controller
Main
repeater
IR
‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹‹
Pico™ wireless
controller
GRAFIK Eye® QS Wireless
RS485
Hybrid keypad
‹‹‹
Sivoia® QS
Wireless shades
Table lamp
dimmer
Plug-in dimming modules (left)
Plug-in appliance module (right)
‹‹
‹‹‹
‹‹‹
Keypad with IR
C
Auxiliary
repeater
08 | Lutron
Wall-mounted and
tabletop keypads
Dimmer and switch
Radio Powr Savr™
wireless occupancy/
vacancy sensor
‹‹
‹‹‹
Visor control
t
tac
on
‹‹‹
c lo
‹‹
‹‹‹
IR ‹ ‹
‹‹
‹‹
p
e in
su r
ut
Contact
closure
output
Non-Lutron devices
RS232/Ethernet
‹‹‹‹‹‹‹‹‹‹‹‹‹
‹
‹‹‹
‹
‹
‹‹
‹‹‹
‹
‹
‹
Remote control and monitoring
Lutron Home applications allow you to control
and monitor your RadioRA® 2 system right from
your mobile device—at home or while away.
Full two-way functionality allows
your iPhone® or iPod touch® to
update in real time when dimmers
or keypads are adjusted in the
home. The app supports multiple
RadioRA 2 systems—perfect for
users with multiple residences.
HVAC system
NEW!
HomeGlance
Poconos Home
Change
My Watch List
Favorite Keypad
Welcome
IR remote control
Touch panel control
Kitchen
Accents
75%
Away
Basement
Dehumidifier
Off
Master Bedroom
North Sheers
Closed
Entertain
Open
On
On
Pathway
Goodnight
Home
Off
Close
Off
All Off
Timeclock Overview
Temperature Overview
Mode
First Floor
Current Temperature
Normal
Next Event
Security system
Garage door opener
A/V equipment
Lutron works with many other manufacturers to
ensure that our systems integrate reliably with a
wide variety of remotes and automation systems.
• AMX
• NetStreams
• Control4
• Philips
• ELAN
• RTI
• HAI
• Savant
• HomeLogic
• Universal Electronics Inc.
• Life|ware
• Universal Remote Control
Away, 8:00 AM
HomeGlance
68
F
67 F
Setpoint
Second Floor
Current Temperature
eco
Control & Monitor
Energy
70
F
68 F
Setpoint
eco
Schedules
Settings
The Lutron® Home Control app for the iPad® provides
more information and control than the iPhone or iPod
touch. Using the iPad, users can adjust scenes, time
clock, and thermostat programming, as well as save
energy using new features like the “Green” button.
Coming soon!
iPhone, iPod touch, and iPad are registered trademarks
of Apple®, Inc. registered in the U.S. and other countries.
Easy installation and programming
RadioRA® 2 is the only system offering you the choice of PC-based or button-press
programming. An intuitive PC setup tool saves time on larger projects while easy
button-press programming simplifies smaller jobs.
Button-press programming
You can assign components to the
RadioRA 2 system, configure keypad
buttons, and define light and shade
levels with simple button presses.
1Activate system components by
adding them to the main repeater
to create a system.
Four easy steps to PC program RadioRA 2:
1Design system by placing components in rooms
2Program keypad buttons by assigning lights and
shades and defining levels
3Activate system devices
4Transfer system programming to Main Repeater
File
Edit
View
Tools
Settings
Reports
Help
| Essentials
design
|
program
Selected Room
keypads
Time Clock
Entrance
1
2
activate
transfer
Master Suite
Night Stand
Bath
Tabletop Lamp
Bath Recessed Lights
3
Scene 1
Fade Time
03 Seconds
Selected Device Location:
OK
Master Suite > Bath
Grafik Eye QS
Recessed Lights
50%
Bath Accent Lights
Add zones at these levels:
Accent Lights
2Configure keypad buttons to offer
LED feedback for scene status
or monitoring lights in the home.
Reading Lights
Dimmer Level:
60%
Fade:
00:00:02
00:00:00
Accent
Morning
South Windows
Relax
Done00:00:01
Bath Window
00:00:02
00:00:04
Evening
00:00:10
Goodnight
00:01:00
All Off
00:05:00
00:10:00
Sheer Shades
Privacy Shade
Blackout Shades
Engraving Text:
00:15:00
0.00%
00:30:00
01:00:00
Relax
Button press will:
always send devices to programmed level
toggle between programmed levels and OFF
LED turns on when:
all devices are at exact programmed level
at least one device is on at any level
Programmed Item Name
Level
Fade
Master Suite > Bath Recessed Lights
50%
0.5 seconds
Delete
Master Suite > Bath Accent Lights
60%
0.5 seconds
Delete
Master Suite > Privacy Shade
0.00%
N/A
Delete
Technical Support 1.800.523.9466
Screen shot of NEW PC setup tool for design
and programming
NEW!
3Assign lights and shades to keypad buttons and choose preset levels.
Control lights and shades individually or create scenes by controlling
multiple lights and shades with a single button.
10 | Lutron
Design and programming software updates
• Away mode and alternate schedules
• Easily print and save PDF reports
Coming soon!
• Temperature control and scheduling
• “Green” button
• Advanced sensor programming allows activation
of scenes or individual lights in a room
You can program RadioRA® 2 via either
button-press or PC programming,
depending on the features you want.
Button-press programming offers an easy
way to program system keypads to control lights
and shades throughout the home. There is no
computer or other external equipment required.
•
PC programming is available to qualified
dealers and offers access to advanced features
like an astronomic time clock and integration
with other systems.
Feature
Button-press
programming
PC programming
Scene control
•
•
Room monitoring
•
•
Individual device control
•
•
+100 devices
•*
Astronomic time clock
•
Away mode
•
Security mode
•
Integration
•
iPhone® app
•
“Green” button
•
Thermostat
•
Occupancy sensors
•
Homeowner adjustments
•
•
Use the table (right) to discover which features
are available when using each method:
* Requires L2 dealer qualification
Lutron | 11
Scalable, flexible, reliable
Ideal for retrofit applications and new construction
System components such as the Radio Powr Savr™ wireless occupancy/vacancy sensor, wall-mounted hybrid keypad, and the
Pico® wireless controller make it easier than ever to install RadioRA® 2 into any home with no new wires. And because the system
is scalable from 2 to 200 devices, you can start with a single room and then expand to multiple rooms—or the entire home.
Wall-mounted hybrid keypad allows you to
put a keypad anywhere by simply replacing
a standard switch—NO NEW WIRING.
12 | Lutron
Mount a Pico wireless control to a wall for
easy access where you never had a switch
before—NO WIRING.
Lutron’s patented Clear Connect™ RF
technology sets the bar for reliability, so you
can trust your system will work with precision
and accuracy—every time you use it.
•
Quiet frequency band, essentially
free of interference
•
Dedicated network ensures
communication between system
devices is reliably delivered
•
Group commands ensure smooth,
simultaneous system response
Radio Powr Savr™ occupancy/vacancy sensors
(wall-mounted and ceiling-mounted models available)
feature a 10-year battery life—NO WIRING.
Lutron | 13
A history of sustainability,
innovation, and quality
At Lutron, sustainability is not new to us. Since 1961, we have
been designing industry-leading technology that saves energy
and reduces greenhouse gas emissions, and are a proud
member of the U.S. Green Building Council.
Lutron is a company built on a belief in taking care of the
customers, employees, and the community. We innovate in
advance of emerging market needs and continually improve
our quality, our delivery, and our value.
Lutron owns over 250 patents and manufactures more than 15,000
products. For over 45 years, we have met and exceeded the highest
standards of quality and service. Every one of our products is
quality-tested before it leaves the factory.
www.lutron.com/radiora2
World Headquarters 1.610.282.3800
Technical Support Center 1.800.523.9466 (Available 24/7)
Customer Service 1.888.LUTRON1
I
© 09/2010 Lutron Electronics Co., Inc. P/N 367-1664 REV E
Global service and support
You can count on a level of support unequaled anywhere
in the industry and anywhere in the world. Lutron provides
24/7 technical phone support.
For help saving energy on your next project
Call Lutron today at 1.866.2LUTRON and you will be connected
to a Lutron representative who will be able to provide you with
a plan of action for your application.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
