Whirlpool KWXXX 29600 Platewarmer Installation instructions

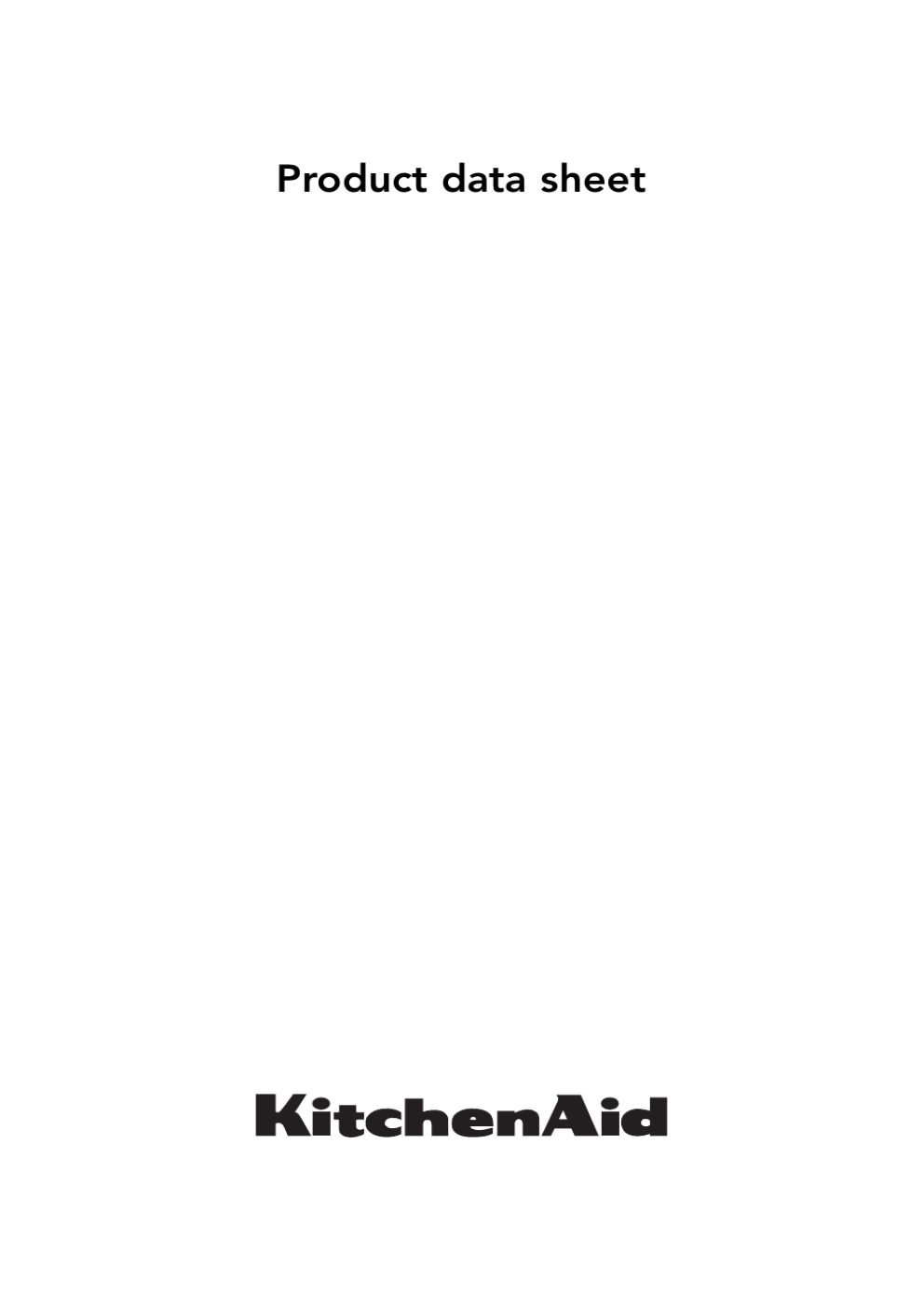

Product data sheet
Control panel
4
Warming drawer
4
Operation
4
Temperature selection
5
Warming times
5
Load capacity
6
Keeping foods hot
7
Drawer removal
8
Control panel
1. Temperature knob
2. Luminous ON-OFF switch
3. ON-OFF Indicator
w
q
e
Warming drawer
The control elements are the temperature knob and the luminous ON-OFF switch.
With the switch pressed (position 1), the drawer is on, whereas with the switch released (position 0), the
drawer is off.
These elements are only visible when the drawer is open.
When the drawer is closed, a control light located on the front of the appliance indicates if the drawer is on.
Operation
- Place the dishes in the drawer
- Set a temperature
- Turn the appliance on; the switch lights up
- Close the drawer, guiding it carefully
- Turn the appliance off before removing the warmed dishes.
4
Temperature selection
The temperature control knob allows adjustments up to approx. 75°C (max).
Turn the temperature knob clockwise until the stop which indicates maximum, and then anticlockwise.
Do not force it beyond the stop, otherwise the thermostat will become damaged.
Temperature adjustment
40°C
60°C
MAX
(approx. 75°C)
Instructions for use
cups, glasses
Cups and glasses warmed at this
temperature help delay the cooling
time of the beverage subsequently
added. The container can still be
touched without any problems
plates
Plates warmed at this temperature
help delay the cooling time of
food subsequently placed on them.
Depending on the individual
sensitivity, the containers can be
touched without any risk,
otherwise use gloves or
potholders.
crockery
The thermostat is set to the
maximum temperature. The
containers can be touched ONLY
with suitable gloves or potholders.
Warming times
The time required to warm dishes, glasses, etc. depends on various factors:
• Material and thickness of the dishes
• Load
• Arrangement of load
• Temperature setting
Therefore absolute indications cannot be given.
It is advisable to establish the optimum settings required, according to practical experience.
5
Load capacity
The load capacity depends on the height of the appliance and the size of the dishes.
Remember that the drawer can take a maximum weight of 25 kg.
12
plates
ø 24cm
12
broth cups
ø 10cm
1
tray
ø 19cm
1
tray
ø 17cm
2
meat plates
ø 32cm
Note: the quantities are purely indicative.
ATTENTION:
The glass surface of the heating zone will be hot.
The bottom side of the oven dish will be hotter than the top.
6
Keeping foods hot
Do not place hot dishes or pans on the glass surface of the heating drawer immediately after removing
them from the hot cooktop. This could damage the glass surface. Do not over-fill oven dishes, to prevent
food from spilling out.
Cover the food with a heat-resistant lid or aluminum foil. Do not keep foods hot for more than one hour.
The appliance is designed to keep meat, poultry, fish, sauces, vegetables, side dishes and soups warm.
Procedure to follow
1. Place the oven dishes in the drawer.
2. Set the selector to max and preheat the appliance for 15 minutes.
3. Add the food to the preheated oven dishes.
4. Close the drawer.
The indicator light comes on: the appliance heats up.
Switching off the warming drawer.
Remove the food from the drawer using oven gloves or pot holders.
Uses
The table shows the possible uses of the heating drawer. Turn the function selector to the required setting.
Preheat the plates as shown in the table.
Temperature
adjustment
Type of food
Note
30/40°C
Delicate frozen foods, such as cream-based desserts, butter,
sausages, cheese
Defrosting
30/40°C
40/50°C
40/50°C
40/50°C
50/70°C
50/70°C
50/70°C
50/70°C
50/70°C
50/70°C
Max
Leavening dough
Frozen foods, such as meat, desserts, bread
Keeping eggs hot, such as boiled or scrambled eggs
Keeping bread hot
Keeping foods hot
Keeping beverages hot
Heating flat dough foods, such as piadinas
Heating dry desserts, such as sweet pies
Melting chocolate and confectioner’s chocolate
Dissolving gelatin
Preheating plates
Cover
Defrosting
Preheating plates, cover foods
Preheating plates, cover foods
Preheating plates, cover foods
Preheat plates, cover beverages
Preheating plates, cover foods
Preheating plates, cover foods
Preheat plates, chop foods
Do not cover, approx. 25 minutes
Arranging the food
Note: in most cases, it is recommended to cover the foods in order to reduce humidity, which is hazardous
for the appliance.
The heating time depends on a number of factors:
- the quantity of foods placed inside;
- the type of foods placed inside;
It is not considered possible to provide precise information on arranging the foods.
This may vary according to personal preferences.
Where possible, distribute the food across the whole surface.
7
Drawer removal
ATTENTION:
• Use protective gloves
• Disconnect the appliance from the power
supply.
The drawer can be removed to clean it internally.
Open the drawer completely (figure 1).
Undo the two side screws (one on each side)
(figure 2).
Figure 1
Pull out the sliding part of the drawer carefully,
holding it at the front and side with both hands
(figure 3).
The appliance can now be cleaned internally, using
detergent and water.
Do not place the drawer in water once removed.
Refitting the drawer
To refit the drawer, carry out the removal procedure
in reverse order.
Figure 2
To do this, place the drawer on the runners.
Make sure to:
Insert the drawer with the runners completely out.
Hold the runners with one hand and push the
drawer until alignment of the two side holes
(figures 4-5).
Figure 3
Drawer
Side runner
Figure 4
Figure 5
8
Printed in Italy
r 10/16
400010903084
