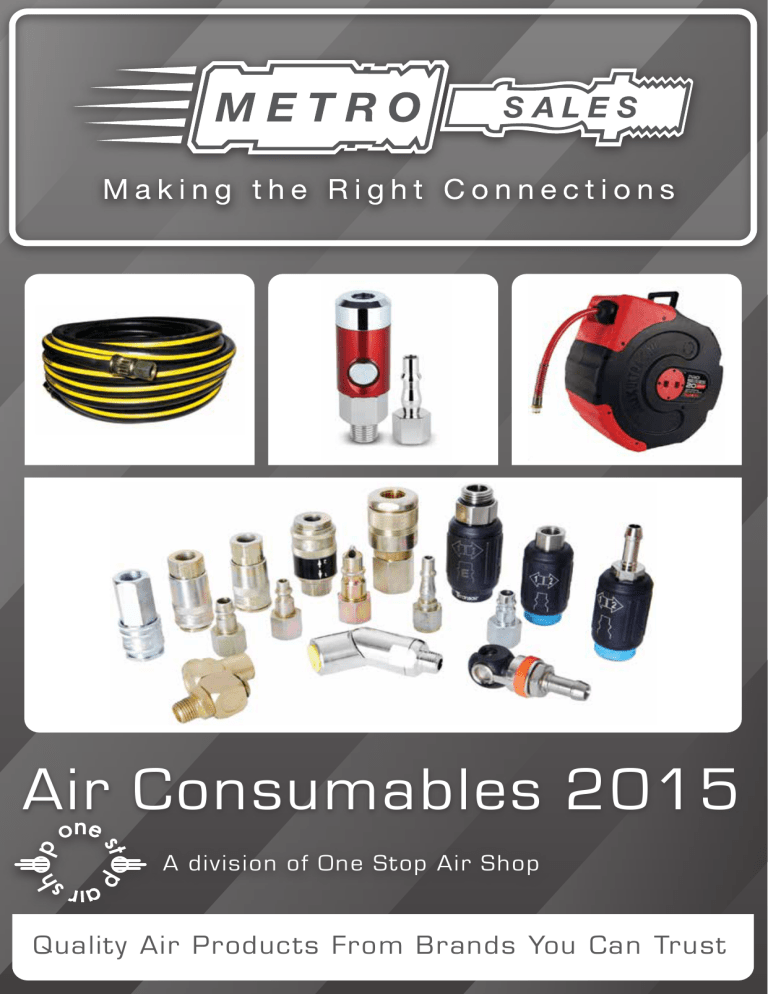

Air Consumables 2015

Air Consumables 2015
Air Consumables 2015
A division of One Stop Air Shop
Quality Air Products From Brands You Can Trust
Welcome to our New Metro Sales Air Consumables Catalogue 2015
all of your everyday top sellers are here along with some exciting New Products
from Quality Suppliers.
Just click on the link www.metrosales.co.uk and register now
We look forward to hearing from you soon.
2
One Stop Air Shop Limited t/a METRO SALES
138 Oyster Lane, Byfleet, Surrey, KT14 7JQ
Tel: 01932 348777 Fax: 01932 354954
email: [email protected]
www.metrosales.co.uk
PROFILES
The following are the most popular plug profiles that appear in the UK market and that we stock. If you are unable to see the profile
you require, please contact our Sales Office on Tel: 01932 348777 and we will track it down.
19 SERIES Profile Nominal bore 5.5mm British profile and interchanges with PCL 19, Rectus 19,
Cejn 295, BSC06 See coupling ranges listed on Page 4 & 5
25 and 26 SERIES Profile
Nominal bore 7.4mm
European profile and interchanges with PCL XF, Legris 25/26,
Rectus 25/26, Cejn 320, Norgren 234/238,
Schrader Intercheck 35, ERC/ESC07, ESI07
See coupling ranges listed on Page 5 & 6
24 SERIES ISO B6 Profile
Nominal bore 5.5mm
US-MIL-C 4109 1/4” Profile and interchanges with PCL AC75,
Legris 24, Rectus 23/24, Cejn 310, Norgren Dynaquip DC3,
Hanson 3000, Norgren 237, IRC/ISC06
See coupling ranges listed on Page 7
SERIES ISO B8 Profile
Nominal bore 8.2mm
US-MIL-C 4109 3/8” US Industrial Standard, Cejn 430,
IRC/ISC08
See coupling ranges listed on Page 7
17 SERIES Schrader Profile
Nominal bore 5.0mm
Schrader profile and interchanges with PCL AC77, Rectus 17,
Schrader Standard, Cejn 317
See coupling ranges listed on Page 8
68 SERIES Schrader Profile
Schrader Heavy duty profile and interchanges with Rectus 68,
Schrader Heavy Duty, Cejn 499
See coupling range listed on Page 8
JAPANESE SERIES Profile
Nominal bore 7.5mm
Interchanges with several Japanese brands including Nitto
Kohki 200, PCL KF, Rectus 13, Cejn 315, ORG/OSG08
See coupling range listed on Page 8
INSTANTAIR Profile Interchangeable with
Broomwade, Bayonet type
Nominal bore 5.6mm
Interchangeable with Broomwade. Also available in Brass
for breathing applications See coupling range listed on Page 9
PCL 60 Series and 100 Series ranges listed on Page 9
3
DescriptionPart No.
Price
19 SERIES
PCL Series 19 Couplings
T19 GENUINE PCL COUPLINGS AC91CF VERTEX
£7.67
1/4” BSP Female Vertex
AC91CF
£7.67
1/4” BSP Male Vertex
AC91CM
1/2” BSP Male Vertex AC91JM £9.11
£9.11
8mm Hosetail Vertex AC91S
AC91T £9.11
10mm Hosetail Vertex
1/4” BSP Female StandardAC21CF £7.67
£7.67
1/4” BSP Male Standard
AC21CM
1/2” BSP Female StandardAC21JF £9.11
£9.11
AC21JM
1/2” BSPT Male Standard
£9.11
8mm Hosetail Standard AC21S
£9.11
10mm Hosetail Standard
AC21T
AC21CM
19 SERIES
ACA2593
ACA2746
ZONE D
ACA2487
19 SERIES
Vertex ‘Y’ Coupler AC6503
£27.64
PCL Series 19 Plugs
T19 GENUINE PCL PLUGS
ZONE D
£1.61
1/4” BSP
Female
ACA2746
£1.61
1/4” BSP
Male
ACA2593
£3.13
3/8” BSP
Female
ACA6582
£1.61
3/8” BSP
Male
ACA6909
£3.86
1/2” BSP
Female
ACA6583
6.3mmHosetailACA1793£1.61
8mmHosetailACA2487£1.61
10mmHosetailACA2488£1.61
£3.13
13mmHosetailACA9438
EN4414 Safety GENUINE PCL Series 19 Couplings
TYPE 19 BRITISH STANDARD SAFETY ZONE D
1/4” BSPFemaleSC21CF£12.58
1/4” BSPT
Male
SC21CM
£12.58
1/2” BSPT
MaleSC21JM£14.91
8mmHosetailSC21S£14.91
10mmHosetailSC21T£14.91
For plugs/adaptors see Section 2 on this page
19 SERIES
Oetiker Series SC P Safety Swing Couplings
COMPATIBLE WITH PCL STANDARD T19 AC91 ZONE C
AND AC21 ADAPTORS, LEGRIS 19, RECTUS 19
1/4” BSP 1/4” BSP 1/2” BSP 8mm 10mm 20500442
20500438
4
20500438 £20.95
20500434 £20.95
20500442 £20.95
20500444 £20.95
20500445 £20.95
20500444
19 SERIES
BSF0613
Female
Male
Male
Hosetail
Hosetail
BSM0613
EN4414 Safety BS 19 Series Couplings
TYPE 19 BRITISH STANDARD SAFETY ZONE B
1/4" BSP
1/4” BSPT
3/8” BSPT
1/2” BSPT
£9.88
£9.88
£9.88
£9.88
Female
Male
Male
Male
BSF0613
BSM0613
BSM0617
BSM0621
For plugs/adaptors see 2nd section above
All prices are List and exclude VAT.
DescriptionPart No.
Price
New Metro ISO4414 Push Button Safety Couplings
T19 STANDARD UK PROFILE
ZONE C
1/4" BSP Female Coupling
MSC0613F
£16.75
3/8" BSP Female Coupling
MSC0617F
£17.75
1/2" BSP Female Coupling
MSC0621F £17.75
1/4" BSPT Male Coupling
MSC0613M £16.75
3/8" BSPT Male Coupling
MSC0617M
£17.75
1/2" BSPT Male Coupling
MSC0621M
£17.75
1/4" (6mm) Hosetail Coupling
MSC0606H
£17.75
5/16" (8mm) Hosetail Coupling
MSC0608H
£17.75
3/8"(10mm) Hosetail Coupling
MSC0610H
£17.75
Above all use PCL T19 Adaptors on Page 4 section 2
DescriptionPart No.
Price
T25 HIGH FLOW 7.4 PROFILE
1/4" BSP Female Coupling
MSC0713F
£19.95
3/8" BSP Female Coupling
MSC0717F £19.95
1/2" BSP Female Coupling
MSC0721F
£20.85
1/4" BSPT Male Coupling
MSC0713M
£19.95
3/8" BSPT Male Coupling
MSC0717M
£19.95
1/2" BSPT Male Coupling
MSC0721M
£20.85
1/4" (6mm) Hosetail Coupling
MSC0706HT
£21.10
5/16" (8mm) Hosetail Coupling
MSC0708HT
£21.10
3/8" (10mm) Hosetail Coupling
MSC0710HT
£21.10
Above all use PCL T25 Adaptors on Page 5
5
DescriptionPart No.
Price
25 SERIES
EN4414 Safety Legris C9000 7.2mm Euro Profile FOR ADAPTORS/PLUGS SEE PCL AA71
ZONE B
IN SECTION 2 BELOW
9414E0713
9421E0808
25 SERIES
AC71CF
AC71CM
AA7102
9414E0713
9401E0713
9414E0717
9401E0717
9414E0721
9401E0721
9421E0708
9421E0710
9421E0713
£19.25
£20.85
£19.25
£21.86
£21.35
£21.60
£19.10
£19.10
£19.10
Series 25 and 26 HVLP Couplings and Plugs
T25 GENUINE PCL XF (7.4MM) METAL COUPLINGS ZONE D
1/4” BSP Female Coupler
AC71CF
£10.60
1/4” BSP Male Coupler
AC71CM
£10.60
3/8” BSP Female Coupler
AC71EF
£10.60
3/8” BSP Male Coupler
AC71EM
£10.60
1/2” BSP Female Coupler
AC71JF
£10. 60
1/2” BSP Male Coupler
AC71JM
£10.60
6mm Hosetail Coupler
AC7106
£10.60
8mm Hosetail Coupler
AC7108
£10.60
10mm Hosetail Coupler
AC7110
£10.60
13mm Hosetail Coupler
AC7113
£10.60
Plugs
1/4” BSP Female Plug
AA7106
£2.39
1/4” BSP Male Plug
AA7102
£2.39
6mm Hosetail Plug
AA7110
£2.39
8mm Hosetail Plug
AA7111
£2.39
10mm Hosetail Plug
AA7112
£2.39
13mm Hosetail Plug
AA7113
£2.39
26 SERIES
T26 Brass (7.4mm) Couplings/Plugs
COUPLINGSZONE D
NOW GENUINE PARKER RECTUS BRASS 26 SERIES
1/4” BSP Female
1/4” BSP Male
1/2” BSPT Male
8mm Hosetail
9mm Hosetail
10mm Hosetail
Y Coupler Complete
PLUGS
1/4” BSPP Female
1/4” BSPP Male
3/8” BSPP Female
3/8” BSPP Male 8mm Hosetail
9mm Hosetail
10mm Hosetail
13mm Hosetail
26KAAW13MPX
71 SERIES
6
1/4” BSP Female
1/4” BSPT Male
3/8” BSP Female
3/8” BSPT Male
1/2” BSP Female
1/2” BSPT Male
8mm Hosetail
10mm Hosetail
13mm Hosetail
26KATF08MPX
26SFAW13MXX
26KAIW13MPX
26KAAW13MPX
26KAAW21MPX
26KATF08MPX
26KATF09MPX
26KATF10MPX
26YTWIN
£8.50
£8.50
£9.50
£9.50
£9.50
£9.50
£25.85
26SFIW13MXX
26SFAW13MXX
26SFAW17MXX
26SFTF08MXX
26SFTF08MXX
26SFTF09MXX
26SFTF10MXX
26SFTF13MXX
£2.40
£2.40
£2.40
£2.40
£2.40
£2.40
£2.40
£3.40
PCL XF Safety T25 Series
COMPATIBLE WITH T25 & T26 ABOVE
COUPLINGS
ZONE D
1/4” BSPP
1/4” BSPT
3/8” BSPP
3/8” BSPT
1/2” BSPT
£26.30
£26.30
£26.30
£26.30
£26.30
Female
Male Female
Male Male
All prices are List and exclude VAT.
AS71CF
AS71CM
AS71EF
AS71EM
AS71JM
DescriptionPart No.
Price
B6 SERIES SAFETY
9405U0613
B8 SERIES SAFETY
9414U0813
B6 SERIES PLUG
B8 SERIES PLUG
EN4414 Safety Legris C9000 ISO6150 B 5.5mm
SIZE 06 COUPLINGS
ZONE B
1/4” BSP Female
1/4” BSPT Male
3/8” BSP Female
3/8” BSPT Male
1/2” BSP Female
1/2” BSPT Male
6mm Hosetail
8mm Hosetail
10mm Hosetail
9414U0613
9405U0613
9414U0617
9405U0617
9414U0621
9405U0621
9421U0606
9421U0608
9421U0610
£15.18
£17.75
£15.18
£17.75
£18.70
£17.90
£16.70
£16.70
£16.70
ISO4414 Safety Legris C9000 ISO6150B 8mm
SIZE 08 COUPLINGS
ZONE B
1/4” BSP Female
1/4” BSPT Male
3/8” BSP Female
3/8” BSPT Male
1/2” BSP Female
1/2” BSPT Male
8mm Hosetail
10mm Hosetail
13mm Hosetail
9414U0813
9405U0813
9414U0817
9405U0817
9414U0821
9405U0821
9421U0808
9421U0810
9421U0813
£24.00
£27.90
£24.00
£27.90
£26.26
£24.50
£24.05
£24.05
£24.05
ISO 6150B, Legris B6 Adaptors - Size 06
FLOW: 1250 NI/MIN (44 CFM) ZONE B
Interchanges with T23/24, US MIL.C4109, Cejn 310
Suitable for EN4414 Safety C9000 B6 couplings above section 1
1/4” BSP Male
3/8” BSP Male
1/2” BSP Male
9087U0613
9087U0617
9087U0621
£3.15
£3.72
£5.75
1/4” BSP Female
3/8” BSP Female
1/2” BSP Female
9086 2313
9086 2317
9086 2321
£2.40
£3.15
£4.06
6mm Hosetail
8mm Hosetail
10mm Hosetail
9094U0606
9094U0608
9094U0610
£2.45
£2.56
£3.20
ISO 6150B, Legris B8 Adaptors - Size 08
FLOW: 2400 NI/MIN (85 CFM)
ZONE B
Interchanges with T30, US MIL.C4109, Cejn 430
Suitable for EN4414 Safety C9000 B8 couplings above section 2
1/4” BSP Male
3/8” BSP Male
1/2” BSP Male
9087U0813
9087U0817
9087U0821
£5.47
£5.70
£6.65
1/4” BSP Female
3/8” BSP Female
1/2” BSP Female
9086 3013
9086 3017
9086 3021
£4.05
£4.35
£4.70
8mm Hosetail
10mm Hosetail
13mm Hosetail
9094U0808
9094U0810
9094U0813
£5.15
£5.55
£5.76
All prices are List and exclude VAT.
7
DescriptionPart No.
Price
17 SERIES
Couplings and Plugs 17 Series & 68 Series
TYPE 17 AUTOMOTIVE COUPLINGS/PLUGS
ZONE B
GENUINE SCHRADER COUPLING
Genuine Schrader
ACS102
Genuine Schrader
ACS203
JAPANESE SERIES
AA7706
MAS5501
ACS101
ACS102
ACS103
£23.36
£23.36
£23.36
PF RANGE (ALSO AVAILABLE IN 3/8 AND 1/2 FEMALE)
ZONE C
1/4” BSP Female Coupling
1/4” BSP Male Coupling
3/8” BSP Male Coupling
1/2” BSP Male Coupling
6mm Hosetail Coupling
8mm Hosetail Coupling
10mm Hosetail Coupling
13mm Hosetail Coupling
£10.60
£10.60
£10.60
£10.60
£10.60
£10.60
£10.60
£10.60
AC77CF
AC77CM
AC77EM
AC77JM
AC7706
AC7708
AC7710
AC7713
The following plugs fit all the above T17 couplings in both sections
ZONE C
1/4” BSP Female Plug
AA7706
£2.40
1/4” BSP Male Plug
AA7702
£2.40
3/8” BSP Female Plug
AA7707
£2.74
3/8” BSP Male Plug
AA7703
£2.74
6mm Hosetail Plug
AA7710
£2.40
8mm Hosetail Plug
AA7711
£2.40
10mm Hosetail Plug
AA7712
£2.40
U.K TYPE AC77CF
AA7702
1/4” BSP Female Coupling
1/4” BSP Male Coupling
3/8” BSP Male Coupling
AA7710
MAS5508
TYPE 68 SCHRADER INDUSTRIAL COUPLINGS/PLUGS ZONE B
1/4” BSP Female Coupling
3/8” BSP Female Coupling
1/2” BSP Female Coupling
ACS202
ACS203
ACS201
£41.96
£41.96
£41.96
1/4” BSP Male Plug
3/8” BSPT Male Plug
1/2” BSPT Male Plug
3/4” BSPT Male Plug
1/4” BSP Female Plug
10mm Hosetail Plug
13mm Hosetail Plug
19mm Hosetail Plug
MAS5501
MAS5502
MAS5503
MAS5504
MAS5505
MAS5507
MAS5508
MAS5509
ZONE C
£3.80
£3.80
£3.80
£3.80
£3.80
£3.80
£3.80
£3.80
Nitto Kohki Couplings and Plugs
ZONE C
COUPLINGS
1/4 BSP Female 20SF £10.10
1/4 BSPT Male 20SM £10.10
PLUGS
1/4 BSP Female 20PF £2.99 1/4 BSPT Male 20PM £2.99
Other sizes are available
Please contact our Sales Office for details
8
All prices are List and exclude VAT.
DescriptionPart No.
Price
51 SERIES
AC51CM
Genuine PCL INSTANTAIR Couplings & Plugs
GENUINE PCL INSTANTAIR COUPLINGS/PLUGS
ZONE C
1/4” FM Coupler PT8823
AC51CF
£9.18
3/8” FM Coupler PT8800
AC51EF
£9.18
1/4” M Coupler PT8825
AC51CM
£9.18
1/4” BSPP Female Coupling
AC11CF
£8.23
1/2” M COUPLER PT9095
AC51JM
£12.88
1/4” FM Plug PT8806
AA5106
£6.22
3/8” FM Plug PT8802
AA5107
£6.22
1/4” M Plug PT8808
AA5102
£6.22
AA5102
60 SERIES
AC4JM
PCL Series 60 Couplings and Plugs
TYPE 60 GENUINE PCL COUPLINGS AND PLUGS
ZONE B
SAFETY SERIES
COUPLINGS
3/8” BSP Female
3/8” BSPT Male
1/2” BSP Female
1/2” BSPT Male
AC4EF
AC4EM
AC4JF
AC4JM
£22.55
£22.55
£22.55
£22.55
PLUGS 1/4” BSPT Male
3/8” BSP Female
3/8” BSPT Male
13mm Hosetail
ACA2657
ACA2660
ACA2661
ACA2659
£4.66
£4.66
£4.66
£4.66
ACA2660
100 SERIES
AC5JM
Other sizes are available
Please contact our Sales Office for details
ACA3035
PCL Series 100 Couplings and Plugs
Type 100 GENUINE PCL Couplings and Plugs
ZONE D
COUPLINGS
3/8” BSP Female
3/8” BSPT Male 1/2” BSP Female
1/2” BSPT Male
AC5EF
AC5EM
AC5JF
AC5JM
£28.37
£28.37
£28.37
£28.37
PLUGS
3/8” BSP Female
3/8” BSPT Male
1/2” BSPT Male
13mm Hosetail
ACA2994
ACA2999
ACA3035
ACA3036
£4.66
£4.66
£4.66
£4.66
PCL Safety Adaptors With Ball Bearing
ZONE B
1/4” BSPT
3/8” BSPT
1/2” BSPT
3/8” BSPT
3/8" BSPT
Series 19
Series 60
Series 100
Series XF
Series 51
All prices are List and exclude VAT.
ACA9101
ACA9201
ACA9301
AA7103/STY
AA5103/STY
£7.66
£9.07
£9.71
£6.66
£14.52
9
DescriptionPart No.
Price
PCL 21 Series Mini Couplings & Adaptors
COUPLINGSZONE C
1/8" BSPP Male Coupling
AC11AM
£8.23
1/4" BSPP Male Coupling
AC11CM
£8.23
1/8" BSPP Female Coupling
AC11AF
£8.23
1/4" BSPP Female Coupling
AC11CF
£8.23
6mm (1/4") Hosetail
AC1106
£9.64
8mm (5/16") Hosetail
AC1108
£9.64
ADAPTORSZONE C
1/8" BSPP Male Adaptor
AA11AM
£1.98
1/4" BSPP Male Adaptor
AA11CM
£1.98
1/8" BSPP Female Adaptor
AA11AF
£1.98
1/4" BSPP Female Adaptor
AA11CF
£1.98
6mm (1/4") Hosetail
AA1106
£1.98
9mm (5/16") Hosetail
AA1109
£1.98
CLAW COUPLINGSZONE C
10
Q1 Hose Tail
3/8" (10mm) Hosetail Claw
1/2" (13mm) Hosetail Claw
3/4" (19mm) Hosetail Claw 1" (25mm) Hosetail Claw
MA1175
MA1176
MA1177
MA1178
£3.40
£3.40
£4.60
£5.00
Q2 FEMALE CLAW
3/8" BSPP Female Claw
1/2" BSPP Female Claw
3/4" BSPP Female Claw
1" BSPP Female Claw
MA1183
MA1184
MA1185
MA1186
£3.40
£3.80
£4.40
£5.50
Q3 MALE CLAW
3/8" BSP Male Claw
1/2" BSP Male Claw
3/4" BSP Male Claw
1" BSP Male Claw
MA1179
MA1180
MA1181
MA1182
£4.20
£4.20
£5.10
£4.80
CLAMPS
27mm - 32mm Hose Clamp MA1188
£2.65
SEALS
Replacement Rubber Seal
MA1187
£0.48
DescriptionPart No.
Price
Brass Geeka Claw Couplings for Water
MALE BSPTZONE C
1/2" BSPT Male
3/4" BSPT Male
1" BSPT Male
MGKM08
MGKM12
MGKM16
£3.90
£4.15
£4.65
MGKF08
MGKF12
MGKF16
£4.15
£4.65
£5.40
MGKH08
MGKH12
MGKH16
£2.50
£4.30
£5.40
FEMALE BSPP
1/2" BSPP Female
3/4" BSPP Female
1" BSPP Female
HOSE TAILS
1/2" (13mm) Hosetail
3/4" (19mm) Hosetail
1" (25mm) Hosetail
Flat Face series.
Please ask our Sales Office for details
BLANKING CAP
Brass CapMGKCAP£3.40
SEAL
Rubber Seal MGW01£0.25
Above suitable for watering applications in agriculture,
garden centres etc.
ISO 'B' PROFILE BRASS DOUBLE SHUT OFF HYDRAULIC
COUPLINGS & ADAPTORS, 72 SERIES
ZONE B
Couplings:
1/4" BSPP Female
MAB72C4-4
£10.55
3/8" BSPP Female
MAB72C6-6
£19.00
1/2" BSPP Female
MAB72C8-8
£28.25
Adaptors:
1/4" BSPP Female
MAB72N4-4
£4.00
3/8" BSPP Female
MAB72N6-6
£6.85
1/2" BSPP Female
MAB72N8-8
£10.85
Larger sizes, Stainless Steel, Carbon Steel versions available,
as well as ISO 'A', & Flat Face series, ask our Sales Office
for details.
11
DescriptionPart No.
Price
SICO Composite Blow Guns & Spiral Coils
BLOW GUNSZONE C
Standard 100mm Metal Nozzle
MSBG2
MSBG3
MSBG1
£14.65
Standard 50mmMSBG2£12.55
Composite Nozzle
Silent/Safety 50mm
Composite Nozzle
MSBG3
£15.65
Composite OSHA Nozzle
MSBG4 £14.65
ATEX 100mm Metal Nozzle
MSBG6
£16.95
MSBG4
MSBG1
MSBG6
SICO COILSZONE C
Blue Polyurethane Spiral Coils, with Non Scratch PU Spring
Guards. All Swivel Male Threads with Pre-Teflon Coating
8mm x 5mm x 3 metre
1/4" Males
8mm x 5mm x 5 metre
1/4" Males
8mm x 5mm x 8 metre
1/4" Males
8mm x 5mm x 12 metre
1/4" Males
10mm x 6.5mm x 5 metre
1/4" Males
10mm x 6.5mm x 8 metre
1/4" Males
10mm x 6.5mm x 12 metre
1/4" Males
12mm x 8mm x 5 metre
3/8" Males
12mm x 8mm x 8 metre
3/8" Males
12mm x 8mm x 12 metre
3/8" Males
MSSC1
£16.75
MSSC2
£20.90
MSSC3
£25.10
MSSC4
£31.40
MSSC8
£27.95
MSSC9
£36.25
MSSC10
£47.00
MSSC11
£38.00
MSSC12
£48.75
MSSC13
£63.00
MSSC5
£35.55
8mm x 5mm x 5 metre
c/w MSBG2 blow gun
MSSC6
£33.45
8mm x 5mm x 5 metre
c/w MSBG3 blow gun
MSSC7
£36.60
COMBINATIONS
8mm x 5mm x 5 metre
c/w MSBG1 blow gun
12
We can make any combination of Blow Gun/Spiral Coil from the
above, please contact our Sales Office with your requirements.
DescriptionPart No.
Price
DescriptionPart No.
Price
Fastenings
DOUBLE EARED O CLIPS & WORM DRIVE CLIPS O CLIPS (PACKS)
ZONE D
Recoils and Under Bonnet Hose
METRO - PCL POLYURETHANE RECOILS
ZONE C
2.5M
5M 7.5M
6.5 x 10mm 1/4 Male
6.5 x 10mm 1/4 Male
6.5 x 10mm 1/4 Male
BPUS625
BPUS65
BPUS675
£17.95
£21.36
£24.90
7.5M
10M
8 x 12mm 1/4 Male
8 x 12mm 1/4 Male
BPUS875
BPUS810
£28.92
£33.85
10M
10 x 15mm 3/8 Male
BPUS1010
£44.46
Pack Size: 100
ø 09 to 11 mm ø 11 to 13 mm ø 13 to 15 mm
ø 15 to 17 mm ø 15 to 18 mm ø 17 to 20 mm ø 18 to 21 mm ø 20 to 23 mm
O Clip Pincer (each)
100/Pack
ML1555
ML1556
ML1557
ML1517
ML1563
ML1564
ML1565
ML1566
ML1558
Each
£0.32
£0.32
£0.32
£0.34
£0.34
£0.38
£0.50
£0.54
£18.80
METRO SELECTION BOX ‘O’ CLIPS AND PLIERS
ZONE C
Blue PU, with 200mm tails and Spring Guards.
Working pressure 200 PSI @ 20C. nickel plated swivels.
Red available to order add ‘/R’ to the existing part number.
NYLON - POLYURETHANE (P.U.) RECOIL AIRLINES
10MM OD NYLON RED ‘SUPERCOIL’ RECOILS
ZONE C
£27.99
7.5M w/length with 1/4 Male
ML1505
£34.72
10.6M w/length with 1/4 Female ML1504
These Recoils are perfect for Air Tools, Machine Tools, Work
Stations, Laboratories, Robotics and Instrumentation .
Other colours, lengths and sizes are available on request.
Contents:
34 X ML1555 09mm - 11mm
26 X ML1556 11mm - 15mm
18 X ML1557 13mm - 15mm
14 X ML1517 14mm - 17mm
24 X ML1563 15mm - 18mm
20 X ML1564 17mm - 20mm
20 X ML1565 18mm - 21mm
12 X ML1566 20mm - 23mm
1 X ML1558 NORMAL PINCER
1 X SELECTION BOX
KIT1£51.95
WORM DRIVE HOSE CLIPS (PACKS)
ZONE D
Pack Size: 25
ø 10-16 mm ø 12-22 mm ø 16-27 mm ø 23-35 mm ø 30-45 mm
Each
£0.68
£0.78
£0.80
£0.92
£1.02
25/Pack
ML1703
ML1704
ML1706
ML1708
ML1709
Other sizes available. Please ask for details
SMOOTH OUTER COVER RUBBER FUEL HOSE
ZONE C
BSAU 108/2/L4/C4/R
Price per metre
5mm (3/16”)ML1629£2.25
6mm (1/4”)ML1569£2.36
8mm (5/16”)ML1570£2.49
10mm (3/8”)ML1571£3.10
Available in 5m/10m/20m/100 metre coils
COTTON OVERBRAID FUEL HOSE
ZONE C
W/P 20 bar (290psi)
Soft Neoprene inner
Price per metre
3.2mm ML1798£2.32
3.5mmML1789£2.37
5.5mmML1790£2.94
6mmML1787£3.20
7.5mmML1791£3.39
8mmML1788£3.61
10mmML1795£5.05
12mmML1796£5.99
Full coil 20M, other lengths available, German OEM Quality
RUBBER HEATER HOSE
ZONE C
-35°C to +100°C Automotive replacement market
Price per metre
12.5mm (1/2”)
ML1574
£2.95
16mm (5/8”)ML1575£3.40
19mm(3/4”)ML1576£4.85
All prices are List and exclude VAT.
13
DescriptionPart No.
Price
DescriptionPart No.
Price
General Purpose Rubber Hoses
GENERAL PURPOSE 20 BAR AIR HOSE PER METRE ZONE D
BLACK 9mm Workshop Hose
BLACK 300 PSI HI-FLOW AIR HOSES BY LENGTH
ZONE D
Yellow /Black
6.3mm ML1545£1.82
I .D. Metric
8mm ML1546£2.04
£2.40
10mm ML1547
£3.30
13mm ML1548
£5.10
19mm ML1640
£9.80
25mm
ML1671
Perfect hose for all workshop applications. Hose can be
bought in long lengths or supplied ready to go fitted with
Hi-Flow nut/tails, T19 PCL genuine couplings/plugs and
T25 HVLP couplings/plugs and shrink wrapped.
Above hose suitable for compressed air, construction,
industrial and automotive applications. Working pressure
20 Bar - 300 PSI Standard coil sizes are 30 metre and 100
metre. For other sizes, colours and lengths available please
call our Sales Office.
Long Lengths (unfitted)
30M 9mm Black
100M 9mm Black
Hose Assemblies
10M x 9mm with ¼ Nut/Tails
15M x 9mm with ¼ Nut/Tails
20M x 9mm with ¼ Nut/Tails
GP1 ‘READY TO GO’ AIR HOSE ASSEMBLIES
ZONE D
HF9/30
HF9/100
£50.36
£168.30
HF910
HF915
HF920
£21.86
£32.06
£40.96
HOSE ASSEMBLIES WITH COUPLING/PLUG
Series 19 PCL
HF910-T19
£33.80
HF915-T19
£42.34
HF920-T19
£50.10
Nut/Tails
10M x 8mm with ¼ Nut/Tails
15M x 8mm with ¼ Nut/Tails
20M x 8mm with ¼ Nut/Tails
10M x 10mm with ¼ Nut/Tails
15M x 10mm with ¼ Nut/Tails
20M x 10mm with ¼ Nut/Tails
10M x 13mm with ½ Nut/Tails
15M x 13mm with ½ Nut/Tails
20M x 13mm with ½ Nut/Tails
10M x 8mm with T19 PCL
15M x 8mm with T19 PCL
10M x 10mm with T19 PCL
15M x 10mm with T19 PCL
10M x 13mm with T100 PCL
15M x 13mm with T100 PCL
10M x 8mm with T25 HVLP 15M x 8mm with T25 HVLP 10M x 10mm with T25 HVLP 15M x 10mm with T25 HVLP Series 25 HVLP
HF910-T25
£33.80
HF915-T25
£41.34
HF920-T25
£51.10
Coupling/Plug
ML1593
ML1598
ML1621
ML1594
ML1599
ML1618
ML1595
ML1600
ML1619
£27.75
£40.60
£52.96
£34.05
£49.35
£64.30
£49.30
£66.20
£82.25
ML1951
ML1955
ML1952
ML1956
ML1953
ML1957
£41.95
£49.05
£44.95
£58.15
£68.15
£88.35
ML2551
ML2555
ML2552
ML2556
£44.95
£58.10
£51.40
£67.20
These hoses are supplied shrinkwrapped. For other sizes &
lengths available please call our Sales Office.
14
‘HI - TEMP’ HOSES
HIGH TEMPERATURE ‘BOOTH’ HOSE
ZONE C
Ideal hose for use in heated ovens or body shops due to its high temperature capability of 100°C max.
10M x 9mm ¼ Nut/Tails
15M x 9mm ¼ Nut/Tails
20M x 9mm ¼ Nut/Tails
10M x 9mm T25 Coupler/Plug
15M x 9mm T25 Coupler/Plug
10M x 9mm T26 Coupler/Plug
15M x 9mm T26 Coupler/Plug
All prices are List and exclude VAT.
MLS910
MLS915
MLS920
MLS910-25
MLS915-25
MLS910-26
MLS915-26
£47.00
£68.50
£89.50
£55.60
£77.10
£55.60
£77.10
DescriptionPart No.
Price
DescriptionPart No.
Price
Metroflex PVC - Hoses
PVC - Hoses
METROFLEX LIGHTWEIGHT BLUE PVC HOSE 30M COILS ZONE C
REINFORCED CLEAR OR BLACK PVC HOSE 30M COILS ZONE D
Standard colour is Blue.
Black and Red are also an option.
Very lightweight hose, perfect for use with air tools, low toxic breathing hose and water or liquid delivery from -20°C to +60°C For other sizes and lengths available please call our Sales Office.
30m Length (unfitted)
6.3mm x 10.5mm 30M Blue
8mm x 12.5mm 30M Blue
10mm x 14mm 30M Blue
12.5mm x 17mm 30M Blue
£38.60
£44.50
£48.55
£58.66
ML1900
ML1902
ML1904
ML1906
6.3mm I.D.
8mm I.D
10mm I.D.
12.5mm I.D.
19mm I.D.
25mm I.D.
6.3mm I.D.
8mm I.D
10mm I.D.
12.5mm I.D.
30M
30M
30M
30M
30M
30M
30M
30M
30M
30M
Clear
Clear
Clear
Clear
Clear
Clear
Black
Black
Black
Black
ML1536
ML1538
ML1540
ML1542
ML1615
ML1634
ML1537
ML1539
ML1541
ML1543
METROFLEX LIGHTWEIGHT BLUE PVC HOSE LENGTHS
£21.20
£22.98
£28.20
£36.30
£57.86
£96.26
£22.30
£24.05
£29.20
£37.98
Other colours available at extra 5% on list prices.
Up to 16 BAR - 235 PSI. Temperature range: -20°C to +65°C
Nut/Tails
Fitted with Hi-Flow Nuts/Tails
10M x 8mm with ¼ Nut/Tails
15M x 8mm with ¼ Nut/Tails
20M x 8mm with ¼ Nut/Tails
10M x 10mm with ¼ Nut/Tails
15M x 10mm with ¼ Nut/Tails
20M x 10mm with ¼ Nut/Tails
ML1915
ML1916
ML1917
ML1918
ML1919
ML1920
£22.25
£30.88
£39.35
£25.40
£35.00
£45.16
TUBE CUTTER
ZONE C
£2.85
CUTTER
METRIC NYLON 30M COILS NATURAL
Coupling/Plug
Fitted with Genuine PCL T19 Couplings/Plugs
10M x 8mm with T19 PCL
10M x 10mm with T19 PCL
15M x 8mm with T19 PCL
15M x 10mm with T19 PCL
ML1915-19
ML1918-19
ML1916-19
ML1919-19
£26.90
£30.78
£37.20
£41.78
Fitted with Genuine PCL T25 XF Couplings/Plugs
10M x 8mm with T25 HVLP 10M x 10mm with T25 HVLP 15M x 8mm with T25 HVLP
15M x 10mm with T25 HVLP
ML1915-25
ML1918-25
ML1916-25
ML1919-25
Tool Leader Hoses 0.5m x 10mm GP1 ¼ male/T19ML1601
0.5m x 13mm GP1 ½" male/T100ML1602
Other combinations available please ask
£30.10
£33.90
£41.35
£45.60
Zone C
£6.50
£12.50
See pages 20/21 for Push Fit Range
2.5mm x 4mm 30M Nylon
ML1801
£11.85
3.3mm x 5mm 30M Nylon
ML1803
£17.35
4mm x 6mm
30M Nylon
ML1804
£19.75
6mm x 8mm
30M Nylon
ML1806
£29.80
8mm x 10mm 30M Nylon
ML1809
£43.86
Natural Nylon available ex-stock, other sizes and colours available
by request. Nylon up to 17 Bar - 25 PSI.
POLYURETHANE (PU) BLUE 25M COILS
2.5mm x 4mm 25M BLUE P.U
BPU25425 £14.12
4mm x 6mm 25M BLUE P.U
BPU4625 £22.36
5.5mm x 8mm 25M BLUE P.U
BPU55825 £34.95
6.5mm x 10mm 25M BLUE P.U
BPU651025 £53.10
9mm x 12mm 25M BLUE P.U
BPU91225 £75.85
Other sizes and colours available by request. Polyurethane is
suitable for temperatures 50/55°C with short term use at 85°C
PU in 25 metre, above or 100 metre drums, price P/M pro rata
15
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
SAFETY PRODUCTS BY PROTECT AIR
HOSE GUARDS ®ZONE E
HOSEGUARD® APPLICATIONS
SAFETY PRODUCTS BY PROTECT AIR
HOSEGUARD APPLICATIONS
ZONE C
Lightweight Workshop Tool Hose Assemblies: Metroflex
The above products, when correctly fitted, act as an Air-Fuse to
Protect Personal, Plant and Machinery in the event of a sudden
rupture occurring to a hose or to the compressed air system.
The Air-Fuse automatically cuts off the air supply when it exceeds
the manufacturers pre-set flow value. The factory pre-set allows
for the normal use of air tools, blow guns etc and is tamper
proof, only operating, automatically, when needed.
When triggered the Air-Fuse is designed to allow a constant
‘bleed’ of air to automatically reset when the hose or system are
repaired and normal use can resume.
HoseGuard® protects your Company’s most important assets,
your Employee’s and their Equipment.
Compliant with ISO EN4414 -5.3.4.3.2 & ISO EN4414 -5.3.4.3.2
Please ask for further details.
1/4” BSP
Female - Female
3/8” BSP
Female - Female
1/2” BSP
Female - Female
3/4” BSP
Female - Female
1” BSP
Female - Female
1/4” BSP
Male - Female 3/8” BSP
Male - Female 1/2” BSP
Male - Female MCCA13
MCCA17
MCCA21
MCCA27
MCCA34
£23.58
£30.75
£36.90
£79.44
£147.60
MCCAMF13
MCCAMF17
MCCAMF21
£23.58
£32.08
£37.93
10M x 8mm, T19 PCL Coupling
& Plug + Air Fuse
ML1915-19AF £56.18
10M x 10mm, T19 PCL Coupling
& Plug + Air Fuse
ML1918-19AF £70.68
10M x 8mm, T25 PCL HVLP
Coupling & Plug + Air Fuse
ML1915-25AF £66.36
10M x 10mm, T25 PCL HVLP
Coupling & Plug + Air Fuse
ML1918-25AF £74.45
Heavy Duty Workshop Tool Hose Assemblies
10M x 10mm GP1Hose, T19
PCL Coupling & Plug + Air Fuse
ML1952-AF
£89.67
10M x 13mm GP1 Hose, T100
PCL Coupling & Plug + Air Fuse
ML1953-AF
£127.31
15M x 19mm GP1 c/w
Claws + Air Fuse
ML1588-AF
£193.73
SAFETY PRODUCTS BY PROTECT AIR
SAVEAIR®ZONE E
SaveAir® is an inline, pre-set, tamper proof diaphragm regulator for use in any compressed air system. Fitted into tool hoses
or on air system outlets prior to Safety quick release coupling,
SaveAir® offers constant, accurate outlet pressure regardless
of inlet pressure, thus protecting valuable air tools or restricting
blow guns to the required Safety pressure.
Tamper proof, remember every 15psi of excess pressure
supplied essentially Wastes 6 – 10% of the Energy Cost.
Pre-set 2 barTLR142£21.59
Pre-set 4 barTLR144£21.59
Installation Example
16
Pre-set 6 barTLR146£21.59
All prices are List and exclude VAT.
DescriptionPart No.
Price
Enviromental Safety Products by PROTECT AIR
TOOLREG®
ToolReg® is a small inline factory pre-set pressure regulator,
ideally suited for use on Air Nailers or Staplers and High Flow,
expensive Industrial Air Tools.
Fitted directly to the tool inlet this high flow unit offers the
additional benefit of automatically ensuring that any residual
pressure in the tool is relieved on disconnection from the
air supply.
Tamper proof, Factory pre-set.
High Flow, 0 – 3000 litres/min
SAFETY TOOL REGULATOR ZONE E
Miniature High Pressure, In-Line, Pre-Set Tool Regulator.
featuring Automatic Secondary Pressure Relief guarantees
correct inlet pressure to Air Tools, Blow Guns etc.
Other pre-sets available - please ask for details.
1/4” Female - Female 2bar Max
TRFF142
£38.75
1/4” Female - Female 4bar Max
TRFF144
£38.75
1/4” Female - Female 6bar Max
TRFF146
£38.75
1/4” Male - Female 2bar Max
TRFM142
£38.75
1/4” Male - Female 4bar Max
TRFM144
£38.75
1/4” Male - Female 6bar Max
TRFM146
£38.75
CARTREG®ZONE E
CartReg® is a miniature inline pre-set regulator ideally suitable
for blow guns and small high precision air tools etc.
Choose the correct pre-set unit and screw directly into inlet,
thus optimising efficiency and reducing tool downtime whilst
extending service life. CR142 designed to comply with OSHA
and other Safety requirements for 30 psi maximum outlet
pressure for Blow Guns
N.B. every 15 psi of excess pressure supplied essentially
WASTES 6 – 10% of the Energy cost
¼” Male - Male 2 bar Max CR142
£21.59
¼” Male - Male 4 bar Max CR144
£21.59
¼” Male - Male 6 bar Max CR146
£21.59
DescriptionPart No.
Price
ULTRA LIGHTWEIGHT MULTI ROTATIONAL SWIVEL. ZONE B
Ultra Lightweight, Multi Rotational Swivel, Dyna Variacor®
Offers Major Benefits in alleviating Repetitive Strain Injuries (RPI)
when using air tools for prolonged intervals. Hose falls naturally
down, offers no resistance whatever the angle of use.
Small ¼ BSP version ideal for detail gravity sprayguns and air
brushes, also lightweight precision air tools such as turbine
grinders and engravers where access is difficult or great
dexterity is required.
All sizes maintain full flow whatever the angle due to patented
system. 1/4 BSP = 7mm air path, 3/8 & 1/2 = 11mm air path.
‘Larger 3/8” and 1/2” sizes used extensively in all levels of
Motor Sport up to and including Formula1 enabling fast wheel
changes when connected to high pressure wheel guns.
1/4” BSP Male - Female Swivel
MDVS13£66.20
3/8” BSP Male - Female Swivel
MDVS17
£88.95
1/2” BSP Male - Female Swivel
MDVS21
£88.95
ROTA VARIACOR® ZONE B
Innovative RotaVariacor® rotating fittings are ideal for applications where an inline slow or low turning movement is required,
coupled with a high flow capability, the 1/4 BSP version
features a constant 7mm air path whilst the 3/8 and 1/2 BSP
versions have an 11mm path. Made from very lightweight material they have a nominal working pressure rating of 16 bar and
have a maximum rotation speed of 30 rpm.
Other sizes and types available, contact the Sales Office for
details.
1/4” BSP Male - Female inline connector MRV7MFB13 £49.76
1/4” BSP Female - Female
inline connector
MRV7FFB13 £49.76
3/8” BSP Male - Female inline connector
MRV11MFB17
£63.18
3/8” BSP Female - Female
inline connector
MRV11FFB17
£64.76
1/2” BSP Male - Female
inline connector
MRV11MFB21 £64.76
1/2” BSP Female - Female inline connector
MRV11FFB21
All prices are List and exclude VAT.
£64.76
17
DescriptionPart No.
Price
Safety in the Workshop
Retractable Air or Electric reels greatly reduce the danger
of ‘Trip Hazard’ accidents in all Industrial and Workshop
environments.
Protect your best asset, your Staff, and Promote the Safe Use
of Compressed Air
** for further Safety info please see Safety Products file on our
web site
PCL WORKSHOP REEL
LARGE SIZE POLYPROPYLENE AIR REELS
ZONE B
HRA1B03
£110.80
15M x 10mm PVC Hose ¼ BSP Inlet/Outlet COMPACT AIR HOSE REELS
DescriptionPart No.
Price
Hose Reels
ZONE B ZONE B
HEAVY DUTY MRC2000/10
20 METRE 10mm ID P.U. Hose with 1/4 BSP FM inlet, 15 Bar
working pressure and 180° swivel bracket
MRC2000/10£282.15
18 METRE 12.5mm ID P.U. Hose with 1/4 BSP FM inlet, 15
Bar working pressure and 180° swivel bracket
MRC2000/12 £299.25
NAKODA HELIX ULTRA COILS ZONE B
M​
YRA200
£130.95
9M X 8mm Polyurethane Hose 1/4 BSP Inlet/Outlet​
MYRA250
£185.00
15M x 8mm Polyurethane Hose ¼ BSP Inlet/Outlet Self layering rewind system, complete with link hose and bracket
MYRA300
£210.50
15M x 10mm Polyurethane Hose 3/8 BSP Inlet/Outlet
20 metres x 10mm (3/8”) hose, 300psi W/P
MRC13/1
£170.50
15 metres x 12.5mm (1/2”) hose, 300psi W/P
MRC13/2
£166.25
NAKODA WATER REEL
MYRA350
£272.75
20M X 10mm Polyurethane Hose 1/4 BSP Inlet/Outlet
MYRA400
£296.75
16M X 13mm Polyurethane Hose 1/2 BSP Inlet/Outlet​
18
​
​Heavy Duty Pro Series
Water reel, 20 metres of 1/2"
reinforced water hose, includes
Vari-Nozzle gun. Features Helix
hose layering system, complete
with all hoses and bracket.
​ ro-Series 20 x 13mm (1/2”) Water Hose + Gun​
P
MRC13/3​
£​
110.00
All prices are List and exclude VAT.
Safety in the Workshop - Blow Guns
DescriptionPart No.
Price
Legris Connectic Blow Guns
STANDARD SAFETY BLOW GUN
ZONE C
OSHA STD 1-13.1 less than 30psi when nozzle is blocked
OSHA 1910.95 (b) noise level is less than 90dba throughout
an 8 hour shift.
06590013
£9.50
ZONE B
An innovative gun, with a choice of interchangeable nozzles to
meet most requirements.
Lower connection06526613
£14.50
Supplied without nozzle
NOZZLES FOR LEGRIS BLOW GUN ABOVE
ZONE B
Standard Nozzle06900100
£2.85
Standard
Coanda
Straight Long
Angle Long
Safety Nozzle06900200
£9.35
Straight Nozzle (long)
06900300
£8.96
Air Screen Nozzle
06900900
£10.20
Angled Nozzle (long)
06900500
£9.55
Coanda Effect Nozzle
06900800
£5.25
Booster Nozzle06901000
£5.50
Angled Nozzle (short)
Booster
Air Screen
06900600
£8.40
LEGRIS FULL SAFETY BLOW GUN
Complies fully with OSHA STD 1-13 and 1910.95(b).
plus 2003/10/CE Directive
ZONE B
Pressure drops rapidly to 0.5bar when nozzle is in close
proximity to obstacle.
Pressure rises automatically when removed.
06540013£27.65
Please call our Sales Office for further details
on the TRANSAIR-Legris Aluminium Pipework
System
19
All prices are List and exclude VAT.
METRO PUSH FITTINGS FOR
METRIC NYLON & PU TUBES
DescriptionPart No.
Price
Please turn to page 15 for details of Nylon and Polyurethane
coils. Others sizes are available if not listed.
PC TAPER MALE STUD
ZONE B
4mm - 1/8” BSPT
4mm - 1/4” BSPT
6mm - 1/8” BSPT
6mm - 1/4” BSPT
6mm - 3/8” BSPT
8mm - 1/8” BSPT
8mm - 1/4” BSPT
8mm - 3/8” BSPT
8mm - 1/2” BSPT
10mm - 1/8” BSPT
10mm - 1/4” BSPT
10mm - 3/8” BSPT
10mm - 1/2” BSPT
12mm - 1/4” BSPT
12mm - 3/8” BSPT
12mm - 1/2” BSPT
£1.19
£1.30
£1.30
£1.35
£1.69
£1.52
£1.58
£1.69
£2.60
£1.86
£1.86
£1.86
£2.31
£2.31
£2.43
£2.71
PC04-01
PC04-02
PC06-01
PC06-02
PC06-03
PC08-01
PC08-02
PC08-03
PC08-04
PC10-01
PC10-02
PC10-03
PC10-04
PC12-02
PC12-03
PC12-04
PCF PARALLEL FEMALE ADAPTOR
4mm - 1/8” BSP
4mm - 1/4” BSP
6mm - 1/8” BSP
6mm - 1/4” BSP
6mm - 3/8” BSP
8mm - 1/8” BSP
8mm - 1/4” BSP
8mm - 3/8” BSP
10mm - 1/8” BSP
10mm - 1/4” BSP
12mm - 1/4” BSP
12mm - 3/8” BSP
12mm - 1/2” BSP
PCF04-01
PCF04-02
PCF06-01
PCF06-02
PCF06-03
PCF08-01
PCF08-02
PCF08-03
PCF10-01
PCF10-02
PCF12-02
PCF12-03
PCF12-04
£2.43
£3.05
£2.60
£3.11
£4.23
£2.77
£3.33
£4.46
£3.50
£3.73
£5.02
£5.19
£5.53
PL TAPER MALE SWIVEL ELBOW
4mm - 1/8” BSPT
4mm - 1/4” BSPT
6mm - 1/8” BSPT
6mm - 1/4” BSPT
6mm - 3/8” BSPT
8mm - 1/8” BSPT
8mm - 1/4” BSPT
8mm - 3/8” BSPT
8mm - 1/2” BSPT
10mm - 1/8” BSPT
10mm - 1/4” BSPT
10mm - 3/8” BSPT
10mm - 1/2” BSPT
12mm - 1/4” BSPT
12mm - 3/8” BSPT
12mm - 1/2” BSPT
PL04-01
PL04-02
PL06-01
PL06-02
PL06-03
PL08-01
PL08-02
PL08-03
PL08-04
PL10-01
PL10-02
PL10-03
PL10-04
PL12-02
PL12-03
PL12-04
£1.98
£2.09
£2.03
£2.20
£2.48
£2.37
£2.48
£2.60
£3.84
£3.27
£3.27
£3.27
£3.90
£3.90
£4.06
£4.29
PUL EQUAL ELBOW
4mm ElbowPUL0400£1.52
6mm ElbowPUL0600£1.64
8mm ElbowPUL0800£1.81
10mm ElbowPUL1000£2.43
12mm ElbowPUL1200£2.77
20
All prices are List and exclude VAT.
METRO PUSH FITTINGS FOR
METRIC NYLON & PU TUBES
DescriptionPart No.
Price
PUT EQUAL TEEZONE B
4mm TeePUT0400£2.03
6mm TeePUT0600£2.03
8mm TeePUT0800£2.37
10mm TeePUT1000£2.65
12mm TeePUT1200£3.78
PUC EQUAL JOINER
4mm JoinerPUC0400
£1.64
6mm JoinerPUC0600
£1.64
8mm JoinerPUC0800
£1.81
10mm JoinerPUC1000
£2.31
12mm JoinerPUC1200
£2.77
PG UNEQUAL JOINER
6mm - 4mm Joiner
8mm - 6mm Joiner
10mm - 8mm Joiner
12mm - 10mm Joiner
PG06-04
PG08-06
PG10-08
PG12-10
£2.20
£2.37
£3.11
£3.33
PP BLANKING PLUG
4mm PlugPP04£0.63
6mm PlugPP06£0.63
8mm PlugPP08£0.73
10mm PlugPP10£0.85
12mm PlugPP12£0.96
PCVU TUBE NON RETURN
4mm PlugPCVU04-04
£12.08
6mm PlugPCVU06-06
£13.55
8mm PlugPCVU08-08
£16.54
BUC 2/2 BALL VALVE
6mmBUC20-0606
£9.88
8mmBUC20-0808
£9.88
10mmBUC60-1010
£11.07
12mmBUC60-1212
£11.07
PGJ STEM REDUCER
6mm - 4mm
8mm - 4mm
8mm - 6mm
10mm - 8mm
12mm - 10mm
PGJ06-04
PGJ08-04
PGJ08-06
PGJ10-08
PGJ12-10
£2.20
£2.20
£2.37
£3.11
£3.27
PIJ DOUBLE STEM JOINER
4mm - 4mm Joiner
6mm - 6mm Joiner
8mm - 8mm Joiner
10mm - 10mm Joiner
12mm - 12mm Joiner
PIJ04
PIJ06
PIJ08
PIJ10
PIJ12
£1.07
£1.07
£1.13
£1.47
£1.92
PIG DOUBLE STEM REDUCER
6mm - 4mm Reducer
8mm - 6mm Reducer
10mm - 8mm Reducer
12mm - 10mm Reducer
PIG06-04
PIG08-06
PIG10-08
PIG12-10
£1.35
£1.52
£1.64
£1.81
21
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
GENERAL FITTINGS TAPERED MALE HOSETAILS - STEEL OR BRASS
GENERAL FITTINGS UNEQUAL MALE UNIONS
BSPT Pipe I.D. Thread Sizes
1/8” Taper x 3/16” MA1240
1/8” Taper x 1/4” MA1160
1/8” Taper x 5/16” MA1249
1/8” Taper x 3/8” MA1250
1/4” Taper x 3/16” MA1095
1/4” Taper x 1/4” MA1016
1/4” Taper x 5/16” MA1019
1/4” Taper x 3/8” MA1022
1/4” Taper x 1/2” MA1023
3/8” Taper x 1/4” MA1033
3/8” Taper x 5/16” MA1034
3/8” Taper x 3/8” MA1035
3/8” Taper x 1/2” MA1036
1/2” Taper x 1/4” MA1108
1/2” Taper x 5/16” MA1109
1/2” Taper x 3/8” MA1037
1/2” Taper x 1/2” MA1038
1/2” Taper x 3/4” MA1195
3/4” Taper x 1/2” MA1151
3/4” Taper x 3/4” MA1152
3/4” Taper x 1” MA1196
1” Taper x 3/4” MA1197
1” Taper x 1” MA1198
EQUAL THREADED MALE UNIONS
ZONE D
£1.98
£1.69
£1.69
£1.69
£1.13
£1.13
£1.13
£1.13
£1.24
£1.92
£1.92
£1.92
£1.92
£2.91
£2.91
£2.60
£2.60
£8.67
£6.44
£6.44
£9.77
£11.29
£10.67
BSPT x BSPT 1/8” x 1/4”
MA1125
1/4” x 3/8”
MA1027
1/4” x 1/2”
MA1028
3/8” x 1/2”
MA1029
1/2” x 3/4”
MA1216
UNEQUAL FEMALE SOCKETS
BSP x BSP
1/4” x 1/8”
MA2035
3/8” x 1/4”
MA1110
1/2” x 1/4”
MA1111
1/2” x 3/8”
MA1112
UNEQUAL MALE-FEMALE REDUCING BUSHES
BSP x BSP 1/4” x 1/8” Taper 3/8” x 1/8” Taper 3/8” x 1/4” Taper 1/2” x 1/4” Taper 1/2” x 3/8” Taper 3/4” x 3/8” Taper 3/4” x 1/2” Taper 1” x 1/2” Taper 1” x 3/4” Taper MA1158
MA1159
MA1032
MA1030
MA1031
MA1203
MA1204
MA1272
MA1271
ZONE D
£2.04
£2.04
£2.70
£2.70
£6.07
£2.20
£2.65
£4.59
£7.40
£1.13
£2.03
£1.98
£2.35
£2.35
£4.74
£4.74
£8.42
£8.42
THREADED LINERS: TO INCREASE/DECREASE AN
EXISTING THREAD
BSP/T x BSP/T
1/8” 1/8” Taper
MA1214
1/4” - 1/4” Taper
MA1024
1/4” - 1/4” Parallel
MA1092
3/8” - 3/8” Taper
MA1025
1/2” - 1/2” Taper
MA1026
3/4” - 3/4” Taper
MA1217
1” - 1” Taper
MA1273
1” - 1” Parallel
MA1274
EQUAL FEMALE SOCKETS
22
BSP x BSP
1/8” x 1/8”
1/4” x 1/4”
3/8” x 3/8”
1/2” x 1/2”
3/4” x 3/4”
MA1161
MA1094
MA1123
MA1124
MA1270
£1.35
£1.79
£1.79
£2.04
£3.06
£5.30
£7.90
£7.90
BSPT x BSP 1/4” x 1/8” Taper MFOU1014
3/8” x 1/4” Taper MFOU1417
1/2” x 3/8” Taper MFOU1721
3/4” x 1/2” Taper MFOU2127
1” x 3/4” Taper MFOU2734
STEEL HOSE JOINERS
£2.30
£1.81
£2.26
£3.37
£5.10
To suit hose:
3/16”
(5mm)MA1247£2.86
1/4”
(6.3mm)MA1014£1.79
5/16”
(8mm)MA1017£1.79
3/8”
(10mm)MA1020£1.94
1/2”
(13mm)MA1039£2.09
BRASS HOSE JOINERS
£1.64
£1.98
£3.33
£4.59
£9.69
To suit hose:
5/8” (16mm)MA1117£4.29
3/4” (19mm)MA1118£4.63
1”
(25mm)
MA1248
£10.56
All prices are List and exclude VAT.
DescriptionPart No.
Price
GENERAL FITTINGS BLANKING PLUGS BSPT Thread
1/8” Taper 1/4” Taper 3/8” Taper 1/2” Taper 3/4” Taper EXTENDERS
MA1153
MA1154
MA1155
MA1156
MA1157
ZONE D
£2.24
£1.75
£2.45
£4.90
£6.12
Male External -
Female Internal
£3.22
1/8” x 1/4” Taper MA1174
£2.65
1/4” x 1/4” Taper MA2028
£3.37
1/4” x 3/8” Taper MA2030
£3.37
3/8” x 3/8” Taper MA2031
£5.10
3/8” x 1/2” Taper MA2032
£7.65
1/2” x 1/2” Taper MA2033
NUT & TAIL COMBINATIONS 2 PIECE
Nut BSP - tailpiece
1/4” x 1/4” (6.3mm)
1/4” x 5/16” (8mm)
1/4” x 3/8” (10mm)
3/8” x 3/8” (10mm)
1/2” x 1/2” (13mm)
ALL FEMALE Y PIECE BODIES
MA1089
MA1090
MA1106
MA1107
MA1052
£2.04
£2.04
£2.04
£2.65
£4.59
BSP Thread
1/8”MA2036£3.39
1/4”MA1003£4.35
3/8”MA1100£6.21
1/2”MA1101£10.20
FEMALE - FEMALE - MALE Y PIECE BODIES BSP Thread
1/8”MA1266£3.39
1/4”MA1267£4.35
3/8”MA1268£6.10
1/2”MA1269£10.20
DescriptionPart No.
Price
GENERAL FITTINGS FEMALE - FEMALE ELBOWS
ZONE D
BSP Thread
£2.40
1/8”MA14310
£3.26
1/4”MA14311
£4.44
3/8”MA14312
£6.94
1/2”MA14313
£10.20
3/4”MA14314
EQUAL TEE PIECES - CENTRE MALE LEG
BSP Thread
£3.06
1/8”MA14340
£4.39
1/4”MA14341
£6.12
3/8”MA14342
£13.21
1/2”MA14343
£15.30
3/4”MA14344
EQUAL FEMALE TEE PIECES
BSP Thread
£3.06
1/8”MA14350
£4.28
1/4”MA14351
£6.48
3/8”MA14352
£12.90
1/2”MA14353
£14.28
3/4”MA14354
EQUAL TEES - MALE OFFSET LEG BSP Thread
£3.01
1/8”MA14355
£4.18
1/4”MA14356
£5.76
3/8”MA14357
£9.95
1/2”MA14358
£15.30
3/4”MA14359
CROSS PIECES - ALL FEMALE
MALE - FEMALE ELBOWS BSP Thread
£2.35
1/8”MA14300
£3.06
1/4”MA14301
£3.95
3/8”MA14302
£6.21
1/2”MA14303
BSP Thread
£4.12
1/8”MA14380
£5.61
1/4”MA14381
£9.99
3/8”MA14382
£13.06
1/2”MA14383
23
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
GENERAL FITTINGS BULK HEAD FITTINGS
BALL VALVES
LEVER BALL VALVES: FEMALE - FEMALE
BSP Bore-Partition
1/8” 16mm - 10mm
1/4” 20mm - 12mm
3/8” 26mm - 12mm
1/2” 28mm - 12mm
MA2118
MA2114
MA2138
MA2112
ZONE D
BSP Thread
£5.59
Gas and Air 1/4”
MA1075
£5.59
Gas and Air 3/8”
MA1076
£5.59
Gas and Air 1/2”
MA1077
£11.01
Gas and Air 3/4”
MA1079
£13.49
Gas and Air 1”
MA1080
£19.76
Gas and Air 1 .1/4”
MA1081
£24.84
Gas and Air 1. 1/2”
MA1082
£41.61
Gas and Air 2” MA1083
WRAS+ EN331 Water + Gas Approved Quality Ball Valves
£6.12
£5.36
£6.83
£10.00
SILENCERS: FLAT FACE TYPE WITH BRONZE ELEMENT ZONE C
LEVER BALL VALVE: MALE – FEMALE BSP Thread
1/8”MPPC18£1.33
1/4”MPPC14£1.35
3/8”MPPC38£2.96
1/2”MPPC12£2.96
3/4”MPPC34£9.69
SILENCERS: CONICAL TYPE - BRONZE ELEMENT
ZONE C
BSP Thread
1/8”MPPS18£2.15
1/4”MPPS14£2.82
3/8”MPPS38£5.30
1/2”MPPS12£7.45
3/4”MPPS34£13.57
THREAD SEALERSZONE C
Liquid thread sealer 50ml
TRULOC
£28.23
Roll of PTFE tape
24
PTFE
ZONE C
ZONE C
BSP Thread
Gas and Air Gas and Air Gas and Air Gas and Air
Gas and Air
Gas and Air
Gas and Air
Gas and Air
1/4”
3/8”
1/2”
3/4”
1”
1.1/4”
1 .1/2”
2”
MA1075-MF MA1076-MF MA1077-MF MA1079-MF MA1080-MF MA1081-MF MA1082-MF MA1083-MF £6.21
£5.59
£7.51
£10.11
£13.83
£21.17
£27.49
£43.64
MINI BALL VALVES: FEMALE - FEMALE
ZONE C
BSP Thread
1/8” FM BSP - FM BSP
1/4” FM BSP - FM BSP
3/8” FM BSP - FM BSP
1/2” FM BSP - FM BSP
£4.18
£4.18
£4.18
£4.57
MA1135
MA1136
MA1137
MA1138
MINI BALL VALVES: MALE - FEMALE BSP Thread
1/8” M BSP - FM BSP
MA1139
1/4” M BSP - FM BSP
MA1140
3/8” M BSP - FM BSP
MA1141
1/2” M BSP - FM BSP
MA1142
SLIDE VALVES FOR SAFETY
ZONE C
£4.18
£4.18
£4.18
£4.57
ZONE C
£0.65
1/4” BSP Female - Female
MA1714
£12.53
The valve is closed with a downstream air outlet by sliding the
sleeve on the body of the valve
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
GENERAL HYDRAULIC FITTINGS
MALE PARA - PARA EQUAL
ZONE D
GENERAL HYDRAULIC FITTINGS
FEMALE PARA - FEMALE PARA SWIVEL
ZONE D
1/4" BSPP Male - Male Nipple
MA100-0404
£​1.10​
3/8" BSPP Male - Male Nipple
MA100-0606
£​1.30​
1/4" BSPP FM - 1/4" BSPP FM
MA300-0404
£​2.60​
1/2" BSPP Male - Male Nipple
MA100-0808
£​1.80​
3/8" BSPP FM - 14" BSPP FM
MA300-0604
£​2.60​
3/4" BSPP Male - Male Nipple
MA100-1212
Many other size combinations available, please ask
£​2.60​
3/8" BSPP FM - 3/8" BSPP FM
MA300-0606
£​3.30​
1/2" BSPP FM - 3/8" BSPP FM
MA300-0806
£​3.52​
1/2" BSPP FM - 1/2" BSPP FM
MA300-0808
£​4.10​
3/4" BSPP FM - 1/2" BSPP FM
MA300-1208
£​5.20​
3/4" BSPP FM - 3/4" BSPP FM MA300-1212
Many other sizes combinations available, please ask.
£​6.50​
MALE PARA - PARA UNEQUAL
1/4" BSPP - 3/8" BSPP M NippleMA100-0604£1.40
1/4" BSPP - 1/2" BSPP M NippleMA100-0804£2.15
3/8" BSPP - 1/2" BSPP M NippleMA100-0806£2.25
1/2" BSPP - 3/4" BSPP M Nipple
COMPACT ELBOW 90, FIXED MALE BSPP - SWIVEL FEMALE BSPP
MA100-1208£3.35
Many other sizes available
MALE PARA - TAPER
1/4" BSPP M - 1/4" FM Swivel
MA614-04
£​4.60​
3/8" BSPP M - 3/8" FM Swivel
MA614-06
£​5.98​
1/2" BSPP M - 1/2" FM Swivel
MA614-08
£​7.92​
1/4" BSPP - 1/4" BSPT M Nipple
MA111-0404
£​1.40​
1/4" BSPP - 3/8" BSPT M Nipple
MA111-0406
£​1.84​
3/4" BSPP M. - 3/4" FM Swivel
MA614-12
Many other sizes combinations available, please ask.
1/4" BSPP - 1/2" BSPT M Nipple
MA111-0408
£​2.30​
COMPACT ELBOW 90 BSPP FEMALE SWIVELS
3/8" BSPP - 3/8" BSPT M Nipple
MA111-0606
£​1.70​
3/8" BSPP - 1/2" BSPT M Nipple
MA111-0608
£​2.50​
1/2" BSPP - 1/2" BSPT M Nipple
MA111-0808
£​2.40​
1/2" BSPP - 3/4" BSPT M Nipple
MA111-0812
Many other size combinations available, please ask.
£​4.20​
MALE PARA - FEMALE PARA SWIVEL
1/4" BSPP M - 1/4" BSPP FM
MA200-0404
£​2.10​
1/4" BSPP M - 3/8" BSPP FM
MA200-0406
£​2.10​
3/8" BSPP M - 3/8" BSPP FM
MA200-0606
£​2.70​
3/8" BSPP M - 1/2" BSPP FM
MA200-0608
£​2.70​
1/2" BSPP M - 1/2" BSPP FM
MA200-0808
£​3.70​
1/2" BSPP M - 3/4" BSPP FM
MA200-0812
£​3.96​
3/4" BSPP M - 3/4" BSPP FM
MA200-1212
Many other sizes combinations available, please ask.
£​5.30​
£​11.30​
1/4" Female BSPP
MA624-0404
£5.57
3/8" Female BSPP
MA624-0606
£7.15
1/2" Female BSPP
MA624-0808
£9.35
3/4" Female BSPP
MA624-1212
£13.45
1/4" BSPP Female Tee MA530-04
£8.44
3/8" BSPP Female Tee
MA530-06
£10.45
1/2" BSPP Female Tee MA530-08
£13.44
3/4" BSPP Female Tee
MA530-12
£19.88
​SWIVEL ALL FEMALE EQUAL TEE
25
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
GENERAL HYDRAULIC FITTINGS
SWEPT 90 ELBOW MALE BSPP - FEMALE BSPP
ZONE D
GENERAL HYDRAULIC FITTINGS
BULKHEAD FITTING, M-M- BSPP, WITH LOCK NUT
1/4" BSPP M - 1/4" FM BSPP
3/8" BSPP M - 3/8" FM BSPP
1​/​2​" BSPP M - ​1​/​2​" FM BSPP
3/4" BSPP M - 3/4" FM BSPP
£​4.50​
£​5.10​
£​6.10​
£​11.30​
MA2B90/04
MA2B90/06
MA2B90/08
MA2B90/12
BLANKING PLUG BSPP 60 CONED 1/4" BSPP Male/Male
MA108-04
3/8" BSPP Male/Male
MA108-06
1/2" BSPP Male/Male
MA108-08
3/4" BSPP Male/Male
MA108-12
Other sizes available, please ask for details
ZONE D
£1.95
£2.65
£3.75
£5.65
FIXED FEMALE/FEMALE EQUAL BSPP SOCKET
1/4" BSPP Coned Plug
3/8" BSPP Coned Plug
1/2" BSPP Coned Plug
3/4" BSPP Coned Plug
MA701-04
MA701-06
MA701-08
MA701-12
£​1.10​
£​1.30​
£​1.60​
£​2.70​
1/4" BSPP Female Socket
MA429-04
3/8" BSPP Female Socket
MA429-06
1/2" BSPP Female Socket
MA429-08
3/4" BSPP Female Socket
MA429-12
Other sizes available, please ask for details
BLANKING CAP SWIVEL BSPP
£1.95
£2.65
£2.65
£5.65
BONDED SEALS, IMPERIAL, SELF CENTERING
1/4" BSPP Swivel Cap
3/8" BSPP Swivel Cap
1/2" BSPP Swivel Cap
3/4" BSPP Swivel Cap
MA717-04
MA717-06
MA717-08
MA717-12
£​2.00​
£​2.30​
£​2.70​
£​1.20
HYDRAULIC SWIVEL JOINT, INLINE
1/4" BSPP Male/Female
3/8" BSPP Male/Female
1/2" BSPP Male/Female
3/4" BSPP Male/Female
MHMFS04
MHMFS06
MHMFS08
MHMFS12
£16.75
£16.50
£22.50
£32.00
1/4" BSP Self centering seal
3/8"BSP Self centering seal
1/2" BSP Self centering seal
3/4" BSP Self centering seal
1" BSP SElf centering seal
MDS04
MDS06
MDS08
MDS12
MDS16
£​0.14​
£​0.15​
£​0.19​
£​0.35​
£​0.43
​Other sizes available, Metric and Stainless Steel
METRIC SELF CENTERING BONDED SEALS
Max 400 Bar Fixed, 200 Bar Rotating
Other sizes available please ask for details
HYDRAULIC SWIVEL JOINT, 90 DEGREE
1/4" BSPP Male/Female
3/8" BSPP Male/Female
1/2" BSPP Male/Female
3/5" BSPP Male/Female
MHMFS9004
MHMFS9006
MHMFS9008
MHMFS9012
Max 400 Bar Fixed, 200 Bar Rotating
Other sizes available please ask for details
£19.50
£21.75
£26.85
£33.85
M3 Metric Bonded Seal
M4 Metric Bonded Seal
M6 Metric Bonded Seal
M8 Metric Bonded Seal
M10 Metric Bonded Seal
M12 Metric Bonded Seal
M14 Metric Bonded Seal
M16 Metric Bonded Seal
M18 Metric Bonded Seal
M20 Metric Bonded Seal
M22 Metric Bonded Seal
26
All prices are List and exclude VAT.
MBS03
MBS04
MBS06
MBS08
MBS10
MBS12
MBS14
MBS16
MBS18
MBS20
MBS22
£0 20
£0.20
£0.20
£0.22
£0.20
£0.20
£0.20
£0.24
£0.30
£0.25
£0.28
DescriptionPart No.
Price
ACCESSORIES
METAL PALM BLOW GUN ZONE C
Fitted with 1/4” BSP Female inletMA1073
£7.65
PCL METAL BLOW GUNS
PCL metal palm blow gun
with Standard Nozzle.
1/4 BSP Female inlet BG105
£12.55
PCL metal palm blow gun
with Safety Nozzle.
1/4 BSP Female inlet BG106
PCL AIR AND WATER GUN
PCL New Air/Water gun to help remove
dirt, grease and other material using
mains pressure water boosted by
compressed air
AWG03
£13.69
£36.54
PCL AIR VAC
Air Vac kit includes flexible hose, collection bag and a selection
of nozzles Can be quickly changed from suction to blowing
Requires 3.6 CFM/100 L/min
AV301
£29.30
RF104
RADIATOR FILLER
Radiator Filler which fits directly to a water hose to provide
water in workshops and forecourts
(Metro)MT1767£26.53
(PCL)RF104£29.27
PCL BUDGET TYRE INFLATOR Ideal for basic inflation applications
Calibrated 0-150lbf/in2 units and 0-10Bar in 0.2 Bar units
1/4” female inlet
ADTG4 £40.19
27
All prices are List and exclude VAT.
WORKSHOP ACCESSORIES
AIR TREATMENT
DescriptionPart No.
Price
METRO BELLOFRAM AIR TREATMENT - Separates
FILTERS, STANDARD 25 MICRON, SEMI-AUTOMATIC ZONE C
1/4” PortM1F13£22.19
3/8” PortM2F17£34.27
1/2” PortM2F21£34.27
3/4” PortM3F27£71.08
1” PortM3F34£71.08
Other particulate sizes available
please ask Sales Office for details
M2/M3
Filters, Coalescing 0.01 micron
0.01MC, SEMI-AUTOMATICZONE C
1/4” Port M1CF13
£21.28
3/8” Port M2CF17
£43.25
1/2” Port M2CF21
£43.25
3/4” Port M3CF27
£80.00
1” Port M3CF34£80.00
M2/M3
Regulators Standard
0-120 PSI (0-8.3 BAR)ZONE C
1/4” Port M1R13/G
£27.27
3/8” Port M2R17/G
£44.60
1/2” Port M2R21/G
£44.60
3/4” Port M3R27/G
£85.65
1” Port M3R34/G
£85.65
Gauge and Bracket included
Lubricators ZONE C
1/4” PortM1L13£21.28
3/8” PortM2L17£31.90
1/2” PortM2L21£31.90
3/4” PortM3L27£80.00
1” PortM3L34 £80.00
Filter Regulators
25 MICRON AND SEMI-AUTOMATIC
ZONE C
1/4” Port 3/8” Port 1/2” Port 3/4” Port 1” Port £52.17
£73.34
£73.34
£115.74
£115.74
Gauge and bracket included
28
All prices are List and exclude VAT.
M1FR13/G
M2FR17/G
M2FR21/G
M3FR27/G
M3FR34/G
DescriptionPart No.
Price
WORKSHOP ACCESORIES AIR TREATMENT
Metro Bellofram Air Treatment - Combinations
FILTER, REGULATOR, & LUBRICATOR (3 PIECE UNIT) ZONE C
25 MICRON AND SEMI-AUTOMATIC INC GAUGE
1/4” Port 3/8” Port 1/2” Port 3/4” Port
1” Port M1FRL13 - 3 /G
M2FRL17 - 3 /G
M2FRL21 - 3 /G
M3FRL27 - 3 /G
M3FRL34 - 3 /G
£78.25
£118.50
£118.50
£236.84
£236.84
FILTER, REGULATOR & LUBRICATOR (2 PIECE UNIT) ZONE C
25 MICRON AND SEMI-AUTOMATIC INC GAUGE
1/4” Port
3/8” Port 1/2” Port
3/4” Port 1” Port M1FRL13 - 2 /G
M2FRL17 - 2 /G
M2FRL21 - 2 /G
M3FRL27 - 2 /G
M3FRL34 - 2 /G
£77.85
£113.48
£113.48
£202.12
£202.12
FILTER, REGULATOR & COALESCER (2 PIECE UNIT)
0.01 MICRON COALESCER AND SEMI-AUTOMATIC
F/R, INC. GAUGE
ZONE C
1/4” Port
3/8” Port
1/2” Port
3/4” Port
1” Port
£76.73
£128.67
£128.67
£203.25
£203.25
M1FRC13 /G
M2FRC17 /G
M2FRC21 /G
M3FRC27 /G
M3FRC34 /G
QUALITY GAUGES FOR AIR TREATMENT ZONE C
40mm 1/8” BSP 0-30 psi
40mm 1/8” BSP 0-60 psi
40mm 1/8” BSP 0-100 psi
40mm 1/8” BSP 0-160 psi
40mm 1/8” BSP 0-200 psi
£5.65
£5.65
£5.65
£5.65
£5.65
MPG1
MPG2
MPG3
MPG4
MPG5
The above are the most popular gauges
Bottom entry and Panel mount also available in 40mm and 50mm from 0-30 up to 0-300 P.S.I.
Special gauges are available and made to order inc glycerine
Centre Back Entry
CONNECTION KITSZONE C
Standard BracketM1-K£3.50
Tee BracketM1K2£3.50
Standard BracketM2-K £3.50
Tee BracketM2K2£3.50
METRO HI-TEMPERATURE AIR TREATMENT
ZONE E
FOR SPRAYING MHT3
MHT3£339.59
Filter/Regulator, Coalescer
Filter plus Carbon Filter,
Metal Bowls for In-Booth use.
Supplied with Gauge and Brackets
Replacement DH Elements available, please ask Sales Office
for details
All prices are List and exclude VAT.
29
DescriptionPart No.
Price
WORKSHOP ACCESSORIES - AIR TREATMENT
PCL AIR TREATMENT COMBINATIONS
ALL SUPPLIED IN COUNTER DISPLAY BOXES
FILTER 10 MICRON, MANUAL/SEMI-AUTOMATIC
Complete with wall bracket
ZONE B
1/4” Port 12 Bar
ATF6
£32.77
1/2” Port 14 Bar
ATF12
£45.72
REGULATOR
Complete with wall bracket and gauge and locking device
1/4” Port 12 Bar
ATR6
£26.84
1/2” Port 14 Bar
ATR12
£41.75
1/4” Port 12 Bar
ATL6
£33.81
1/2” Port 14 Bar
ATL12
£45.72
LUBRICATOR
Complete with wall bracket
FILTER/REGULATOR 10 MICRON, MANUAL/SEMI-AUTOMATIC
Complete with wall bracket and gauge and locking device
1/4” Port 12 Bar
0-10 Bar adjustment
ATC6
£44.78
1/2” Port 14 Bar
0-12 Bar adjustment
ATC12
£63.66
FILTER/REGULATOR & LUBRICATOR 10 MICRON,
MANUAL/SEMI-AUTOMATIC DRAIN
Complete with wall bracket and gauge and locking device
30
1/4” Port 12 Bar
0-10 Bar adjustment
ATCFRL6
£78.50
1/2” Port 14 Bar
0-12 Bar adjustment
ATCFRL12
£107.40
All prices are List and exclude VAT.
Aluminium & Stainless Units
An Inline, Point of Use Water Separator and Contaminant Remover
suitable for a wide range of applications and flow rates.
•
•
•
•
•
99.995% liquid water removal
Particulate removal down to 1 micron
Compliments or replaces other water removal systems
No mains power required
Easy to install
Dropout AutoDrain Unit
•
•
•
•
Automatically removes all liquids, oil and solid contaminants from
Dropout units.
Float operated, no mains power needed
Small & compact
Easy to install
All prices are List and exclude VAT.
31
PDO200A*
£260.85
PDO600A*
£386.31
PDO060S**
£291.47
PDO0300S**
£466.40
PDO0600S**
£553.86
PDO900S**
£631.64
PDO1500S**
£825.95
PDO2000S**
£969.51
All units: ZONE C
32
* = Metro Stock Item
** = Special Order, refer to Sales Office
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
WORKSHOP ACCESSORIES - AIR TREATMENT
PCL AIRLINE GAUGES/TYRE INFLATORS
ZONE C
CONSUMABLES FOR PCL AIRLINE GAUGES
PCL DIGITAL TYRE INFLATORS
ZONE C
230V Digital pre-set inflator
MK3 MK 3 Inflator with Single Clip-on Connector (OE)
ALG3H04£75.71
12V Mobile digital pre-set
QUBE 1
QUBE 6
£360.70
£360.70
MK3 MK 3 Inflator with Twin Hold-on Connector (OE)
ALG3H03£76.99
230V Wall mount digital pre-set
D10SS20T
£663.90
230V Tyre shop digital pre-set D12SS50C
£836.40
230V Pedestal, digital pre-set D20SS20T
£930.50
MK3 Tyre Shop Inflator with 6FT hose and Twin-Clip On Connector
ALG3H05£102.79
MK3 Tyre Shop Inflator with 9FT hose and Twin-Clip On Connector
ALG3H06£104.35
Truck Tyre high pressure inflator 0 - 174psi (12 bar)
£126.31
ALG4H36
Above are a small selection of available PCL Digital Pre-Set tyre i
nflation systems, Qube units for inside workshop use, ‘D’ series
fully weatherproofed. Full specs available.
PCL NEXUS NITROGEN TYRE INFLATION UNITS
Aircraft hgh pressure inflator 8V & 12V
ALG5A01 £325.60
NEW DIGITAL TYRE INFLATORS
Nitrogen convertor/inflator
needs separate air supply
NEX2GA02
230V Nitrogen generator/inflator NEX2IA02
5 - 170psi, 1.8 Metre Hose
c/w Euro Connector
DTI08
£67.65
5 - 170psi, 0.5 Metre Hose
c/w Euro Connector
DTI081
£64.20
£2874.08
£3867.30
For full details and advice on Nitrogen Solutions, Pay Back
scenarios please look at our website or contact our sales office.
33
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
POPULAR TOOL ACCESSORIES
PCL TYRE CONNECTORS
POPULAR TOOL ACCESSORIES
PCL TYRE CONNECTORS
Twin Hold On, Open End
Twin Hold On, Closed End
CO1A03
CO1B03
ZONE C
Euro Style Single Clip On, Open End CO8T73
£4.86
8V Screw On, Open End - ¼" BSP
£24.33
CO9P03
£10.77
CO5A03
£10.77
Short Stem, Twin Hold On, open end
CO5B03
£10.77
C03A03
CO3B03
ZONE C
£10.77
Short Stem, Twin Hold On open End
Twin Clip On, Open End Twin Clip On, Closed End
£34.70
£34.70
12V Screw On, Open End - ¼" BSP CO10P03
£24.33
8V Inline Hold On, Open End ¼" BSPCO12A03
£24.75
12V Inline Hold On, Open End ¼" BSPCO11A03
£24.75
12V Clip On, Open End ¼" BSP Inlet CO7P02
£24.26
PCL TREAD DEPTH GAUGE
VOSA APPROVED TYRE DEPTH GAUGE
TDG16C05£4.56
34
Single Clip On, 6.35mm (1/4") Tail CO2HO3
£12.23
Tread Depth Gauge EC Directive 89/459/EEC 1.6mm marking
DEPARTMENT OF TRANSPORT (DOT) APPROVED FOR MOT STATIONS
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
POPULAR TOOL ACCESSORIES
PCL TYRE PRESSURE GAUGES
ZONE C
POPULAR TOOL ACCESSORIES
ECONOMY PLASTIC BLOW GUN
ZONE C
Pocket Type, Angle Head TPG1H01£9.96
6psi - 50psi
Pocket Type, Inline Head TPG20H01£9.96
6psi - 50psi
Plastic Blow Gun, 10 Bar maximum pressure
Fitted with 1/4 BSP FM insert
MSBG5£5.87
FLEXIBLE ELBOWZONE C
Pocket Service Type
Angle Twin Head
TPG4H01£17.20
All 1/4" (10 bar) flexible connection to eliminate hose kinks
FE101£12.30
AR-1 INLINE REGULATOR
Universal Service Gauge
10psi - 160psi
TPG60H03
ZONE C
£52.47
Increases/decreases air flow to tool
852041£9.89
G1-K OILERZONE C
Twin Head, 8v & 12v
50psi - 300psi
TPG54H03
£139.78
Automatically oils air tools in use
Digital Universal Gauge, Twin Head DUSG1
£44.29
852002
£11.73
F1-G INLINE FILTER
ZONE C
4 measurement options. Backlit
screen, replaceable batteries.
Long Straight & Angled connector
Self Calibrating 0-174psi/0-12 bar/0-1200 Kpa/0-12 kgs/cm.
DTPG8£41.25
Final inline filter for spray guns/tools
852005£12.51
All prices are List and exclude VAT.
35
DescriptionPart No.
Price
DescriptionPart No.
Price
DUST EXTRACTION SYSTEMS
VACUUM CLEANERS FOR DUST EXTRACTION
DUST EXTRACTION HOSES
VACUUM CLEANER DUST EXTRACTION HOSES
ZONE C
ZONE C
£86.07
7.5M Integral 29mm Dust/Air HoseD29-7.5MTR
£109.21
10M Integral 29mm Dust/Air Hose D29-10MTR£132.29
Please add /T19 to part number above for Standard PCL
Couplings
Please add /T26 to part number above for Rectus High Flow
Couplings
1000 Watt AUTO Stop/Start Vacuum Unit and Coaxial Hose and 5mm orbit Sander
SRC/760
£714.02
1000 Watt AUTO Stop/Start Vacuum Unit with Coaxial Hose only
SRC/A£547.97
2000 Watt Twin Motor, twin inlet
AUTO Stop/Start Vacuum Cleaner with 1 x Coaxial Hose
RC45/2BP
£880.07
36
5M Integral 29mm Dust/Air HoseD29-5MTR
TOOL HOSESZONE C
5M Suction 29mm Dust Hose only D295
£43.89
7.5M Suction 29mm Dust Hose onlyD2975
£65.70
10M Suction 29mm Dust Hose only D2910
£87.73
A Full, comprehensive range of cuffs and fittings are available
SPECIAL HOSES CAN BE QUOTED AND MADE TO ORDER
WORKSHOP OILSZONE C
200cl Air Tool Oil
Replaces MT1764/RC200ATO 1 Litre Air Tool Oil
Replaces 3318/RC1000ATO
5 Litre Air Tool Oil
Replaces 33185/RC5000ATO
ST200ATO
£4.04
ST1000ATO
£7.20
ST5000ATO
£30.44
25 Litre Air Tool Oil ST25000ATO
£136.99
1 Litre Compressor Oil Type 68 ST1000COMP £8.03
5 Litre Compressor Oil Type 68 ST5000COMP £38.75
1 Litre Hydraulic Oil Type 32 ST1000HYD £7.69
5 Litre Hydraulic Oil Type 32 ST5000HYD £36.14
25 Litre Hydraulic Oil Type 32 ST25000HYD £171.59
All prices are List and exclude VAT.
No.
Price
DescriptionPart
PCL PRESTIGE TOOL RANGE
ZONE C
DescriptionPart No.
Price
PCL PRESTIGE TOOL RANGE
ZONE C
3/8” Soft-Grip Ratchet 95Nm
3/8” Pistol Impact Wrench
271NmAPP101£171.42
1/2” Mini Pistol Impact Wrench
433NmAPP201£190.29
1/2” Composite Impact Wrench
928NmAPP203£240.17
APP310
£112.64
10mm Keyless Drill, Reversible
APP405£105.56
1/4 Hex, External Adjust, Reversible 12 Nm Screwdriver
APP409£164.24
Soft-Grip Mini Cut-Off Tool
APP708
£82.60
Soft-Grip Low Vibe Body Saw
APP600
£190.18
Boxed Soft-Grip Die Grinder Set
APP700SET
£100.39
3/4” Lightweight Impact Wrench
1490NmAPP234£493.56
1” Extended Anvil, Inline Wrench
2169NmAPP270£871.84
1/2" LI-ON Cordless Impact Wrench (1 Battery)
APC21£586.73
1/2" LI-ON Cordless Impact Wrench (2 Batteries)
APC218/2B
£688.88
Boxed Low Vibration Hammer/De-Scaler Set
APP570SET
£186.04
Composite 5mm Orbit,
Dust Free, 6” Sander
All prices are List and exclude VAT.
APP760
£184.08
37
DescriptionPart No.
Price
DescriptionPart No.
Price
PCL WORKSHOP TOOL RANGE
PCL WORKSHOP TOOL RANGE
ZONE C
ZONE C
3/8” RatchetAPT320£52.93
3/8” Pistol Impact Wrench 135 Nm APT105£96.11
3/8” Boxed Ratchet Set
APT320SET
£69.48
1/2” RatchetAPT330£69.60
1/2” Pistol Impact Wrench
540 NmAPT205£128.25
10mm Keyless Drill
APT401
£70.93
10mm Keyless Reversible Drill
APT401R
£79.61
10mm Key Chuck Angle Drill
APT402
£120.12
Pistol Screwdriver (17Nm Max)
APT407
£122.91
1/2” Boxed Wrench Set
540 NmAPT205SET
£163.80
1/2” Composite Impact Wrench
690 NmAPT233£178.60
Straight ScrewdriverAPT408£129.10
3/4” Pistol Impact Wrench
1” Pistol Impact Wrench
1” Extended Anvil Inline Wrench
38
APT230
APT265
APT263
£351.81
Body SawAPT650£114.36
Straight Die Grinder
APT702
£41.99
Boxed Die Grinder Set
APT702SET
£57.35
Mini Cut Off Tool
APT719
£50.62
£759.56
£685.01
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
PCL WORKSHOP TOOL RANGE
ZONE C
PCL MINI AIR
ZONE C
4” Angle GrinderAPT715£247.36
Mini 6mm Straight Die Grinder APT901
£62.69
7” Angle GrinderAPT716£378.40
Mini 2" SanderAPT902£132.53
NibblerAPT660£76.39
Pistol ShearAPT670£107.09
10mm Belt Sander 20mm Belt Sander
6” Pad Orbital Sander
Air Hammer .401 Shank
Boxed Air Hammer Set
Pop Rivet Gun, 3/16” Max Rivet
APT755
APT903
£101.69
Mini 10mm Straight Drill
APT904
£132.53
Mini 2" Angle Grinder
APT905
£132.53
Mini 3/8" Ratchet
APT906
£101.69
Mini 3" Angle Cutter
APT907
£132.53
Mini 6mm 90 Angle Die Grinder
APT908
£101.69
Mini 3" Sander/Buffer
APT909
£132.53
Mini Tool 8pc Box Set APT910
£950.88
£130.30
APT756
£202.14
APT720
£56.50
APT517
£53.56
APT517SET £72.49
APT690
£112.86
Straight Needle Scaler 12 x 3mm APT561
£186.78
Grease Gun £ 53.56
APT813
Mini 1/4" Ratchet
All prices are List and exclude VAT.
39
DescriptionPart No.
Price
DescriptionPart No.
Price
AIR TOOL CONSUMABLES
GREAT VALUE CUTTING DISCS BY PHOENIX
AIR TOOL CONSUMABLES
50mm QUICK LOCK DISCS
ZONE C
50mm Quick Lock Pad & Mandrel 50MM-PAD
£5.20
ZONE C
QUICK LOCK ZIRCONIUM DISCS
High Quality Cuttings Discs to VBG49 Safety Standards and
MPA10203. Supplied in packs of 10
Price Pack 10
75mm x 2mm x 10mm
847001
£12.75
75mm x 1mm x 10mm
847001/A £14.59
100mm x 3mm x 16mm
847002
£13.92
100mm x 1mm x 16mm
847002/A £19.69
115mm x 3mm x 22mm
847004
£17.34
115mm x 1mm x 22mm
847004/A £19.69
178mm x 3mm x 22mm
847006
£24.74
178mm x 1.6mm x 22mm
847006/A £34.17
SANDING BELTS
Zirconium sanding discs are suitable for use on a wide range of
materials including Stainless Steel.
50mm 40 Grit Disc
50mm 60 Grit Disc
50mm 80 Grit Disc
50mm 120 Grit Disc
50MM40G
50MM60G
50MM80G
50MM120G
£0.75
£0.75
£0.75
£0.75
QUICK LOCK POLIRICO DISCS FOR POLISHING AND RUST REMOVAL
Ideal for polishing and finishing Stainless Steel, Carbon Steels,
Plastics, Glass, Soft Metal Alloys and much more
50mm Coarse Disc
50MM-BROWN £1.40
High Quality Zirconium sanding belts
Over pack quantity 50
(each)
10 X 330 X 40 GRIT
ZIRC10330-40 £0.53
10 X 330 X 60 GRIT
ZIRC10330-60 £0.53
10 X 330 X 80 GRIT
ZIRC10330-80 £0.53
10 X 330 X 120 GRIT
ZIRC10330-120 £0.53
50mm Medium Disc
50MM-MAROON £1.40
50mm Fine Disc
50MM-GREEN
£1.40
QUICK LOCK POLY DISC
40
20 x 480 x 40 GRIT
20 x 480 x 60 GRIT
20 x 480 x 80 GRIT
20 x 480 x 120 GRIT
ZIRC20480-40 £0.93
ZIRC20480-60 £0.93
ZIRC20480-80 £0.93
ZIRC20480-120 £0.93
20 x 520 x 40 GRIT
20 x 520 x 60 GRIT
20 x 520 x 80 GRIT
20 x 520 x 120 GRIT
ZIRC20520-40 £1.04
ZIRC20520-60 £1.04
ZIRC20520-80 £1.04
ZIRC20520-120 £1.04
Ideal for removing rust and paint before preparation with minimal risk of damage or scratching to the work piece
50mm x 13mm Quick Lock Disc
All prices are List and exclude VAT.
50MM13MM
£3.18
DescriptionPart No.
Price
NEW P400 Composite Compact Blow Guns
ZONE C
MSCBG11£10.50
Compact body, blue composite palm type pocket blow gun.
Standard full flow nozzle.
1/4" BSPP Female Inlet
Weight: 40g
MSCBG12£12.00
Compact body, blue composite palm type pocket blow gun.
OSHA Safety, flow multiplier nozzle.
1/4" BSPP Female Inlet
Weight: 42g
MSCBG13£10.50
Compact body, blue composite palm type pocket blow gun.
Silent, Safety nozzle
1/4" BSPP Female Inlet
Weight: 40g
Technical:
Body: Anti-Shock Reinforced Polyamide Material
Colour: RAL5015 Light blue
W/Pressure: 10 Bar
Temp range: -15c to +70c
Noise: Complies with UNI EN ISO15744 @ 6 Bar
= Standard full flow nozzle
= Silent Model
NEW COMBINATIONS 3 Metre PU Coil + MSCBG11
Compact Blow Gun
MSSC14
£27.25
3 Metre PU Coil + MSCBG12
Compact Blow Gun
MSSC15
£28.75
3 Metre PU Coil + MSCBG13
Compact Blow Gun
MSSC16
£27.25
Other coils can be used, see Page 12 for selections
Please ask our Sales Office for prices
All prices are List and exclude VAT.
41
DescriptionPart No.
Price
DescriptionPart No.
Price
METRO SPEEDFIT
Quick and Easy solution for Workshop Air supplies, it makes a
very cost effective alternative to traditional, labour intensive,
Galvanised Pipe Work, or Expensive Aluminium systems. Perfect
for smaller installations demanding a proper RingMain.
The use of ISO4414 Compliant Safety Couplings is Highly Recommended see Pages 4, 5, 6 & 7
Other sizes available please ask our Sales Office for details or a
quote.
RIGID NYLON TUBE 3 METRES
ZONE B
REDUCING TEE PIECE
ZONE B
22mm - 15mm Reducing Tee
PM3022AE
£4.99
PM0315E
PM0322E
£2.95
£4.43
15mm Equal tube joiner
22mm Equal tube joiner
PIPE END STOP
PM0415E PM0422E
£2.13
£3.21
15mm End Stop
22mm End Stop
PM4615E
PM4622E
£2.10
£2.52
PM0815E
PM0822E
£0.94
£1.13
15mm - 1/2" BSPP Stud
22mm - 3/4" BSPP Stud
PM011514E
PM012216E
£2.81
£3.15
Straight Male Stud, Brass:
15mm - 1/2" BSPT Stud
22mm - 3/4" BSPT Stud
MM011504N
MM012206N
£6.16
£10.98
EQUAL ELBOW
15mm x 3 Metres
22mm x 3 Metres
PA-RM1512-3M
PA-RM2218-3M
£8.50
£17.40
RIGID ALUMINIUM TUBE 3 METRES
15mm Equal 90 Degree Elbow
22mm Equal 90 Degree Elbow
EQUAL JOINER
15mm x 3 Metres
22mm x 3 Metres
AL-RM1513-3M
AL-RM2220-3M
£18.30
£27.30
PIPE/TUBE CUTTERS
Cutter for Nylon Tube up to 22mm JG-TS
£33.40
Cutter for 15mm Aluminium Tube JG-AL-CUTTER15£41.76
Cutter for 22mm Aluminium Tube JG-AL-CUTTER22£46.24
PLUG
EQUAL TEE PIECE
15mm Equal Tee
22mm Equal Tee
PM0215E
PM0222E
£3.09
£4.68
15mm End Plug
22mm End Plug
STRAIGHT MALE STUD, NYLON
EQUAL WATER TRAP TEE
22mm Water Trap Tee
42
PMTT22E
£8.62
All prices are List and exclude VAT.
DescriptionPart No.
Price
DescriptionPart No.
Price
METRO SPEEDFIT
WINGBACK ELBOW BRASS BSPP
ZONE B
15mm - 1/2" Single Wall Outlet
22mm - 3/4" Single Wall Outlet
£14.33
£16.82
PM15WB
PM22WB
UNIVERSAL AIR DISTRIBUTION BLOCKS
MALE STEM ADAPTOR BRASS BSPT
ZONE B
1/2" BSPT - 15mm Stem, Brass 3/4" BSPT - 22mm Stem, Brass
£6.72
£9.45
MM051504N
MM052206N
FEMALE STEM ADAPTOR BRASS BSPP
1 x 1/2" inlet 1 x 3/8" outlet
BLOCK 1
£7.50
1/2" inlet x 1 x 1/2" outlet block BLOCK 2
1 X 3/4" Inlet 1 x 1/2" Wall Outlet BLOCK 3
£12.20
£13.25
1/2" in, 4 x 1/2" Out
3/4" in, 4 x 1/2" Out
£21.75
£21.75
BLOCK 4
BLOCK 5
1/2" BSPP - 15mm Stem, Brass
3/4" BSPP - 22mm Stem, Brass
MM501514N £6.38
MM502216N £10.61
MALE STEM ADAPTOR, NYLON
1/2" BSPP - 15mm Stem, Nylon
1/2" BSPP - 22mm Stem, Nylon 3/4" BSPP - 22mm Stem, Nylon
PM0551514E
PM052214E
PM052216E
£1.62
£1.93
£2.30
TUBE CLIPS & SPACERS
1/2" in, 3 x 1/2" Out
3/4" in, 3 x 1/2" Out
BLOCK 6
BLOCK 7
£20.50
£20.50
1/2" BSPP Allen Key Plug
CAP21
£2.20
1/4" BSPT Male Manual Drain
MCD14
Above can be used with Blocks 2, 3 4, 5, 6 & 7
£3.30
15mm Tube ClipPC15E£0.23
22mm Tube ClipPC22E£0.23
Wall Spacer for above
PCSE
£0.17
All prices are List and exclude VAT.
43
MET0115
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
