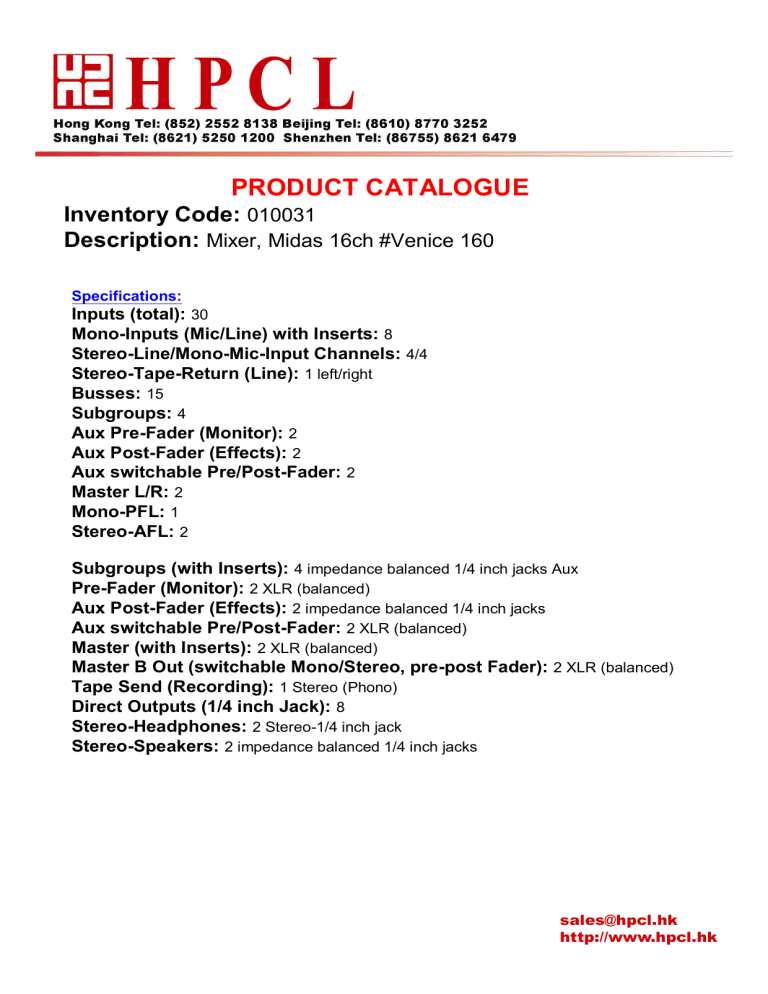

PRODUCT CATALOGUE
PRODUCT CATALOGUE
Inventory Code: 010031
Description: Mixer, Midas 16ch #Venice 160
Specifications:
Inputs (total): 30
Mono-Inputs (Mic/Line) with Inserts: 8
Stereo-Line/Mono-Mic-Input Channels: 4/4
Stereo-Tape-Return (Line): 1 left/right
Busses: 15
Subgroups: 4
Aux Pre-Fader (Monitor): 2
Aux Post-Fader (Effects): 2
Aux switchable Pre/Post-Fader: 2
Master L/R: 2
Mono-PFL: 1
Stereo-AFL: 2
Subgroups (with Inserts): 4 impedance balanced 1/4 inch jacks Aux
Pre-Fader (Monitor): 2 XLR (balanced)
Aux Post-Fader (Effects): 2 impedance balanced 1/4 inch jacks
Aux switchable Pre/Post-Fader: 2 XLR (balanced)
Master (with Inserts): 2 XLR (balanced)
Master B Out (switchable Mono/Stereo, pre-post Fader): 2 XLR (balanced)
Tape Send (Recording): 1 Stereo (Phono)
Direct Outputs (1/4 inch Jack): 8
Stereo-Headphones: 2 Stereo-1/4 inch jack
Stereo-Speakers: 2 impedance balanced 1/4 inch jacks
Technical Specifications
Input Impedance:
Mic: 2k Balanced
Line: 20k Balanced
General
Power Consumption:
110 ~ 240V, 50/60Hz ,75W
Dimensions (W x D x H):
490mm x 568mm x 194mm
Weight:
16.4kg
