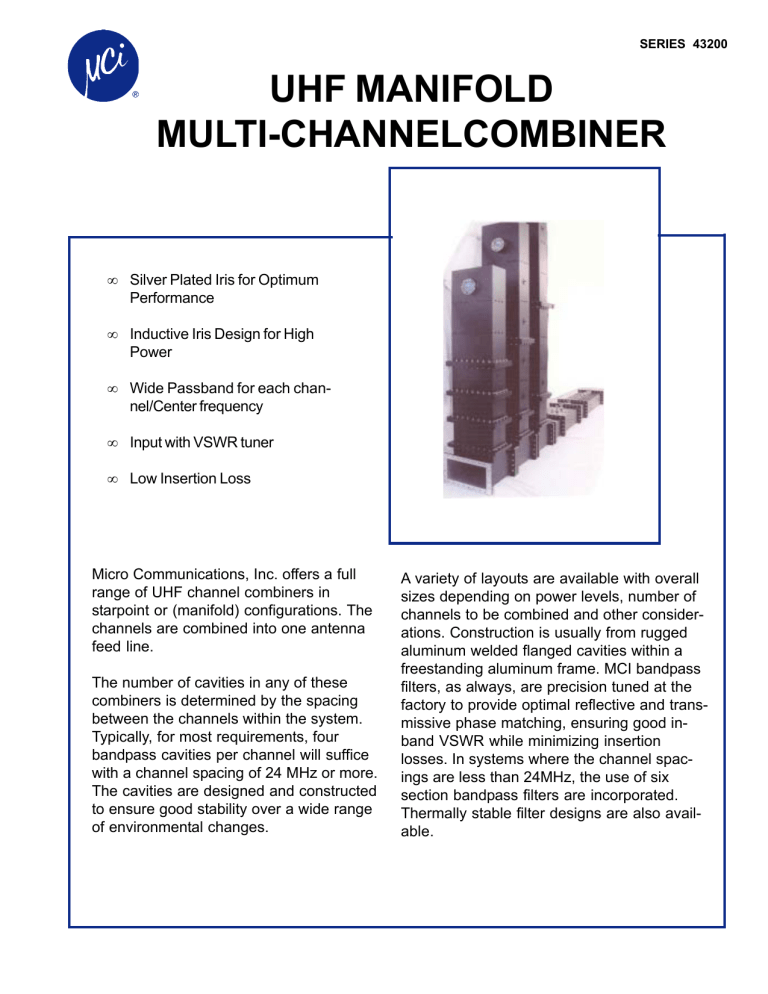

SERIES 43200
UHF MANIFOLD
MULTI-CHANNELCOMBINER
•
Silver Plated Iris for Optimum
Performance
•
Inductive Iris Design for High
Power
•
Wide Passband for each channel/Center frequency
•
Input with VSWR tuner
•
Low Insertion Loss
Micro Communications, Inc. offers a full
range of UHF channel combiners in
starpoint or (manifold) configurations. The
channels are combined into one antenna
feed line.
The number of cavities in any of these
combiners is determined by the spacing
between the channels within the system.
Typically, for most requirements, four
bandpass cavities per channel will suffice
with a channel spacing of 24 MHz or more.
The cavities are designed and constructed
to ensure good stability over a wide range
of environmental changes.
A variety of layouts are available with overall
sizes depending on power levels, number of
channels to be combined and other considerations. Construction is usually from rugged
aluminum welded flanged cavities within a
freestanding aluminum frame. MCI bandpass
filters, as always, are precision tuned at the
factory to provide optimal reflective and transmissive phase matching, ensuring good inband VSWR while minimizing insertion
losses. In systems where the channel spacings are less than 24MHz, the use of six
section bandpass filters are incorporated.
Thermally stable filter designs are also available.
SERIES 43200
UHF MANIFOLD MULTI-CHANNEL COMBINER
SPECIFICATIONS
(2 channel spacing)
VSWR : < 1.08:1
Isolation : > 60 dB
(channel to channel)
Channel Loss : < 0.30 dB @ Fc
Group Delay: < +/- 50 ns
SPECIFICATIONS
(1 channel spacing)
VSWR: < 1.08:1
Isolation : > 40 dB
(channel to channel)
Channel Loss: < 0.45 dB @ Fc
Group Delay: < +/- 150 ns
All specifications are subject to change without notice
Micro Communications, Inc. 15 Caron Street Merrimack, NH USA 03054
Tel: 603-429-0800 Toll-free: 800-545-0608 Fax: 603-426-1633 Web: www.mcibroadcast.com
Email: [email protected]
8/2006
