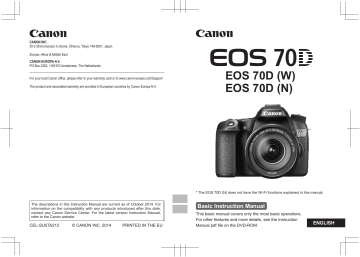

Canon EOS 70D Instruction manual

Canon EOS 70D Instruction manual

CANON INC.

30-2 Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Europe, Africa & Middle East

CANON EUROPA N.V.

PO Box 2262, 1180 EG Amstelveen, The Netherlands

For your local Canon office, please refer to your warranty card or to www.canon-europe.com/Support

The product and associated warranty are provided in European countries by Canon Europa N.V.

EOS 70D (W)

EOS 70D (N)

The descriptions in this Instruction Manual are current as of October 2014. For information on the compatibility with any products introduced after this date, contact any Canon Service Center. For the latest version Instruction Manual, refer to the Canon website.

CEL-SU5TA212 © CANON INC. 2014 PRINTED IN THE EU

* The EOS 70D (N) does not have the Wi-Fi functions explained in this manual.

Basic Instruction Manual

This basic manual covers only the most basic operations.

For other features and more details, see the Instruction

Manual pdf file on the DVD-ROM.

ENGLISH

Introduction

The EOS 70D (W/N) is a digital single-lens reflex camera featuring a fine-detail CMOS sensor with approx. 20.2 effective megapixels, DIGIC

5+, high-precision and high-speed 19-point AF (all cross-type focusing), approx. 7.0 fps continuous shooting, Live View shooting, Full High-

Definition (Full HD) movie shooting, and Wi-Fi function*.

* The EOS 70D (N) does not have the Wi-Fi function.

Before Starting to Shoot, Be Sure to Read the Following

To avoid botched pictures and accidents, first read the “Safety

Precautions” (p.160-162) and “Handling Precautions” (p.14-15).

Refer to This Manual while Using the Camera to Further

Familiarize Yourself with the Camera

While reading this manual, take a few test shots and see how they come out. You can then better understand the camera.

Testing the Camera Before Use and Liability

After shooting, play images back and check whether they have been properly recorded. If the camera or memory card is faulty and the images cannot be recorded or downloaded to a computer, Canon cannot be held liable for any loss or inconvenience caused.

Copyrights

Copyright laws in your country may prohibit the use of your recorded images or copyrighted music and images with music in the memory card for anything other than private enjoyment. Also be aware that certain public performances, exhibitions, etc., may prohibit photography even for private enjoyment.

2

Compatible Cards

The camera can use the following cards regardless of capacity:

• SD memory cards

• SDHC memory cards*

• SDXC memory cards*

* UHS-I cards supported.

Cards that Can Record Movies

When shooting movies, use a large-capacity card with a fast reading/ writing speed as shown in the table.

Compression Method (p.137)

IPB

ALL-I (I-only)

Card

6 MB/sec. or faster

20 MB/sec. or faster

If you use a slow-writing card when shooting movies, the movie may not be recorded properly. Also, if you play back a movie on a card with a slow reading speed, the movie may not play back properly.

If you want to shoot still photos while shooting a movie, you will need an even faster card.

To check the card’s reading/writing speed, refer to the card manufacturer’s website.

In this manual, “card” refers to SD memory cards, SDHC memory cards, and SDXC memory cards.

* The camera does not come with a card for recording images/

movies. Please purchase it separately.

3

Item Check List

Before starting, check that all the following items have been included with your camera. If anything is missing, contact your dealer.

Camera

(with body cap)

Battery Pack

LP-E6

(with protective cover)

Battery Charger

LC-E6/LC-E6E*

Wide Strap

Interface Cable

* Battery Charger LC-E6 or LC-E6E is provided. (The LC-E6E comes with a power cord.)

The Instruction Manuals and DVD/CD-ROMs provided are listed on the next page.

If you purchased a Lens Kit, check that the lenses are included.

Depending on the Lens Kit type, a lens instruction manual may also be included.

Be careful not to lose any of the above items.

4

Instruction Manuals and DVD/CD-ROMs

The instruction manual consists of booklets and electronic manuals

(PDF files on the DVD-ROM). Basic operations are explained in the

booklets. For detailed instructions on all functions and operations, see the detailed version manuals on the DVD-ROM.

Basic Instruction

Manual

(this booklet)

Wi-Fi Function

Instruction Manual*

(Basic)

* Not provided with the EOS 70D (N).

The Basic Instruction Manual explains the basic procedures and features.

For detailed instructions, see the EOS Camera Instruction Manuals Disk

(DVD-ROM).

EOS Camera Instruction Manuals Disk XXX

CEL-XXX XXX

XXXXX

XXXXX

XXXXX

XXXXX

XXXXX

ANON INC. 20XX. Made in the EU.

EOS Solution Disk XXX

CEL-XXX XXX

XXXXX

XXXXX

XXXXX

XXXXX

XXXXX

Windows XXX XXX

Mac OS X XXX XXX

© C EU

ANON INC. 20XX. Made in the

EOS Camera Instruction Manuals Disk (DVD-ROM)

Contains the following manuals in PDF:

• Instruction Manual (Detailed version)

• Wi-Fi Function Instruction Manual (Detailed version)

• Software Instruction Manuals for the software on the

EOS Solution Disk

Instructions for viewing the Instruction Manuals on the

DVD-ROM are on pages 151-152.

EOS Solution Disk (CD-ROM)

Contains various software. For outlines and installation procedure of the software, see pages 155-158.

5

6

Quick Start Guide

1

Insert the battery

(p.26)

.

To charge the battery, see page 24.

2

3

White index

Insert a card

(p.27)

.

With the card’s label facing toward the back of the camera, insert it into the card slot.

Red index

Attach the lens

(p.36)

.

Align the lens’ white or red mount index with the camera’s mount index of the same color.

4

Set the lens focus mode switch

to <f>

(p.36)

.

5

Set the power switch to <1>,

then set the Mode Dial to <A>

(Scene Intelligent Auto)

(p.66)

.

Turn the Mode Dial while holding down the lock release button at the center.

All the necessary camera settings will be set automatically.

6

7

8

Quick Start Guide

Flip out the LCD monitor

(p.30)

.

When the LCD monitor displays the date/time/zone setting screens, see page 33.

Focus the subject

(p.41)

.

Look through the viewfinder and aim the viewfinder center over the subject.

Press the shutter button halfway.

The camera will focus the subject.

If necessary, the built-in flash will be raised.

Take the picture

(p.41)

.

Press the shutter button completely to take the picture.

9

Review the picture

(p.56)

.

The captured image will be displayed for 2 sec. on the LCD monitor.

To display the image again, press the <x> button (p.140).

To shoot while looking at the LCD monitor, see “Live View

Shooting” (p.119).

To view the images captured so far, see “Image Playback” (p.140).

To delete an image, see “Erasing Images” (p.147).

7

Conventions Used in this Manual

Icons in this Manual

<6>

<5>

: Indicates the Main Dial.

: Indicates the Quick Control Dial.

<9> <V> <U> : Indicates the Multi-controller and the push direction.

<0> : Indicates the Setting button.

0

, 9, 7, 8 : Indicates that the corresponding function remains active for 4 sec., 6 sec., 10 sec., or 16 sec. respectively after you let go of the button.

* In this manual, the icons and markings indicating the camera’s buttons, dials, and settings correspond to the icons and markings on the camera and on the

LCD monitor.

3

: Indicates a function that can be changed by pressing the

<M> button and changing the setting.

M

: When shown on the upper right of a page, it indicates that the function is available only in the Creative Zone modes

(p.20).

(p.**) : Reference page numbers for more information.

: Warning to prevent shooting problems.

: Supplemental information.

: Tips or advice for better shooting.

: Problem-solving advice.

Basic Assumptions

All operations explained in this manual assume that the power switch is set to <1> and the <R> switch is set down (Multi function lock released) (p.31, 44).

It is assumed that all the menu settings and Custom Functions are set to their defaults.

The illustrations in this manual show the camera attached with the

EF-S 18-135mm f/3.5-5.6 IS STM lens as an example.

8

Chapters

For first-time DSLR users, Chapters 1 and 2 explain the camera’s basic operations and shooting procedures.

Introduction

2

1

Getting Started

2

Basic Shooting

3

Setting the AF and Drive Modes

4

Image Settings

5

Advanced Operations

6

Shooting with the LCD Monitor

(Live View Shooting)

7

Shooting Movies

8

Image Playback

9

Viewing the DVD-ROM Instruction Manuals /

Downloading Images to Your Computer

23

65

87

97

109

119

133

139

149

9

Contents

1

Introduction 2

Compatible Cards............................................................................. 3

Item Check List................................................................................. 4

Instruction Manuals and DVD/CD-ROMs ......................................... 5

Quick Start Guide ............................................................................. 6

Conventions Used in this Manual..................................................... 8

Chapters........................................................................................... 9

Handling Precautions ..................................................................... 14

Nomenclature ................................................................................. 16

Getting Started 23

Charging the Battery ...................................................................... 24

Installing and Removing the Battery............................................... 26

Installing and Removing the Card .................................................. 27

Using the LCD Monitor ................................................................... 30

Turning on the Power ..................................................................... 31

Setting the Date, Time, and Zone .................................................. 33

Selecting the Interface Language................................................... 35

Attaching and Detaching a Lens .................................................... 36

Lens Image Stabilizer..................................................................... 39

Basic Operation.............................................................................. 40

Q

Quick Control for Shooting Functions ....................................... 46

3

Menu Operations.................................................................. 48 d

Using the Touch Screen............................................................. 50

Before You Start............................................................................. 53

Displaying the Grid ......................................................................... 58

Q

Displaying the Electronic Level............................................... 59

Feature Guide and Help ................................................................. 63

10

Contents

2

Basic Shooting 65

A

Fully Automatic Shooting (Scene Intelligent Auto) ...................66

A

Full Auto Techniques (Scene Intelligent Auto) .........................69

7

Disabling Flash .........................................................................71

C

Creative Auto Shooting.............................................................72

8

: Special Scene Mode .............................................................75

2

Shooting Portraits ......................................................................76

3

Shooting Landscapes ...............................................................77

4

Shooting Close-ups....................................................................78

5

Shooting Moving Subjects ........................................................79

6

Shooting Night Portraits (With a Tripod) ....................................80

F

Shooting Night Scenes (Handheld)............................................81

G

Shooting Backlit Scenes............................................................82

Q

Quick Control.............................................................................84

3

Setting the AF and Drive Modes 87

f

: Selecting the AF Operation .....................................................88

S

Selecting the AF Area...............................................................91

MF: Manual Focus ..........................................................................94

i

Selecting the Drive Mode..........................................................95

j

Using the Self-timer ...................................................................96

11

Contents

4

Image Settings 97

Setting the Image-Recording Quality ............................................. 98 i

: Setting the ISO Speed ......................................................... 100

A

Selecting a Picture Style ...................................................... 101

Setting the White Balance ............................................................ 102

Auto Correction of Brightness and Contrast................................. 103

Setting Noise Reduction............................................................... 104

Highlight Tone Priority .................................................................. 106

Lens Peripheral Illumination / Chromatic Aberration Correction .. 107

5

Advanced Operations 109

d

: Program AE ............................................................................ 110 s

: Shutter-Priority AE................................................................ 111 f

: Aperture-Priority AE ............................................................. 112 a

: Manual Exposure ................................................................... 113

Setting Exposure Compensation.................................................. 114 h

Auto Exposure Bracketing (AEB)........................................... 115

A

AE Lock................................................................................... 116

D

Using the Built-in Flash............................................................. 117

6

Shooting with the LCD Monitor

(Live View Shooting)

119

A

Shooting with the LCD Monitor .............................................. 120

Using AF to Focus (AF Method)................................................... 123 x

Shooting with the Touch Shutter ............................................ 129

MF: Focusing Manually ................................................................ 130

12

Contents

7

Shooting Movies 133

k

Shooting Movies .....................................................................134

Setting the Movie Recording Size.................................................137

8

Image Playback 139

x

Image Playback ......................................................................140

H

Searching for Images Quickly .................................................141

u

/y Magnified View ...................................................................142

d

Playing Back with the Touch Screen ........................................143

k

Playing Movies........................................................................145

L

Erasing Images ........................................................................147

9

Viewing the DVD-ROM Instruction Manuals /

Downloading Images to Your Computer 149

Viewing the EOS Camera Instruction Manuals Disk (DVD-ROM) .....150

Downloading Images to a Computer.............................................153

About the Software .......................................................................155

Installing the Software...................................................................157

Safety Precautions........................................................................16

0

Certification Logo

Select [54: Certification Logo Display] and press <0> to display some of the logos of the camera’s certifications. Other certification logos can be found in this Instruction Manual, on the camera body, and on the camera’s package.

13

Handling Precautions

Camera Care

This camera is a precision instrument. Do not drop it or subject it to physical shock.

The camera is not waterproof and cannot be used underwater. If you accidentally drop the camera into water, promptly consult the nearest Canon

Service Center. Wipe off any water droplets with a dry and clean cloth. If the camera has been exposed to salty air, wipe it with a well-wrung wet cloth.

Never leave the camera near anything having a strong magnetic field such as a magnet or electric motor. Also avoid using or leaving the camera near anything emitting strong radio waves, such as a large antenna. Strong magnetic fields can cause camera misoperation or destroy image data.

Do not leave the camera in excessive heat, such as in a car in direct sunlight. High temperatures can cause the camera to malfunction.

The camera contains precision electronic circuitry. Never attempt to disassemble the camera yourself.

Do not block the mirror operation with your finger, etc. Doing so may cause a malfunction.

Use a blower to blow away dust on the lens, viewfinder, reflex mirror, and focusing screen. Do not use cleaners that contain organic solvents to clean the camera body or lens. For stubborn dirt, take the camera to the nearest

Canon Service Center.

Do not touch the camera’s electrical contacts with your fingers. This is to prevent the contacts from corroding. Corroded contacts can cause camera misoperation.

If the camera is suddenly brought in from the cold into a warm room, condensation may form on the camera and internal parts. To prevent condensation, first put the camera in a sealed plastic bag and let it adjust to the warmer temperature before taking it out of the bag.

If condensation forms on the camera, do not use the camera. This is to avoid damaging the camera. If there is condensation, remove the lens, card and battery from the camera, and wait until condensation has evaporated before using the camera.

If the camera will not be used for an extended period, remove the battery and store the camera in a cool, dry, well-ventilated location. Even while the camera is in storage, press the shutter button a few times once in a while to check that the camera is still working.

Avoid storing the camera where there are chemicals that result in rust and corrosion such as in a chemical lab.

14

Handling Precautions

If the camera has not been used for an extended period, test all its functions before using it. If you have not used the camera for some time or if there is an important shoot such as a foreign trip coming up, have the camera checked by your Canon dealer or check the camera yourself and make sure it is working properly.

If you use continuous shooting, Live View shooting, or movie shooting for a prolonged period, the camera may become hot. This is not a malfunction.

LCD Panel and LCD Monitor

Although the LCD monitor is manufactured with very high precision technology with over 99.99% effective pixels, there may be a few dead pixels displaying only black or red, etc. among the remaining 0.01% or less pixels.

Dead pixels are not a malfunction. They do not affect the images recorded.

If the LCD monitor is left on for a prolonged period, screen burn-in may occur where you see remnants of what was displayed. However, this is only temporary and will disappear when the camera is left unused for a few days.

The LCD monitor display may seem slow in low temperatures, or look black in high temperatures. It will return to normal at room temperature.

Cards

To protect the card and its recorded data, note the following:

Do not drop, bend, or wet the card. Do not subject it to excessive force, physical shock, or vibration.

Do not touch the card’s electronic contacts with your fingers or anything metallic.

Do not affix any stickers, etc., on the card.

Do not store or use the card near anything having a strong magnetic field, such as a TV set, speakers, or magnet. Also avoid places prone to having static electricity.

Do not leave the card in direct sunlight or near a heat source.

Store the card in a case.

Do not store the card in hot, dusty, or humid locations.

Lens

After detaching the lens from the camera, put down the lens with the rear end up and attach the lens caps to avoid scratching the lens surface and electrical contacts.

Contacts

15

Nomenclature

LCD panel (p.18)

< i> ISO speed setting button (p.100)

<q> Metering mode selection button

<

B> AF area selection mode button

(p.92)

<

6> Main Dial

(p.42)

<

U> LCD panel illumination button

(p.45)

Shutter button

(p.41)

Red-eye reduction/

Self-timer lamp

(p.96)

Remote control sensor

Grip

(Battery compartment)

DC coupler cord hole

Depth-of-field preview button

Mirror

<

R> Drive mode selection button (p.95)

< f> AF mode selection button (p.88)

EF lens mount index (p.36)

Built-in flash/AF-assist beam (p.117)

EF-S lens mount index (p.36)

Flash sync contacts

Hot shoe

<

D> Flash button (p.117)

Microphone

Mode Dial lock-release button (p.42)

Mode Dial (p.20)

Strap mount

(p.23)

Lens lock pin

Lens mount

Contacts (p.15)

Speaker

(p.145)

Lens release button (p.37)

<

Y> External microphone IN terminal

<

F> Remote control terminal

<

D>

HDMI mini OUT terminal

< q/C>

Audio/video OUT/Digital terminal

(p.153)

16

Body cap (p.36)

<

V

> Focal plane mark

<

A/k> Live View shooting/

Movie shooting switch (p.119/133)

<

0> Start/Stop button (p.120, 134)

Dioptric adjustment knob

Eyecup

Viewfinder eyepiece

Power switch (p.31)

<

M

> Menu button (p.48)

<

B

>

Info button

(p.45, 59, 64,

122, 136, 140)

<

<

< p

A y

> AF start button

(p.41, 88)

Nomenclature

> AE lock/FE lock button/

> Index/Reduce button

(p.116/141, 142)

< S > AF point selection/

< u

> Magnify button

(p.93/142)

Access lamp (p.29)

Strap mount

(p.23)

LCD monitor (p.48)

Tripod socket

<

Q

> Quick Control button (p.46)

< x

> Playback button (p.140)

<

9

> <

V

> <

U

> Multi-controller (p.44)

<

L

> Erase button (p.147)

Card slot (p.27)

Card slot cover (p.27)

Battery compartment cover release lever (p.26)

Battery compartment cover (p.26)

<

5> Quick Control Dial (p.43)

Multi function lock switch (p.44)

<

0

> Setting button (p.48)

17

Nomenclature

LCD panel

Drive mode (p.95) u shooting o

High-speed continuous shooting i Low-speed continuous shooting

B

Silent single shooting

M

Silent continuous shooting

Q

Self-timer: 10 sec./remote control k

Self-timer: 2 sec./remote control

<

A

> Highlight tone priority (p.106)

< g

> ISO speed (p.100)

ISO speed (p.100)

Possible shots

Self-timer countdown

Bulb exposure time

Error number/Error code ( Err)

Remaining images to record

AF operation (p.88)

X

One-Shot AF

9

AI Focus AF

Z

AI Servo AF

4 L

Manual focus

Metering mode q

Evaluative metering w

Partial metering r

Spot metering e

Center-weighted

<

M

>

Multi Shot

Noise Reduction

(p.104)

< w

>

HDR shooting

Wi-Fi function*

< k/l

>

1 2

Battery check (p.32)

<

P

> Multiple-exposure

shooting

<h> AEB (p.115)

Shutter speed

FE lock ( FEL)

Busy ( buSY)

Built-in flash recycling ( buSY)

Multi function lock warning ( L)

No card warning ( Card)

Card full warning (

FuLL

)

Error code ( Err)

Cleaning image sensor ( CLn)

Exposure level indicator

Exposure compensation amount

(p.114)

AEB range (p.115)

Aperture

AF point selection

(

- -

-

AF, SEL [ ], SEL AF)

* The EOS 70D (N) does not have the Wi-Fi function (Not Displayed).

* The display will show only the settings currently applied.

18

Viewfinder Information

Spot metering circle

Single-point AF (Manual selection)

(p.91)

Zone AF points (p.91)

Focusing screen

Nomenclature

Zone AF (Manual zone selection) (p.91)

19-point automatic selection AF (p.91)

AF points (p.91)

Grid (p.58)

Electronic level

(p.60)

< z

>

Battery check

(p.32)

Warning symbol

< g

> ISO speed

(p.100)

< o

> Focus confirmation

<

A

> AE lock (p.116) /

(p.115)

<

D

> Flash-ready (p.117)

Improper FE lock

warning

< d

> FE lock /

< e

> High-speed sync

< y

> Flash exposure

compensation

Max. burst

Number of remaining multiple exposures

ISO speed (p.100)

<

A

> Highlight tone priority (p.106)

Exposure level indicator

Exposure compensation amount (p.114)

AEB range (p.115)

Red-eye reduction lamp-on indicator

Shutter speed (p.111)

FE lock ( FEL)

Busy ( buSY)

Built-in flash recycling ( buSY)

Multi function lock warning ( L)

No card/card error warning (

Card

)

Card full warning (

FuLL

)

AF point selection

(

-

- -

AF, SEL [ ], SEL AF)

Aperture (p.112)

Error code ( Err)

The display will show only the settings currently applied.

19

Nomenclature

Mode Dial

Turn the Mode Dial while holding down the Mode Dial center (Mode Dial lock release button).

Creative Zone

These modes give you more control for shooting various subjects.

d

: Program AE (p.110) s

: Shutter-priority AE (p.111) f

: Aperture-priority AE (p.112) a

: Manual exposure (p.113)

F

: Bulb

Custom shooting mode

You can register the shooting mode (d/s/ f

/a/F), AF operation, menu settings, etc., to w and shoot.

Basic Zone

All you do is press the shutter button.

The camera sets everything to suit the subject or scene.

A

: Scene Intelligent Auto (p.66)

7

: Flash Off (p.71)

C

: Creative Auto (p.72)

8

: Special scene (p.75)

2

: Portrait (p.76)

3

: Landscape (p.77)

4

: Close-up (p.78)

5

: Sports (p.79)

6

: Night Portrait (p.80)

F

: Handheld Night Scene (p.81)

G

: HDR Backlight Control (p.82)

20

Nomenclature

Lens

Lens without a distance scale

Focusing ring (p.94, 130)

Hood mount (p.38)

Focus mode switch (p.36)

Zoom position index

Filter thread

(front of lens)

Zoom ring (p.37)

Image Stabilizer switch (p.39)

Lens mount index (p.36)

Contacts (p.15)

21

Nomenclature

Battery Charger LC-E6

Charger for Battery Pack LP-E6/LP-E6N (p.24).

Power plug

Battery pack slot

Charge Lamp

IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS.

DANGER-TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

CAREFULLY FOLLOW THESE INSTRUCTIONS.

For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet, if needed.

Battery Charger LC-E6E

Charger for Battery Pack LP-E6/LP-E6N (p.24).

Power cord

Charge lamp

Battery pack slot

Power cord socket

22

1

Getting Started

This chapter explains preparatory steps before you start shooting and basic camera operations.

Attaching the Strap

Pass the end of the strap through the camera’s strap mount eyelet from the bottom. Then pass it through the strap’s buckle as shown in the illustration. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.

The eyepiece cover is also attached to the strap.

Eyepiece cover

23

Charging the Battery

1

Remove the protective cover.

Detach the protective cover provided with the battery.

LC-E6

LC-E6E

2

Attach the battery.

As shown in the illustration, attach the battery securely to the charger.

To detach the battery, follow the above procedure in reverse.

3

Recharge the battery.

For LC-E6

As shown by the arrow, flip out the battery charger’s prongs and insert the prongs into a power outlet.

For LC-E6E

Connect the power cord to the charger and insert the plug into a power outlet.

X Recharging starts automatically and the charge lamp blinks in orange.

Charge Level

0-49%

50-74%

75% or higher

Fully charged

Color

Orange

Green

Charge Lamp

Display

Blinks once per second

Blinks twice per second

Blinks three times per second

Lights up

It takes approx. 2.5 hours to fully recharge a completely exhausted battery at room temperature (23°C / 73°F). The time required to recharge the battery will vary greatly depending on the ambient temperature and the battery’s remaining capacity.

For safety reasons, recharging in low temperatures (5°C - 10°C /

41°F - 50°F) will take longer (up to approx. 4 hours).

24

Charging the Battery

Tips for Using the Battery and Charger

Upon purchase, the battery is not fully charged.

Charge the battery before use.

Recharge the battery on the day before or on the day it is to be used.

Even during storage, a charged battery will gradually drain and lose its capacity.

After recharging the battery, detach it and disconnect the charger from the power outlet.

You can attach the cover in a different orientation to indicate whether the battery has been recharged or not.

If the battery has been recharged, attach the cover so that the battery-shaped hole < > is aligned over the blue sticker on the battery. If the battery is exhausted, attach the cover in the opposite orientation.

When not using the camera, remove the battery.

If the battery is left in the camera for a prolonged period, a small amount of power current is released, resulting in excess discharge and shorter battery life. Store the battery with the protective cover attached. Storing the battery when it is fully charged may lower the battery’s performance.

The battery charger can also be used in foreign countries.

The battery charger is compatible with a 100 V AC to 240 V AC 50/60 Hz power source. If necessary, attach a commercially-available plug adapter for the respective country or region. Do not attach any portable voltage transformer to the battery charger. Doing so can damage the battery charger.

If the battery becomes exhausted quickly even after being fully charged, the battery has reached the end of its service life.

Check the battery’s recharge performance and purchase a new battery.

After disconnecting the charger’s power plug, do not touch the prongs for approx. 10 sec.

If the battery’s remaining capacity is 94% or higher, the battery will not be recharged.

The charger cannot charge any battery other than Battery Pack LP-E6/LP-E6N.

25

Installing and Removing the Battery

Load a fully charged Battery Pack LP-E6/LP-E6N into the camera. The camera’s viewfinder becomes bright when a battery is installed, and darkens when the battery is removed.

Installing the Battery

1

Open the cover.

Slide the lever as shown by the arrows and open the cover.

2

Insert the battery.

Insert the end with the battery contacts.

Insert the battery until it locks in place.

3

Close the cover.

Press the cover until it snaps shut.

Only Battery Pack LP-E6/LP-E6N can be used.

Removing the Battery

Open the cover and remove the battery.

Press the battery lock lever as shown by the arrow and remove the battery.

To prevent short circuiting of the battery contacts, be sure to attach the provided protective cover (p.24) to the battery.

26

Installing and Removing the Card

The camera can use an SD, SDHC, or SDXC memory card (sold separately). An UHS-I Speed Class SDHC or SDXC memory card can also be used. The captured images are recorded onto the card.

Make sure the card’s write-protect switch is set upward to enable writing/erasing.

Installing the Card

1

Open the cover.

Slide the cover as shown by the arrows to open it.

Write-protect switch

2

Insert the card.

As shown by the illustration, face the card’s label side toward you and insert it until it clicks in place.

Possible shots

3

Close the cover.

Close the cover and slide it in the direction shown by the arrows until it snaps shut.

When you set the power switch to

<1>, the number of possible shots will be displayed on the LCD panel.

27

Installing and Removing the Card

The number of possible shots depends on the remaining capacity of the card, image-recording quality, ISO speed, etc.

Setting [z1: Release shutter without card] to [Disable] will prevent you from forgetting to insert a card.

Removing the Card

Access lamp

1

Open the cover.

Set the power switch to <2>.

Make sure the access lamp is off, then open the cover.

If [Recording...] is displayed, close the cover.

2

Remove the card.

To eject the card, gently push it in and then let go.

Pull the card straight out, then close the cover.

28

Installing and Removing the Card

When the access lamp is lit or blinking, it indicates that images are being written to or read by the card, being erased, or data is being transferred. Do not open the card slot cover during this time. Also, never do any of the following while the access lamp is lit or blinking. Otherwise, it can damage the image data, card, or camera.

• Removing the card.

• Removing the battery.

• Shaking or banging the camera around.

If the card already contains recorded images, the image number may not start from 0001.

If a card-related error message is displayed on the LCD monitor, remove and reinsert the card. If the error persists, use a different card.

If you can transfer all the images on the card to a computer, transfer all the images and then format the card with the camera (p.53). The card may then return to normal.

Do not touch the card’s contacts with your fingers or metal objects.

Multimedia cards (MMC) cannot be used (card error will be displayed).

29

Using the LCD Monitor

After you flip out the LCD monitor, you can set menu functions, use Live

View shooting, shoot movies, and play back images and movies. You can change the direction and angle of the LCD monitor.

1

Flip out the LCD monitor.

180°

90°

175°

2

Rotate the LCD monitor.

When the LCD monitor is swung out, you can rotate it up or down or face it forward toward the subject.

The indicated angles are only approximate.

3

Face it toward you.

Normally, face the LCD monitor toward you.

Be careful not to force and break the hinge when rotating the LCD monitor.

30

When not using the camera, close the LCD monitor with the screen facing inward. This will protect the screen.

During Live View shooting or movie shooting, facing the LCD monitor toward the subject will display a mirror image on the screen.

Turning on the Power

If you turn on the power switch and the date/time/zone setting screen appears, see page 33 to set the date/time/zone.

<1> : The camera turns on.

<2> : The camera is turned off and does not operate. Set to this position when not using the camera.

Automatic Sensor Cleaning

Whenever you set the power switch to <1> or <2>, sensor cleaning will be executed automatically. (A small sound may be heard.) During the sensor cleaning, the LCD monitor will display <f>.

You can still shoot during sensor cleaning by pressing the shutter

If you repeatedly turn the power switch <1>/<2> at a short interval, the <f> icon may not be displayed. This is normal and not a malfunction.

button halfway (p.41) to stop the sensor cleaning and take a picture.

3

Auto Power Off

To save battery power, the camera turns off automatically after 1 minute of non-operation. To turn on the camera again, just press the shutter button halfway (p.41).

You can set the auto power off time with [52: Auto power off]

(p.55).

If you set the power switch to <2> while an image is being recorded to the card, [Recording...] will be displayed and the power will turn off after the card finishes recording the image.

31

Turning on the Power

z

Checking the Battery Level

When the power switch is set to <1>, the battery level will be indicated in one of six levels. A blinking battery icon (b) indicates that the battery will be exhausted soon.

Display

Level (%) 100 - 70 69 - 50 49 - 20 19 - 10 9 - 1 0

Number of Possible Shots

Temperature

Room Temperature

(23°C / 73°F)

Low Temperatures

(0°C / 32°F)

No Flash

50% Flash Use

Approx. 1300 shots

Approx. 920 shots

Approx. 1200 shots

Approx. 850 shots

The figures above are based on a fully-charged Battery Pack LP-E6, no Live View shooting, and CIPA (Camera & Imaging Products Association) testing standards.

Possible shots with Battery Grip BG-E14

• With LP-E6 x 2: approx. twice the shots without the battery grip.

• With size-AA/LR6 alkaline batteries at room temperature (23°C / 73°F): approx. 490 shots with no flash, approx. 320 shots with 50% flash use.

32

The number of possible shots will decrease with any of the following operations:

• Pressing the shutter button halfway for a prolonged period.

• Activating the AF frequently without taking a picture.

• Using the lens Image Stabilizer.

• Using the LCD monitor often.

The number of possible shots may decrease depending on the actual shooting conditions.

The lens operation is powered by the camera’s battery. Depending on the lens used, the number of possible shots may be lower.

For the number of possible shots with Live View shooting, see page 121.

See [54: Battery info.] to check the battery’s condition in detail.

If size-AA/LR6 batteries are used in Battery Grip BG-E14, a four-level indicator will be displayed. ([x/m] will not be displayed.)

3

Setting the Date, Time, and Zone

When you turn on the power for the first time or if the date/time/zone have been reset, the date/time/zone setting screen will appear. Follow the steps below to set the time zone first. If you set the camera to the correct time zone for where you currently live, when you travel to another time zone you can simply set the camera to the correct time zone for your destination to update the camera’s date/time automatically.

Note that the date/time appended to recorded images will be based on this date/time setting. Be sure to set the correct date/time.

1

Display the menu screen.

Press the <M> button to display the menu screen.

2

Under the [52] tab, select [Date/

Time/Zone].

Press the <U> key to select the

[52] tab.

Press the <V> key to select [Date/

Time/Zone], then press <0>.

3

Set the time zone.

[London] is set by default.

Press the <U> key to select the time zone box.

Press <0> so <r> is displayed.

Press the <V> key to select the time zone, then press <0>. (Returns to

<s>.)

The menu setting procedure is explained on pages 48-49.

In step 3, the time displayed on the upper right of the screen is the time difference compared with Coordinated Universal Time (UTC). If you do not see your time zone, set the time zone while referring to the difference with UTC.

33

3

Setting the Date, Time, and Zone

4

Set the date and time.

Press the <U> key to select the number.

Press <0> so <r> is displayed.

Press the <V> key to set the number, then press <0>. (Returns to <s>.)

5

Set the daylight saving time.

Set it if necessary.

Press the <U> key to select [Y].

Press <0> so <r> is displayed.

Press the <V> key to select [Z], then press <0>.

When the daylight saving time is set to [Z], the time set in step 4 will advance by 1 hour. If [Y] is set, the daylight saving time will be canceled and the time will go back by 1 hour.

6

Exit the setting.

Press the <U> key to select [OK], then press <0>.

X The date/time/zone and daylight saving time will be set and the menu will reappear.

If you store the camera without the battery or if the camera’s battery becomes exhausted, the date/time/zone may be reset. If this happens, set the time zone and date/time again.

34

The date/time that was set will start from when you press <0> in step 6.

After changing the time zone, check that the correct date/time has been set.

3

Selecting the Interface Language

1

Display the menu screen.

Press the <M> button to display the menu screen.

2

Under the [52] tab, select

[LanguageK].

Press the <U> key to select the

[52] tab.

Press the <V> key to select

[Language

K

], then press <0>.

3

Set the desired language.

Press the <V> <U> keys to select the language, then press

<0>.

X

The interface language will change.

35

Attaching and Detaching a Lens

The camera is compatible with all Canon EF and EF-S lenses. The

camera cannot be used with EF-M lenses.

Attaching a Lens

1

Remove the caps.

Remove the rear lens cap and the body cap by turning them as shown by the arrows.

White index

2

Attach the lens.

Align the lens’ red or white mount index with the camera’s mount index of the same color. Turn the lens as shown by the arrow until it clicks in place.

Red index

3

Set the lens focus mode switch to

<AF>.

<AF> stands for autofocus.

If it is set to <MF> (manual focus), autofocus will not operate.

4

Remove the front lens cap.

Minimizing Dust

When changing lenses, do it quickly in a place with minimal dust.

When storing the camera without a lens attached, be sure to attach the body cap to the camera.

Remove dust on the body cap before attaching it.

36

Attaching and Detaching a Lens

Zooming

Turn the zoom ring on the lens with your fingers.

If you want to zoom, do it before focusing. Turning the zoom ring after achieving focus may throw off the focus.

Detaching the Lens

While pressing the lens release button, turn the lens as shown by the arrows.

Turn the lens until it stops, then detach it.

Attach the rear lens cap to the detached lens.

To owners of the EF-S 18-200mm f/3.5-5.6 IS lens:

You can prevent the lens from extending out while you are carrying it around. Set the zoom ring to the 18mm wide-angle end, then slide the zoom ring lock lever to <LOCK>. The zoom ring can be locked only at the wide-angle end.

Do not look at the sun directly through any lens. Doing so may cause loss of vision.

When attaching or detaching a lens, set the camera’s power switch to

<2>.

If the front part (focusing ring) of the lens rotates during autofocusing, do not touch the rotating part.

37

Attaching and Detaching a Lens

Image Conversion Factor

Since the image sensor size is smaller than the 35mm film format, it will look like the lens focal length is increased by approx. 1.6x.

Image sensor size (Approx.)

(22.5 x 15.0 mm / 0.88 x 0.59 in.)

35mm image size

(36 x 24 mm / 1.42 x 0.94 in.)

Attaching a Lens Hood

A lens hood can block unwanted light and diminish rain, snow, dust etc. adhering to the front of the lens. Before storing the lens in a bag, etc., you can attach the hood in reverse.

If the Lens and the Lens Hood Have a Mount Index

1

Align the red dots on the hood and lens edges, then turn the hood as shown by the arrow.

2

Turn the hood as shown in the illustration.

Turn the hood clockwise until it attaches securely.

38

If you do not attach the hood properly, it may obstruct the image’s periphery, making it look dark.

When attaching or detaching the hood, grasp the base of the hood when turning it. Grasping the hood’s edges when turning it may deform the hood, resulting in failure to turn.

Lens Image Stabilizer

When you use the IS lens’ built-in Image Stabilizer, camera shake is corrected to obtain a sharper shot. The procedure explained here is based on the EF-S 18-135mm f/3.5-5.6 IS STM lens as an example.

* IS stands for Image Stabilizer.

1

Set the IS switch to <1>.

Also set the camera’s power switch to

<1>.

2

Press the shutter button halfway.

X The Image Stabilizer will operate.

3

Take the picture.

When the picture looks steady in the viewfinder, press the shutter button completely to take the picture.

The Image Stabilizer cannot correct “subject blur”, when the subject moves at the time of exposure.

For bulb exposures, set the IS switch to <2>. If <1> is set, Image

Stabilizer misoperation may occur.

The Image Stabilizer may not be effective for excessive shaking such as on a rocking boat.

The Image Stabilizer can operate with the lens focus mode switch set to either <AF> or <MF>.

When using a tripod, you can still shoot with the IS switch set to <1> with no problem. However, to save battery power, setting the IS switch to

<2> is recommended.

The Image Stabilizer is effective even when the camera is mounted on a monopod.

Some IS lenses enable you to switch the IS mode manually to suit the shooting conditions. However, the following lenses switch the IS mode automatically:

• EF-S 18-55mm f/3.5-5.6 IS STM • EF-S 18-135mm f/3.5-5.6 IS STM

• EF-S 18-200mm f/3.5-5.6 IS

39

Basic Operation

Adjusting the Viewfinder Clarity

Turn the dioptric adjustment knob.

Turn the knob left or right so that the

AF points in the viewfinder look sharp.

If the knob is difficult to turn, remove the eyecup.

If the camera dioptric adjustment still cannot provide a sharp viewfinder image, using E-series Dioptric Adjustment Lenses (sold separately) is recommended.

Holding the Camera

To obtain sharp images, hold the camera still to minimize camera shake.

Horizontal shooting

Vertical shooting

1. Wrap your right hand around the camera grip firmly.

2. Hold the lens bottom with your left hand.

3. Rest your hand’s right index finger lightly on the shutter button.

4. Press your arms and elbows lightly against the front of your body.

5. To maintain a stable stance, place one foot slightly ahead of the other.

6. Press the camera against your face and look through the viewfinder.

40

To shoot while looking at the LCD monitor, see pages 70 and 119.

Basic Operation

Shutter Button

The shutter button has two steps. You can press the shutter button halfway. Then you can further press the shutter button completely.

Pressing halfway

This activates autofocusing and the automatic exposure system that sets the shutter speed and aperture.

The exposure setting (shutter speed and aperture) is displayed in the viewfinder and on the LCD panel (0).

Pressing completely

This releases the shutter and takes the picture.

Preventing Camera Shake

Hand-held camera movement during the moment of exposure is called camera shake. It can cause blurred pictures. To prevent camera shake, note the following:

• Hold and steady the camera as shown on the preceding page.

• Press the shutter button halfway to autofocus, then slowly press the shutter button completely.

In Creative Zone modes, pressing the <p> button is the same as pressing the shutter button halfway.

If you press the shutter button completely without pressing it halfway first, or if you press the shutter button halfway and then press it completely immediately, the camera will take a moment before it takes the picture.

Even during menu display, image playback, or image recording, you can instantly go back to shooting-ready by pressing the shutter button halfway.

41

Basic Operation

Mode Dial

Turn the dial while holding down the lock release button at the center of the dial.

6

Main Dial

(1)

After pressing a button, turn the

<6> dial.

When you press a button such as <f>

<R> <i> <q>, the respective function remains selected for the duration of the timer (9). During this time, you can turn the <6> dial to set the desired setting.

When the function selection ends or if you press the shutter button halfway, the camera will be ready to shoot.

Use this dial to select or set the AF operation, drive mode, ISO speed, metering mode, AF point selection, etc.

(2)

Turn the <6> dial only.

While looking at the viewfinder or LCD panel, turn the <6> dial to set the desired setting.

Use this dial to set the shutter speed, aperture, etc.

42

The operations in (1) are possible even while the <R> switch is set upward (Multi function lock, p.44).

Basic Operation

5

Quick Control Dial

(1)

After pressing a button, turn the

<5> dial.

When you press a button such as <f>

<R> <i> <q>, the respective function remains selected for the duration of the timer (9). During this time, you can turn the <5> dial to set the desired setting.

When the function selection ends or if you press the shutter button halfway, the camera will be ready to shoot.

Use this dial to select or set the AF operation, drive mode, ISO speed, metering mode, AF point selection, etc.

(2)

Turn the <5> dial only.

While looking at the viewfinder or LCD panel, turn the <

5

> dial to set the desired setting.

Use this dial to set the exposure compensation amount, the aperture setting for manual exposures, etc.

The operations in (1) are possible even while the <R> switch is set upward (Multi function lock, p.44).

43

Basic Operation

9

Multi-controller

The Multi-controller <9> has eight keys that tilt in the directions shown by the arrows.

Use the eight keys to select the AF point, correct the white balance, move the AF point or magnifying frame during Live View shooting, scroll around magnified images during playback, etc.

For menus and the Quick Control, the

Multi-controller works only in the vertical and horizontal directions

<V> <U>. It does not work in diagonal directions.

R

Multi function Lock

With [8C.Fn III-2: Multi function lock] set and the <R> switch set upward, it prevents the Main Dial, Quick Control Dial, and Multicontroller from moving and changing a setting inadvertently.

<R> switch set downward:

Lock released

<R> switch set upward:

Lock engaged

44

If the <R> switch is set upward and you try to use one of the locked camera controls, <L> will be displayed in the viewfinder and on the LCD panel. On the shooting function settings display (p.45), [LOCK] will be displayed.

Basic Operation

U

LCD Panel Illumination

Turn on (9)/off the LCD panel illumination by pressing the <U> button.

During a bulb exposure, pressing the shutter button completely will turn off the

LCD panel illumination.

Displaying Shooting Function Settings

After you press the <B> button a number of times, the shooting function settings will be displayed.

With the shooting function settings displayed, you can turn the Mode

Dial to see the settings for each shooting mode.

Pressing the <Q> button enables Quick Control of the shooting function settings (p.46).

Press the <B> button again to turn off the display.

45

Q

Quick Control for Shooting Functions

You can directly select and set the shooting functions displayed on the

LCD monitor. This is called Quick Control.

1

Press the <Q> button.

(7)

X The Quick Control screen will appear.

Basic Zone modes

2

Set the desired functions.

Press the <V> <U> keys to select a function.

X

The setting of the selected function is displayed.

Turn the <6> or <5> dial to change the setting.

Creative Zone modes

3

Take the picture.

Press the shutter button completely to take the picture.

X The captured image will be displayed.

46

For the functions settable in Basic Zone modes and the setting procedure, see page 85.

In steps 1 and 2, you can also use the LCD monitor’s touch screen

(p.50).

Q

Quick Control for Shooting Functions

Settable Functions on Quick Control Screen

Aperture (p.112)

Shutter speed (p.111)

Shooting mode*

1

(p.20)

Exposure compensation/

AEB setting

(p.114/115)

Picture Style (p.101)

AF operation (p.88)

Return

Flash exposure compensation

AE lock*

2

(p.116)

Highlight tone priority*

2

(p.106)

ISO speed (p.100)

Wi-Fi function*

3

Custom Controls

Image-recording quality

(p.98)

White balance (p.102)

AF area selection mode (p.92)

White balance correction

Drive mode (p.95)

Auto Lighting Optimizer (p.103)

Metering mode

White balance bracketing

*1: This function cannot be set with the Quick Control screen when the

Mode Dial is set to other than <8>.

*2: These functions cannot be set with the Quick Control screen.

*3: Refer to the Wi-Fi Function Instruction Manual.

Function Setting Screen

Ð

<0>

Select the desired function and press <0>.

The function’s setting screen will appear.

Turn the <6> or <5> dial or press the

<U> key to change the settings. There are also some functions that are set by pressing the <B>, <B>, or <L> button.

Press <0> to finalize the setting and return to the Quick Control screen.

When you select < > or < >

(p.91) and press the <M> button, the shooting function settings display will reappear.

47

3

Menu Operations

You can set various settings with the menus such as the imagerecording quality, date/time, etc. While looking at the LCD monitor, use the <M> button, <V> <U> keys, and <

0

> button on the camera back.

<M> button

LCD monitor

<0> button

<V> <U> keys

Menus in Basic Zone Modes

* Some menu tabs and menu items are not displayed in Basic Zone modes.

Menus in Creative Zone Modes

3 Playback

A Live View shooting z Shooting

Tab

5 Set-up

8

Custom Functions

9 My Menu

Menu settings

Menu items

48

3

Menu Operations

Menu Setting Procedure

1

2

3

4

5

Display the menu screen.

Press the <M> button to display the menu screen.

Select a tab.

Press the <U> key to select a menu tab.

For example, in this manual, “the [z4] tab” refers to the screen displayed when the fourth z (Shooting) tab from the left [ ] is selected.

Select the desired item.

Press the <V> key to select the item, then press <0>.

Select the setting.

Press the <V> <U> keys to select the desired setting. (Some settings require you to press either the <V>

<U> keys to select them.)

The current setting is indicated in blue.

Adjust the setting.

Press <0> to finalize your changes.

6

Exit the setting.

Press the <M> button to return to the shooting function settings display.

In step 2, you can also turn the <6> dial to select a menu tab. In step

4, you can also turn the <5> dial to select certain settings.

In steps 2 to 5, you can also use the LCD monitor’s touch screen (p.50).

The explanation of menu functions hereinafter assumes that you have pressed the <M> button to display the menu screen.

To cancel the operation, press the <M> button.

49

d

Using the Touch Screen

The LCD monitor is a touch-sensitive panel that you can operate with your fingers.

Tap

Quick Control (Sample display)

Use your finger to tap (touch briefly and then remove your finger from) the

LCD monitor.

By tapping, you can select menus, icons, etc., displayed on the LCD monitor.

When touch-screen operation is possible, a frame will appear around the icon (except on menu screens).

For example, when you tap [Q], the

Quick Control screen appears. By tapping [2], you can return to the preceding screen.

Operations possible by tapping the screen

Setting menu functions after pressing the <M> button

Quick Control

Setting functions after pressing the <f>, <R>, <i>, <q>,

<S>, or <B> button

Touch shutter during Live View shooting

Setting functions during Live View shooting

Setting functions during movie shooting

Playback operations

50

d

Using the Touch Screen

Drag

Menu screen (Sample display)

Slide your finger while touching the

LCD monitor.

Scale display (Sample display)

Operations possible by dragging your finger on the screen

Selecting a menu tab or item after pressing the <M> button

Setting a scale control

Quick Control

Setting functions during Live View shooting

Setting functions during movie shooting

Playback operations

3

Silencing the Beep during Touch Operations

If [z1: Beep] is set to [Touch to ], the beep will not sound during touch operations.

51

d

Using the Touch Screen

3

Touch Control Settings

1

Select [Touch control].

Under the [53] tab, select [Touch

control], then press <0>.

2

Set the touch control setting.

Select the desired setting, then press

<0>.

[Standard] is the normal setting.

[Sensitive] provides a better touch response than [Standard]. Try using both settings and select the one you prefer.

To disable touch-screen operations, select [Disable].

52

Cautions for Touch Screen Operations

Since the LCD monitor is not pressure sensitive, do not use any sharp objects, such as your fingernail or a ballpoint pen, for touch operations.

Do not use wet fingers for touch screen operations.

If the LCD monitor has any moisture or if your fingers are wet, the touch screen may not respond or misoperation may occur. In such a case, turn off the power and wipe the LCD monitor with a cloth.

Do not attach any protective sheet (commercially available) or sticker on the LCD monitor. It may make the touch operation response slow.

If you quickly perform touch operation when [Sensitive] is set, the touch response may be slower.

Before You Start

3

Formatting the Card

If the card is new or was previously formatted by another camera or computer, format the card with the camera.

When the card is formatted, all images and data on the card will be erased. Even protected images will be erased, so make sure there is nothing you need to keep. If necessary, transfer the images and data to a computer, etc., before formatting the card.

1

Select [Format card].

Under the [51] tab, select [Format

card], then press <0>.

2

Format the card.

Select [OK], then press <0>.

X The card will be formatted.

X When the formatting is completed, the menu will reappear.

For low-level formatting, press the

<L> button to append [Low level

format] with a checkmark <X>, then select [OK].

53

Before You Start

Format the card in the following cases:

The card is new.

The card was formatted by a different camera or a computer.

The card is full with images or data.

A card-related error is displayed.

Low-level Formatting

Perform low-level formatting if the card’s recording or reading speed seems slow or if you want to erase all data on the card.

Since low-level formatting will format all recordable sectors on the card, the formatting will take slightly longer than normal formatting.

You can stop the low-level formatting by selecting [Cancel]. Even in this case, normal formatting will be completed and you can use the card as usual.

When the card is formatted or data is erased, only the file management information is changed. The actual data is not completely erased. Be aware of this when selling or discarding the card. When discarding the card, execute low-level formatting or destroy the card physically to prevent the personal data from being leaked.

Before using a new Eye-Fi card, the software on the card must be installed in your computer. Then format the card with the camera.

54

The card capacity displayed on the card format screen may be smaller than the capacity indicated on the card.

This device incorporates exFAT technology licensed from Microsoft.

Before You Start

3

Disabling the Beeper

You can prevent the beeper from sounding when focus is achieved, during self-timer operation, and during touch screen operations.

1

Select [Beep].

Under the [z1] tab, select [Beep], then press <0>.

2

Select [Disable].

Select [Disable], then press <0>.

X The beeper will not sound.

If [Touch to ] is selected, the beeper will be silent for touch screen operations only.

3

Setting the Power-off Time/Auto Power Off

To save battery power, the camera turns off automatically after a set time of idle operation elapses. If you do not want the camera to turn off automatically, set this to [Disable]. After the power turns off, you can turn on the camera again by pressing the shutter button or other buttons.

1

Select [Auto power off].

Under the [52] tab, select [Auto

power off], then press <0>.

2

Set the desired time.

Select the desired setting, then press

<0>.

Even if [Disable] is set, the LCD monitor will turn off automatically after 30 min. to save power. (The camera’s power does not turn off.)

55

Before You Start

3

Setting the Image Review Time

You can set how long the image is displayed on the LCD monitor immediately after capture. To keep the image displayed, set [Hold]. To not have the image displayed, set [Off].

1

Select [Image review].

Under the [z1] tab, select [Image

review], then press <0>.

2

Set the desired time.

Select the desired setting, then press

<0>.

If [Hold] is set, the image will be displayed until the auto power off time elapses.

3

Turning the LCD Monitor Off/On

The shooting function settings screen (p.45) can be set to display or turn off when you press the shutter button halfway.

1

Select [LCD off/on btn].

Under the [52] tab, select [LCD off/

on btn], then press <0>.

2

Set the desired setting.

Select the desired setting, then press

<0>.

[Remains on]: Display remains on even when you press the shutter button halfway. To turn off the display, press the

<B> button.

[Shutter btn.]: When you press the shutter button halfway, the display will turn off. When you let go of the shutter button, the display will turn on.

56

Before You Start

3

Reverting the Camera to the Default SettingsN

The camera’s shooting function settings and menu settings can be reverted to their defaults.

1

Select [Clear all camera settings].

Under the [54] tab, select [Clear all

camera settings], then press <0>.

2

Select [OK].

Select [OK], then press <0>.

57

Displaying the Grid

You can display a grid in the viewfinder to help you straighten or compose the shot.

1

Select [VF grid display].

Under the [z1] tab, select [VF grid

display], then press <0>.

2

Select [Enable].

Select [Enable], then press <0>.

X When you exit the menu, the grid will appear in the viewfinder.

58

Q

Displaying the Electronic Level

You can display the electronic level on the LCD monitor and in the viewfinder to help correct camera tilt. Note that you can check only the horizontal tilt and not the forward/backward tilt.

Displaying the Electronic Level on the LCD Monitor

1

Press the <B> button.

Each time you press the <B> button, the screen display will change.

Display the electronic level.

If the electronic level does not appear, set [53: z button

display options] so that the electronic level can be displayed.

Horizontal level

2

Check the camera’s tilt.

The horizontal tilt is displayed in 1° increments. The tilt scale is marked in

5° increments.

When the red line turns green, it indicates that the tilt is almost corrected.

59

Q

Displaying the Electronic Level

3

Displaying the Electronic Level in the Viewfinder

During Shooting

A simple electronic level using a camera icon can be displayed in the viewfinder at the center bottom. Since this can be displayed while you shoot, you can correct any tilt during handheld shooting.

1

Select [Viewfinder level].

Under the [z1] tab, select

[Viewfinder level], then press <0>.

2

Select [Show].

Select [Show], then press <0>.

Electronic level

3

Press the shutter button halfway.

X The electronic level will appear as shown in the illustration.

Horizontal

Tilt 1°

Tilt 2° or higher

This also works with vertical shooting.

60

Q

Displaying the Electronic Level

3

Displaying the Electronic Level in the Viewfinder

Before ShootingN

The viewfinder can display an electronic level and grid using the AF points. This is convenient to correct any camera tilt before shooting with a tripod.

1

Select Custom Functions III.

Under the [8] tab, select [C.Fn III:

Operation/Others], then press

<0>.

2

Select C.Fn III -4 [Custom

Controls].

Press the <U> key to select [4:

Custom Controls], then press <0>.

3

Select [e].

Select [e: DOF preview button], then press <0>.

4

Select [Q].

Select [Q: VF electronic level], then press <0>.

Press the <M> button to exit the menu.

61

Q

Displaying the Electronic Level

5

Display the electronic level.

Press the Depth-of-field preview button.

X The viewfinder will display an electronic level and grid using the AF points.

6° Over

62

Feature Guide and Help

The Feature guide and Help display information about camera features.

Feature Guide

The Feature guide appears when you change the shooting mode or set a shooting function, Live View shooting, movie shooting, or Quick

Control for playback, and displays a brief description of that mode, function or option. It also displays a description when you select a function or option on the Quick Control screen. When you proceed with the operation, the Feature guide will disappear.

Shooting mode (Sample)

Quick Control (Sample)

Shooting function settings Live View shooting Playback

3

Disabling the Feature Guide

Select [Feature guide].

Under the [53] tab, select [Feature

guide], then press <0>.

Select [Disable], then press <0>.

63

Feature Guide and Help

Help

When [zHelp] is displayed at the bottom of the menu screen, pressing the <B> button displays the function’s description (Help). If the Help fills more than one screen, a scroll bar will appear on the right edge. You can turn the <5> dial or press the <V> key to scroll.

Example: [z4: Long exp. noise reduction]

B

Î

Example: [8C.Fn I-1: Exposure level increments]

B

Î

Scroll bar

Example: [8C.Fn II-1: Tracking sensitivity]

B

Î

64

2

Basic Shooting

This chapter explains how to use the Basic Zone modes on the Mode Dial for best results.

With Basic Zone modes, all you do is point and shoot while the camera sets everything automatically (p.85). Also, to prevent botched pictures due to mistaken operations, advanced shooting function settings cannot be changed.

Basic

Zo ne

When you set the Mode Dial to <8> while the LCD monitor is turned off, press the <Q> button (p.75) or <B> button to check which shooting mode is set before shooting.

65

A

Fully Automatic Shooting (Scene Intelligent Auto)

<A> is a fully automatic mode. The camera analyzes the scene

and sets the optimum settings automatically. It also adjusts focus automatically by detecting whether the subject is still or moving (p.69).

Area AF frame

1

Set the Mode Dial to <A>.

Turn the Mode Dial while holding down the lock release button at the center.

2

Aim the Area AF frame over the subject.

All the AF points will be used to focus, and generally the closest object will be focused.

Aiming the center of the Area AF frame over the subject will make focusing easier.

3

Focus the subject.

Press the shutter button halfway. The lens focusing ring will rotate to focus.

X The AF point(s) that achieve(s) focus will be displayed. At the same time, the beeper will sound and the focus confirmation light <o> in the viewfinder will light up.

X In low light, the AF point(s) will light up briefly in red.

X If necessary, the built-in flash will be raised automatically.

Focus confirmation light

66

A

Fully Automatic Shooting (Scene Intelligent Auto)

4

Take the picture.

Press the shutter button completely to take the picture.

X The captured image will be displayed for 2 sec. on the LCD monitor.

After you finish shooting, push down the built-in flash with your fingers.

The <A> mode makes the colors look more impressive in nature, outdoor, and sunset scenes. If the desired color tone is not obtained, use a Creative

Zone mode and select a Picture Style other than <D> and shoot (p.101).

FAQ

The focus confirmation light <o> blinks and focus is not

achieved.

Aim the Area AF frame over an area with good contrast, then press the shutter button halfway (p.41). If you are too close to the subject, move away and try again.

Multiple AF points light up simultaneously.

Focus has been achieved at all those points. As long as the AF point covering the desired subject lights up, you can take the picture.

The beeper continues to beep softly. (The focus confirmation

light <o> does not light up.)

It indicates that the camera is focusing continuously on a moving subject. (The focus confirmation light <o> does not light up.) You can take sharp pictures of a moving subject.

Note that focus lock (p.69) will not work in this case.

Pressing the shutter button halfway does not focus the subject.

If the focus mode switch on the lens is set to <MF> (manual focus), set it to <AF> (autofocus).

67

A

Fully Automatic Shooting (Scene Intelligent Auto)

The flash fired even though it was daylight.

For a backlit subject, the flash may fire to help lighten the subject’s dark areas. If you do not want the flash to fire, use the Quick Control to set [Flash firing] to [b] (p.84) or set the <7> (Flash Off) mode and shoot (p.71).

The flash fired and the picture came out extremely bright.

Move further from the subject and shoot. When shooting flash photography, if the subject is too close to the camera, the picture may come out extremely bright (overexposure).

In low light, the built-in flash fired a series of flashes.

Pressing the shutter button halfway may trigger the built-in flash to fire a series of flashes to assist autofocusing. This is called the AFassist beam. Its effective range is approx. 4 meters/13.1 feet.

When flash was used, the bottom part of the picture came out unnaturally dark.

The shadow of the lens barrel was captured in the picture because the subject was too close to the camera. Move further from the subject and shoot. If a hood is attached to the lens, remove it before taking the flash picture.

68

A

Full Auto Techniques (Scene Intelligent Auto)

Recomposing the Shot

Depending on the scene, position the subject toward the left or right to create a balanced background and good perspective.

In the <A> mode, while you press the shutter button halfway to focus a still subject, the focus will be locked. You can then recompose the shot and press the shutter button completely to take the picture. This is called “focus lock”. Focus lock is also possible in other Basic Zone modes (except <5>).

Shooting a Moving Subject

In the <A> mode, if the subject moves (distance to camera changes) while or after you focus, AI Servo AF will take effect to focus the subject continuously. (The beeper will continue beeping softly.) As long as you keep aiming the Area AF frame on the subject while pressing the shutter button halfway, the focusing will be continuous. When you want to take the picture, press the shutter button completely.

69

A

Full Auto Techniques (Scene Intelligent Auto)

A

Live View Shooting

You can shoot while viewing the image on the LCD monitor. This is called “Live View shooting”. For details, see page 119.

1

Set the Live View shooting/Movie

shooting switch to <A>.

2

Display the Live View image on the LCD monitor.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

3

Focus the subject.

Press the shutter button halfway to focus.

X

When focus is achieved, the AF point will turn green and the beeper will sound.

4

Take the picture.

Press the shutter button completely.

X The picture will be taken and the captured image is displayed on the LCD monitor.

X After the image review ends, the camera will return to Live View shooting automatically.

Press the <0> button to end the

Live View shooting.

You can also rotate the LCD monitor in different directions (p.30).

70

Normal angle Low angle High angle

7

Disabling Flash

<7> is a fully-automatic shooting mode that does not use flash. It is useful in museums, aquariums, and other places where flash is prohibited. This mode is also effective for capturing the particular ambience of a scene, such as candlelight scenes.

Shooting Tips

Prevent camera shake if the numeric display in the viewfinder blinks.

Under low light when camera shake is prone to occur, the viewfinder’s shutter speed display will blink. Hold the camera steady or use a tripod. When using a zoom lens, use the wide-angle end to reduce blur caused by camera shake even while handholding the camera.

Take portraits without flash.

In low-light conditions, tell the subject to keep still until the picture is taken. Any movement by the subject during shooting may result in the subject being blurred in the picture.

71

C

Creative Auto Shooting

In the <C> mode, you can easily blur the background and change the drive mode and flash firing. You can also choose the ambience you want to convey in your images. The default settings are the same as the

<A> mode.

* CA stands for Creative Auto.

1

Set the Mode Dial to <C>.

2

Press the <Q> button.

(7)

X The Quick Control screen will appear.

3

Set the desired function.

Press the <V> <U> keys to select a function.

X The selected function and Feature guide (p.63) will appear.

For the setting procedure and details on each function, see pages 73-74.

4

Take the picture.

Press the shutter button completely to take the picture.

72

C

Creative Auto Shooting

Shutter speed

Aperture

ISO speed

(3)

(1)

(2)

(4)

Battery check

Image-recording quality

Possible shots

Pressing the <Q> button enables you to set the following:

(1) Ambience-based shots

You can choose the ambience you want to convey in your images.

Turn the <6> or <5> dial to select the desired ambience. You can also select it from a list by pressing <0>.

(2) Blurring/sharpening the background

If you move the index mark toward the left, the background will look more blurred. If you move it toward the right, the background will look more in focus. Set it by pressing the <U> key. You can also turn the <6> or <5> dial to move the mark. If you want to blur the background, see “Shooting Portraits” on page 76.

Depending on the lens and shooting conditions, the background may not look so blurred. This function cannot be set (grayed out) while the built-in flash is raised in the <a> or <D> mode. If flash is used, this setting will not be applied.

73

C

Creative Auto Shooting

(3) Drive mode: Turn the <6> or <5> dial to select the desired drive mode. You can also select it from a list by pressing <0>.

<u> Single shooting:

Shoot one image at a time.

<o> High-speed continuous shooting:

While you hold down the shutter button completely, shots will be taken continuously. You can shoot up to approx. 7.0 shots per second.

<i> Low-speed continuous shooting:

While you hold down the shutter button completely, shots will be taken continuously. You can shoot up to approx. 3.0 shots per second.

<B> Silent single shooting:

Single shooting with less shooting sound than <u>.

<M> Silent continuous shooting:

Continuous shooting (max. approx. 3.0 shots per second) with less shooting sound than <i>.

< > Self-timer: 10 sec./remote control:

< > Self-timer: 2 sec./remote control:

The picture is taken 10 seconds or 2 seconds after you press the shutter button. A remote controller can also be used.

(4) Flash firing: Turn the <6> or <5> dial to select the desired setting. You can also select it from a list by pressing <0>.

<a> Auto flash : The flash fires automatically when necessary.

<I>

Flash on

: The flash fires at all times.

<b>

Flash off

: The flash is disabled.

74

8

: Special Scene Mode

The camera will automatically choose the appropriate settings when you select a shooting mode for your subject or scene.

1

Set the Mode Dial to <8>.

2

Press the <Q> button.

(7)

X The Quick Control screen will appear.

3

Select a shooting mode.

Press the <V> <U> keys to select a shooting mode icon.

Turn the <6> or <5> dial to select a shooting mode.

You can also select the shooting mode icon and press <0> to display a list of shooting modes from which you can select one.

Available Shooting Modes in the <8> Mode

Shooting Mode

2

Portrait

3

Landscape

4

Close-up

5

Sports

Page

p.76

p.77

p.78

p.79

Shooting Mode

6

Night Portrait

F

Handheld Night Scene

G

HDR Backlight Control

Page

p.80

p.81

p.82

75

2

Shooting Portraits

The <2> (Portrait) mode blurs the background to make the human subject stand out. It also makes skin tones and hair look softer.

Shooting Tips

The further the distance between the subject and background, the better.

The further the distance between the subject and background, the more blurred the background will look. The subject will also stand out better against an uncluttered dark background.

Use a telephoto lens.

If you have a zoom lens, use the telephoto end to fill the frame with the subject from the waist up. Move in closer if necessary.

Focus the face.

Check that the AF point covering the face flashes. For close-ups of the face, focus on the eyes.

76

The default setting is <i> (low-speed continuous shooting). If you hold down the shutter button, you can shoot continuously to capture subtle changes in the subject’s pose and facial expression (max. approx. 3.0 shots/ sec.).

3

Shooting Landscapes

Use the <3> (Landscape) mode for wide scenery or to have everything in focus from near to far. For vivid blues and greens, and very sharp and crisp images.

Shooting Tips

With a zoom lens, use the wide-angle end.

When using the wide-angle end of a zoom lens, objects near and far will be in focus better than at the telephoto end. It also adds breadth to landscapes.

Shooting night scenes.

The <3> mode is also good for night scenes because it disables the built-in flash. When shooting night scenes, use a tripod to prevent camera shake.

The built-in flash will not fire even in backlit or low-light conditions.

If you are using an external Speedlite, the Speedlite will fire.

77

4

Shooting Close-ups

When you want to shoot flowers or small things up close, use the <4>

(Close-up) mode. To make small things appear much larger, use a macro lens (sold separately).

Shooting Tips

Use a simple background.

A simple background makes small objects such as flowers stand out better.

Move as close as possible to the subject.

Check the lens for its minimum focusing distance. Some lenses have indications such as <MACRO 0.39m/1.3ft> on them. The lens minimum focusing distance is measured from the <V> (focal plane) mark on the top of the camera to the subject. If you are too close to the subject, the focus confirmation light <o> will blink.

If you use flash and the bottom of the picture looks unusually dark, move away from the subject.

With a zoom lens, use the telephoto end.

If you have a zoom lens, using the telephoto end will make the subject look larger.

78

5

Shooting Moving Subjects

Use the <5> (Sports) mode to shoot a moving subject, such as a running child or a moving vehicle.

Shooting Tips

Use a telephoto lens.

The use of a telephoto lens is recommended for shooting from a distance.

Track the subject with the Area AF frame.

Aim the center AF point over the subject, then press the shutter button halfway to start autofocusing in Area AF frame. During autofocusing, the beeper will continue beeping softly. If focus cannot be achieved, the focus confirmation light <o> will blink.

The default setting is <o> (high-speed continuous shooting).

When you want to take the picture, press the shutter button completely. If you hold down the shutter button, you will be able to maintain autofocusing during continuous shooting of the subject’s movement (max. approx. 7.0 shots per sec.).

Under low light when camera shake is prone to occur, the viewfinder’s shutter speed display on the bottom left will blink. Hold the camera steady and shoot.

If you are using an external Speedlite, the Speedlite will fire.

79

6

Shooting Night Portraits (With a Tripod)

To shoot people at night and obtain a natural-looking night scene in the background, use the <6> (Night Portrait) mode. Using a tripod is recommended.

Shooting Tips

Use a wide-angle lens and a tripod.

When using a zoom lens, use the wide-angle end to obtain a wide night view. Also, use a tripod to prevent camera shake.

Check the subject’s brightness.

Under low light, the built-in flash will fire automatically to obtain a good exposure of the subject.

It is recommended to play back the image after the shooting to check the image brightness. If the subject looks dark, move nearer and shoot again.

Also shoot in other shooting modes.

Since camera shake is prone to occur with night shots, shooting also with <A> and <F> is recommended.

80

Tell the subject to keep still even after the flash fires.

If you use the self-timer together with flash, the self-timer lamp will light up briefly after the picture is taken.

See the cautions on page 83.

F

Shooting Night Scenes (Handheld)

Using a tripod for shooting a night scene yields the best results.

However, with the <F> (Handheld Night Scene) mode, you can shoot night scenes while handholding the camera. In this mode, four shots are taken continuously for each picture, and a resulting bright image with reduced camera shake is recorded.

Shooting Tips

Hold the camera firmly.

While shooting, hold the camera firmly and steadily. In this mode, four shots are aligned and merged into a single image. However, if there is significant misalignment in any of the four shots due to camera shake, they may not align properly in the final image.

For shots of people, turn on the flash.

If you will include people in the picture, press the <Q> button and set <D> (Flash on). To take a nice portrait, the first shot will use flash. Tell the subject not to move until all four continuous shots are taken.

See the cautions on page 83.

81

G

Shooting Backlit Scenes

When shooting a scene having both bright and dark areas, use the

<G> (HDR Backlight Control) mode. When you take one picture in this mode, three continuous shots are taken at different exposures. This results in one image, with a wide tonal range, that has minimized the blocked-up shadows caused by backlighting.

Shooting Tips

Hold the camera firmly.

While shooting, hold the camera firmly and steadily. In this mode, three shots are aligned and merged into a single image. However, if there is significant misalignment in any of the three shots due to camera shake, they may not align properly in the final image.

Flash shooting is not possible. In low light, the AF-assist beam may be emitted (p.90).

See the cautions on pages 83-84.

82

HDR stands for High Dynamic Range.

Cautions for <6> Night Portrait and <F> Handheld Night Scene

During Live View shooting, it may be difficult to focus dots of light such as in a night scene. In such a case, set the lens’ focus mode switch to <MF> and focus manually.

Cautions for <F> Handheld Night Scene and <G> HDR Backlight Control

Compared with other shooting modes, the shooting area will be smaller.

You cannot select RAW or RAW+JPEG. If RAW is set, the image will be recorded in the 73 quality. Also, if RAW+JPEG is set, the image will be recorded in the set JPEG quality.

If you shoot a moving subject, the subject’s movement may leave afterimages or the surrounding area of the subject may become dark.

The image alignment may not work properly with repetitive patterns

(lattice, stripes, etc.), flat or single-tone images, or images significantly misaligned due to camera shake.

Recording the image to the card will take longer than with normal shooting. During the processing of the images, “buSY” will be displayed in the viewfinder and on the LCD panel and you cannot take another picture until the processing is completed.

If the shooting mode is set to <F> or <G>, direct printing is not possible.

Cautions for <6> Night Portrait

During Live View shooting, it may be difficult to focus when the face of the subject looks dark. In such a case, set the lens’ focus mode switch to

<MF> and focus manually.

Cautions for <F> Handheld Night Scene

When shooting flash photography, if the subject is too close to the camera, the picture may come out extremely bright (overexposure).

If you use flash to shoot a night scene with few lights, the shots may not align correctly. This can result in a blurry photo.

If you use flash and the human subject is close to the background that is also illuminated by the flash, the shots may not align correctly. This can result in a blurry photo. Unnatural shadows and unsuitable colors may also appear.

External Speedlite flash coverage

• When using a Speedlite with automatic flash coverage setting, the zoom position will be fixed to the wide end, regardless of the lens’ zoom position.

• When using a Speedlite requiring manual flash coverage setting, set the flash head to the wide (normal) position.

83

Q

Quick Control

Cautions for <G> HDR Backlight Control

Note that the image may not be rendered with a smooth gradation and may look irregular or have significant noise.

HDR Backlight Control may not be effective for excessively backlit scenes or extremely high-contrast scenes.

Q

Quick Control

In Basic Zone modes when the shooting function settings screen is displayed, you can press the <Q> button to display the Quick Control screen. The table on the next page shows the functions that can be set with the Quick Control screen in each Basic Zone mode.

1

Set the Mode Dial to a Basic Zone mode.

2

Press the <Q> button.

(7)

X

The Quick Control screen will appear.

Example: Portrait mode

3

Set the desired functions.

Press the <V> <U> keys to select a function.

X The selected function and Feature guide (p.63) will appear.

Functions can also be selected with the <6> or <5> dial.

84

Q

Quick Control

Settable Functions in Basic Zone Modes

o

: Default setting k: User selectable : Not selectable

Function

A 7 C

Drive mode

Flash firing u

: Single shooting o o

: High-speed continuous shooting k i

: Low-speed continuous shooting

B

: Silent single shooting

M

: Silent continuous shooting

Self-timer (p.96)

Q k k k k a

D

: Automatic firing

: Flash on (Fires at all times) b

: Flash off

Ambience-based shots k k o k k

Light/scene-based shots

Blurring/sharpening the background (p.73) k k k o k k k o k k k o k k k o k k k k k k k k o k

2 k k o k k k

8 k k k k

3 o k k o k k

Drive mode

Flash firing

Function

u

: Single shooting

4 5 o o

: High-speed continuous shooting k k o i

: Low-speed continuous shooting

B

: Silent single shooting

M

: Silent continuous shooting

Self-timer (p.96)

Q k k k k k k k k k k a

: Automatic firing

D

: Flash on (Fires at all times) b

: Flash off

Ambience-based shots

Light/scene-based shots k o k k k k o k k

Blurring/sharpening the background (p.73)

8

6 o k k k k k k o k

F o k k k k k k k o k o

* If you change the shooting mode or set the power switch to <2>, it will revert to the default settings (except the self-timer).

k k k k

G o k k

85

86

3

Setting the AF and

Drive Modes

The 19 AF points in the viewfinder make AF shooting suitable for a wide variety of subjects and scenes.

You can also select the AF operation and drive mode that best match the shooting conditions and subject.

The M icon at the upper right of the page title indicates that the function is available only in Creative Zone modes (d/ s

/f/a/F).

In Basic Zone modes, the AF operation and AF point (AF area selection mode) are set automatically.

<AF> stands for autofocus. <MF> stands for manual focus.

87

f

: Selecting the AF OperationN

You can select the AF operation characteristics to suit the shooting conditions or subject. In Basic Zone modes, the optimum AF operation is set automatically for the respective shooting mode.

1

Set the lens focus mode switch to

<AF>.

2

Turn the Mode Dial to a Creative

Zone mode.

3

Press the <f> button.

(9)

4

Select the AF operation.

While looking at the LCD panel, turn the <6> or <5> dial.

X

: One-Shot AF

9

: AI Focus AF

Z

: AI Servo AF

88

f

: Selecting the AF OperationN

One-Shot AF for Still Subjects

Suited for still subjects. When you press the shutter button halfway, the camera will focus only once.

When focus is achieved, the AF point that achieved focus will be displayed, and the focus confirmation light <o> in the viewfinder will also light up.

AF point

Focus confirmation light

With evaluative metering, the exposure setting will be set at the same time focus is achieved.

While you hold down the shutter button halfway, the focus will be locked. You can then recompose the shot if desired.

AI Servo AF for Moving Subjects

This AF operation is suited for moving subjects when the focusing distance keeps changing. While you hold down the shutter button halfway, the subject will be focused continuously.

The exposure is set at the moment the picture is taken.

When the AF area selection mode is set to 19-point automatic selection AF (p.91), the camera first uses the manually-selected AF point to focus. During autofocusing, if the subject moves away from the manually-selected AF point, focus tracking continues as long as the subject is covered by the Area AF frame.

89

f

: Selecting the AF OperationN

AI Focus AF for Switching the AF Operation Automatically

AI Focus AF switches the AF operation from One-Shot AF to AI

Servo AF automatically if a still subject starts moving.

After the subject is focused in One-Shot AF, if the subject starts moving, the camera will detect the movement, change the AF operation automatically to AI Servo AF, and keep tracking the moving subject.

AF-Assist Beam with the Built-in Flash

Under low-light conditions, when you press the shutter button halfway, the built-in flash may fire a brief burst of flashes. It illuminates the subject to enable easier autofocusing.

90

S

Selecting the AF AreaN

19 AF points are provided for AF. You can select the AF point(s) suiting the scene or subject.

AF Area Selection Mode

You can select one of three AF area selection modes. See the next page for the selection procedure.

: Single-point AF (Manual selection)

Select one AF point to focus.

: Zone AF (Manual zone selection)

The 19 AF points are divided into five zones for focusing.

AF

: 19-point automatic selection

All the AF points are used to focus. This

mode is set automatically in Basic

Zone modes.

91

S

Selecting the AF AreaN

Selecting the AF Area Selection Mode

1

Press the <S> or <B> button.

(9)

Look through the viewfinder and press the <S> or <B> button.

AF area selection mode

2

Press the <B> button.

Each time you press the <B> button, the AF area selection mode changes.

The AF area selection mode currently set is indicated on the top of the viewfinder.

: Single-point AF

(Manual selection)

: Zone AF

(Manual zone selection)

: 19-point automatic selection

AF

92

S

Selecting the AF AreaN

Selecting the AF Point Manually

You can manually select the AF point or zone. If 19-point automatic selection AF + AI Servo AF has been set, you can select any position where AI Servo AF is to start.

1

Press the <S> or <B> button.

(9)

X

The AF points will be displayed in the viewfinder.

In the Zone AF mode, the selected zone will be displayed.

2

Select an AF point.

The AF point selection will change in the direction you tilt <9>. If you press <0>, the center AF point (or center zone) will be selected.

You can also select a horizontal AF point by turning the <6> dial and select a vertical AF point by turning the <5> dial.

In the Zone AF mode, turning the

<6> or <5> dial will change the zone in a looping sequence.

93

MF: Manual Focus

Focusing ring

1

Set the lens focus mode switch to

<MF>.

X <4 L> will be displayed on the

LCD panel.

2

Focus the subject.

Focus by turning the lens focusing ring until the subject looks sharp in the viewfinder.

94

i

Selecting the Drive Mode

Single and continuous drive modes are provided.

1

Press the <R> button.

(9)

2

Select the drive mode.

While looking at the LCD panel, turn the <6> or <5> dial.

u

: Single shooting

When you press the shutter button completely, only one shot will be taken.

o

: High-speed continuous shooting (Max. approx. 7.0 shots/sec.) i

: Low-speed continuous shooting (Max. approx. 3.0 shots/sec.)

While you hold down the shutter button completely, shots will be taken continuously.

B

: Silent single shooting

Single shooting with less shooting sound than <u>.

M

: Silent continuous shooting (Max. approx. 3.0 shots/sec.)

Continuous shooting with less shooting sound than <i>.

Q

: 10-sec. self-timer/remote control k

: 2-sec. self-timer/remote control

For self-timer shooting, see page 96.

95

j

Using the Self-timer

Use the self-timer when you want to be in the picture.

1

Press the <R> button.

(9)

2

Select the self-timer.

While looking at the LCD panel, turn the <6> or <5> dial to select the self-timer delay.

Q

: 10-sec. self-timer k

: 2-sec. self-timer

3

Take the picture.

Look through the viewfinder, focus the subject, then press the shutter button completely.

X

You can check the self-timer operation with the self-timer lamp, beeper, and countdown display (in seconds) on the LCD panel.

X Two seconds before the picture is taken, the self-timer lamp will light up and the beeper will sound faster.

96

4

Image Settings

This chapter explains image-related function settings:

Image-recording quality, ISO speed, Picture Style, white balance, Auto Lighting Optimizer, lens peripheral illumination correction, chromatic aberration correction, and other functions.

The M icon at the upper right of the page title indicates that the function is available only in Creative Zone modes (d/ s

/f/a/F).

97

3

Setting the Image-Recording Quality

You can select the pixel count and the image quality. There are eight

JPEG image-recording quality settings: 73, 83, 74, 84, 7a,

8a

, b, c. There are three RAW image quality settings: 1, 41,

61

.

1

Select [Image quality].

Under the [z1] tab, select [Image

quality], then press <0>.

2

Select the image-recording quality.

To select a RAW setting, turn the

<6> dial. To select a JPEG setting, press the <U> key.

On the upper right of the screen,

***M (megapixels) **** x ****” indicates the recorded pixel count, and [***] is the number of possible shots (displayed up to 999).

Press <0> to set it.

Image-recording Quality Setting Examples

73

only

1

only

1

+73

61

+74

98

3

Setting the Image-Recording Quality

Guide to Image-Recording Quality Settings (Approx.)

JPEG

RAW

RAW

+


Quality

JPEG

73

83

74

84

7a

8a b

* c

*

1

41

61

1

73

41

73

61

73

1

2

Pixels

Recorded

20M

8.9M

5.0M

2.5M

0.3M

20M

11M

5.0M

20M

20M

11M

20M

5.0M

20M

Printing

Size

A2

A3

A4

9x13 cm

-

A2

A3

A4

A2

A2

A3

A2

A4

A2

File Size

(MB)

6.6

3.5

3.6

1.8

2.3

1.2

1.3

0.3

24.0

19.3

13.3

24.0+6.6

19.3+6.6

13.3+6.6

Possible

Shots

1000

1920

1840

3410

2790

5200

Maximum

Burst

40 (65)

130 (1920)

100 (1840)

3410 (3410)

430 (2790)

5200 (5200)

4990 4990 (4990)

19380 19380 (19380)

260 15 (16)

370

470

200

270

320

*1: b is suitable for playing the images on a digital photo frame.

*2: c is suitable for emailing the image or using it on a website.

9 (10)

11 (13)

8 (8)

8 (8)

8 (8) b

and c will be in 7 (Fine) quality.

The file size, possible shots, and maximum burst during continuous shooting are based on Canon’s testing standards (3:2 aspect ratio, ISO 100 and

Standard Picture Style) using an 8 GB card. These figures will vary

depending on the subject, card brand, aspect ratio, ISO speed, Picture

Style, Custom Functions, and other settings.

The maximum burst applies to <o> high-speed continuous shooting.

Figures in parentheses apply to an UHS-I class 8 GB card based on Canon’s testing standards.

99

i

: Setting the ISO SpeedN

Set the ISO speed (image sensor’s sensitivity to light) to suit the ambient light level. In Basic Zone modes, the ISO speed is set automatically.

1

Press the <i> button.

(9)

2

Set the ISO speed.

While looking at the LCD panel or the viewfinder, turn the <6> or <5> dial.

ISO speed can be set within ISO 100

- ISO 12800 in 1/3-stop increments.

A” indicates Auto ISO. The ISO speed will be set automatically.

When the screen shown on the left is displayed, you can press the <B> button to set it to “AUTO”.

ISO Speed Guide

ISO Speed

ISO 100 - ISO 400

Shooting Situation

(No flash)

Sunny outdoors

ISO 400 - ISO 1600 Overcast skies or evening time

ISO 1600 -

ISO 12800, H

Dark indoors or night

* High ISO speeds will result in grainier images.

Flash Range

The higher the ISO speed, the farther the flash range will be.

100

A

Selecting a Picture StyleN

By selecting a Picture Style, you can obtain image characteristics matching your photographic expression or the subject.

In Basic Zone modes, <D> (Auto) is set automatically.

1

Select [Picture Style].

Under the [z4] tab, select [Picture

Style], then press <0>.

X The Picture Style selection screen will appear.

2

Select a Picture Style.

Press the <V> key to select a

Picture Style, then press <0>.

X The Picture Style will be set.

101

3

Setting the White BalanceN

White balance (WB) is for making the white areas look white. Normally, the <Q> (Auto) setting will obtain the correct white balance. If naturallooking colors cannot be obtained with <Q>, you can select the white balance to match the light source or set it manually by shooting a white object.

In Basic Zone modes, <Q> is set automatically.

1

Select [White balance].

Under the [z3] tab, select [White

balance], then press <0>.

2

Select a white balance setting.

Select the desired setting, then press

<0>.

102

3

Auto Correction of Brightness and ContrastN

If the image comes out dark or the contrast is low, the brightness and contrast can be corrected automatically. This function is called Auto

Lighting Optimizer. The default setting is [Standard]. With JPEG images, the correction is applied when the image is captured.

In Basic Zone modes, [Standard] is set automatically.

1

Select [Auto Lighting Optimizer].

Under the [z3] tab, select [Auto

Lighting Optimizer], then press

<0>.

2

Select the setting.

Select the desired setting, then press

<0>.

3

Take the picture.

The image will be recorded with the brightness and contrast corrected if necessary.

103

3

Setting Noise ReductionN

High ISO Speed Noise Reduction

This function reduces the noise generated in the image. Although noise reduction is applied at all ISO speeds, it is particularly effective at high

ISO speeds. At low ISO speeds, the noise in the darker parts of the image (shadow areas) is further reduced.

1

Select [High ISO speed NR].

Under the [z4] tab, select [High ISO

speed NR], then press <0>.

2

Set the level.

Select the desired noise reduction level, then press <0>.

M

: Multi Shot Noise Reduction

This applies noise reduction with higher image quality than [High].

For a single photo, four shots are taken continuously and aligned and merged automatically into a single JPEG image.

3

Take the picture.

The image will be recorded with noise reduction applied.

104

3

Setting Noise ReductionN

Long Exposure Noise Reduction

Noise reduction is possible with images exposed for 1 sec. or longer.

1

Select [Long exp. noise reduction].

Under the [z4] tab, select [Long

exp. noise reduction], then press

<0>.

2

Set the desired setting.

Select the desired setting, then press

<0>.

Auto

For exposures of 1 sec. or longer, noise reduction is performed automatically if noise typical of long exposures is detected. This

[Auto] setting is effective in most cases.

Enable

Noise reduction is performed for all exposures of 1 sec. or longer.

The [Enable] setting can reduce noise that cannot be detected with the [Auto] setting.

3

Take the picture.

The image will be recorded with noise reduction applied.

105

3

Highlight Tone PriorityN

You can minimize overexposed highlight areas.

1

Select [Highlight tone priority].

Under the [z4] tab, select

[Highlight tone priority], then press

<0>.

2

Select [Enable].

Select [Enable], then press <0>.

Highlight details are improved. The dynamic range is expanded from the standard 18% gray to bright highlights. The gradation between the grays and highlights becomes smoother.

3

Take the picture.

The image will be recorded with highlight tone priority applied.

106

3

Lens Peripheral Illumination / Chromatic Aberration Correction

Peripheral light fall-off is a phenomenon that makes the image corners look darker due to the lens characteristics. Color fringing along subject outlines is called chromatic aberration. Both lens aberrations can be corrected. The default settings are [Enable] for both corrections.

Peripheral Illumination Correction

1

Select [Lens aberration correction].

Under the [z2] tab, select [Lens

aberration correction], then press

<0>.

2

Select the setting.

Check that [Correction data

available] is displayed for the attached lens.

Select [Peripheral illumin.], then press <0>.

Select [Enable], then press <0>.

If [Correction data not available] is displayed, see “Lens Correction Data” on page 108.

3

Take the picture.

The image will be recorded with the peripheral illumination corrected.

107

3

Lens Peripheral Illumination / Chromatic Aberration Correction

Chromatic Aberration Correction

1

Select the setting.

Check that [Correction data

available] is displayed for the attached lens.

Select [Chromatic aberration], then press <0>.

Select [Enable], then press <0>.

If [Correction data not available] is displayed, see “Lens Correction Data” below.

2

Take the picture.

The image will be recorded with the chromatic aberration corrected.

Lens Correction Data

The camera already contains lens peripheral illumination correction data and chromatic aberration correction data for approx. 25 lenses. If you select [Enable], the peripheral illumination correction and chromatic aberration correction will be applied automatically for any lens whose correction data is registered in the camera.

With EOS Utility (provided software), you can check which lenses have their correction data registered in the camera. You can also register the correction data for unregistered lenses. For details, refer to the EOS

Utility Instruction Manual (p.151).

108

5

Advanced Operations

In Creative Zone modes, you can set the shutter speed and/ or aperture to set the exposure as desired. By changing the camera settings, you can obtain various results.

The M icon at the upper right of the page title indicates that the function is available only in Creative Zone modes (d/ s

/f/a/F).

After you press the shutter button halfway and let go, the exposure values will remain displayed in the viewfinder and on the LCD panel for 4 sec. (0).

Set the <R> switch downward.

109

d

: Program AE

The camera automatically sets the shutter speed and aperture to suit the subject’s brightness. This is called Program AE.

* <d> stands for Program.

* AE stands for Auto Exposure.

1

Set the Mode Dial to <d>.

2

Focus the subject.

Look through the viewfinder and aim the AF point over the subject. Then press the shutter button halfway.

X When focus is achieved, the focus confirmation light <o> on the viewfinder’s bottom right will light up

(when in One-Shot AF mode).

X The shutter speed and aperture will be set automatically and displayed in the viewfinder and on the LCD panel.

3

Check the display.

A standard exposure will be obtained as long as the shutter speed and aperture display do not blink.

4

Take the picture.

Compose the shot and press the shutter button completely.

110

s

: Shutter-Priority AE

In this mode, you set the shutter speed and the camera automatically sets the aperture to obtain the standard exposure suiting the brightness of the subject. This is called shutter-priority AE. A faster shutter speed can freeze the action of a moving subject. A slower shutter speed can create a blurred effect, giving the impression of motion.

* <s> stands for Time value.

Blurred motion

(Slow shutter speed: 1/30 sec.)

Frozen action

(Fast shutter speed: 1/2000 sec.)

1

Set the Mode Dial to <s>.

2

Set the desired shutter speed.

While looking at the LCD panel, turn the <6> dial.

3

Focus the subject.

Press the shutter button halfway.

X The aperture is set automatically.

4

Check the viewfinder display and shoot.

As long as the aperture is not blinking, a standard exposure will be obtained.

111

f

: Aperture-Priority AE

In this mode, you set the desired aperture and the camera sets the shutter speed automatically to obtain the standard exposure suiting the subject brightness. This is called aperture-priority AE. A higher f/ number (smaller aperture hole) will make more of the foreground and background fall within acceptable focus. On the other hand, a lower f/ number (larger aperture hole) will make less of the foreground and background fall within acceptable focus.

* <f> stands for Aperture value (aperture opening).

112

Blurred background

(With a low aperture f/number: f/5.6)

Sharp foreground and background

(With a high aperture f/number: f/32)

1

Set the Mode Dial to <f>.

2

Set the desired aperture.

While looking at the LCD panel, turn the <6> dial.

3

Focus the subject.

Press the shutter button halfway.

X The shutter speed is set automatically.

4

Check the viewfinder display and shoot.

As long as the shutter speed is not blinking, a standard exposure will be obtained.

a

: Manual Exposure

In this mode, you set both the shutter speed and aperture as desired. To determine the exposure, refer to the exposure level indicator in the viewfinder or use a commercially-available exposure meter. This method is called manual exposure.

* <a> stands for Manual.

Standard exposure index

Exposure level mark

1

3

Set the Mode Dial to <a>.

2

Set the ISO speed

(p.100)

.

Set the shutter speed and aperture.

To set the shutter speed, turn the

<6> dial.

To set the aperture, turn the <5> dial.

If it cannot be set, set the <R> switch downward, then turn the

<6> or <5> dial.

4

5

Focus the subject.

Press the shutter button halfway.

X The exposure setting will be displayed in the viewfinder and on the LCD panel.

The exposure level mark <h> indicates how far the current exposure level is from the standard exposure level.

Set the exposure and take the picture.

Check the exposure level indicator and set the desired shutter speed and aperture.

If the exposure level exceeds ±3 stops from the standard exposure, the end of the exposure level indicator will display <I> or <J>.

113

Setting Exposure CompensationN

Exposure compensation can brighten (increased exposure) or darken

(decreased exposure) the standard exposure set by the camera.

Exposure compensation can be set in the d/s/f shooting modes.

Although you can set the exposure compensation up to ±5 stops in 1/3stop increments, the exposure compensation indicator in the viewfinder and on the LCD panel can only display the setting up to ±3 stops. If you want to set the exposure compensation setting beyond ±3 stops, use the

Quick Control (p.46) or follow the instructions for [z3: Expo.comp./

AEB] on the next page.

Increased exposure for a brighter image

Decreased exposure for a darker image

1

2

3

Check the exposure level indicator.

Press the shutter button halfway

(0) and check the exposure level indicator.

Set the exposure compensation amount.

While looking at the viewfinder or

LCD panel, turn the <5> dial.

If it cannot be set, set the <R> switch downward, then turn the <5> dial.

Take the picture.

To cancel the exposure compensation, set the exposure compensation amount back to <E>.

114

h

Auto Exposure Bracketing (AEB)N

By changing the shutter speed or aperture automatically, the camera brackets the exposure up to ±3 stops in 1/3-stop increments for three successive shots. This is called AEB.

* AEB stands for Auto Exposure Bracketing.

1

Select [Expo.comp./AEB].

Under the [z3] tab, select

[Expo.comp./AEB], then press

<0>.

AEB range

2

Set the AEB range.

Turn the <6> dial to set the AEB range. Press the <U> key to set the exposure compensation amount.

Press <0> to set it.

X

When you exit the menu, <h> and the AEB range will be displayed on the LCD panel.

3

Take the picture.

The three bracketed shots will be taken according to the drive mode set in this sequence: Standard exposure, decreased exposure, and increased exposure.

AEB will not be automatically canceled. To cancel AEB, follow step

2 to turn off the AEB range display.

115

A

AE LockN

Use AE lock when the area of focus is to be different from the exposure metering area or when you want to take multiple shots at the same exposure setting. Press the <A> button to lock the exposure, then recompose and take the shot. This is called AE lock. It is effective for backlit subjects.

1

Focus the subject.

Press the shutter button halfway.

X The exposure setting will be displayed.

2

Press the <A> button.

(0)

X The <A> icon lights up in the viewfinder to indicate that the exposure setting is locked (AE lock).

Each time you press the <A> button, the current autoexposure setting is locked.

3

Recompose and take the picture.

If you want to maintain the AE lock while taking more shots, hold down the <A> button and press the shutter button to take another shot.

116

D

Using the Built-in Flash

In Creative Zone modes, just press the

<D> button to raise the built-in flash for flash photography. To retract the built-in flash, push it back down with your fingers.

In Basic Zone modes (except <7> <3>

<5> <G> modes), the built-in flash will be raised and fire automatically in low-light and backlit conditions.

In the <A> <C> <2> <4> <F> modes, you have the option to fire the flash or not.

The table below shows the shutter speed and aperture settings that will be used with flash.

Shooting Mode Shutter Speed

A C 2 4 6 F

Automatically set d s

Aperture

Automatically set

Automatically set (1/250 sec. - 1/60 sec.) Automatically set

Manually set (1/250 sec. - 30 sec.) Automatically set f a

F

Automatically set (1/250 sec. - 30 sec.) Manually set

Manually set (1/250 sec. - 30 sec.) Manually set

The exposure will continue while you hold down the shutter button.

Manually set

117

D

Using the Built-in Flash

Effective Range of Built-in Flash

ISO Speed

[Approx. in meters/feet]

EF-S 18-55mm f/3.5-5.6 IS STM

EF-S 18-135mm f/3.5-5.6 IS STM

EF-S 18-200mm f/3.5-5.6 IS

Wide Angle: f/3.5

Telephoto: f/5.6

100

200

400

800

1600

3200

6400

12800

H (25600)

1-3.4/3.3-11.2

1-4.8/3.3-15.9

1-6.9/3.3-22.5

1.2-9.7/4.0-31.8

1.7-13.7/5.6-45.0

2.4-19.4/8.0-63.6

3.4-27.4/11.2-90.0

4.8-38.8/15.9-127.3

6.9-54.9/22.5-180.0

1-2.1/3.3-7.0

1-3.0/3.3-9.9

1-4.3/3.3-14.1

1-6.1/3.3-19.9

1.1-8.6/3.5-28.1

1.5-12.1/5.0-39.8

2.1-17.1/7.0-56.2

3.0-24.2/9.9-79.5

4.3-34.3/14.1-112.5

118

6

Shooting with the LCD Monitor

(Live View Shooting)

You can shoot while viewing the picture on the camera’s LCD monitor. This is called “Live View shooting”.

Live View shooting is enabled by setting the Live View shooting/

Movie shooting switch to <A>.

If you handhold the camera and shoot while viewing the

LCD monitor, camera shake can cause blurred images.

Using a tripod is recommended.

To shoot while handholding the camera, see page 70.

119

A

Shooting with the LCD Monitor

1

Set the Live View shooting/Movie

shooting switch to <A>.

2

Display the Live View image.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

The Live View image will closely reflect the brightness level of the actual image you capture.

3

Focus the subject.

When you press the shutter button halfway, the camera will focus with the current AF method (p.123).

4

Take the picture.

Press the shutter button completely.

X The picture will be taken and the captured image is displayed on the

LCD monitor.

X After the image review ends, the camera will return to Live View shooting automatically.

Press the <0> button to exit Live

View shooting.

120

A

Shooting with the LCD Monitor

Enabling Live View Shooting

Set [A1: Live View shoot.] to

[Enable].

Number of Possible Shots with Live View Shooting

Temperature

No Flash

Room Temperature

(23

°C / 73°F)

Approx. 230 shots

Low Temperatures

(0

°C / 32°F)

Approx. 210 shots

50% Flash Use Approx. 210 shots Approx. 200 shots

The figures above are based on a fully-charged Battery Pack LP-E6 and CIPA

(Camera & Imaging Products Association) testing standards.

With a fully-charged Battery Pack LP-E6, continuous Live View shooting is possible for approx. 1 hr. 50 min. at room temperature (23

°

C / 73

°

F).

Do not hold the camera in the same position for long periods of time.

Even if the camera does not feel too hot, prolonged contact with the same body part may cause skin redness, blistering or low-temperature contact burns. The use of a tripod is recommended for people with circulation problems or very sensitive skin, or when using the camera in very hot places.

121

A

Shooting with the LCD Monitor

Information Display

Each time you press the <B> button, the information display will change.

AF method

•c : u+Tracking

•o : FlexiZone - Multi

•d : FlexiZone - Single

•f : Quick mode

Possible shots

Maximum burst/Number of remaining multiple exposures

Battery check

AF point (FlexiZone - Single)

Histogram

Quick control

White balance

Picture Style

Auto Lighting

Optimizer

Shooting mode

Drive mode

Metering mode

Image-recording quality

HDR shooting/

Multiple exposures/

Multi Shot Noise

Reduction

Switch to auto selection

(AF point)

Touch shutter

AE lock

Flash ready/Flash off

Shutter speed

Creative filters

Wi-Fi function

Exposure simulation

Magnified view

AEB/FEB

ISO speed

Highlight tone priority

Wi-Fi transmission status

Flash exposure compensation

Aperture

Eye-Fi card transmission status

GPS connection indicator

Exposure level indicator/AEB range

Digital compass

122

Using AF to Focus (AF Method)

Changes in AF Speed Depending On the AF Control Method

If the AF method is set to [u+Tracking], [FlexiZone - Multi], or [FlexiZone

- Single] for Live View shooting or movie shooting, the AF control method

(phase-difference detection with the image sensor or contrast detection) will switch automatically depending on the lens used and functions selected, such as movie digital zoom or magnified view. This can greatly affect the AF speed and the camera may take a longer time to focus (phase-difference detection generally allows faster AF focusing). For details, refer to Canon’s website.

Selecting the AF Method

You can select an AF method to suit the shooting conditions and your subject. The following AF methods are provided: [u(face)+Tracking],

[FlexiZone - Multi] (p.125), [FlexiZone - Single] (p.126), and [Quick

mode] (p.127).

If you want to achieve precise focus, set the lens focus mode switch to

<MF>, magnify the image, and focus manually (p.130).

Select the AF method.

Under the [A1] tab, select [AF

method].

Select the desired AF method, then press <0>.

While the Live View image is displayed, you can also press the

<f> button to select the AF method on the setting screen.

u

(face)+Tracking:c

The camera detects and focuses human faces. If a face moves, the AF point <p> also moves to track the face.

1

Display the Live View image.

Press the <0> button.

X The Live View image will appear on the LCD monitor.

123

Using AF to Focus (AF Method)

2

Select an AF point.

When a face is detected, the <p> frame will appear over the face to be focused.

If multiple faces are detected, <q> will be displayed. Use <9> to move the <q> frame over the face you want to focus on.

You can also tap the LCD monitor screen to select the face or subject. If the subject is not a face, < > will be displayed.

If no faces can be detected, or if you tap the LCD monitor but do not select any face or subject, the camera will switch to [FlexiZone - Multi] with automatic selection (p.125).

3

Focus the subject.

Press the shutter button halfway to focus.

X When focus is achieved, the AF point will turn green and the beeper will sound.

X If focus is not achieved, the AF point will turn orange.

4

Take the picture.

Check the focus and exposure, then press the shutter button completely to take the picture (p.120).

124

Using AF to Focus (AF Method)

FlexiZone - Multi:o

You can focus over a wide area with up to 31 AF points (automatic selection). This wide area can also be divided into 9 zones for focusing

(zone selection).

Area frame

1

2

3

Display the Live View image.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

Select the AF point. N

Pressing <0> or the <L> button will toggle between automatic selection and zone selection. In Basic

Zone modes, automatic selection is set automatically.

Use <9> to select the zone. To return to the center zone, press <0> or the <L> button again.

You can also tap the LCD monitor screen to select a zone.

Focus the subject.

Aim the AF point over the subject and press the shutter button halfway.

X

When focus is achieved, the AF point will turn green and the beeper will sound.

X

If focus is not achieved, the area frame will turn orange.

4

Take the picture.

Check the focus and exposure, then press the shutter button completely to take the picture (p.120).

125

Using AF to Focus (AF Method)

FlexiZone - Single: d

The camera focuses with a single AF point. This is effective when you want to focus a particular subject.

AF point

1

Display the Live View image.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

X

The AF point < > will appear.

During movie shooting, if [Movie

Servo AF] is set to [Enable], the AF point will be displayed in a larger size.

2

Move the AF point.

Use <9> to move the AF point to where you want to focus. (It cannot be moved to the edge of the screen.)

To return the AF point to the center, press <0> or <L> button.

You can also tap the LCD monitor screen to move the AF point.

3

Focus the subject.

Aim the AF point over the subject and press the shutter button halfway.

X

When focus is achieved, the AF point will turn green and the beeper will sound.

X

If focus is not achieved, the AF point will turn orange.

4

Take the picture.

Check the focus and exposure, then press the shutter button completely to take the picture (p.120).

126

Using AF to Focus (AF Method)

Quick Mode: f

The dedicated AF sensor is used to focus in One-Shot AF mode (p.88), using the same AF method as with viewfinder shooting.

Although you can focus the target area quickly, the Live View image

will be interrupted momentarily during the AF operation.

In AF area selection modes other than 19-point automatic selection AF, you can manually select the AF point. In Basic Zone modes, 19-point automatic selection AF is set automatically.

Area AF frame

1

Display the Live View image.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

If the AF area selection mode is set to

19-point automatic selection AF, the

Area AF frame will be displayed.

With FlexiZone - Single (manual selection), the AF point will be displayed as a small frame.

With Zone AF (manual zone selection), the frame indicating the zone is displayed.

2

Select the AF area selection

mode and AF point. N

Press the <B> button to display the current AF area selection mode.

Each time you press the <B> button, the AF area selection mode changes.

When the AF area selection mode is

FlexiZone - Single (manual selection) or Zone AF (manual zone selection), you can select the AF point (or zone).

127

Using AF to Focus (AF Method)

The AF point (or zone) selection will change in the direction you tilt <9>.

If you press <0>, the center AF point (or center zone) will be selected.

You can also use the <6> and

<5> dials to select the AF point.

3

Focus the subject.

Aim the AF point over the subject and press the shutter button halfway.

X

The Live View image will turn off, the reflex mirror will go back down, and

AF will be executed. (No picture is taken.)

X

When focus is achieved, the beeper will sound and the Live View image will reappear.

X The AF point used to focus will light up in green.

X

If focus is not achieved, the AF point will blink in orange.

4

Take the picture.

Check the focus and exposure, then press the shutter button completely to take the picture (p.120).

128

x

Shooting with the Touch Shutter

Just by tapping the LCD monitor screen, you can focus and take the picture automatically. This works in all shooting modes.

1

Display the Live View image.

Press the <0> button.

X The Live View image will appear on the LCD monitor.

2

3

Enable the touch shutter.

Tap [y] on the screen’s bottom left.

Each time you tap the icon, it will toggle between [y] and [x].

[x] (Touch shutter: Enable)

You can focus and shoot by tapping the screen.

[y] (Touch shutter: Disable)

You can select where you want to focus by tapping the screen. Then you press the shutter button completely to take the picture.

Tap the screen to shoot.

Tap the face or subject on the screen.

X At the point you tap, the camera will focus in the AF method that was set

(p.123-128).

X When focus is achieved, the AF point turns green and the picture is taken automatically.

If focus is not achieved, the AF point will turn orange. Tap the face or subject on the screen again.

129

MF: Focusing Manually

You can magnify the image and focus precisely with manual focus.

1

Set the lens focus mode switch to

<MF>.

Turn the lens focusing ring to focus roughly.

2

Display the magnifying frame.

Press the <u> button.

X The magnifying frame will appear.

You can also tap [u] on the screen to magnify the image.

Magnifying frame

AE lock

Magnified area position

Magnification

3

Move the magnifying frame.

Press <9> to move the magnifying frame to the position where you want to focus. You can also tap it to move it.

To return the magnifying frame to the center, press <0> or <L> button.

4

Magnify the image.

Each time you press the <u> button, the magnification within the frame will change as follows:

1x 9 5x 9 10x 9 Normal view

While in magnified view, you can use

<9> to scroll around in magnified view.

130

MF: Focusing Manually

5

Focus manually.

While looking at the magnified image, turn the lens focusing ring to focus.

After achieving focus, press the <u> button to return to the normal view.

6

Take the picture.

Check the focus and exposure, then press the shutter button completely to take the picture (p.120).

131

132

7

Shooting Movies

Movie shooting is enabled by setting the Live View shooting/

Movie shooting switch to <k>.

The movie recording format will be MOV.

For cards that can record movies, see page 3.

If you handhold the camera and shoot movies, camera shake can cause blurred movies. Using a tripod is recommended.

To shoot while handholding the camera, see page 70.

If [53: Wi-Fi] is set to [Enable], movie shooting is not possible.

Before shooting movies, set [Wi-Fi] to [Disable].

133

k

Shooting Movies

Autoexposure Shooting

When the shooting mode is set to other than <a>, autoexposure control will take effect to suit the scene’s current brightness.

1

Set the shooting mode to a mode

other than <a>.

2

Set the Live View shooting/Movie

shooting switch to <k>.

X The reflex mirror will make a sound, then the image will appear on the

LCD monitor.

Recording movies

3

Focus the subject.

Before shooting a movie, focus with

AF or manual focus (p.123-131).

When you press the shutter button halfway, the camera will focus with the current AF method.

4

Shoot the movie.

Press the <0> button to start shooting a movie.

X While the movie is being shot, the

“o” mark will be displayed on the upper right of the screen.

To stop shooting the movie, press the

<0> button again.

Microphone

134

k

Shooting Movies

Manual Exposure Shooting

You can manually set the shutter speed, aperture, and ISO speed for movie shooting. Using manual exposure to shoot movies is for advanced users.

Shutter speed

Aperture

1

Set the Mode Dial to <a>.

2

Set the Live View shooting/Movie

shooting switch to <k>.

3

Set the ISO speed.

Press the <i> button.

X

The ISO speed setting screen will appear on the LCD monitor.

Turn the <6> dial to set the ISO speed.

4

Set the shutter speed and aperture.

Press the shutter button halfway and check the exposure level indicator.

To set the shutter speed, turn the

<6> dial. The settable shutter speeds depend on the frame rate <9>.

•6 5 4 : 1/4000 sec. - 1/30 sec.

•8 7 : 1/4000 sec. - 1/60 sec.

To set the aperture, turn the <5> dial.

If it cannot be set, set the <R> switch downward, then turn the

<6> or <5> dial.

5

Focus and shoot the movie.

The procedure is the same as steps 3 and 4 for “Autoexposure Shooting”

(p.134).

135

k

Shooting Movies

Information Display

Each time you press the <B> button, the information display will change.

AF method

•c : u + Tracking

•o: FlexiZone - Multi

•d : FlexiZone - Single

Movie shooting mode

: Autoexposure

(Basic Zone modes)

: Autoexposure

(Creative Zone modes)

: Manual exposure

Drive mode

Movie recording size

Compression method

Digital zoom

Recording level:

Manual

Movie Servo AF

Possible shots

Maximum burst

Movie shooting remaining time*/

Elapsed time

Battery check

AF point (FlexiZone - Single)

Auto Lighting Optimizer

Quick Control

White balance

Picture Style

Video snapshot

Frame rate

AE lock

LED light

Shutter speed

Image-recording quality

Level meter

Eye-Fi card transmission status

Aperture

Digital compass

* Applies to a single movie clip.

Wi-Fi transmission status

Exposure mode

L

: Autoexposure

K

: Manual exposure

Magnify/Digital zoom

Attenuator

ISO speed

Highlight tone priority

Wind filter

Wi-Fi function

Exposure level indicator

GPS connection indicator

136

3

Setting the Movie Recording Size

With [Z2: Movie rec. size], you can set the movie’s image size, frame rate per second, and compression method.

The frame rate switches automatically depending on the [53: Video system] setting.

Image Size

A

[1920x1080] : Full High-Definition (Full HD) recording quality.

The aspect ratio will be 16:9.

B

[1280x720] : High-Definition (HD) recording quality. The aspect ratio will be 16:9.

C

[640x480] : Standard-definition recording quality. The aspect ratio will be 4:3.

Frame Rate (fps: frames per second)

6

/8 : For areas where the TV format is NTSC (North America,

Japan, Korea, Mexico, etc.).

5

/7 : For areas where the TV format is PAL (Europe, Russia,

China, Australia, etc.).

4

: Mainly for motion pictures.

Compression Method

X

IPB : Compresses multiple frames at a time efficiently for recording. Since the file size will be smaller than with ALL-I, you can shoot longer.

W

ALL-I (I-only) : Compresses one frame at a time for recording.

Although the file size will be larger than with

IPB, the movie will be more suited for editing.

137

3

Setting the Movie Recording Size

Total Movie Recording Time and File Size Per Minute

Movie Recording

Size

A

654 X

654 W

B

87

87

C 65

X

W

X

Total Recording Time (approx.)

4 GB Card 8 GB Card 16 GB Card

16 min.

5 min.

32 min.

11 min.

1 hr. 4 min.

22 min.

18 min.

6 min.

48 min.

37 min.

12 min.

1 hr. 14 min.

25 min.

1 hr. 37 min. 3 hr. 14 min.

File Size

(approx.)

235 MB/min.

685 MB/min.

205 MB/min.

610 MB/min.

78 MB/min.

Movie Files Exceeding 4 GB

Even if you shoot a movie exceeding 4 GB, you can keep shooting without interruption.

During movie shooting, approx. 30 sec. before the movie reaches the 4 GB file size, the elapsed shooting time or time code displayed in the movie-shooting image will start blinking. If you keep shooting until the movie file size exceeds 4 GB, a new movie file will be created automatically and the elapsed shooting time or time code will stop blinking.

When you play back the movie, you will have to play each movie file individually. Movie files cannot play back consecutively automatically. After the movie playback ends, select the next movie to be played.

Movie Shooting Time Limit

The maximum recording time of one movie clip is 29 min. 59 sec. If the movie shooting time reaches 29 min. 59 sec., the movie shooting will stop automatically. You can start shooting a movie again by pressing the <0> button. (A new movie file starts being recorded.)

138

Do not hold the camera in the same position for long periods of time.

Even if the camera does not feel too hot, prolonged contact with the same body part may cause skin redness, blistering or low-temperature contact burns. The use of a tripod is recommended for people with circulation problems or very sensitive skin, or when using the camera in very hot places.

8

Image Playback

This chapter explains basic procedures to play back images and movies.

Images shot and saved with another device

The camera may not be able to properly display images captured with a different camera, edited with a computer, or that have had their file names changed.

139

x

Image Playback

Single-Image Display

1

Play back the image.

Press the <x> button.

X The last captured image or last image played back will appear.

2

Select an image.

To play back images starting with the last image, turn the <5> dial counterclockwise. To play back images starting with the first captured image, turn the dial clockwise.

Each time you press the <B> button, the display format will change.

No information With basic information

140

Histogram Shooting information display

3

Exit the image playback.

Press the <x> button to exit the image playback and return to shooting-ready state.

x

Searching for Images Quickly

H

Display Multiple Images on One Screen (Index Display)

Search for images quickly with the index display showing four or nine images on one screen.

1

Switch to the index display.

During image playback, press the

<I> button.

X The 4-image index display will appear. The selected image is highlighted in an orange frame.

Press the <I> button again to switch to the 9-image display.

Pressing the <u> button will switch the display from 9 images to 4 images and then to 1 image.

Î Î

2

Select an image.

Turn the <5> dial to move the orange frame and select the image.

You can also press the <V> <U> keys to select the image.

Turning the <6> dial will display image(s) on the next or previous screen.

Press <0> in the index display to display the selected image as a single image.

141

u

/y Magnified View

You can magnify a captured image by approx. 1.5x to 10x on the LCD monitor.

1

Magnify the image.

Press the <u> button during image playback.

X The image will be magnified.

If you hold down the <u> button, the image will be magnified until it reaches the maximum magnification.

Press the <I> button to reduce the magnification. If you hold down the button, the magnification will be reduced to the single-image display.

Magnified area position

2

Scroll around the image.

Use <9> to scroll around the magnified image.

To exit magnified view, press the

<x> button and the single-image display will reappear.

142

d

Playing Back with the Touch Screen

The LCD monitor is a touch-sensitive panel that you can touch with your fingers for various playback operations. First, press the <x> button

to play back images.

Browsing Images

Swipe with one finger.

With single-image display, touch the

LCD monitor with one finger. You can browse to the next or previous image by swiping your finger to the left or right. Swipe left to see the next

(newer) images or swipe right to see previous (older) images.

With index display, also touch the

LCD monitor with one finger. You can browse to the next or previous screen by swiping your finger up or down.

Swipe up to see the next (newer) images or swipe down to see the previous (older) images.

When you select an image, the orange frame will appear. Tap the image again to display it as a single image.

Jumping through Images (Jump Display)

Swipe with two fingers.

Touch the LCD monitor with two fingers.

When you swipe two fingers to the left or right, you can jump through images with the method set in [Image jump w/

6

] under the [x2] tab.

143

d

Playing Back with the Touch Screen

Reducing Image (Index Display)

Pinch two fingers.

Touch the screen with two fingers spread apart, then pinch your fingers together on the screen.

Each time you pinch your fingers, the screen changes from a single-image display to a 4-image index display and 9-image index display. If you spread your fingers, the image display will change in the reverse order.

When you select an image, the orange frame will appear. Tap the image again to display it as a single image.

Magnifying Image

Spread two fingers apart.

Touch the screen with two fingers together, then spread your fingers apart on the screen.

As you spread your fingers, the image will be magnified.

The image can be magnified up to

10x.

You can scroll around the image by dragging your finger.

To reduce the image, pinch your fingers together on the screen.

Tapping the [2] icon will return to the single-image display.

144

k

Playing Movies

Speaker

1

2

Play back the image.

Press the <x> button to display an image.

Select a movie.

Turn the <5> dial to select the movie to be played.

In the single-image display, the

<s1> icon displayed on the upper left of the screen indicates a movie. If the movie is a video snapshot, < > will be displayed.

In the index display, perforations at the left edge of a thumbnail indicate a movie. As movies cannot be played

from the index display, press <0>

to switch to the single-image display.

3

4

In the single-image display, press

<0>.

X The movie playback panel will appear at the bottom of the screen.

Play back the movie.

Select [7] (Play), then press <0>.

X The movie will start playing.

You can pause the movie playback by pressing <0>.

You can adjust the sound volume by turning the <6> dial even during movie playback.

For more details on the playback procedure, see the next page.

145

k

Playing Movies

Movie Playback Panel

Operation

7

Play

8

Slow motion

Playback Description

Pressing <0> toggles between play and stop.

Adjust the slow motion speed by pressing the <U> key.

The slow motion speed is indicated at the upper right of the screen.

Displays the movie’s first frame.

5

First frame

3

Previous frame

6

Next frame

Each time you press <0>, the previous frame is displayed. If you hold down <0>, it will rewind the movie.

Each time you press <0>, the movie will play frame-byframe. If you hold down <0>, it will fast forward the movie.

Displays the movie’s last frame.

4

Last frame

Background

music*

X

Edit

Plays back a movie with the selected background music.

Displays the editing screen.

Playback position

mm’ ss”

hh:mm:ss.ff (DF)

hh:mm:ss:ff (NDF)

Playback time (minutes:seconds with [Movie play count:

Rec time] set)

Time code (hours:minutes:seconds:frames with [Movie

play count: Time code] set)

9

Volume

32

You can adjust the built-in speaker’s (p.145) volume by turning the <6> dial.

Pressing the <M> button returns to the single-image display.

* When background music is set, the movie’s sound will not be played.

146

L

Erasing Images

You can either select and erase unnecessary images one by one or erase them in one batch. Protected images will not be erased.

Once an image is erased, it cannot be recovered. Make sure you no longer need the image before erasing it. To prevent important images from being erased accidentally, protect them. Erasing a RAW+JPEG image will erase both the RAW and JPEG images.

Erasing a Single Image

1

Play back the image to be erased.

2

Press the <L> button.

X The Erase menu will appear at the bottom of the screen.

3

Erase the image.

Select [Erase], then press <0>. The image displayed will be erased.

147

148

9

Viewing the DVD-ROM Instruction Manuals/

Downloading Images to Your Computer

This chapter explains how to view the Camera and

Software Instruction Manuals (on the DVD-ROM provided) on your computer, download images from the camera to your computer, gives an overview of the software in the EOS Solution Disk (CD-ROM), and explains how to install the software on your computer.

EOS Camera Instruction Manuals Disk XXX

CEL-XXX XXX

XXXXX

XXXXX

XXXXX

XXXXX

XXXXX

© C

ANON INC. 20XX. Made in the EU.

EOS Camera

Instruction Manuals

Disk

EOS Solution Disk XXX

CEL-XXX XXX

XXXXX

XXXXX

XXXXX

XXXXX

XXXXX

Windows XXX XXX

Mac OS X XXX XXX

© C

ANON INC. 20XX. Made in the EU

EOS Solution

Disk

(Software)

149

Viewing the EOS Camera Instruction Manuals Disk (DVD-ROM)

EOS Camera Instruction Manuals Disk XXX

The EOS Camera Instruction Manuals Disk (DVD-ROM) contains the following instruction manuals (PDF):

CEL-XXX XXX

XXXXX

XXXXX

XXXXX

XXXXX

XXXXX

© C

ANON INC. 20XX. Made in the EU.

Instruction Manual

Explains all the camera functions and procedures, including basic content.

Wi-Fi Function Instruction Manual

Explains all the Wi-Fi functions and procedures, including basic content.

Software Instruction Manuals

Software Instruction Manuals PDFs for the software supplied on the

EOS Solution Disk (see p.155).

150

Viewing the EOS Camera Instruction Manuals Disk (DVD-ROM)

Viewing the EOS Camera Instruction Manuals Disk (DVD-ROM)

[WINDOWS]

EOS Camera Instruction Manuals Disk XXX

CEL-XXX XXX

XXXXX

XXXXX

XXXXX

XXXXX

XXXXX

© C ANON INC. 20XX. Made in the EU.

EOS Camera Instruction Manuals Disk

Copy the PDF Instruction Manuals contained on the disk to your computer.

1

Insert the EOS Camera Instruction Manuals Disk (DVD) into the

DVD-ROM drive of your computer.

2

Double-click [My Computer] on the desktop and then double-click the DVD-ROM drive into which you have inserted the disk.

3

Click on the name of the instruction manual you want to view.

Select your language and operating system.

X The index of the Instruction Manuals is displayed.

B

EOS 70D (W)

EOS 70D (N)

The EOS 70D (N) does not have the Wi-Fi functions explained in this manual.

ENGLISH

INSTRUCTION

MANUAL

Instruction Manual

Adobe Reader (latest version recommended) must be installed to view the Instruction

Manual files (PDF format). Install Adobe Reader if it is not already installed on your computer.

To save the PDF manual to your computer, use the ‘Save’ function of your Adobe

Reader. For more information about how to use Adobe Reader, see Adobe Reader’s

Help menu.

151

Viewing the EOS Camera Instruction Manuals Disk (DVD-ROM)

Viewing the EOS Camera Instruction Manuals Disk (DVD-ROM)

[MACINTOSH]

EOS Camera Instruction Manuals Disk XXX

CEL-XXX XXX

XXXXX

XXXXX

XXXXX

XXXXX

XXXXX

© C ANON INC. 20XX. Made in the EU.

EOS Camera Instruction Manuals Disk

Copy the PDF Instruction Manuals contained on the disk to your computer.

1

Insert the EOS Camera Instruction Manuals Disk (DVD) into the

DVD-ROM drive of your Macintosh.

2

Double-click on the disk icon.

3

Double-click the START.html file.

4

Click on the name of the instruction manual you want to view.

Select your language and operating system.

X The index of the Instruction Manuals is displayed.

B

EOS 70D (W)

EOS 70D (N)

The EOS 70D (N) does not have the Wi-Fi functions explained in this manual.

ENGLISH

INSTRUCTION

MANUAL

Instruction Manual

152

Adobe Reader (latest version recommended) must be installed to view the Instruction

Manual files (PDF format). Install Adobe Reader if it is not already installed on your

Macintosh.

To save the PDF manual to your computer, use the ‘Save’ function of your Adobe

Reader. For more information about how to use Adobe Reader, see Adobe Reader’s

Help menu.

Downloading Images to a Computer

You can use the provided software to download the images in the camera to your computer. There are two ways to do this.

Downloading by Connecting the Camera to the Computer

1

Install the software

(p.157)

.

2

Use the provided interface cable to connect the camera to your computer.

Use the interface cable provided with the camera.

Connect the cable to the camera’s

<C> terminal with the cable plug’s <D> icon facing the front of the camera.

Connect the cord’s plug to the computer’s USB terminal.

3

Use EOS Utility to transfer the images.

For details, refer to the EOS Utility

Instruction Manual (p.151).

If [53: Wi-Fi] is set to [Enable], the images cannot be downloaded to a computer. Set it to [Disable], then connect the interface cable.

153

Downloading Images to a Computer

Downloading Images with a Card Reader

You can use a card reader to download images/movies to a computer.

1

Install the software

(p.157)

.

2

Insert the card into the card reader.

3

Use Canon software to download the images.

X

Use Digital Photo Professional.

X

Use ImageBrowser EX.

For details, refer to the Software

Instruction Manual (p.151).

154

When downloading images from the camera to your computer, with a card reader without using Canon software, copy the DCIM folder on the card to your computer.

About the Software

EOS Solution Disk XXX

CEL-XXX XXX

XXXXX

XXXXX

XXXXX

XXXXX

XXXXX

Windows XXX XXX

Mac OS X XXX XXX

© C ANON INC. 20XX. Made in the EU

EOS Solution Disk

This disk contains various software for EOS cameras.

Note that the software provided with previous cameras might not support still photos and movie files shot with this camera. Please use the software provided with this camera.

a

EOS Utility

Communication Software for the Camera and Computer

You can download images (still images/movies) you have shot with the camera to your computer.

You can set the various settings of the camera from your computer.

You can shoot photos remotely by connecting the camera to your computer.

You can copy background music tracks to the card, and play the background music during playback.

b

Digital Photo Professional

Image Viewing and Editing Software

You can view, edit and print shot images on your computer at high-speed.

You can edit images with originals remaining unchanged.

Can be used by a wide range of users from amateurs to professionals. It is especially recommended for users who mainly shoot RAW images.

c

Picture Style Editor

Picture Style File Creating Software

This software is aimed at advanced users who are experienced in processing images.

You can edit Picture Style to your unique image characteristics and create/save an original Picture Style file.

155

About the Software

d

ImageBrowser EX

Image Viewing and Editing Software

Connect to the Internet to download and install the software.*

You can view, browse and print JPEG images on your computer.

You can play movies (MOV files), video snapshot albums, and extract still photos from movies.

Recommended for novices who are using a digital camera for the first time and amateur users.

* EOS Solution Disk is necessary for downloading and installing ImageBrowser EX.

156

Note that the software ZoomBrowser EX/ImageBrowser provided with previous cameras does not support still photos and movie files shot with this camera (not compatible). Use ImageBrowser EX.

Installing the Software

Installing the Software on Windows

Compatible OS

Windows 8 Windows 7 Windows Vista Windows XP

1

Check that the camera is not connected to your computer.

Do not connect the camera to your computer before you install the software. The software will not be installed correctly.

When downloading and installing ImageBrowser EX, follow the steps below as with other EOS software included on the EOS Solution Disk.

Note that Internet connection is necessary. Downloading or installing software is not possible in environments with no Internet connection.

Even if your computer already has ImageBrowser EX installed, follow the steps below to reinstall ImageBrowser EX. It will be updated to the latest version with features optimized for your camera. Also, the latest functions may be added with the auto update feature.

For software other than ImageBrowser EX, if a previous version is installed, follow the steps below to reinstall the software. (The newer version will overwrite the previous version.)

2

Insert the EOS Solution Disk (CD-ROM).

3

Select your geographic area, country and language.

4

Click [Easy Installation] to start installation.

Follow the on-screen instructions to complete the installation procedure.

If prompted, install Microsoft Silverlight.

5

Click [Finish] when the installation has completed.

6

Remove the CD.

157

Installing the Software

Installing the Software on Macintosh

Compatible OS

MAC OS X 10.6 - 10.8

1

Check that the camera is not connected to your computer.

Do not connect the camera to your computer before you install the software. The software will not be installed correctly.

When downloading and installing ImageBrowser EX, follow the steps below as with other EOS software included on the EOS Solution Disk.

Note that Internet connection is necessary. Downloading or installing software is not possible in environments with no Internet connection.

Even if your computer already has ImageBrowser EX installed, follow the steps below to reinstall ImageBrowser EX. It will be updated to the latest version with features optimized for your camera. Also, the latest functions may be added with the auto update feature.

For software other than ImageBrowser EX, if a previous version is installed, follow the steps below to reinstall the software. (The newer version will overwrite the previous version.)

2

Insert the EOS Solution Disk (CD-ROM).

On your computer’s desktop, double-click and open the CD-ROM icon, and then double-click [setup].

3

Select your geographic area, country and language.

4

Click [Easy Installation] to start installation.

Follow the on-screen instructions to complete the installation procedure.

5

Click [Restart] when the installation has completed.

6

Once the computer has restarted, remove the CD.

158

Trademarks

o

Adobe is a trademark of Adobe Systems Incorporated.

o

Microsoft and Windows are trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

o Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

o SDXC logo is a trademark of SD-3C, LLC.

o HDMI, HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

o All other trademarks are the property of their respective owners.

About MPEG-4 Licensing

“This product is licensed under AT&T patents for the MPEG-4 standard and may be used for encoding MPEG-4 compliant video and/or decoding MPEG-4 compliant video that was encoded only (1) for a personal and non-commercial purpose or (2) by a video provider licensed under the AT&T patents to provide MPEG-4 compliant video.

No license is granted or implied for any other use for MPEG-4 standard.”

* Notice displayed in English as required.

Use of Genuine Canon Accessories Is Recommended

This product is designed to achieve excellent performance when used with genuine Canon accessories.

Canon shall not be liable for any damage to this product and/or accidents such as fire, etc., caused by the malfunction of non-genuine Canon accessories (e.g., a leakage and/or explosion of a battery pack). Please note that this warranty does not apply to repairs arising out of the malfunction of non-genuine Canon accessories, although you may request such repairs on a chargeable basis.

Battery Pack LP-E6/LP-E6N is dedicated to Canon products only. Using it with an incompatible battery charger or product may result in malfunction or accidents for which Canon cannot be held liable.

159

Safety Precautions

The following precautions are provided to prevent harm or injury to yourself and others. Make sure to thoroughly understand and follow these precautions before using the product.

If you experience any malfunctions, problems, or damage to the product, contact the nearest Canon Service Center or the dealer from whom you purchased the product.

Warnings:

Follow the warnings below. Otherwise, death or serious injuries may result.

To prevent fire, excessive heat, chemical leakage, explosions, and electrical shock, follow the safeguards below:

• Do not use any batteries, power sources, or accessories not specified in the

Instruction Manual. Do not use any home-made or modified batteries.

• Do not short-circuit, disassemble, or modify the battery. Do not apply heat or solder to the battery. Do not expose the battery to fire or water. Do not subject the battery to strong physical shock.

• Do not insert the battery’s plus and minus ends incorrectly.

• Do not recharge the battery in temperatures outside the allowable ambient temperature range. Also, do not exceed the recharging time indicated in the

Instruction Manual.

• Do not insert any foreign metallic objects into the electrical contacts of the camera, accessories, connecting cables, etc.

When disposing of a battery, insulate the electrical contacts with tape to prevent contact with other metallic objects or batteries. This is to prevent a fire or an explosion.

If excessive heat, smoke, or fumes are emitted when recharging the battery, immediately unplug the battery charger from the power outlet to stop recharging.

Otherwise, it may cause a fire, heat damage or electrical shock.

If the battery leaks, changes color, deforms, or emits smoke or fumes, remove it immediately. Be careful not to get burned in the process. It may cause a fire, electrical shock or skin burn if you keep using it.

Prevent any battery leakage from contacting your eyes, skin, and clothing. It can cause blindness or skin problems. If the battery leakage contacts your eyes, skin, or clothing, flush the affected area with lots of clean water without rubbing it. See a physician immediately.

Do not leave any cords near a heat source. It can deform the cord or melt the insulation and cause a fire or electrical shock.

Do not hold the camera in the same position for long periods of time. Even if the camera does not feel too hot, prolonged contact with the same body part may cause skin redness, blistering or low-temperature contact burns. Using a tripod is recommended for people with circulation problems or very sensitive skin, or when using the camera in very hot places.

Do not fire the flash at anyone driving a car or other vehicle. It may cause an accident.

Do not fire the flash near a person’s eyes. It may impair the person’s vision. When using flash to photograph an infant, keep at least 1 meter/3.3 feet away.

160

Safety Precautions

When the camera or accessories are not in use, make sure to remove the battery and disconnect the power plug from the equipment before storing. This is to prevent electrical shock, excessive heat, fire, or corrosion.

Do not use the equipment where there is flammable gas. This is to prevent an explosion or a fire.

If you drop the equipment and the casing breaks open to expose the internal parts, do not touch the internal parts. There is a possibility of an electrical shock.

Do not disassemble or modify the equipment. High-voltage internal parts can cause electrical shock.

Do not look at the sun or an extremely bright light source through the camera or lens. Doing so may damage your vision.

Keep equipment out of the reach of children and infants, including when in use. Straps or cords may accidentally cause choking, electrical shock, or injury. Choking or injury may also occur if a child or infant accidentally swallows a camera part or accessory. If a child or infant swallows a part or accessory, consult a physician immediately.

Do not store the equipment in dusty or humid places. Likewise, store the battery with its protective cover attached to prevent short-circuit. This is to prevent a fire, excessive heat, electrical shock, or burn.

Before using the camera inside an airplane or hospital, check if it is allowed.

Electromagnetic waves emitted by the camera may interfere with the plane’s instruments or the hospital’s medical equipment.

To prevent a fire and electrical shock, follow the safeguards below:

• Always insert the power plug all the way in.

• Do not handle a power plug with wet hands.

• When unplugging a power plug, grasp and pull the plug instead of the cord.

• Do not scratch, cut, or excessively bend the cord or put a heavy object on the cord. Also do not twist or tie the cords.

• Do not connect too many power plugs to the same power outlet.

Do not use a cord whose wire is broken or insulation is damaged.

Unplug the power plug periodically and clean off the dust around the power outlet with a dry cloth. If the surrounding is dusty, humid, or oily, the dust on the power outlet may become moist and short-circuit the outlet, causing a fire.

Do not connect the battery directly to an electrical outlet or a car’s cigarette lighter outlet. The battery may leak, generate excessive heat or explode, causing a fire, burns or injuries.

A thorough explanation of how to use the product by an adult is required when the product is used by children. Supervise children while they are using the product.

Incorrect usage may result in electrical shock or injury.

Do not leave a lens or lens-attached camera in the sun without the lens cap attached. Otherwise, the lens may concentrate the sun’s rays and cause a fire.

Do not cover or wrap the product with a cloth. Doing so may trap heat within and cause the casing to deform or catch fire.

Be careful not to get the camera wet. If you drop the product in the water or if water or metal get inside the product, promptly remove the battery. This is to prevent a fire and an electrical shock.

Do not use paint thinner, benzene, or other organic solvents to clean the product.

Doing so may cause fire or a health hazard.

161

Safety Precautions

Cautions:

Follow the cautions below. Otherwise physical injury or property damage may result.

Do not use or store the product inside a car under the hot sun or near a heat source.

The product may become hot and cause skin burns. Doing so may also cause battery leakage or explosion, which will degrade the performance or shorten the life of the product.

Do not carry the camera around when it is attached to a tripod. Doing so may cause injury. Also make sure the tripod is sturdy enough to support the camera and lens.

Do not leave the product in a low-temperature environment for an extended period of time. The product will become cold and may cause injury when touched.

Never play the provided CD-ROM in a drive that is not compatible with the CD-ROM.

If you use it in a music CD player, you may damage the speakers and other components. When using headphones, there is also a risk of injury to your ears from excessively loud volume.

162

Only for European Union and EEA

(Norway, Iceland and Liechtenstein)

These symbols indicate that this product is not to be disposed of with your household waste, according to the WEEE Directive (2012/19/EU), the Battery

Directive (2006/66/EC) and/or national legislation implementing those Directives.

If a chemical symbol is printed beneath the symbol shown above, in accordance with the Battery

Directive, this indicates that a heavy metal (Hg = Mercury, Cd = Cadmium,

Pb = Lead) is present in this battery or accumulator at a concentration above an applicable threshold specified in the Battery Directive.

This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE) and batteries and accumulators. Improper handling of this type of waste could have a possible impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. Your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources.

For more information about the recycling of this product, please contact your local city office, waste authority, approved scheme or your household waste disposal service or visit www.canon-europe.com/weee, or www.canon-europe.com/battery.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATION.

163

CANON INC.

30-2 Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Europe, Africa & Middle East

CANON EUROPA N.V.

PO Box 2262, 1180 EG Amstelveen, The Netherlands

For your local Canon office, please refer to your warranty card or to www.canon-europe.com/Support

The product and associated warranty are provided in European countries by Canon Europa N.V.

EOS 70D (W)

EOS 70D (N)

The descriptions in this Instruction Manual are current as of October 2014. For information on the compatibility with any products introduced after this date, contact any Canon Service Center. For the latest version Instruction Manual, refer to the Canon website.

CEL-SU5TA212 © CANON INC. 2014 PRINTED IN THE EU

* The EOS 70D (N) does not have the Wi-Fi functions explained in this manual.

Basic Instruction Manual

This basic manual covers only the most basic operations.

For other features and more details, see the Instruction

Manual pdf file on the DVD-ROM.

ENGLISH

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
