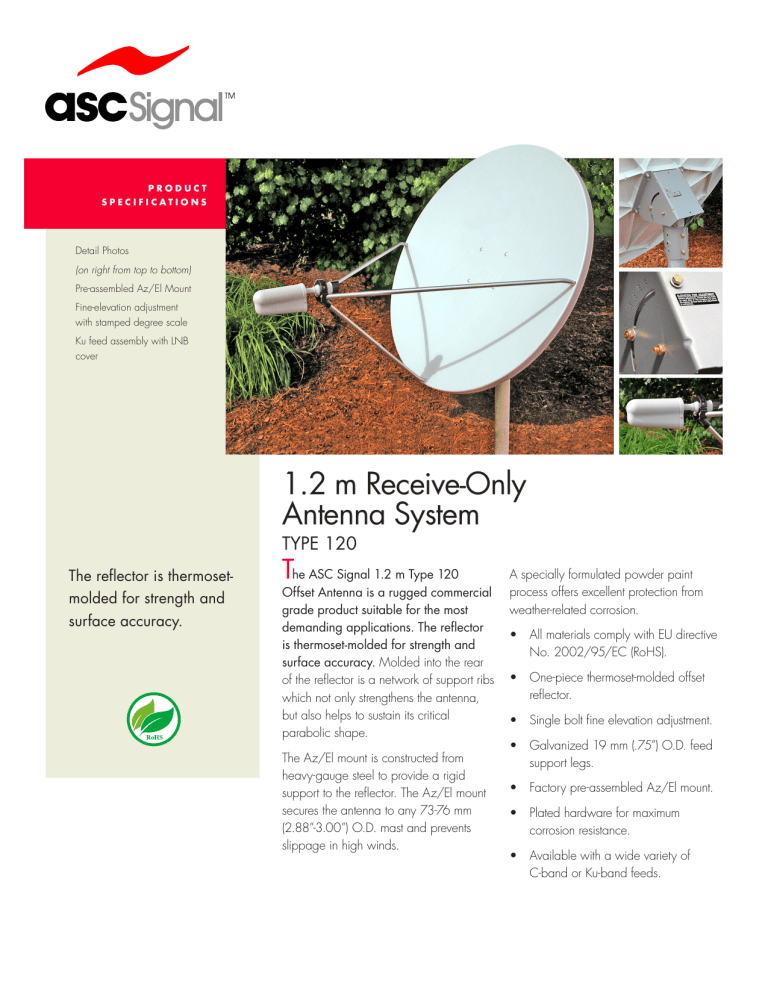

1.2 m Receive-Only Antenna System

1.2 m Receive-Only Antenna System
PRODUCT
SPECIFICATIONS
Detail Photos
(on right from top to bottom)
Pre-assembled Az/El Mount
Fine-elevation adjustment
with stamped degree scale
Ku feed assembly with LNB
cover
1.2 m Receive-Only
Antenna System
TYPE 120
The reflector is thermosetmolded for strength and
surface accuracy.
The ASC Signal 1.2 m Type 120
Offset Antenna is a rugged commercial
grade product suitable for the most
demanding applications. The reflector
is thermoset-molded for strength and
surface accuracy. Molded into the rear
of the reflector is a network of support ribs
which not only strengthens the antenna,
but also helps to sustain its critical
parabolic shape.
The Az/El mount is constructed from
heavy-gauge steel to provide a rigid
support to the reflector. The Az/El mount
secures the antenna to any 73-76 mm
(2.88”-3.00”) O.D. mast and prevents
slippage in high winds.
A specially formulated powder paint
process offers excellent protection from
weather-related corrosion.
• All materials comply with EU directive No. 2002/95/EC (RoHS).
• One-piece thermoset-molded offset
reflector.
• Single bolt fine elevation adjustment.
• Galvanized 19 mm (.75”) O.D. feed
support legs.
• Factory pre-assembled Az/El mount.
• Plated hardware for maximum corrosion resistance.
• Available with a wide variety of
C-band or Ku-band feeds.
S P E C I F I C AT I O N S
Type 120
1.2 m Receive Only Antenna System
RF Performance
Mechanical Performance
Ku-band
Reflector Material . . . . . . . . . . . . . . . . . . . . . . . . .
Glass Fiber Reinforced Polyester
Effective Aperture . . . . . . . . . 1.2 m (48 in) . . . . . . . . .
1.2 m (48 in)
Antenna Optics . . . . . . . . . . . . . . . . . . . . . . . . .
One-Piece Offset Feed Prime Focus
Operating Frequency . . . . . . 3.4 - 4.8 GHz . . . . . . . . . 10.95 - 12.75 GHz
Mount Type
. . . . . . . . . . . . . . . . . . . . . . . . .
Elevation over Azimuth
Polarization
Linear (Circular Optional)
Elevation Adjustment Range . . . . . . . . . . . . . . . . . . . . . . . . .
10˚ - 70˚ Continuous Fine Adjustment
Gain @ 3.95/11.95 GHz . . . 32.0 dBi . . . . . . . . .
42.0 dBi
Azimuth Adjustment Range . . . . . . . . . . . . . . . . . . . . . . . . .
360˚ Continuous
3 dB Beamwidth . . . . . . . . . 4.4˚. . . . . . . . . . . . . . . . . . 1.6˚
Antenna Noise Temperature
@ 30˚ Elevation .. . . . . . . . . 32˚ K . . . . . . . . . . . . . . . . 24˚ K
VSWR
1.4:1
Mast Pipe Interface
. . . . . . . . . . . . . . . . . . . . . . . . . 73 - 76 mm (2.88 in - 3.00 in) Diameter
Wind Loading . . . . . . . . . . . . . . . Operational . . . . . . .
80 km/h (50 mph)
Survival
. . . . . . .
200 km/h (125 mph)
C-band
.........
Linear (Circular Optional) . . . . . . . . . . . 1.3:1 . . . . . . . . . . . . . . . .
Antenna
Cross Polarization . . . . . . . . . 30 dB on Axis (Linear) . .
Feed Interface
30 dB on Axis (Linear)
. . . . . . . . . CPR-229 . . . . . . . . . . . . . . . . WR75 Flat Flange
(All specifications typical)
Temperature . . . . . . . . . . . . . . . . . . . . . . . . .
-50˚C to 80˚C
Humidity
. . . . . . . . . . . . . . . . . . . . . . . . .
0 to 100% (Condensing)
Atmosphere . . . . . . . . . . . . . . . . . . . . . . . . .
Standard Hardware Meets 500 Hour
Salt Spray Test Requirements
(ASTM B-117)
Solar Radiation 360 BTU/h/ft2
. . . . . . . . . . . . . . . . . . . . . . . . .
Shock and Vibration . . . . . . . . . . . . . . . . . . . . . . . . .
ASC Signal Corporation
620 North Greenfield Parkway
Garner, NC 27529 USA
Telephone: +1-919-329-8700
Fax: +1-919-329-8701
Internet: www.ascsignal.com
As Encountered During Shipping and
Handling
All designs, specifications and availabilities of
products and services presented in this bulletin
are subject to change without notice.
ASC-VSAT20
© 2007 ASC Signal Corporation
