Distributeur Geosat
http://www.geosat.fr

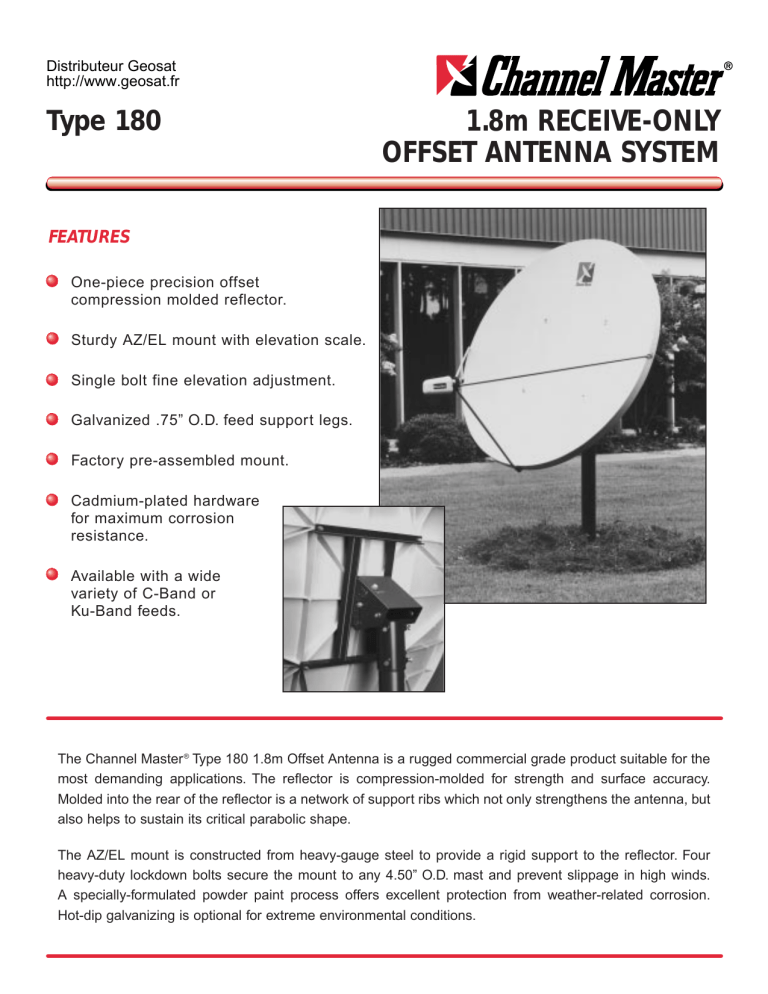

Type 180
1.8m RECEIVE-ONLY
OFFSET ANTENNA SYSTEM
FEATURES
One-piece precision offset
compression molded reflector.
Sturdy AZ/EL mount with elevation scale.
Single bolt fine elevation adjustment.
Galvanized .75” O.D. feed support legs.
Factory pre-assembled mount.
Cadmium-plated hardware
for maximum corrosion
resistance.
Available with a wide
variety of C-Band or
Ku-Band feeds.
The Channel Master ® Type 180 1.8m Offset Antenna is a rugged commercial grade product suitable for the
most demanding applications. The reflector is compression-molded for strength and surface accuracy.
Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but
also helps to sustain its critical parabolic shape.
The AZ/EL mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. Four
heavy-duty lockdown bolts secure the mount to any 4.50” O.D. mast and prevent slippage in high winds.
A specially-formulated powder paint process offers excellent protection from weather-related corrosion.
Hot-dip galvanizing is optional for extreme environmental conditions.
Type 180
1.8m RECEIVE-ONLY
OFFSET ANTENNA SYSTEM
Specifications
RF PERFORMANCE
C-Band
Ku-Band
Effective Aperture
1.8m (71 in.)
1.8m (71 in.)
Operating Frequency
3.7-4.2 GHz
10.95-12.75 GHz
Linear (Circular optional)
Linear (Circular optional)
35.3 dBi
45.5 dBi
3 dB Beamwidth
3.0˚
.99˚
Antenna Noise Temperature @ 30˚ EL
30˚K
23˚K
1.3:1 Max.
1.3:1 Max.
>30 dB On Axis (Linear)
>30 dB On Axis (Linear)
CPR-229
WR-75
Polarization
Midband Gain (±.2 dBi)
VSWR
Cross-Polarization Discrimination
Feed Interface
MECHANICAL PERFORMANCE
Reflector Material
Glass Fiber Reinforced Polyester
Antenna Optics
One-Piece Offset Feed Prime Focus
Mount Type
Elevation over Azimuth
Elevation Adjustment Range
10˚-70˚ Continuous Fine Adjustment
Azimuth Adjustment Range
360˚ Continuous
Mast Pipe Interface
4.50 Inch (114 mm) Diameter
Wind Loading
Operational
50 Mi/h
Survival
125 Mi/h
Temperature
-50˚C to 80˚C
Humidity
0 to 100% (Condensing)
Atmosphere
Salt, Pollutants and Contaminants as
Encountered in Coastal and Industrial Areas
Solar Radiation
360 BTU/h/ft²
Shock and Vibration
As Encountered During Shipping and Handling
http://www.geosat.fr
Contact : [email protected]
Tel : 0825 56 46 36
