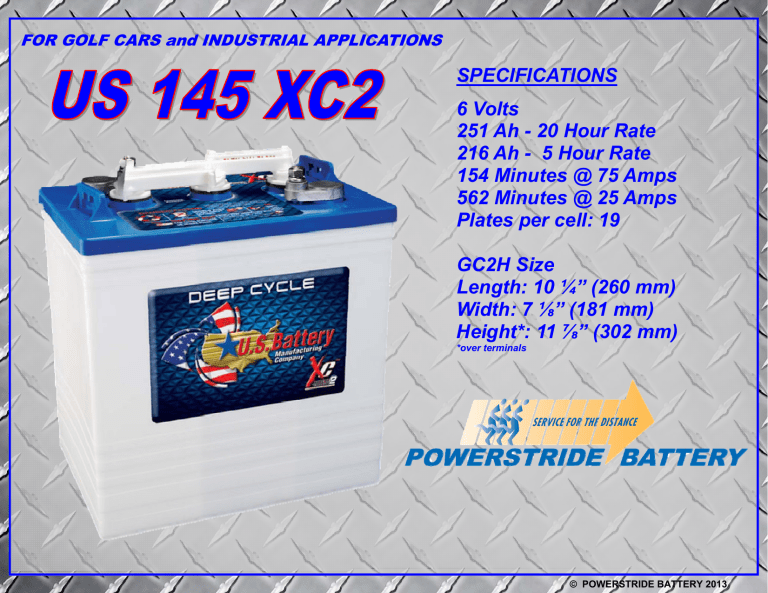

20 Hour Rate 216 Ah - Powerstride Battery
FOR GOLF CARS and INDUSTRIAL APPLICATIONS
SPECIFICATIONS
6 Volts
251 Ah - 20 Hour Rate
216 Ah - 5 Hour Rate
154 Minutes @ 75 Amps
562 Minutes @ 25 Amps
Plates per cell: 19
GC2H Size
Length: 10 ¼” (260 mm)
Width: 7 ⅛” (181 mm)
Height*: 11 ⅞” (302 mm)
*over terminals
© POWERSTRIDE BATTERY 2013
Xtreme Capacity 2™ NEW! From U.S. Battery
TM
•
Highest initial capacity
•
Fastest cycle up to full rated capacity
•
Highest total energy delivered over the life of the battery
•
Ultimate compatibility with the widest range of chargers
•
High Charge efficiency designed to meet the newest
California Energy Commission regulations for combined
charger / battery efficiency
© POWERSTRIDE BATTERY 2013
