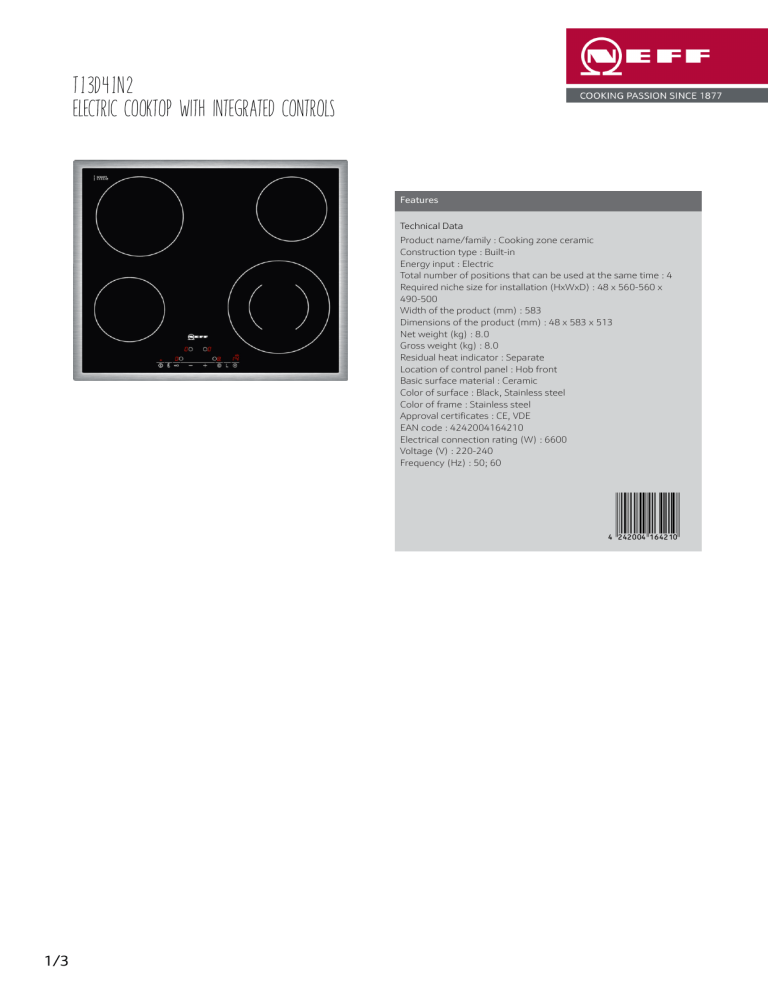

T13D41N2
Electric cooktop with integrated controls
Features
Technical Data
Product name/family : Cooking zone ceramic
Construction type : Built-in
Energy input : Electric
Total number of positions that can be used at the same time : 4
Required niche size for installation (HxWxD) : 48 x 560-560 x
490-500
Width of the product (mm) : 583
Dimensions of the product (mm) : 48 x 583 x 513
Net weight (kg) : 8.0
Gross weight (kg) : 8.0
Residual heat indicator : Separate
Location of control panel : Hob front
Basic surface material : Ceramic
Color of surface : Black, Stainless steel
Color of frame : Stainless steel
Approval certificates : CE, VDE
EAN code : 4242004164210
Electrical connection rating (W) : 6600
Voltage (V) : 220-240
Frequency (Hz) : 50; 60
'!2E20AE-bgecba!
1/3
T13D41N2
Electric cooktop with integrated controls
Features
Handling
●
Central electronic touch control operation
Flexibility
●
1 dual circuit zone
●
4 zone ceramic cooktop
●
Cooking zones
front left: Ø 145 mm, 1.2 KW
rear left: Ø 180 mm, 2 KW
rear right: Ø 145 mm, 1.2 KW
front right: Ø 120 mm, 210 mm, 2.2 KW, 0.75 KW
Comfort & Convenience
●
Keep warm function for all cooking zones
●
ReStart function
●
Residual heat indicator: Digital 2-step
●
Digital display
●
Alarm clock for each zone with switch off function
●
Main switch with stop-function
●
Automatic safety switch-off
●
Child safety lock
●
Wipe protection function
Design
●
Standard design full trim in Stainless steel
Technical Information
2/3
●
60 cm width
●
Installation measurements: 560 mm x 490 mm
●
Min. worktop thickness: 20 mm
●
6.6 kW total connected load
T13D41N2
Electric cooktop with integrated controls
Dimensioned drawings
3/3
