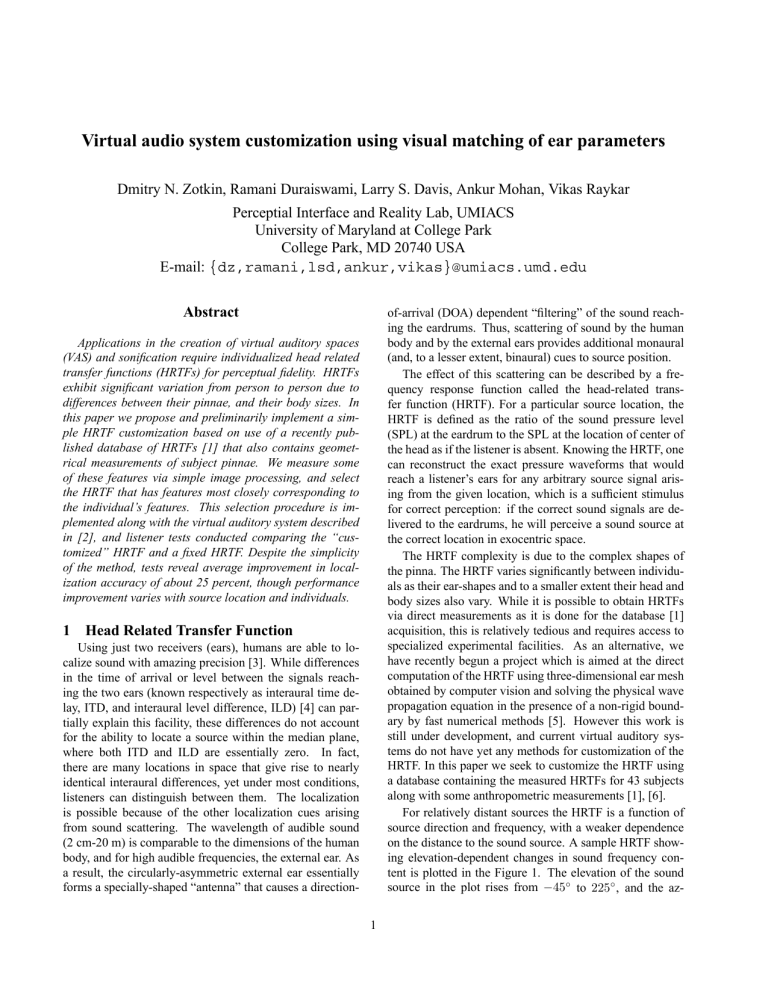

Virtual audio system customization using visual matching of ear parameters
Dmitry N. Zotkin, Ramani Duraiswami, Larry S. Davis, Ankur Mohan, Vikas Raykar
Perceptial Interface and Reality Lab, UMIACS
University of Maryland at College Park
College Park, MD 20740 USA
E-mail: {dz,ramani,lsd,ankur,vikas}@umiacs.umd.edu
Abstract
of-arrival (DOA) dependent “filtering” of the sound reaching the eardrums. Thus, scattering of sound by the human
body and by the external ears provides additional monaural
(and, to a lesser extent, binaural) cues to source position.
The effect of this scattering can be described by a frequency response function called the head-related transfer function (HRTF). For a particular source location, the
HRTF is defined as the ratio of the sound pressure level
(SPL) at the eardrum to the SPL at the location of center of
the head as if the listener is absent. Knowing the HRTF, one
can reconstruct the exact pressure waveforms that would
reach a listener’s ears for any arbitrary source signal arising from the given location, which is a sufficient stimulus
for correct perception: if the correct sound signals are delivered to the eardrums, he will perceive a sound source at
the correct location in exocentric space.
The HRTF complexity is due to the complex shapes of
the pinna. The HRTF varies significantly between individuals as their ear-shapes and to a smaller extent their head and
body sizes also vary. While it is possible to obtain HRTFs
via direct measurements as it is done for the database [1]
acquisition, this is relatively tedious and requires access to
specialized experimental facilities. As an alternative, we
have recently begun a project which is aimed at the direct
computation of the HRTF using three-dimensional ear mesh
obtained by computer vision and solving the physical wave
propagation equation in the presence of a non-rigid boundary by fast numerical methods [5]. However this work is
still under development, and current virtual auditory systems do not have yet any methods for customization of the
HRTF. In this paper we seek to customize the HRTF using
a database containing the measured HRTFs for 43 subjects
along with some anthropometric measurements [1], [6].
For relatively distant sources the HRTF is a function of
source direction and frequency, with a weaker dependence
on the distance to the sound source. A sample HRTF showing elevation-dependent changes in sound frequency content is plotted in the Figure 1. The elevation of the sound
source in the plot rises from −45◦ to 225◦ , and the az-
Applications in the creation of virtual auditory spaces
(VAS) and sonification require individualized head related
transfer functions (HRTFs) for perceptual fidelity. HRTFs
exhibit significant variation from person to person due to
differences between their pinnae, and their body sizes. In
this paper we propose and preliminarily implement a simple HRTF customization based on use of a recently published database of HRTFs [1] that also contains geometrical measurements of subject pinnae. We measure some
of these features via simple image processing, and select
the HRTF that has features most closely corresponding to
the individual’s features. This selection procedure is implemented along with the virtual auditory system described
in [2], and listener tests conducted comparing the “customized” HRTF and a fixed HRTF. Despite the simplicity
of the method, tests reveal average improvement in localization accuracy of about 25 percent, though performance
improvement varies with source location and individuals.
1 Head Related Transfer Function
Using just two receivers (ears), humans are able to localize sound with amazing precision [3]. While differences
in the time of arrival or level between the signals reaching the two ears (known respectively as interaural time delay, ITD, and interaural level difference, ILD) [4] can partially explain this facility, these differences do not account
for the ability to locate a source within the median plane,
where both ITD and ILD are essentially zero. In fact,
there are many locations in space that give rise to nearly
identical interaural differences, yet under most conditions,
listeners can distinguish between them. The localization
is possible because of the other localization cues arising
from sound scattering. The wavelength of audible sound
(2 cm-20 m) is comparable to the dimensions of the human
body, and for high audible frequencies, the external ear. As
a result, the circularly-asymmetric external ear essentially
forms a specially-shaped “antenna” that causes a direction1
Figure 1. Sample HRTF slice (contralateral
and ipsilateral ears, respectively) for the azimuth of 45 degrees and varying elevation for
a human subject.
Figure 2. The set of measurements provided
with the HRTF database.
of HRTF is known, it is easy to create a virtual audio environment – a synthesized playback stream which is delivered through headphones but nevertheless appears for the
listener to originate from some point or object in 3D-space.
In the VAS system, the HRTF-based cues are created by
filtering the sound with the appropriate HRTF for the DOA
for that sound source, the dynamic cues are implemented by
active head tracking using commercially-available tracking
systems, and the environmental cues are modeled by a simple multiple reflection model.
The biggest and still-open problem in the synthesis of the
virtual auditory spaces is the customization of the HRTF for
a particular individual. Each person presumably learns her
own HRTF given visual feedback about the source position,
but the HRTFs of different people look very different in the
plot and are not interchangeable. It is known [9], [10] that
differences between individual HRTFs due to differences in
ear shape and geometry strongly distort the perception when
non-individualized HRTFs are used for rendering, and that
the high-quality synthesis of a virtual audio scene requires
the personalization of the HRTF for the particular individual
for good virtual source localization. The usual customization method is a direct measurement of the HRTF when
a tiny microphone is put into the ear canal of the subject
and the sound is played through a loudspeaker positioned
sequentially over all possible DOA angles in some steps,
sampling the whole sphere. This method is accurate but is
highly time-consuming. A faster but less accurate approach,
which we report on in this paper, is an attempt to select the
best-matching HRTF from an existing database of HRTFs
and use it for the synthesis of the VAS, thus making the
HRTF semi-personalized.
We pose the problem as selecting the most appropriate
HRTF from database of HRTFs. The database we used was
recently released by the CIPIC lab and contains the measurement of the HRTFs of 43 people, along with the anthropometric information about those subjects. The anthro-
imuth is constant. (In the interaural-polar coordinate system
used, azimuth ϕ ∈ [−90, 90] and elevation θ ∈ [−90, 270].
Points in back of the subject have θ = 180◦ ). The effects
of the different body parts show up in different frequency
ranges. The head shadow explains the overall level difference in the two pictures; the torso reflections create wide
arches in the lower frequency area and the pinna notches
appear as dark streaks in the high-frequency regions. Feature positions in frequency change with elevation; it is these
cues that are used by us to distinguish elevations [7], [8].
The initial version of our virtual auditory system [2] employs dynamic room models, head tracking, and runs on an
off the shelf PC. Most users report very satisfactory experience using the system even with a single measured HRTF. In
terms of precision, the localization performance varies for
different people, with vertical localization being quite accurate for some subjects, suggesting that custom-tailoring of
the HRTF can lead to localization performance comparable
to localization with person’s own HRTF set.
2 Database matching
Usually, when the waveform is played back for a listener
via headphones, the sound appears flat and is perceived as
being inside the head. This happens for three reasons. One
of them is that the rendered sound lacks those HRTF-based
cues described above that tell the brain that the sound is
“processed” (passively filtered) by ears and therefore has
originated from the outside. The second reason is that very
important dynamic cues are missing (that is, when the listener rotates the head the sound scene does not change,
which is not the case for the outside sound since the DOA
of the wave changes for the listener). The last important
set of cues are the environmental cues which are essentially the reflections coming off the room walls and other
surfaces, creating reverberation which is important for externalization and distance perception. Provided that the set
2
pometric information in the database consists of 27 measurements per subject – 17 for the head and the torso and
10 for the pinna. Pinna parameters are summarized in Figure 2 and are as follows: d1 ...d8 are cavum concha height,
cymba concha height, cavum concha width, fossa height,
pinna height, pinna width, intertragal incisure width and
cavum concha depth, and θ1 and θ2 are pinna rotation and
flare angles, respectively. For the HRTF matching procedure, we use 7 of these 10 pinna parameters which can be
easily measured from the ear picture.
Since the HRTF is the representation of the physical process of the interaction between the oncoming sound wave
and the listener pinnae, head and torso, it is natural to assume the hypothesis that the structure of the HRTF is related to body parameters. For example, observe that if the
ear is scaled up, the HRTF will maintain its shape but will be
shifted toward the lower frequencies on the frequency axis.
Since the listener presumably deduces the source elevation
from the positions of peaks and notches in the oncoming
sound spectrum, usage of the HRTF from the scaled-up
ear will result in systematic bias in the elevation estimation. Some studies, such as a structural model for composition and decomposition of HRTF [11] and experiments
with HRTF scaling ([12], [13], [14]) already suggested that
the hypothesis is somewhat valid, although a perfect match
(equivalent to the localization with the person’s own HRTF)
was not achieved with somebody’s else HRTF appropriately
scaled up or down. However, the ears of different persons are different in much more ways than just scaling, and
seemingly insignificant change in ear shape can cause dramatic changes in HRTF.
We perform an exploratory study on the hypothesis that
the HRTF structure is related to the ear parameters. Specifically, given the database of the HRTFs of 43 persons along
with their ear measurements we select the closest match to
the new person by taking the picture of her ear, measuring the di parameters from the image and finding the best
match in the database. If the measured value of the parameter is dˆi and the database value is di , then P
the parameter
error ei = (dˆi − di )/di , the total error E = i e2i and the
subject that minimizes the total error E is selected as the
closest match. Matching is performed separately for the left
and the right ears, which sometimes leads to the selection
of left and right HRTFs belonging to two different database
subjects; these cases are very rare though.
We have developed a graphical interface for fast selection of the best-matching HRTF from the database. The
pictures of the left and the right ear of the new virtual audio
system user are taken with two cameras (a sample is shown
in Figure 3). An operator identifies key points on the ear
picture and measures the ear parameters described above.
The parameters d8 and θ2 are not measured since they can’t
be reliably estimated from pictures and θ1 is used to com-
Figure 3. Sample picture of the ear with the
measurement control points marked.
pensate for the difference between pinna rotation angles of
the system user and the selected best-matching subject. The
matching is done in less than a minute using only the ear
picture, and no listening tests are necessary.
3 Results
We performed a series of tests to verify whether the customization has a significant effect on the localization performance and the subjective experience of the virtual audio
system user. The audio rendering system is described in detail in [2]. The system is based on a fast dual-processor PC
with no specialized hardware, except for the head tracker.
The test sounds are presented through headphones, and the
head tracker measures the head position when the subject
“points” to the virtual sound source with her nose. The
test sound was three 75ms bursts of white noise with 75
ms pauses between them, repeated every second.
We performed two series of the experiments with the
same 6 subjects. In the first series, the “generic” HRTF
was used for the VAS rendering, which was taken to be
the HRTF of a real person measured in an anechoic chamber. That person was not among the test subjects. In the
second series, the best-matching HRTF was selected from
the database and used for VAS rendering. The test sessions
themselves consisted of a short training period and the real
test, when the test sound described above is played in some
location in the space with the azimuth ϕ ∈ [−90, 90] and
the elevation θ ∈ [−45, 45], and the subject is asked to point
at the location of the source with her nose. The perfect localization corresponds to ϕ = 0, θ = 0 in the coordinate
system linked to the subject’s head. On localization, the
subjects presses the button on the keyboard and is presented
with the next source. The series consists of 20 randomly
selected positions. The results for the generic HRTF are
presented in the Table 1, and the Table 2 contains the results when the HRTF that best matches that subject’s ear
3
The performed customization is a coarse “nearestneighbor” approach, and the HRTF certainly depends on
much more than the 7 parameters measured. Still, even with
such a limited parameter space the approach is shown to
achieve good performance gain.
For performing statistically valid customization we must
develop a predictive theory that can link anthropometric
measurements to specific features. Such an approach can
perhaps be developed using accurate modeling of the ear
shape and numerical solution of the wave propagation equation. This approach is also a subject of active research work
both in our lab and at other institutions worldwide.
parameters are used. For both tables, the average value of
the modulus of error in both azimuth and elevation and the
average value of the azimuth and elevation error themselves
(the bias) are reported.
Table 1
s1
s2
s3
s4
s5
s6
avg |ϕ| 6.3
5.1 4.3 6.4
8.0
8.4
avg |θ| 9.0
9.5 5.5 16.7 14.4 7.2
avg ϕ -5.3 4.8 2.7 3.3
4.2 -5.7
avg θ
-4.0 -4.5 5.0 -9.0 -8.3 3.8
Table 1 corresponds to the results obtained with one
generic HRTF for all six subjects. Some subjects perform
better than the others, and localization in azimuth is generally better than in elevation. Considering elevational localization (which is believed to be hampered most by using of
non-individualized HRTF), subject 3 performs quite good;
performance of subjects 1, 2 and 6 is close to the average
and subjects 4 and 5 perform poorly.
Table 2
References
[1] V. R. Algazi, R. O. Duda, D. P. Thompson, and C. Avendano.
[2]
[3]
s1
s2
s3
s4
s5
s6
avg |ϕ| 13.5 5.9
7.5 13.4 10.2 7.6
avg |θ|
7.6
7.2
4.4 12.9 13.6 12.5
avg ϕ
-9.4 -3.3 -4.8 -3.1 -1.5
0.7
avg θ
-1.4 -7.0 -2.0 4.8
4.8
-6.3
Table 2 results are for the case of the best-matching
HRTF from the HRTF database. Azimuthal localization
was not the priority task for the subjects for this test. It
is clear that the elevation localization performance is improved consistently by 20-30% for 4 out of 6 subjects. Improvement for the subject 5 is marginal and subject 6 performs actually worse with the customized HRTF.
The objective performance criteria agrees with the subjective performance estimated by subjects themselves. Subjects 1 through 4 reported that they are able to better feel
the sound source motion in the median plane and the VAS
synthesized with the personalized HRTF sounds better (better externalization and better perception of DOA and source
distance). Subject 5 reported that motion can’t be perceived
reliably both with generic and customized HRTF, which
agrees with experimental data. Subject 6 also reports that
the generic HRTF just “sounds better”.
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
4 Conclusions and future work
Overall, it can be said that the customization based on visual matching of ear parameters can provide significant enhancement for the users of the virtual auditory space. This is
confirmed both by objective measures, where the localization performance increases by 30% for some of the subjects
(the average gain is about 15%), and by subjective reports,
where the listener is able to distinguish between HRTFs that
“fits” better or worse. These two measures correlate well,
and if the customized HRTF does not “sound” good for a
user a switchback to the generic HRTF can be made easily.
[12]
[13]
[14]
4
“The CIPIC HRTF database”, Proc. IEEE WASPAA01, New
Paltz, NY, pp. 99-102, 2001.
D. N. Zotkin, R. Duraiswami, and L. S. Davis. “Creation of
Virtual Auditory Spaces”, Accepted, IEEE ICASSP 2002,
Orlando, FL, May 2002.
W. M. Hartmann. “How We Localize Sound”, Physics Today, November 1999, pp. 24-29.
J. W. Strutt (Lord Rayleigh). “On our perception of sound
direction”, Phil. Mag., 13:214-232, 1907.
R. Duraiswami et al. “Creating virtual spatial audio via scientific computing and computer vision”, Proc. 140th ASA
conf., Newport Beach, CA, 2000, p. 2597, available at
http://www.acoustics.org/press/140th/duraiswami.htm.
CIPIC HRTF Database Files, Release 1.0, August 15, 2001,
available at http://interface.cipic.ucdavis.edu/
H. L. Han. “Measuring a dummy head in search of pinnae
cues”, J. Audio Eng. Society, 42(1):15-37, 1994.
E. A. G. Shaw, “Acoustical features of the human external ear”, in Binaural and Spatial Hearing in Real and Virtual Environments, ed. by R. H. Gilkey and T. R. Anderson,
Lawrence Earlbaum Assoc., Mahwah, NJ, pp. 25-48, 1997.
M. B. Gardner and R. S. Gardner. “Problem of localization
in the median plane: effect of pinna cavity occlusion”, J.
Acoust. Soc. Am., 53(2):400-408, 1973.
E. M. Wenzel, M. Arruda, D. J. Kistler, and F. L. Wightman.
“Localization using non-individualized head-related transfer
functions”, J. Acoust. Soc. Am., 94(1):111-123, 1993.
C. P. Brown and R. O. Duda. ”A structural model for binaural sound synthesis”, IEEE Trans. on Speech and Audio
Processing, 6(5):476-488, 1998.
J. C. Middlebrooks. “Individual differences in externalear transfer functions reduced by scaling in frequency”, J.
Acoust. Soc. Am., 106(3):1480-1492, 1999.
J. C. Middlebrooks. “Virtual localization improved by scaling non-individualized external-ear transfer functions in frequency”, J. Acoust. Soc. Am., 106(3):1493-1510, 1999.
J. C. Middlebrooks, E. A. Macpherson, Z. A. Onsan.
“Psychophysical customization of directional transfer functions for virtual sound localization”, J. Acoust. Soc. Am.,
108(6):3088-3091, 2000.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
