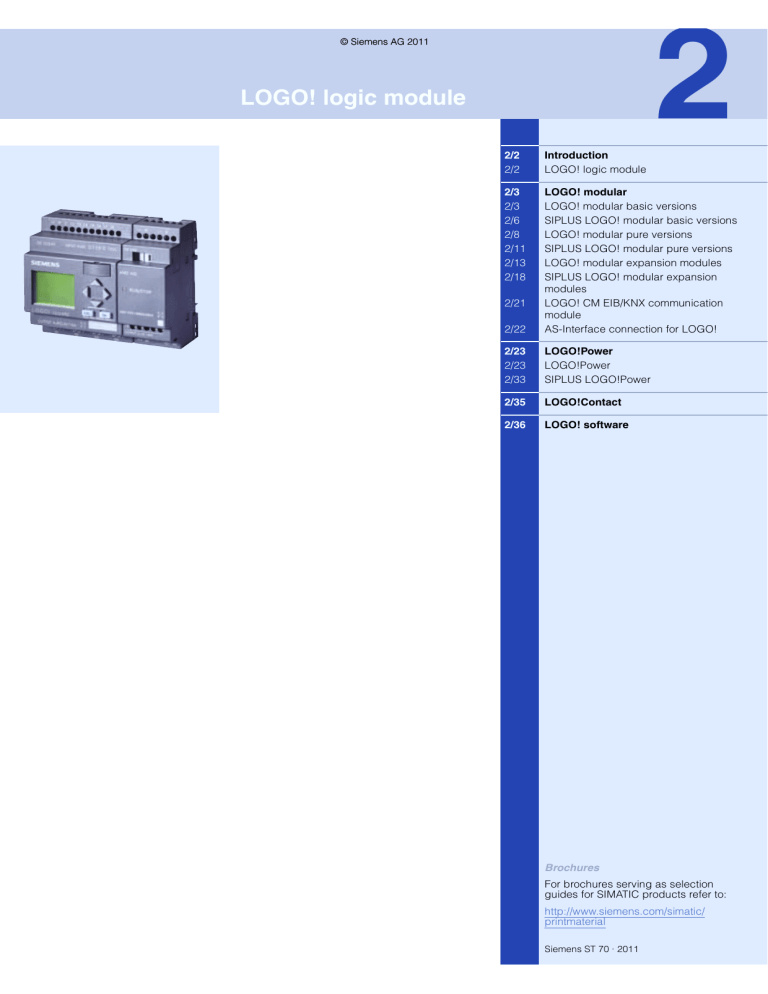

LOGO! logic module

2

2/2

2/2

Introduction

LOGO! logic module

2/3

2/3

2/6

2/8

LOGO! modular

LOGO! modular basic versions

SIPLUS LOGO! modular basic versions

LOGO! modular pure versions

2/11 SIPLUS LOGO! modular pure versions

2/13 LOGO! modular expansion modules

2/18 SIPLUS LOGO! modular expansion modules

2/21 LOGO! CM EIB/KNX communication module

2/22 AS-Interface connection for LOGO!

2/23 LOGO!Power

2/23 LOGO!Power

2/33 SIPLUS LOGO!Power

2/35 LOGO!Contact

2/36 LOGO! software

Brochures

For brochures serving as selection guides for SIMATIC products refer to: http://www.siemens.com/simatic/ printmaterial

Siemens ST 70 · 2011

2

LOGO! logic module

Introduction

LOGO! logic module

Overview

LOGO! logic module

• The compact, easy-to-use and low-cost solution for simple control tasks

• Compact, easy to operate, universally applicable without accessories

• "All in one": Integrated display and operator panel

• 36 different functions can be connected at the click of a button or by means of PC software; up to 130 times over

• Functions are easily changed at the press of a key. No more time-consuming rewiring

SIPLUS LOGO!

• The controller for use in the toughest ambient conditions

• With extended temperature range from -40/-25 °C to +70 °C

• Suitable for medial exposure (harmful gas atmosphere)

• Condensation permissible

• With the proven PLC technology of LOGO!

• Easy to handle, program, maintain, and service

• Ideal for use in automotive engineering, environmental engineering, mining, chemical plants, conveying technology, food industry, etc.

General technical data of the SIPLUS LOGO

Ambient temperature range -40/-25 ... +70 °C

Conformal coating

Technical data

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

Ambient conditions

Relative humidity

Biologically active substances

Chemically active substances

Mechanically active substances

5 ... 100%, condensation allowed

Conformity with EN 60721-3-3,

Class 3B2 mold and fungal spores (except fauna)

Conformity with EN 60721-3-3,

Class 3C4 incl. salt mist and ISA–

S71.04 severity level G1; G2; G3;

GX

1)2)

Conformity with EN 60721-3-3,

Class 3S4 including conductive sand, dust

2)

Air pressure (depending on the highest positive temperature range specified)

1080 ... 795 hPa

(-1000 ... +2000 m) see ambient temperature range

795 ... 658 hPa (+2000 ... 3500 m) derating 10 K

658 ... 540 hPa

(+3500 ... +5000 m) derating 20 K

1)

2)

ISA-S71.04 severity level GX:

Long-term load:

SO

2

< 4.8 ppm; H

2

S < 9.9 ppm; Cl < 0.2 ppm; HCl < 0.66 ppm;

HF < 0.12 ppm; NH < 49 ppm; O

3

Limit value (max. 30 min/d):

< 0.1 ppm; NOX < 5.2 ppm

SO

2

< 17.8 ppm; H

2

S < 49.7 ppm; Cl < 1.0 ppm; HCl < 3.3 ppm;

HF < 2.4 ppm; NH < 247 ppm; O

3

< 1.0 ppm; NOX < 10.4 ppm

The supplied plug covers must remain in place over the unused interface when operated in atmospheres containing corrosive gases!

Accessories:

• The front plate mounting set also allows simple and reliable installation of the logic modules in front plates; IP65 protection is thus possible.

• In order to ensure dependable operation of SIPLUS devices supplied by the battery in conjunction with combustion engines, it is necessary to put in a SIPLUS upmiter upstream device between the battery and the SIPLUS LOGO!.

For further information, please go to: www.siemens.com/siplus-extreme

For brochures serving as selection guides for SIMATIC products refer to: www.siemens.com/simatic/printmaterial

2/2

Siemens ST 70 · 2011

Overview

LOGO! logic module

LOGO! modular

LOGO! modular basic versions

• The space-saving basic versions

• Interface for the connection of expansion modules, up to

24 digital inputs, 16 digital outputs, 8 analog inputs and

2 analog outputs can be addressed

• With connection option for LOGO! TD text display (can be connected to all LOGO! 0BA6 basic versions)

2

Technical specifications

6ED1 052-1CC01-0BA6 6ED1 052-1MD00-0BA6 6ED1 052-1HB00-0BA6

Supply voltages

Rated value

• 12 V DC

• 24 V DC

• 115 V DC

• 230 V DC

• Permissible range, lower limit (DC)

• Permissible range, upper limit (DC)

• 24 V AC

• 115 V AC

• 230 V AC

• Permissible range, lower limit (AC)

• Permissible range, upper limit (AC)

Time

Time switching clocks

• Power reserve

Digital inputs

Number of digital inputs

Yes

20.4 V

28.8 V

80 h

Yes

Yes

10.8 V

28.8 V

80 h

Yes

20.4 V

28.8 V

Yes

20.4 V

26.4 V

80 h

8; of which 4 can be used in analog mode (0 to 10 V)

8; of which 4 can be used in analog mode (0 to 10 V)

8

Digital outputs

Number of digital outputs

Short-circuit protection

4; Transistor

Yes; electrical (1 A)

4; Relay

No; external fusing necessary

Output current

• for signal "1" permissible range for 0 to 55 °C, max.

Relay outputs

Switching capacity of contacts

• with inductive load, max.

• with resistive load, max.

EMC

Emission of radio interference acc. to EN 55 011

• Emission of radio interference acc. to EN 55 011

(limit value class B)

0.3 A

Yes; Radio interference suppression according to

EN55011, limit value class B

3 A

10 A

Yes

4; Relay

No; external fusing necessary

3 A

10 A

Yes

6ED1 052-1FB00-0BA6

Yes

Yes

100 V

253 V

Yes

Yes

85 V

265 V

80 h

8

4; Relay

No; external fusing necessary

3 A

10 A

Yes

Siemens ST 70 · 2011

2/3

2

LOGO! logic module

LOGO! modular

LOGO! modular basic versions

Technical specifications (continued)

6ED1 052-1CC01-0BA6

Environmental requirements

Operating temperature

• Min.

• Max.

Degree of protection

IP20

Standards, approvals, certificates

CSA approval

Developed according to

IEC1131

FM approval

According to VDE 0631

Marine approval

UL approval

Dimensions and weight

Dimensions

• Mounting

• Width

• Height

• Depth

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

4 spacing units wide

72 mm

90 mm

55 mm

6ED1 052-1MD00-0BA6

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Ordering data

LOGO! logic module 24C

12/24 V DC power supply,

8x 12/24 V DC digital inputs, of which 4 can be used in analog mode (0 to 10 V),

4x 10 A relay outputs, integral time switch;

200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 12/24RC

12/24 V DC power supply,

8 x 12/24 V DC digital inputs, of which 4 can be used in analog mode (0 to 10 V),

4 x 10 A relay outputs, integrated time switch;

200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 24RC

24 V AC/DC power supply,

8x 24 V AC/DC digital inputs,

4x 10 A relay outputs, integral time switch;

200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 230RC

115/230 V AC/DC power supply,

8x 115/230 V AC/DC digital inputs,

4x 10 A relay outputs, integral time switch;

200 function blocks can be interlinked, modular expansion capability

Order No.

I

6ED1 052-1CC01-0BA6

6ED1 052-1MD00-0BA6

6ED1 052-1HB00-0BA6

6ED1 052-1FB00-0BA6

on 35 mm DIN rail,

4 spacing units wide

72 mm

90 mm

55 mm

6ED1 052-1HB00-0BA6

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

4 spacing units wide

72 mm

90 mm

55 mm

Accessories

LOGO! TD text display

4-line text display, can be connected to all LOGO! 0BA6

Basic and Pure versions, including connecting cable

SIPLUS LOGO! TD text display

(extended temperature range

-10 ... +60 °C and medial exposure)

4-line text display, can be connected to all LOGO! 0BA6

Basic and Pure versions, including connecting cable

LOGO! manual

German

English

French

Spanish

Italian

Chinese

6ED1 052-1FB00-0BA6

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

4 spacing units wide

72 mm

90 mm

55 mm

Order No.

6ED1 055-4MH00-0BA0

6AG1 055-4MH00-2BA0

6ED1 050-1AA00-0AE7

6ED1 050-1AA00-0BE7

6ED1 050-1AA00-0CE7

6ED1 050-1AA00-0DE7

6ED1 050-1AA00-0EE7

6ED1 050-1AA00-0KE7

I: Subject to export regulations AL: N and ECCN: EAR99H

2/4

Siemens ST 70 · 2011

Ordering data

LOGO! Memory Card

Order No.

6ED1 056-1DA00-0BA0

Program module for copying, with know-how protection

LOGO! battery card

Battery module for backing up the integral real-time clock (not

LOGO! 24)

LOGO! memory/battery card

6ED1 056-6XA00-0BA0

6ED1 056-7DA00-0BA0

Combined program and battery module, with know-how protection and for backing up the integral real-time clock (not LOGO! 24)

LOGO! PROM

L

6AG1 057-1AA01-0BA6

Programming device used to simultaneously reproduce program module contents on up to 8 program modules

LOGO!Soft Comfort V6.0

J

6ED1 058-0BA02-0YA0

For programming on the PC in

LAD/FBD; executes on Windows

98 SE and higher, Linux, MAC

OSX; on CD-ROM

LOGO!Soft Comfort V6.0 upgrade

J

6ED1 058-0CA02-0YE0

Upgrade from V1.0 to V6.0

LOGO! PC cable

For program transfer between

LOGO! and the PC

LOGO! USB PC cable

For transferring the program between LOGO! and PC, including driver on CD-ROM

J

6ED1 057-1AA00-0BA0

6ED1 057-1AA01-0BA0

LOGO! logic module

LOGO! modular

LOGO! modular basic versions

Order No.

LOGO! modem cable

Adapter cable for analog modem communication

Front plate mounting set

Width 4 modular spacings

Width 4 modular spacings, with keys

Width 8 modular spacings

Width 8 modular spacings, with keys

LOGO! News Box, 12/24 V

6ED1 057-1CA00-0BA0

6AG1 057-1AA00-0AA0

6AG1 057-1AA00-0AA3

6AG1 057-1AA00-0AA1

6AG1 057-1AA00-0AA2

Contains LOGO! 12/24RC,

LOGO! USB PC cable,

LOGO!Soft Comfort V6.0, manual, screwdriver, information material

German

English

J

6ED1 057-3BA00-0AA5

J

6ED1 057-3BA00-0BA5

LOGO! News Box, 230 V

Contains LOGO! 230RC, LOGO!

USB PC cable, LOGO!Soft

Comfort V6.0, manual, screwdriver, information material

German

English

J

6ED1 057-3AA02-0AA0

J

6ED1 057-3AA02-0BA0

LOGO! TD News Box, 12/24 V

Contains LOGO! 12/24RCo,

LOGO! TD, LOGO! USB PC cable, LOGO! Soft Comfort V6.0, manual, screwdriver, information material

German

English

J

6ED1 057-3BA10-0AA0

J

6ED1 057-3BA10-0BA0

J: Subject to export regulations AL: N and ECCN: EAR99S

L: Subject to export regulations AL: 9I999 and ECCN: N

2

Siemens ST 70 · 2011

2/5

2

LOGO! logic module

LOGO! modular

SIPLUS LOGO! modular basic versions

Overview

• The space-saving basic versions

• Interface for the connection of expansion modules, up to

24 digital inputs, 16 digital outputs, 8 analog inputs and

2 analog outputs can be addressed

• With connection option for LOGO! text display TD (can be connected to all LOGO! 0BA6 basic versions)

Note:

SIPLUS extreme products are based on Siemens Industry standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.

Order number

Order No. based on

SIPLUS LOGO! 24

6AG1 052-1CC01-2BA6

6ED1 052-1CC01-0BA6

Ambient temperature range -25°C to +70 °C

Conformal coating

Technical data

SIPLUS LOGO! 12/24RC

6AG1 052-1FB00-2BA6

6ED1 052-1FB00-0BA6

SIPLUS LOGO! 24RC

6AG1 052-1HB00-2BA6

6ED1 052-1HB00-0BA6

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

SIPLUS LOGO! 230RC

6AG1 052-1MD00-2BA6

6ED1 052-1MD00-0BA6

Ambient conditions

Relative humidity 5 ... 100 %

Condensation permissible

Conformity with EN 60721-3-3, Class 3B2 mold and fungal spores (except fauna) Biologically active substances

Chemically active substances

Conformity with EN 60721-3-3, Class 3C4 incl. salt mist and ISA–S71.04 severity level G1; G2; G3; GX

1) 2)

Mechanically active substances

Air pressure (depending on the highest positive temperature range specified)

Conformity with EN 60721-3-3, Class 3S4 including conductive sand, dust

1080 ... 795 hPa (-1000 ... +2000 m) see ambient temperature range

795 ... 658 hPa (+2000 ... +3500 m) derating 10 K

658 ... 540 hPa (+3500 ... +5000 m) derating 20 K

2)

1)

2)

ISA-S71.04 severity level GX: Long-term load:

SO

2

< 4.8 ppm; H

2

S < 9.9 ppm; Cl < 0.2 ppm; HCl < 0.66 ppm; HF < 0.12 ppm; NH < 49 ppm; O

3

< 0.1 ppm; NOX < 5.2 ppm

Limit value (max. 30 min/d):

SO

2

< 17.8 ppm; H

2

S < 49.7 ppm; Cl < 1.0 ppm; HCl < 3.3 ppm; HF < 2.4 ppm; NH < 247 ppm; O

3

< 1.0 ppm; NOX < 10.4 ppm

The supplied plug covers must remain in place over the unused interface when operated in atmospheres containing corrosive gases!

The technical documentation on SIPLUS can be found here: www.siemens.com/siplus-extreme

2/6

Siemens ST 70 · 2011

Ordering data

SIPLUS LOGO! 24

(extended temperature range and medial exposure)

24 V DC power supply,

8x 24 V DC digital inputs, of which 4 can be used in analog mode (0 to 10 V),

4x 24 V DC digital outputs, 0.3 A; integrated time switch;

200 function blocks can be interlinked, modular expansion capability

SIPLUS LOGO! 12/24RC

(extended temperature range and medial exposure)

L

12/24 V DC power supply,

8x 12/24 V DC digital inputs, of which 4 can be used in analog mode (0 to 10 V),

4x 10 A relay outputs, integral time switch;

200 function blocks can be interlinked, modular expansion capability

SIPLUS LOGO! 24RC

(extended temperature range and medial exposure)

24 V AC/DC power supply,

8x 24 V AC/DC digital inputs,

4x 10 A relay outputs, integral time switch;

200 function blocks can be interlinked, modular expansion capability

SIPLUS LOGO! 230RC

(extended temperature range and medial exposure)

115/230 V AC/DC power supply,

8x 115/230 V AC/DC digital inputs,

4x 10 A relay outputs, integral time switch;

200 function blocks can be interlinked, modular expansion capability

I

Order No.

6AG1 052-1CC01-2BA6

6AG1 052-1MD00-2BA6

6AG1 052-1HB00-2BA6

6AG1 052-1FB00-2BA6

LOGO! logic module

LOGO! modular

SIPLUS LOGO! modular basic versions

Order No.

Accessories

SIPLUS Upmiter upstream device

for reliable operation at the battery of combustion engines

Additional accessories

L

6AG1 053-1AA00-2AA0

See LOGO! modular basic versions

2

I: Subject to export regulations AL: N and ECCN: EAR99H

L: Subject to export regulations AL: 9I999 and ECCN: N

Siemens ST 70 · 2011

2/7

2

LOGO! logic module

LOGO! modular

LOGO! modular pure versions

Overview

• The cost-optimized basic versions

• Interface for the connection of expansion modules, up to

24 digital inputs, 16 digital outputs, 8 analog inputs and

2 analog outputs can be addressed

• With connection option for LOGO! TD text display (can be connected to all LOGO! 0BA6 basic versions)

Technical specifications

6ED1 052-2CC01-0BA6

Supply voltages

Rated value

• 12 V DC

• 24 V DC

• 115 V DC

• 230 V DC

• permissible range, lower limit (DC)

• permissible range, upper limit (DC)

• 24 V AC

• 115 V AC

• 230 V AC

• permissible range, lower limit (AC)

• permissible range, upper limit (AC)

Time of day

Time switching clocks

• Number

• Power reserve

Digital inputs

Number of digital inputs

Yes

20.4 V

28.8 V

190

80 h

6ED1 052-2MD00-0BA6

Yes

Yes

10.8 V

28.8 V

8

80 h

6ED1 052-2HB00-0BA6

Yes

8; of which 4 can be used in analog mode (0 to 10 V)

8; of which 4 can be used in analog mode (0 to 10 V)

8

20.4 V

28.8 V

Yes

20.4 V

26.4 V

8

80 h

Digital outputs

Number of digital outputs

Short-circuit protection

4; Transistor

Yes; electrical (1 A)

4; Relay

No; external fusing necessary

4; Relay

No; external fusing necessary

Output current

• for signal "1" permissible range for 0 to 55 °C, max.

Relay outputs

Switching capacity of contacts

• with inductive load, max.

• with resistive load, max.

0.3 A

3 A

10 A

3 A

10 A

6ED1 052-2FB00-0BA6

Yes

Yes

100 V

253 V

Yes

Yes

85 V

265 V

8

80 h

8

4; Relay

No; external fusing necessary

3 A

10 A

2/8

Siemens ST 70 · 2011

LOGO! logic module

LOGO! modular

LOGO! modular pure versions

Technical specifications (continued)

6ED1 052-2CC01-0BA6

EMC

Emission of radio interference acc. to EN 55 011

• Emission of radio interference acc. to EN 55 011

(limit value class B)

Yes; Radio interference suppression according to

EN55011, limit value class B

Environmental requirements

Operating temperature

• Min.

• Max.

Degree of protection

IP20

Standards, approvals, certificates

CSA approval

Developed according to

IEC1131

FM approval

According to VDE 0631

Marine approval

UL approval

Dimensions and weight

Dimensions

• Mounting

• Width

• Height

• Depth

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

4 spacing units wide

72 mm

90 mm

55 mm

6ED1 052-2MD00-0BA6

Yes

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

4 spacing units wide

72 mm

90 mm

55 mm

Ordering data

LOGO! logic module 24Co

24 V DC power supply,

8 digital inputs 24 V DC, of which

4 can be used in analog mode

(0 to 10 V), 4 digital outputs

24 V DC, 0.3 A, integrated time switch; without display and keyboard; 200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 12/24RCo

12/24 V DC power supply,

8 digital inputs 12/24 V DC, of which 4 can be used in analog mode (0 to 10 V),

4 relay outputs 10 A, integral time switch; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

I

Order No.

6ED1 052-2CC01-0BA6

6ED1 052-2MD00-0BA6

6ED1 052-2HB00-0BA6

Yes

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

4 spacing units wide

72 mm

90 mm

55 mm

6ED1 052-2FB00-0BA6

Yes

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

4 spacing units wide

72 mm

90 mm

55 mm

LOGO! logic module 24RCo

24 V AC/DC power supply,

8 digital inputs 24 V AC/DC,

4 relay outputs 10 A, integral time switch; without display and keyboard; 200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 230RCo

115/230 V AC/DC power supply,

8 digital inputs 115/230 V AC/DC,

4 relay outputs 10 A, integral time clock; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

Order No.

6ED1 052-2HB00-0BA6

6ED1 052-2FB00-0BA6

I: Subject to export regulations AL: N and ECCN: EAR99H

2

Siemens ST 70 · 2011

2/9

2

LOGO! logic module

LOGO! modular

LOGO! modular pure versions

Ordering data

Accessories

LOGO! TD text display

4-line text display, can be connected to all LOGO! 0BA6

Basic and Pure versions, including connecting cable

SIPLUS LOGO! TD text display

(extended temperature range

-10 ... +60 °C and medial exposure)

4-line text display, can be connected to all LOGO! 0BA6

Basic and Pure versions, including connecting cable

LOGO! manual

German

English

French

Spanish

Italian

Chinese

LOGO! Memory Card

Program module for copying, with know-how protection

LOGO! battery card

Battery module for backing up the integral real-time clock (not

LOGO! 24)

Order No.

6ED1 055-4MH00-0BA0

6AG1 055-4MH00-2BA0

6ED1 050-1AA00-0AE7

6ED1 050-1AA00-0BE7

6ED1 050-1AA00-0CE7

6ED1 050-1AA00-0DE7

6ED1 050-1AA00-0EE7

6ED1 050-1AA00-0KE7

6ED1 056-1DA00-0BA0

6ED1 056-6XA00-0BA0

LOGO! memory/battery card

Combined program and battery module, with know-how protection and for backing up the integral real-time clock (not LOGO! 24o)

LOGO! PROM

L

Programming device used to simultaneously reproduce program module contents on up to 8 program modules

LOGO!Soft Comfort V6.0

J

For programming on the PC in

LAD/FBD; executes on Windows

98 SE and higher, Linux, MAC

OSX; on CD-ROM

LOGO!Soft Comfort V6.0 upgrade

J

Upgrade from V1.0 to V6.0

LOGO! PC cable

For program transfer between

LOGO! and the PC

LOGO! USB PC cable

For transferring the program between LOGO! and PC, including driver on CD-ROM

LOGO! modem cable

Adapter cable for analog modem communication

J

Order No.

6ED1 056-7DA00-0BA0

6AG1 057-1AA01-0BA6

6ED1 058-0BA02-0YA0

6ED1 058-0CA02-0YE0

6ED1 057-1AA00-0BA0

6ED1 057-1AA01-0BA0

6ED1 057-1CA00-0BA0

J: Subject to export regulations AL: N and ECCN: EAR99S

L: Subject to export regulations AL: 9I999 and ECCN: N

2/10

Siemens ST 70 · 2011

Overview

LOGO! logic module

LOGO! modular

SIPLUS LOGO! modular pure versions

• Basic versions optimized for costs

• Interface for the connection of expansion modules, up to

24 digital inputs, 16 digital outputs, 8 analog inputs and

2 analog outputs can be addressed

• With connection option for LOGO! text display TD (can be connected to all LOGO! 0BA6 basic versions)

Note:

SIPLUS extreme products are based on Siemens Industry standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.

2

Order number

Order No. based on

Ambient temperature range

Conformal coating

SIPLUS LOGO! 24o

6AG1 052-2CC01-2BA6

6ED1 052-2CC01-0BA6

-40 °C to +70 °C

SIPLUS LOGO! 12/24RCo SIPLUS LOGO! 24RCo

6AG1 052-2MD00-2BA6

6ED1 052-2MD00-0BA6

6AG1 052-2HB00-2BA6

6ED1 052-2HB00-0BA6

SIPLUS LOGO! 230RCo

6AG1 052-2FB00-2BA6

6ED1 052-2FB00-0BA6

Technical data

Ambient conditions

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

Relative humidity 5 ... 100 %

Condensation permissible

Conformity with EN 60721-3-3, Class 3B2 mold and fungal spores (except fauna) Biologically active substances

Chemically active substances

Conformity with EN 60721-3-3, Class 3C4 incl. salt mist and ISA–S71.04 severity level G1; G2; G3; GX

1) 2)

Mechanically active substances

Air pressure (depending on the highest positive temperature range specified)

Conformity with EN 60721-3-3, Class 3S4 including conductive sand, dust

1080 ... 795 hPa (-1000 ... +2000 m) see ambient temperature range

795 ... 658 hPa (+2000 ... +3500 m) derating 10 K

658 ... 540 hPa (+3500 ... +5000 m) derating 20 K

2)

1)

2)

ISA-S71.04 severity level GX: Long-term load:

SO

2

< 4.8 ppm; H

2

S < 9.9 ppm; Cl < 0.2 ppm; HCl < 0.66 ppm; HF < 0.12 ppm; NH < 49 ppm; O

3

< 0.1 ppm; NOX < 5.2 ppm

Limit value (max. 30 min/d):

SO

2

< 17.8 ppm; H

2

S < 49.7 ppm; Cl < 1.0 ppm; HCl < 3.3 ppm; HF < 2.4 ppm; NH < 247 ppm; O

3

< 1.0 ppm; NOX < 10.4 ppm

The supplied plug covers must remain in place over the unused interface when operated in atmospheres containing corrosive gases!

The technical documentation on SIPLUS can be found here: www.siemens.com/siplus-extreme

Siemens ST 70 · 2011

2/11

2

LOGO! logic module

LOGO! modular

SIPLUS LOGO! modular pure versions

Ordering data

SIPLUS LOGO! 24o

(extended temperature range and medial exposure)

24 V DC power supply,

8 digital inputs 24 V DC, of which

I

4 can be used in analog mode

(0 to 10 V),

4 digital outputs 24 V DC, 0.3 A, integrated time switch; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

SIPLUS LOGO! 12/24RCo

(extended temperature range and medial exposure)

12/24 V DC power supply,

8 digital inputs 12/24 V DC, of which 4 can be used in analog mode (0 to 10 V),

4 relay outputs 10 A, integral time switch; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

SIPLUS LOGO! 24RCo

(extended temperature range and medial exposure)

24 V AC/DC power supply,

8 digital inputs 24 V AC/DC,

4 relay outputs 10 A, integral time switch; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

SIPLUS LOGO! 230RCo

(extended temperature range and medial exposure)

115/230 V AC/DC power supply,

8 digital inputs 115/230 V AC/DC,

4 relay outputs 10 A, integral time clock; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

Order No.

6AG1 052-2CC01-2BA6

6AG1 052-2MD00-2BA6

6AG1 052-2HB00-2BA6

6AG1 052-2FB00-2BA6

Order No.

Accessories

SIPLUS Upmiter upstream device

for reliable operation at the battery of combustion engines

Additional accessories

L

6AG1 053-1AA00-2AA0

See LOGO! modular pure versions, page 2/10

I: Subject to export regulations AL: N and ECCN: EAR99H

L: Subject to export regulations AL: 9I999 and ECCN: N

2/12

Siemens ST 70 · 2011

Overview

LOGO! logic module

LOGO! modular

LOGO! modular expansion modules

• Expansion modules for the connection to LOGO! Modular

• With digital inputs and outputs, analog inputs or analog outputs

2

Technical specifications

6ED1 055-1CB00-0BA0

Supply voltages

Rated value

• 12 V DC

• 24 V DC

• 115 V DC

• 230 V DC

• Permissible range, lower limit (DC)

• Permissible range, upper limit (DC)

• 24 V AC

• 115 V AC

• 230 V AC

• Permissible range, lower limit (AC)

• Permissible range, upper limit (AC)

Digital inputs

Number of digital inputs

Digital outputs

Number of digital outputs

Short-circuit protection

Yes

20.4 V

28.8 V

4

4

Yes; electrical (1 A)

Relay outputs

Switching capacity of contacts

• with inductive load, max.

• with resistive load, max.

• thermal continuous current, max.

EMC

Emission of radio interference acc. to EN 55 011

• Emission of radio interference acc. to EN 55 011

(limit value class B)

0.3 A

Yes

6ED1 055-1HB00-0BA0

Yes

20.4 V

28.8 V

Yes

20.4 V

26.4 V

4

4; Relay

No; external fusing necessary

3 A

5 A

Yes

6ED1 055-1MB00-0BA1 6ED1 055-1FB00-0BA1

Yes

Yes

10.8 V

28.8 V

4

4; Relay

No; external fusing necessary

3 A

5 A

Yes

Yes

Yes

100 V

253 V

Yes

Yes

85 V

265 V

4

4; Relay

No; external fusing necessary

3 A

5 A

Yes

Siemens ST 70 · 2011

2/13

2

LOGO! logic module

LOGO! modular

LOGO! modular expansion modules

Technical specifications (continued)

6ED1 055-1CB00-0BA0

Environmental requirements

Operating temperature

• Min.

• Max.

Degree of protection

IP20

Standards, approvals, certificates

CSA approval

Developed according to

IEC1131

FM approval

According to VDE 0631

Marine approval

UL approval

Dimensions and weight

Dimensions

• Mounting

• Width

• Height

• Depth

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

2 spacing units wide

36 mm; 2 DU

90 mm

55 mm

6ED1 055-1HB00-0BA0

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

2 spacing units wide

36 mm; 2 DU

90 mm

55 mm

6ED1 055-1MB00-0BA1 6ED1 055-1FB00-0BA1

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

2 spacing units wide

36 mm; 2 DU

90 mm

55 mm

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail,

2 spacing units wide

36 mm; 2 DU

90 mm

55 mm

6ED1 055-1CB10-0BA0

Supply voltages

Rated value

• 24 V DC Yes

• 115 V DC

• 230 V DC

• Permissible range, lower limit (DC) 20.4 V

• Permissible range, upper limit (DC) 28.8 V

• 115 V AC

• 230 V AC

• Permissible range, lower limit (AC)

• Permissible range, upper limit (AC)

• Permissible frequency range, lower limit

• Permissible frequency range, upper limit

Digital inputs

Number of digital inputs

Input voltage

• for signal "0"

• for signal "1"

Input current

• for signal "0", max. (permissible quiescent current)

• for signal "1", typ.

Input delay (for rated value of input voltage)

• for standard inputs

- at "0" to "1", max.

- at "1" to "0", max.

8

< 5 V DC

> 12 V DC

1 mA

2 mA

1.5 ms

1.5 ms

6ED1 055-1NB10-0BA0

Yes

20.4 V

28.8 V

8

< 5 V DC

> 12 V DC

1 mA

2 mA

1.5 ms

1.5 ms

6ED1 055-1FB10-0BA0

Yes

Yes

100 V

253 V

Yes

Yes

85 V

265 V

47 Hz

63 Hz

8

< 40 V AC; < 30 V DC

> 79 V AC; > 79 V DC

0.03 mA

0.08 mA

50 ms

50 ms

2/14

Siemens ST 70 · 2011

LOGO! logic module

LOGO! modular

LOGO! modular expansion modules

Technical specifications (continued)

6ED1 055-1CB10-0BA0

Digital outputs

Number of digital outputs

Short-circuit protection

Lamp load, max.

Controlling a digital input

Parallel switching of 2 outputs

• for increased power

Switching frequency

• with resistive load, max.

• with inductive load, max.

• mechanical, max.

Relay outputs

Switching capacity of contacts

• with inductive load, max.

• with resistive load, max.

• thermal continuous current, max.

EMC

Emission of radio interference acc. to

EN 55 011

• Emission of radio interference acc. to EN 55 011 (limit value class B)

Environmental requirements

Operating temperature

• Min.

• Max.

Degree of protection

IP20

Standards, approvals, certificates

CSA approval

Developed according to IEC1131

FM approval

According to VDE 0631

Marine approval

UL approval

Dimensions and weight

Dimensions

• Mounting

• Width

• Height

• Depth

8

Yes; electrical (1 A)

Yes

No

10 Hz

0.5 Hz

0.3 A

Yes

0 °C

55 °C

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail, 4 spacing units wide

72 mm; 4 DU

90 mm

53 mm

6ED1 055-1NB10-0BA0

Yes

Yes

Yes

Yes

Yes

Yes

8; Relay

No; external fusing necessary

1 000 W; 500 W at 115 V AC

Yes

No

2 Hz

0.5 Hz

10 Hz

3 A

5 A

Yes

0 °C

55 °C

Yes

6ED1 055-1FB10-0BA0

Yes

Yes

Yes

Yes

Yes

Yes

8; Relay external fusing necessary

1 000 W; 500 W at 115 V AC

Yes

No

2 Hz

0.5 Hz

10 Hz

3 A

5 A

Yes

0 °C

55 °C

Yes on 35 mm DIN rail, 4 spacing units wide

72 mm; 4 DU

90 mm

53 mm on DIN rail 25 mm, 4 module spaces wide

72 mm; 4 DU

90 mm

53 mm

6ED1 055-1MA00-0BA0 6ED1 055-1MD00-0BA1

LOGO! AM2 RTD

Product type designation

Supply voltages

Rated value

• 12 V DC

• 24 V DC

Yes

Yes

Yes; 10,8 ... 28.8 V DC

Yes; 10.8 ... 28.8 V DC

2

Siemens ST 70 · 2011

2/15

2

LOGO! logic module

LOGO! modular

LOGO! modular expansion modules

Technical specifications (continued)

6ED1 055-1MA00-0BA0

Analog inputs

Number of analog inputs

Input ranges

• Voltage

• Current

• Resistance thermometer

Input ranges (rated values), voltages

• 0 to +10 V

Input ranges (rated values), currents

• 0 to 20 mA

EMC

Emission of radio interference acc. to

EN 55 011

• Emission of radio interference acc. to EN 55 011 (limit value class B)

Environmental requirements

Operating temperature

• Min.

• Max.

Degree of protection

IP20

Standards, approvals, certificates

CSA approval

Developed according to IEC1131

FM approval

2

Yes

Yes

Yes

Yes

Yes

0 °C

55 °C

Yes

Yes

Yes

Yes

According to VDE 0631

Marine approval

UL approval

Dimensions and weight

Dimensions

• Mounting

• Width

• Height

• Depth

Yes

Yes

Yes on 35 mm DIN rail, 2 spacing units wide

36 mm

90 mm

55 mm

Environmental requirements

Operating temperature

• Min.

• Max.

6ED1 055-1MM00-0BA1

Supply voltages

Rated value

• 12 V DC

• 24 V DC

Analog outputs

Number of analog outputs

Output ranges, voltage

• 0 to 10 V

EMC

Emission of radio interference acc. to EN 55 011

• Emission of radio interference acc. to EN 55 011 (limit value class B)

No

Yes

2

Yes

Yes; Radio interference suppression according to

EN55011, limit value class B

0 °C

55 °C

6ED1 055-1MD00-0BA1

2; 2 or 3 wire connection

Yes; for PT100/PT1000 sensors

Yes; Radio interference suppression according to

EN55011, limit value class B

0 °C

55 °C

Yes

Yes; C22.2 Number 142

Yes; EN 61131-2 (IEC 1131-2)

Yes; FM-Standards No. 3611, 3600,

3810 Class I, Division 2, Group A, B, C, D

Yes; ABS, BV, DNV, GL, LRS, Class NK

Yes; UL 508

36 mm

90 mm

53 mm

6ED1 055-1MM00-0BA1

Degree of protection

IP20

Standards, approvals, certificates

CSA approval

Developed according to IEC1131

FM approval

According to VDE 0631

Marine approval

UL approval

Dimensions and weight

Dimensions

• Mounting

• Width

• Height

• Depth

Yes

Yes

Yes

Yes

Yes

Yes

Yes on 35 mm DIN rail, 2 spacing units wide

36 mm

90 mm

55 mm

2/16

Siemens ST 70 · 2011

Ordering data

LOGO! DM8 24

Supply voltage 24 V DC,

4 digital inputs 24 V DC,

4 digital outputs 24 V DC, 0.3 A

LOGO! DM16 24

Supply voltage 24 V DC,

8 digital inputs 24 V DC,

8 digital outputs 24 V DC, 0.3 A

LOGO! DM8 12/24R

Supply voltage 12/24 V DC,

4 digital inputs 12/24 V DC,

4 relay outputs 5 A

LOGO! DM8 24R

Supply voltage24 V AC/DC,

4 digital inputs 24 V AC/DC,

4 relay outputs 5 A

LOGO! DM16 24R

Supply voltage 24 V DC,

8 digital inputs 24 V DC,

8 relay outputs 5 A

LOGO! DM8 230R

Supply voltage 115/230 V AC/DC,

4 digital inputs 115/230 V AC/DC,

4 relay outputs 5 A

LOGO! DM16 230R

Supply voltage 115/230 V AC/DC,

8 digital inputs 115/230 V AC/DC,

8 relay outputs 5 A

LOGO! AM2

Supply voltage 12/24 V DC, two analog inputs 0 ... 10 V or

0 ... 20 mA, 10-bit resolution

LOGO! AM2 PT 100

I

Supply voltage 12/24 V DC,

2 analog inputs Pt100, temperature range -50 °C ... 200 °C

LOGO! AM2 AQ

Supply voltage 24 V DC, 2 analog outputs 0 to 10 V, 0/4 to 20 mA

I

Order No.

6ED1 055-1CB00-0BA0

6ED1 055-1CB10-0BA0

6ED1 055-1MB00-0BA1

6ED1 055-1HB00-0BA0

6ED1 055-1NB10-0BA0

6ED1 055-1FB00-0BA1

6ED1 055-1FB10-0BA0

6ED1 055-1MA00-0BA0

6ED1 055-1MD00-0BA1

6ED1 055-1MM00-0BA1

LOGO! logic module

LOGO! modular

LOGO! modular expansion modules

Order No.

Accessories

LOGO! Manual

German

English

French

Spanish

Italian

Chinese

LOGO! memory card

for copying, with know-how protection

LOGO!Soft Comfort V6.0

J

For programming on the PC in

LAD/FBD; executes on Windows

98 SE and higher, Linux, MAC

OSX; on CD-ROM

LOGO!Soft Comfort V6.0 upgrade

J

Upgrade from V1.0 to V6.0

LOGO! PC cable

For program transfer between

LOGO! and PC

6ED1 050-1AA00-0AE7

6ED1 050-1AA00-0BE7

6ED1 050-1AA00-0CE7

6ED1 050-1AA00-0DE7

6ED1 050-1AA00-0EE7

6ED1 050-1AA00-0KE7

6ED1 056-1DA00-0BA0

6ED1 058-0BA02-0YA0

6ED1 058-0CA02-0YE0

6ED1 057-1AA00-0BA0

2

I: Subject to export regulations AL: N and ECCN: EAR99H

J: Subject to export regulations AL: N and ECCN: EAR99S

Siemens ST 70 · 2011

2/17

2

LOGO! logic module

LOGO! modular

SIPLUS LOGO! modular expansion modules

Overview

• Expansion modules for connection to LOGO! Modular

• With digital inputs and outputs, analog inputs, or analog outputs

Note:

SIPLUS extreme products are based on Siemens Industry standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.

SIPLUS LOGO! DM8 24

Order No.

Order No. based on

Ambient temperature range

Conformal coating

Technical data

SIPLUS LOGO! DM8 24

Order No.

Order No. based on

Ambient temperature range

Conformal coating

Technical data

SIPLUS LOGO! DM8 24 R

Order Nor

Order No. based on

Ambient temperature range

Conformal coating

Technical data

SIPLUS LOGO! DM8 12/24R

Order No.

Order No. based on

Ambient temperature range

Conformal coating

Technical data

6AG1 055-1CB00-2BY0

6ED1 055-1CB00-0BA0

6AG1 055-1CB00-2XB0

-40 ... +70 °C -25 ... +70 °C

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

6AG1 055-1PB00-2BY0

6ED1 055-1CB00-0BA0

6AG1 055-1PB00-2XB0

-40 ... +70 °C -25 ... +70 °C

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

6AG1 055-1HB00-2BY0

6ED1 055-1HB00-0BA0

6AG1 055-1HB00-2XB0

-40 ... +70 °C -25 ... +70 °C

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

6AG1 055-1MB00-2BY1

6ED1 055-1MB00-0BA1

6AG1 055-1MB00-2XB1

-40 ... +70 °C -25 ... +70 °C

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

2/18

Siemens ST 70 · 2011

LOGO! logic module

LOGO! modular

SIPLUS LOGO! modular expansion modules

Overview (continued)

SIPLUS LOGO! DM8 230R

Order No.

Order No. based on

Ambient temperature range

Conformal coating

Technical data

6AG1 055-1FB00-2BY1

6ED1 055-1FB00-0BA1

6AG1 055-1FB00-2XB1

-40 ... +70 °C -25 ... +70 °C

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

SIPLUS LOGO! AM2

Order number

Order No. based on

Ambient temperature range

Conformal coating

Technical data

6AG1 055-1MA00-2BY0

6ED1 055-1MA00-0BA0

6AG1055-1MA00-2XB0

-40 ... +70 °C -25 ... +70 °C

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

Order number

Order No. based on

Ambient temperature range

Conformal coating

Technical data

Ambient conditions

Relative humidity

Biologically active substances

Chemically active substances

Mechanically active substances

SIPLUS LOGO! AM2 AQ

6AG1 055-1MM00-2BY1

6ED1 055-1MM00-0BA1

-40 ... +70 °C

SIPLUS LOGO! DM16 24R

6AG1 055-1NB10-2BA0

6ED1 055-1CB10-0BA0

-25 ... +70 °C

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

5 ... 100 %

Condensation permissible

Conformity with EN 60721-3-3,

Class 3B2 mold and fungal spores (except fauna)

Conformity with EN 60721-3-3,

Class 3C4 incl. salt mist and ISA–

S71.04 severity level G1; G2; G3;

GX

1 )2)

Conformity with EN 60721-3-3,

Class 3S4 including conductive sand, dust

2)

Ambient conditions

Air pressure (depending on the highest positive temperature range specified)

1080 ... 795 hPa

(-1000 ... +2000 m) see ambient temperature range

795 ... 658 hPa

(+2000 ... +3500 m) derating 10 K

658 ... 540 hPa

(+3500 ... +5000 m) derating 20 K

1)

2)

ISA-S71.04 severity level GX: Long-term load: SO

2

H

2

NH < 49 ppm; O

3

< 0.1 ppm; NOX < 5.2 ppm

< 4.8 ppm;

S < 9.9 ppm; Cl < 0.2 ppm; HCl < 0.66 ppm; HF < 0.12 ppm;

Limit value (max. 30 min/d): SO

2

< 17.8 ppm; H

2

S < 49.7 ppm;

Cl < 1.0 ppm; HCl < 3.3 ppm; HF < 2.4 ppm; NH < 247 ppm;

O

3

< 1.0 ppm; NOX < 10.4 ppm

The supplied plug covers must remain in place over the unused interface when operated in atmospheres containing corrosive gases!

The technical documentation on SIPLUS can be found here: www.siemens.com/siplus-extreme

2

Siemens ST 70 · 2011

2/19

2

LOGO! logic module

LOGO! modular

SIPLUS LOGO! modular expansion modules

Ordering data

SIPLUS LOGO! DM8 24

Order No.

(extended temperature range and medial exposure)

24 V DC power supply, four 24 V DC digital inputs, four 24 V DC digital outputs, 0.3 A

Temperature range -25 ... +70 °C H

6AG1 055-1CB00-2XB0

Temperature range -40 ... +70 °C L

6AG1 055-1CB00-2BY0

SIPLUS LOGO! DM8 12/24

(extended temperature range and medial exposure)

12/24 V DC power supply, four 12/24 V DC digital inputs, four 24 V DC digital outputs, 0.3 A

Temperature range -25 ... +70 °C L

6AG1 055-1PB00-2XB0

Temperature range -40 ... +70 °C L

6AG1 055-1PB00-2BY0

SIPLUS LOGO! DM8 24R

(extended temperature range and medial exposure)

24 V AC/DC power supply, four 24 V AC/DC digital inputs, four 5 A relay outputs

Temperature range -25 ... +70 °C A

6AG1 055-1HB00-2XB0

Temperature range -40 ... +70 °C L

6AG1 055-1HB00-2BY0

SIPLUS LOGO! DM8 12/24R

(extended temperature range and medial exposure)

12/24 V DC power supply, four 12/24 V DC digital inputs, four 5 A relay outputs

Temperature range -25 ... +70 °C

H

6AG1 055-1MB00-2XB1

Temperature range -40 ... +70 °C

L

6AG1 055-1MB00-2BY1

SIPLUS LOGO! DM8 230R

(extended temperature range and medial exposure)

115/230 V AC/DC power supply, four 115/230 V AC/DC digital inputs, four 5 A relay outputs

Temperature range -25 ... +70 °C A

6AG1 055-1FB00-2XB1

Temperature range -40 ... +70 °C L

6AG1 055-1FB00-2BY1

Order No.

SIPLUS LOGO! AM2

(extended temperature range and medial exposure)

12/24 V DC power supply, two analog inputs 0 ... 10 V or

0 ... 20 mA, 10 bit resolution

Temperature range -25 ... +70 °C H

6AG1 055-1MA00-2XB0

Temperature range -40 ... +70 °C L

6AG1 055-1MA00-2BY0

SIPLUS LOGO! AM2 AQ

(extended temperature range and medial exposure)

24 V DC power supply, 2x analog inputs 0 ... 10 V, 0/4 ... 20 mA,

10-bit resolution

Temperature range -40 ... +70 °C L

6AG1 055-1MM00-2BY1

SIPLUS LOGO! DM16 24R

(extended temperature range and medial exposure)

Supply voltage 24 V DC,

8x digital outputs 24 V DC,

8x relay outputs 5 A

Temperature range -25 ... +70 °C L

6AG1 055-1NB10-2BA0

Accessories

L

6AG1 053-1AA00-2AA0 SIPLUS Upmiter upstream device

for reliable operation at the battery of combustion engines

Additional accessories

See LOGO! modular pure versions, page 2/17

A: Subject to export regulations AL: 9I999 and ECCN: 4A994X

H: Subject to export regulations AL: 9I999 and ECCN: EAR99H

L: Subject to export regulations AL: 9I999 and ECCN: N

2/20

Siemens ST 70 · 2011

LOGO! logic module

LOGO! modular

LOGO! CM EIB/KNX communication module

Overview

• Expansion module for LOGO! basic versions

• For communication between the LOGO! master and external

EIB components through EIB

Technical specifications

CM EIB/KNX

Supply voltage

Inputs, max.

Outputs, max.

Continuous current

Short-circuit protection

Integrated time switches/power reserve

Ambient temperature

RI specification

Degree of protection

Certification

Mounting

Dimensions (W x H x D) in mm

Ordering data

LOGO! CM EIB KNX communication module

for connection to EIB, supply voltage 24 V DC

Accessories

LOGO! manual

German

English

French

Spanish

Italian

Chinese

I

24 V AC/DC

16 DI/12 DO/8 AI/2 AO

16 digital

25 mA

External fuse protection is required

-

0 … +55°C

To EN 55 011 (limit value class B)

IP20 to VDE 0631, IEC61131-2, cULus,

FM

On DIN rail 35 mm,

2 module widths wide

36 (2 MW) × 90 × 55

Order No.

6BK1 700-0BA00-0AA1

6ED1 050-1AA00-0AE7

6ED1 050-1AA00-0BE7

6ED1 050-1AA00-0CE7

6ED1 050-1AA00-0DE7

6ED1 050-1AA00-0EE7

6ED1 050-1AA00-0KE7

I: Subject to export regulations AL: N and ECCN: EAR99H

2

Siemens ST 70 · 2011

2/21

2

LOGO! logic module

LOGO! modular

AS-Interface connection for LOGO!

Overview

Each LOGO! can now be connected to the AS-Interface system

Technical specifications

Supply oltage nputs outputs us connection

Ambient temperature egree of protection ounting imensions x x ndications of the E s

E

• Green

• Red

• Flashes red/yellow

24 V DC

4 / 4

(virtual inputs / outputs)

AS-Interface according to specification

0 ... +55 °C

IP20

Onto standard mounting rail

36 x 90 x 58 mm

Status

No data traffic

Zero address

An intelligent slave can be integrated into the AS-Interface system with the AS-Interface for LOGO!. The modular interface allows the different basic units to be integrated into the system depending on the required functionality. In addition, the functionality can be quickly and simply adapted to changed requirements by replacing the basic unit.

Ordering data

AS-Interface connection for

LOGO!

F

Order No.

3RK1 400-0CE10-0AA2

F: Subject to export regulations AL: N and ECCN: EAR99

The interface provides four inputs and four outputs for the system. These I/Os, however, are not implemented in hardware, but are only virtually available via the interface.

2/22

Siemens ST 70 · 2011

LOGO! logic module

LOGO!Power

LOGO!Power

Overview

performance range are made possible by: wide-range input, radio interference class B, the extensive temperature range as well as numerous certificates.

Main product features:

• 2 performance classes with 5 V, 12 V, and 15 V each

• 3 performance classes with 24 V

• Flat LOGO! design with an installation depth of only 55 mm

• High efficiency across the entire load range

• Low no-load loss

• Wide-range input from 85 V to 264 V AC

• Operation on DC voltage of 110 V to 300 V

• Constant current for connection of loads with high inrush current

• Adjustable output voltage

• Green LED for "Output voltage OK"

• Temperature range from -20 °C to +70 °C

• Numerous certificates, such as CE, cULus, FM, GL and ATEX

The LOGO!Power miniature power supply units from Siemens are the perfect solution for many applications – their flat, stepshaped profile makes them perfectly suited for distribution boards, for example. Even more fields of application in the lower

Technical specifications LOGO!Power 5 V

Power supply, type

Order No.

Input

Rated voltage U in rated

5 V/3 A

6EP1 311-1SH03

1-phase AC or DC

100-240 V AC

Wide-range input

Voltage range

Rated current I in rated

Switch-on current limitation (+25 °C)

I

2

t

85 ... 264 V AC

110 … 300 V DC

Overvoltage strength 2.3 x U in rated

, 1.3 ms

Mains buffering at I out rated

> 40 ms at U in

= 187 V

Rated line frequency, rated line frequency range 50/60 Hz; 47 ... 63 Hz

0.36-0.22 A

< 26 A

< 0.8 A

2 s

Built-in incoming fuse

Recommended miniature circuit breaker

(IEC 898) in the mains power input

Output

Internal

16 A or higher, Characteristic B or 10 A or higher, Characteristic C

Controlled, isolated DC voltage

5 V DC

Rated voltage U out rated

Total tolerance, static

• Static line compensation

• Static load compensation

Residual ripple

Spikes (bandwidth approx. 20 MHz)

Adjustment range

Status indicator

On/Off behavior

Startup delay / voltage rise

±3 %

Approx. 0.2%

Approx. 1.5%

< 100 mV pp

(typ. 10 mV

< 100 mV pp

(typ. 20 mV

4.6 ... 5.4 V pp

) pp

)

5 V OK = green LED

No overshoot of U out

(soft start)

< 0.5 s/typ. 15 ms

Rated current I out rated

Current range up to +55 °C

• Derating

Parallel switching for enhanced performance

3 A

0 ... 3 A

0 ... 2.1 A (up to +70 °C)

Yes, 2 units

5 V/6.3 A

6EP1 311-1SH13

1-phase AC or DC

100-240 V AC

Wide-range input

85 ... 264 V AC

110 … 300 V DC

2.3 x U in rated

, 1.3 ms

> 40 ms at U in

= 187 V

50/60 Hz; 47 ... 63 Hz

0.71-0.37 A

< 50 A

< 3 A

2 s

Internal

16 A or higher, Characteristic B or 10 A or higher, Characteristic C

Controlled, isolated DC voltage

5 V DC

±3 %

Approx. 0.1%

Approx. 2%

< 100 mV pp

(typ. 15 mV pp

)

< 100 mV pp

(typ. 70 mV pp

)

4.6 ... 5.4 V

5 V OK = green LED

No overshoot of U out

(soft start)

< 0.5 s/typ. 10 ms

6.3 A

0 ... 6.3 A

0 ... 4.4 A (up to +70 °C)

Yes, 2 units

2

Siemens ST 70 · 2011

2/23

LOGO! logic module

LOGO!Power

LOGO!Power

Technical specifications LOGO!Power 5 V (continued)

Power supply, type

Order No.

2

Efficiency

Efficiency at U out rated

, I out rated

Power loss at U out rated

, I out rated

Closed-loop control

5 V/3 A

6EP1 311-1SH03

Approx. 77%

Approx. 4 W

< 0.2 % U out

Dyn. line compensation

(U in rated

±15%)

Dynamic load compensation

(I out

: 10/90/10 %)

Load step settling time

• 10 to 90%

• 90 to 10%

Protection and monitoring

Current limitation

Short-circuit protection

Sustained short-circuit current rms value

Safety

Primary/secondary isolation

Typ. ±3% U out

Typ. 2 ms

Typ. 2 ms

Typ. 3.8 A

Constant current characteristic

< 5 A

Safety class

Safety test

CE marking

UL/cUL (CSA) approval

Protection against explosion

FM approval

Marine approval

Degree of protection (EN 60529)

EMC

Emitted interference

Supply harmonics limitation

Noise immunity

Operating data

Ambient temperature range

Transport and storage temperature range

Humidity class

Yes, safety extra low output voltage U out according to EN 60950 and EN 50178

Class II (without protective conductor)

Yes; CB scheme

Yes cULus-listed (UL 508, CSA C22.2 No. 107.1), cURus-recognized (UL 60950, CSA C22.2

No. 60950)

ATEX (available soon)

Class I Div. 2, Group A, B, C, D T4

GL (available soon)

IP20

EN 55022 Class B

Not applicable

EN 61000-6-2

-20 ... +70 °C with natural convection

-40 ... +85 °C

Climate class 3K3 according to EN 60721, no condensation

Mechanics

Supply-input connections L1, N Solid/finely-stranded per screw-type terminal for 0.5 mm ... 2.5 mm

2

2 screw terminals each for 0.5 ... 2.5 mm

2

Connections

• Output +

• Output -

Dimensions (W x H x D) in mm

Weight, approx.

Mounting

54 x 90 x 55

0.17 kg

Can be snapped onto standard mounting rail

EN 60715 35x7.5/15

5 V/6.3 A

6EP1 311-1SH13

Approx. 83%

Approx. 6 W

< 0.2 % U out

Typ. ±3% U out

Typ. 2 ms

Typ. 2 ms

Typ. 8.2 A

Constant current characteristic

< 10 A

Yes, safety extra low output voltage U out according to EN 60950 and EN 50178

Class II (without protective conductor)

Yes; CB scheme

Yes cULus-listed (UL 508, CSA C22.2 No. 107.1), cURus-recognized (UL 60950, CSA C22.2

No. 60950)

ATEX (available soon)

Class I Div. 2, Group A, B, C, D T4

GL (available soon)

IP20

EN 55022 Class B

Not applicable

EN 61000-6-2

-20 ... +70 °C with natural convection

-40 ... +85 °C

Climate class 3K3 according to EN 60721, no condensation

Solid/finely-stranded per screw-type terminal for 0.5 mm ... 2.5 mm

2

2 screw terminals each for 0.5 ... 2.5 mm

2

72 x 90 x 55

0.25 kg

Can be snapped onto standard mounting rail

EN 60715 35x7.5/15

2/24

Siemens ST 70 · 2011

LOGO! logic module

LOGO!Power

LOGO!Power

Technical specifications LOGO!Power 12 V

Power supply, type

Order No.

12 V/1.9 A

6EP1 321-1SH03

Input

Rated voltage value U

Voltage range in rated

1-phase AC or DC

100-240 V AC

Wide-range input

85 ... 264 V AC

110 … 300 V DC

Overvoltage resistance 2.3 x U in rated

, 1.3 ms

Mains buffering at I out rated

> 40 ms at U in

= 187 V

Rated line frequency, rated line-frequency range 50/60 Hz; 47 ... 63 Hz

Rated current value I in rated

Switch-on current limitation (+25 °C)

I

2

t

0.53-0.3 A

< 26 A

< 0.8 A

2 s

Built-in incoming fuse

Recommended miniature circuit breaker (IEC 898) in the mains power input

Output

Rated voltage value U out rated

Total tolerance, static

• Static mains compensation

• Static load smoothing

Residual ripple

Spikes (bandwidth approx. 20 MHz)

Adjustment range

Status indicator

On/Off behavior

Startup delay / voltage rise

Rated current value I out rated

Current range up to +55 °C

• Derating

Parallel switching for enhanced performance

Efficiency

Internal

16 A or higher, Characteristic B or 10 A or higher, Characteristic C

Controlled, isolated DC voltage

12 V DC

±3 %

Approx. 0.2 %

Approx. 1.5 %

< 200 mV pp

(typ. 10 mV pp

)

< 300 mV pp

(typ. 20 mV pp

)

10.5 ... 16.1 V

Green LED for 12 V OK

No overshoot of U out

(soft start)

< 0.5 s/typ. 15 ms

1.9 A

0 ... 1.9 A

0 ... 1.3 A (up to +70 °C)

Yes, 2 units

Efficiency at U out rated

, I out rated

Heat loss at U out rated

, I out rated

Closed-loop control

Dyn. mains compensation

(U in rated

±15 %)

Dynamic load smoothing (I out

: 10/90/10%)

Load step settling time

• 10 to 90 %

• 90 to 10 %

Protection and monitoring

Current limitation

Short-circuit protection

Sustained short-circuit current rms value

Safety

Primary/secondary isolation

Typ. 80 %

Typ. 5 W

< 0.2 % U

Typ. 2.8 A

Constant current characteristic

< 4 A out

Typ. ±3 % U out

Approx. 1 ms

Approx. 1 ms

Protection class

German Technical Inspectorate approval

CE mark

Yes, safety extra low output voltage U out according to EN 60950 and EN 50178

Class II (without protective conductor)

Yes; CB scheme

Yes

12 V/4.5 A

6EP1 322-1SH03

1-phase AC or DC

100-240 V AC

Wide-range input

85 ... 264 V AC

110 … 300 V DC

2.3 x U in rated

, 1.3 ms

> 40 ms at U in

= 187 V

50/60 Hz; 47 ... 63 Hz

1.13-0.61 A

< 54 A

< 3 A

2 s

Internal

16 A or higher, Characteristic B or 10 A or higher, Characteristic C

Controlled, isolated DC voltage

12 V DC

±3 %

Approx. 0.1 %

Approx. 1.5 %

< 200 mV pp

(typ. 10 mV pp

)

< 300 mV pp

(typ. 70 mV pp

)

10.5 ... 16.1 V

Green LED for 12 V OK

No overshoot of U out

(soft start)

< 0.5 s/typ. 15 ms

4.5 A

0 ... 4.5 A

0 ... 3.1 A (up to +70 °C)

Yes, 2 units

Typ. 85 %

Typ. 10 W

< 0.2 % U out

Typ. ±4 % U out

Approx. 1 ms

Approx. 1 ms

Typ. 5.8 A

Constant current characteristic

< 8 A

Yes, safety extra low output voltage U out according to EN 60950 and EN 50178

Class II (without protective conductor)

Yes; CB scheme

Yes

2

Siemens ST 70 · 2011

2/25

2

LOGO! logic module

LOGO!Power

LOGO!Power

Technical specifications LOGO!Power 12 V (continued)

Power supply, type

Order No.

12 V/1.9 A

6EP1 321-1SH03

UL/cUL (CSA) approval

Explosion protection

FM approval

Marine approval

Degree of protection (EN 60529)

EMC

Emitted interference

Supply harmonics limitation

Noise immunity

Operating data

Ambient temperature range

Transport and storage temperature range

Humidity class cULus-listed (UL 508, CSA C22.2 No. 107.1); cURus-recognized (UL 60950, CSA C22.2

No. 60950)

ATEX (available soon)

Class I Div. 2, Group A, B, C, D T4

GL, ABS (available soon)

IP20

EN 55022 Class B

Not applicable

EN 61000-6-2

-20 ... +70 °C with natural convection

-40 ... +85 °C

Climate class 3K3 according to EN 60721, no condensation

Mechanics

Supply-input connections L1, N 1 screw terminal each for 0.5 mm ... 2.5 mm

2 single-core/finely stranded

2 screw terminals each for 0.5 ... 2.5 mm

2

Connections

• Output +

• Output -

Dimensions (W x H x D) in mm

Weight, approx.

Installation

54 x 90 x 55

Approx. 0.17 kg

Snaps onto standard mounting rail EN 60715

35x7.5/15

12 V/4.5 A

6EP1 322-1SH03

cULus-listed (UL 508, CSA C22.2 No. 107.1); cURus-recognized (UL 60950, CSA C22.2

No. 60950)

ATEX (available soon)

Class I Div. 2, Group A, B, C, D T4

GL, ABS (available soon)

IP20

EN 55022 Class B

Not applicable

EN 61000-6-2

-20 ... +70 °C with natural convection

-40 ... +85 °C

Climate class 3K3 according to EN 60721, no condensation

1 screw terminal each for 0.5 mm ... 2.5 mm single-core/finely stranded

2 screw terminals each for 0.5 ... 2.5 mm

2

2

72 x 90 x 55

Approx. 0.25 kg

Snaps onto standard mounting rail EN 60715

35x7.5/15

Technical specifications LOGO!Power 15 V

Power supply, type

Order No.

15 V/1.9 A

6EP1 351-1SH03

Input

Rated voltage value U

Voltage range

Rated current value I in rated

Switch-on current limit (+25 °C)

I

2

t

85 ... 264 V AC

110 … 300 V DC

Overvoltage resistance 2.3 x U in rated

, 1.3 ms

Mains buffering at I out rated

> 40 ms at U in

= 187 V

Rated line frequency, rated line-frequency range 50/60 Hz; 47 ... 63 Hz

0.63-0.33 A

< 26 A

< 0.8 A

2 s

Built-in incoming fuse

Output

in rated

Recommended miniature circuit breaker (IEC 898) in the mains power input

Rated voltage U out rated

Total tolerance, static

• Static mains compensation

• Static load smoothing

Residual ripple

1-phase AC or DC

100-240 V AC

Wide-range input

Internal

16 A or higher, Characteristic B or 10 A or higher, Characteristic C

Controlled, isolated DC voltage

15 V DC

±3 %

Approx. 0.1 %

Approx. 1.5 %

< 200 mV pp

(typ. 10 mV pp

)

15 V/4 A

6EP1 352-1SH03

1-phase AC or DC

100-240 V AC

Wide-range input

85 ... 264 V AC

110 … 300 V DC

2.3 x U in rated

, 1.3 ms

> 40 ms at U in

= 187 V

50/60 Hz; 47 ... 63 Hz

1.24-0.68 A

< 54 A

< 3 A

2 s

Internal

16 A or higher, Characteristic B or 10 A or higher, Characteristic C

Controlled, isolated DC voltage

15 V DC

±3 %

Approx. 0.1 %

Approx. 1.5 %

< 200 mV pp

(typ. 10 mV pp

)

2/26

Siemens ST 70 · 2011

LOGO! logic module

LOGO!Power

LOGO!Power

Technical specifications LOGO!Power 15 V (continued)

Power supply, type

Order No.

15 V/1.9 A

6EP1 351-1SH03

Spikes (bandwidth approx. 20 MHz)

Adjustment range

Status indicator

On/Off behavior

Startup delay / voltage rise

Rated current value I in rated

Current range up to +55 °C

• Derating

Parallel switching for enhanced performance

Efficiency

Efficiency at U out rated

, I out rated

Heat loss at U out rated

, I out rated

Closed-loop control

Dyn. mains compensation

(U in rated

±15%)

Dynamic load smoothing

(I out

: 10/90/10%)

Load step settling time

• 10 to 90 %

• 90 to 10 %

Protection and monitoring

Current limitation

Short-circuit protection

Sustained short-circuit current rms value

Safety

Primary/secondary isolation

< 300 mV pp

(typ. 30 mV pp

)

10.5 ... 16.1 V

Green LED for 15 V OK

No overshoot of U out

(soft start)

< 0.5 s/typ. 15 ms

1.9 A

0 ... 1.9 A

0 ... 1.3 A (up to +70 °C)

Yes, 2 units

Approx. 81 %

Approx. 7 W

< 0.2 % U out

Typ. ±2.8 % U out

Typ. 1 ms

Typ. 1 ms

Typ. 2.7 A

Constant current characteristic

< 4 A

Protection class

Safety test

CE mark

UL/cUL (CSA) approval

Explosion protection

FM approval

Marine approval

Degree of protection (EN 60529)

EMC

Emitted interference

Supply harmonics limitation

Noise immunity

Operating data

Ambient temperature range

Transport and storage temperature range

Humidity class

Yes, safety extra low output voltage U out according to EN 60950 and EN 50178

Class II (without protective conductor)

Yes; CB scheme

Yes cULus-listed (UL 508, CSA C22.2 No. 107.1); cURus-recognized (UL 60950, CSA C22.2

No. 60950)

ATEX (available soon)

Class I Div. 2, Group A, B, C, D T4

GL (available soon)

IP20

EN 55022 Class B

Not applicable

EN 61000-6-2

-20 ... +70 °C with natural convection

-40 ... +85 °C

Climate class 3K3 according to EN 60721, no condensation

15 V/4 A

6EP1 352-1SH03

< 300 mV pp

(typ. 70 mV pp

)

10.5 ... 16.1 V

Green LED for 15 V OK

No overshoot of U out

(soft start)

< 0.5 s/typ. 15 ms

4 A

0 ... 4 A

0 ... 2.8 A (up to +70 °C)

Yes, 2 units

Approx. 85 %

Approx. 11 W

< 0,2 % U out

Typ. ±3 % U out

Typ. 1 ms

Typ. 1 ms

Typ. 5.7 A

Constant current characteristic

< 8 A

Yes, safety extra low output voltage U out according to EN 60950 and EN 50178

Class II (without protective conductor)

Yes; CB scheme

Yes cULus-listed (UL 508, CSA C22.2 No. 107.1); cURus-recognized (UL 60950, CSA C22.2

No. 60950)

ATEX (available soon)

Class I Div. 2, Group A, B, C, D T4

GL (available soon)

IP20

EN 55022 Class B

Not applicable

EN 61000-6-2

-20 ... +70 °C with natural convection

-40 ... +85 °C

Climate class 3K3 according to EN 60721, no condensation

2

Siemens ST 70 · 2011

2/27

2

LOGO! logic module

LOGO!Power

LOGO!Power

Technical specifications LOGO!Power 15 V (continued)

Power supply, type

Order No.

15 V/1.9 A

6EP1 351-1SH03

Mechanics

Supply-input connections L1, N 1 screw terminal each for 0.5 mm ... 2.5 mm

2 single-core/finely stranded

2 screw terminals each for 0.5 ... 2.5 mm

2

Connections

• Output +

• Output -

Dimensions (W x H x D) in mm

Weight, approx.

Installation

54 x 90 x 55

Approx. 0.17 kg

Snaps onto standard mounting rail EN 60715

35x7.5/15

15 V/4 A

6EP1 352-1SH03

1 screw terminal each for 0.5 mm ... 2.5 mm

2 single-core/finely stranded

2 screw terminals each for 0.5 ... 2.5 mm

2

72 x 90 x 55

Approx. 0.25 kg

Snaps onto standard mounting rail EN 60715

35x7.5/15

Technical specifications LOGO!Power 24 V/1.3 A

Power supply, type 24 V/1.3 A

Order No.

6EP1 331-1SH03

Input

Rated voltage U in rated

Voltage range

Overvoltage strength

Mains buffering at I out rated

Rated line frequency, rated line-frequency range

Rated current I in rated

Switch-on current limitation (+25 °C)

I

2

t

1-phase AC or DC

100-240 V AC

Wide-range input

85 ... 264 V AC

110 … 300 V DC

2.3 x U in rated

, 1.3 ms

> 40 ms at U in

= 187 V

50/60 Hz; 47 ... 63 Hz

Built-in incoming fuse

Recommended miniature circuit breaker

(IEC 898) in the mains power input

Output

Rated voltage U out rated

Total tolerance

• Static mains compensation

• Static load smoothing

Residual ripple

Spikes (bandwidth approx. 20 MHz)

Adjustment range

Status indicator

On/Off behavior

0.7-0.35 A

< 30 A

< 0.8 A

2 s

Internal

16 A or higher, Characteristic B or 10 A or higher,

Characteristic C

Controlled, isolated DC voltage

24 V DC

±3 %

Approx. 0.1%

Approx. 1.5%

< 200 mV pp

(typ. 10 mV pp

)

< 300 mV pp

(typ. 20 mV pp

)

22.2 ... 26.4 V

24 V OK = green LED

No overshoot of U out start)

(soft

< 0.5 s/typ. 15 ms Startup delay / voltage rise

Rated current I out rated

Current range

• Current range up to +60 °C

• Derating

Parallel switching for enhanced performance

Efficiency

Efficiency at U out rated

, I out rated

Power loss at U out rated

, I out rated

1.3 A

0 ... 1.3 A (up to +55°C)

0 ... 0.9 A (up to +70°C)

Yes, 2 units

Approx. 83%

Approx. 6.3 W

Power supply, type

Order No.

Closed-loop control

Dyn. mains compensation

(U in rated

±15%)

Dynamic load smoothing

(I out

: 50/100/50 %)

Load step settling time

• 50 to 100%

• 100 to 50%

Typ. 1 ms (10 to 90%)

Typ. 1 ms (90 to 10%)

Protection and monitoring

Output overvoltage protection Yes, according to

EN 60950

Typ. 1.7 A Current limitation

Short-circuit protection Constant current characteristic

Sustained short-circuit current rms value < 4 A

Overload/short-circuit indicator -

Safety

Primary/secondary isolation

Safety class

Leakage current

Safety test

CE marking

UL/cUL (CSA) approval

24 V/1.3 A

6EP1 331-1SH03

< 0,2 % U

Typ. ±1% U

(I out

Yes, safety extra low output voltage U out

according to

EN 60950-1 and EN 50178

Class II (without protective conductor)

-

Yes; CB scheme

Yes out out

: 10/90/10 %) cULus-listed (UL 508, CSA

C22.2 No. 107.1), cURusrecognized (UL 60950,

CSA C22.2 No. 60950)

Protection against explosion

FM approval

ATEX EX II 3G Ex nA IIC T3

Class I Div. 2, Group A, B,

C, D T4

GL, ABS

IP20

Marine approval

Degree of protection (EN 60529)

EMC

Emitted interference

Supply harmonics limitation

Noise immunity

EN 55022 Class B

Not applicable

EN 61000-6-2

2/28

Siemens ST 70 · 2011

LOGO! logic module

LOGO!Power

LOGO!Power

Technical specifications LOGO!Power 24 V/1.3 A (continued)

Power supply, type

Order No.

24 V/1.3 A

6EP1 331-1SH03

Operating data

Ambient temperature range -20 ... +70 °C with natural convection

Transport and storage temperature range -40 ... +85 °C

Humidity class Climate class 3K3 according to EN 60721, no condensation

Mechanics

Connections

• Supply input L, N, PE

DC input: L+1, M1, PE

• Output +

• Output -

Solid/finely-stranded per screw-type terminal (L, N) for 0.5 mm ... 2.5 mm

2

2 screw-type terminals for

0.5 ... 2.5 mm

2

2 screw-type terminals for

0.5 ... 2.5 mm

2

Power supply, type

Order No.

Dimensions (W x H x D) in mm

Weight, approx.

Mounting

Accessories

24 V/1.3 A

6EP1 331-1SH03

54 x 90 x 55

Approx. 0.17 kg

Can be snapped onto standard mounting rail

EN 60715 35x7.5/15

-

Technical specifications LOGO!Power 24 V/2.5 A

Power supply, type

Order No

24 V/2.5 A

6EP1 332-1SH43

Input

Rated voltage U in rated

Voltage range

Overvoltage strength

Mains buffering at I out rated

Rated line frequency, rated line-frequency range

Rated current I in rated

Switch-on current limitation (+25 °C)

I

2

t

1-phase AC or DC

100-240 V AC

Wide-range input

85 ... 264 V AC

110 … 300 V DC

2.3 x U in rated

, 1.3 ms

> 40 ms at U in

= 187 V

50/60 Hz; 47 ... 63 Hz

Built-in incoming fuse

Recommended miniature circuit breaker

(IEC 898) in the mains power input

Output

Rated voltage U out rated

Total tolerance

• Static mains compensation

• Static load smoothing

Residual ripple

Spikes (bandwidth approx. 20 MHz)

Adjustment range

Status indicator

On/Off behavior

Startup delay / voltage rise

Rated current I out rated

Current range

• Current range up to +60 °C

• Derating

Parallel switching for enhanced performance

1.22-0.66 A

< 46 A

< 3 A

2 s

Internal

16 A or higher, Characteristic B or 10 A or higher,

Characteristic C

Controlled, isolated DC voltage

24 V DC

±3 %

Approx. 0.1%

Approx. 1.5%

< 200 mV pp

(typ. 10 mV pp

)

< 300 mV pp

(typ. 50 mV pp

)

22.2 ... 26.4 V

24 V OK = green LED

No overshoot of U out

(soft start)

< 0.5 s/typ. 10 ms

2.5 A

0 ... 2.5 A (up to +55°C)

0 ... 1.75 A (up to +70°C)

Yes, 2 units

Power supply, type

Order No

Efficiency

Efficiency at U out rated

, I out rated

Power loss at U out rated

, I out rated

Closed-loop control

Dyn. mains compensation

(U in rated

±15%)

Dynamic load smoothing

(I out

: 50/100/50 %)

Load step settling time

• 50 to 100%

• 100 to 50%

24 V/2.5 A

6EP1 332-1SH43

Approx. 88%

Approx. 8 W

< 0,2 % U out

Typ. ±2% U

(I out out

: 10/90/10 %)

Typ. 1 ms (10 to 90%)

Typ. 1 ms (90 to 10%)

Protection and monitoring

Output overvoltage protection

Safety class

Yes, according to EN

60950

Typ. 3.3 A Current limitation

Short-circuit protection

Sustained short-circuit current rms value Approx. 3.5 A

Safety

Primary/secondary isolation

Constant current characteristic

Yes, safety extra low output voltage U out

according to

EN 60950-1 and EN 50178

Class II (without protective conductor)

Leakage current

Safety test

CE marking

UL/cUL (CSA) approval

Protection against explosion

FM approval

Marine approval

Degree of protection (EN 60529)

-

Yes; CB scheme

Yes cULus-listed (UL 508, CSA

C22.2 No. 107.1), cURusrecognized (UL 60950,

CSA C22.2 No. 60950)

ATEX EX II 3G Ex nA IIC T3

Class I Div. 2, Group A, B,

C, D T4

GL, ABS

IP20

Siemens ST 70 · 2011

2/29

2

2

LOGO! logic module

LOGO!Power

LOGO!Power

Technical specifications LOGO!Power 24 V/2.5 A (continued)

Power supply, type

Order No

24 V/2.5 A

6EP1 332-1SH43

EMC

Emitted interference

Supply harmonics limitation

Noise immunity

EN 55022 Class B

Not applicable

EN 61000-6-2

Operating data

Ambient temperature range -20 ... +55 °C with natural convection

Transport and storage temperature range -40 ... +70 °C

Humidity class Climate class 3K3 according to EN 60721, no condensation

Power supply, type

Order No

Mechanics

Connections

• Supply input L, N, PE

DC input: L+1, M1, PE

• Output +

• Output -

Dimensions (W x H x D) in mm

Weight, approx.

Mounting

Accessories

24 V/2.5 A

6EP1 332-1SH43

Solid/finely-stranded per screw-type terminal (L, N) for 0.5 mm ... 2.5 mm

2

2 screw-type terminals for

0.5 ... 2.5 mm

2

2 screw-type terminals for

0.5 ... 2.5 mm

2

72 x 90 x 55

Approx. 0.25 kg

Can be snapped onto standard mounting rail

EN 60715 35x7.5/15

-

Technical specifications LOGO!Power 24 V/4 A

Power supply, type 24 V/4 A

Order No.

6EP1 332-1SH52

Input

Rated voltage U in rated

Voltage range

Overvoltage strength

Mains buffering at I out rated

Rated line frequency, rated line-frequency range

Rated current I in rated

Switch-on current limitation (+25 °C)

I

2

t

1-phase AC or DC

100-240 V AC

Wide-range input

85 ... 264 V AC

110 … 300 V DC

2.3 x U in rated

, 1.3 ms

> 40 ms at U in

= 187 V

50/60 Hz; 47 ... 63 Hz

Built-in incoming fuse

Recommended miniature circuit breaker

(IEC 898) in the mains power input

Output

Rated voltage U out rated

Total tolerance

• Static mains compensation

• Static load smoothing

Residual ripple

Spikes (bandwidth approx. 20 MHz)

Adjustment range

Status indicator

On/Off behavior

Startup delay / voltage rise

1.95 to 0.97 A

< 30 A

< 2.5 A

2 s

Internal

16 A or higher, Characteristic B or 10 A or higher,

Characteristic C

Controlled, isolated DC voltage

24 V DC

±3 %

Approx. 0.1%

Approx. 1.5%

< 200 mV pp

(typ. 30 mV pp

)

< 300 mV pp

(typ. 60 mV pp

)

22.2 ... 26.4 V

24 V OK = green LED

No overshoot of U out

(soft start)

< 0.5 s/typ. 15 ms

Power supply, type

Order No.

Rated current I out rated

Current range

• Current range up to +60 °C

• Derating

Parallel switching for enhanced performance

Efficiency

24 V/4 A

6EP1 332-1SH52

4 A

0 ... 4 A (up to +55°C)

0 ... 2.8 A (up to +70°C)

Yes, 2 units

Efficiency at U out rated

, I out rated

Power loss at U out rated

, I out rated

Closed-loop control

Dyn. mains compensation

(U in rated

±15%)

Dynamic load smoothing

(I out

: 50/100/50 %)

Load step settling time

• 50 to 100%

• 100 to 50%

Approx. 89%

Approx. 12 W

< 0,2 % U out

Typ. ±1.5% U

(I out out

: 10/90/10 %)

Typ. 1 ms (10 to 90%)

Typ. 1 ms (90 to 10%)

Protection and monitoring

Output overvoltage protection Yes, according to

EN 60950

Typ. 5.2 A Current limitation

Short-circuit protection Constant current characteristic

Sustained short-circuit current rms value < 10 A

Overload/short-circuit indicator -

Safety

Primary/secondary isolation

Safety class

Yes, safety extra low output voltage U out

according to

EN 60950-1 and EN 50178

Class II (without protective conductor)

2/30

Siemens ST 70 · 2011

LOGO! logic module

LOGO!Power

LOGO!Power

Technical specifications LOGO!Power 24 V/4 A (continued)

Power supply, type

Order No.

24 V/4 A

6EP1 332-1SH52

Leakage current

Safety test

CE marking

UL/cUL (CSA) approval

Protection against explosion

FM approval

-

Yes; CB scheme

Yes cULus-listed (UL 508,

CSA C22.2 No. 107.1), cURus-recognized

(UL 60950, CSA C22.2

No. 60950)

ATEX EX II 3G Ex nA IIC T3

Class I Div. 2, Group A, B,

C, D T4

GL, ABS

IP20

Marine approval

Degree of protection (EN 60529)

EMC

Emitted interference

Supply harmonics limitation

Noise immunity

EN 55022 Class B

EN 61000-3-2

EN 61000-6-2

Power supply, type

Order No.

Operating data

Ambient temperature range

24 V/4 A

6EP1 332-1SH52

-20 ... +70 °C with natural convection

Transport and storage temperature range -40 ... +85 °C

Humidity class Climate class 3K3 according to EN 60721, no condensation

Mechanics

Connections

• Supply input L, N, PE

DC input: L+1, M1, PE

• Output +

• Output -

Dimensions (W x H x D) in mm

Weight, approx.

Mounting

Solid/finely-stranded per screw-type terminal (L, N) for 0.5 mm ... 2.5 mm

2

2 screw terminals each for

0.5 ... 2.5 mm

2

2 screw terminals each for

0.5 ... 2.5 mm

2

90 x 90 x 55

Approx. 0.34 kg

Accessories

Can be snapped onto standard mounting rail

EN 60715 35x7.5/15

-

2

Siemens ST 70 · 2011

2/31

2

LOGO! logic module

LOGO!Power

LOGO!Power

Ordering data

LOGO!Power 5 V

Stabilized power supply;

Output: 5 V DC/3 A

• Input: 110 … 300 V AC; extended operating temperature range: up to +70°C

Stabilized power supply;

Output: 5 V DC/6.3 A

• Input: 110 … 300 V AC; extended operating temperature range: up to +70°C

LOGO!Power 12 V

Stabilized power supply;

Output: 12 V DC/1.9 A

• Input: 110 … 300 V AC; extended operating temperature range: up to +70°C

Stabilized power supply;

Output: 12 V DC/4.5 A

• Input: 110 … 300 V AC; extended operating temperature range: up to +70°C

LOGO!Power 15 V

Stabilized power supply;

Output: 15 V DC/1.9 A

• Input: 110 … 300 V AC; extended operating temperature range: up to +70°C

Stabilized power supply;

Output: 15 V DC/4 A

• Input: 110 … 300 V AC; extended operating temperature range: up to +70°C

Order No.

6EP1 311-1SH03

6EP1 311-1SH13

6EP1 321-1SH03

6EP1 322-1SH03

6EP1 351-1SH03

6EP1 352-1SH03

More information

In addition to various power supply product lines, the perfectly coordinated complete SITOP range offers a unique range of add-on modules with which the 24 V power supply can be additionally protected against interference on the primary and secondary side – right up to all-round protection:

• Redundancy module for setting up a redundant power supply

• Uninterruptible 24 V power supplies with batteries or maintenance-free capacitors for continued operation in the event of a power failure

• Selectivity modules for electronic protection of 24 V branches from overload and short-circuit

You can find more information in Catalog KT 10.1 and in the

Internet at www.siemens.com/sitop

Order No.

LOGO!Power 24 V/1.3 A

Stabilized power supply;

Output: 24 V DC/1.3 A

• Input: 110 … 300 V AC; extended operating temperature range: up to +70°C

LOGO!Power 24 V/2.5 A

Stabilized power supply;

Output: 24 V DC/2.5 A

• Input: 110 … 300 V AC; extended operating temperature range: up to +70°C

LOGO!Power 24 V/4 A

Stabilized power supply;

Output: 24 V DC/4 A

• Input: 110 … 300 V AC; extended operating temperature range: up to +70°C

6EP1 331-1SH03

6EP1 332-1SH43

6EP1 332-1SH52

2/32

Siemens ST 70 · 2011

LOGO! logic module

LOGO!Power

SIPLUS LOGO!Power

Overview

Note:

SIPLUS extreme products are based on Siemens Industry standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.

SIPLUS LOGO!Power 1.3 A

Order number

Order No. based on

Ambient temperature range

Conformal coating

Technical data

6AG1 931-1SH02-2AA0

6EP1 331-1SH02

-25 °C to +70 °C

Coating of the printed circuit boards and the electronic components

The technical data of the standard product applies except for the ambient conditions.

Technical specifications

Power supply, type

Order number

Input

Rated voltage U in rated

24 V/1.3 A

6EP1 331-1SH02

1-phase AC

100 ... 240 V AC

Wide-range input

85 ... 264 V AC Voltage range

Overvoltage strength

Mains buffering at I out rated

Rated line frequency, rated line frequency range

2.3 x U in rated

, 1.3 ms

> 40 ms at U in

= 187 V

50/60 Hz; 47 ... 63 Hz

Rated current I in rated

0.7-0.35 A

Switch-on current limitation (+25 °C) < 35 A

I

2

t

< 0.8 A

2 s

Ambient conditions

Relative humidity

Biologically active substances

Chemically active substances

Mechanically active substances

Air pressure (depending on the highest positive temperature range specified)

5 ... 100 %

Condensation permissible

Conformity with EN 60721-3-3,

Class 3B2 mold and fungal spores (except fauna)

Conformity with EN 60721-3-3,

Class 3C4 incl. salt mist and ISA–

S71.04 severity level G1; G2; G3;

GX

1) 2)

Conformity with EN 60721-3-3,

Class 3S4 including conductive sand, dust

2)

1080 ... 795 hPa

(-1000 ... +2000 m) see ambient temperature range

795 ... 658 hPa

(+2000 ... +3500 m) derating 10 K

658 ... 540 hPa

(+3500 ... +5000 m) derating 20 K

Built-in incoming fuse

Recommended miniature circuit breaker (IEC 898) in the mains power input

Output

Internal

16 A or higher, Characteristic B or

10 A or higher, Characteristic C

Rated voltage U out rated

Total tolerance

• Static mains compensation

• Static load smoothing

Residual ripple < 200 mV pp

(typ. 10 mV pp

)

Spikes (bandwidth approx. 20 MHz) < 300 mV pp

(typ. 20 mV pp

)

Setting range 22.2 ... 26.4 V

Status indicator

On/Off behavior

Startup delay / voltage rise

Controlled, isolated DC voltage

24 V DC

±3 %

Approx. 0.1%

Approx. 1.5%

24 V OK = green LED

No overshoot of U

< 0.5 s/typ. 15 ms out

(soft start)

Rated current I out rated

Current range

• Current range up to +60 °C

• Derating

1.3 A

0 ... 1.3 A (up to 55 °C)

-

Yes, 2 units

1)

2)

ISA-S71.04 severity level GX: Long-term load: SO

2

H

2

NH < 49 ppm; O

3

< 0.1 ppm; NOX < 5.2 ppm

< 4.8 ppm;

S < 9.9 ppm; Cl < 0.2 ppm; HCl < 0.66 ppm; HF < 0.12 ppm;

Threshold / limit value (max. 30 min/d): SO

2

H

2

< 17.8 ppm;

S < 49.7 ppm; Cl < 1.0 ppm; HCl < 3.3 ppm; HF < 2.4 ppm;

NH < 247 ppm; O

3

< 1.0 ppm; NOX < 10.4 ppm

The supplied plug covers must remain in place over the unused interface when operated in atmospheres containing corrosive gases!

The technical documentation on SIPLUS can be found here: www.siemens.com/siplus-extreme

Parallel switching for enhanced performance

Efficiency

Efficiency at U out rated

, I out rated

Heat loss at U out rated

, I out rated

Closed-loop control

Dyn. mains compensation

(U in rated

±15%)

Dynamic load smoothing

(I out

: 50/100/50 %)

Load step settling time

• 50 to 100%

• 100 to 50%

Approx. 82%

Approx. 7 W

< 0,2 % U out

Typ. ±1.5 % U out

(I out

: 10/90/10 %)

Typ. 20 ms (10 to 90%)

Typ. 20 ms (90 to 10%)

Protection and monitoring

Output overvoltage protection

Current limitation

Short-circuit protection

Sustained short-circuit current rms value

Overload/short-circuit indicator

Yes, according to EN 60950

Typ. 2 A

Constant current characteristic

< 4 A

-

2

Siemens ST 70 · 2011

2/33

2

LOGO! logic module

LOGO!Power

SIPLUS LOGO!Power

Technical specifications (continued)

Power supply, type 24 V/1.3 A

Safety

Primary/secondary isolation

Protection class

Leakage current

Safety test

CE marking

UL/cUL (CSA) approval

Explosion protection

FM approval

Marine approval

Degree of protection (EN 60529)

EMC

Emitted interference

Supply harmonics limitation

Noise immunity

Operating data

Range of ambient temperature

Yes, safety extra low output voltage U out

according to

EN 60950 and EN 50178

Class II (without protective conductor)

-

Yes; CB scheme

Yes cULus-listed (UL 508, CSA C22.2

No. 107.1), File E197259; cURusrecognized (UL 60950, CSA

C22.2 No. 60950), File E151273

ATEX EX II 3G Ex nA IIC T3

Class I Div. 2, Group A, B, C, D T4

GL, ABS

IP20

EN 55022 Class B

Not applicable

EN 61000-6-2

-20 ... +55 °C with natural convection

-40 ... +70 °C Transport and storage temperature range

Humidity class Climate class 3K3 according to

EN 60721, no condensation

Ordering data

Order No.

SIPLUS LOGO!Power 24 V 1.3 A

L

6AG1 931-1SH02-2AA0

(extended temperature range and medial exposure)

Input 100 ... 240 V AC

Output 24 V DC, 1.3 A

L: Subject to export regulations AL: 9I999 and ECCN: N

Mechanics

Connections

• Supply input L, N, PE

DC input: L+1, M1, PE

• Output +

• Output -

Dimensions (W x H x D) in mm

Weight, approx.

Installation

Accessories

One solid/finely-stranded screwtype terminal each (L, N) for

0.5 mm ... 2.5 mm

2

2 screw-type terminals for

0.5 ... 2.5 mm

2

2 screw-type terminals for

0.5 ... 2.5 mm

2

54 x 90 x 55

Approx. 0.17 kg

Can be snapped onto standard mounting rail EN 60715 35x7.5/15

-

2/34

Siemens ST 70 · 2011

Overview

• Switching module for the direct switching of resistive loads and motors

LOGO! logic module

LOGO!Contact

LOGO!Contact

Technical specifications

6ED1 057-4CA00-

0AA0

Dimensions and weight

Weight

• Weight, approx.

160 g

Ordering data

LOGO!Contact

Switching module for direct switching of resistive loads up to

20 A and motors up to 4 kW

Switching voltage 24 V

Switching voltage 230 V

Order No.

6ED1 057-4EA00-

0AA0

160 g

6ED1 057-4CA00-0AA0

6ED1 057-4EA00-0AA0

2

Siemens ST 70 · 2011

2/35

2

LOGO! logic module

LOGO! software

LOGO! software

Overview

Ordering data

LOGO!Soft Comfort V6.0

For programming on the PC in

LAD/FBD; executes under Windows 98 SE and higher, Linux, MAC OSX; on CD-ROM

LOGO!Soft Comfort V6.0 upgrade

Upgrade from V1.0 to V6.0

J

J

Order No.

6ED1 058-0BA02-0YA0

6ED1 058-0CA02-0YE0

J: Subject to export regulations AL: N and ECCN: EAR99S

• The user-friendly software for creating control programs on a

PC

• Creation of control programs in Function Block Diagram (FBD) or Ladder Diagram (LAD)

• Plus testing, simulation, online testing and archiving of control programs

• Professional documentation via numerous comment and print functions

The connection between LOGO! and the PC is made using the

LOGO! PC cable (serial interface) or the LOGO! USB PC cable

(USB interface).

Minimum system requirements

Windows 98 SE, NT 4.0, ME, 2000, XP or Vista (not 64 bit)

• PC Pentium.

• 90 MB free disk capacity.

• 64 MB RAM.

• SVGA graphics card with minimum resolution 800x600

(256 colors).

Mac OS X

• PowerMac G3, G4, G4 Cube, IMac, PowerBook G3, G4 or iBook.

Linux (tested with Caldera OpenLinux 2.4)

• Runs on all Linux distributions on which the Java 2 SDK

Version 1.3.1 runs.

• Please refer to your relevant Linux distribution for the necessary hardware requirements.

2/36

Siemens ST 70 · 2011

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
